- VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
Product Features:
Corepipe:
- Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Copper baseplate:
- Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Airflow control:
- Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0:
- TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.

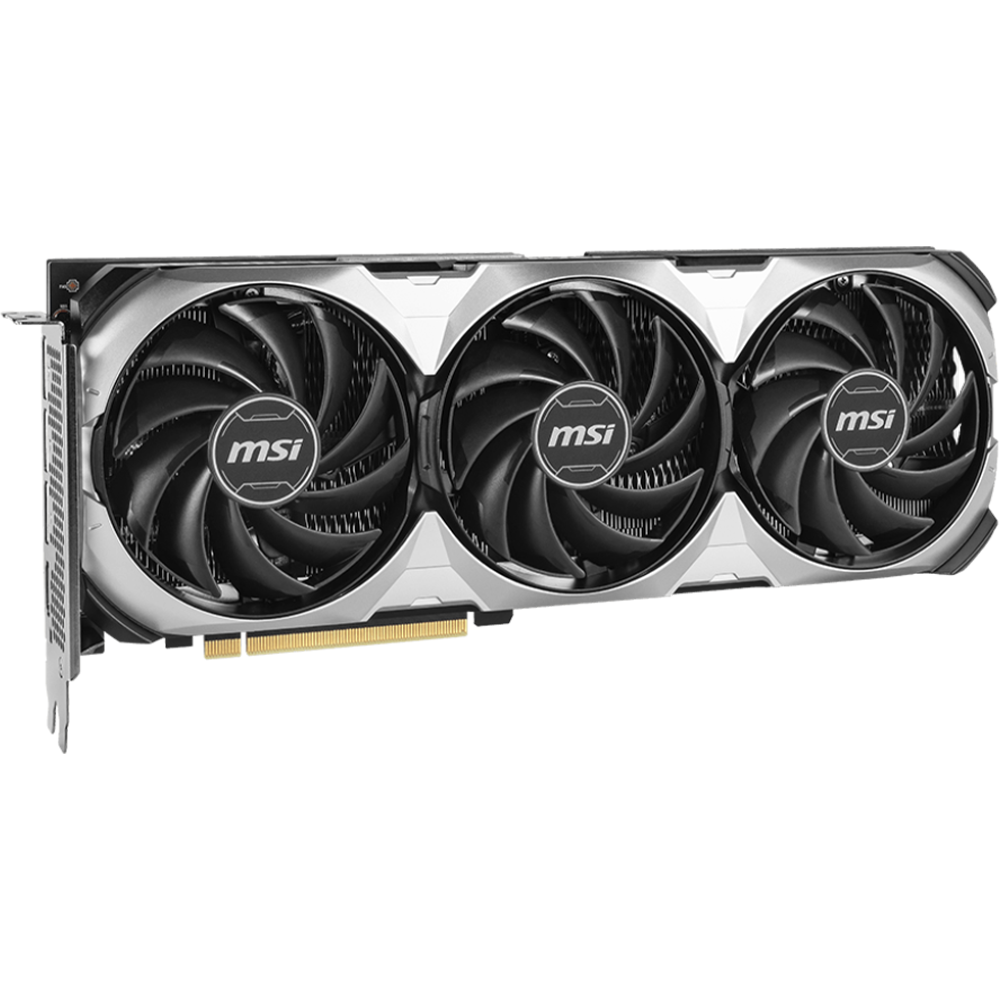

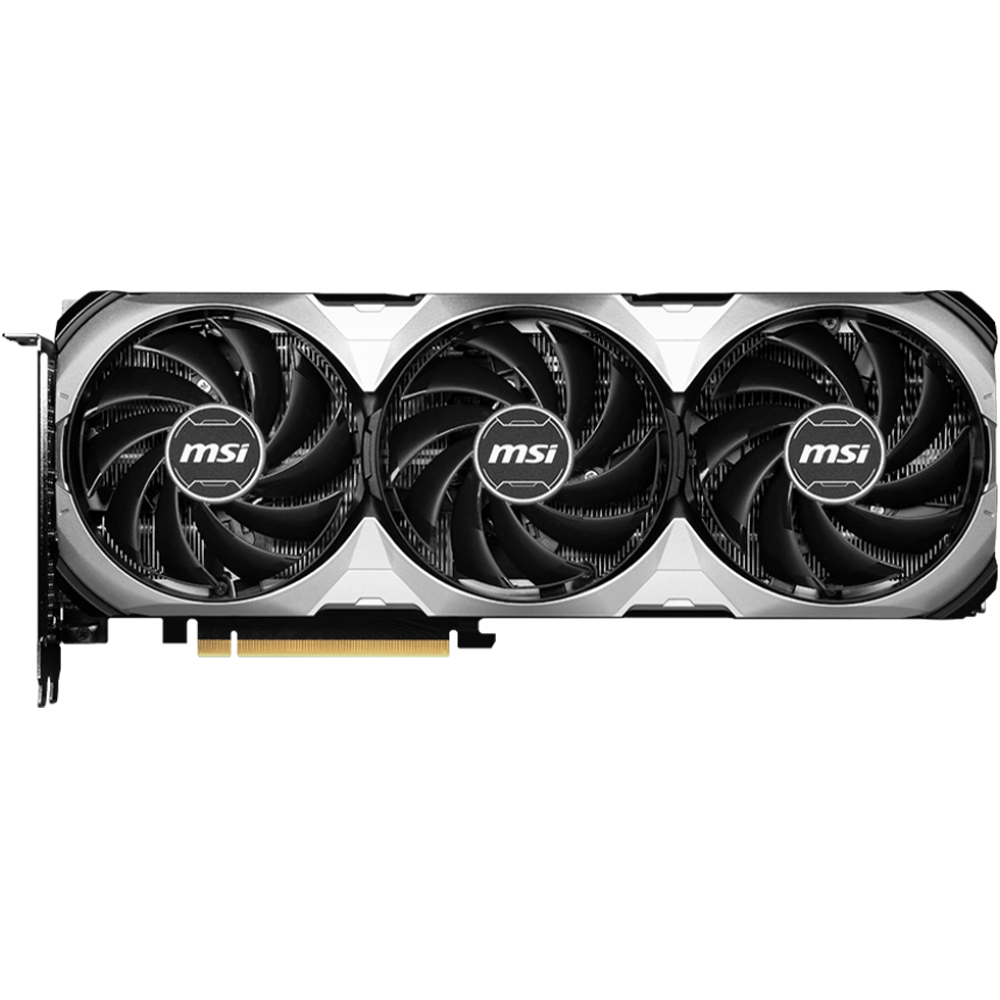

Triple Fan:
- Three fans and a huge heatsink ensure a cool and quiet experience for you.

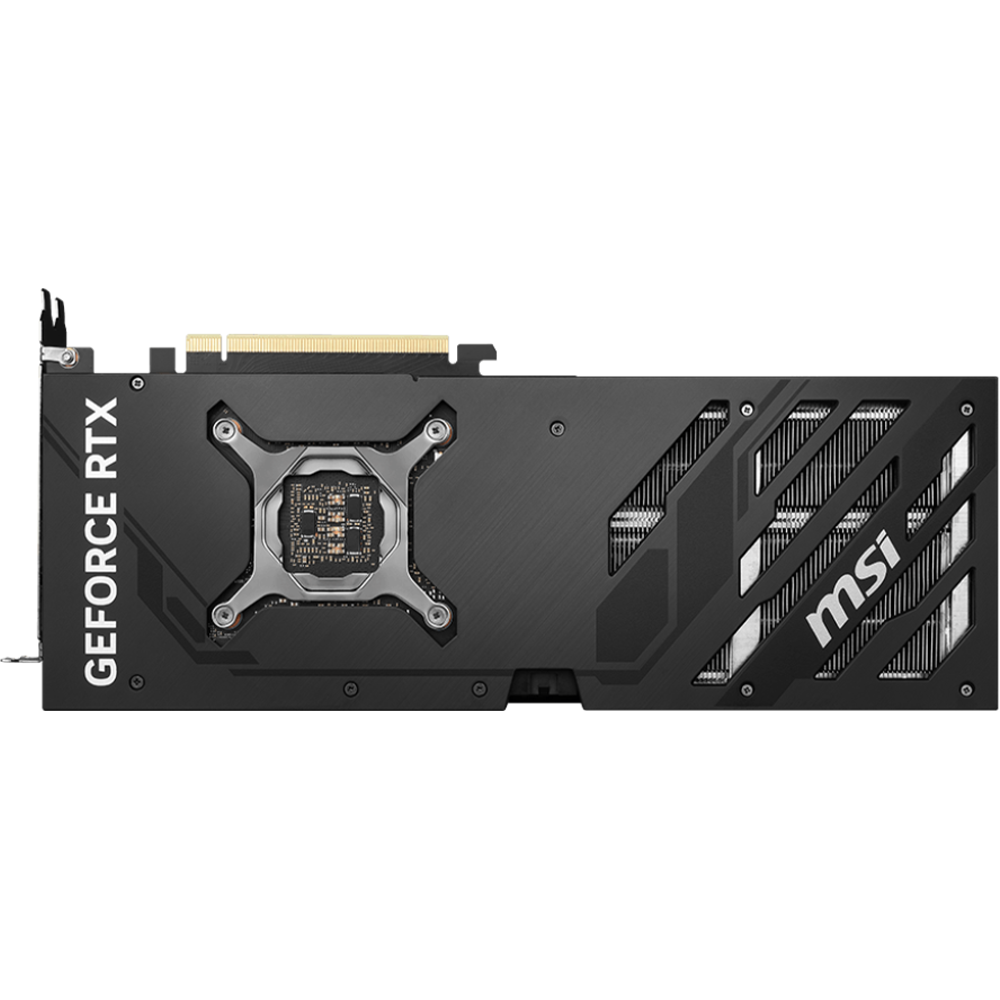

Reinforcing Backplate:
- The reinforcing backplate features a flow-through design that provides additional ventilation.
Product Details:
- Model Name: GeForce RTX 4070 VENTUS 3X E1 12G OC
- Graphics Processing Unit: NVIDIA GeForce RTX 4070
Core Clocks:
- Extreme Performance: 2520 MHz (MSI Center)
- Boost: 2505 MHz
- CUDA CORES: 5888 Units
- Memory Speed: 20 Gbps
- Memory: 12GB GDDR6
- Memory Bus: 192-bit
Output:

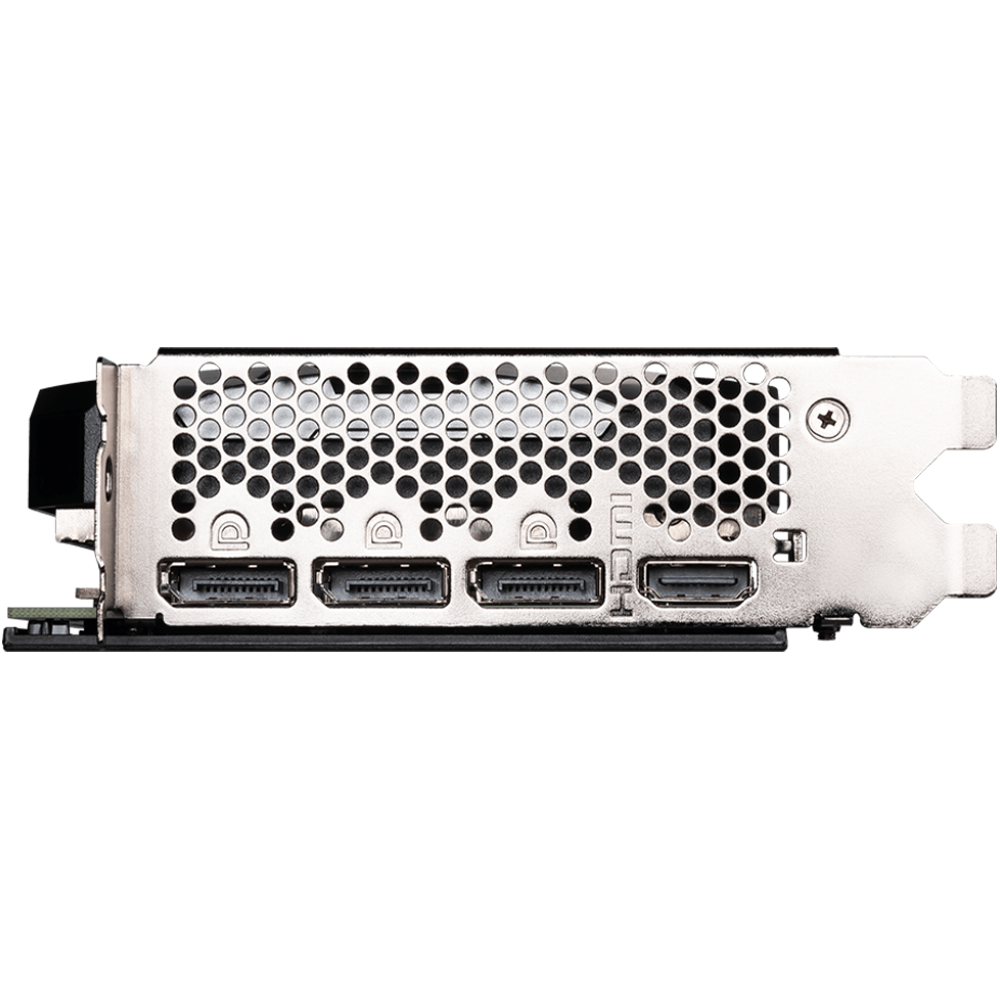

- 3 × DisplayPort (v1.4a)
- 1 × HDMI (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
- Power consumption: 200 W
- Power connectors: 1 × 8-pin
- Recommended PSU: 650 W
- Card Dimension (mm): 308 x 120 x 43 mm
- Weight: 822 g
- Part Number: 912-V512-027
