CPU
- Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR5
- 2 x DIMM, Max. 96GB, DDR5
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 3.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 3.0 x4
Ethernet :
- 1 x 1Gb Ethernet
- Realtek RTL8111H
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

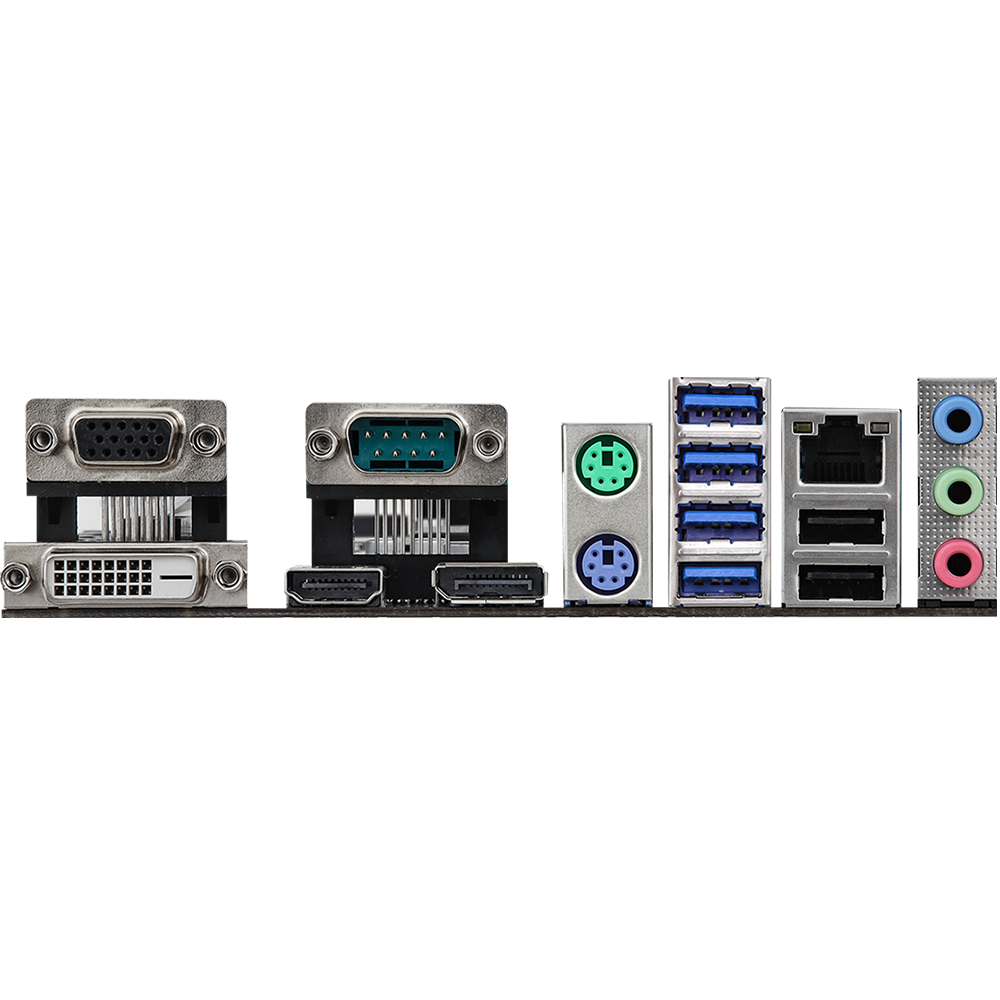

Back Panel I/O Ports
- 1 x PS/2 Keyboard Port
- 1 x PS/2 Mouse Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 1 x Screw for M.2 Sockets
Form Factor :
- micro-ATX ( 24.3 cm x 19.8 cm )
Part Number:
- 90-MXBIF0-A0UAYZ
