Product Details :

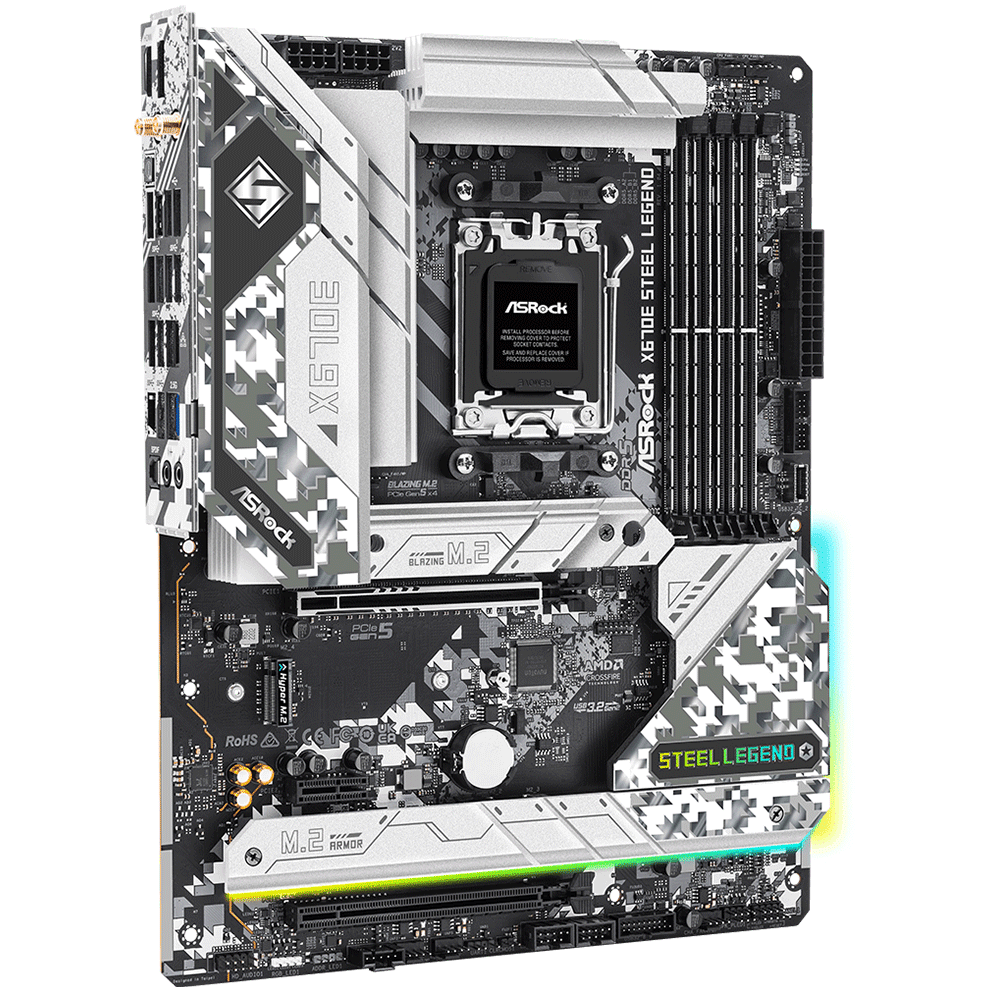

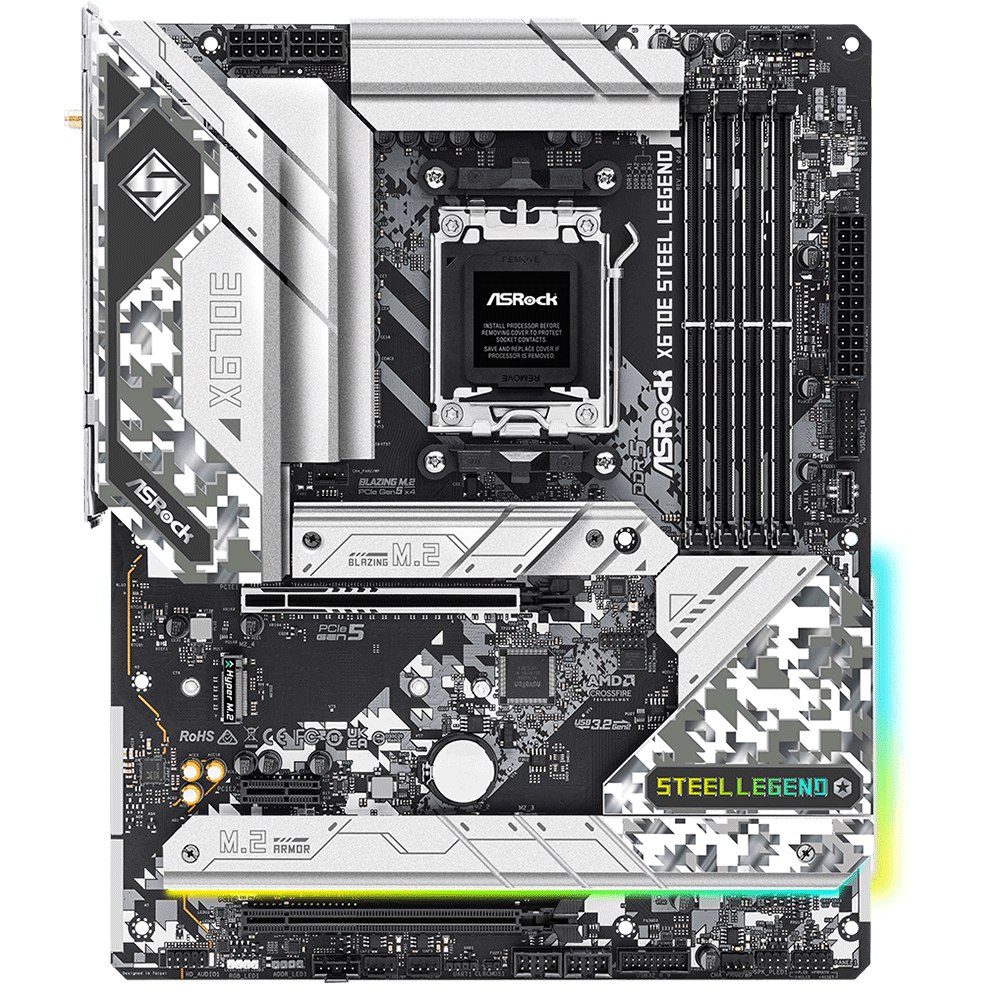

- Model : X670E Steel Legend
- CPU Socket : AM5
- CPU Type : Supports AMD Ryzen 7000 Series Desktop Processors
- Motherboard Form Factor : ATX (30.5 × 24.4 cm)
- Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Support XMP
Expansion slots:
- 1x PCIe 5.0 x16 Slot
- 1x PCIe 3.0 x16 Slot
- 1x PCIe 3.0 x1 Slot
Storage :
- 4x SATA 3
- 1x Blazing M.2 (Gen5x 4)
- 3x Hyper M.2 (PCIe Gen4 x4)
Audio :
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
LAN :
- 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Wireless LAN
- Wi-Fi 6E Module
- Supports Bluetooth 5.2
Rear Panel I/O :
- 2 x Antenna Ports
- 1 x HDMI port
- 1x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1x USB 3.2 Gen2 Type-A (10Gb/s)
- 6x USB 3.2 Gen1 ports
- 4x USB 2.0 Ports
- 2x RJ-45 LAN ports
- 1x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
I/O Internal Connectors :
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Accessories :
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- 1x Graphics Card Holder
Part Number:
- 90-MXBJ40-A0UAYZ
