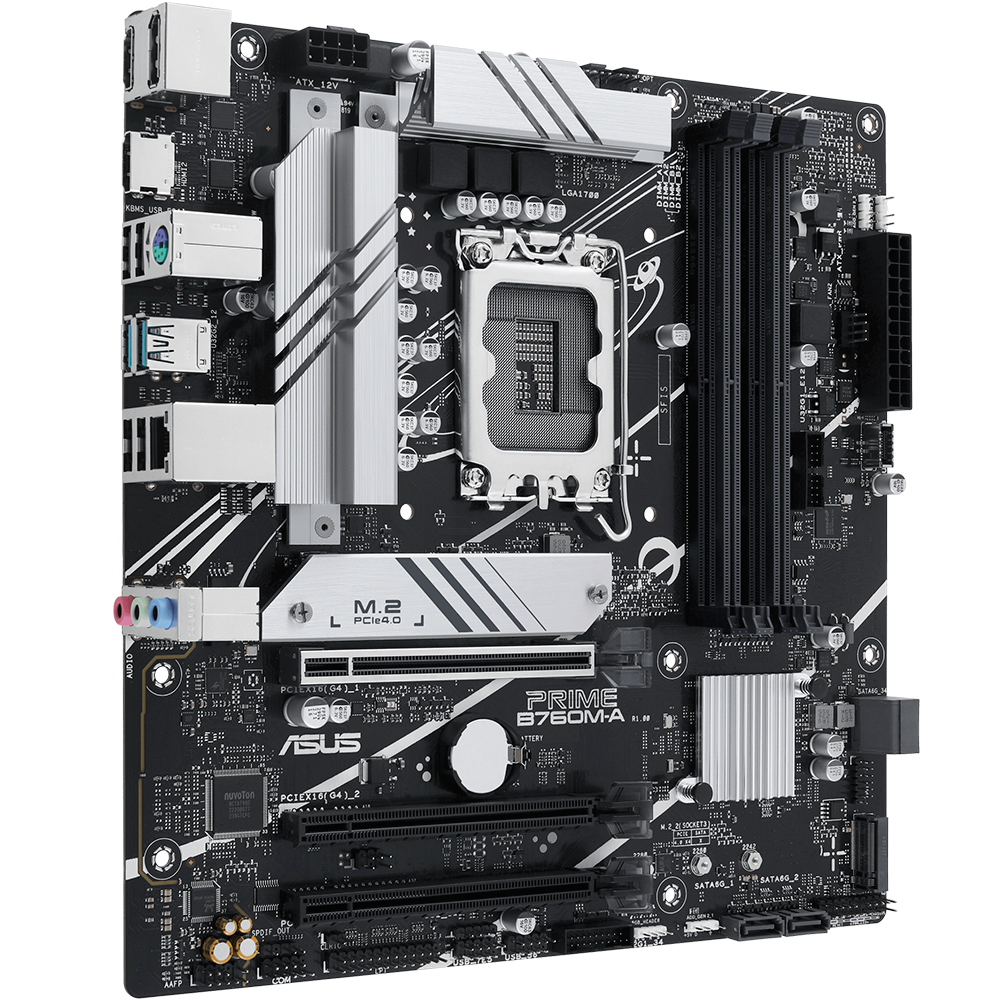

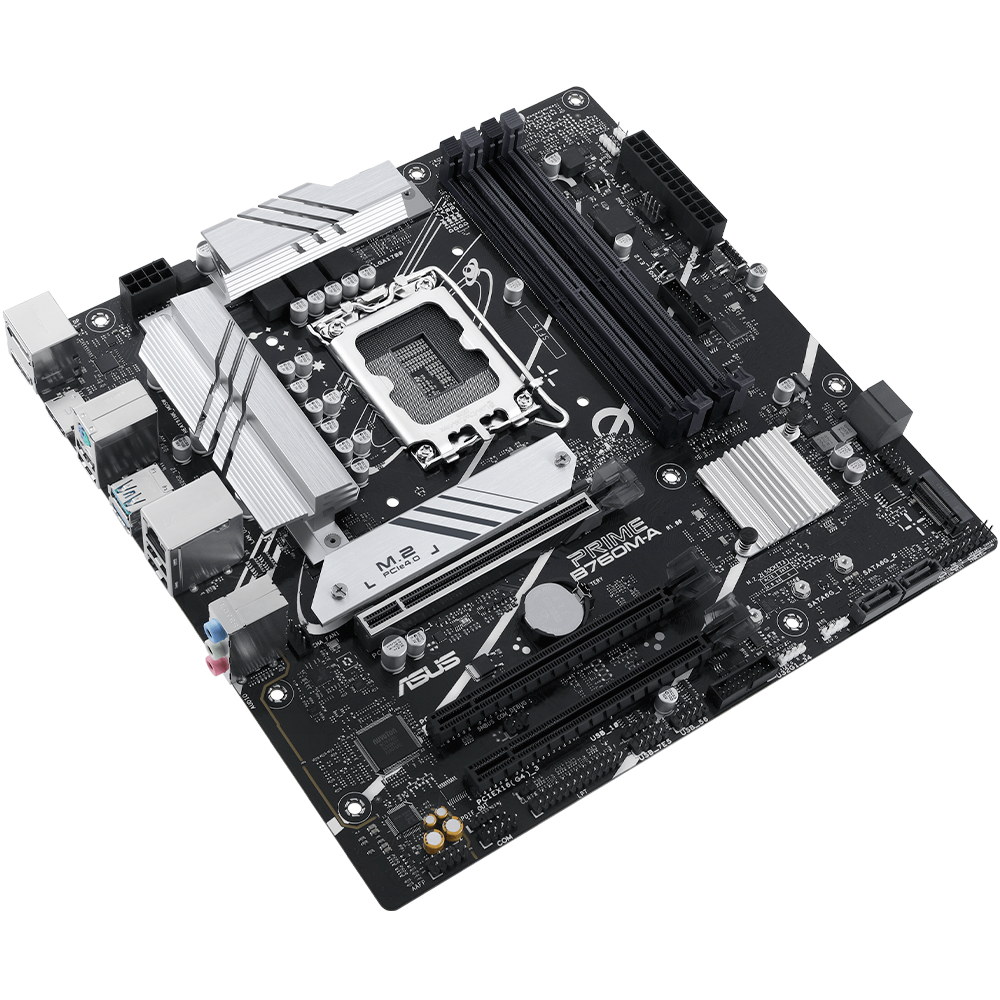

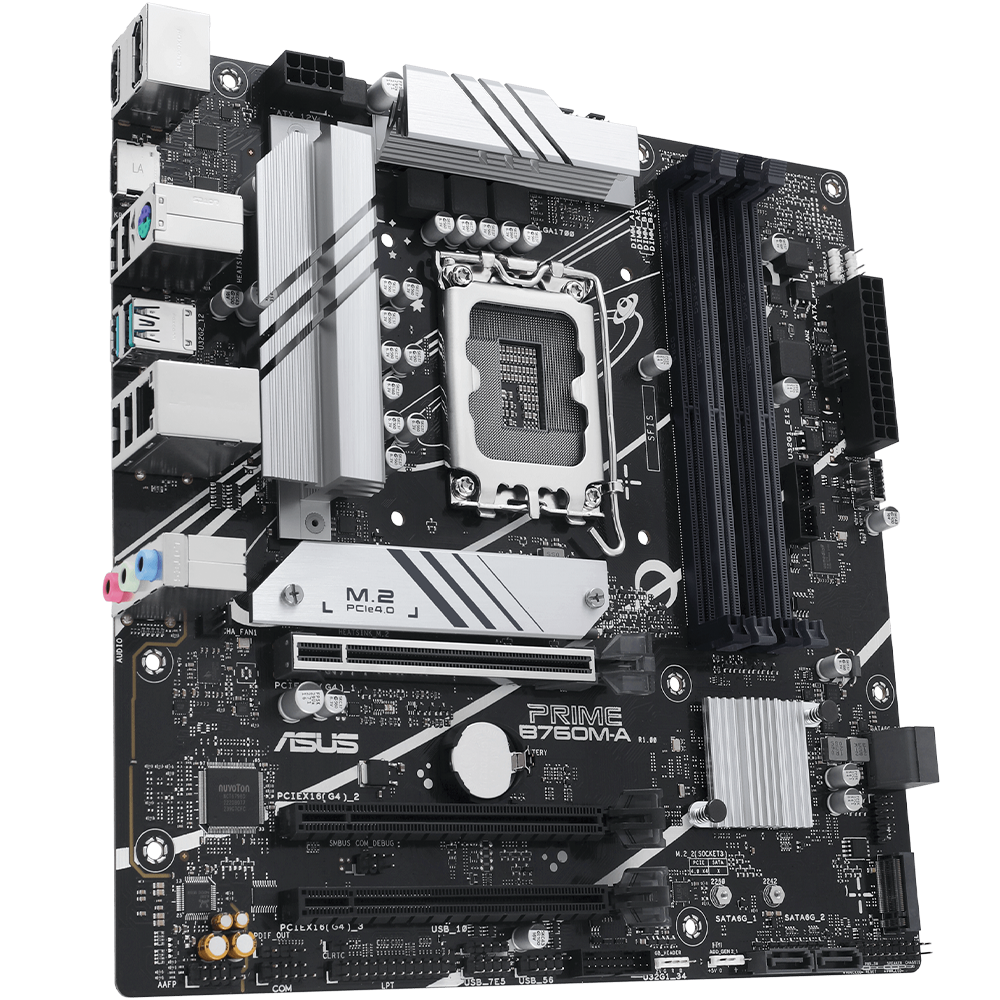

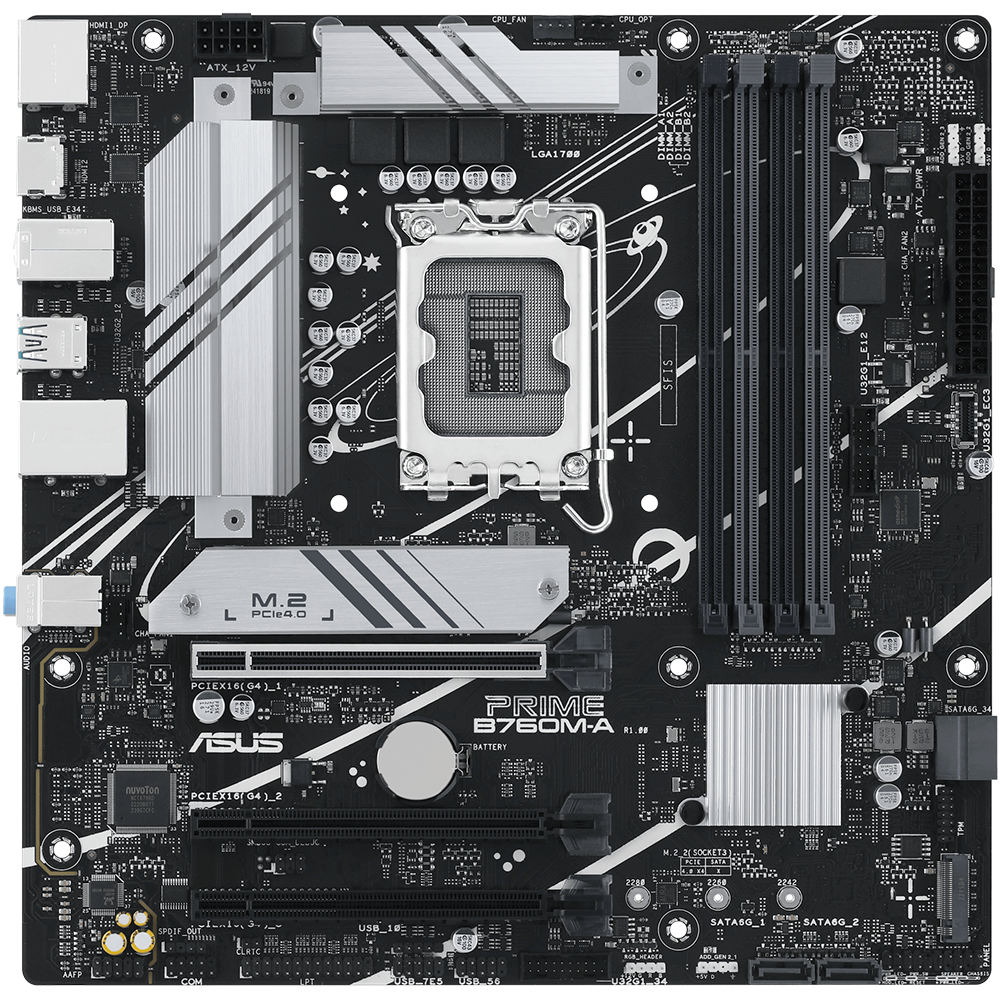

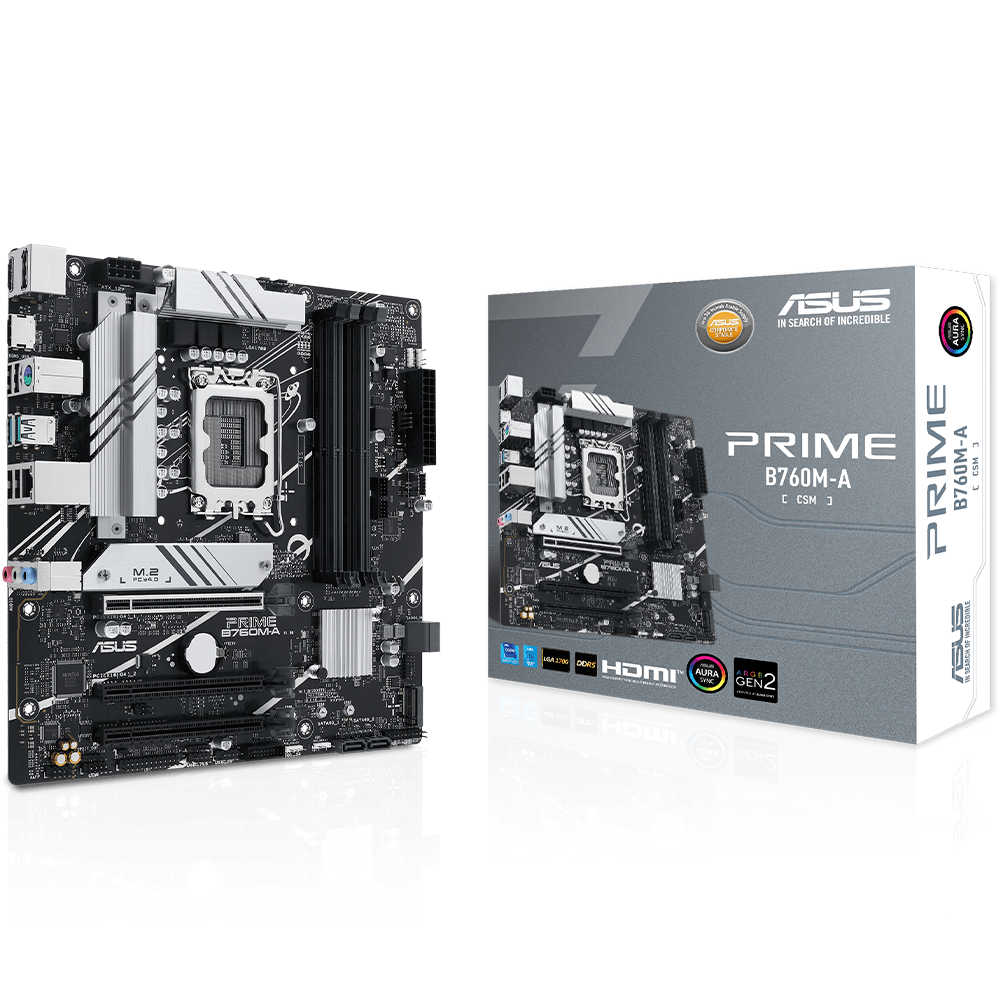

- Intel B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
CPU
- Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR5
- 4 x DIMM, Max. 128GB, DDR5
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem II
Expansion Slots
- 3 x PCIe 4.0 x16 slots
Storage :
- 4 x SATA 6Gb/s
- 2 x M.2 PCIe 4.0 x4 slots
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
USB
- Rear USB (Total 6 ports)
- 2x USB 3.2 Gen 2 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- Front USB: Total 10 ports
- 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

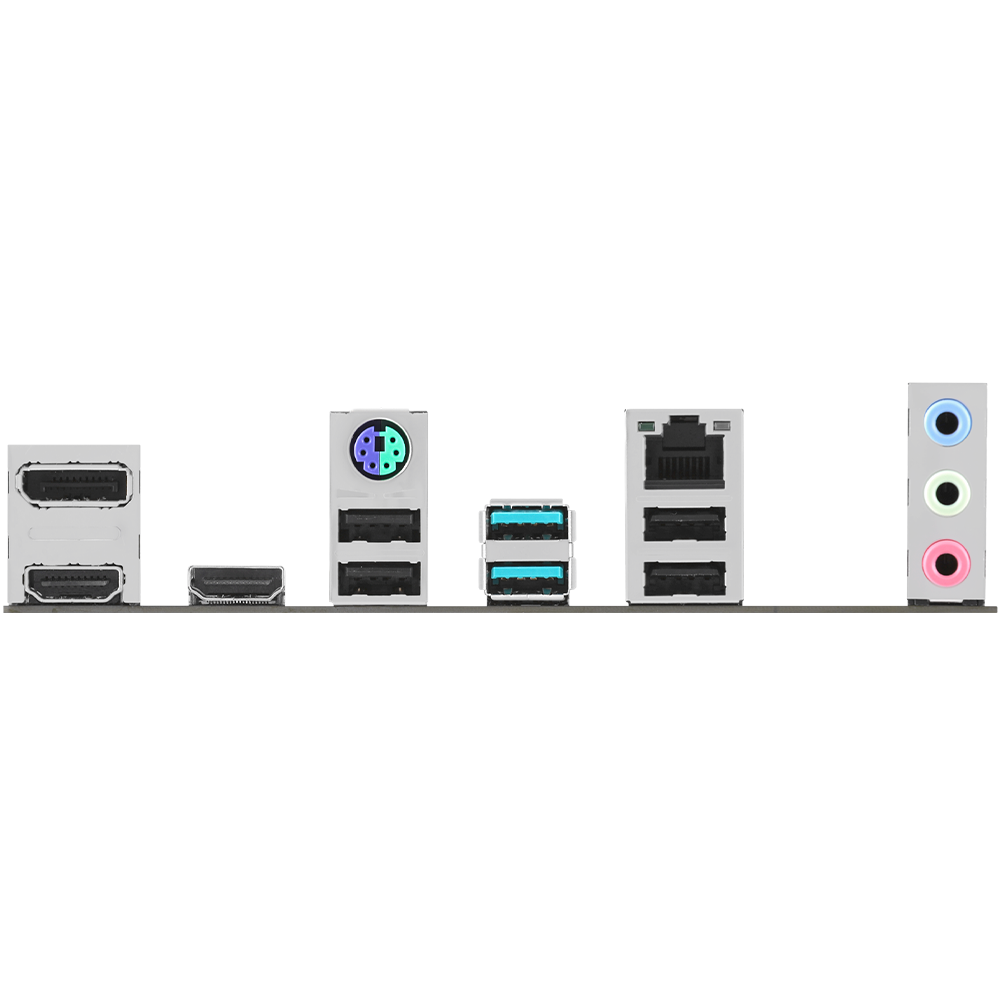

Back Panel I/O Ports
- 2x USB 3.2 Gen 2 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 2 x HDMI ports
- 1 x Realtek 2.5Gb Ethernet Port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Accessories
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Packages
- 1 x Screw package for M.2 SSD
- 1 x ACC Express Activation Key Card
- 1 x User guide
Form Factor :
- micro-ATX ( 24.4 cm x 24.4 cm )
Part Number:
- 90MB1EK0-M1EAYC
