Product Details :

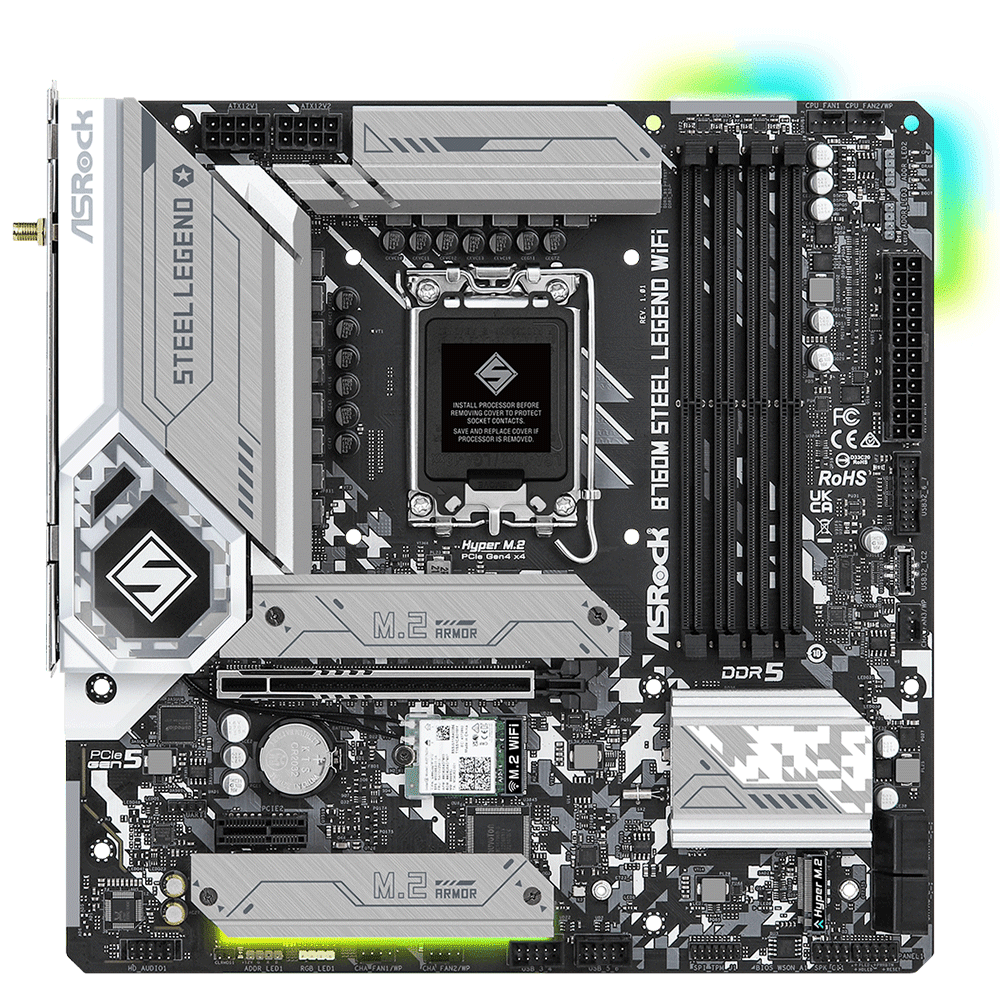

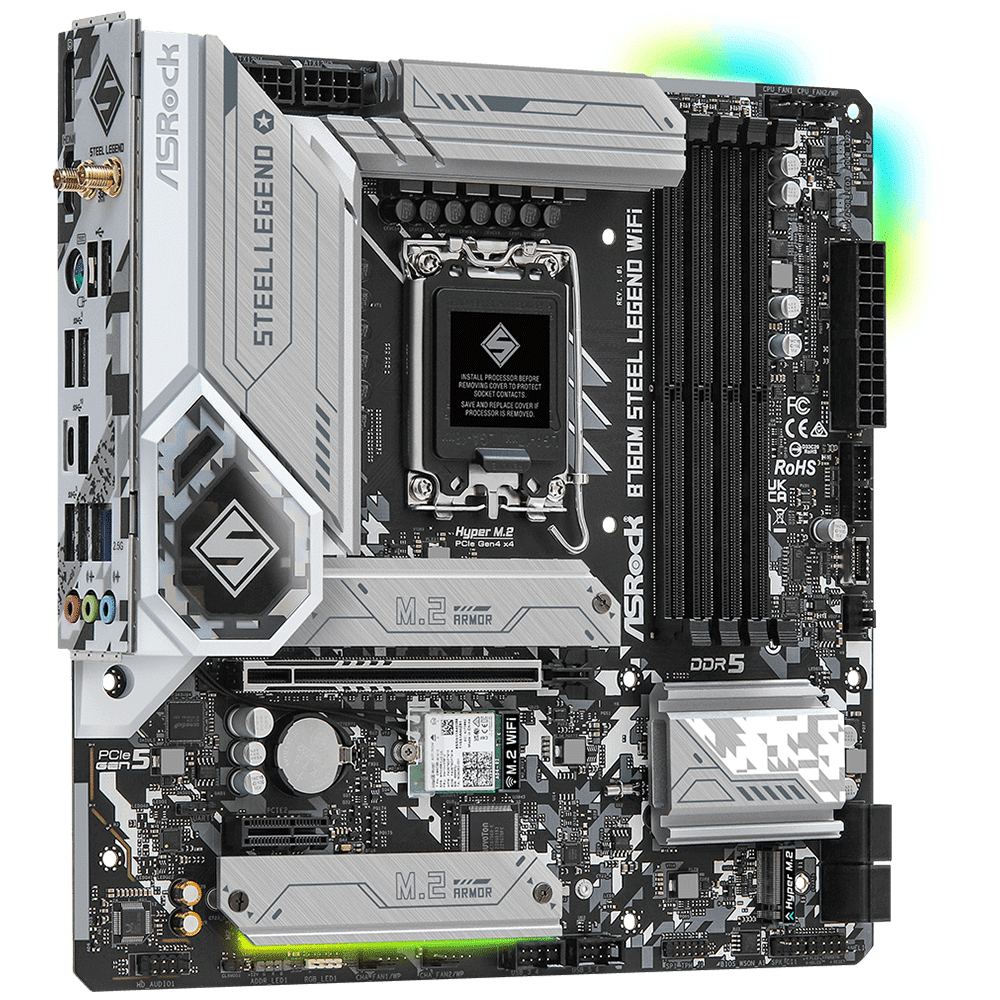

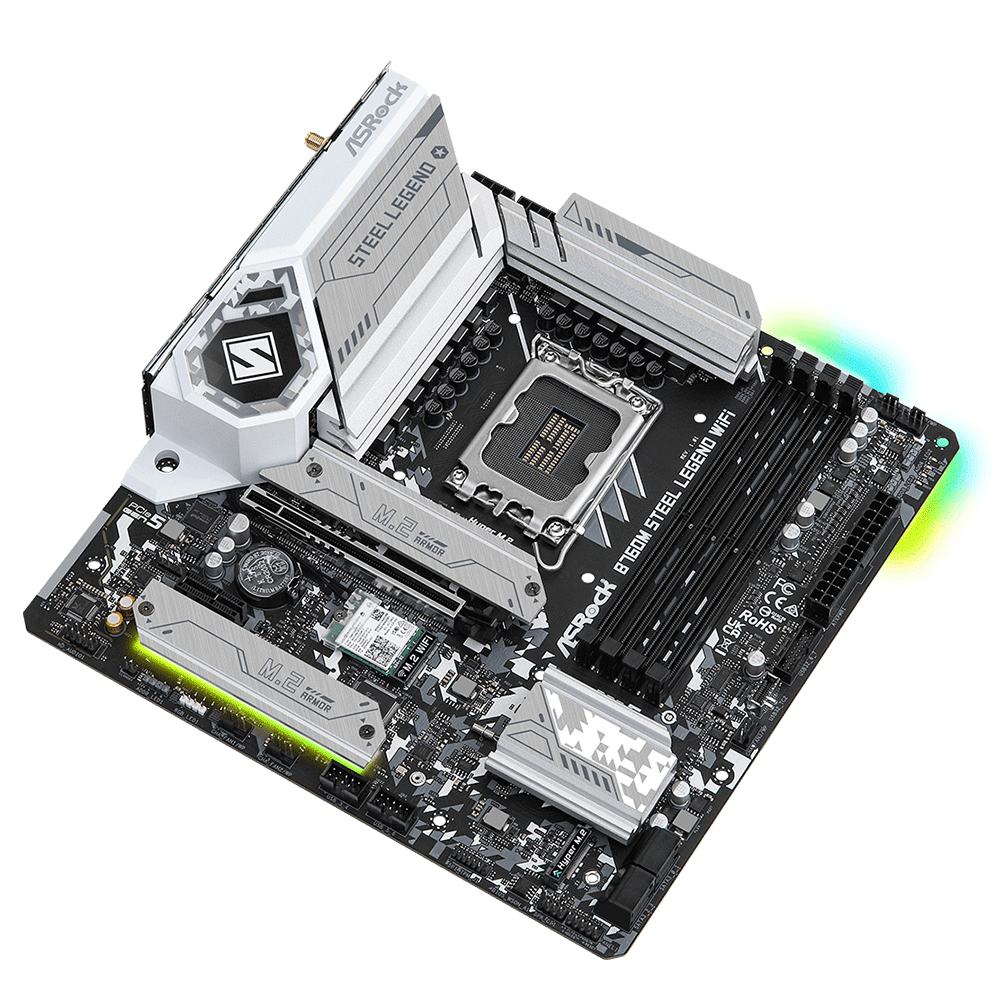

- Model : B760M Steel Legend WiFi
- CPU Socket : LGA1700
- CPU Type : Supports 14th, 13th Gen & 12th Gen Intel Core Processors
- Motherboard Form Factor : Micro-ATX (24.4 × 24.4 cm)
- Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Support XMP 3.0
Expansion slots:
- 1x PCIe 5. x16 Slots
- 1x PCIe 4.0 x1 Slot
Storage :
- 4x SATA 3
- 3x Hyper M.2 (PCIe Gen4 x4)
Audio :
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN :
- 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Wireless LAN
- Wi-Fi 6E Module
- Supports Bluetooth 5.3

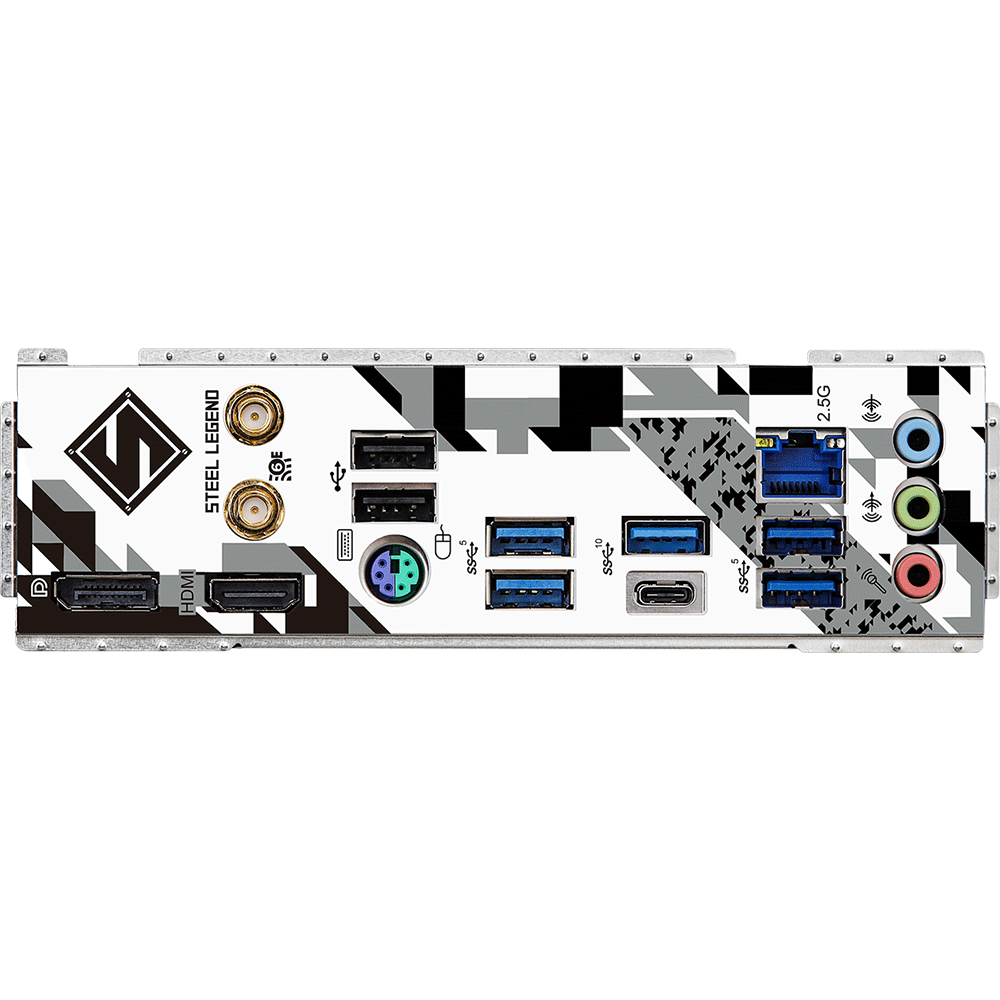

Rear Panel I/O :
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A (10Gb/s)
- 1 x USB 3.2 Gen2 Type-C (10Gb/s)
- 4 x USB 3.2 Gen1 ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN ports
- HD Audio Jacks: Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
I/O Enternal Connector :
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 headers (support 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

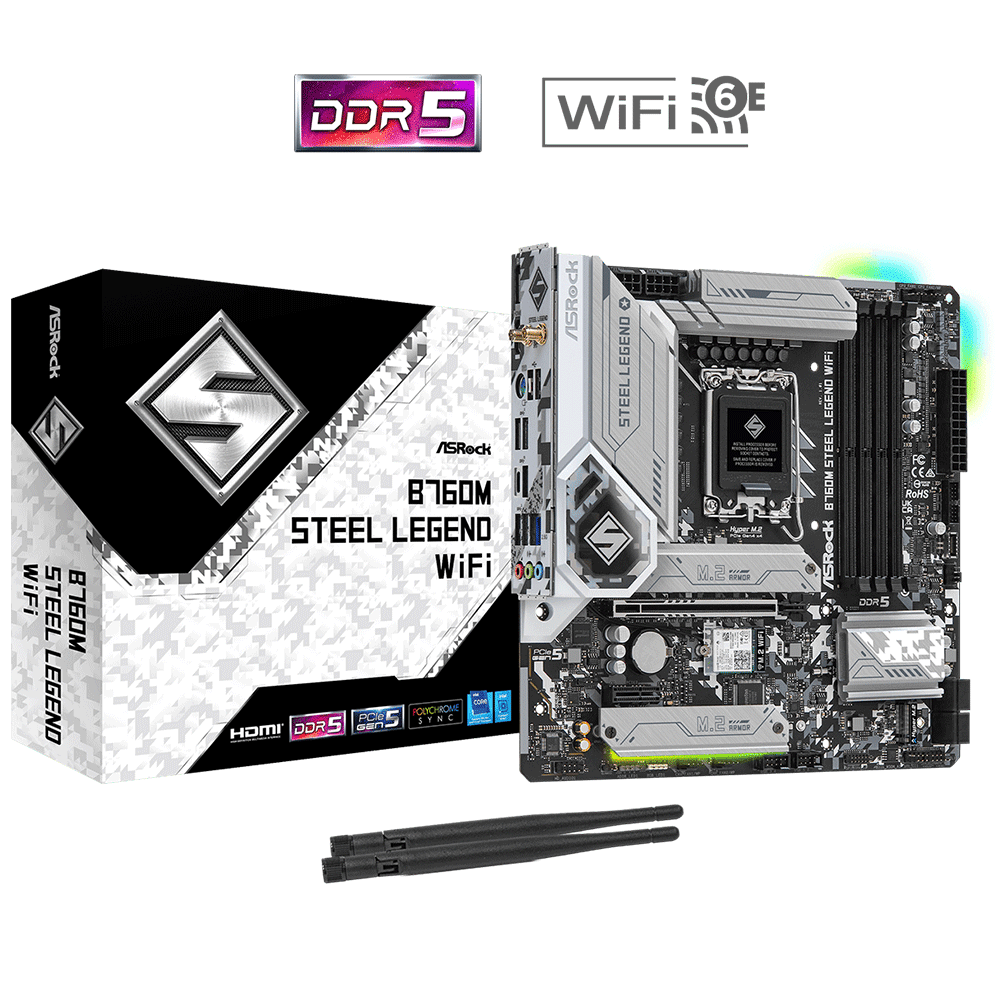

Accessories :
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 4 x Screws for M.2 Sockets
- 3 x Standoffs for M.2 Sockets
Part Number:
- 90-MXBL70-A0UAYZ
