- ASUS Dual Radeon RX 7800 XT OC Edition 16GB GDDR6 is armed to dish out frames and keep vitals in check
Product Features:
2x Fans. 2x Fun.
- Delivering the latest AMD RDNA 3 architecture experience in its purest form, the ASUS Dual Radeon RX 7800 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.
Axial-tech Fan Design:
- Better, faster, stronger
- Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology:
- Quiet intelligence
- An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.
Dual BIOS:
- Choose wisely
- Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.
Protective Backplate:
- That's so metal!

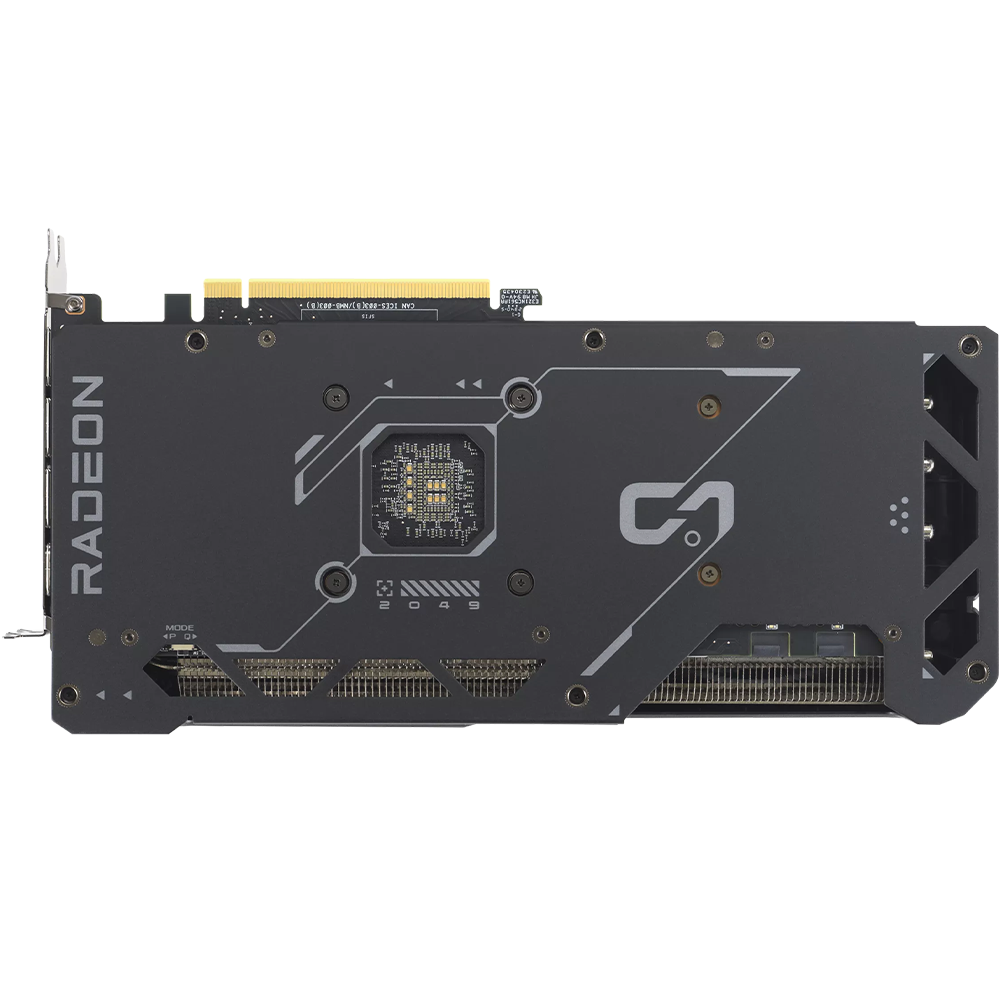

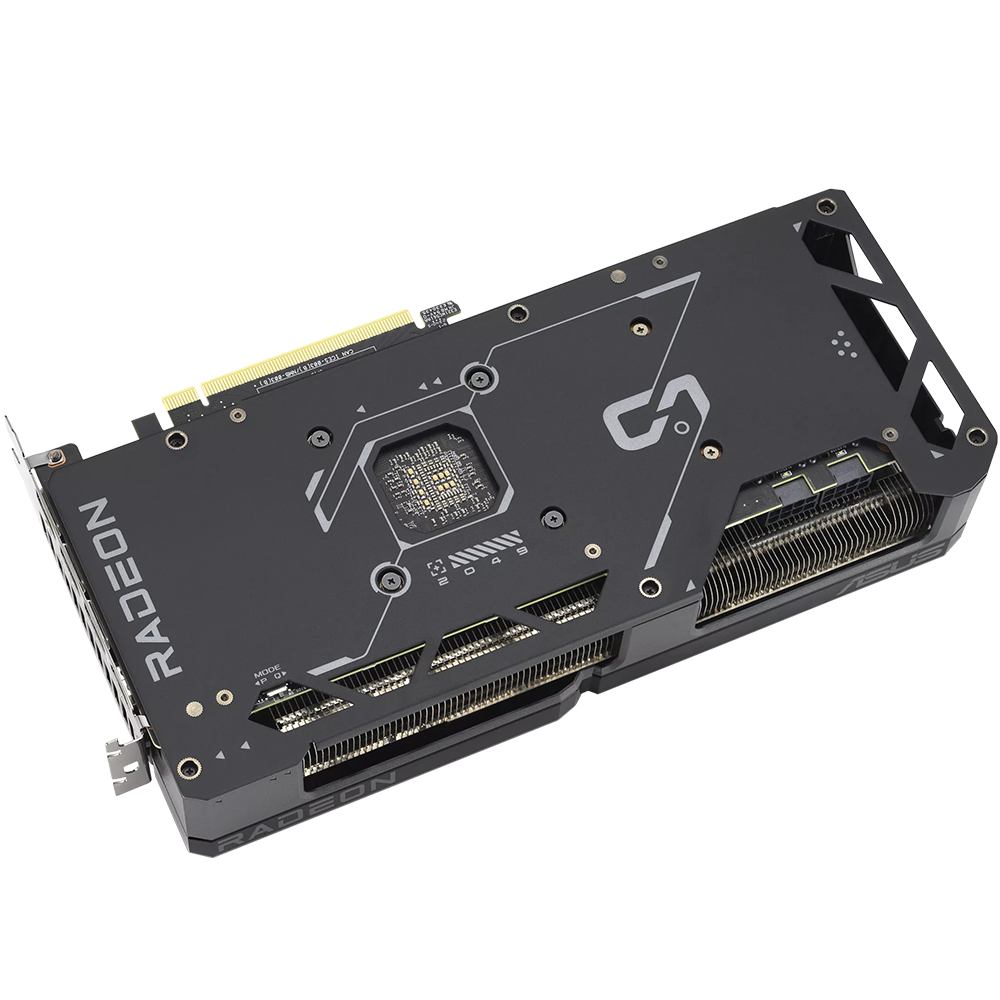

- The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
Stainless Steel Bracket:
- Steel yourself
- The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
GPU Tweak III:
- software provides intuitive performance tweaking, thermal controls, and system monitoring
Product Details:
- Model: DUAL-RX7800XT-O16G
- Graphic Engine: AMD Radeon RX 7800 XT
- Video Memory: 16GB GDDR6
Engine Clock:
- OC mode: up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock)
- Default mode : up to 2475 MHz (Boost Clock)/up to 2169 MHz (Game Clock)
- Stream Processors: 3840
- Memory Speed: 19.5 Gbps
- Memory Interface: 256-bit
Interface:
- 1 × HDMI 2.1
- 3 × DisplayPort 2.1
- HDCP Support Yes (2.3)
- Maximum Display Support: 4
- Dimensions: 279.9 x 133.9 x 49.3 mm
- Recommended PSU: 750W
- Power Connectors: 2 x 8-pin
- Slot: 2.47 slot
Part Number:
- 90YV0JJ1-M0NA00
