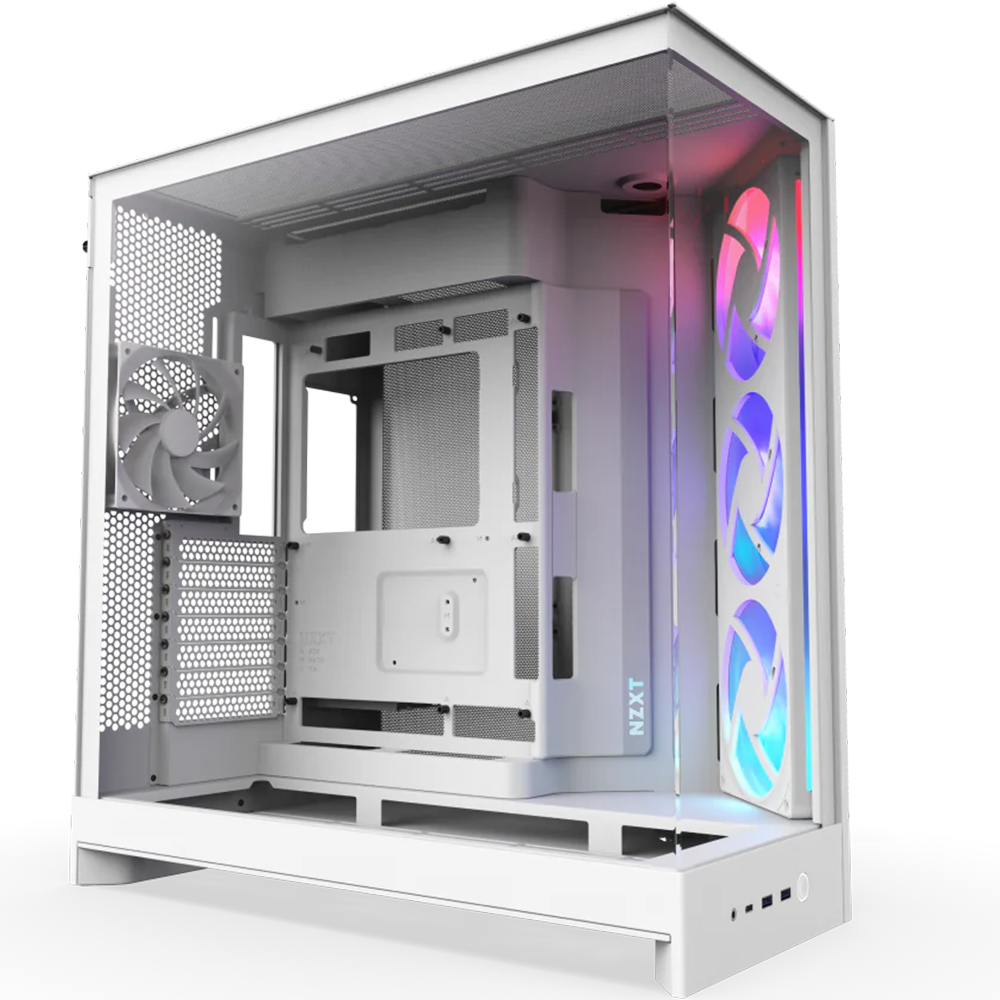

- The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
Product Features:

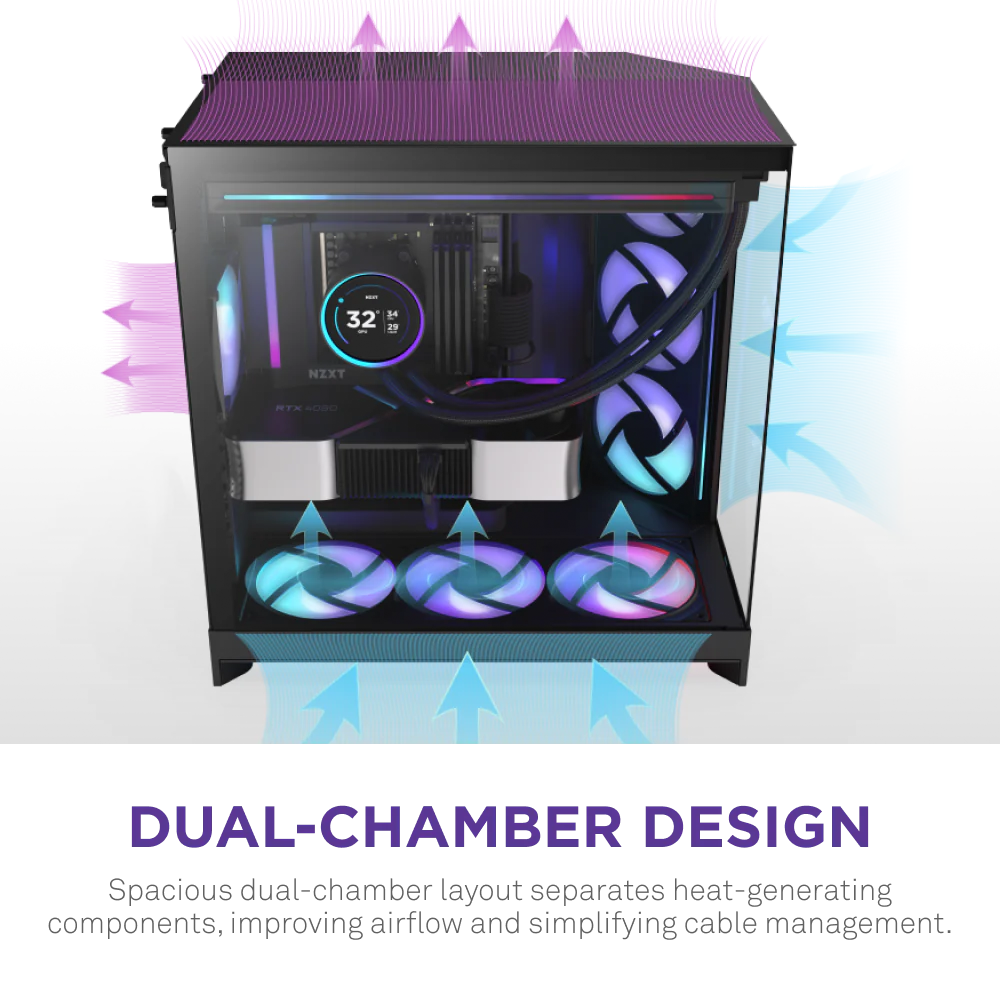

- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

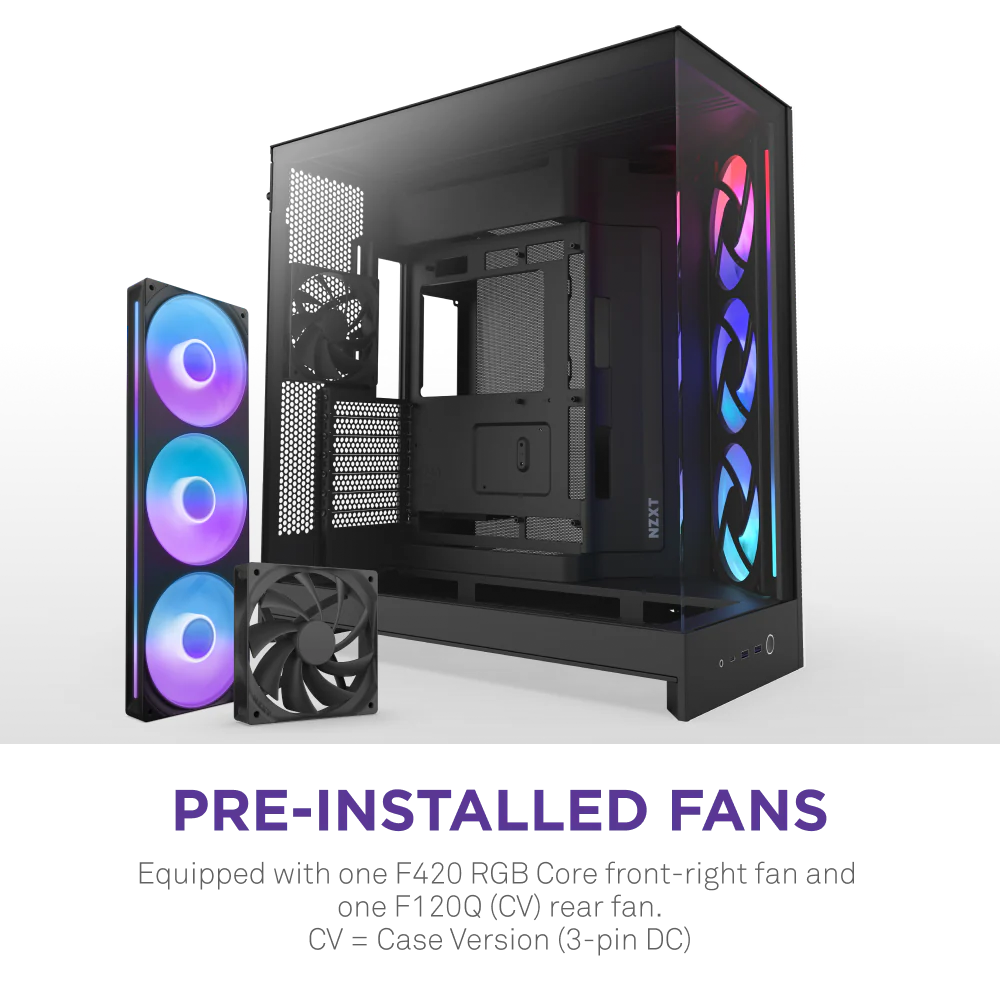

- Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

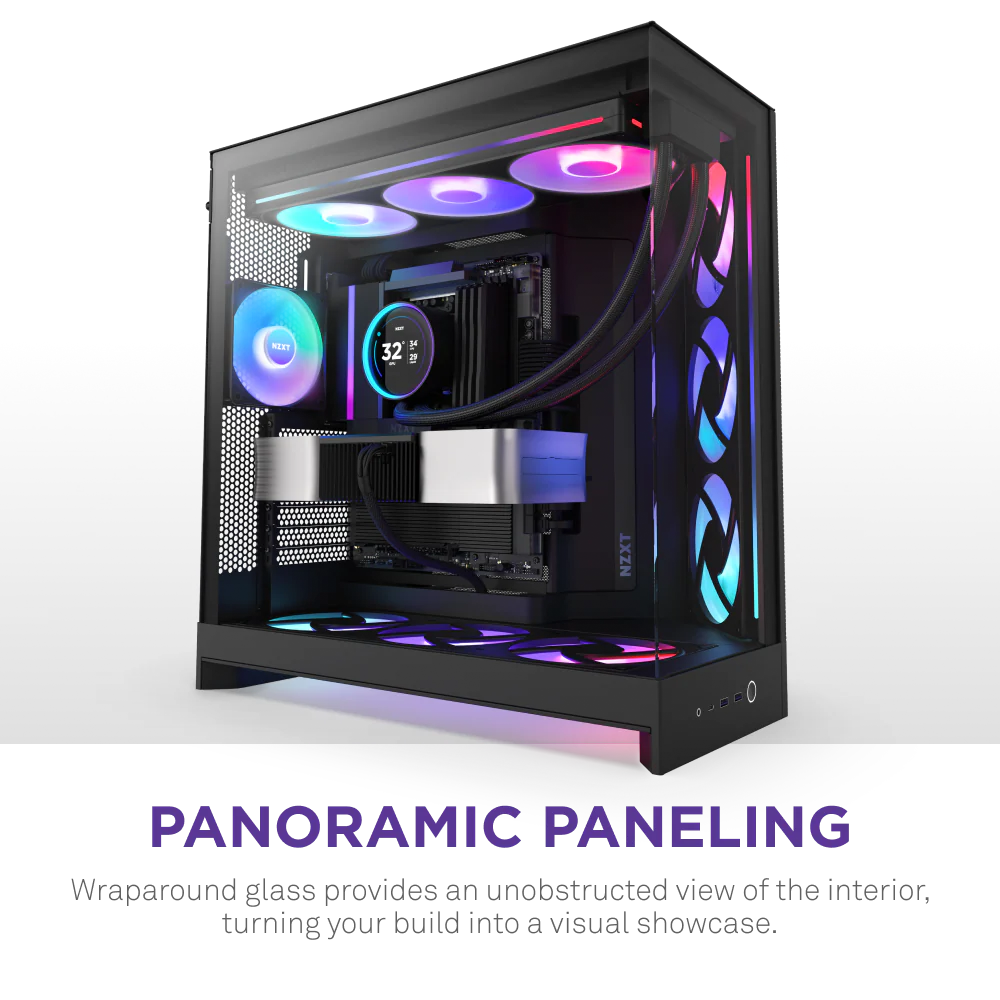

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.

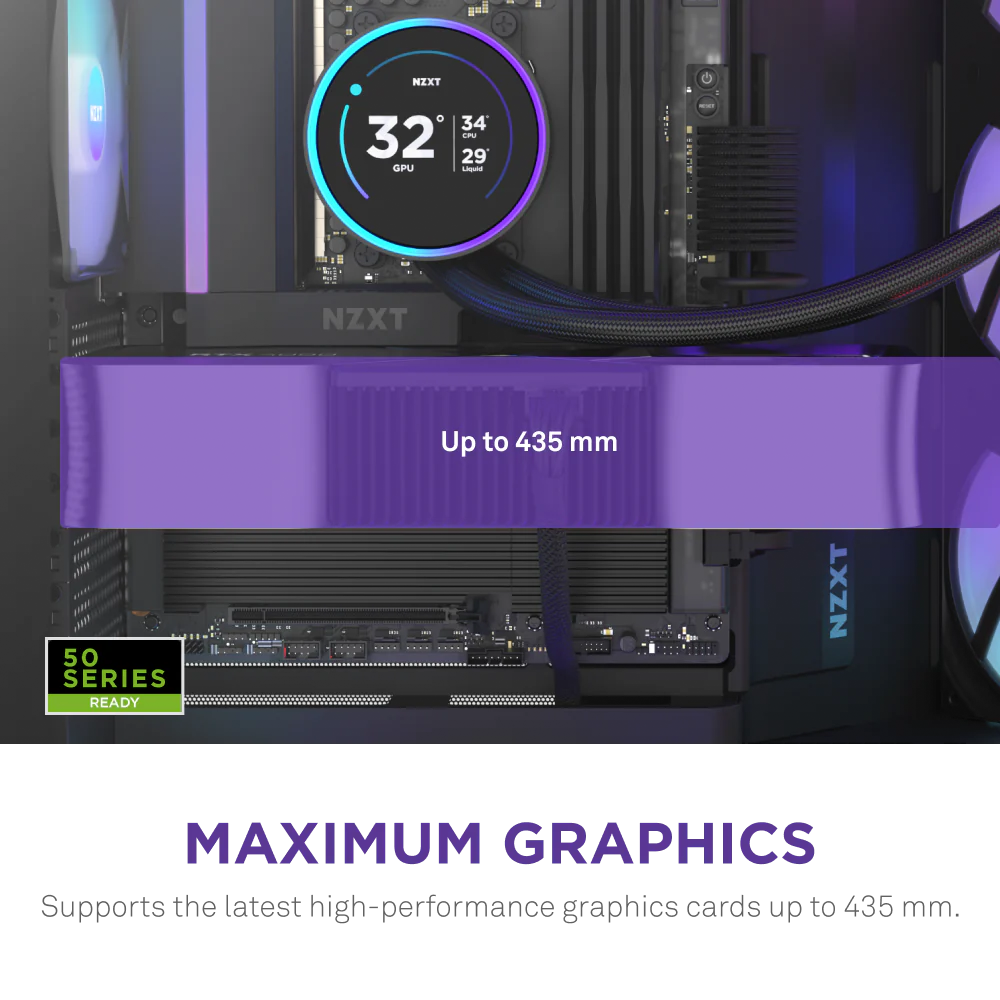

- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Product Details:
Dimensions:
- Height: 506 mm
- Width: 315 mm
- Depth: 481 mm
- Volume: 76.7 L
- Weight: 12.6 kg
General:
- Enclosure Type: Mid-tower
- Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
- Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX, Micro-ATX)
Clearance:
- CPU Cooler Height: 165 mm
- GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
- PSU Length: 200 mm
- Top Radiator & Fan Thickness: Up to 80 mm (360 mm) Up to 62 mm (420 mm)
Front I/O Ports:
- USB 3.2 Type-A: 2
- USB 3.2 Gen2x2 Type-C: 1
- Headset Jack: 1
Expansion Slots:
- Standard: 7
- Vertical: 0
Drive Bays:
- 2.5": 4+2
- 3.5": 2

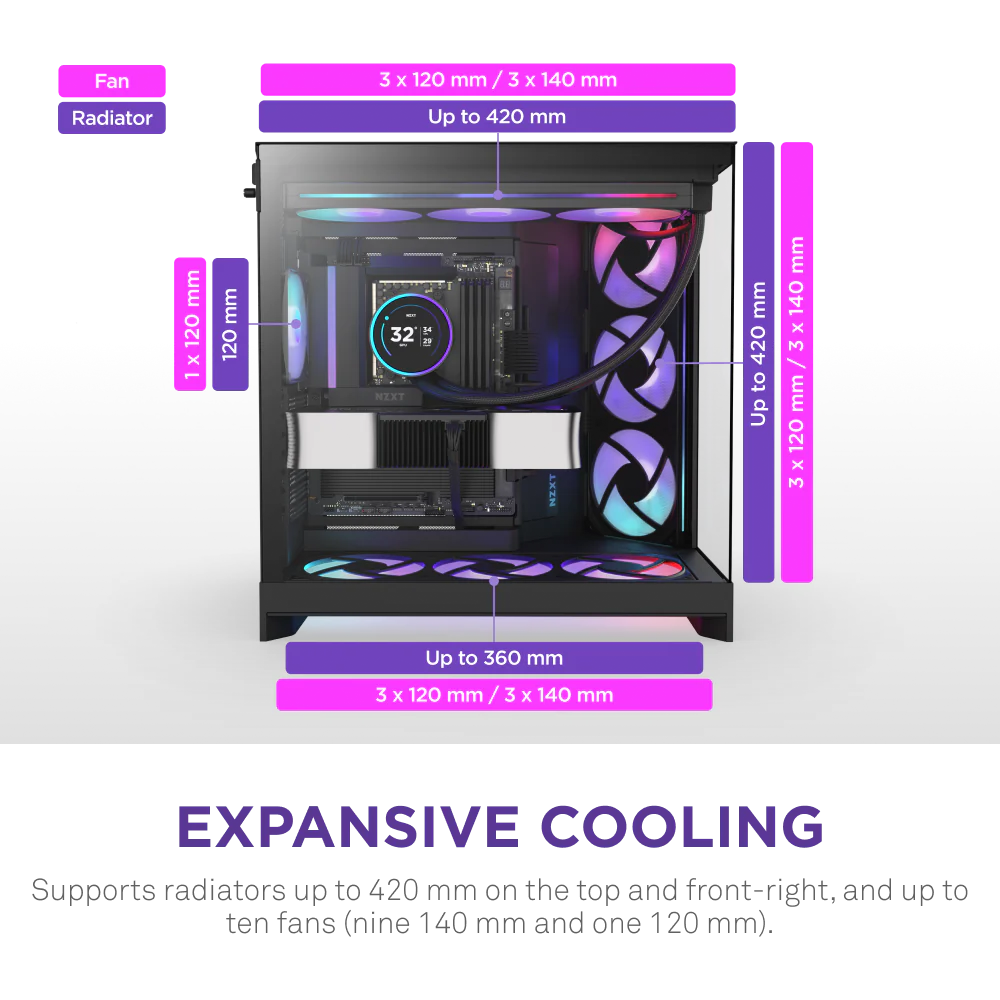

Fan Support:
- Front-Right: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
- Top: 3 x 120 mm / 3 x 140 mm
- Bottom: 3 x 120 mm / 3 x 140 mm
- Rear: 1 x 120 mm (1 x F120Q (CV) included)
Radiator Support:
- Front-Right: Up to 420 mm
- Top: Up to 420 mm
- Bottom: Up to 360 mm
- Rear: Up to 120 mm
Fan Specs - F420 RGB Core:
- Model: F420 RGB Core
- Speed: 2,000 ± 200 RPM
- Airflow: 98.61 CFM
- Static Pressure: 3.2 mmH2O
- Noise: 34.5 dBA
- Fan Connector: 8-pin w/ splitter
Fan Specs - F120Q (CV):
- Model: F120Q (CV)
- Speed: 1,350 ± 150 RPM
- Airflow: 60.2 CFM
- Static Pressure: 1.05 mmH2O
- Noise: 24.1 dBA
- Fan Connector: 3pin
Part Number:

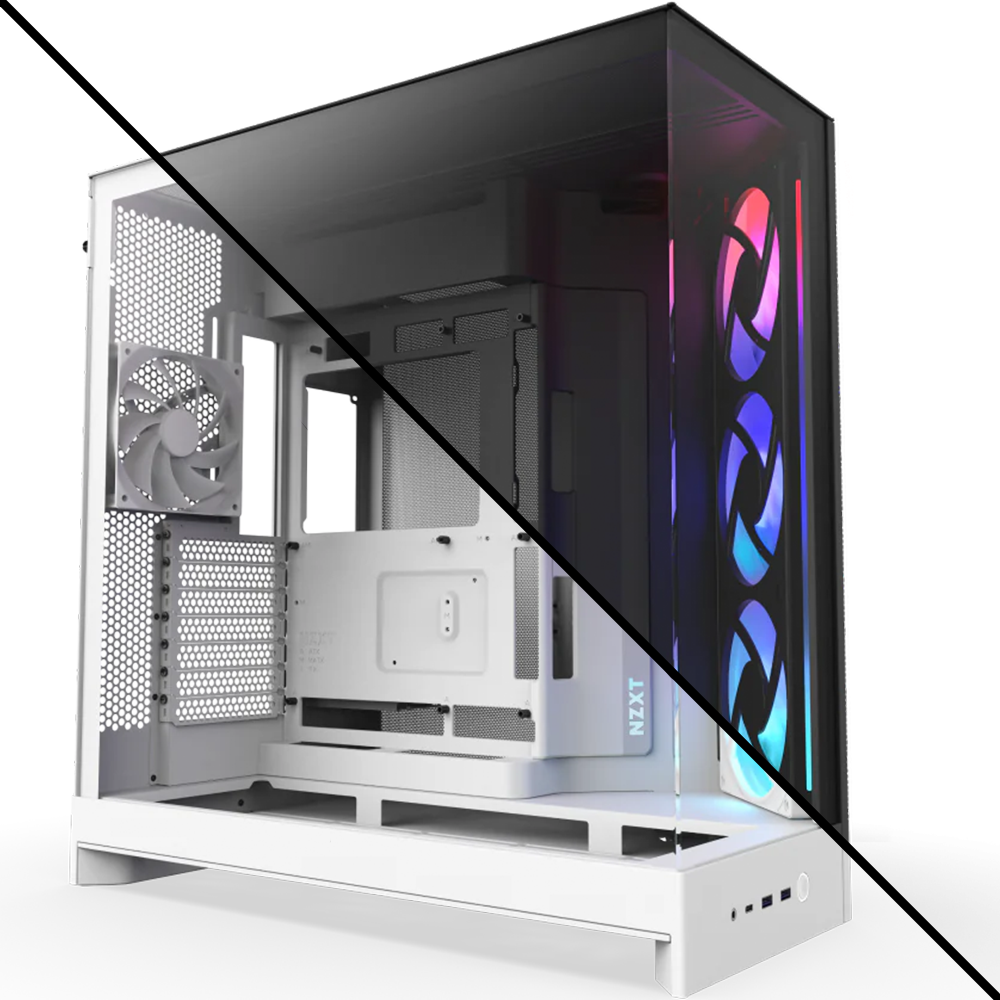

- Black: CM-H92FB-R1
- White: CM-H92FW-R1
