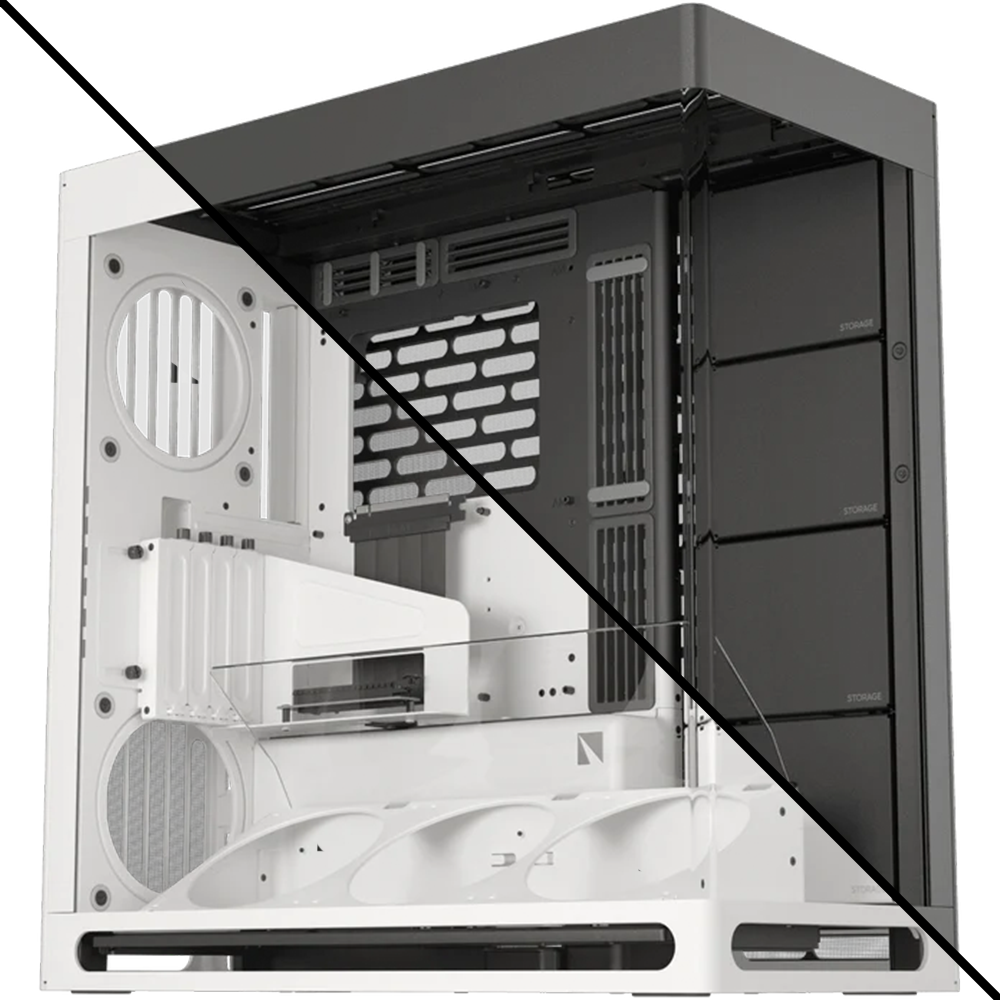

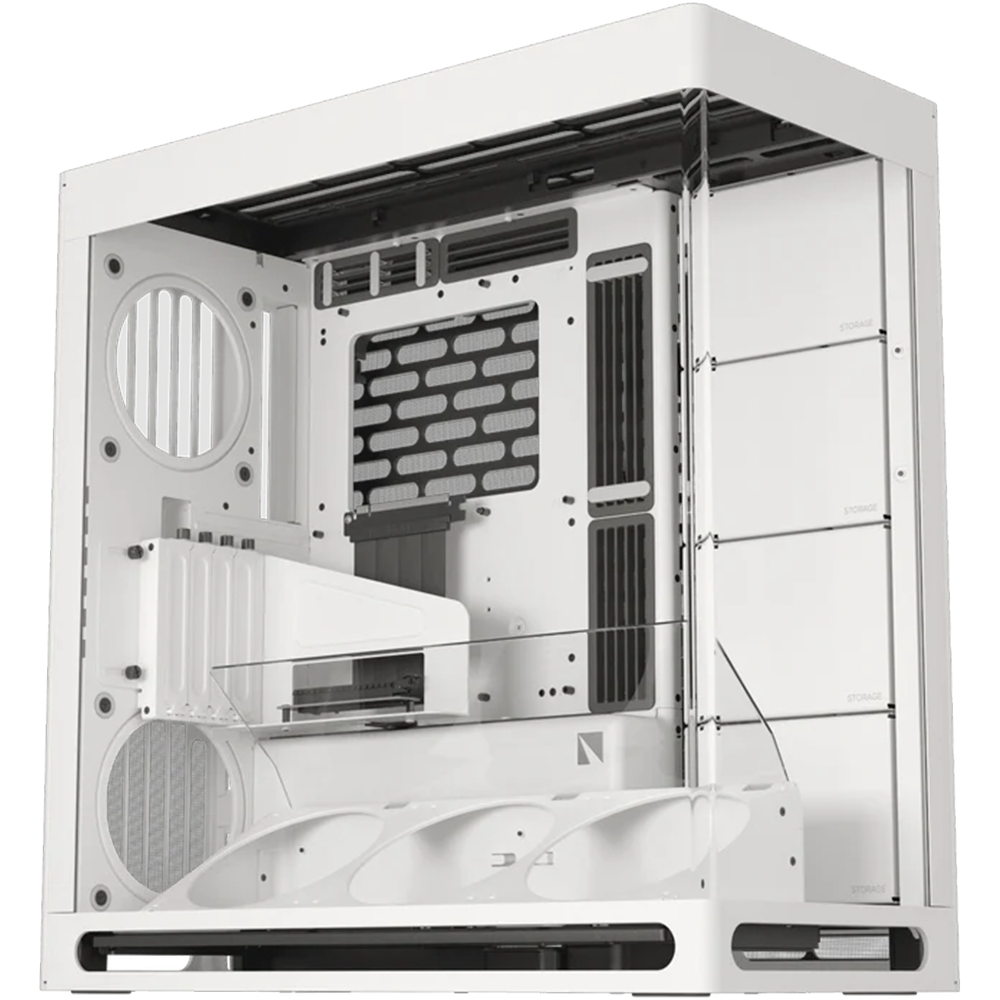

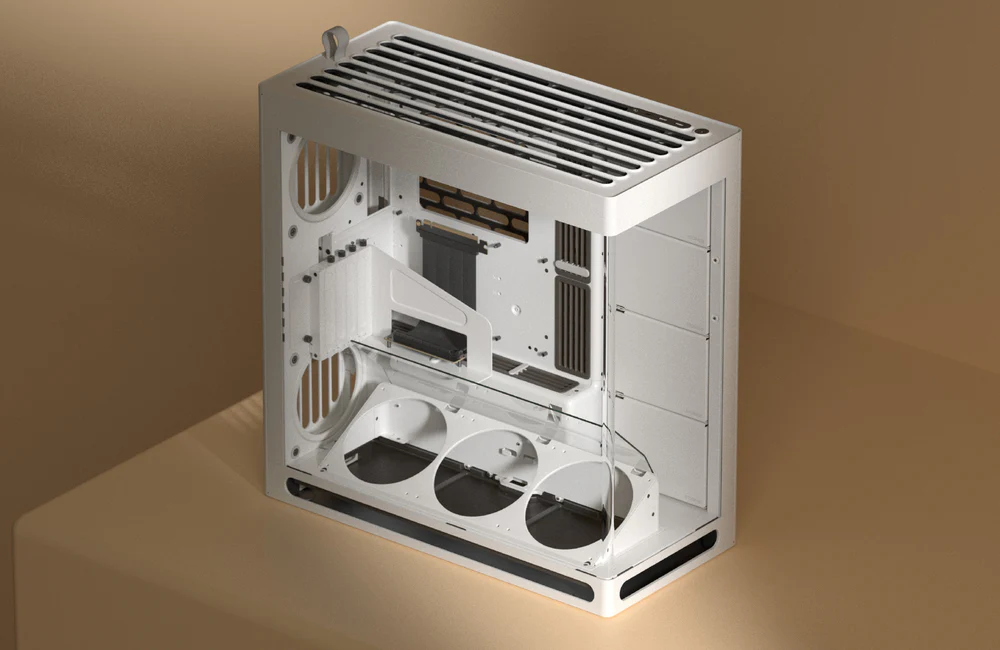

- The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition.
Product Features:
HAVN Hybrid Structure for optimal GPU cooling:

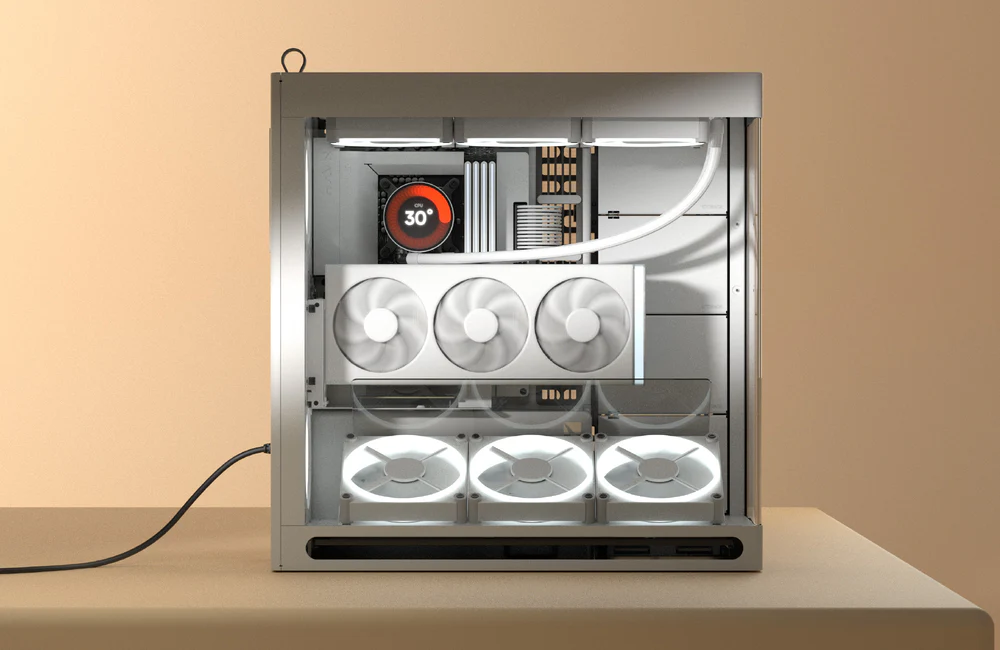

- The HS 420 VGPU has a dual-chamber design with balanced airflow and a traditional case size ratio, channeling cool air from the bottom intake directly onto the centrally positioned GPU.
HAVN Hybrid Structure for Optimal GPU Cooling:
- Dual-chamber design with balanced airflow and a traditional case size ratio, designed to direct cool air from the bottom intake onto the centrally positioned GPU.
Mirrored Airflow:

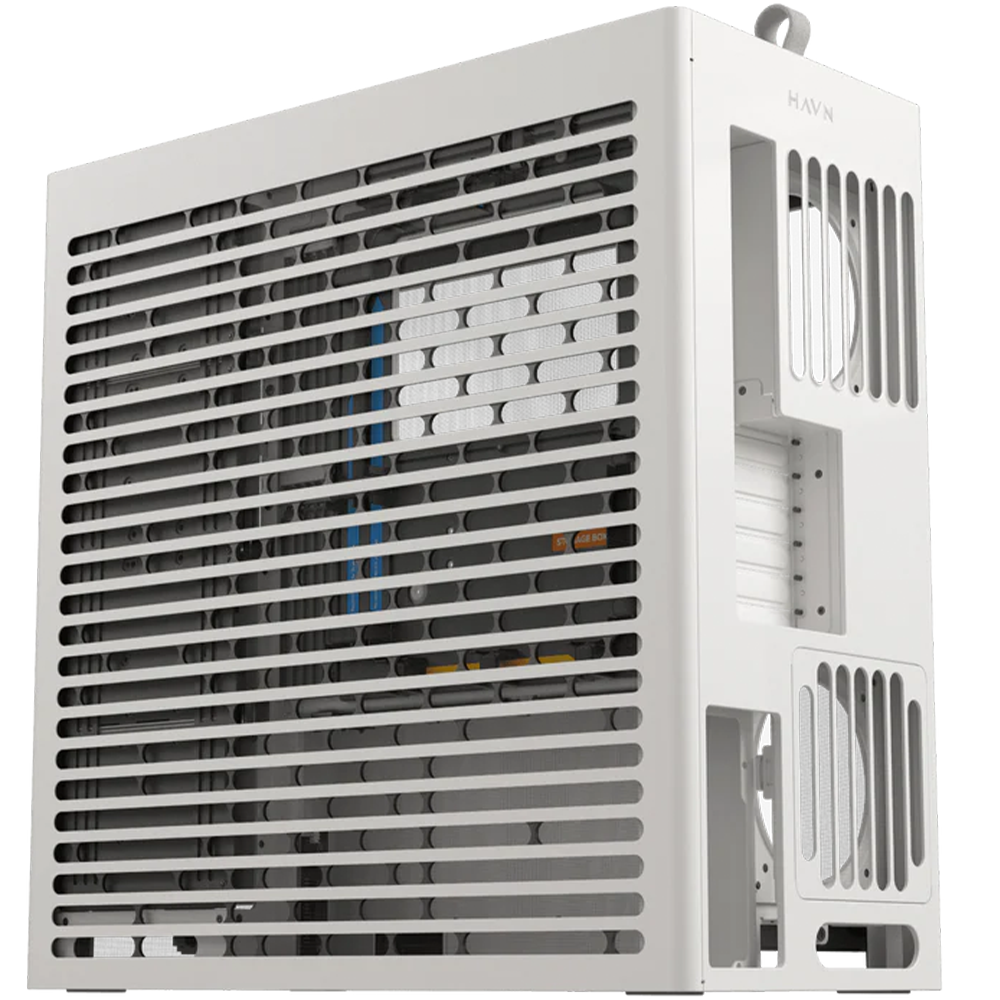

- An additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card, perfectly balancing intake and exhaust. This ensures peak performance and helps maintain a cleaner, dust-free system.

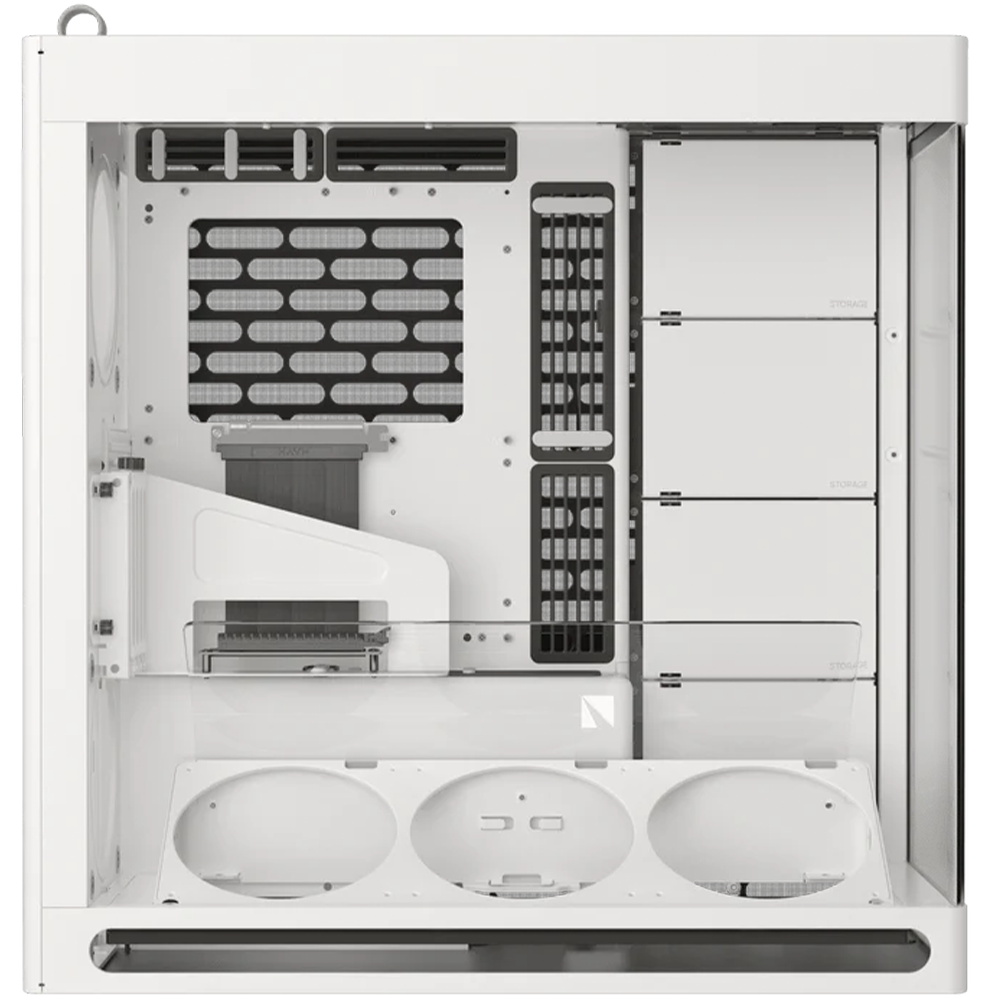

Adjustable VGPU Bracket
- With different GPU thicknesses, the vertical GPU bracket can be adjusted horizontally to optimize the GPU's distance to the glass air guide.
Cooling Power & Compatibility:

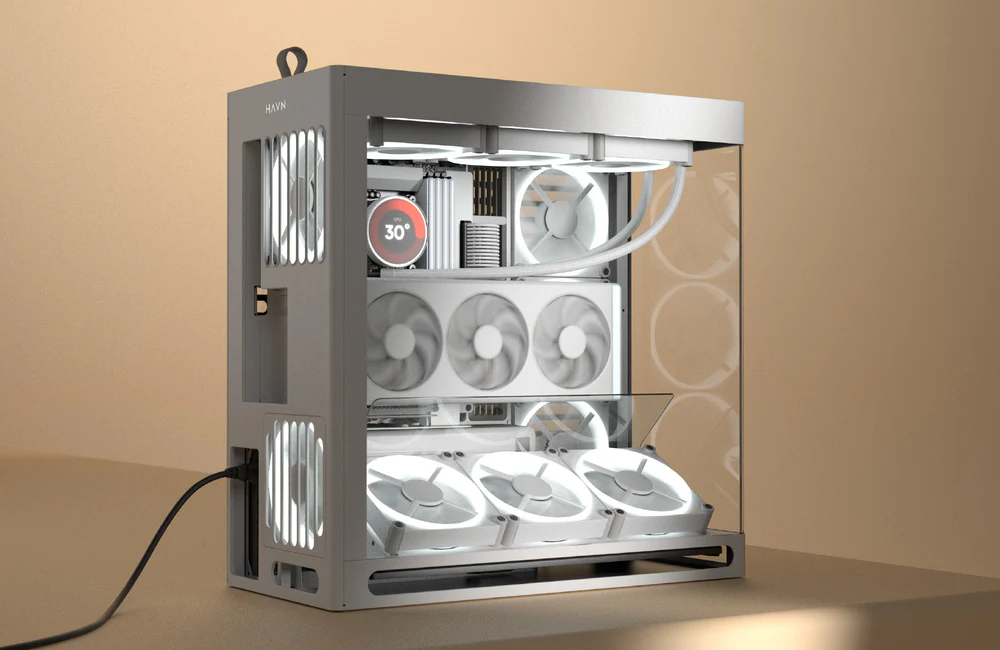

- HS 420 fits a total of eleven 140mm fans while supporting up to 420mm radiators on its top, right, and bottom.

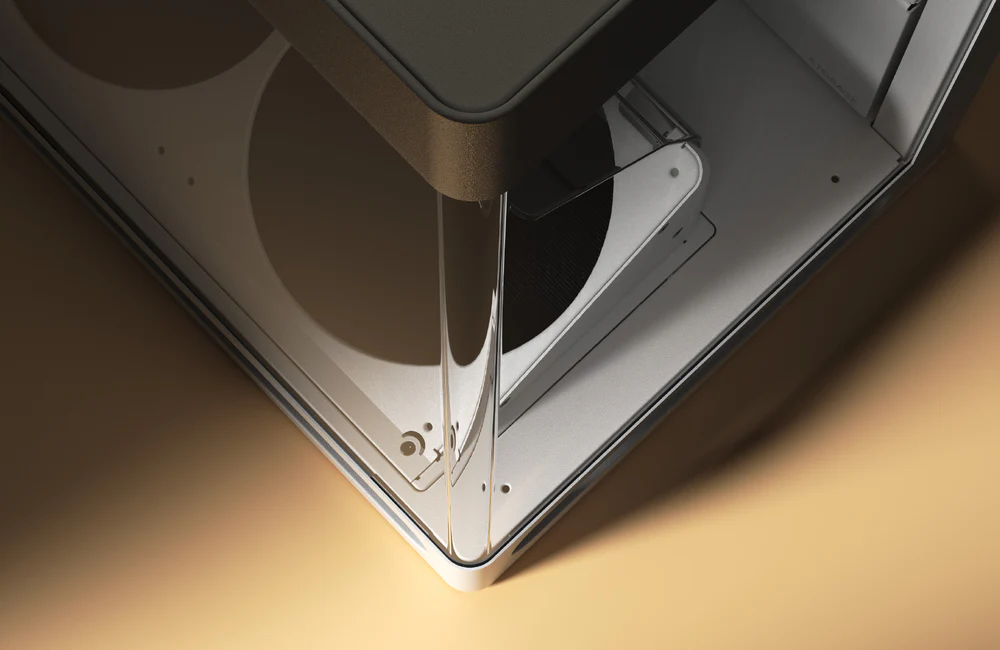

UniSheet heat-formed Glass Panel for Panoramic View:
- We've pushed production boundaries to achieve the smallest possible curve radius, minimizing visual distortion and offering a clear, uninterrupted view of your case's interior.

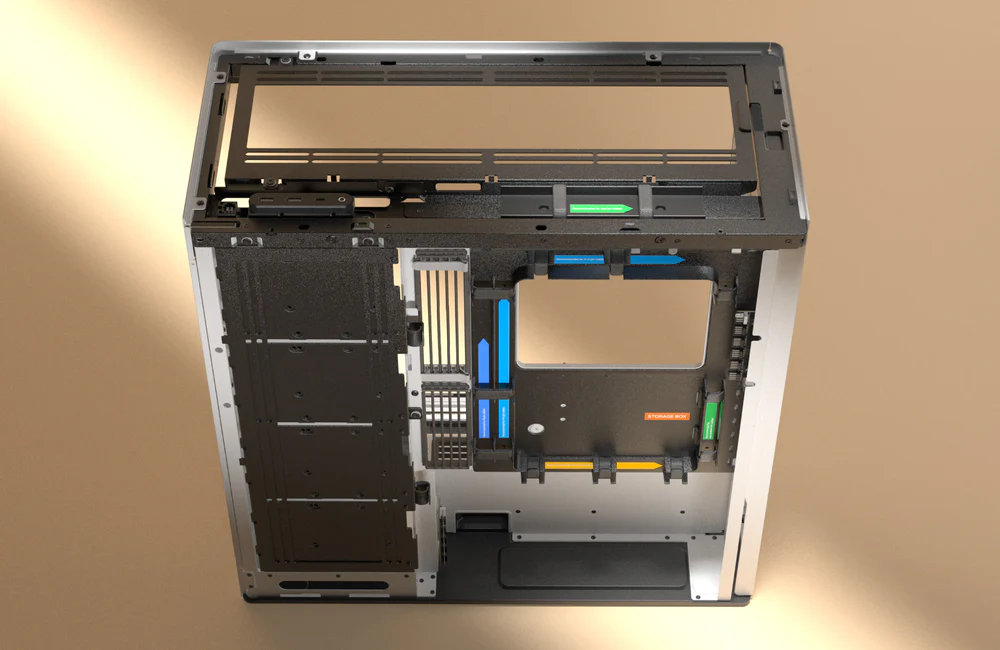

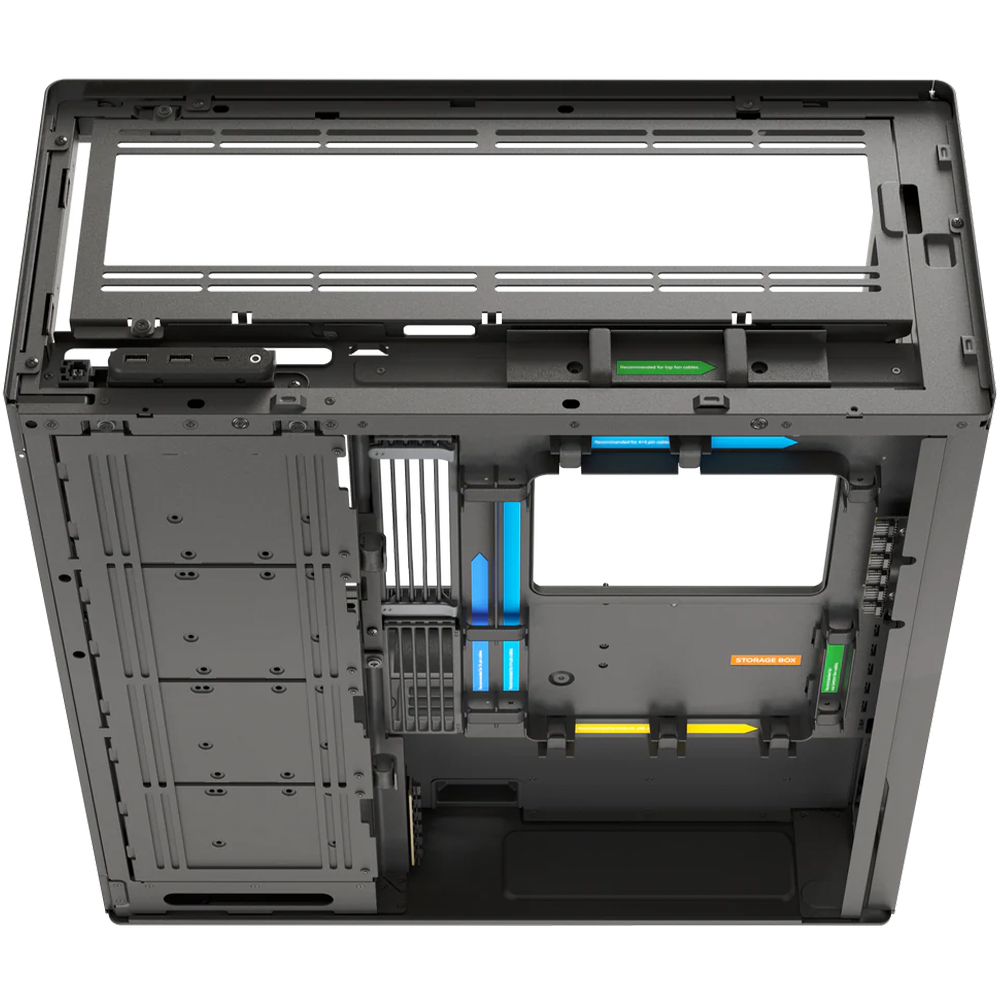

Unique SimpliCable Routing System:
- The SimpliCable routing system and fan hub feature top-to-bottom grooved guides, making cable management effortlessly clean and giving your setup a pristine, organized appearance.

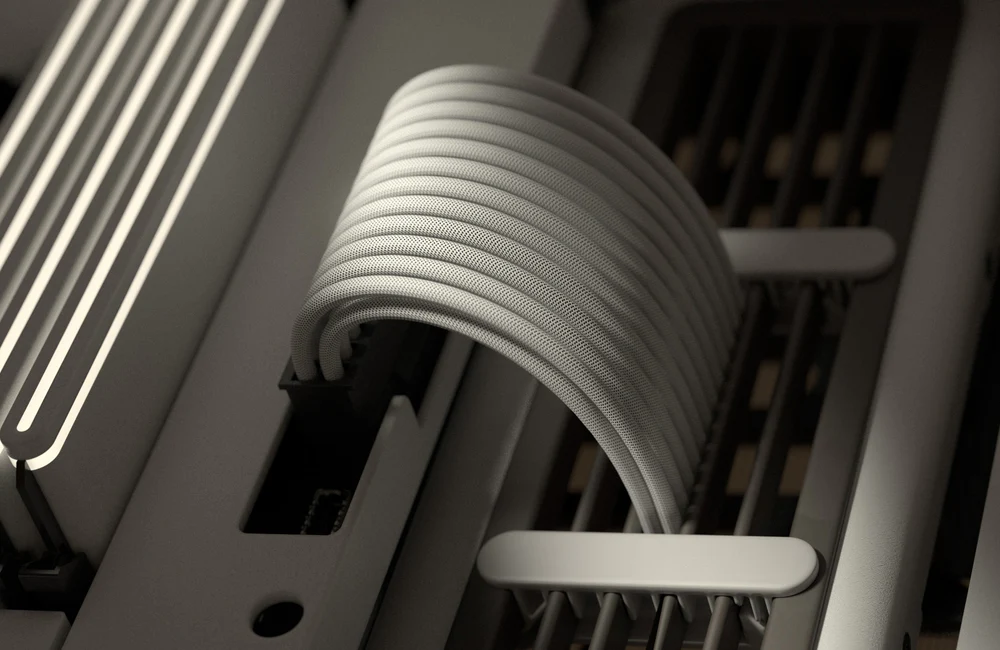

Cable Management Re-Invented:
- Clever silicon pass-throughs with stabilizing clips allow for precision cable management.

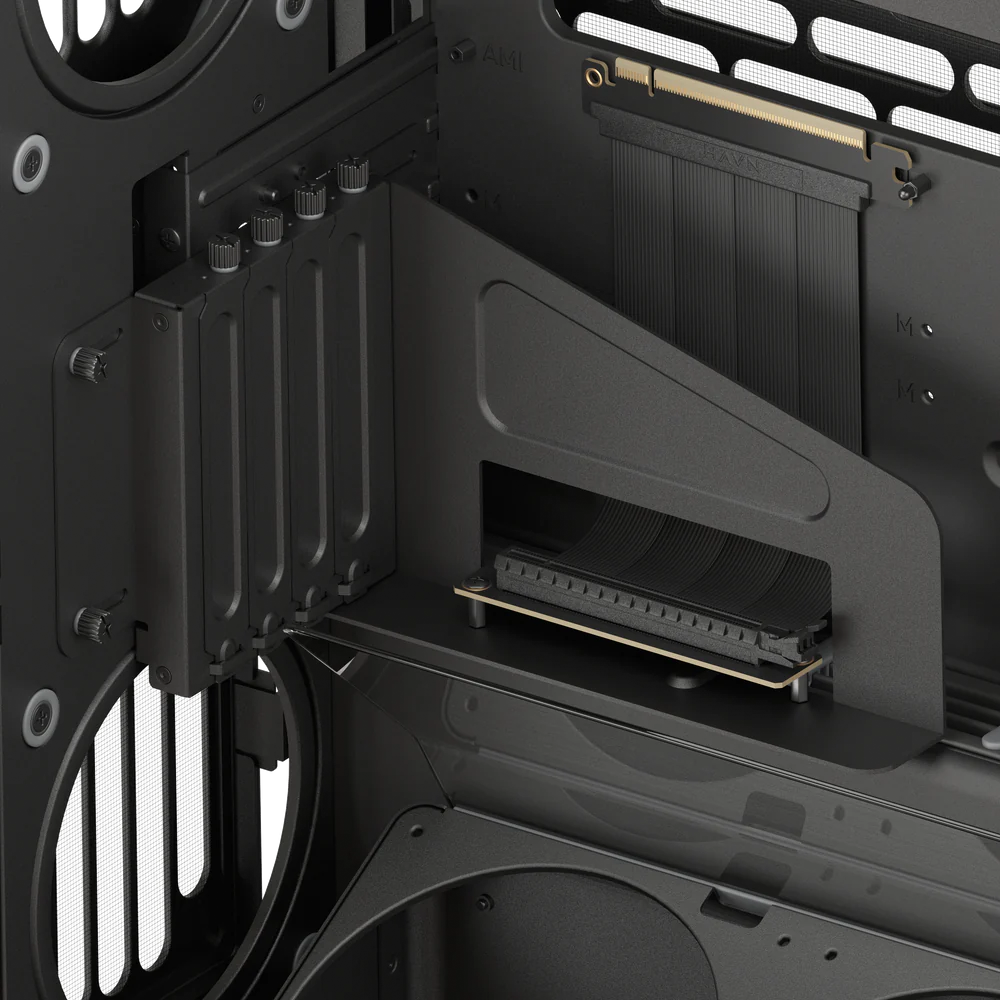

Lightning-fast Riser Cable Included:
- The VGPU Mount Kit and PCI Express® 5.0 X16 riser cable allow you to showcase your hardware without compromising on performance.

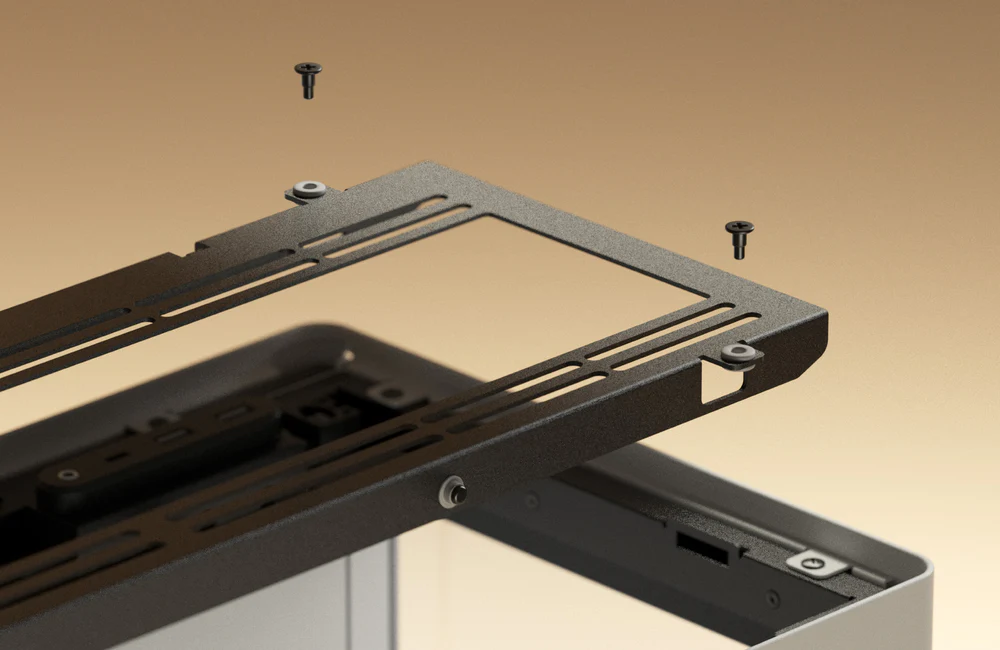

Vibration Isolation:
- Every fan bracket is equipped with flexible rubber isolators to separate the bracket from the chassis, preventing resonance and ensuring a quieter operation.
Product Details:
Form Factor:
- Mid Tower
PC Case Dimensions (L x W x H):
- 541 x 259.5 x 547 mm
Net Weight:
- 19kg

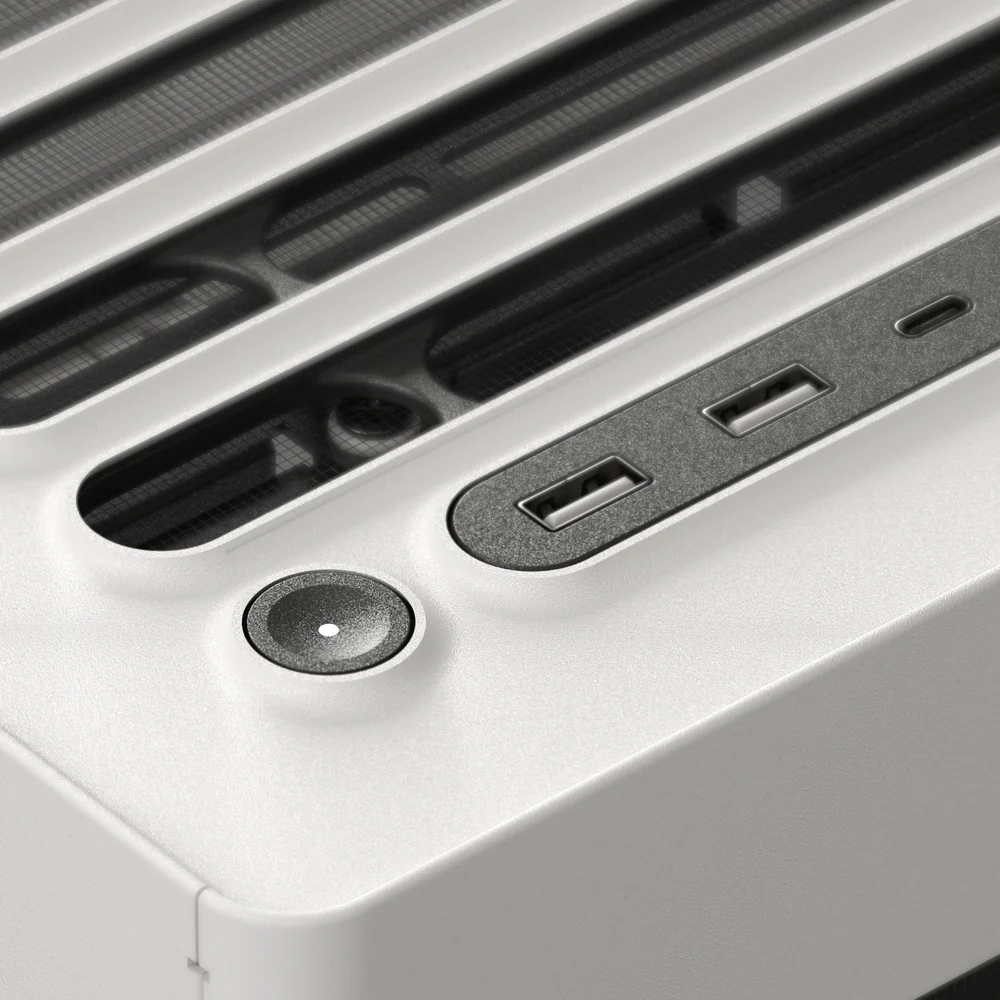

Front I/O:
- 1 × USB 3.2 Gen 2 Type-C
- 2 × USB 3.2 Gen 1 Type-A
- 1 × Audio Jack
- 1 × Power & Reset Button
Motherboard Support:
- E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots:
- 6 horizontal, 4 vertical
Fan Support:
- Maximum Amount: 11
- Top: 3 x 120 / 3 x 140 mm
- Right: 3 x 120 / 3 x 140 mm
- Bottom: 3 x 120 / 3 x 140 mm
- Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
Liquid Cooling Support:
- Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
- Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
- Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)
CPU Tower Cooler Clearance:
- Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.
Graphics Card Clearance:
- Length: Up to 470 mm
- Width: Up to 195 mm. GPU width support
Power Supply Support:
- ATX
- Length: Up to 220mm
Storage:
- Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
- Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
- Storage Bay Included: 4x
Part Number:

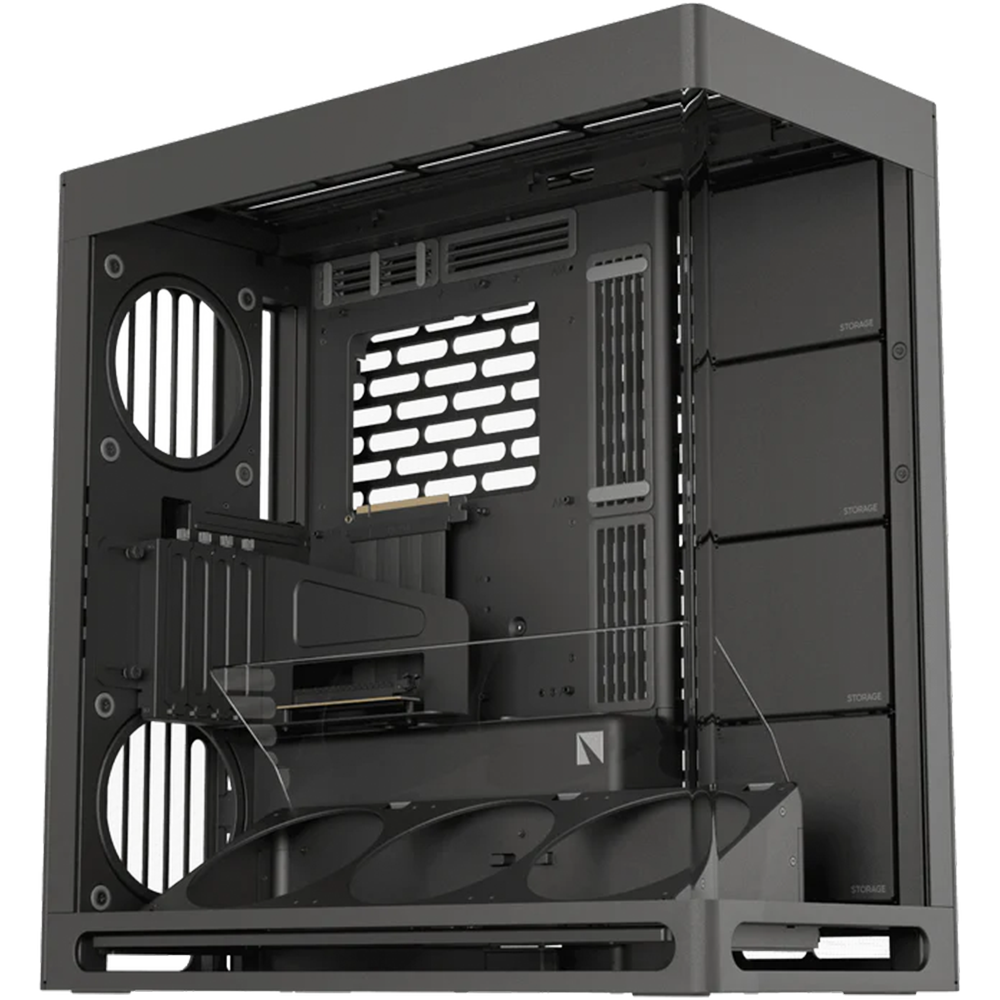

- Black: HVN-CA-HS420-08

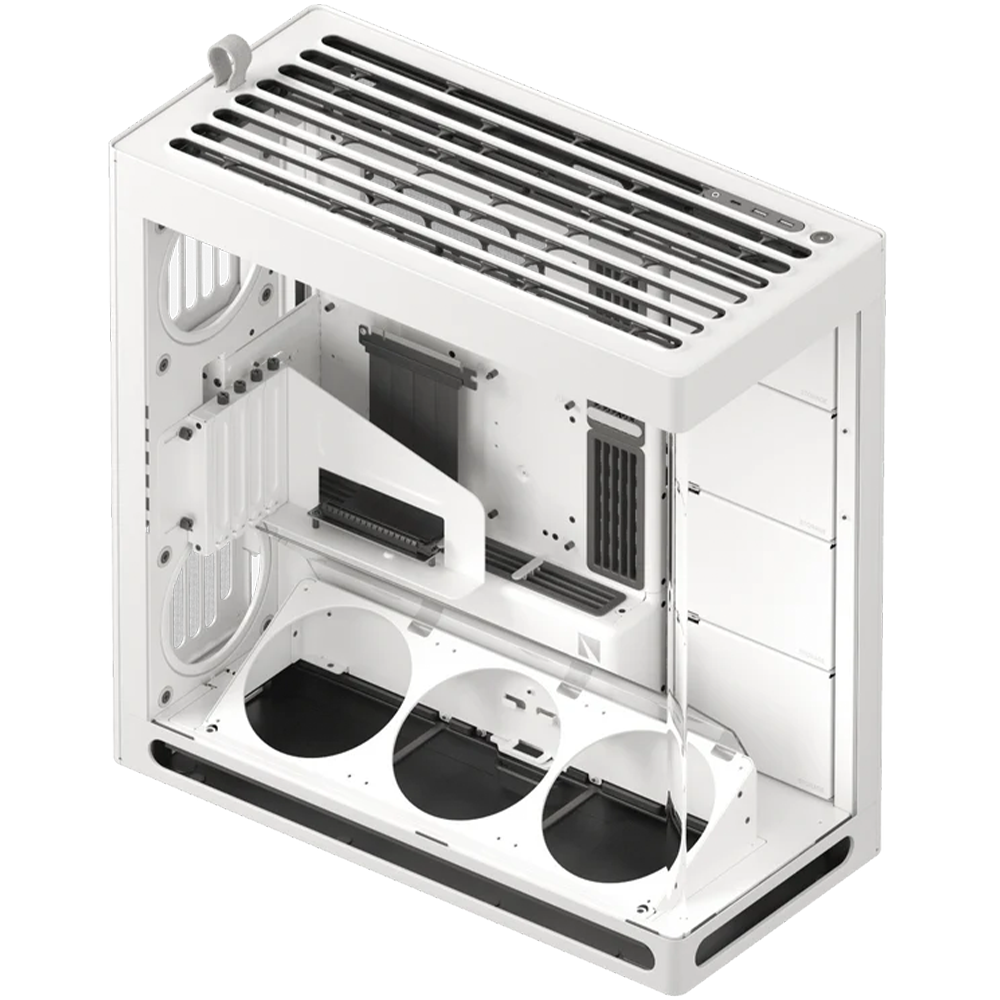

- White: HVN-CA-HS420-07
