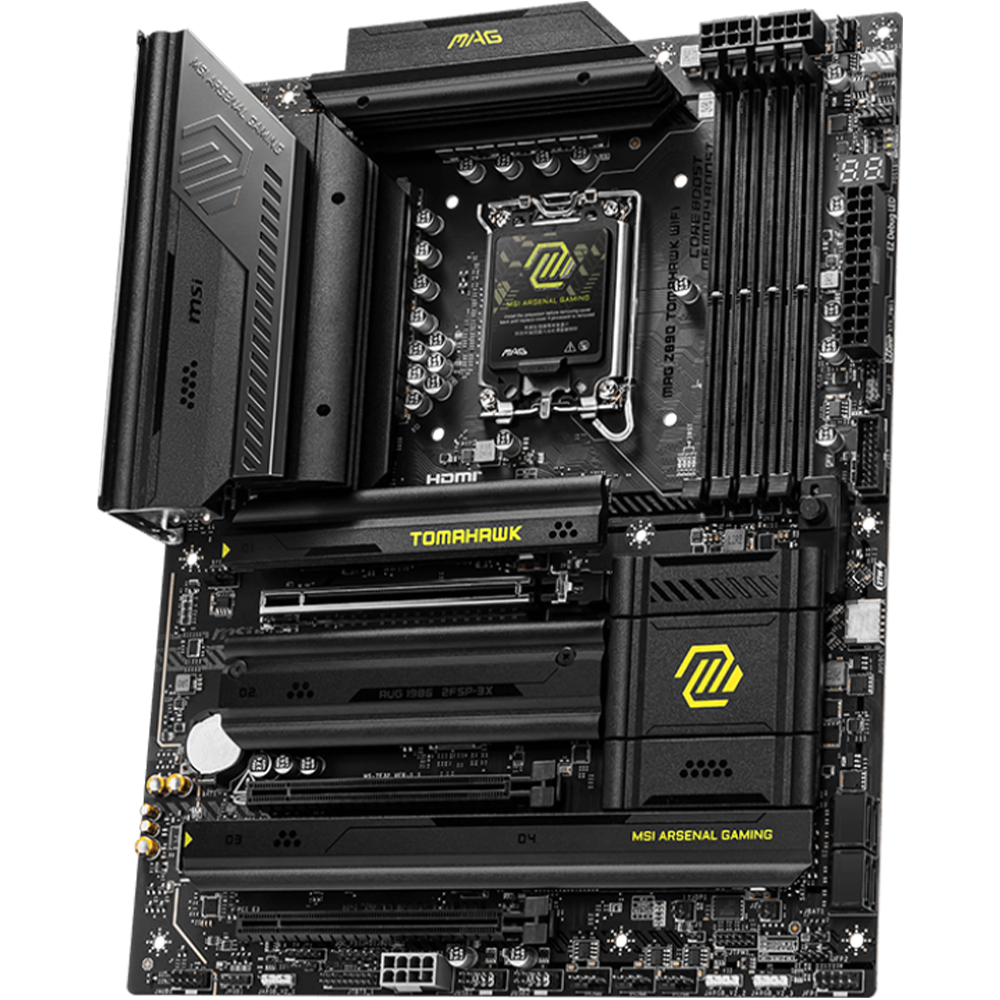

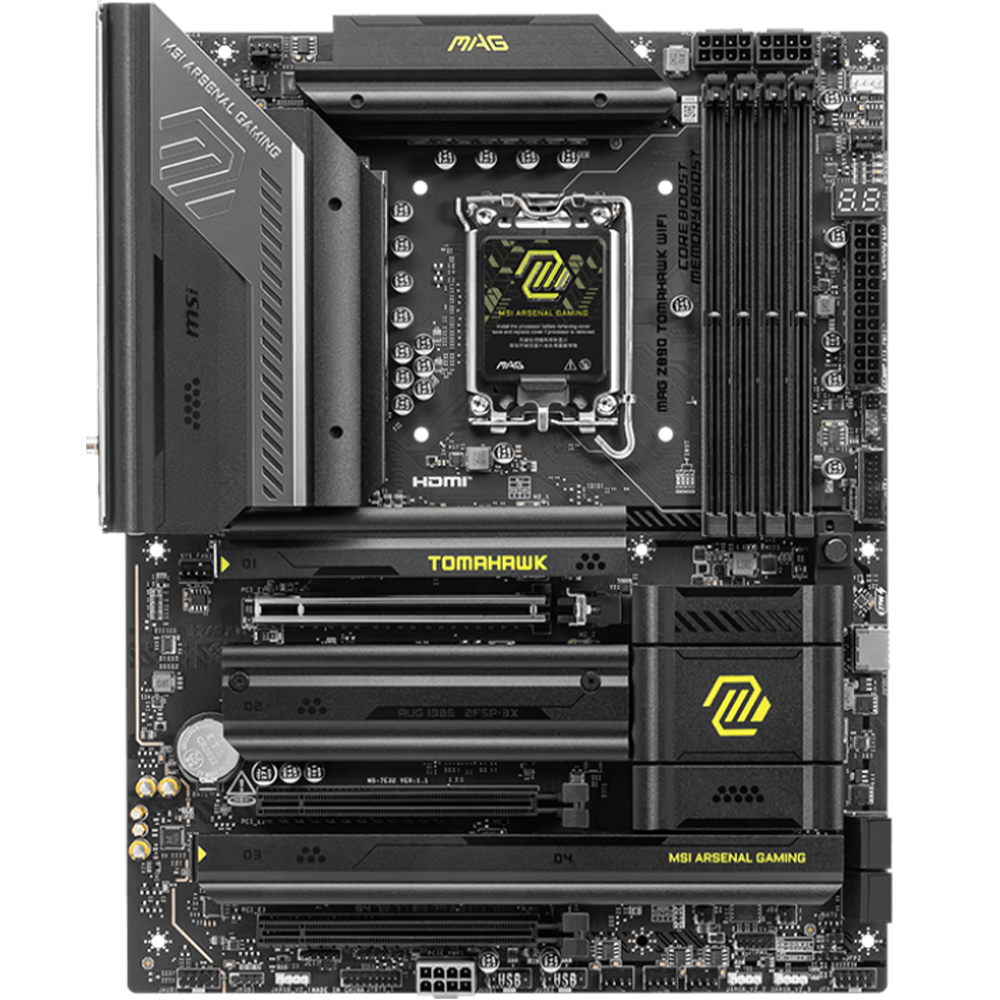

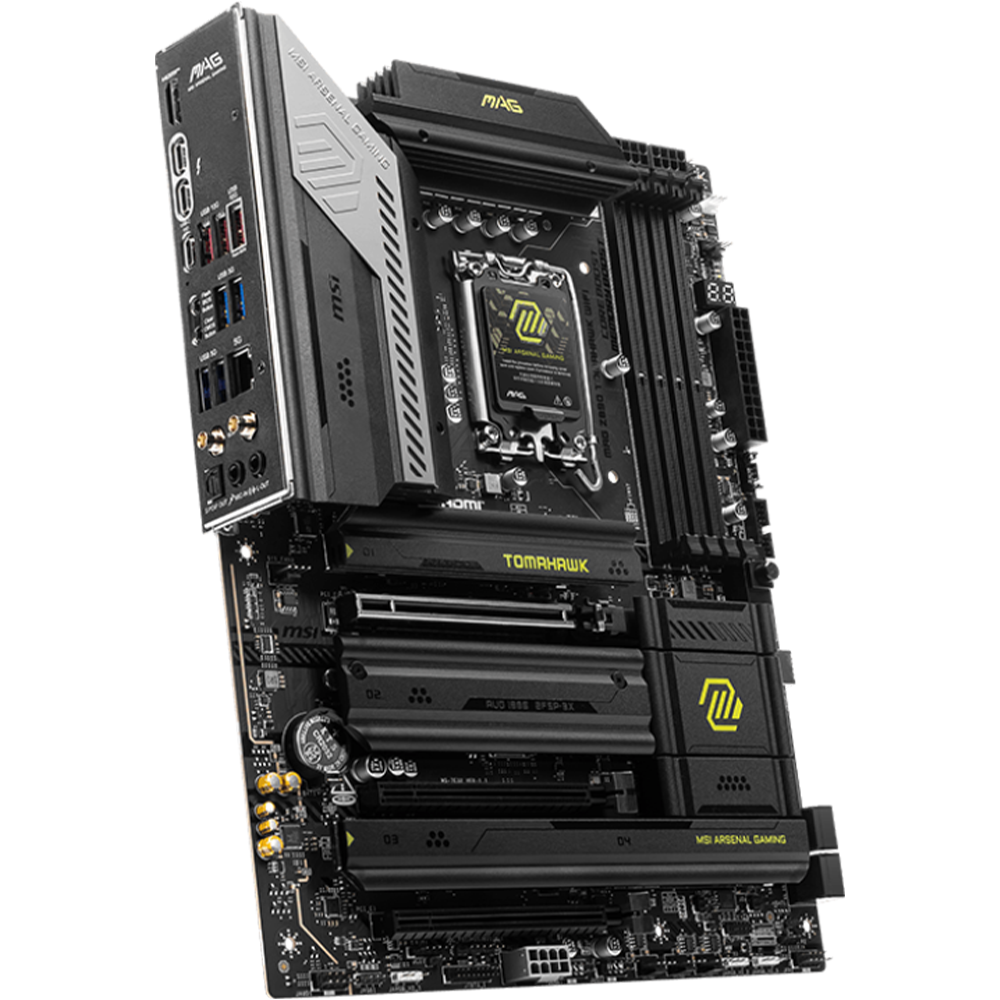

MSI MAG Z890 TOMAHAWK WIFI LGA 1851 Socket For Intel CPUs Motherboard

• MAG Z890 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.

Product Features:

• Thunderbolt 4 port: Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
• EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
• EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
• Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
• Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
• Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
• 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Audio Boost 4: Isolated audio with a high quality audio processor for the most immersive gaming experience.

Product Details:

CPU:

• Supports Intel Core Ultra Processors (Series 2)
• LGA 1851

Memory:

• 4 ء DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Expansions Slots:

• 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio:

• Realtek ALC1220P Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

Storage:

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

USB:

• 4 x USB 2.0 (Front)
• 4 x USB 5Gbps Type A (Rear)
• 2 x USB 5Gbps Type A (Front)
• 3 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Rear)
• 1 x USB 20Gbps Type C (Front)
• *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN:

• Intel Killer E5000 5Gbps LAN

WIRELESS LAN & BLUETOOTH:

• Intel Killer BE1750x Wi-Fi 7
• Supports Bluetooth 5.4

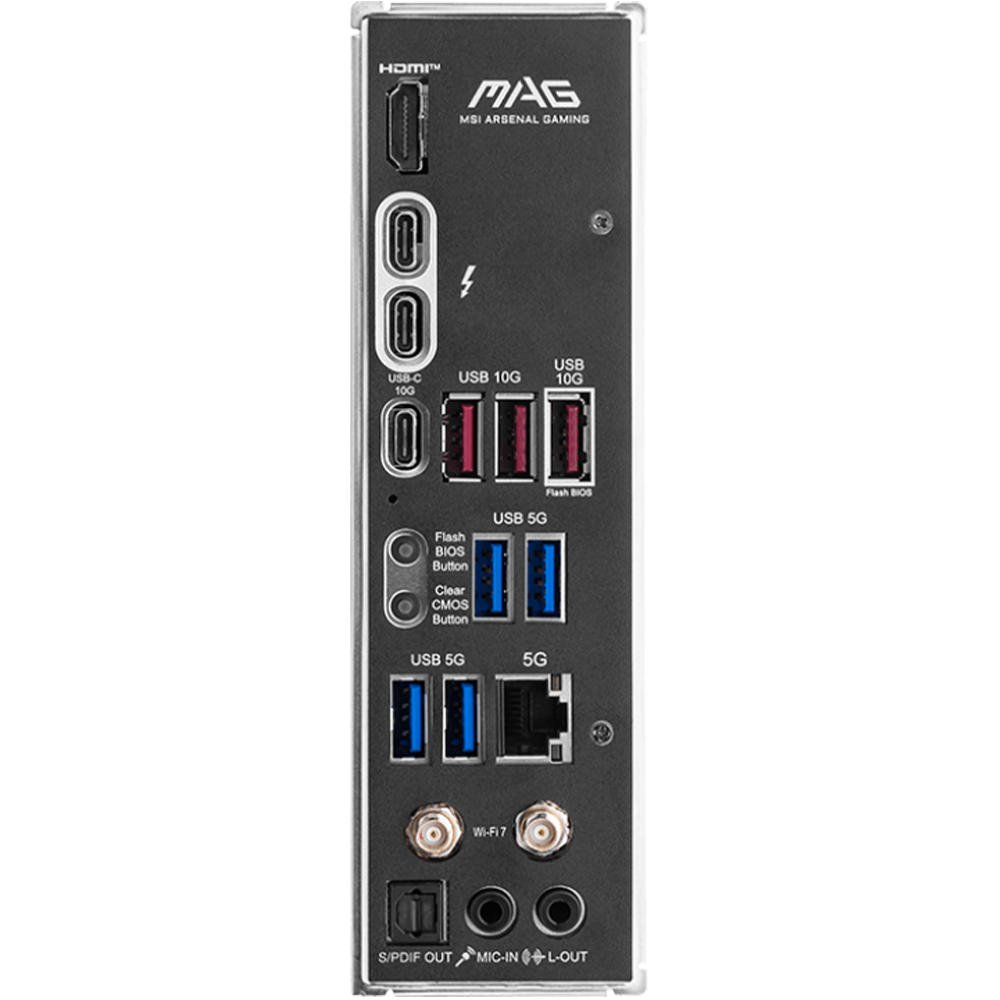

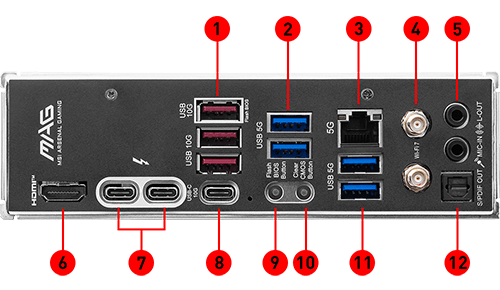

BACK PANEL PORTS:

1. USB 10Gbps Type-A
2. USB 5Gbps Type-A
3. 5G LAN
4. Wi-Fi / Bluetooth
5. Audio Connectors
6. HDMI™
7. Thunderbolt™ 4 40Gbps (Type-C)
8. USB 10Gbps Type-C
9. Flash BIOS Button
10. Clear CMOS Button
11. USB 5Gbps Type-A
12. S/PDIF-OUT

Form Factor:

• ATX 243.84mm x 304.8mm

Part Number:

• 911-7E32-003
