- Premium open-frame ATX case designed for modular builds, extreme cooling, and total customization through the FreeForm 2.0 platform.
Product Features:
MasterFrame 600:

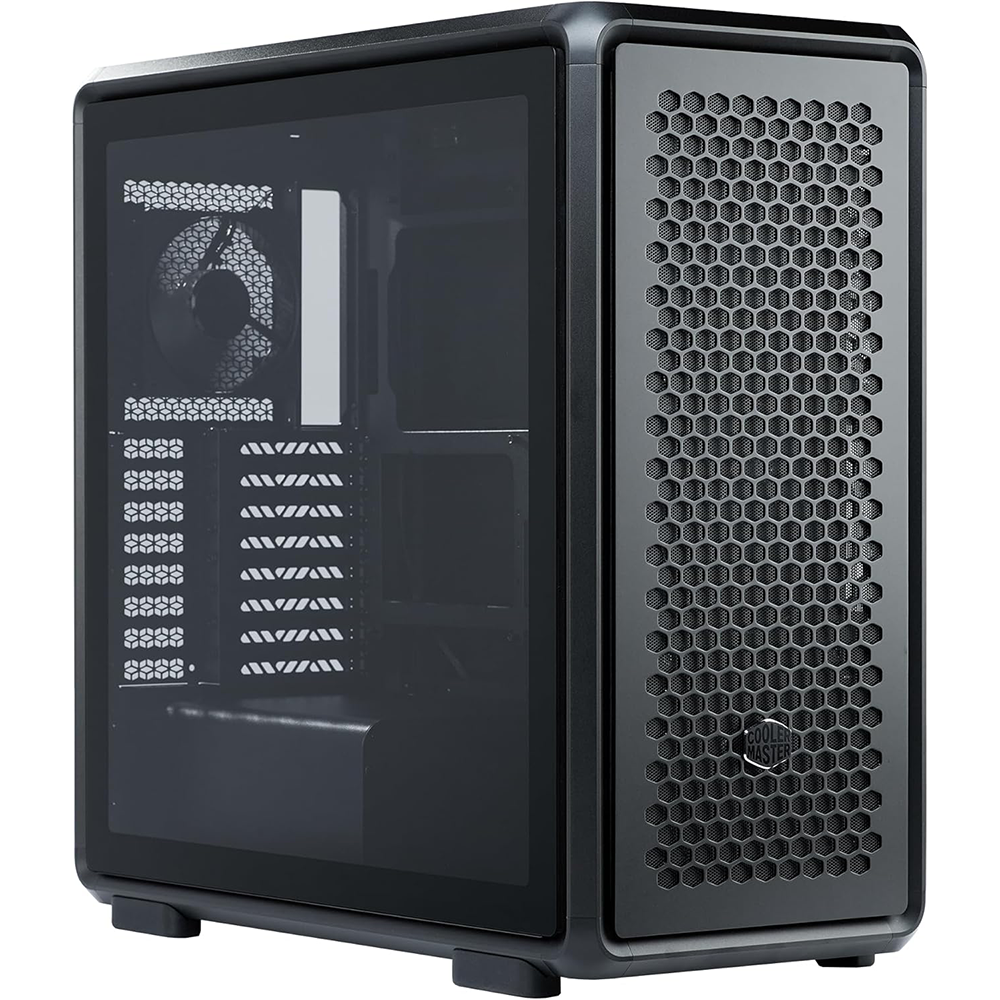

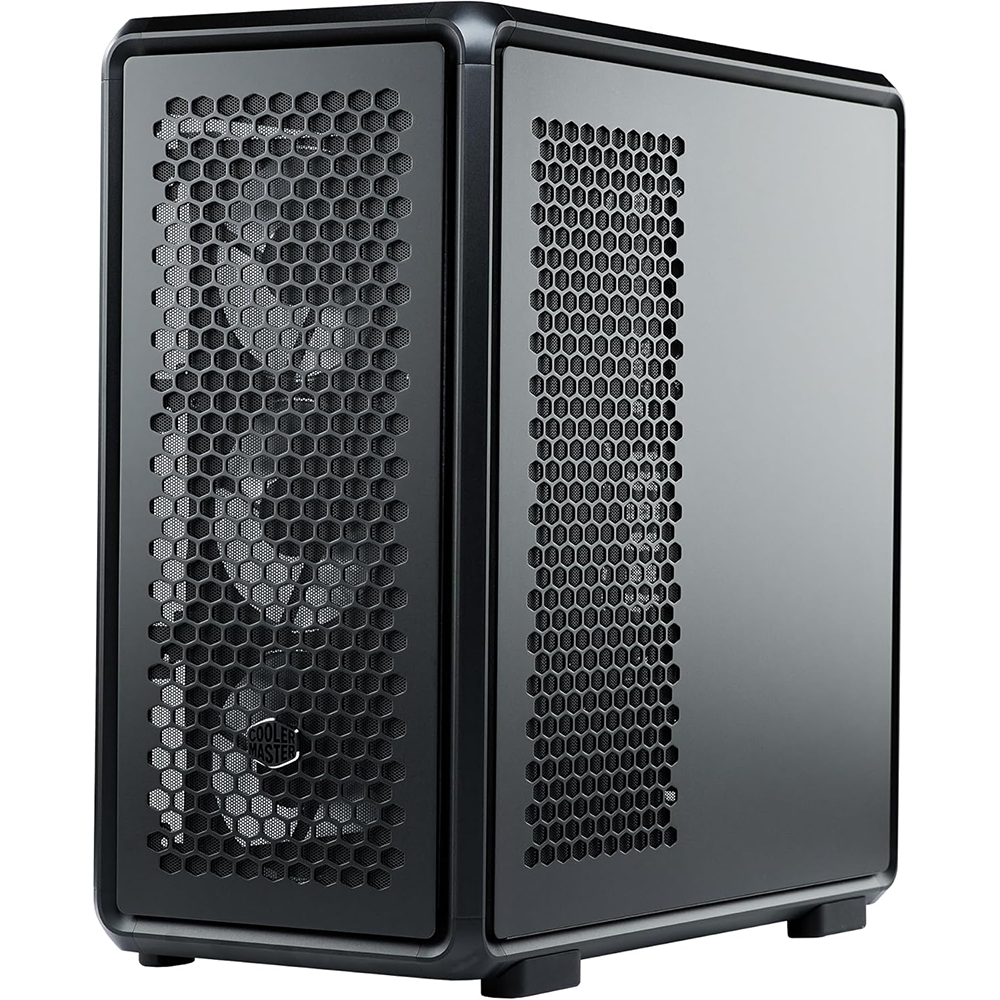

- The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
Silver:
- Rear Sickleflow 120 ARGB PWM Fans,
- Triple Sickleflow 140 ARGB PWM Fan
Black:
- Rear Mobius 120 PWM Fans
- Triple Mobius 140 PWM Fan

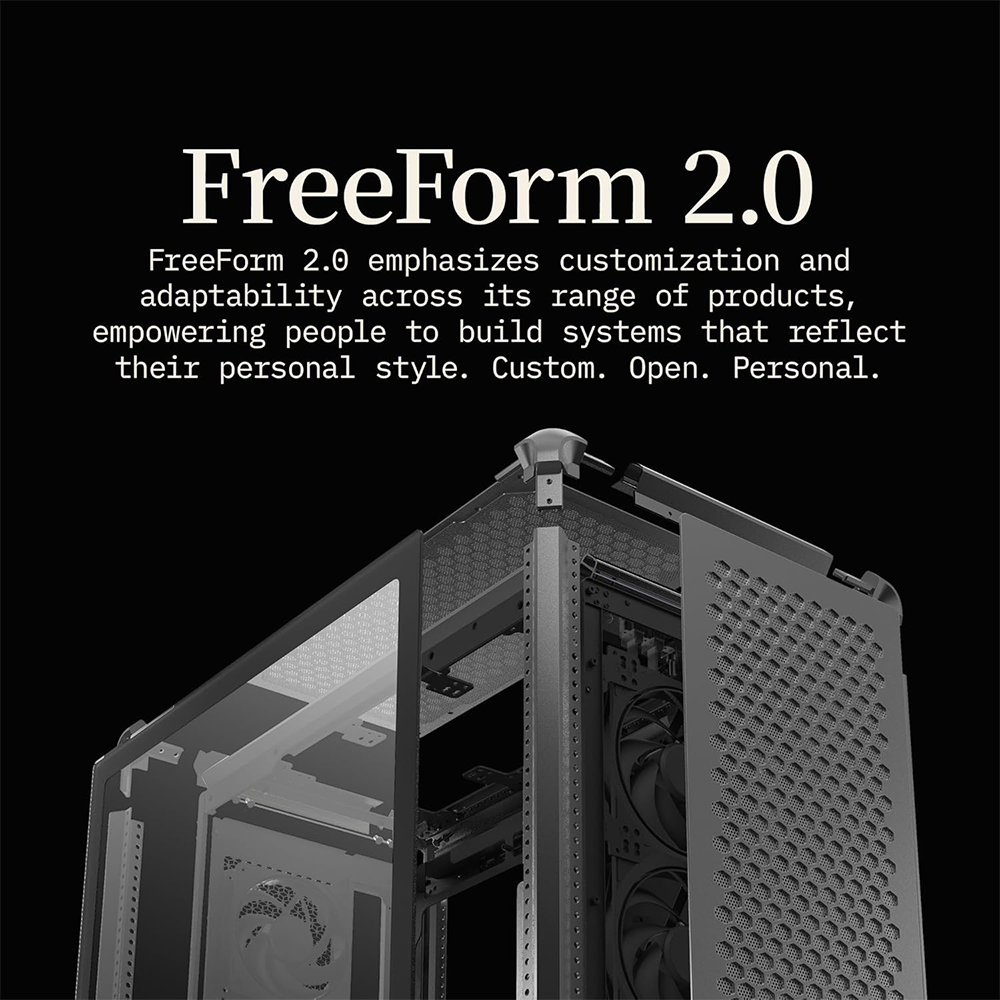

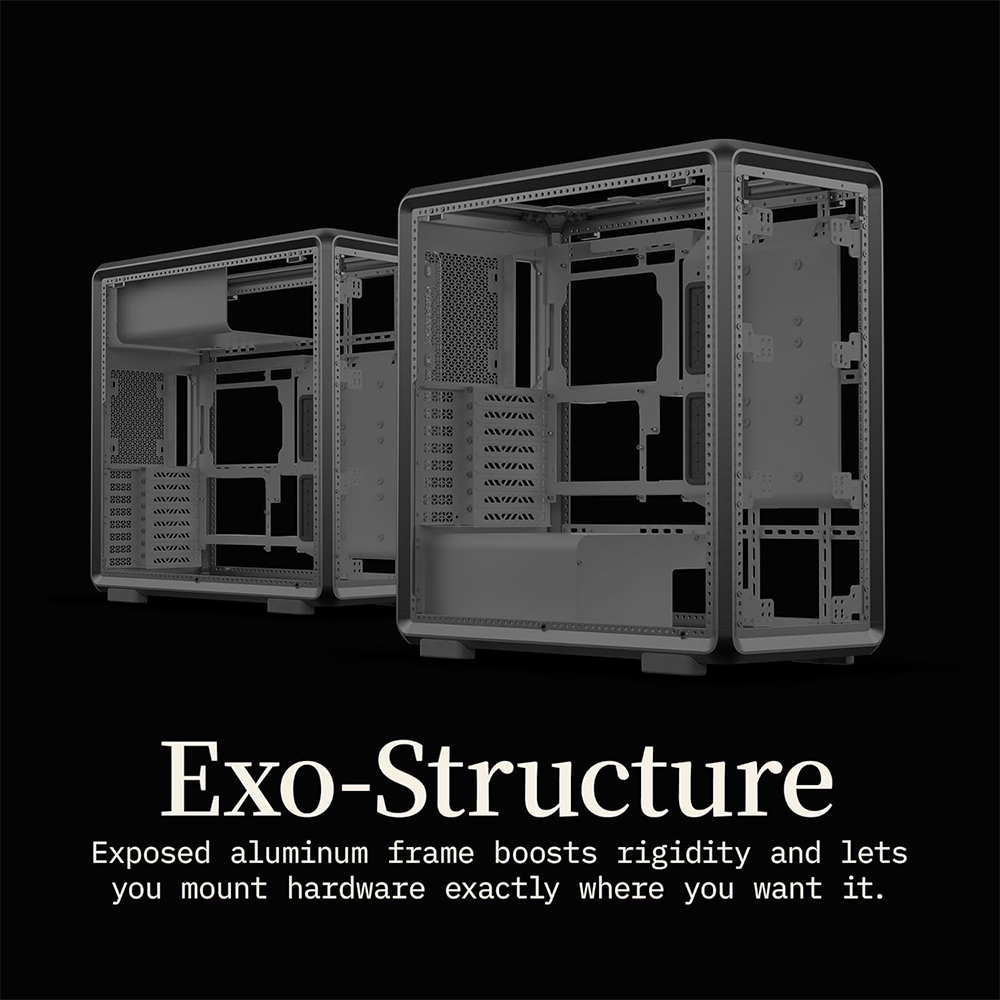

FreeForm 2.0 Exo-structure:
- The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.

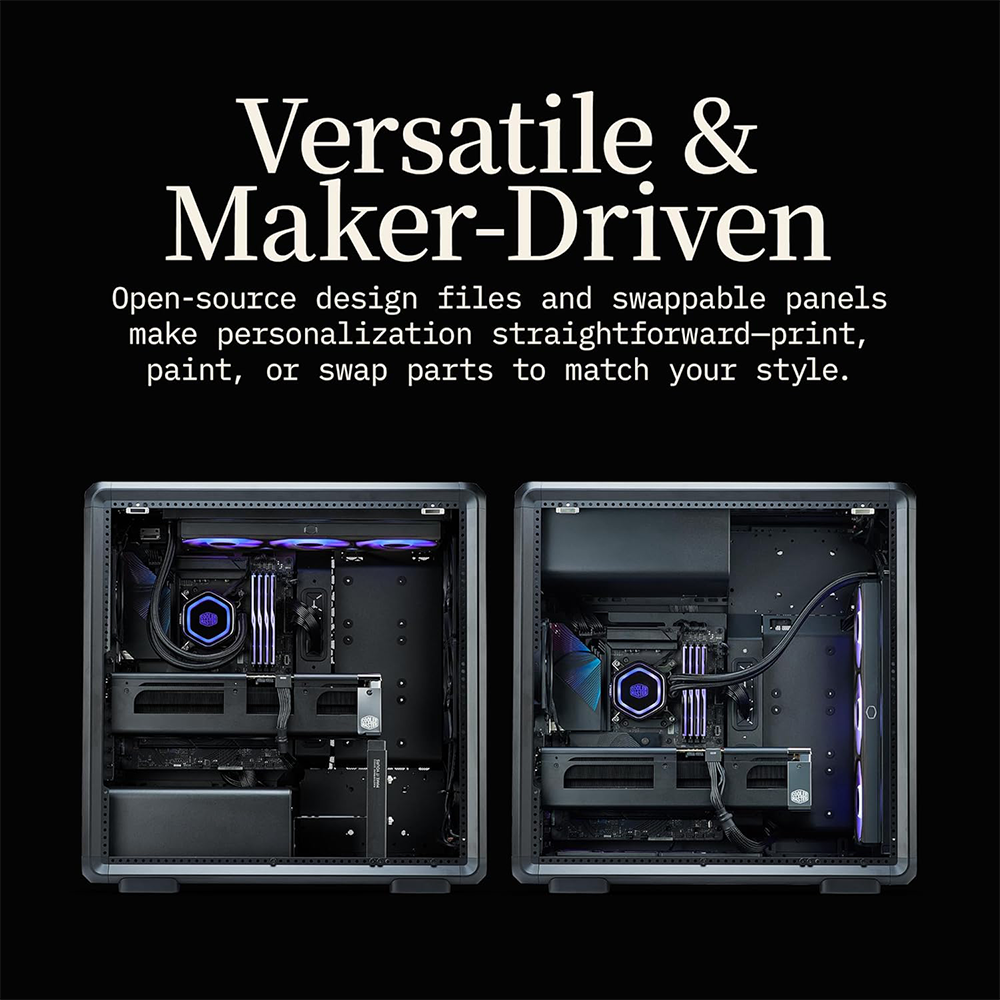

Versatile & Maker-Driven:
- Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

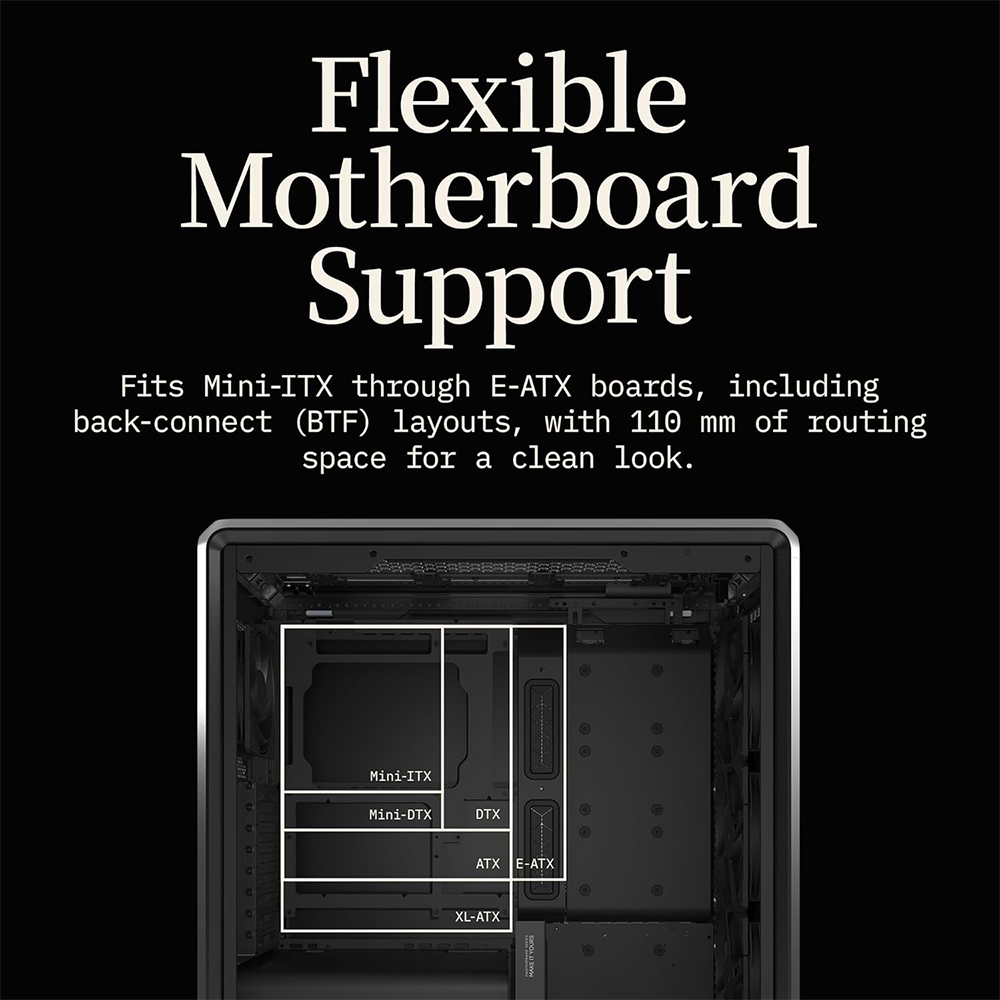

Flexible Motherboard Support:
- Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support:
- Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Ample GPU Clearance:
- Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.

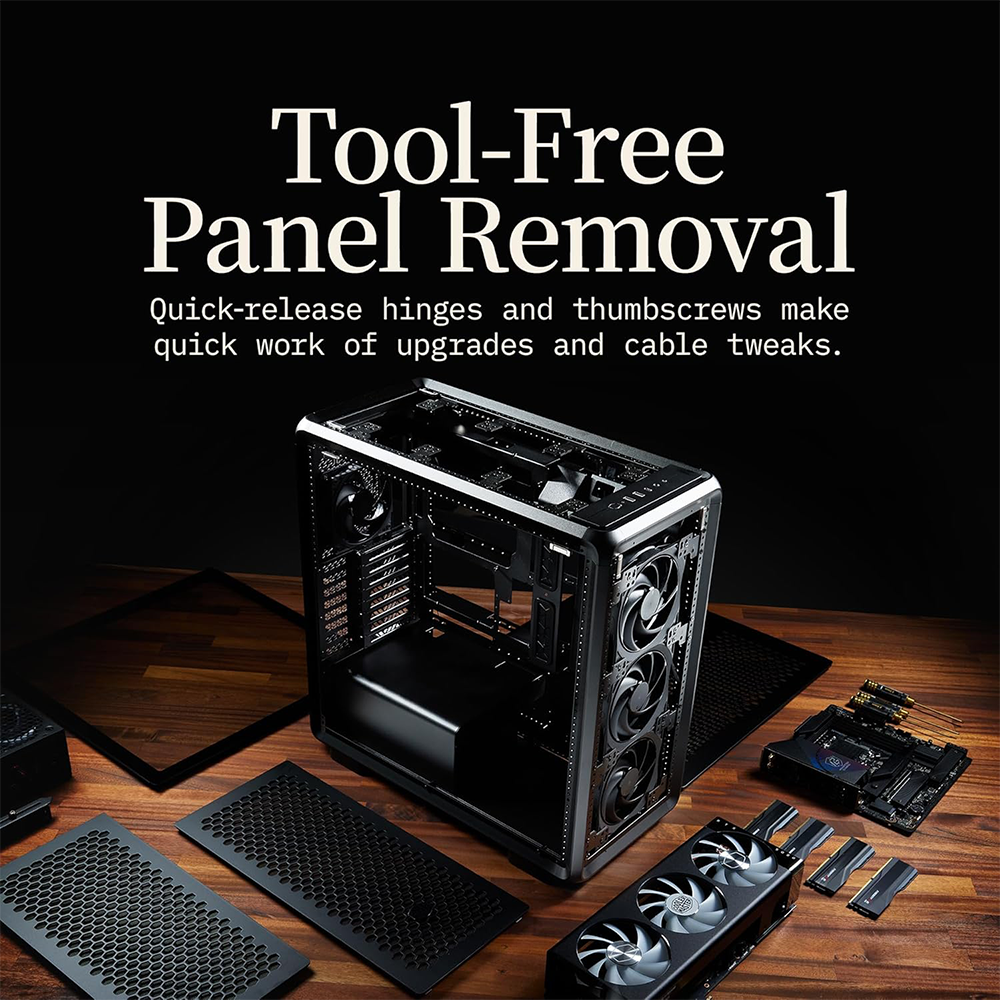

Tool-Free Panel Removal:
- Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket:
- The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Product Details:
Model Number:
- Black: MF600-KGNN-S00
- Silver: MF600-SGNN-S00

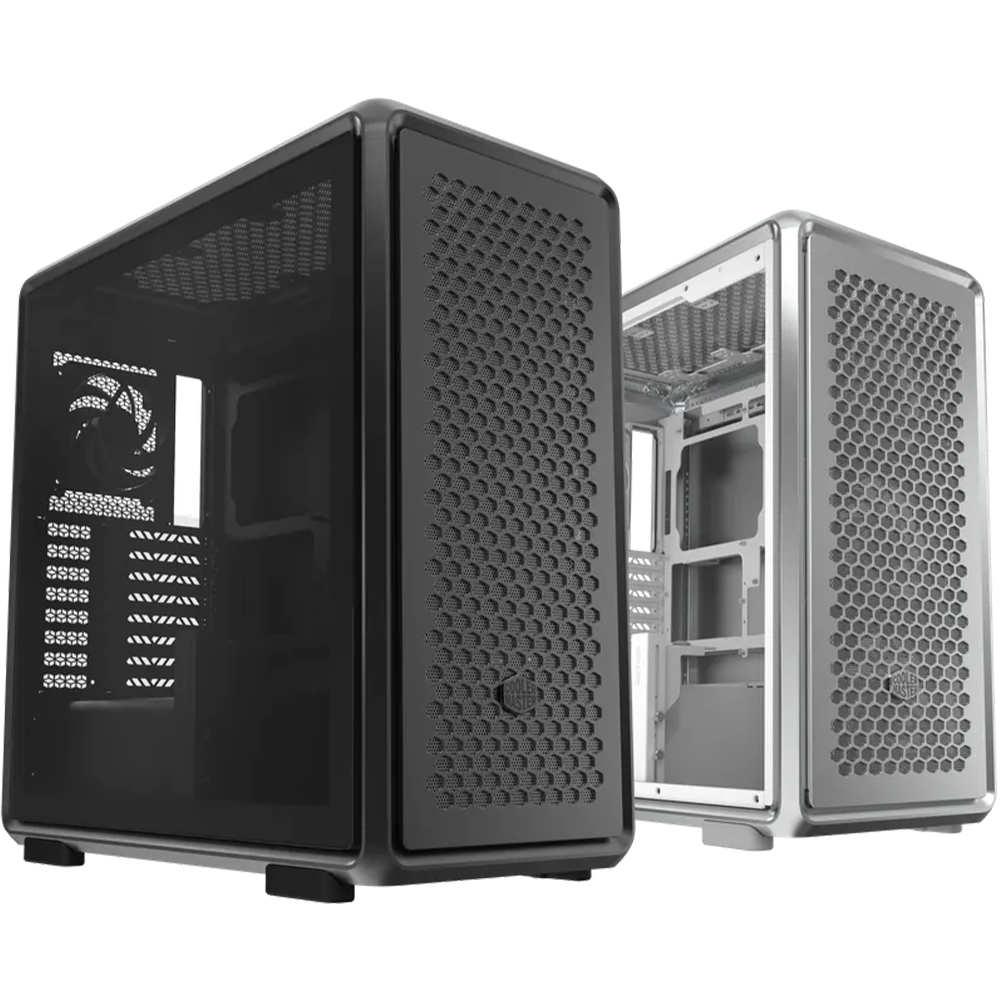

Color(s):
- Black

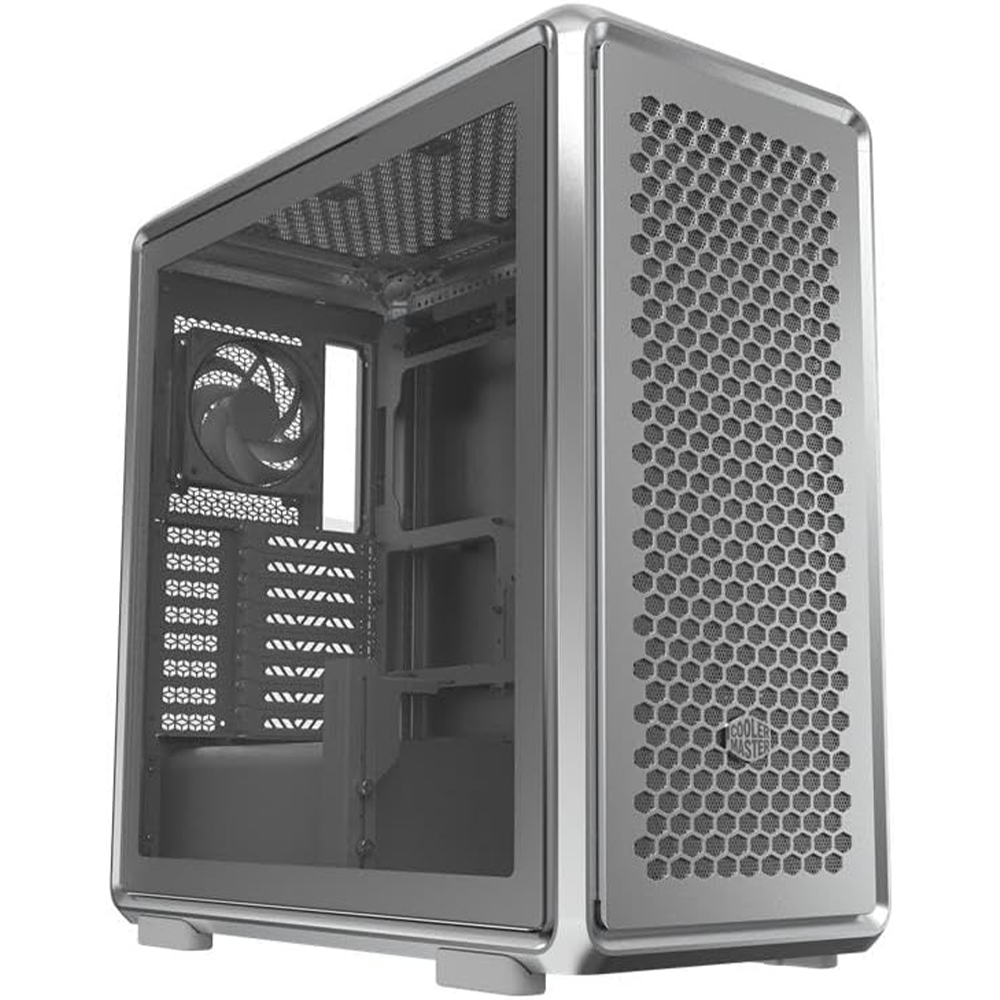

- Silver
Materials - Exterior:
- SGCC Steel, Aluminum
Dimensions (L x W x H):
- 531 x 261 x 544mm (Incl. Protrusions)
- 514 x 244 x 514 mm (Excl. Protrusions)

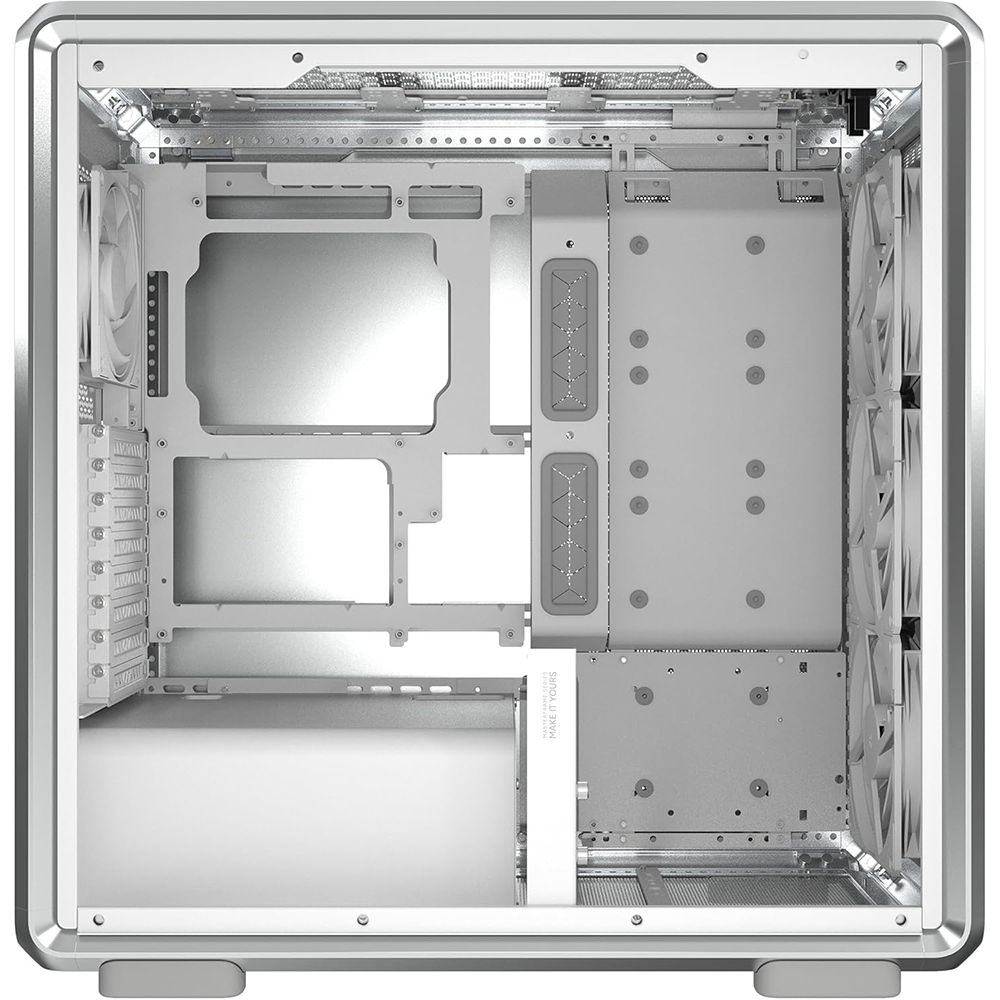

Motherboard Support:
- Mini-ITX
- Mini-DTX
- Micro-ATX
- ATX
- E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support:
- ATX
PCI Expansion Slots:
- 8
2.5" / 3.5" Drive Bays (Combo):
- 2
2.5" Drive Bays:
- 3
I/O Panel - USB Ports:
- 2x USB 3.2 Gen 1 Type A
- 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out:
- 1x 3.5mm Headset Jack (Audio+Mic)

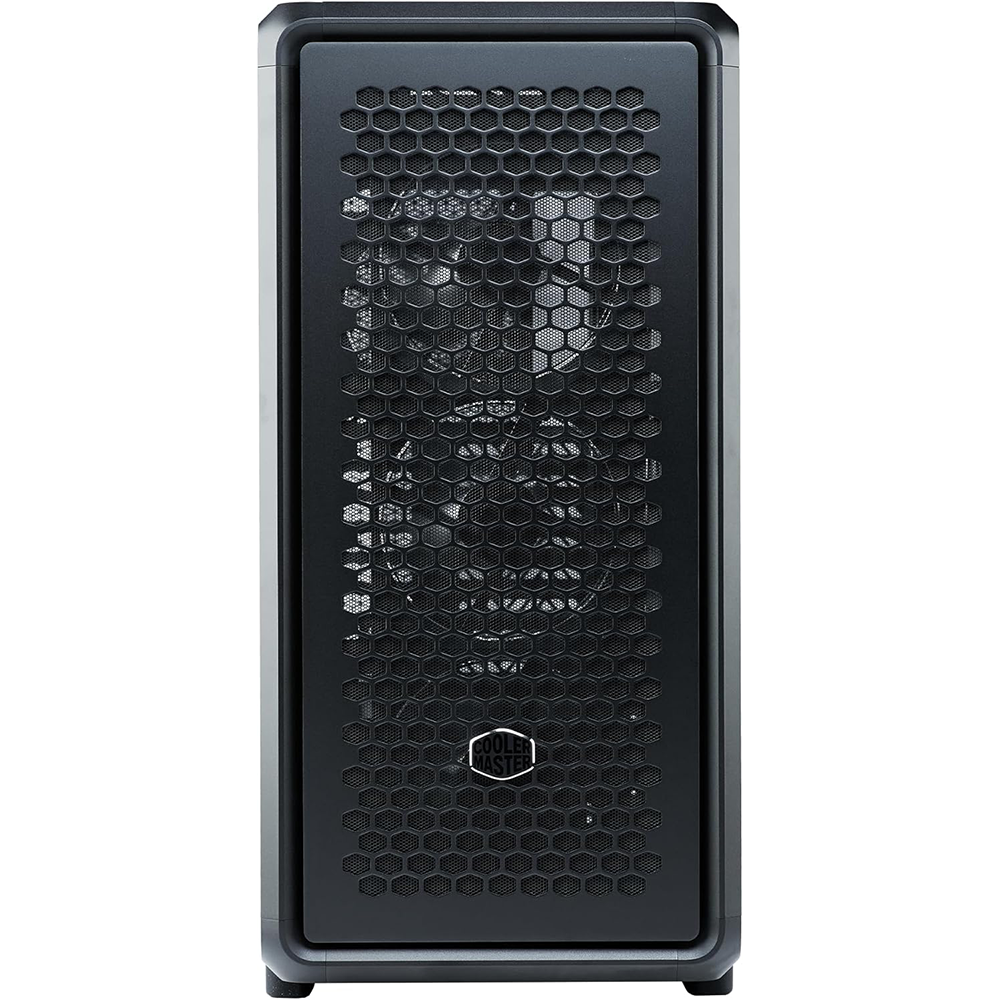

Pre-installed Fans - Front:
- 3 × Mobius 140 mm (non-ARGB) - Available for Black Model Only,
- 3 × SickleFlow ARGB 140 mm - Available for Silver Model Only
Pre-installed Fans - Rear:
- 1 × Mobius 120 mm (non-ARGB) - Available for Black Model Only
- 1 × SickleFlow ARGB 120 mm - Available for Silver Model Only
Fan Support - Front:
- 3x 120mm
- 3x 140mm
- 2x 180mm
- 2x 200mm
Fan Support - Top:
- 3x 120mm
- 2x 140mm
- 2x 180mm
- 1x 200mm
Fan Support - Rear:
- 1x 120mm
Fan Support - Side:
- 3x 120mm
- 3x 140mm
Radiator Support - Front:
- 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)
Radiator Support - Top:
- 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)
Radiator Support - Rear:
- 120 mm
Radiator Support - Side:
- 240 / 280 / 360 / 420 mm
Clearance - CPU Cooler:
- 190 mm
Clearance - PSU:
- 235 mm
Clearance - Graphics Card:
- L: 485 mm (incl. power connector)
- H: 190 mm (incl. power connector)
Size:
- Mid Tower
