- The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Product Details :
CPU :
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory :
- 4 × DDR5 UDIMM, Maximum Memory Capacity 256GB
- Supports Intel XMP3.0 OC
- Supports Dual-Controller Dual-Channel mode
expansion Slot :
- 1x PCI-E 5.0 x16 slot
- 1x PCI-E 3.0 x1 slot
- 1x PCI-E 4.0 x16 slot
Storage :
- 1 x M..2 slot supports PCIe Gen5 x4
- 4 x M.2 slots supporting PCIe Gen4 x4
- 6 x SATA 6G
USB :
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 6x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
LAN :
- Realtek 5Gbps LAN
Wireless/Bluetooth :
- Wi-Fi 7
- Supports Bluetooth 5.4
Audio :
- Realtek ALC4080 Codec
- 7.1-Channel USB High Performance Audio

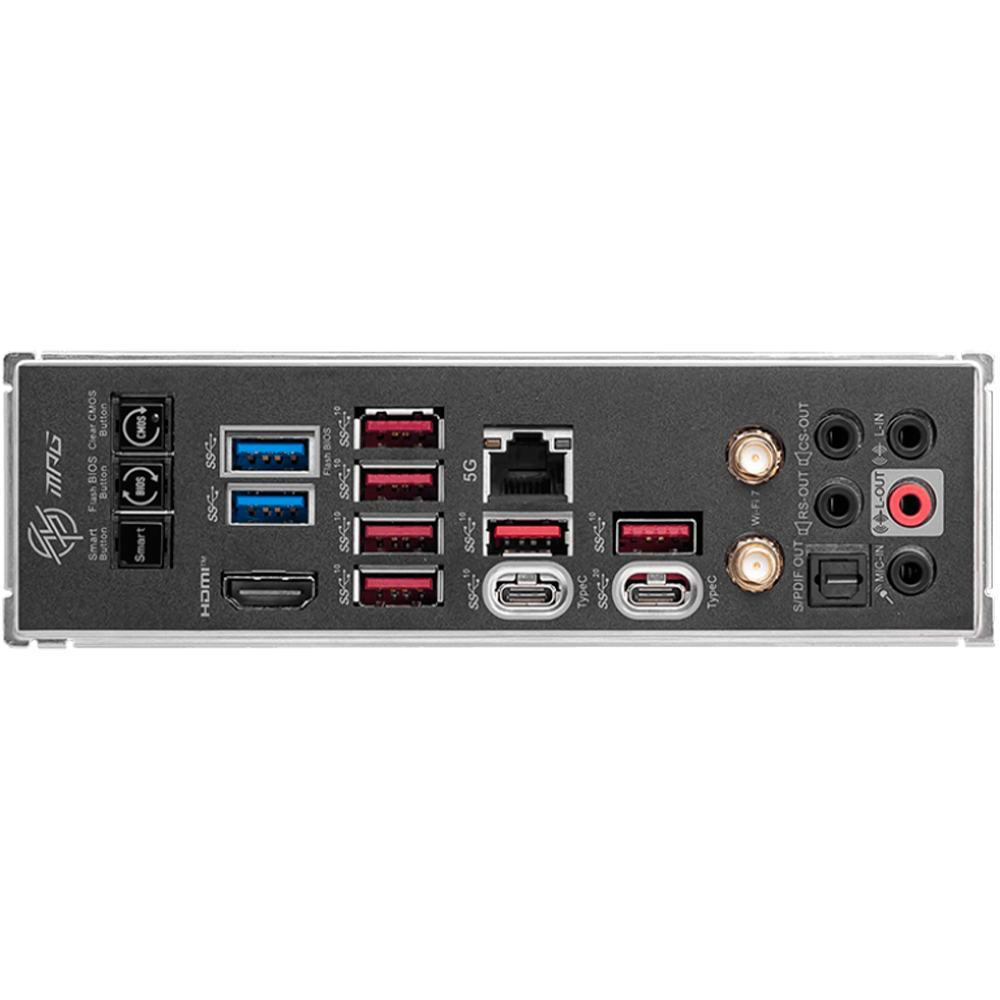

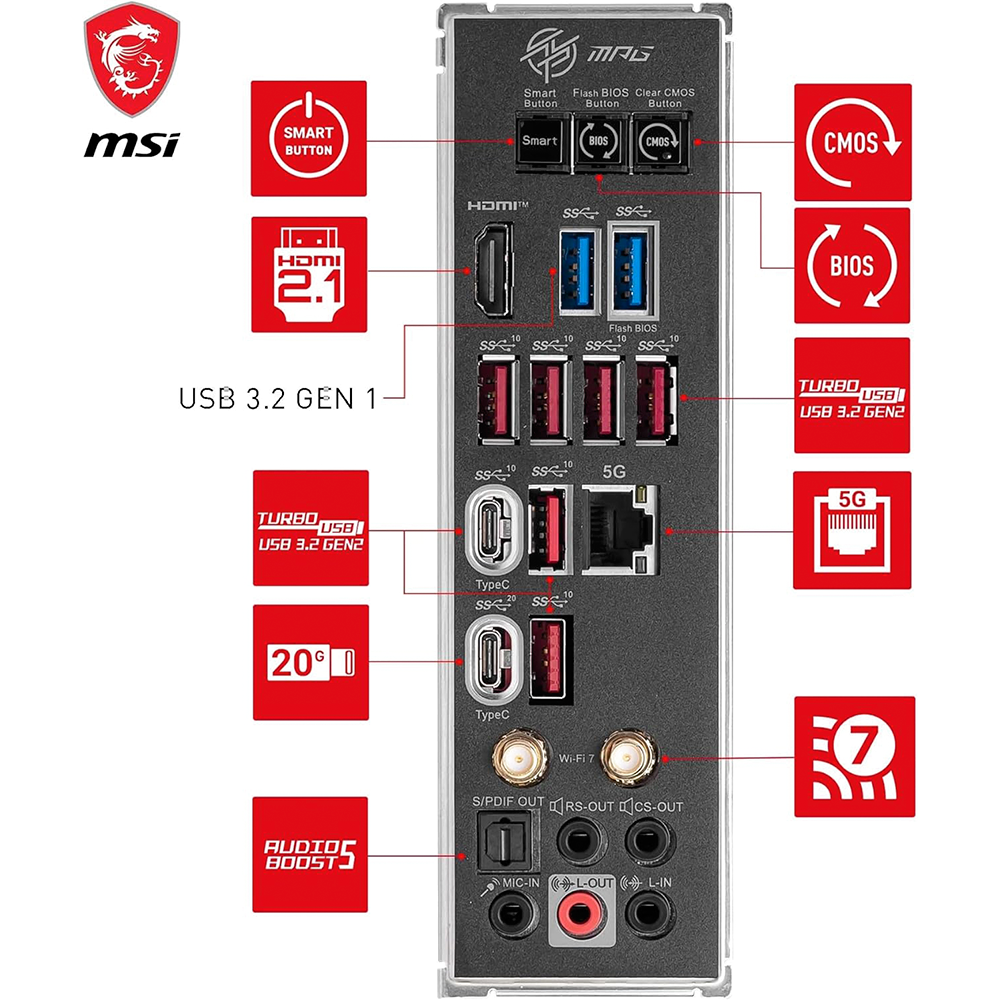

Back I/O Panel Ports :
- Clear CMOS/Flash Button
- USB 5 Gbps (Type-A)
- USB 3.2 10Gbps (Type-A)
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- Smart Button
- HDMI
- USB 10Gbps (Type-C)
- USB 20Gbps (Type-C)
- Optical S/PDIF Out
Motherboard Size :
- ATX 243.84×304.8 mm
Product Number:
- 911-7D89-015
Box Content :
