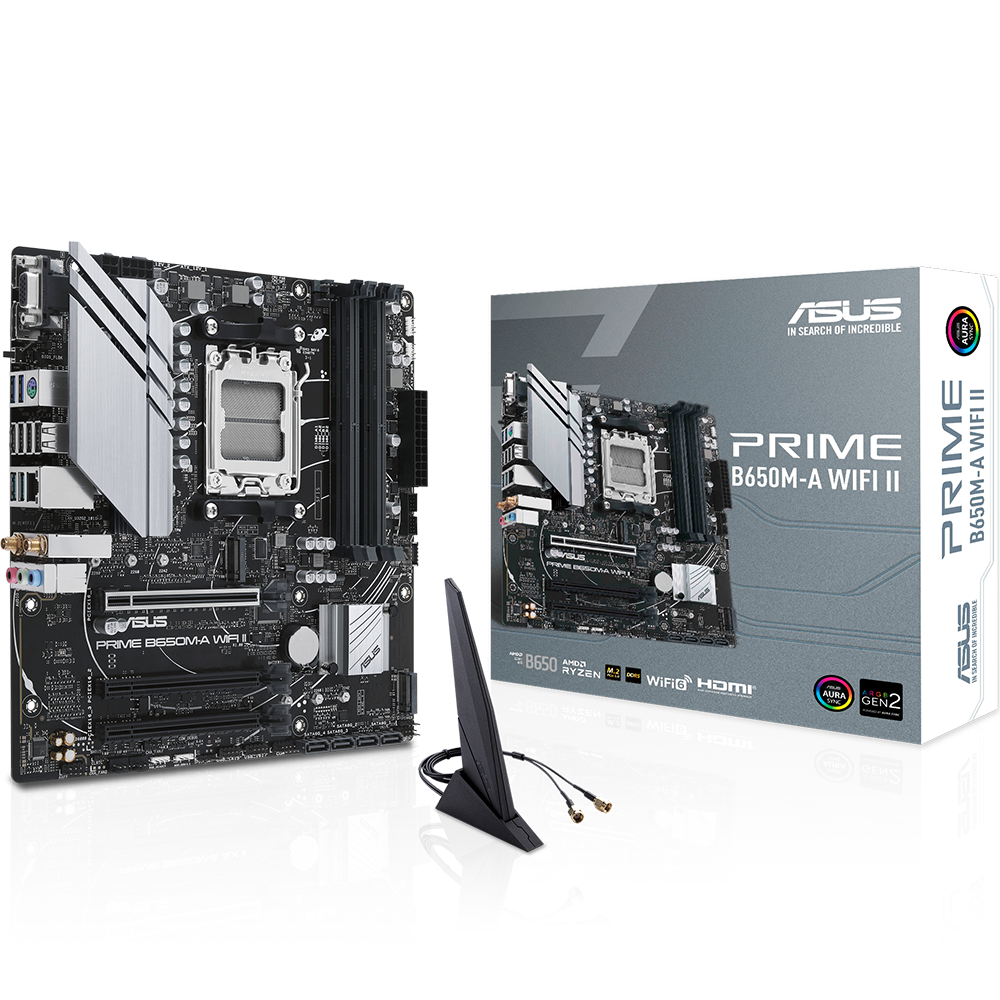

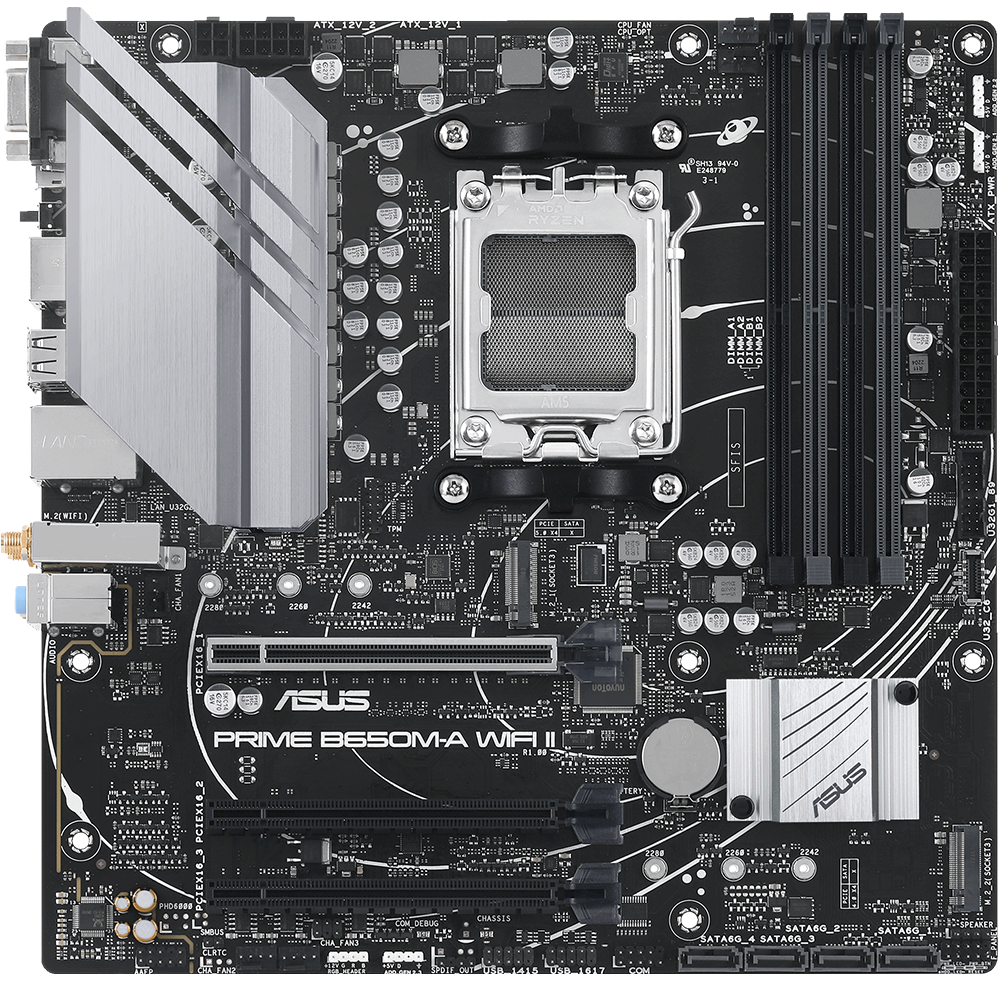

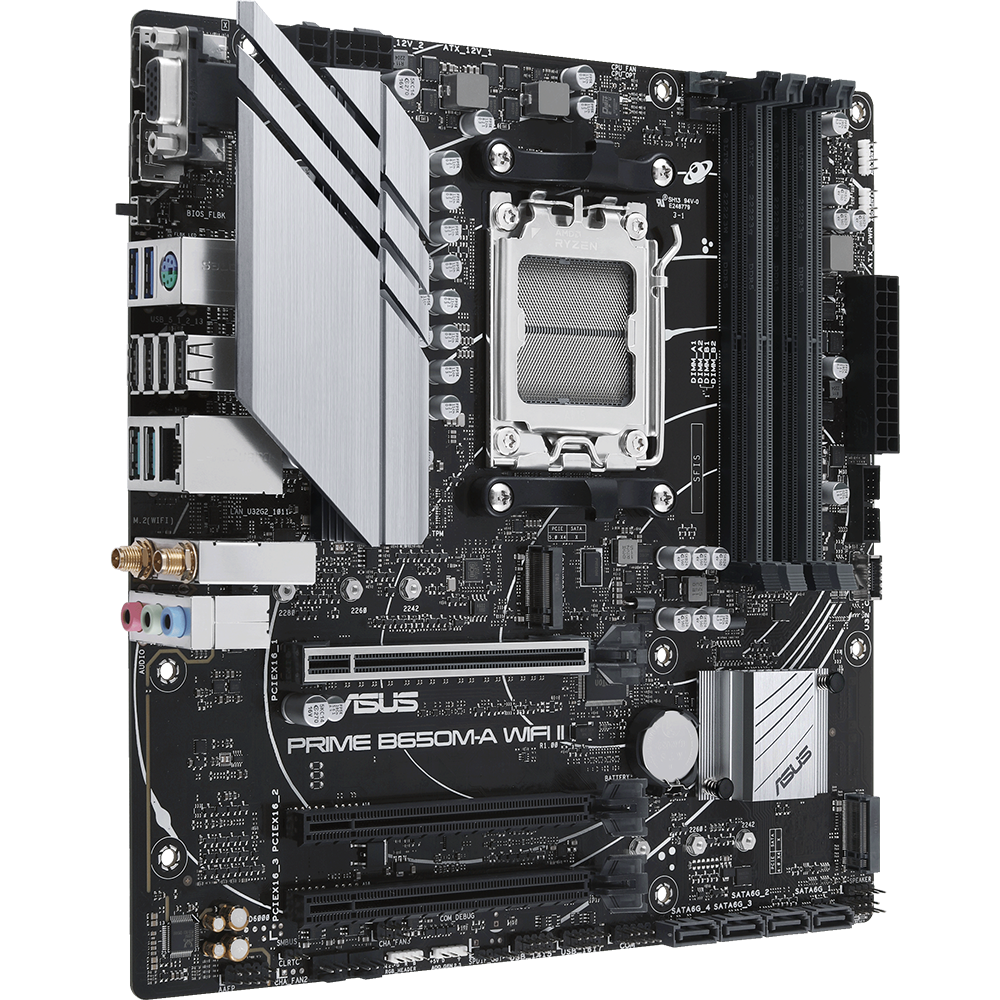

- AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync
CPU
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory
- DDR5
- 4 x DIMM, Max. 192GB, DDR5
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 x16 slots
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 5.0 x4
- 1 x M.2 PCIe 4.0 x4
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth :
- Wi-Fi 6 Supports 2.4/5GHz frequency band
- Bluetooth® v5.2
USB
- Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen1 Port (Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

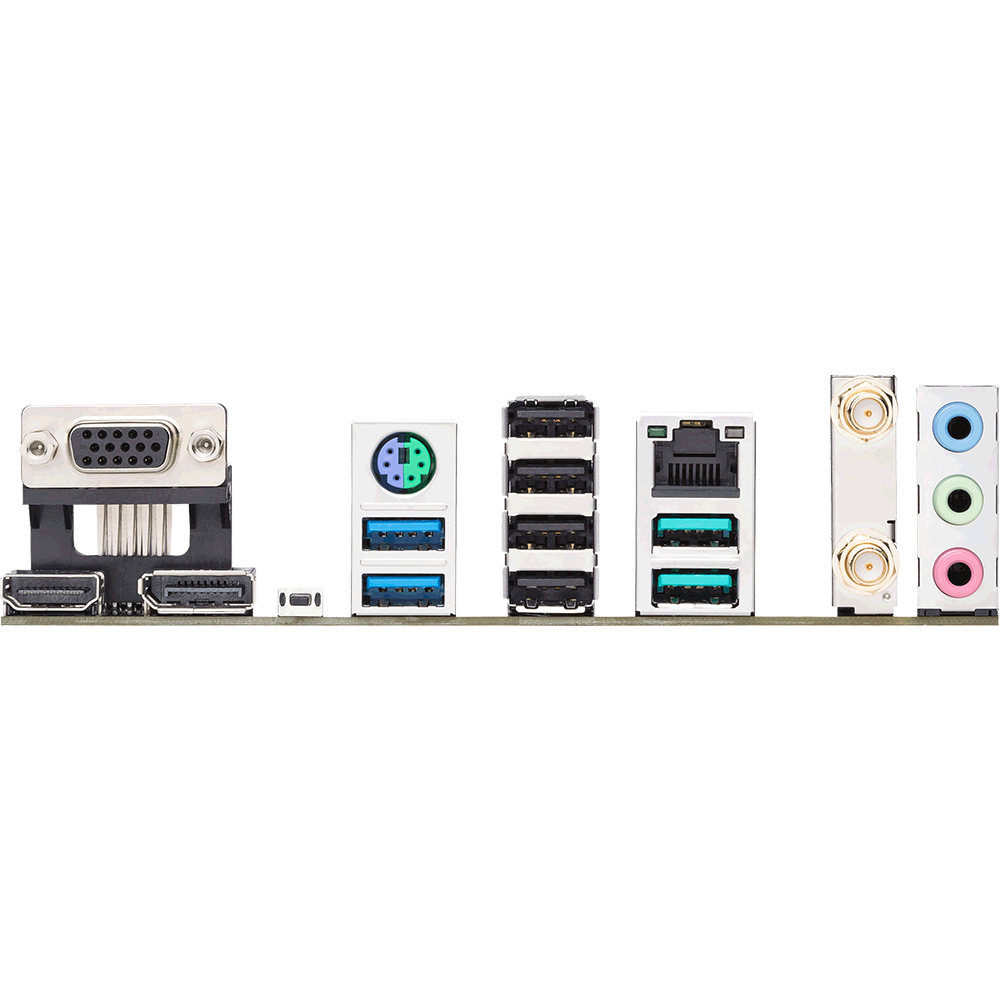

Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen1 Port (Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI® port
- 1 x WiFi Module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x PS/2 Keyboard/Mouse Port

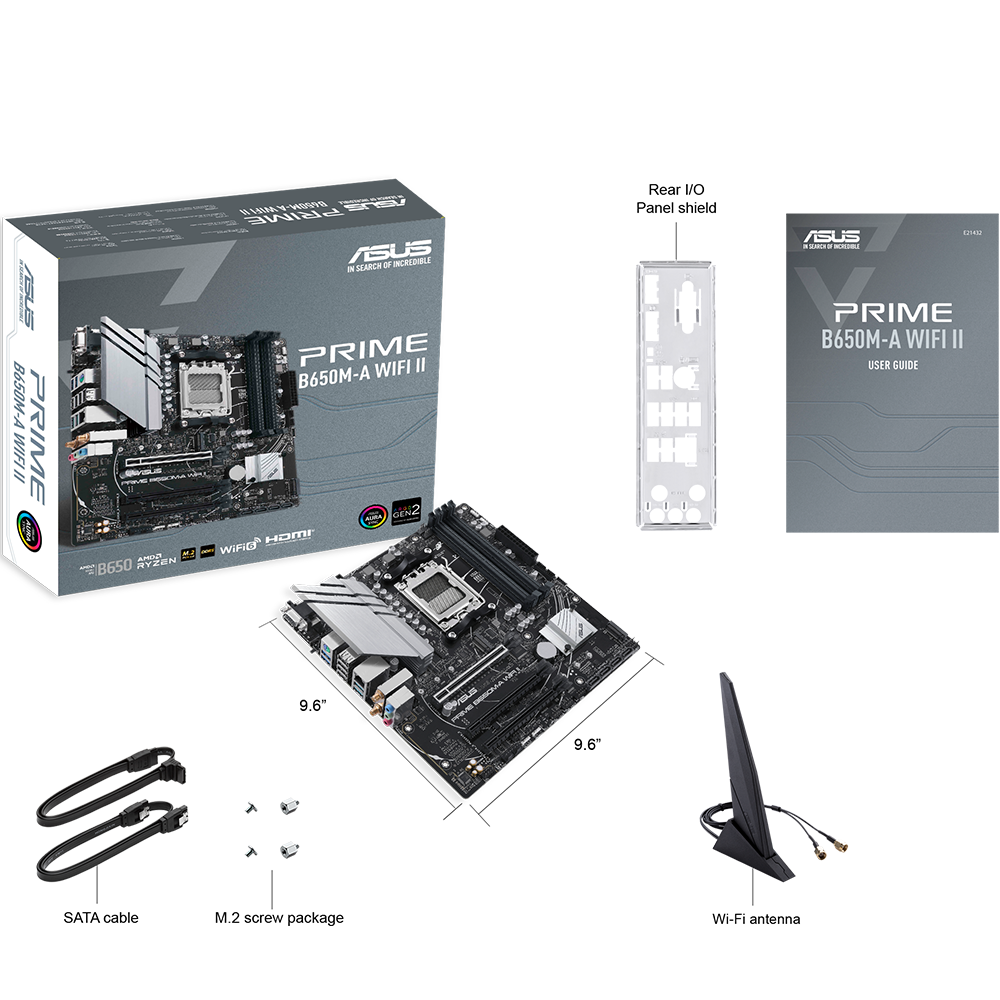

Accessories
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x Screw Package for M.2 SSD
- 1 x User guide
Form Factor :
- micro-ATX ( 24.4 cm x 24.4 cm )
Part Number:
- 90MB1EG0-M0EAY0
