- ASUS Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
CPU
- Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR5
- 2 x DIMM, Max. 96GB, DDR5
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 2 x M.2 PCIe 4.0 x4 slots
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
USB
- Rear USB (Total 6 ports)
- 4x USB 3.2 Gen 1 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- Front USB: Total 5 ports
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

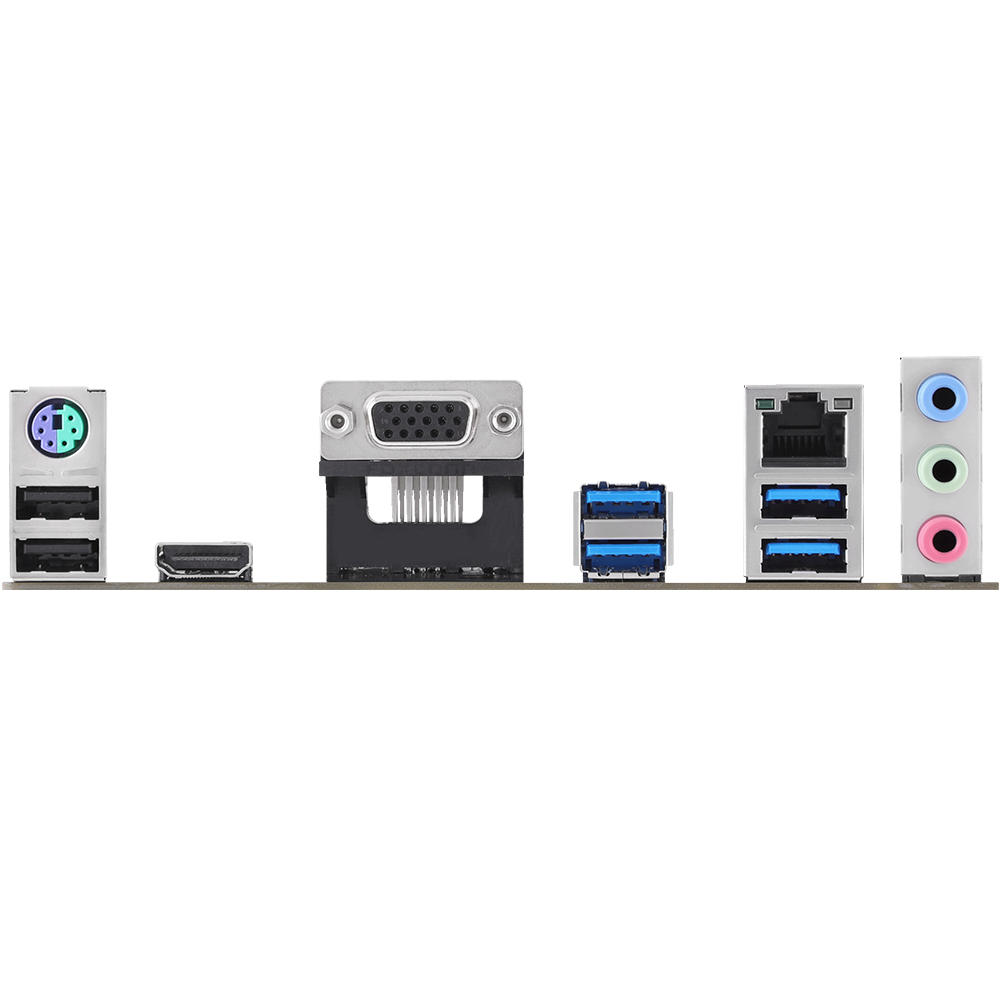

Back Panel I/O Ports
- 4x USB 3.2 Gen 1 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x VGA Port
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet Port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port

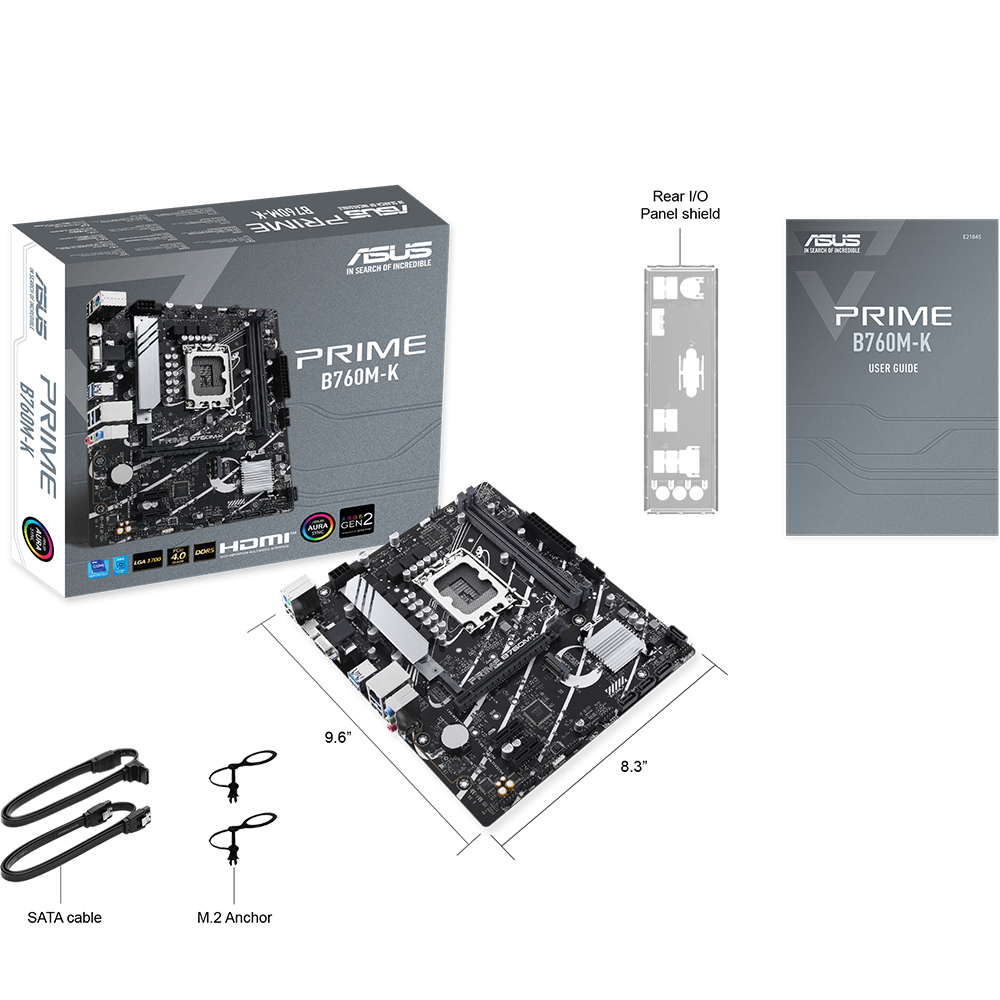

Accessories
- 2 x SATA 6Gb/s cables

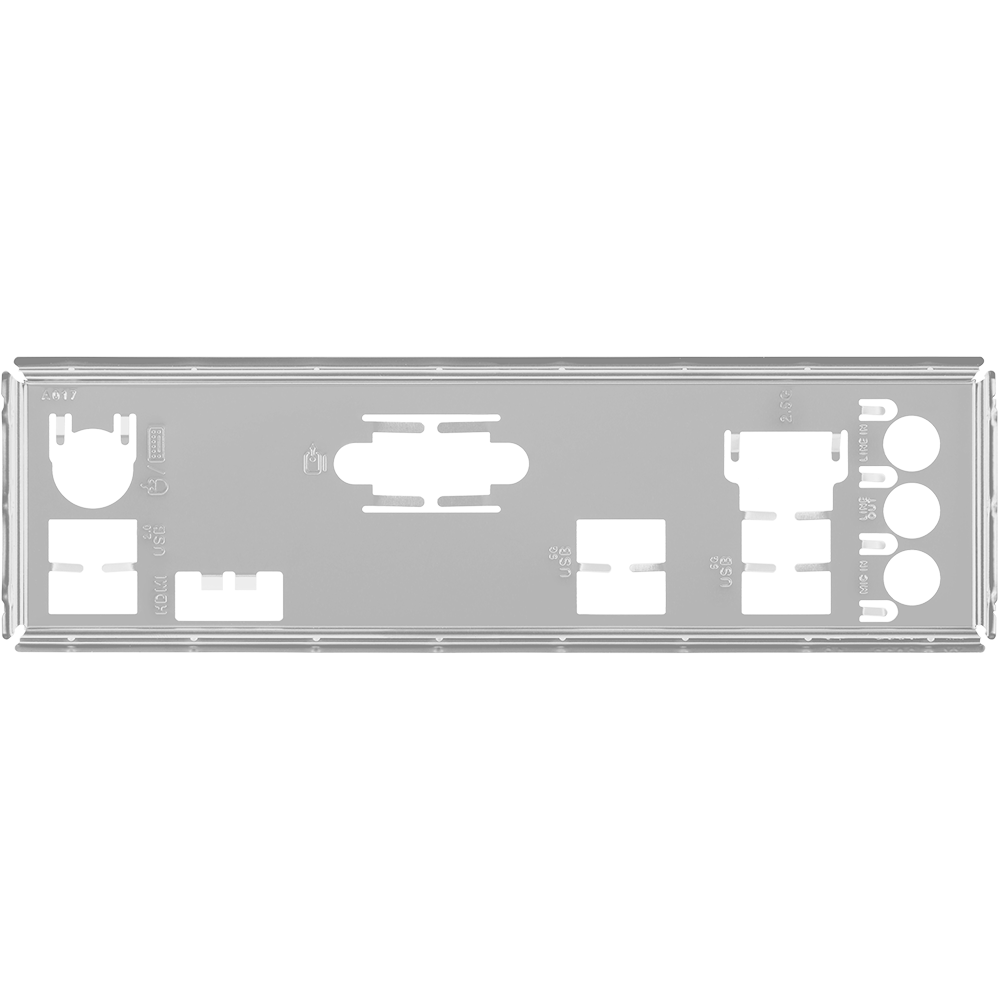

- 1 x I/O Shield
- 2 x M.2 anchors
- 1 x User guide
Form Factor :
- micro-ATX ( 24.4 cm x 21.1 cm )
Part Number:
- 90MB1FI0-M1EAY0
