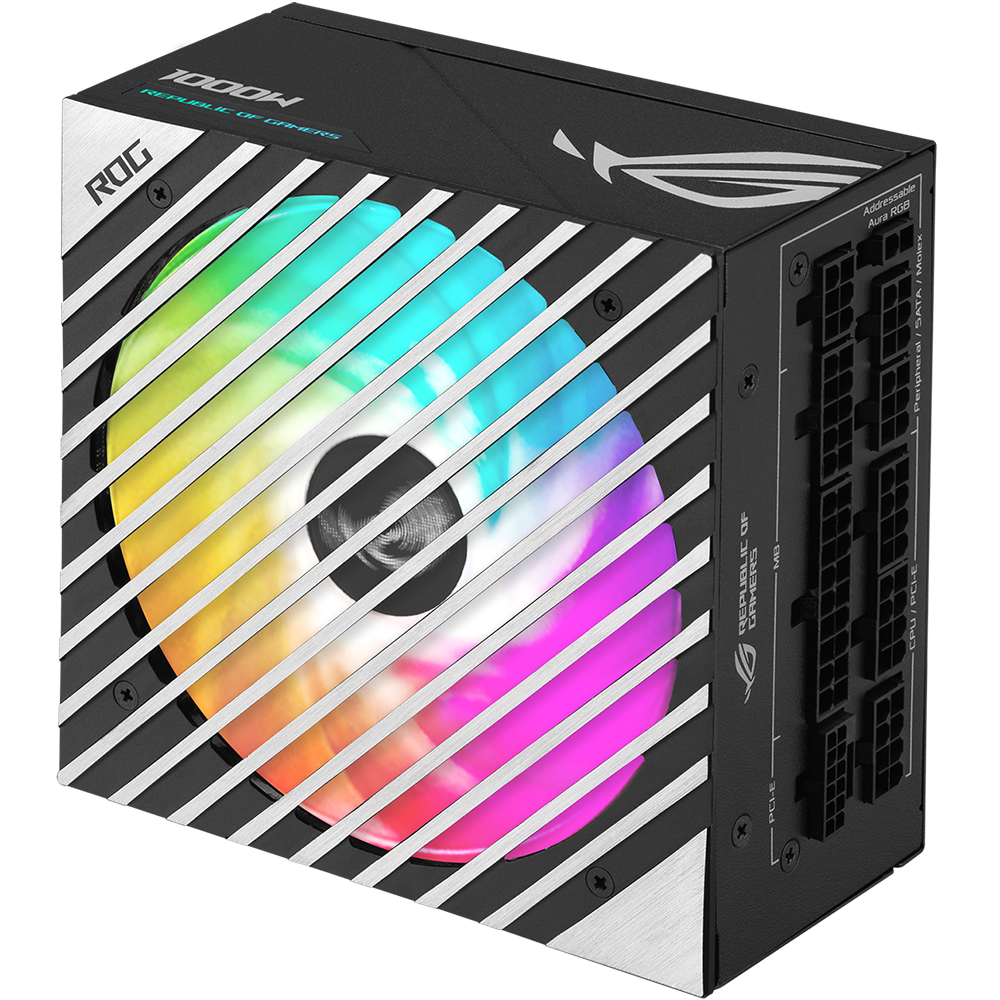

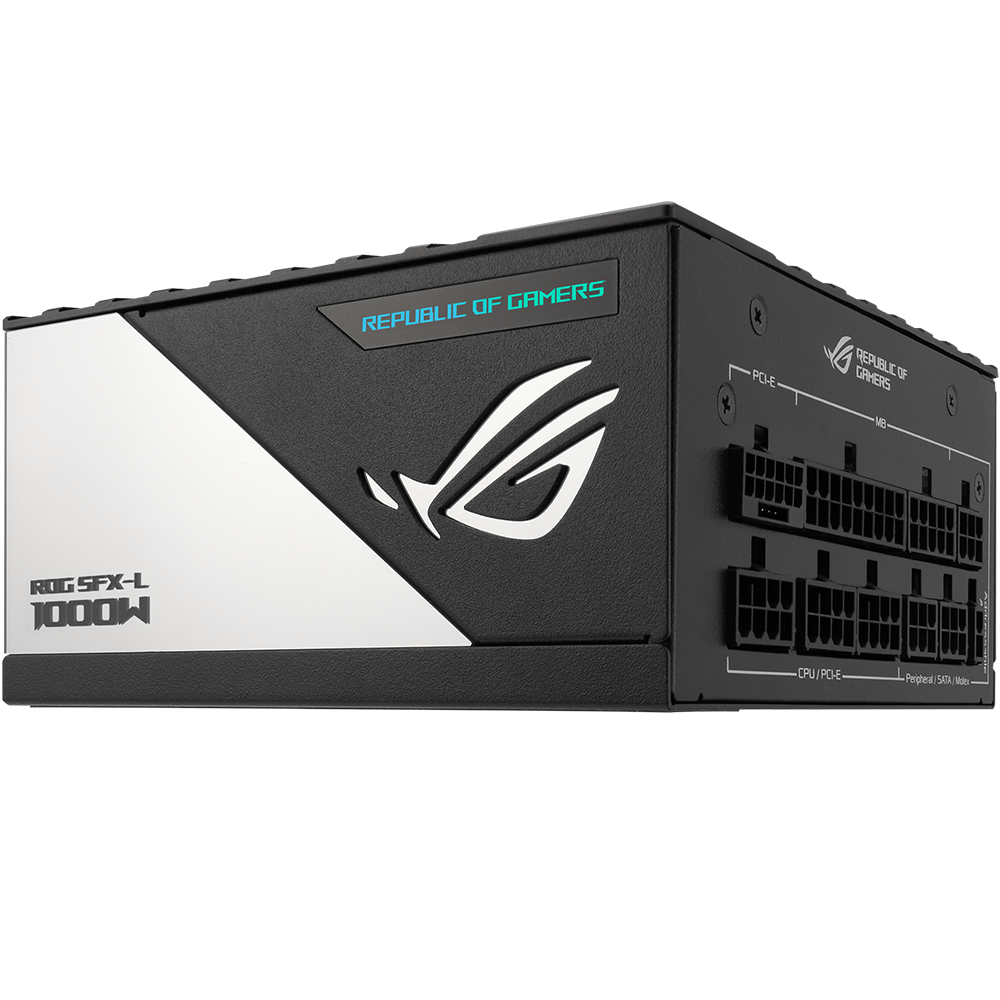

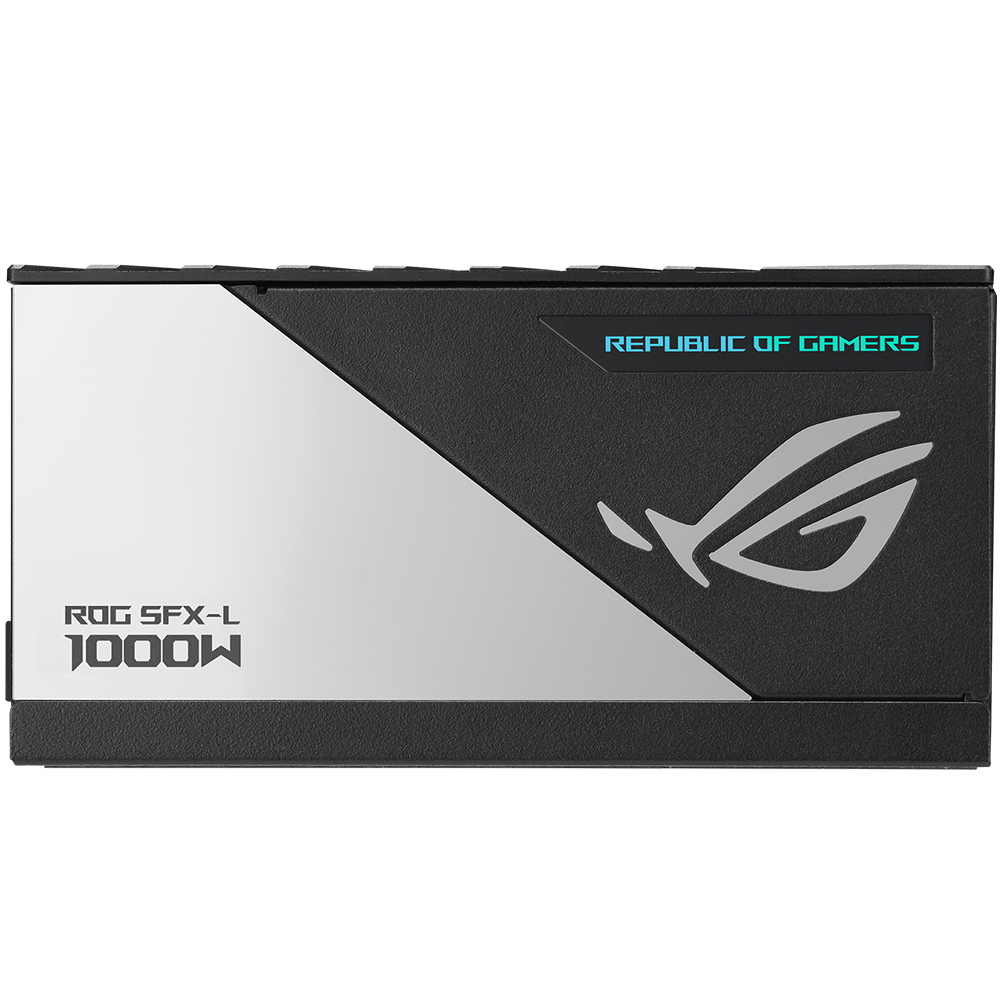

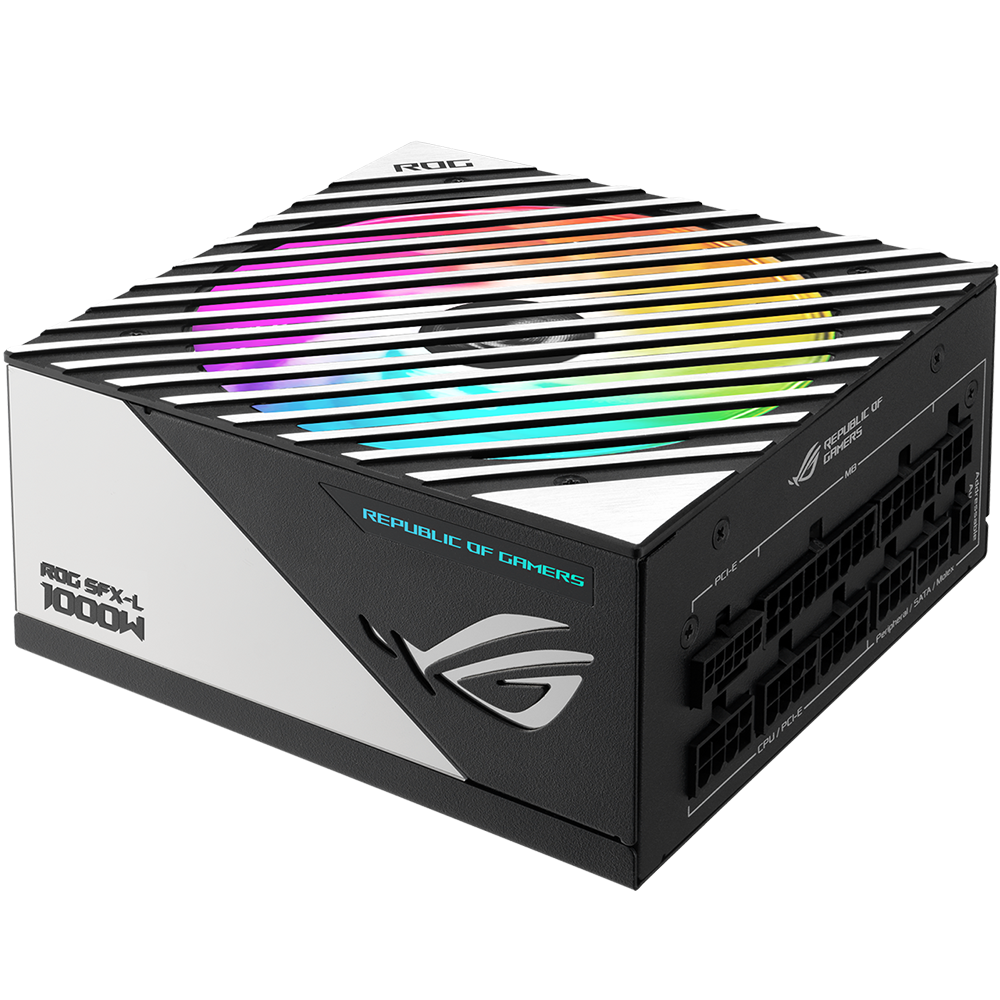

- Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
Product Features:
ROG Heatsinks Cool under pressure:
- ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design. Better, faster, stronger:
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
0dB Technology. Quiet intelligence:
- To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
Lambda A+ Certification. Quietly deviant:
- On average, ROG Loki emits less than 20 dB of noise – earning a coveted Cybenetics Lambda A+ certification.
High-performance Copper Pins:
- Upgraded PCIe connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to -12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
80 PLUS Platinum Certified. Effortless output:
- Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible:
- The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync:

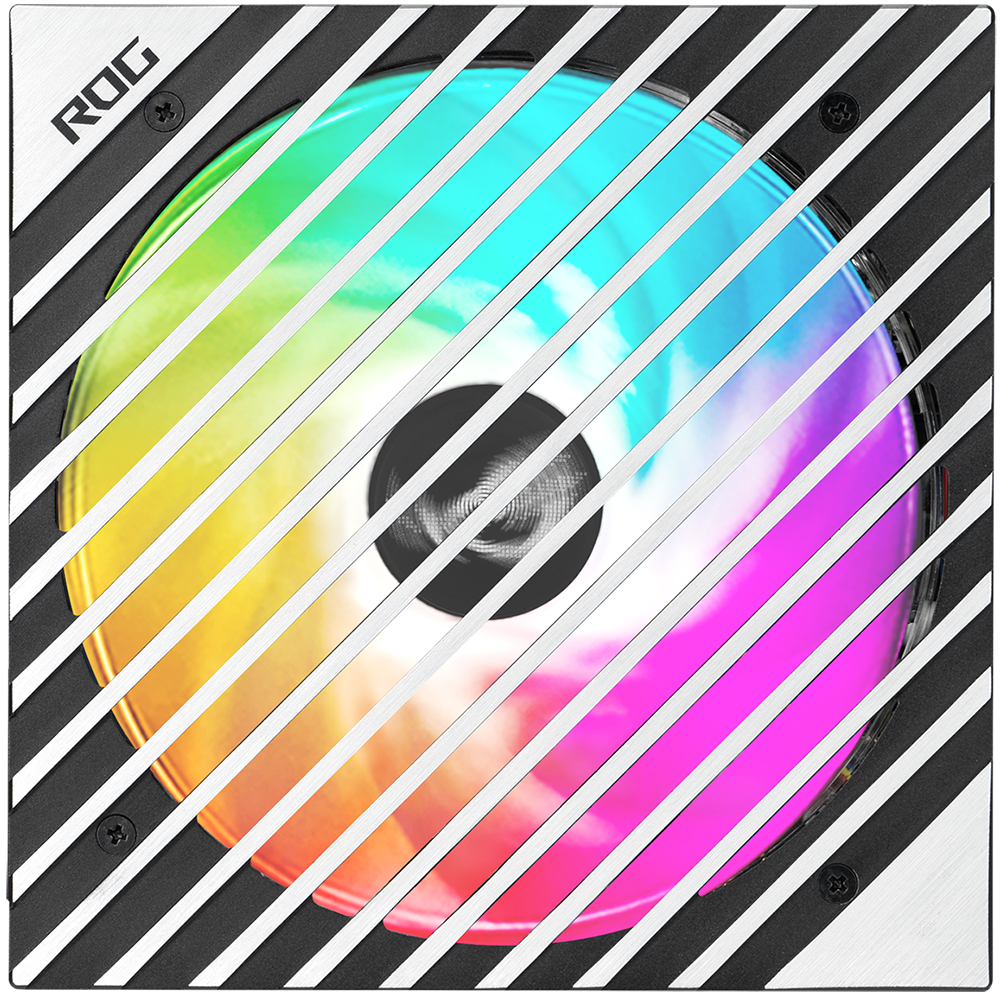

- The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
Product Details:
Model:
- ROG LOKI SFX-L 1000W Platinum
Intel Form Factor:
- SFX-L
ATX Standard:
- ATX 3.1
Dimensions:
- 125 x 125 x 63.5 mm
Efficiency:
- 80 Plus Platinum
Total Output:
- 1000W

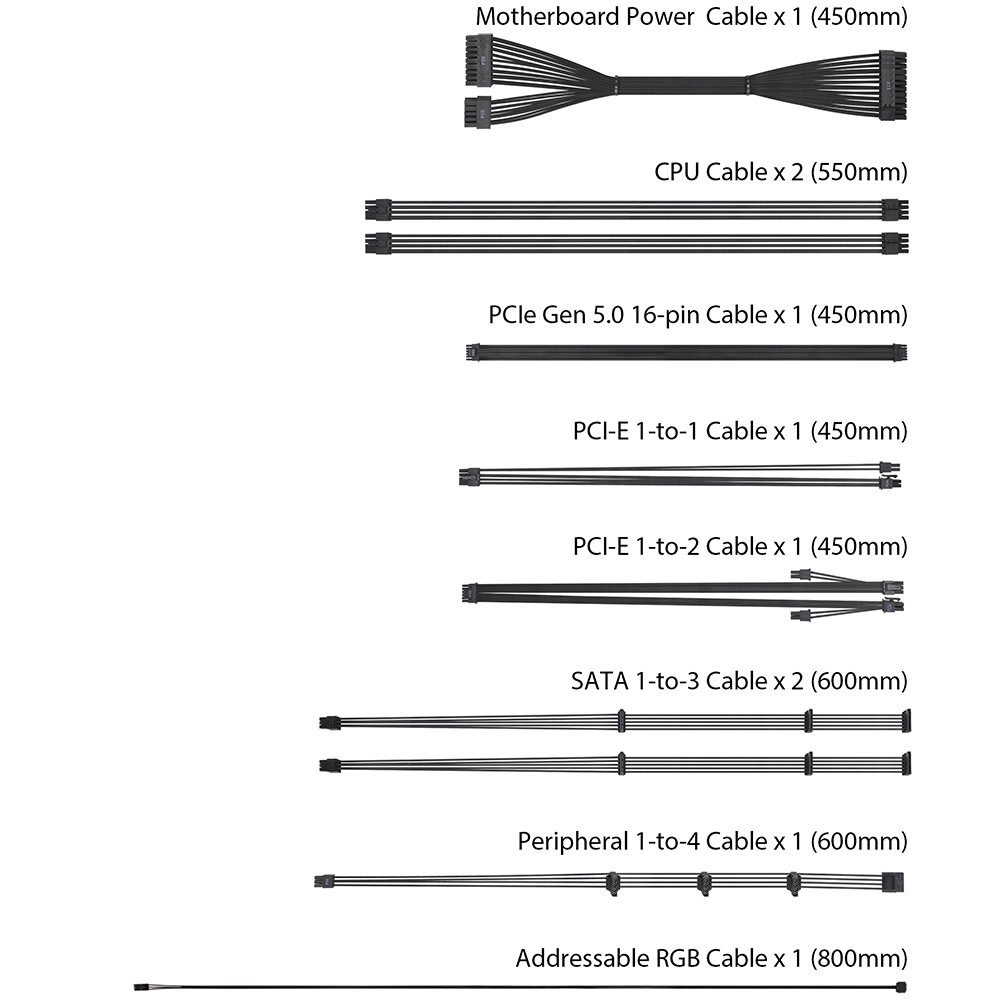

Cable Connectors:
- 1 × MB 24/20-pin
- 2 × CPU 4+4-pin
- 1 × PCI-E 16-pin (both PSU & component side)
- 3 × PCI-E 8-pin
- 6 × SATA
- 4 × PERIPHERAL
Weight:
- 1.83kg (single PSU)
AURA SYNC:
- ARGB
Part Number:
- 90YE00N1-B0NA00
