ASUS ROG STRIX B650E-F GAMING WIFI AM5 Socket For AMD CPUs Motherboard

• This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen processors, the ROG Strix B650E-F leaves its competition in the dust.

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Memory

• 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slots
• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 4.0/3.0 x1 slots

Storage :

• 4 x SATA 6Gb/s
• 1 x M.2 PCIe 5.0 x4
• 2 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• Supports 2.4/5GHz frequency band*
• Bluetooth v5.2
• * WiFi 6E 6GHz regulatory may vary between countries.

USB

• Rear USB (Total 12 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 3 x USB 3.2 Gen 2 port (2 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 port (4 x Type-A)
• 4 x USB 2.0 ports
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

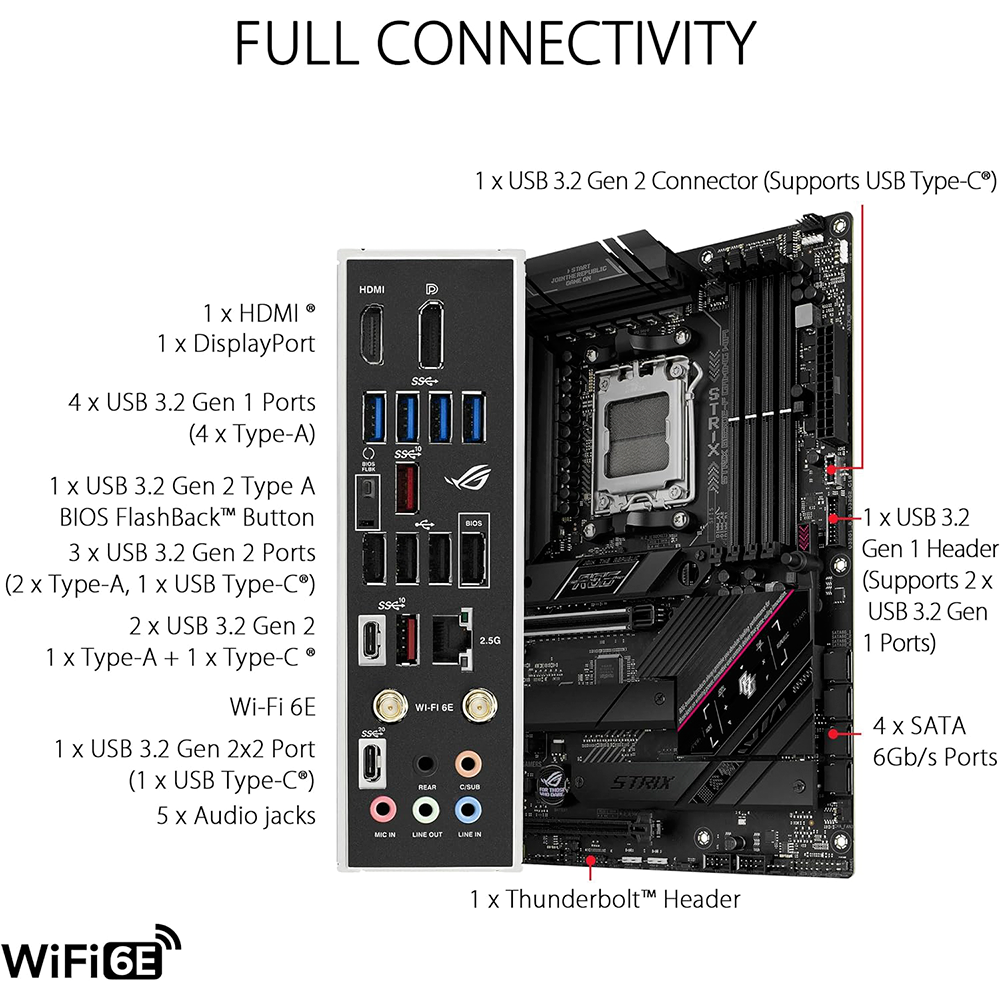

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 3 x USB 3.2 Gen 2 port (2 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 port (4 x Type-A)
• 4 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet
• 5 x audio jacks
• 1 x BIOS FlashBack™ button

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x Rubber Packages for M.2
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1BQ0-M0EAY0
