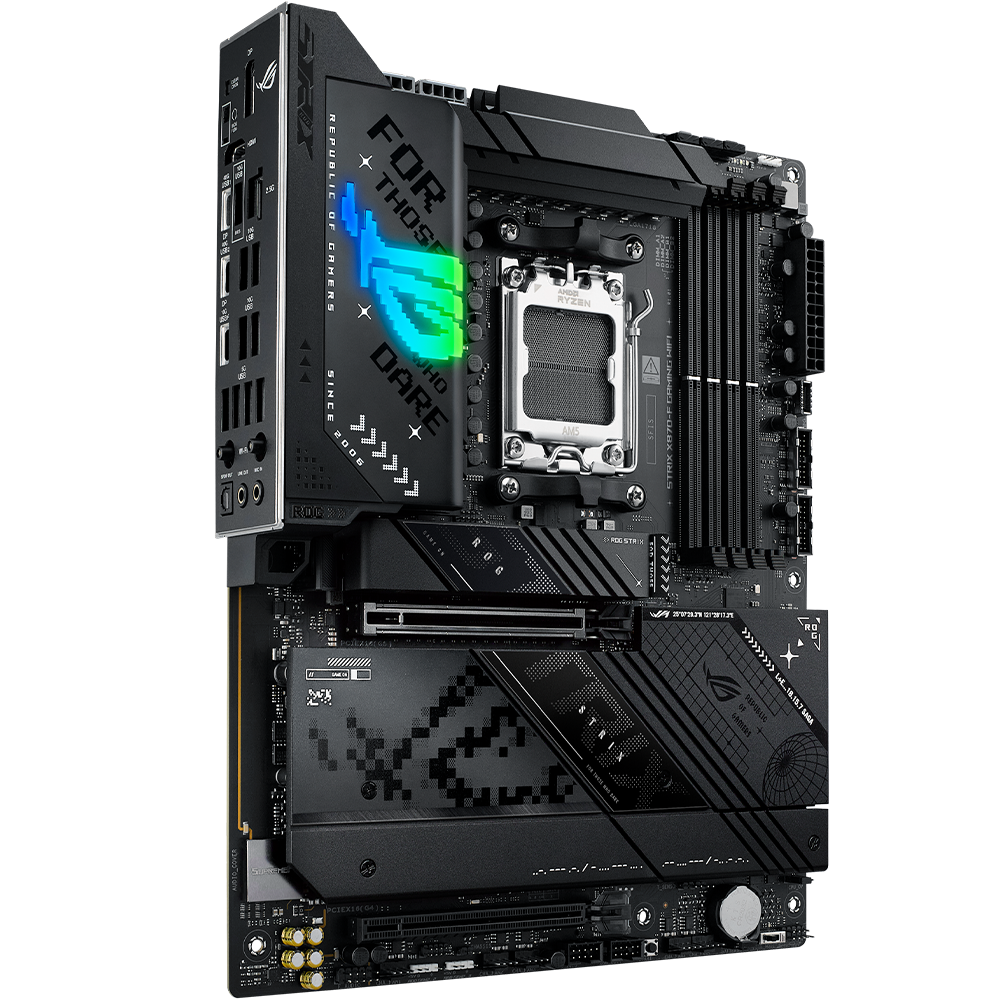

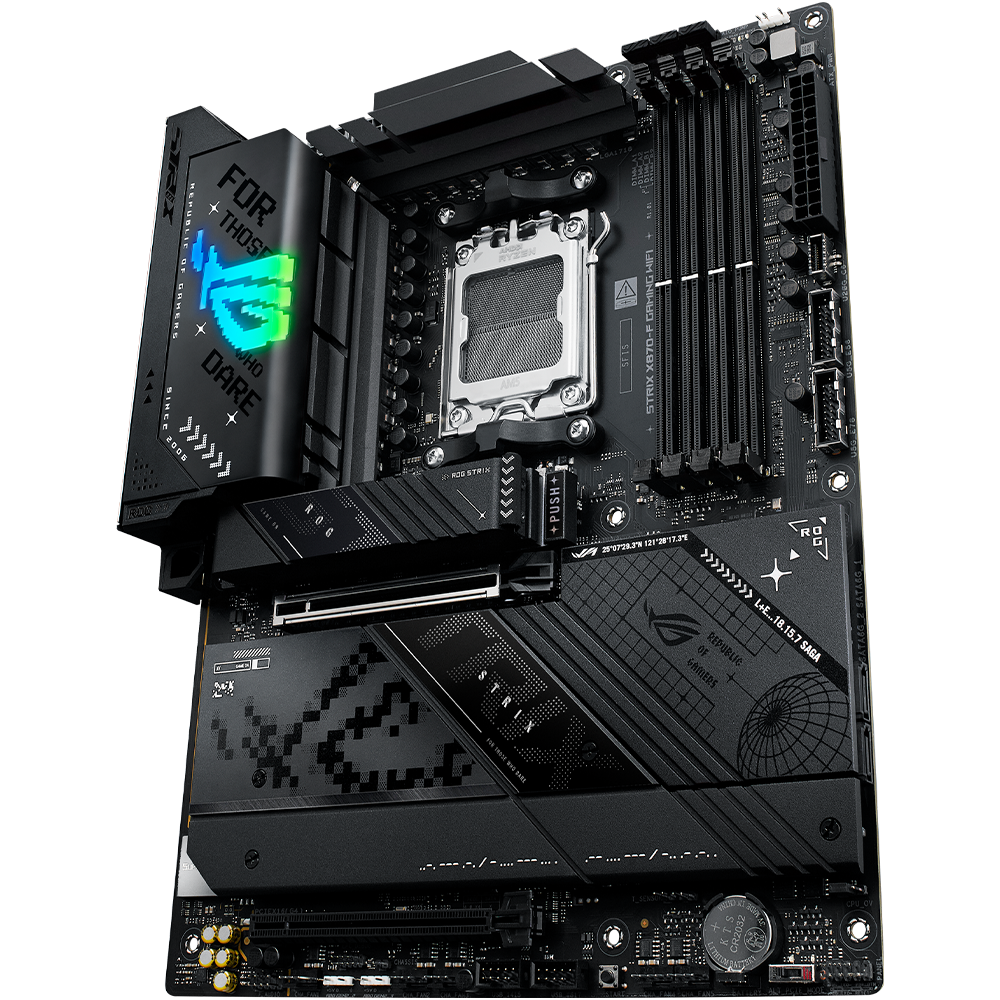

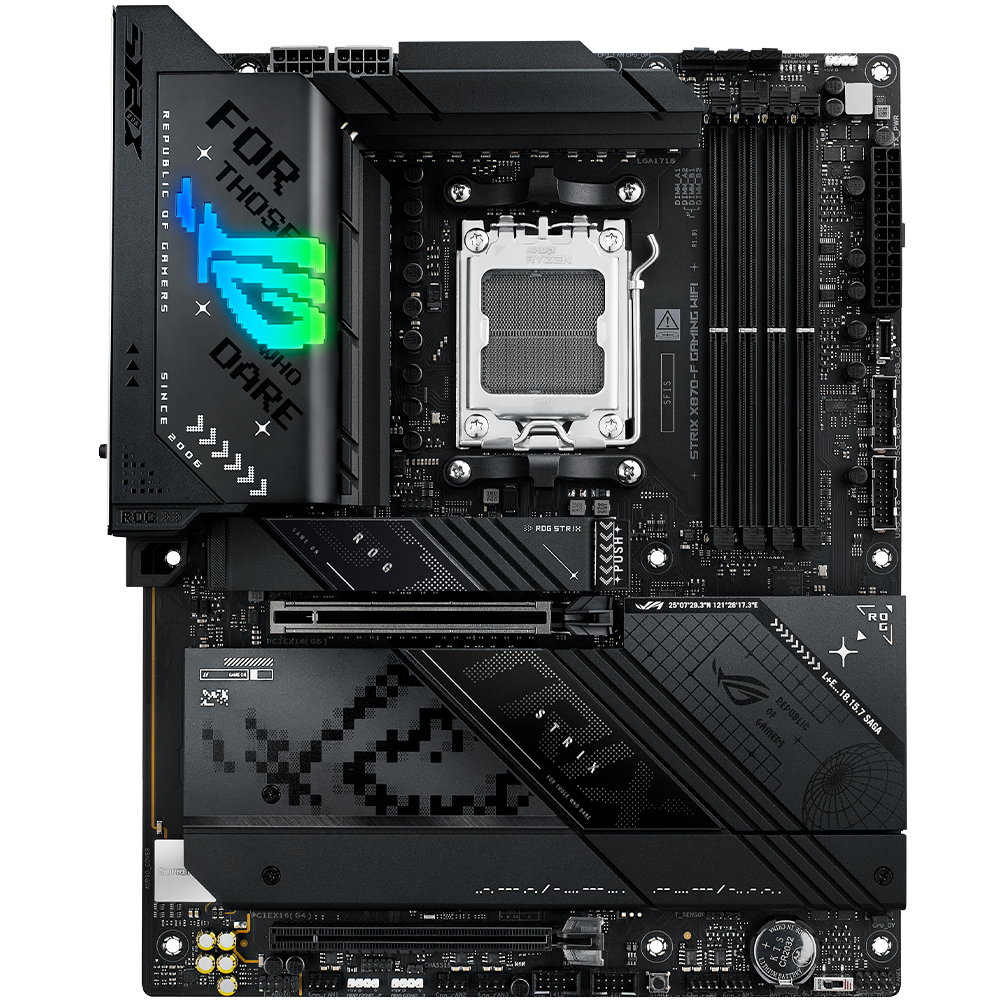

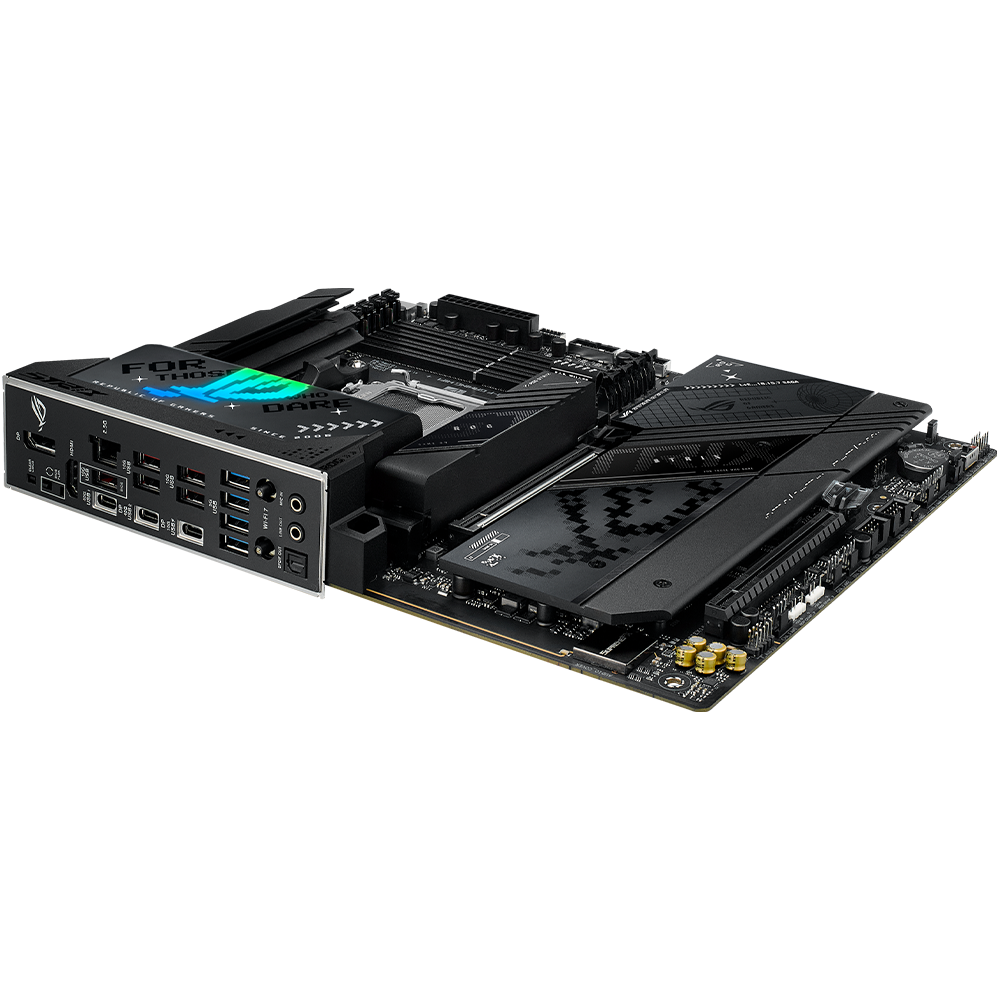

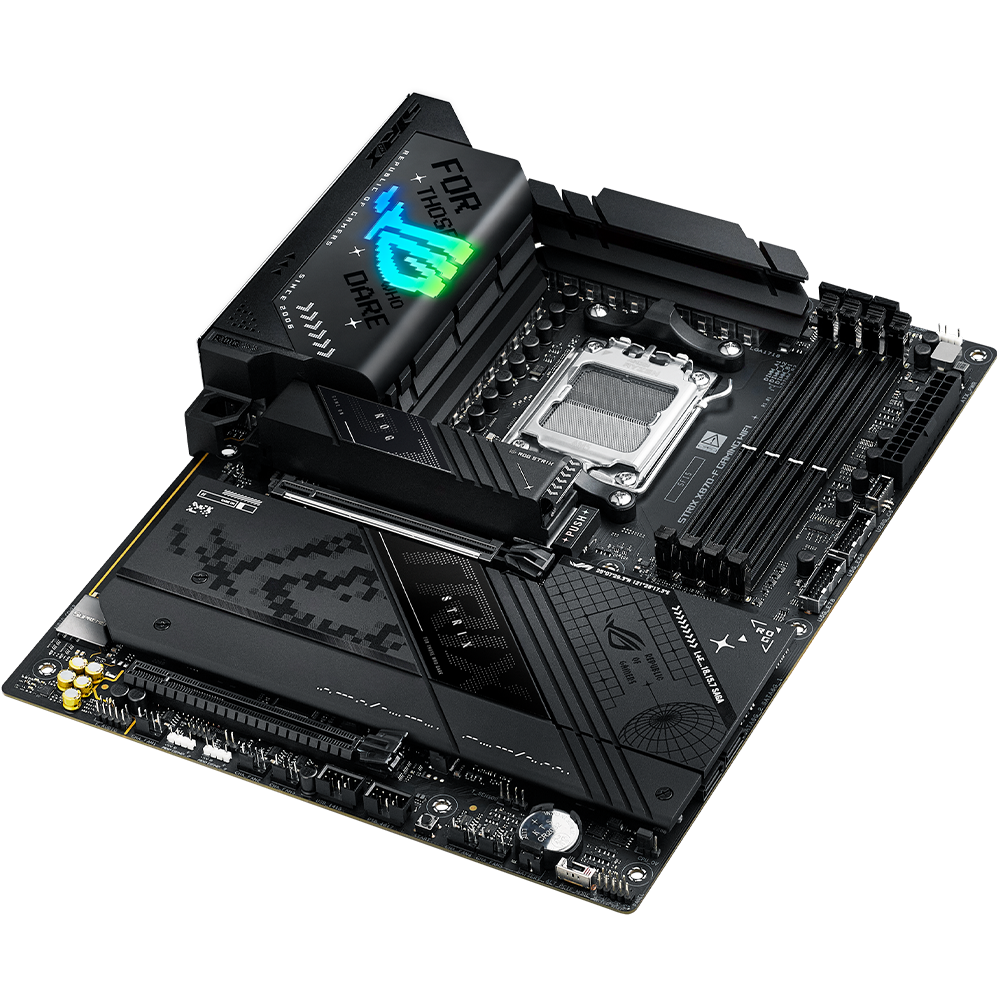

- The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
Product Details:
CPU:
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory:
- 4 x DIMM slots, max.256GB, DDR5
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- ASUS Enhanced Memory Profile (AEMP)
Expansion Slots:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors:
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
- Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports:
AMD Ryzen 9000 & 7000 Series Desktop Processors*:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors**:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
AMD X870 Chipset:
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports
- * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
- ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
- *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
- **** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.
Ethernet:
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- Supports 2.4/5/6GHz frequency band
- Bluetooth® v5.4
USB:
Rear USB (Total 12 ports):
- 2 x USB4 (40Gbps) ports (USB Type-C with DP Alt mode)
- 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
- 4 x USB 5Gbps ports (Type-A)
Front USB (Total 9 ports):
- 1 x USB 20Gbps connector (supports USB Type-C)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C power delivery output: max. 5V/3A
- ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio:
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

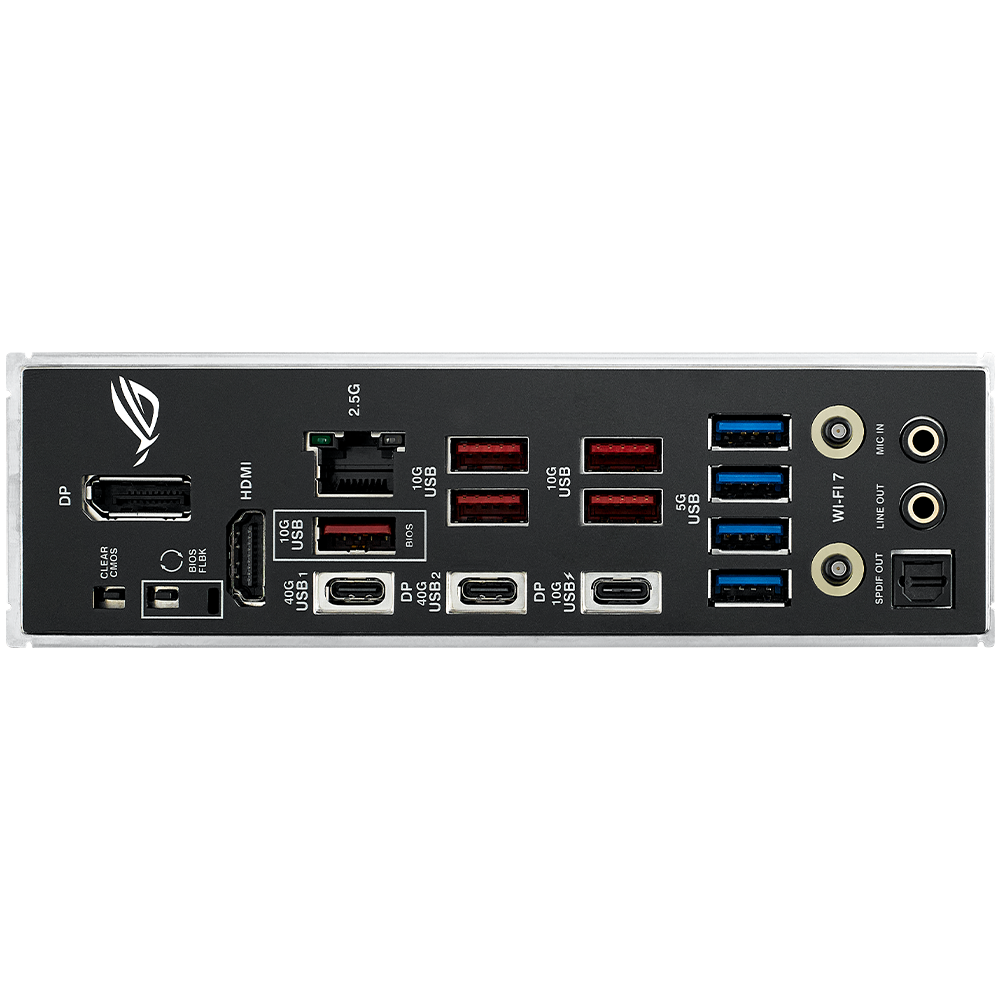

Back Panel I/O Ports:
- 2 x USB4 (40Gbps) ports (USB Type-C with DP Alt mode)
- 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
- 4 x USB 5Gbps ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1IV0-M0EAY0
