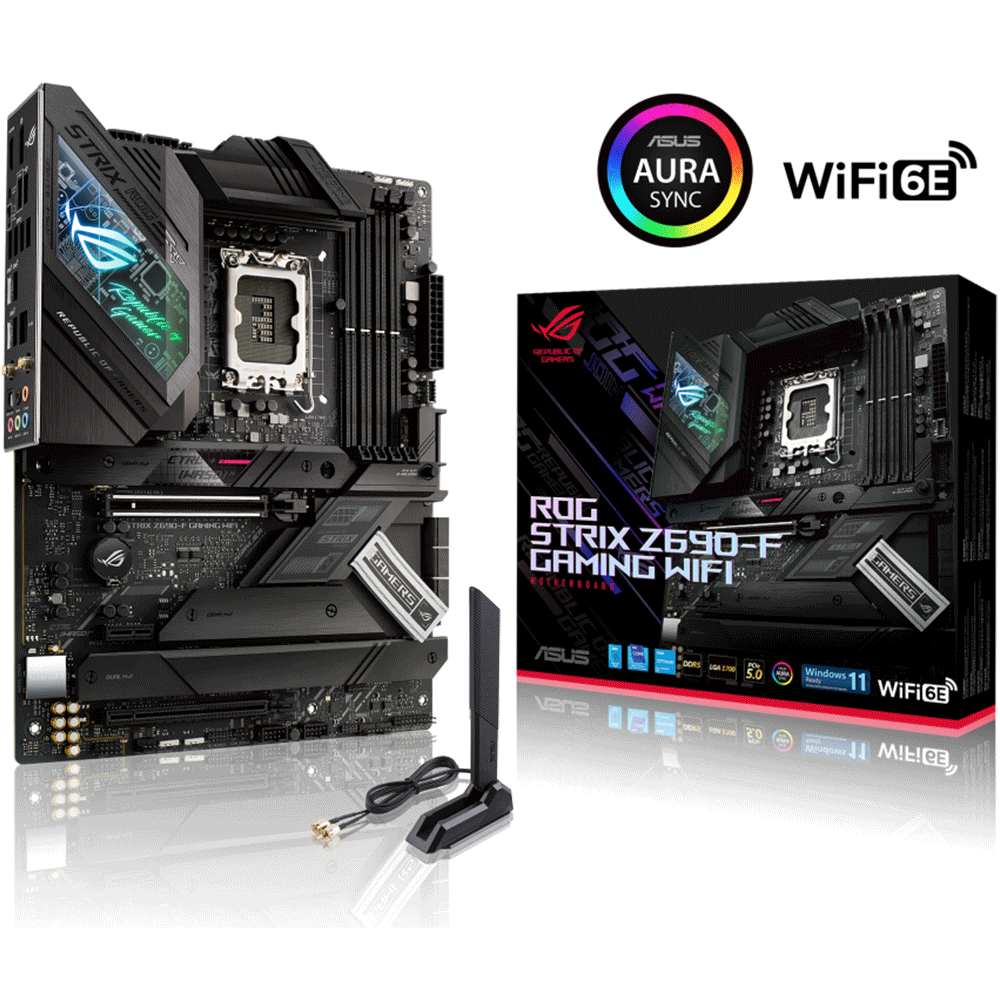

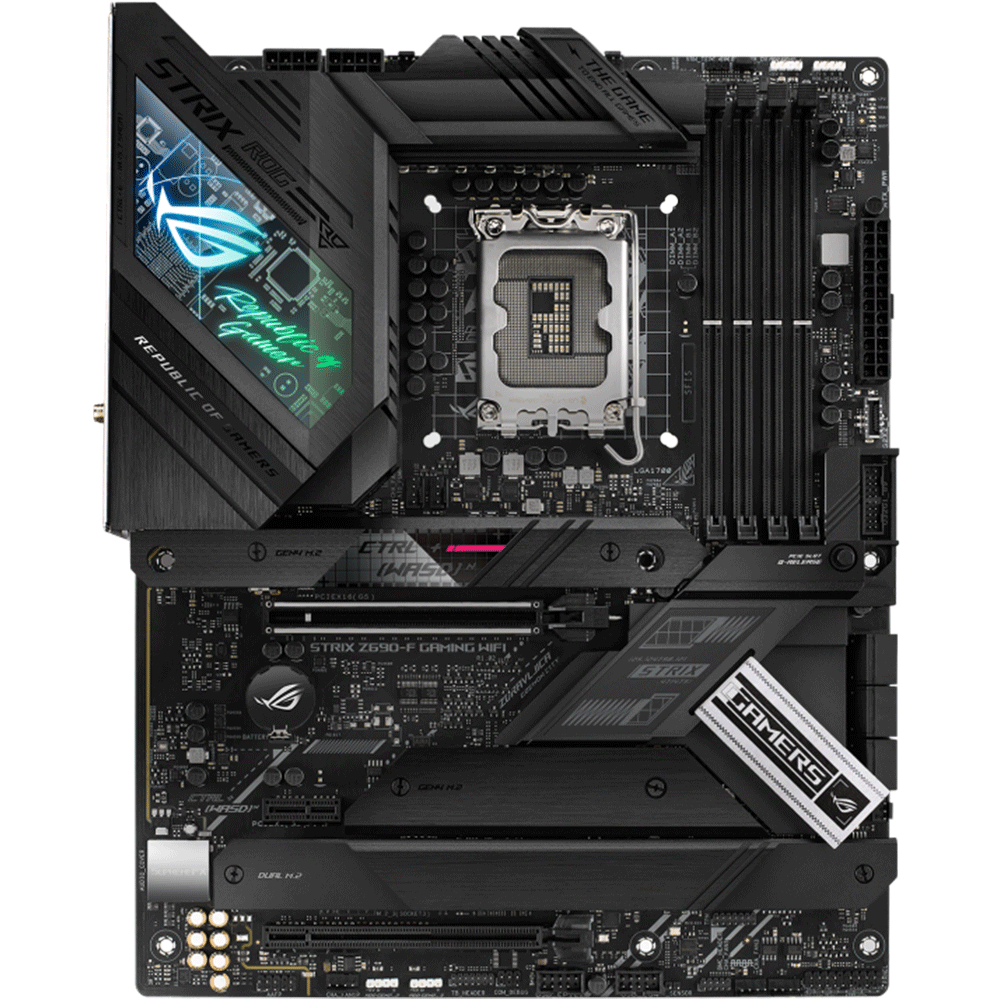

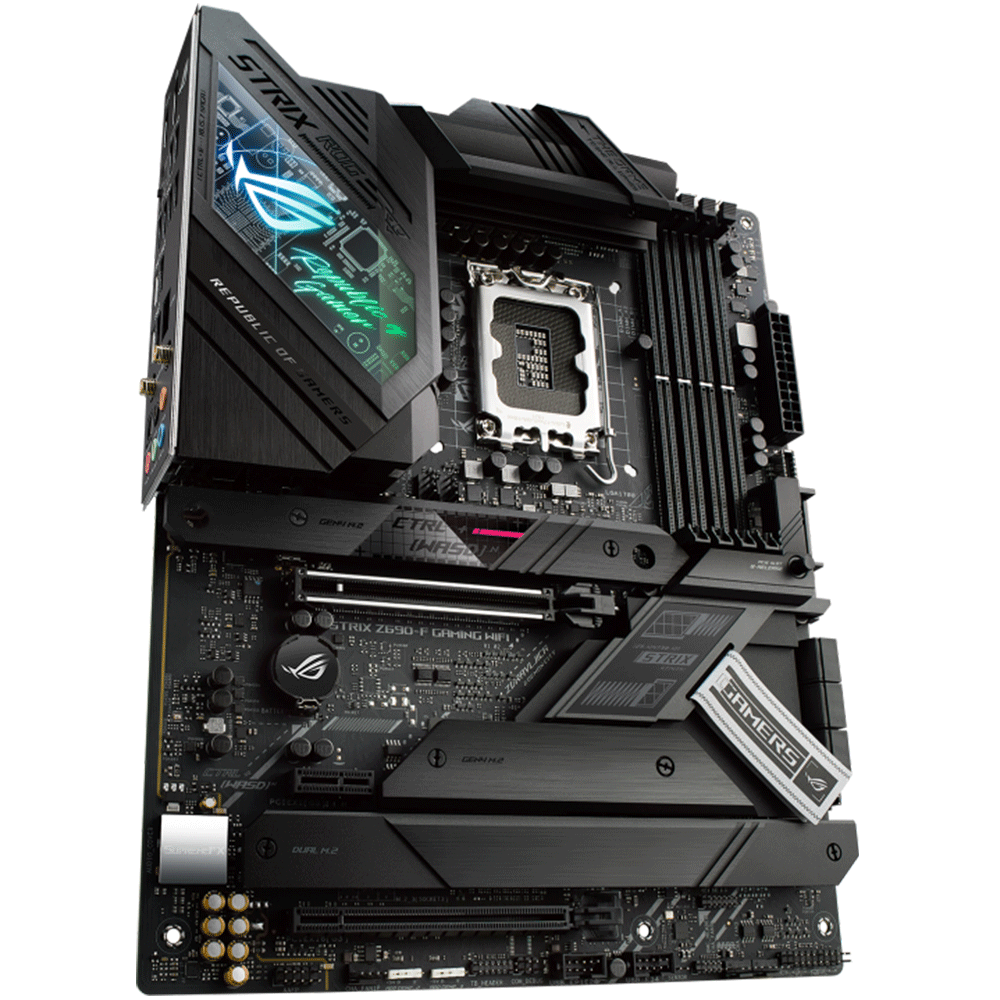

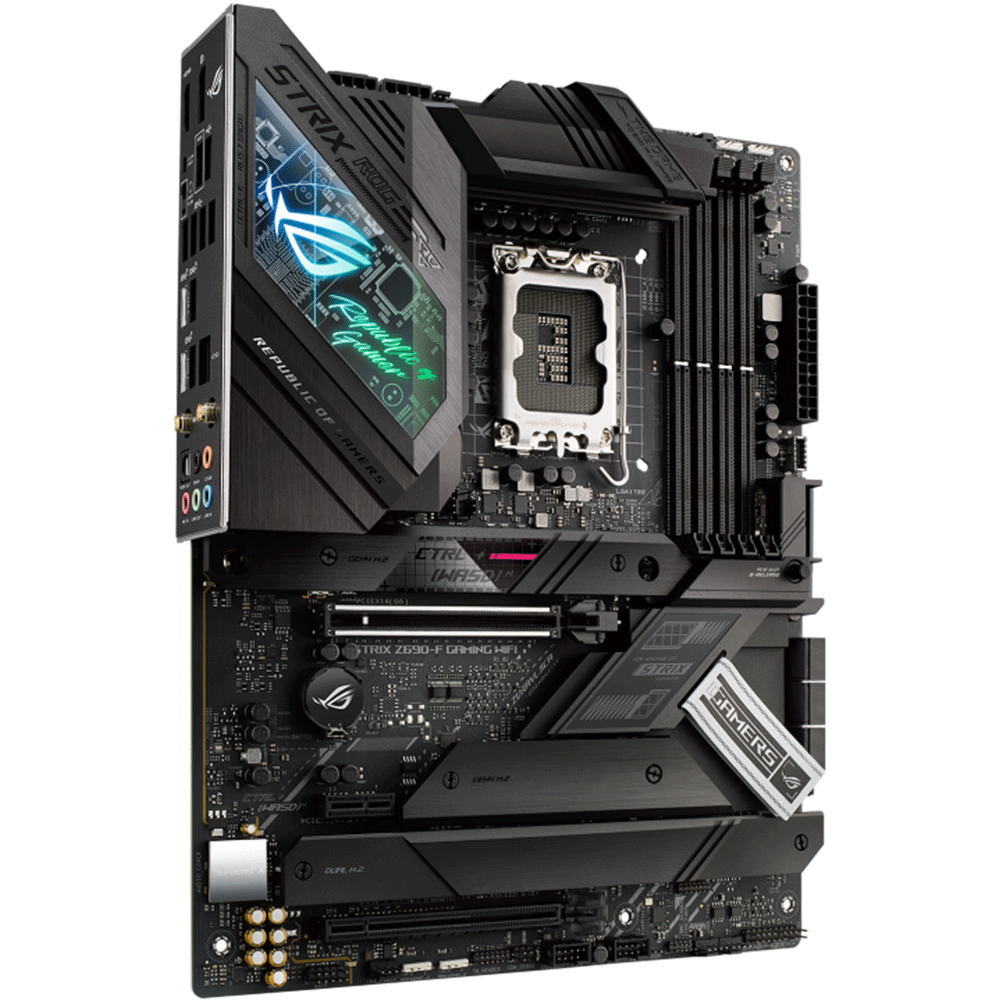

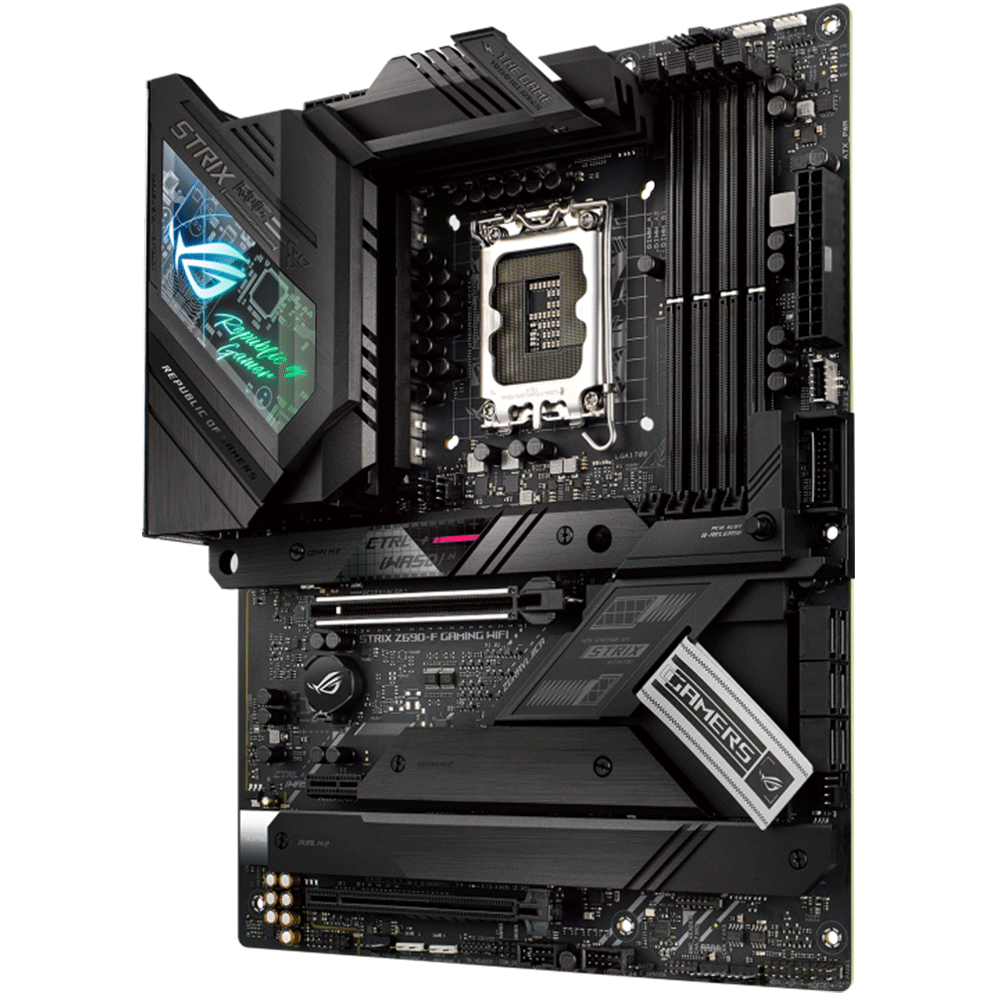

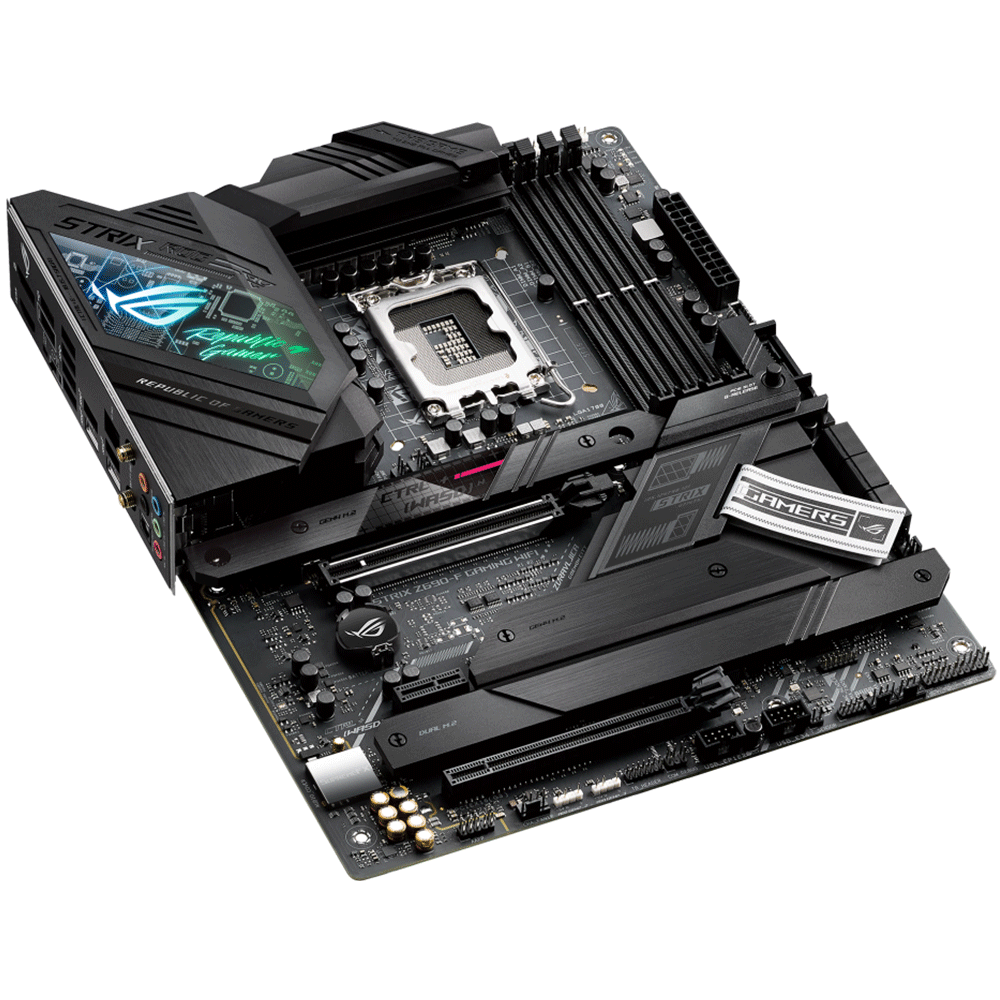

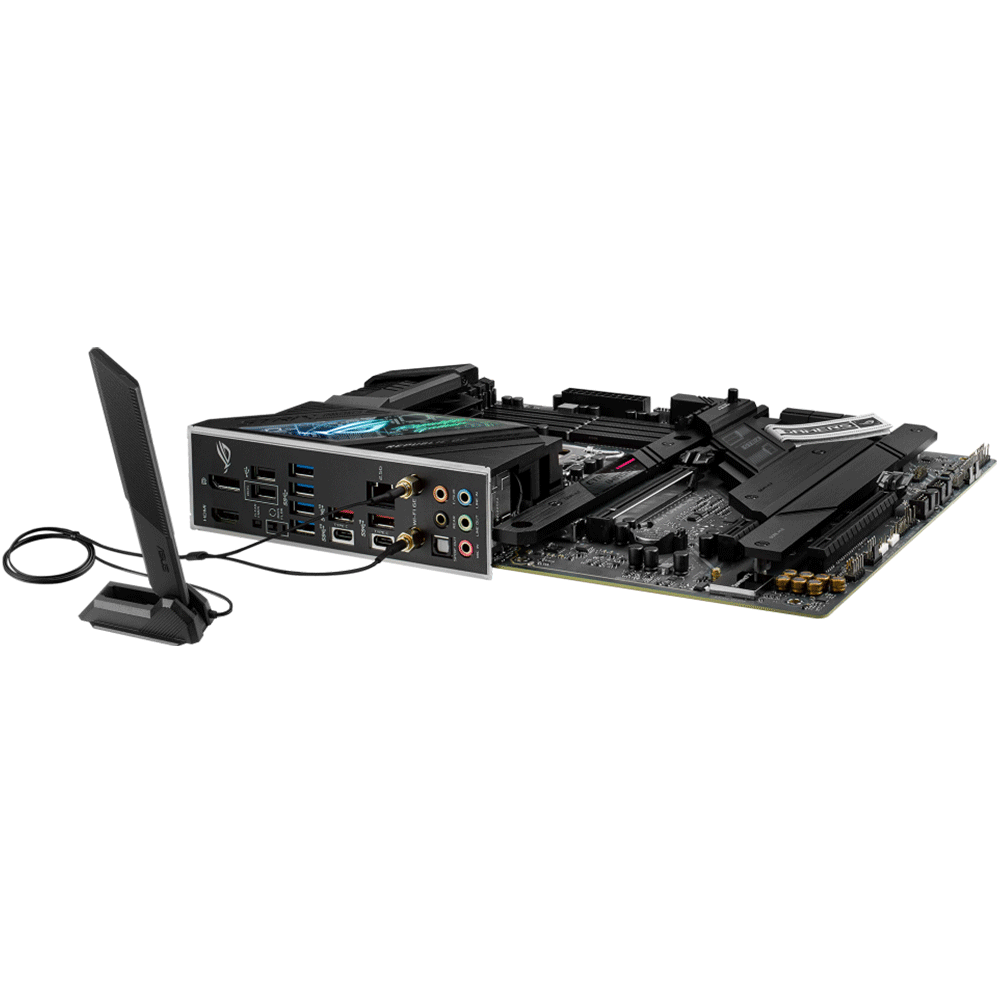

ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 Socket For intel CPUs Motherboard

• Intel Z690 LGA 1700 ATX motherboard with PCIe5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe SSD support, M.2 backplate, PCIeSlot Q-Release, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 196GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage :

• 6 x SATA 6Gb/s
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet

Wireless & Bluetooth

• Intel® Wi-Fi 6E Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2 hardware ready**
• * WiFi 6E 6GHz regulatory may vary between countries.
• ** Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB (Total 10 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

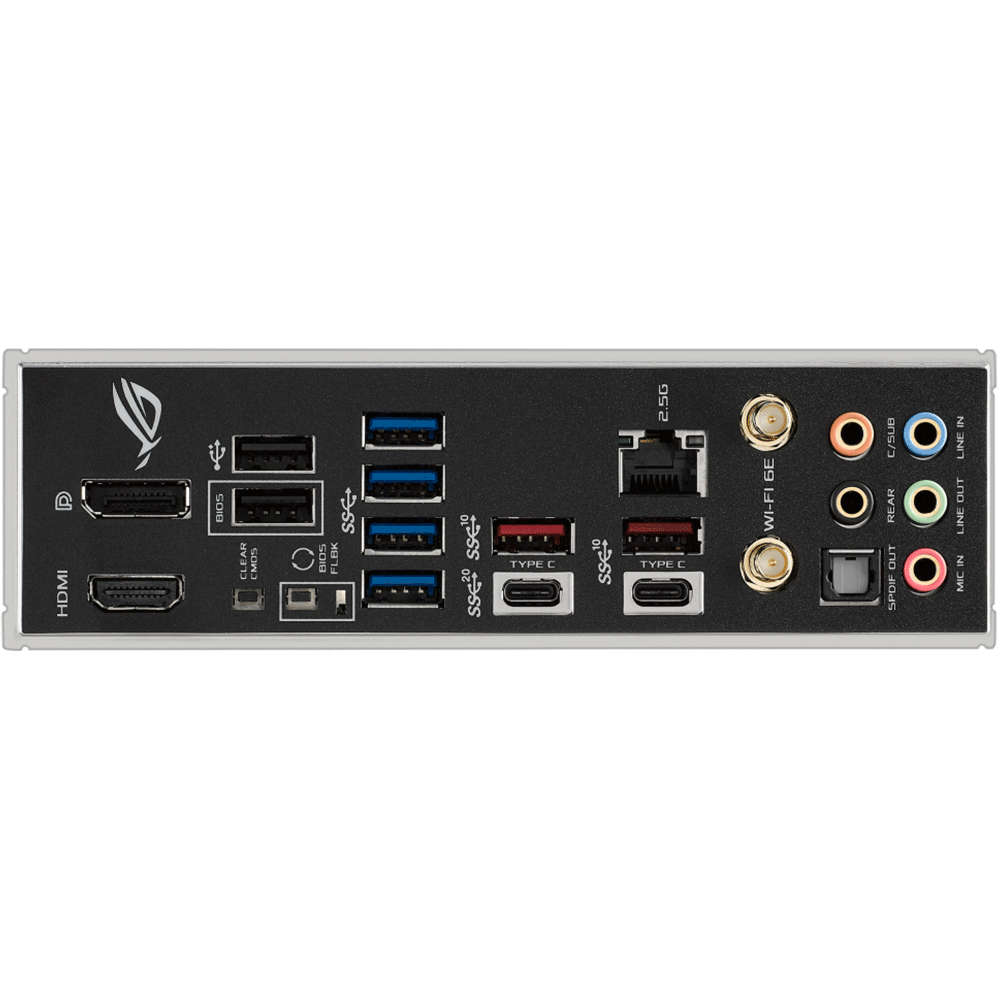

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

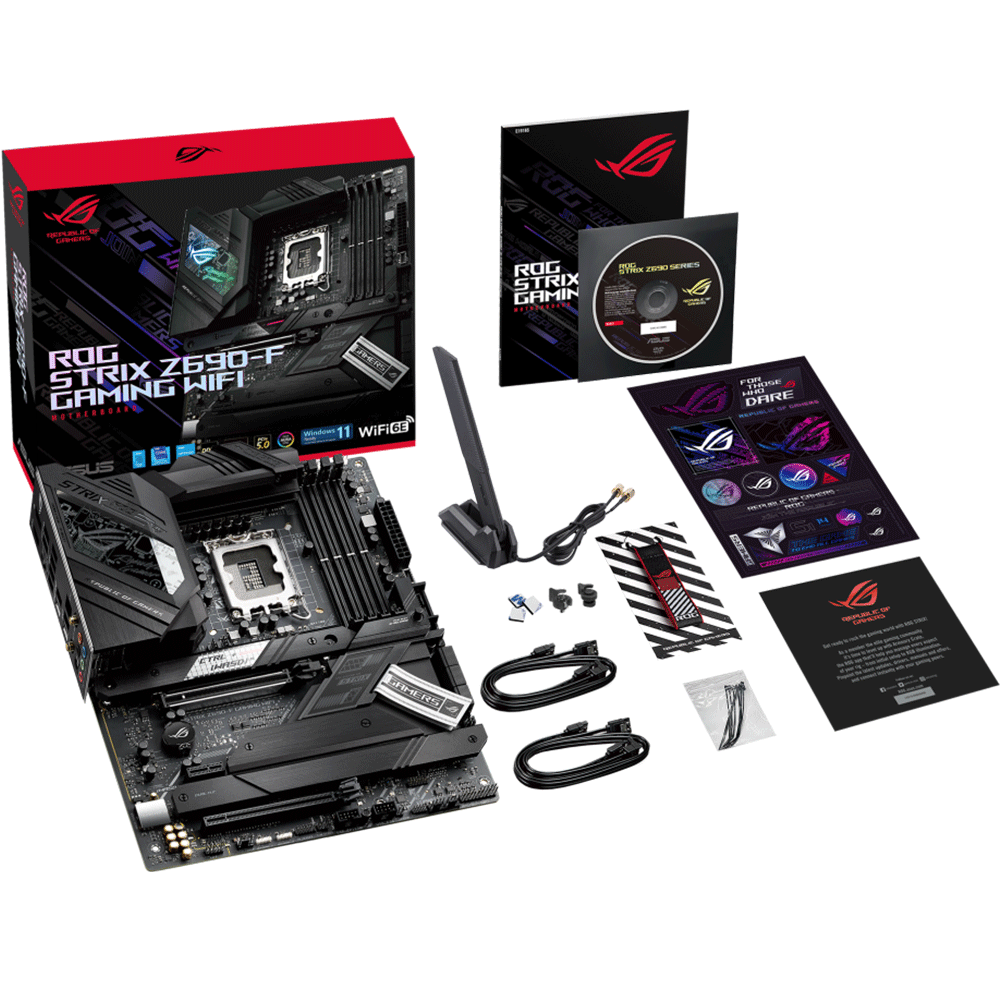

Accessories

• 4 x SATA 6Gb/s cables
• 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
• 1 x Cable ties pack
• 2 x M.2 Rubber Package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x Support DVD
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB18M0-M0EAY0
