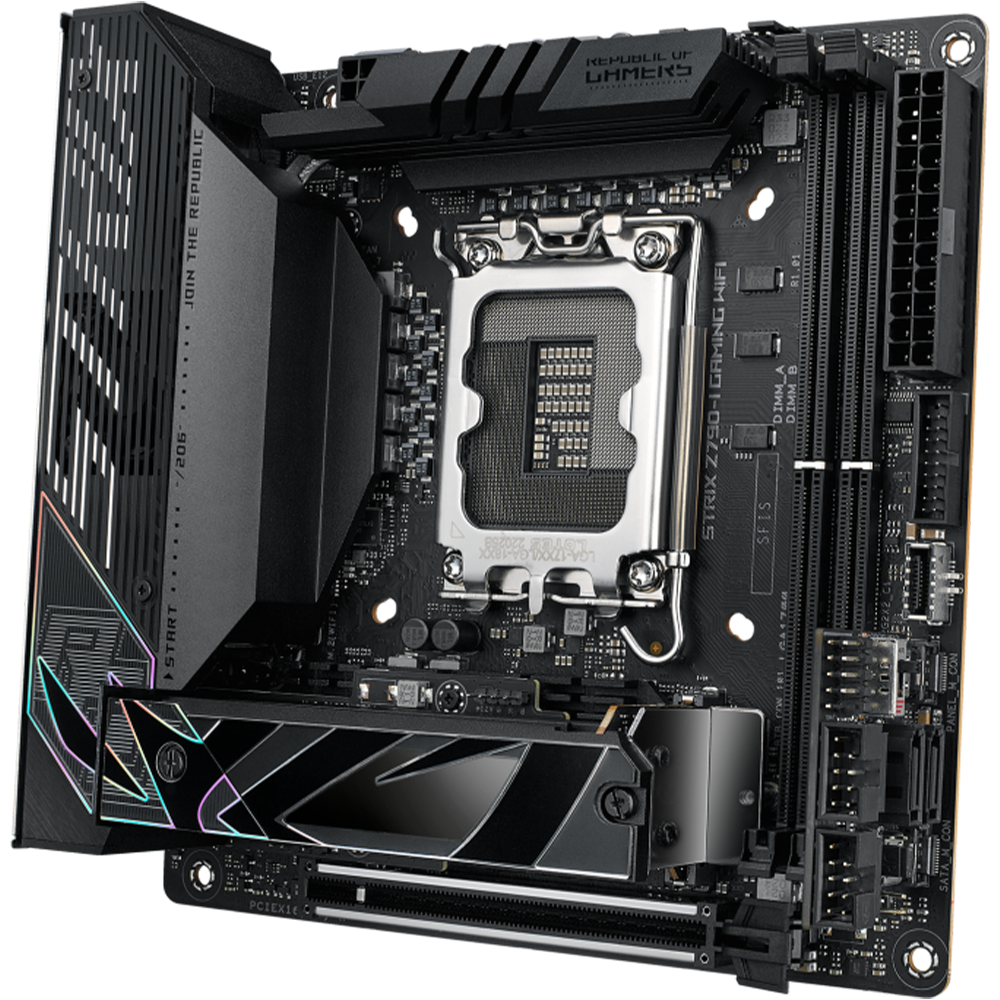

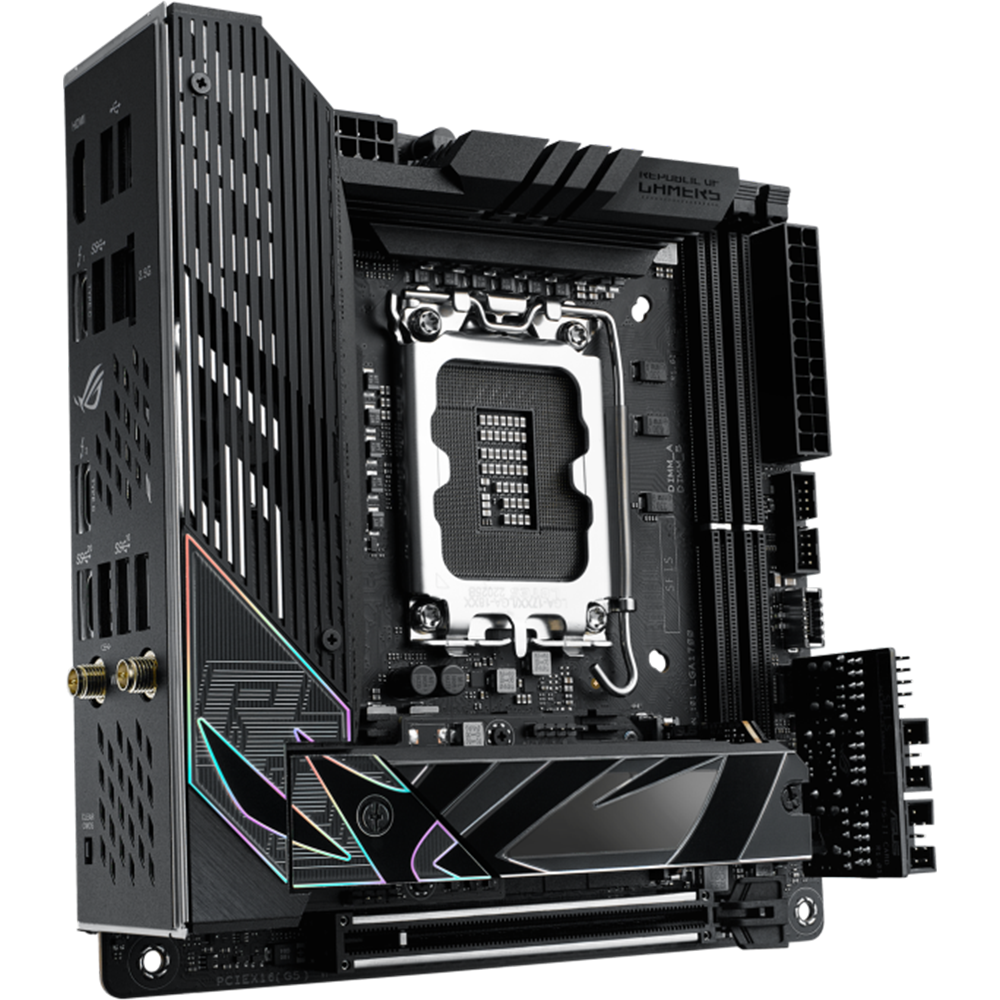

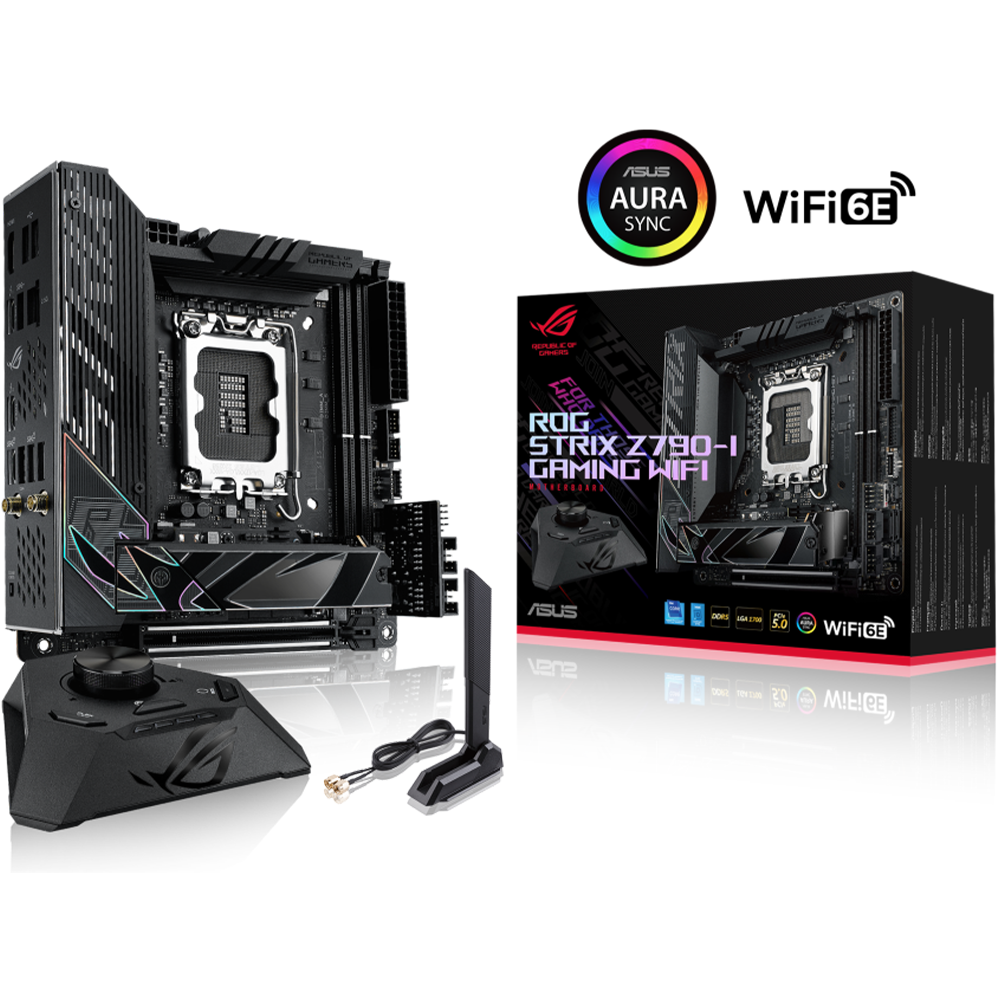

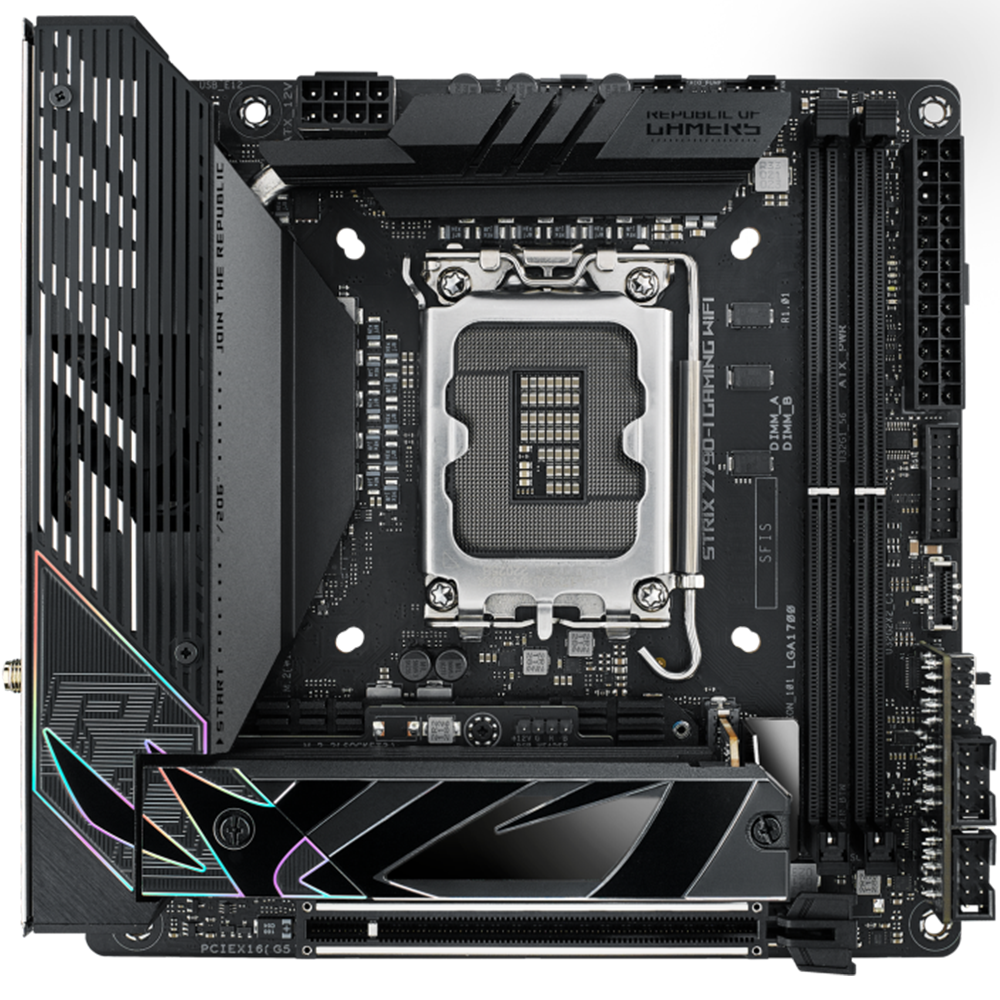

ASUS ROG STRIX Z790-I GAMING WIFI LGA1700 Socket Motherboard

• Intel Z790 LGA 1700 Mini-ITX motherboard with 10 + 1 power stages, DDR5, two M.2 slots, PCIe 5.0 NVMe SSD slot, PCIe 5.0 x16 SafeSlot, ROG Strix Hive with AI Overclocking button, Wi-Fi 6E, USB 3.2 Gen 2x2 Type-C rear I/O port and front-panel connector, two Thunderbolt 4 ports, and AI Cooling II

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 2 x DIMM, Max. 96GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• ASUS Enhanced Memory Profile II (AEMP II)
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slot

Storage :

• 2 x SATA 6Gb/s
• 1 x M.2 PCIe 5.0 x4
• 1 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth :

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3

USB

• Rear USB (Total 9 ports)
• 2 x Thunderbolt4 ports (USB Type-C)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 3 x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 port (Type-A)
• 2 x USB 2.0 ports (Type-A)
• Front USB: Total 3 ports
• 1 x USB 3.2 Gen 2x2 connector supports 1 USB Type-C
• 1 x USB 3.2 Gen 1 header support 2 additional USB 3.2 Gen 1 ports

Audio

• ROG High Definition Audio CODEC ALC4050

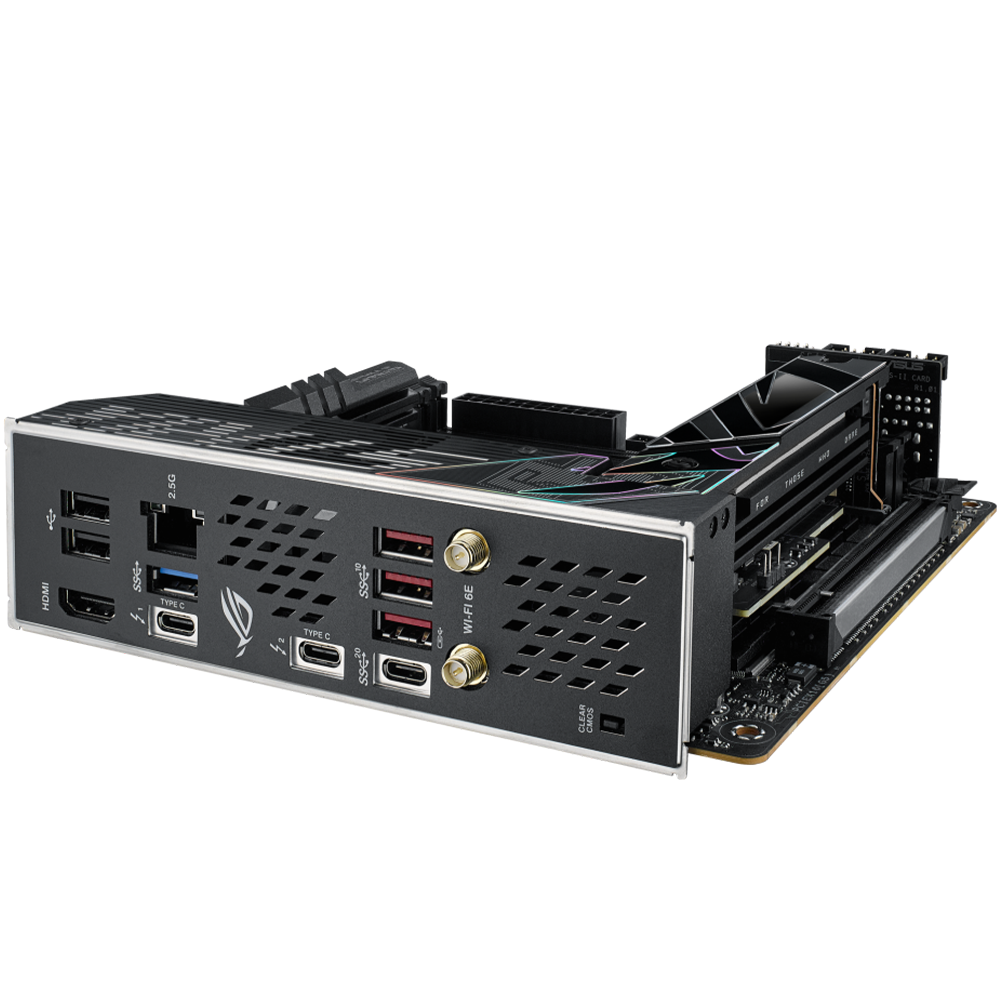

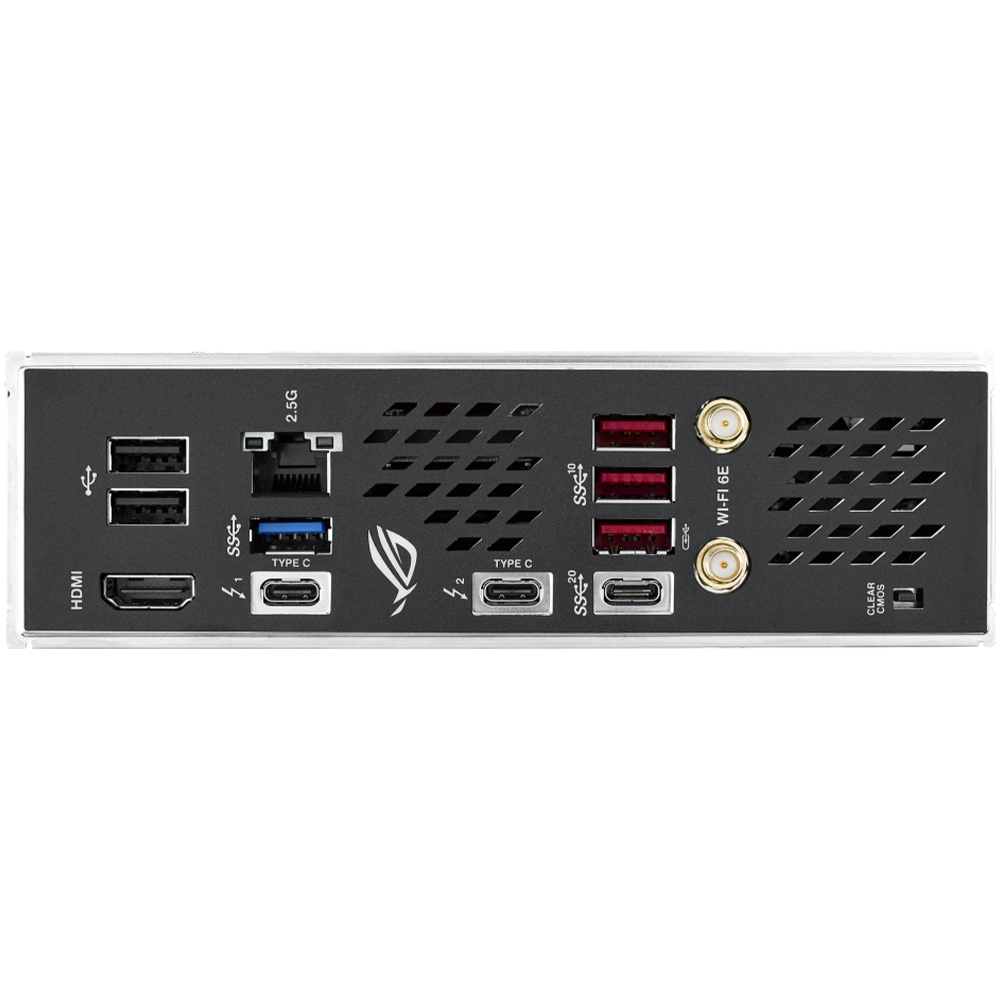

Back Panel I/O Ports

• 2 x Thunderbolt4 ports (USB Type-C)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 3 x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 port (Type-A)
• 2 x USB 2.0 ports (Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x Clear CMOS button

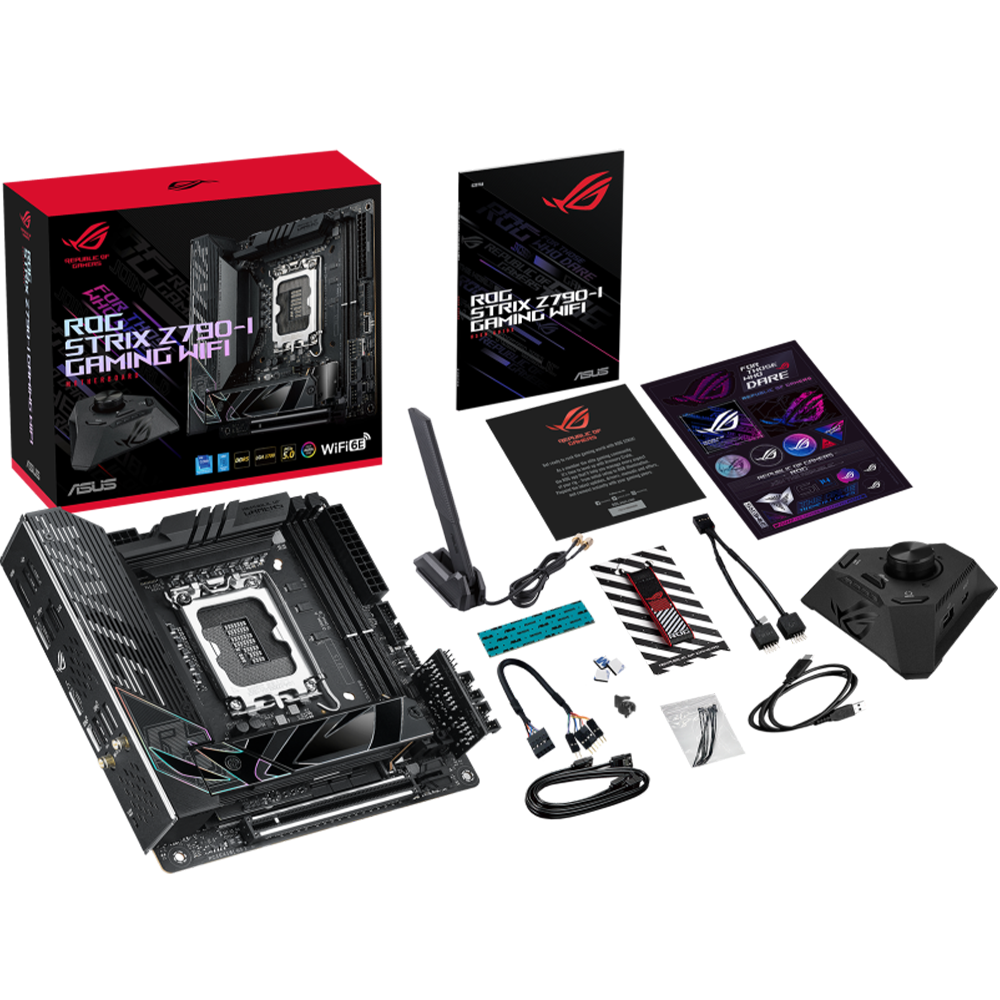

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ROG USB2.0 splitter cable
• 1 x Panel Cable
• 1 x ROG FPS-II Card

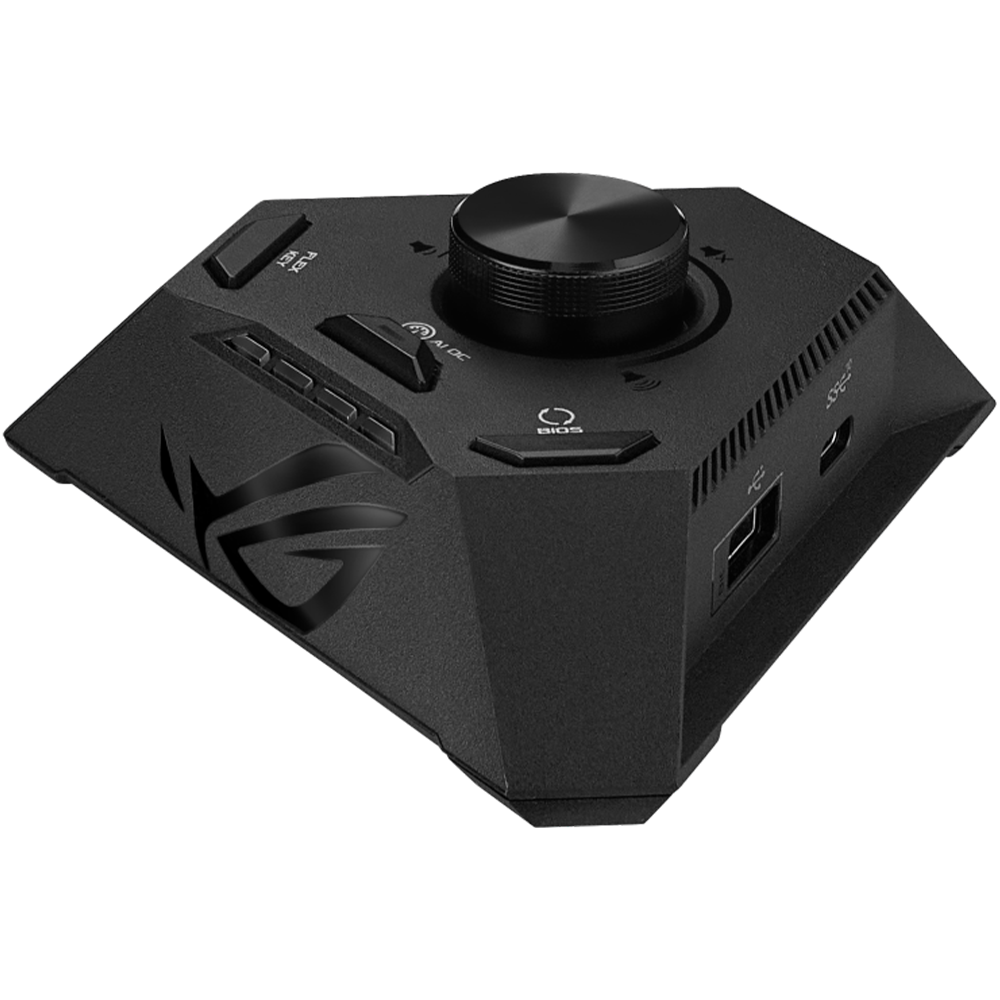

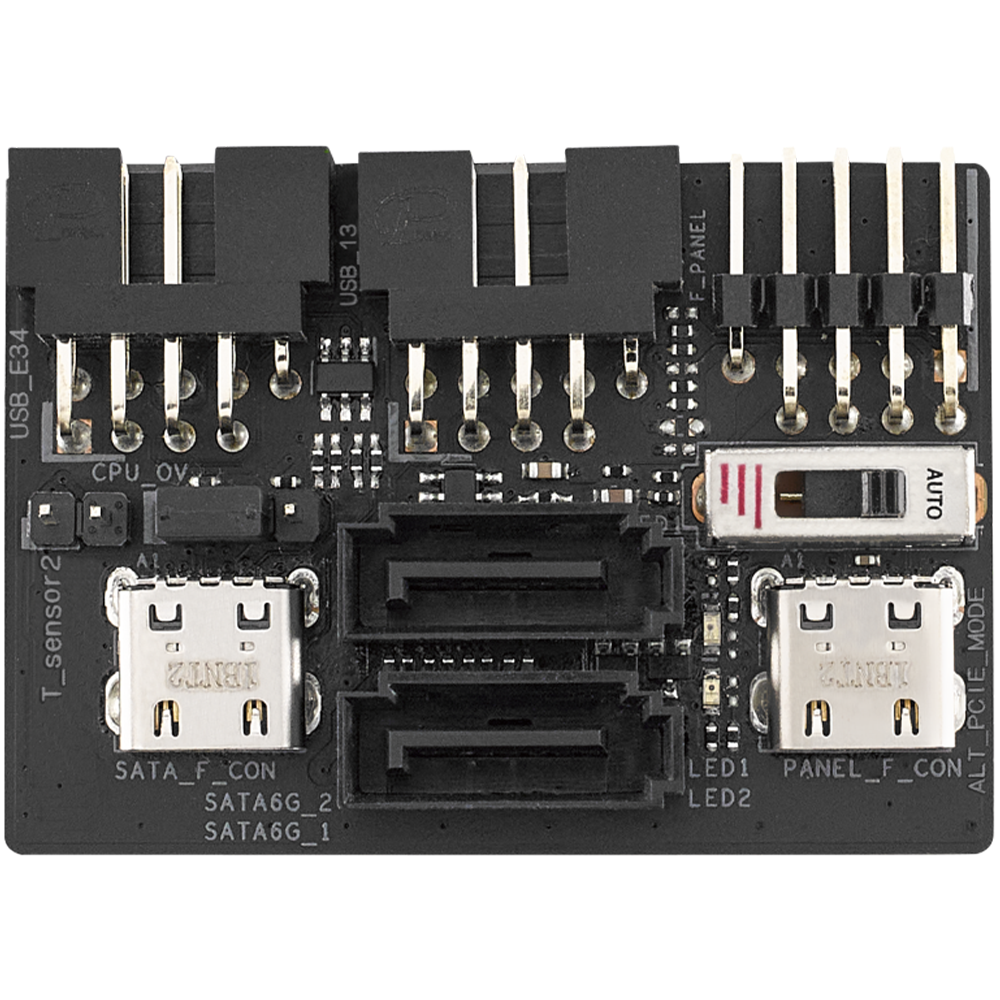

• 1 x ROG STRIX HIVE
• 1 x USB Type-C® power connection cable
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x Rubber Package for M.2
• 1 x Q-Latch package for M.2
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x User guide

Form Factor :

• mini-ITX ( 17 cm x 17 cm )

Part Number:

• 90MB1CM0-M0EAY0
