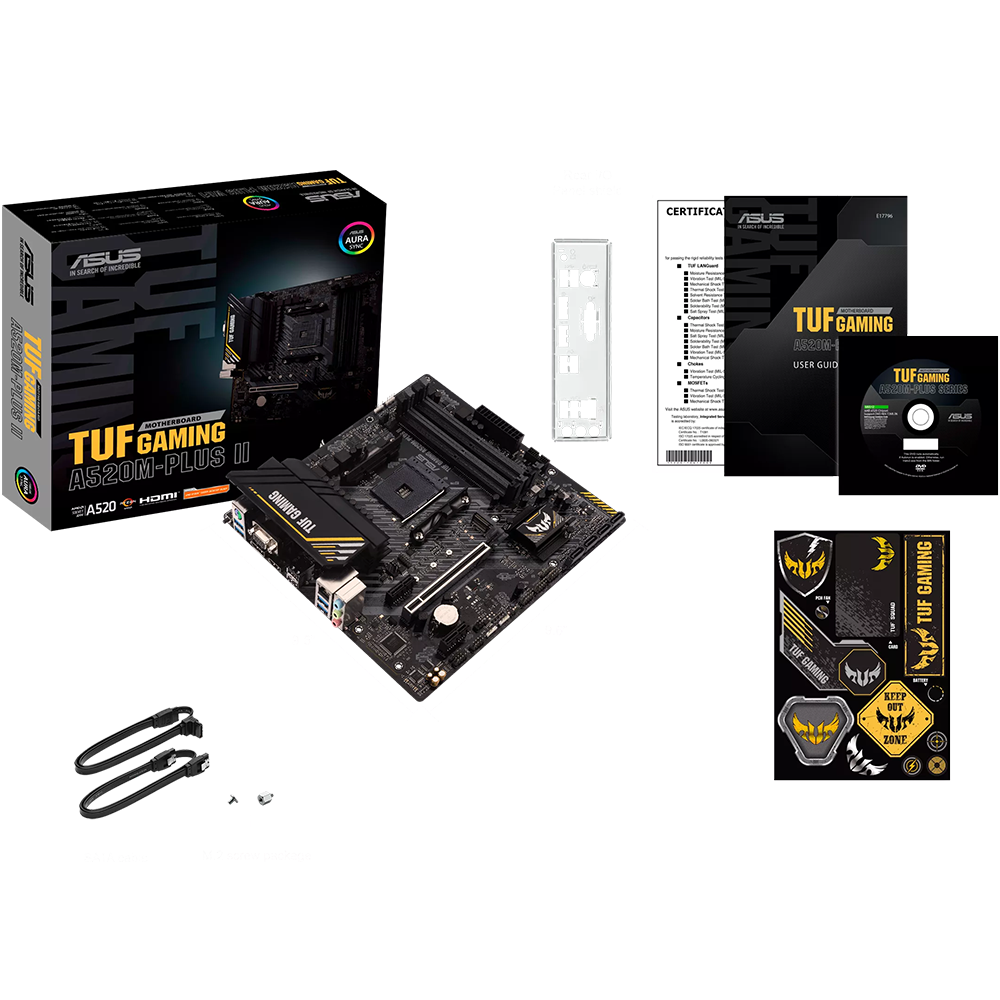

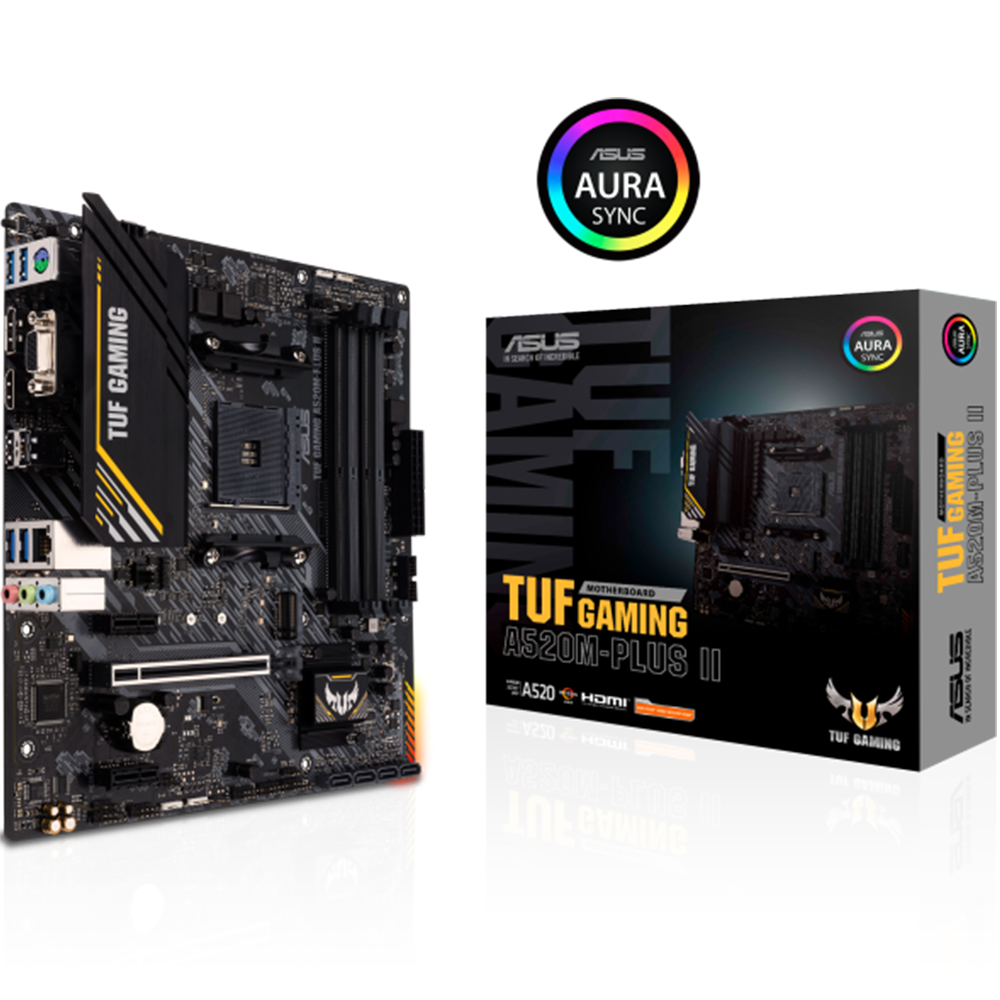

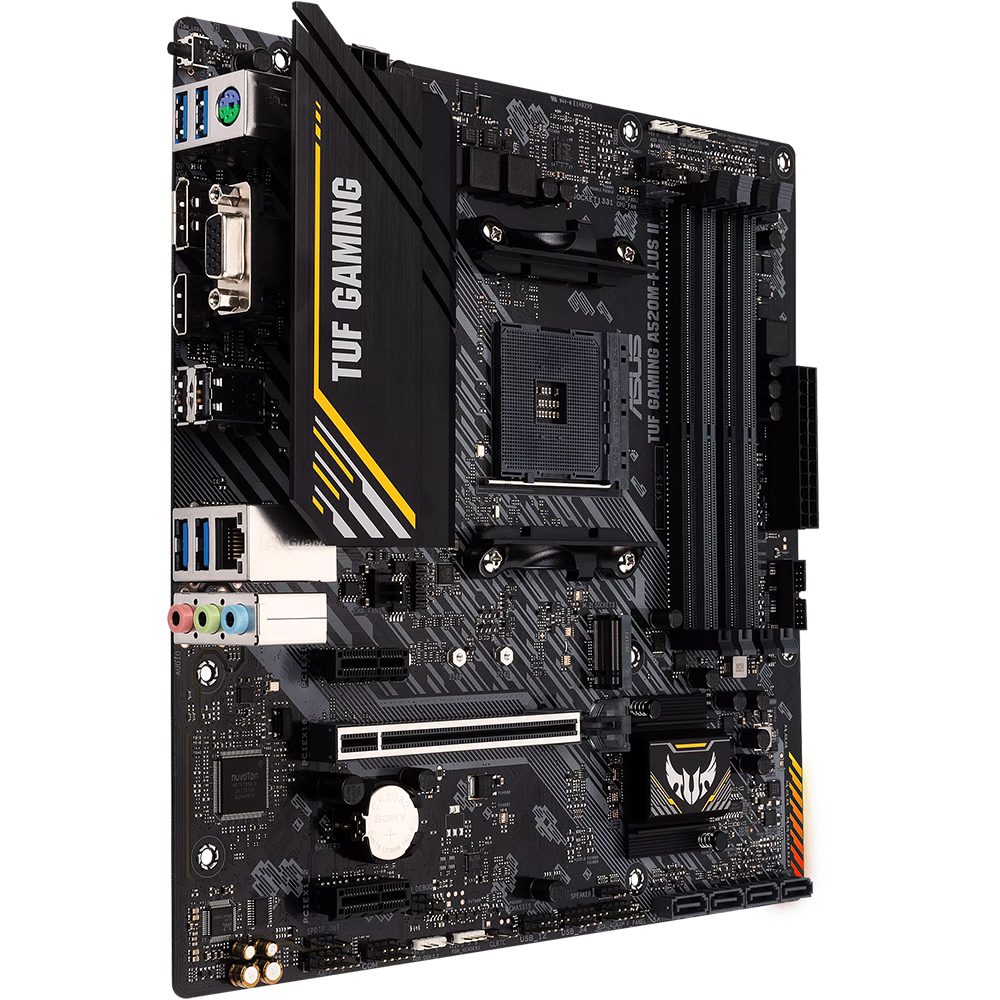

- AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers
Product Features:
- AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
- Made for online gaming: TUF LANGuard and TurboLAN technology
- Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Product Details:
CPU:
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Storage:
- Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors:
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
- 4 x SATA 6Gb/s ports
Ethernet:
- 1 x Realtek 1Gb Ethernet
- TUF LANGuard
Memory:
- 4 x DIMM, Max. 128GB, DDR4 4866(OC) / 3200MHz
- Dual Channel Memory Architecture
Expansion Slots:
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors:
- 1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset:
- 2 x PCIe 3.0 x1 slots
USB:
- 4 x USB 3.2 Gen 1 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio:
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

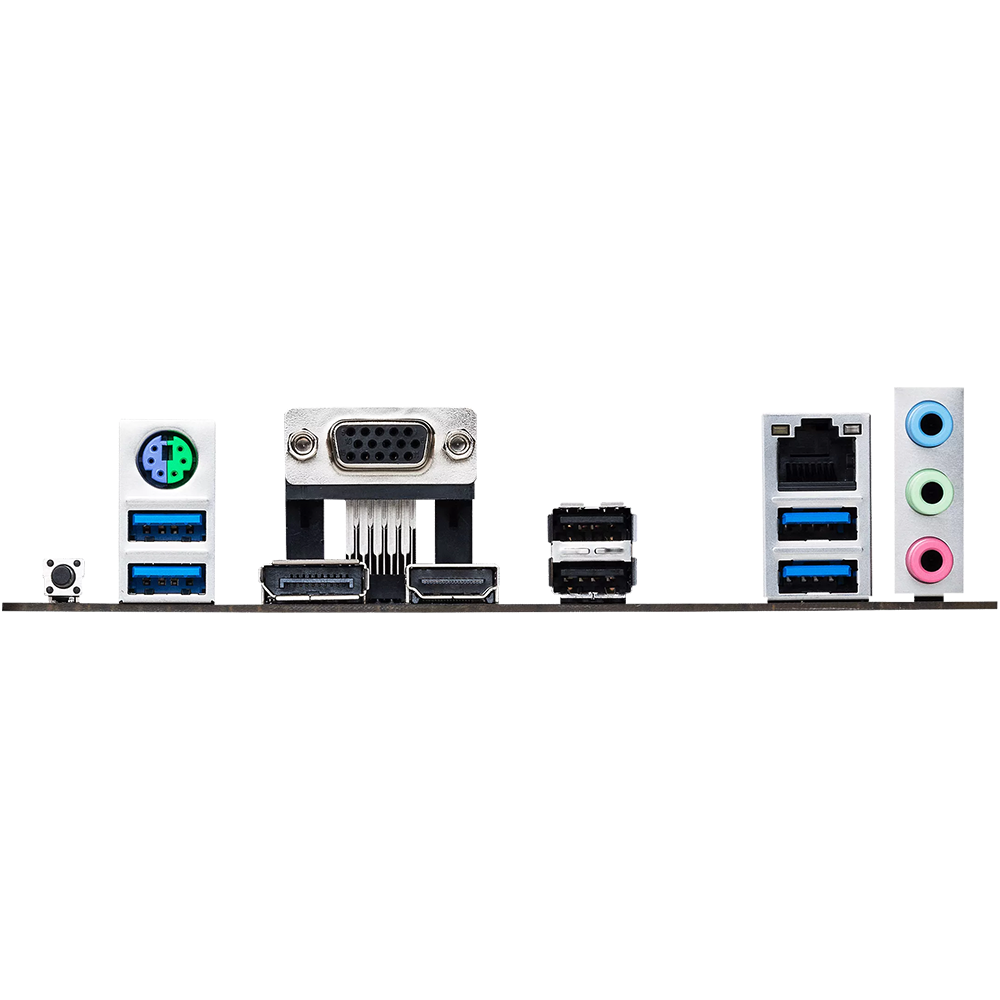

Back Panel I/O Ports:
- 4 x USB 3.2 Gen 1 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x BIOS FlashBack button
- 1 x HDMI port
- 1 x D-Sub
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Part Number:
- 90MB17G0-M0EAY0
