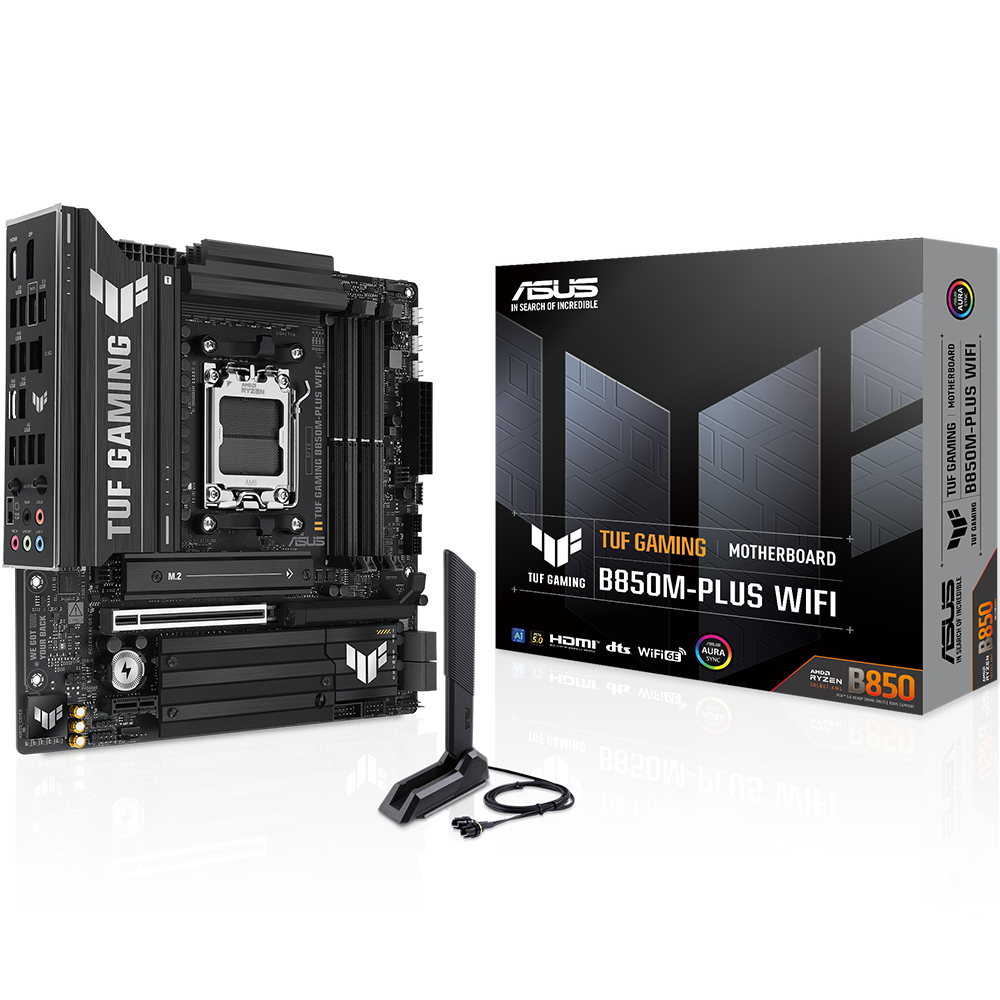

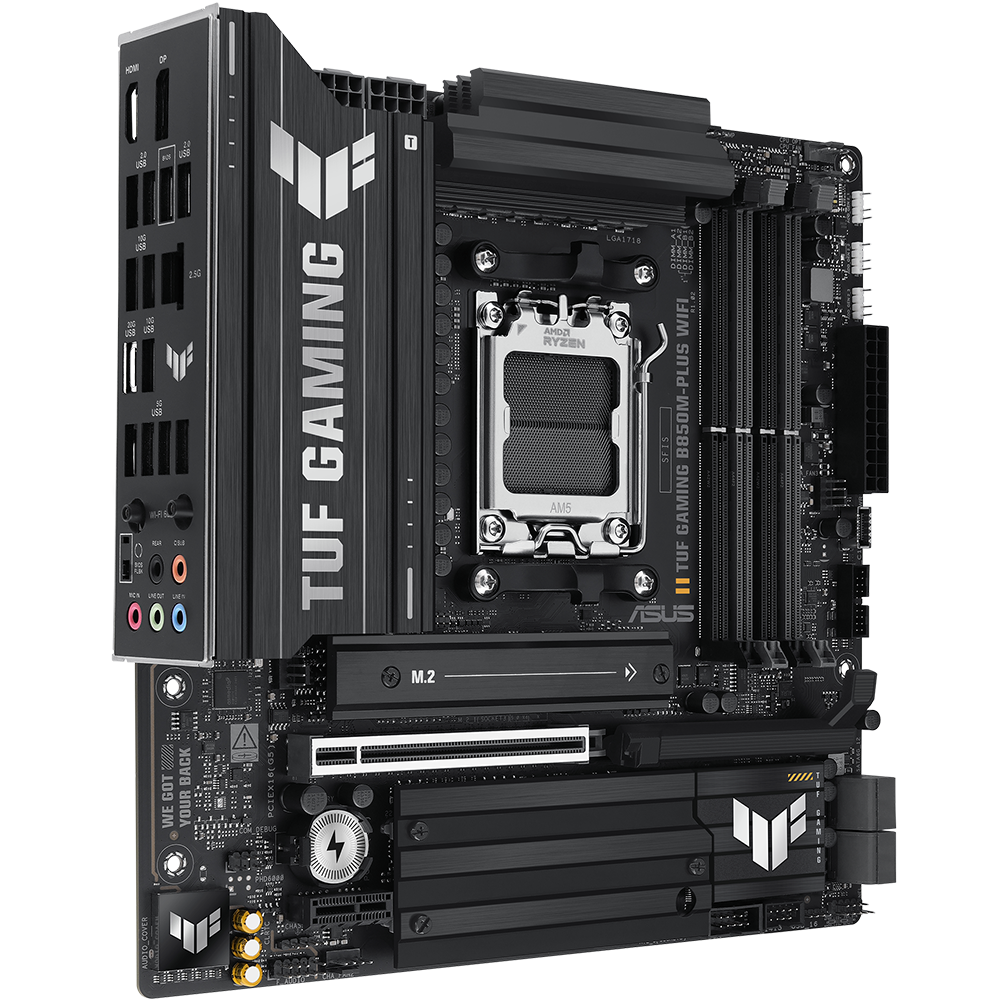

- ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Product Features:
- TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability.
- AI Advisor For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning.
- UEFI BIOS The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
- ASUS DriverHUB Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- Power Saving Leverage all-around energy efficiency settings to optimize power consumption.
- Armoury Crate Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
- VRM Heatsinks The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
- Incredible DDR5 Performance For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
- AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can quickly apply.
Product Details:
Model:
- TUF GAMING B850M-PLUS WIFI
CPU:
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory:
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- ASUS Enhanced Memory Profile (AEMP)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Expansion Slots:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors:
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset:
- 1 x PCIe 4.0 x1 slot
- ** Specifications vary by CPU types.
Storage:
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset:
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- Bluetooth® v5.4
USB:
Rear USB (Total 12 ports)
- 1 x USB 20Gbps port (Type-C)
- 3 x USB 10Gbps ports (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
Front USB (Total 7 ports)
- 1 x USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A.
Audio:
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

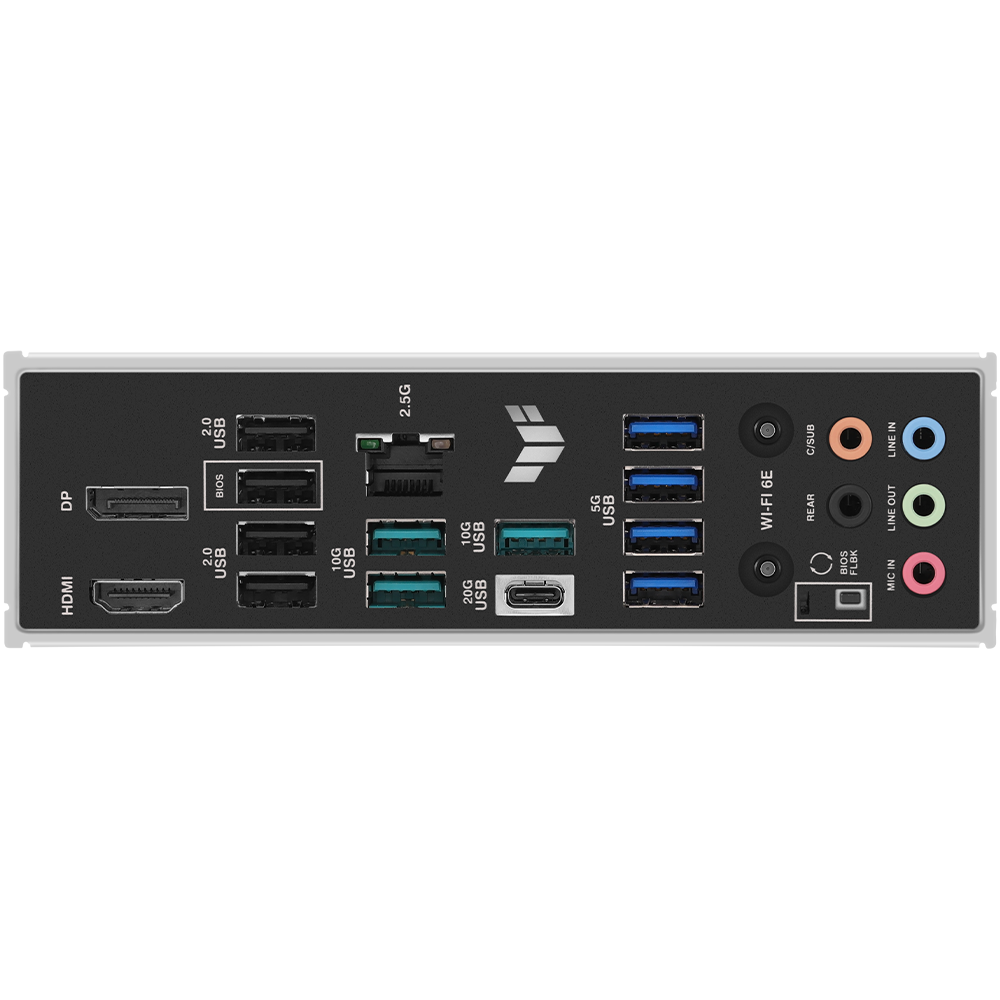

Back Panel I/O Ports:
- 1 x USB 20Gbps port (Type-C)
- 3 x USB 10Gbps ports (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack button
Form Factor:
- micro-ATX Form Factor
- 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Part Number:
- 90MB1IY0-M0EAY0
