- ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Product Details:
Model:
- TUF GAMING B860-PLUS WIFI
CPU:
- Support Intel Core Ultra Processors (Series 2) LGA1851
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory:
- 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8666+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile
- (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Expansion Slots:
Intel Core Ultra Processors (Series 2):
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel B860 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
Storage:
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2):
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset:
- M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
Ethernet:
- 1 × Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- Bluetooth v5.4
USB:
Rear USB (Total 8 ports):
- 1 x USB 20Gbps port (Type-C)
- 2 x USB 10Gbps ports (Type-A)
- 3 x USB 5Gbps ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
Front USB (Total 5 ports):
- 1 x USB USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- USB Type-C power delivery output: max. 5V/3A
Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC

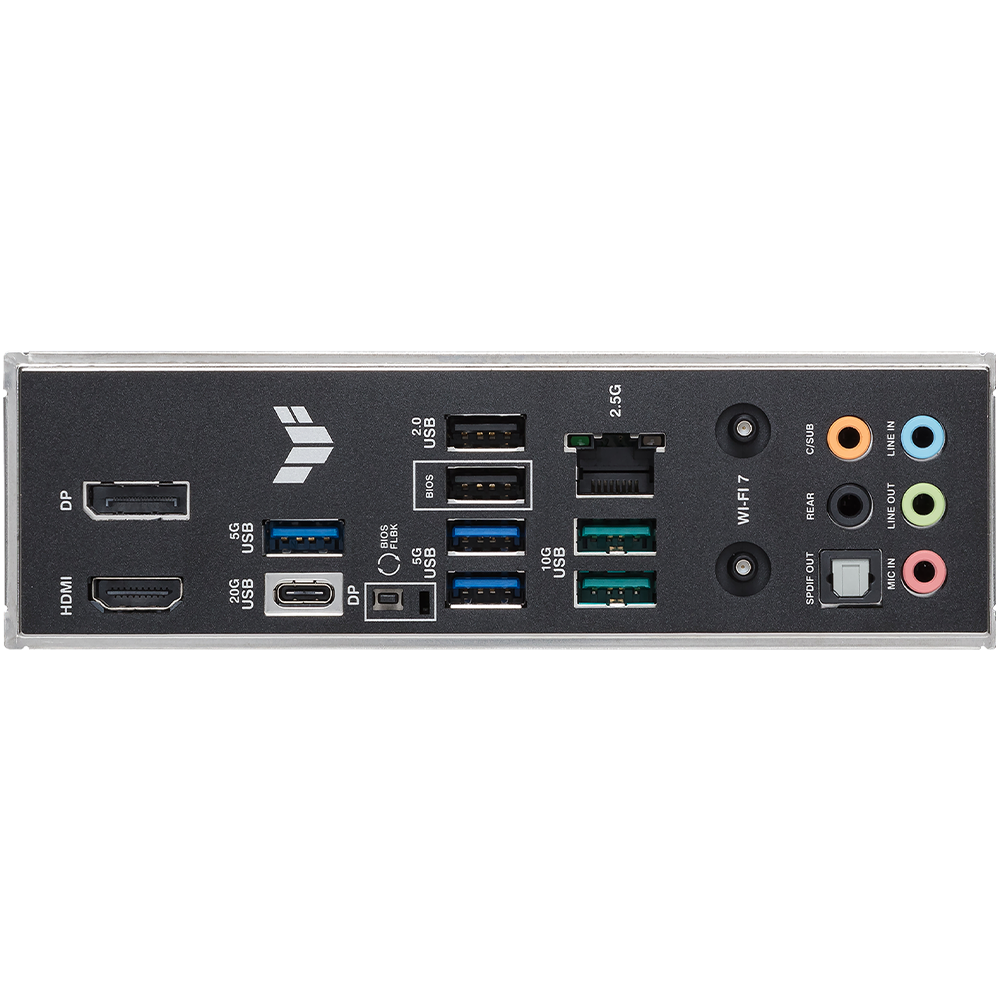

Back Panel I/O Ports
- 1 x USB 20Gbps port (Type-C)
- 2 x USB 10Gbps ports (Type-A)
- 3 x USB 5Gbps ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1JL0-M0EAY0
