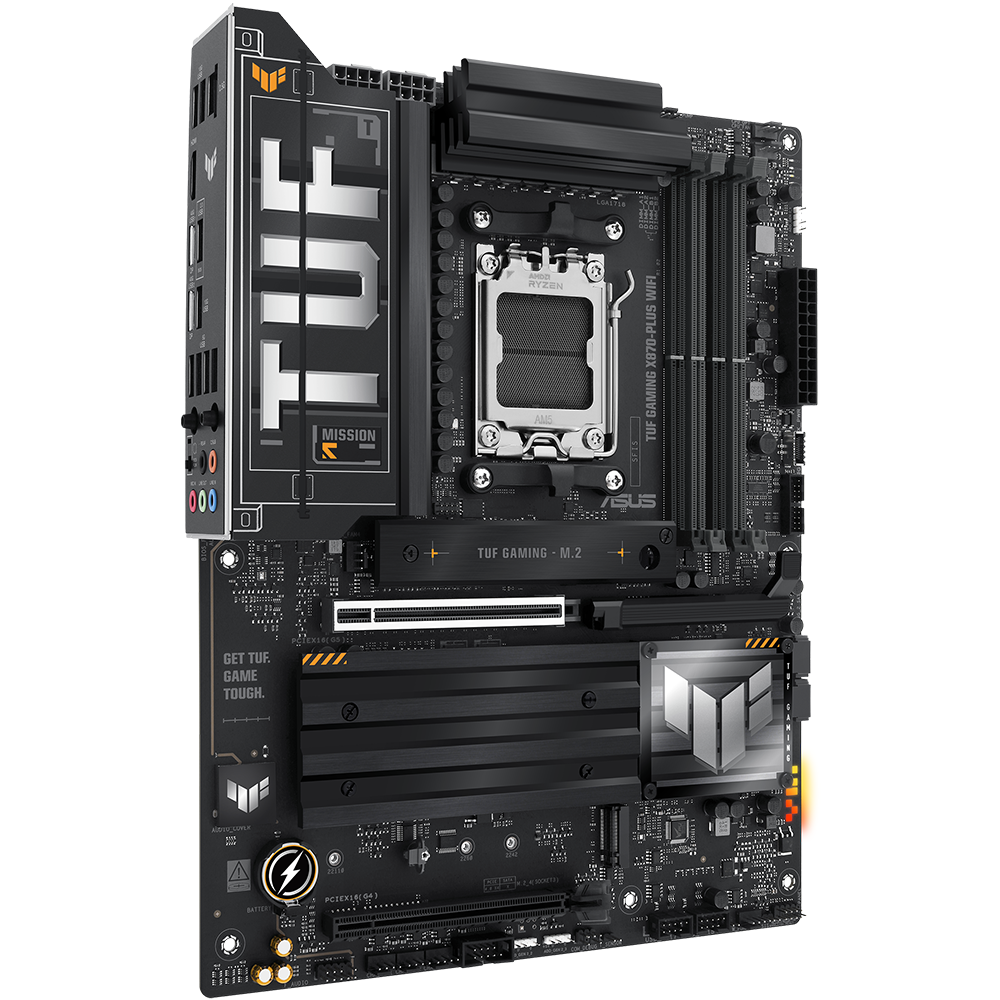

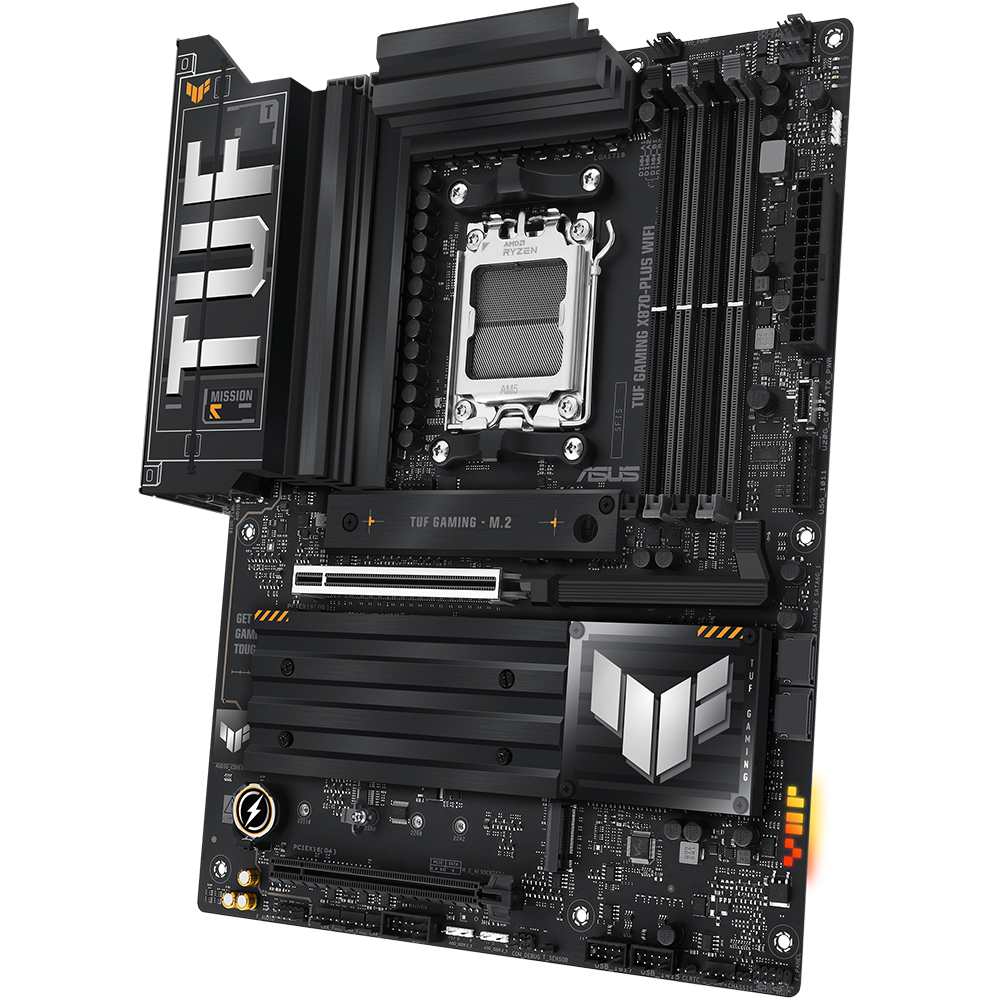

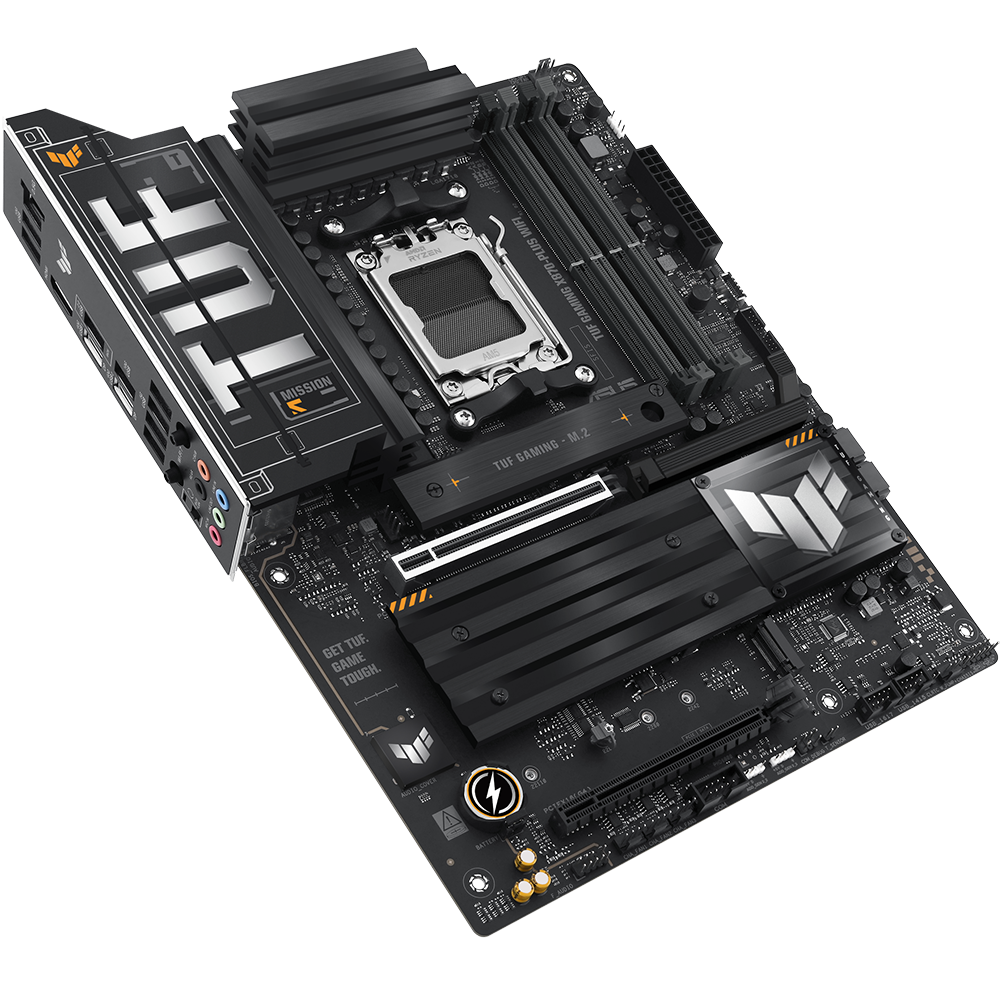

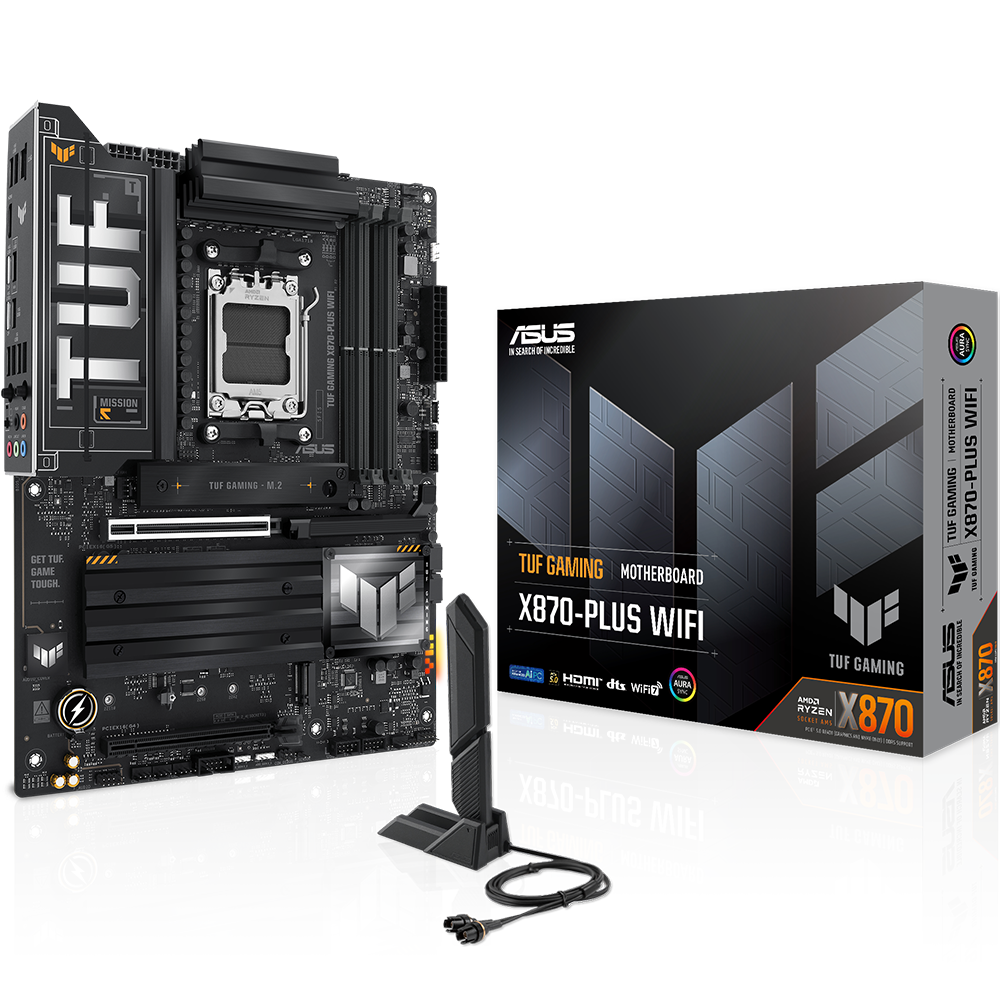

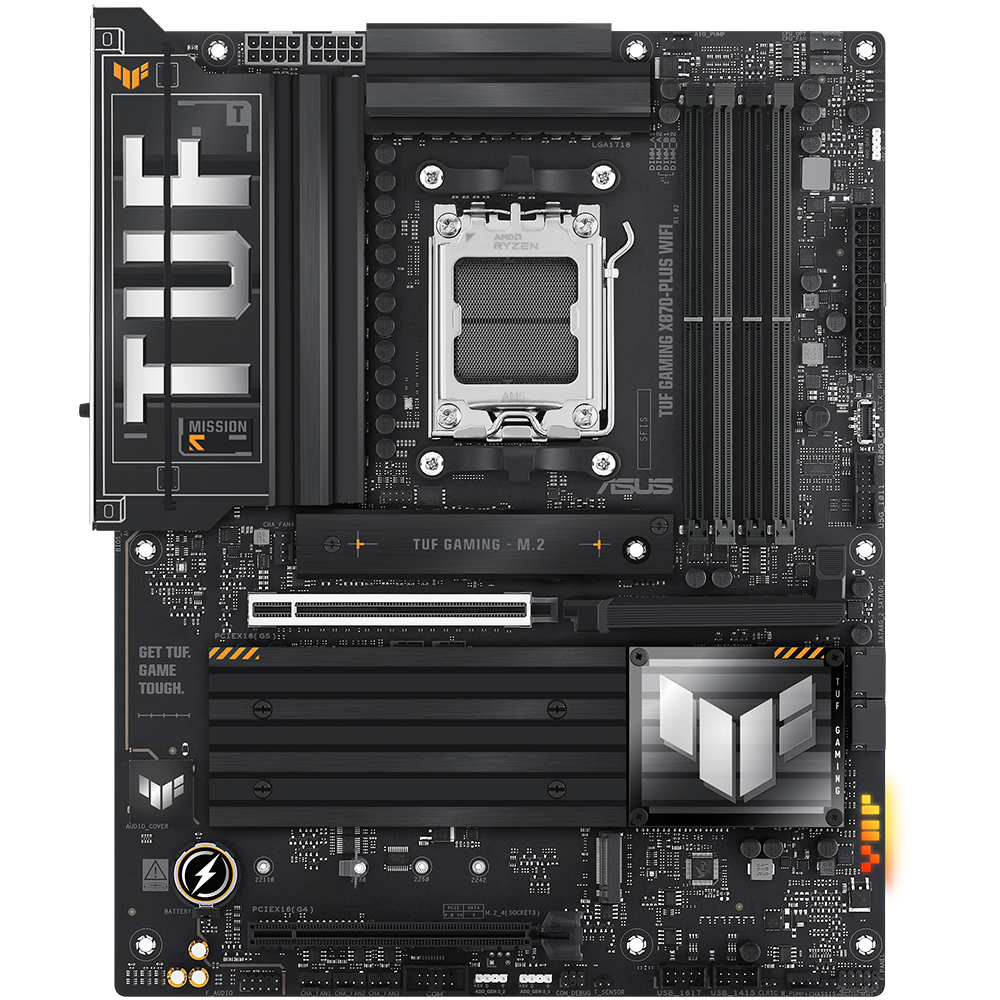

- ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Product Details:
CPU:
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory:
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered Memory
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- ASUS Enhanced Memory Profile (AEMP)
Expansion Slots:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors:
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot not support
AMD X870 Chipset:
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports
Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

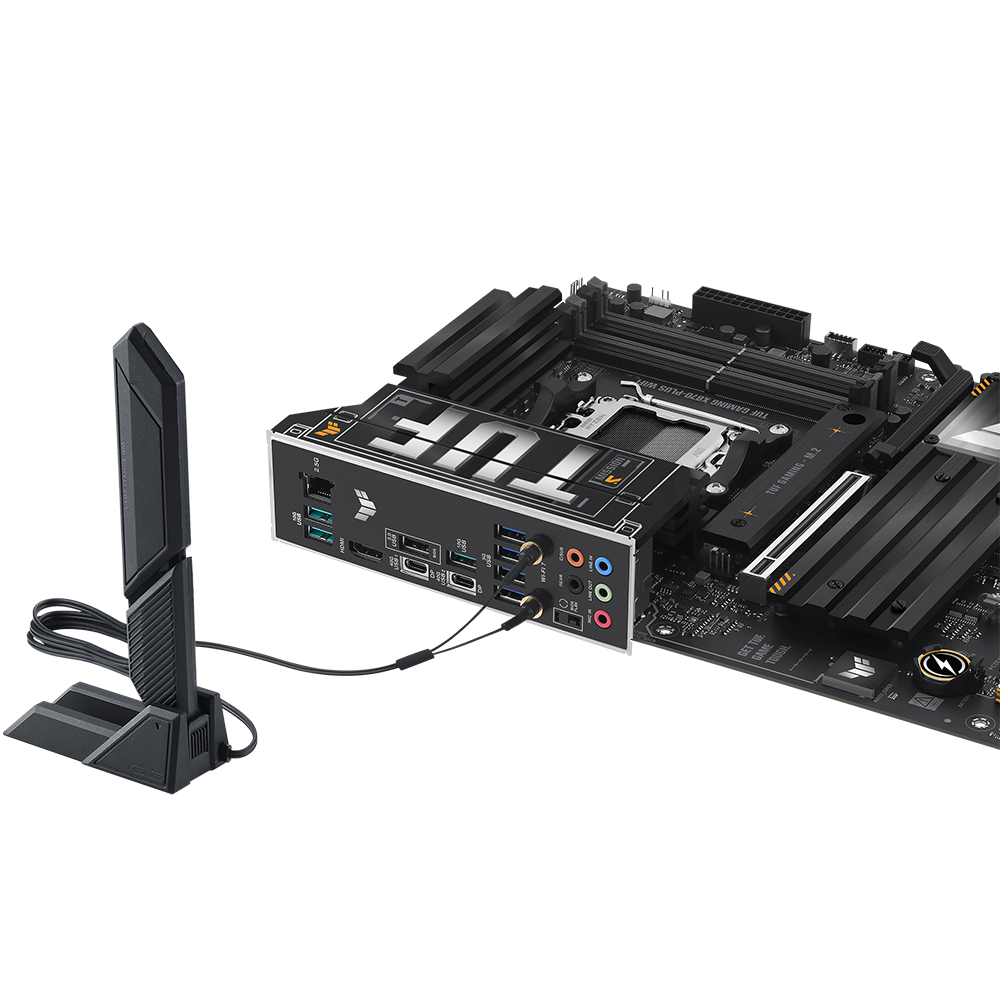

Wireless & Bluetooth:
- Wi-Fi 7
- Supports 2.4/5/6GHz frequency band
- Bluetooth® v5.4
USB:
Rear USB (Total 10 ports):
- 2 x USB4 (40Gbps) ports (USB Type-C)
- 3 x USB 10Gbps ports (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 1 x USB 2.0 port (Type-A)
Front USB (Total 7 ports):
- 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

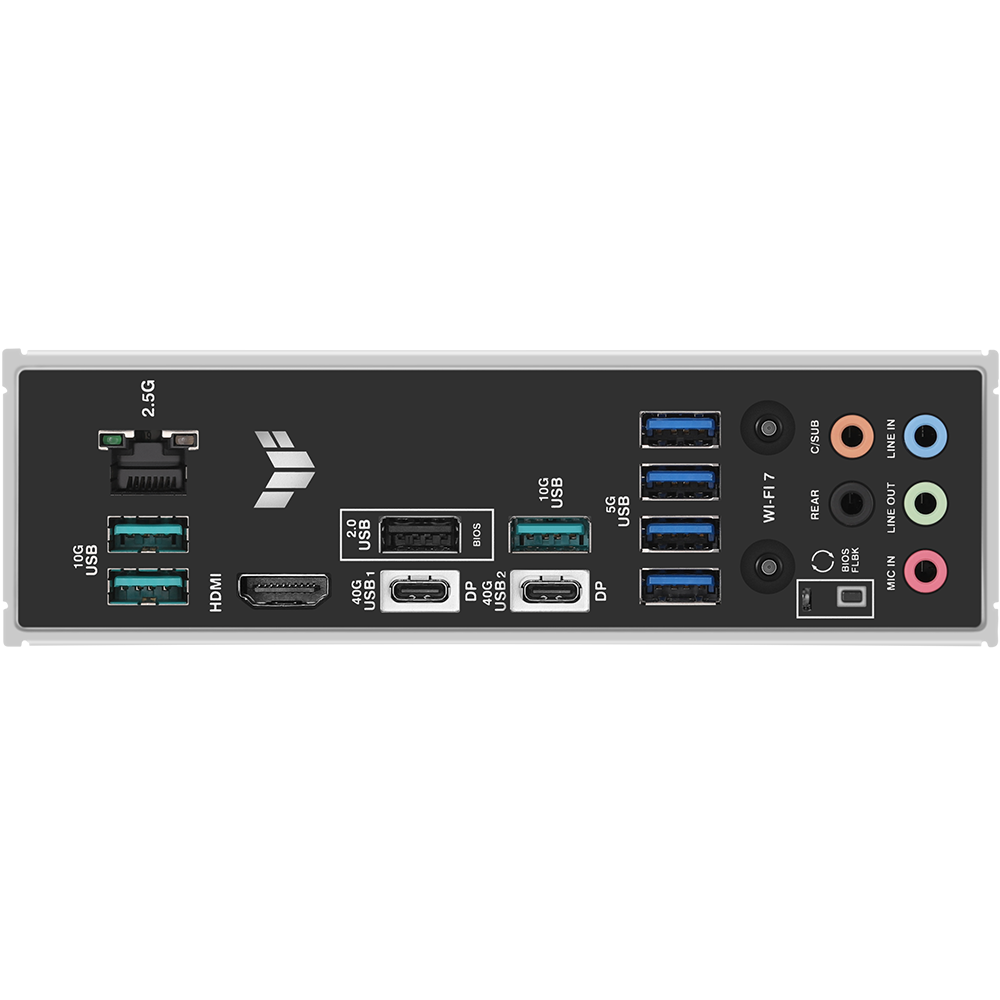

Back Panel I/O Ports:
- 2 x USB4 (40Gbps) ports (USB Type-C)
- 3 x USB 10Gbps ports (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 1 x USB 2.0 port (Type-A)
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack button
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1IU0-M0EAY0
