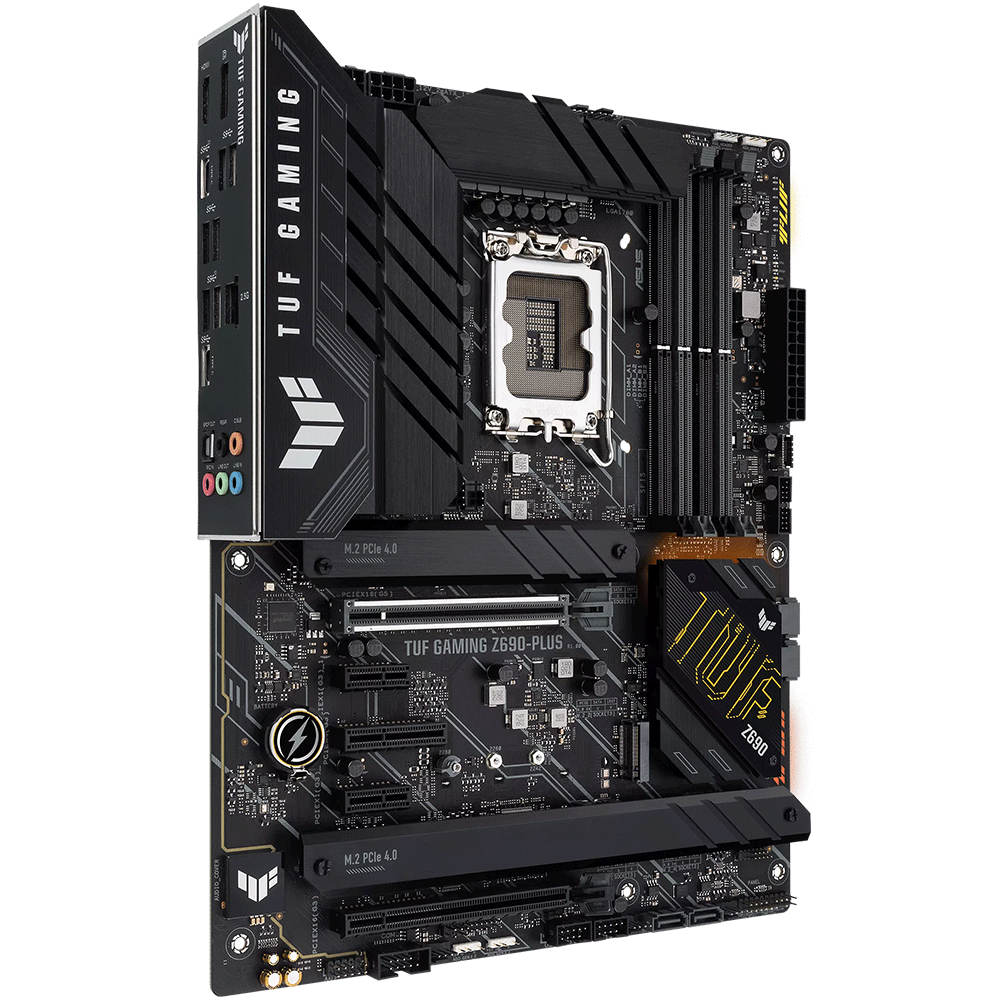

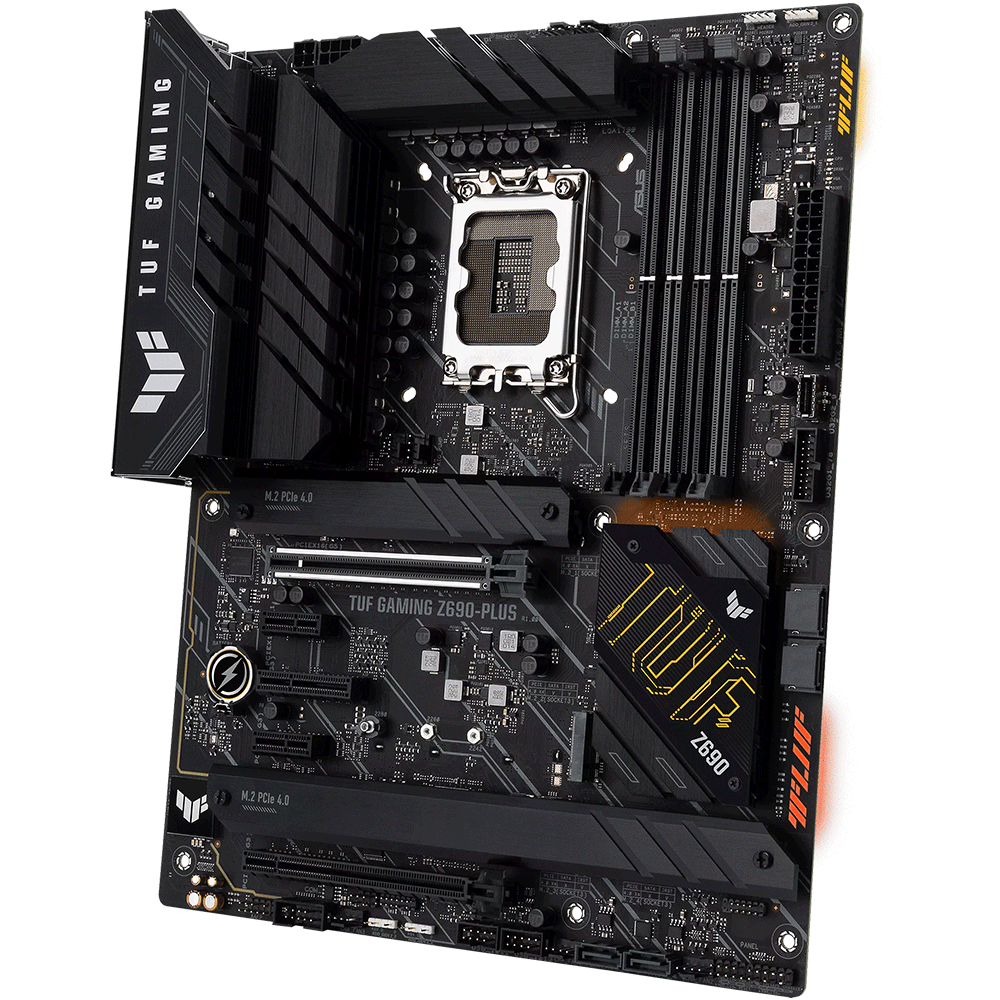

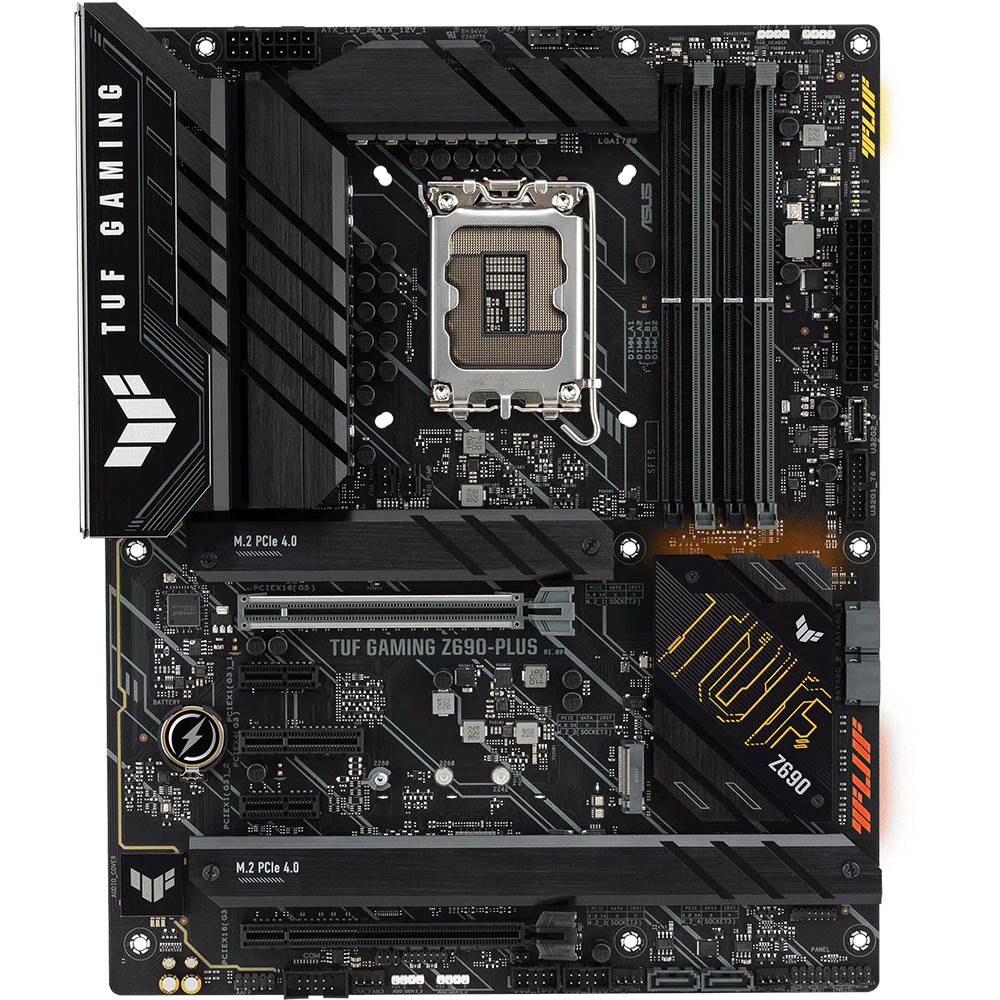

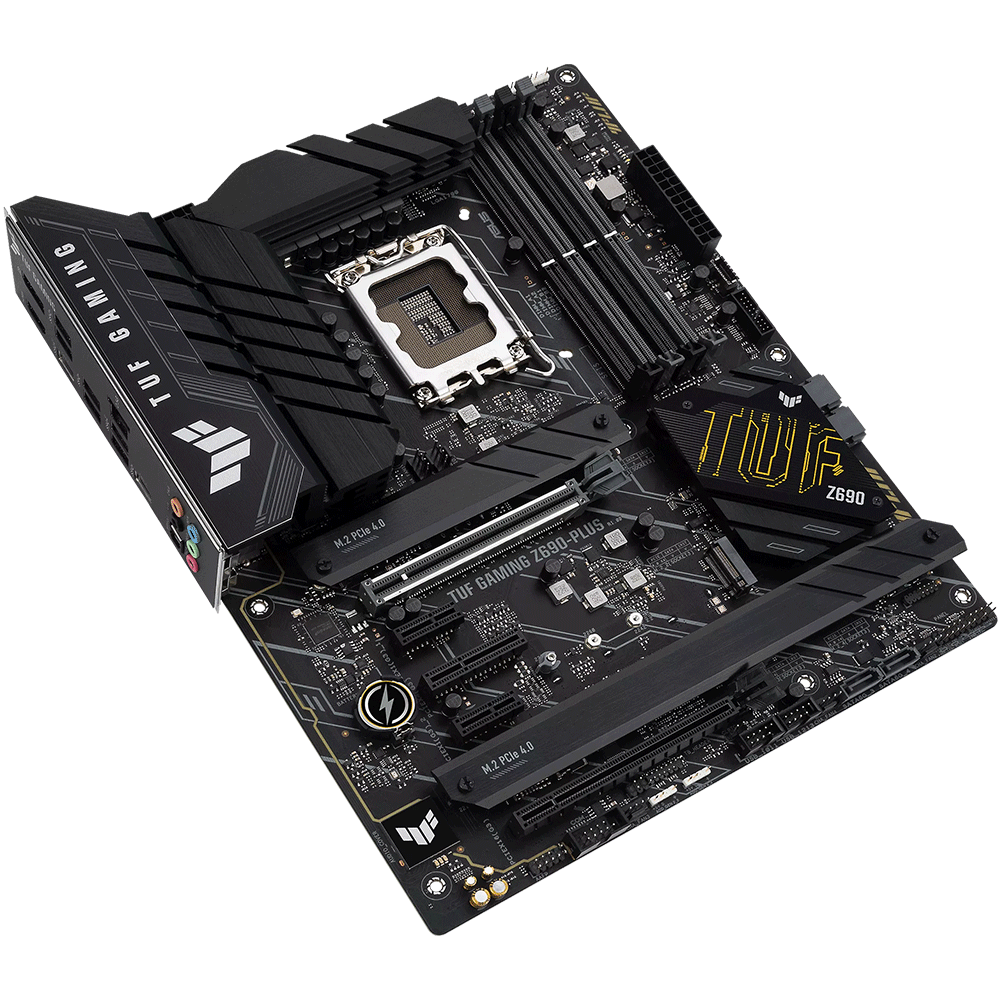

- Intel Z690 LGA 1700 ATX gaming motherboard, 15 DrMOS power stages, PCIe 5.0, DDR5 memory, four M.2 slots, Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt 4 header and Aura Sync RGB lighting
CPU
- Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR5
- 4 x DIMM, Max. 192GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Expansion Slots
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 3.0 x16 slot
- 1 x PCIe 3.0 x4 slot
- 2 x PCIe 3.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 4 x M.2 PCIe 4.0 x4
Ethernet :
- 1 x Intel® 2.5Gb Ethernet
- TUF LANGuard
USB
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
- Front USB: Total 7 ports
- 1 x USB 3.2 Gen 2x2 connector (support) USB Type-C)
- 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

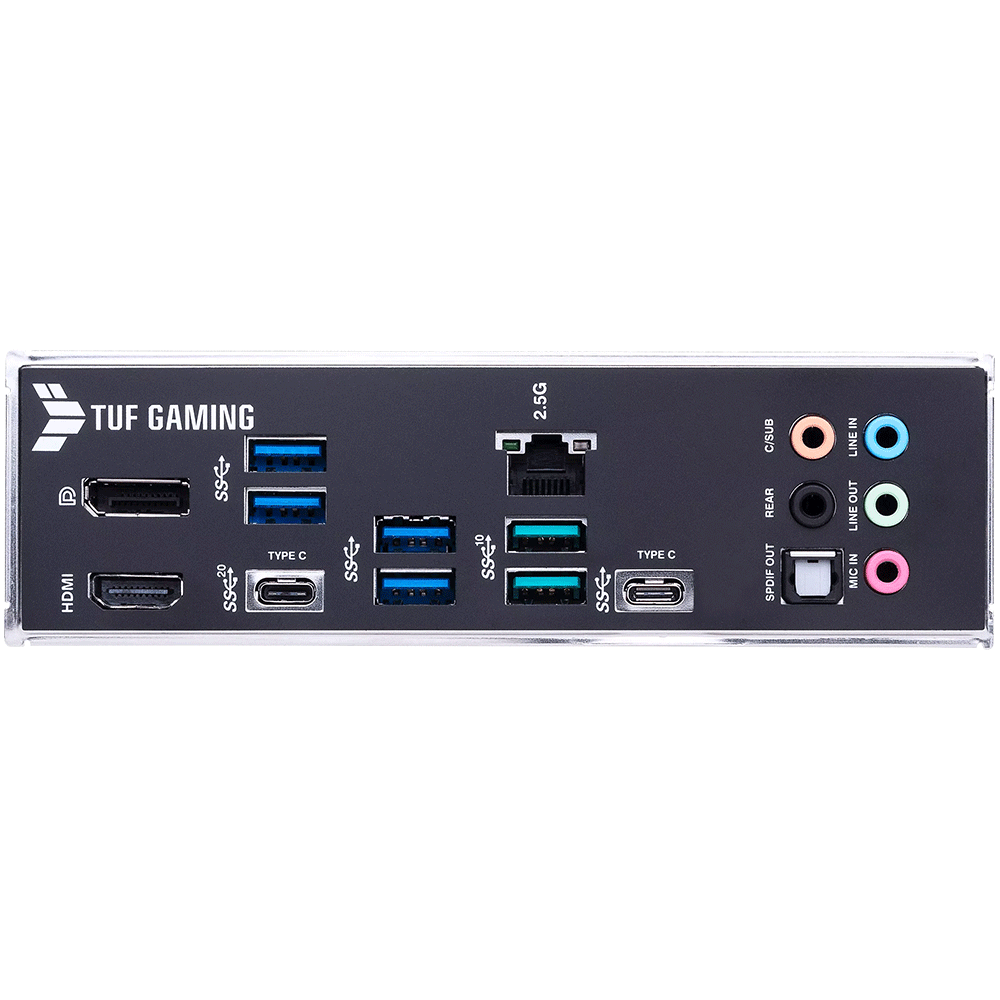

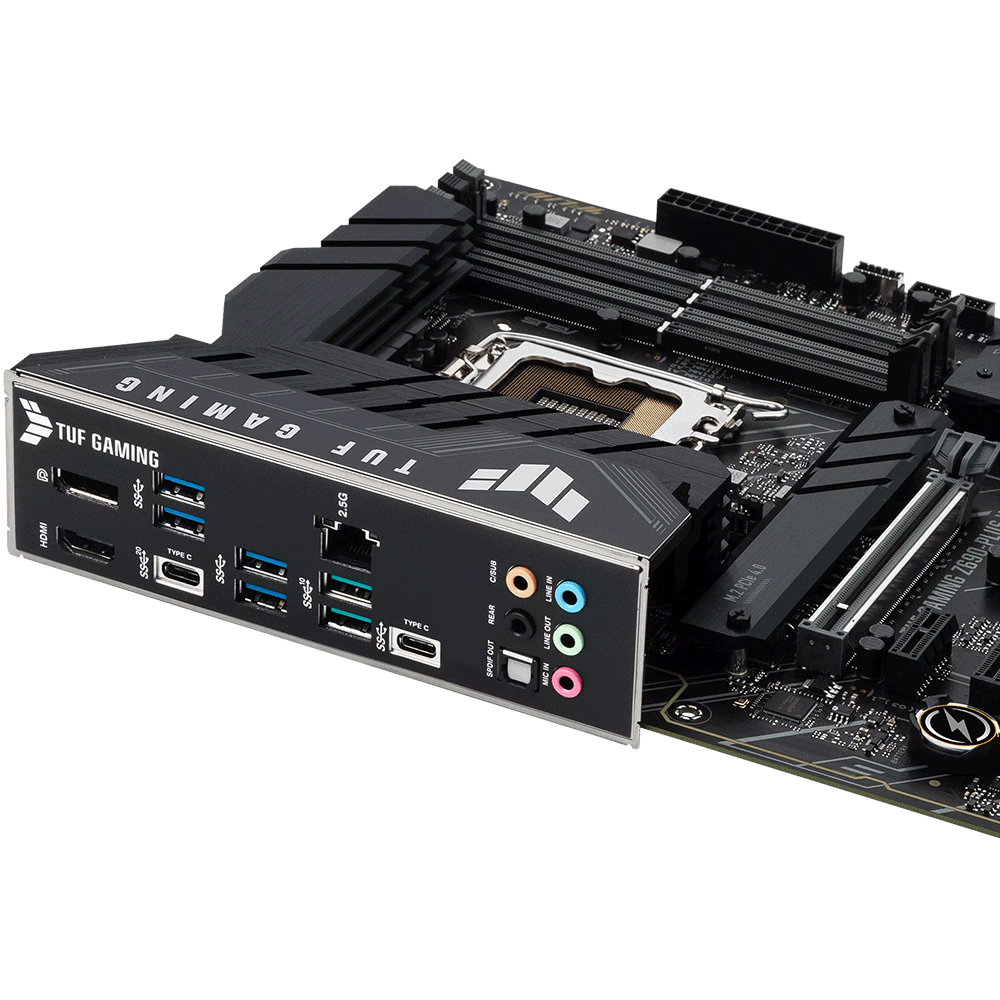

Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Intel® 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
Accessories
- 2 x SATA 6Gb/s cables
- 2 x M.2 Rubber Packages
- 1 x M.2 SSD screw package
- 1 x TUF GAMING sticker
- 1 x Support DVD
- 1 x TUF Certification card
- 1 x User guide
Form Factor :
- ATX ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1AV0-M0EAY0
