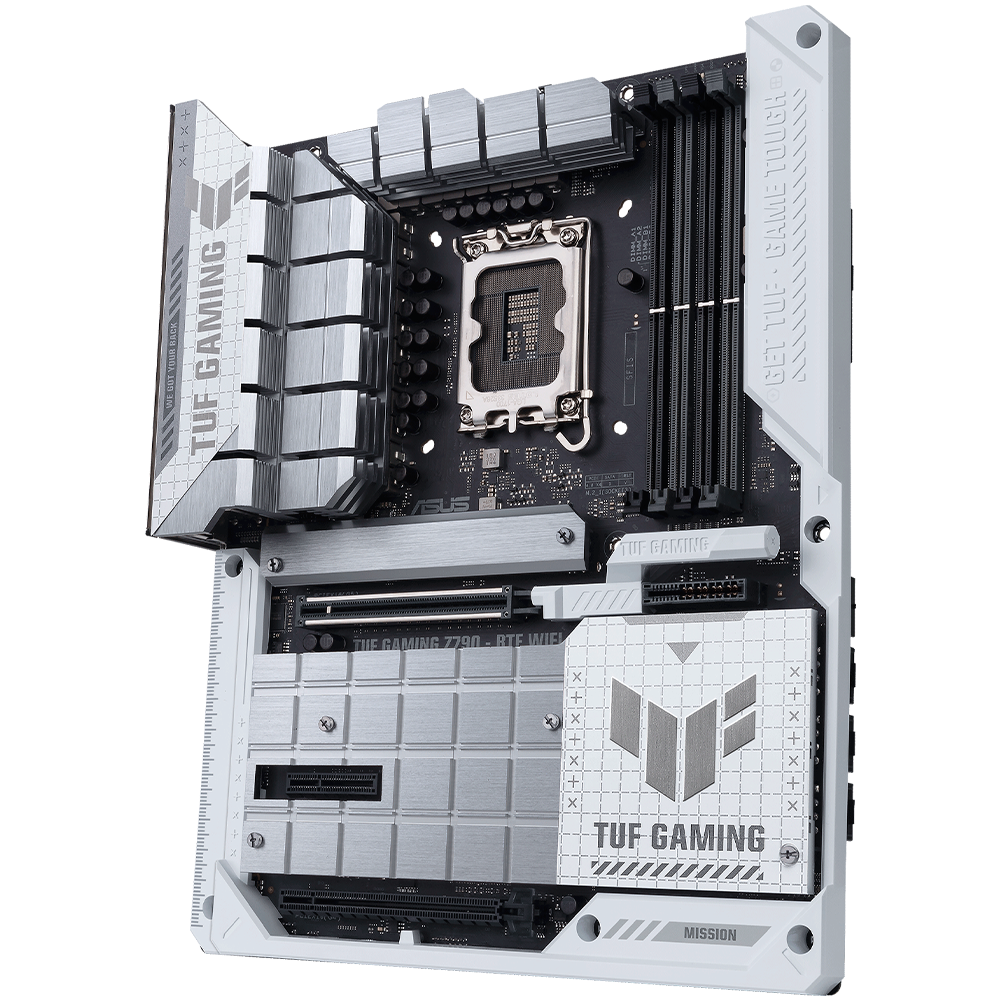

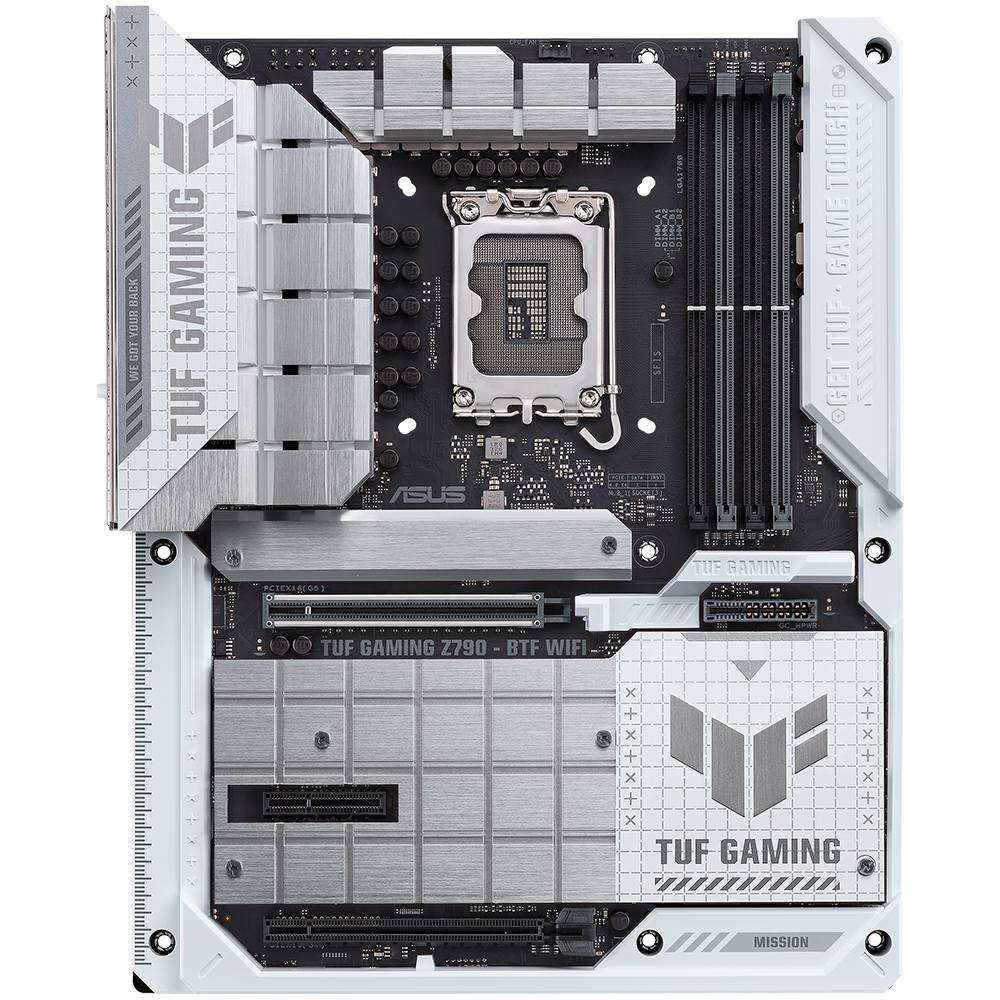

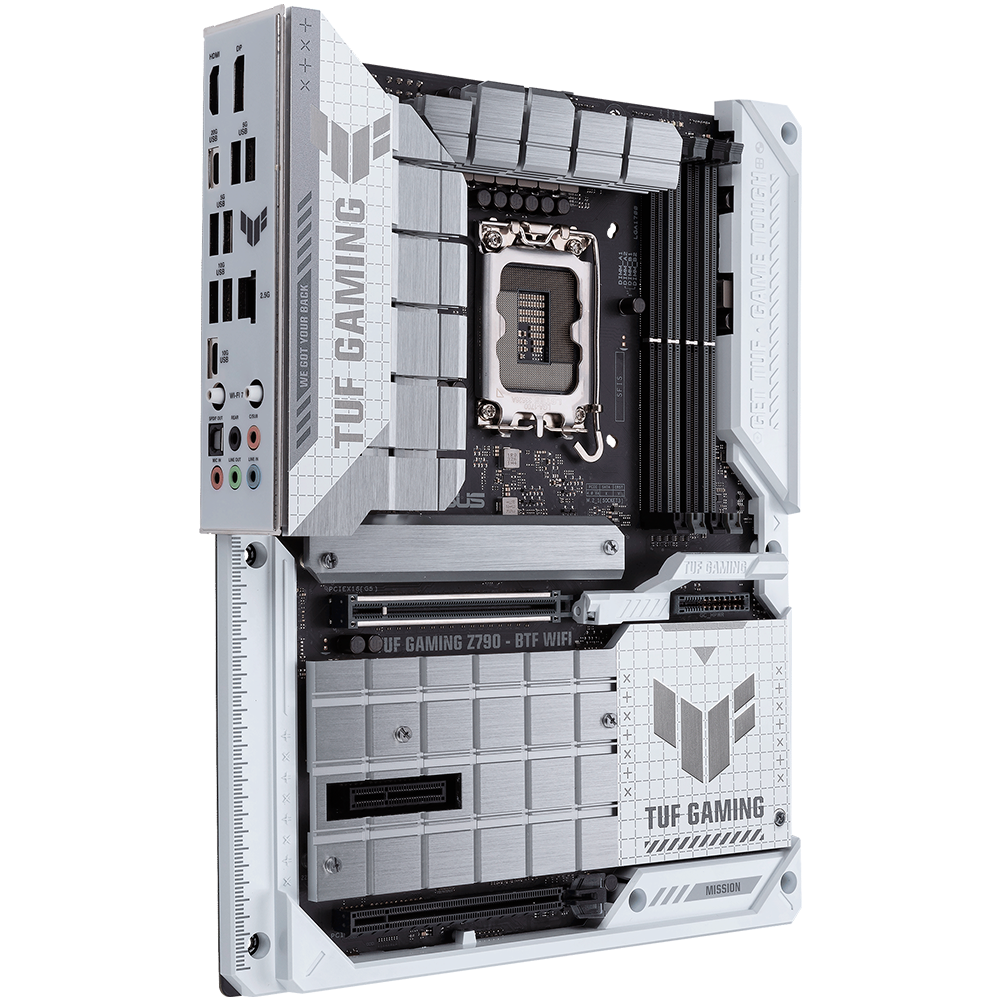

- TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.
Product Features :
- TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
- BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.
- Advanced BTF with graphics card high-power slot

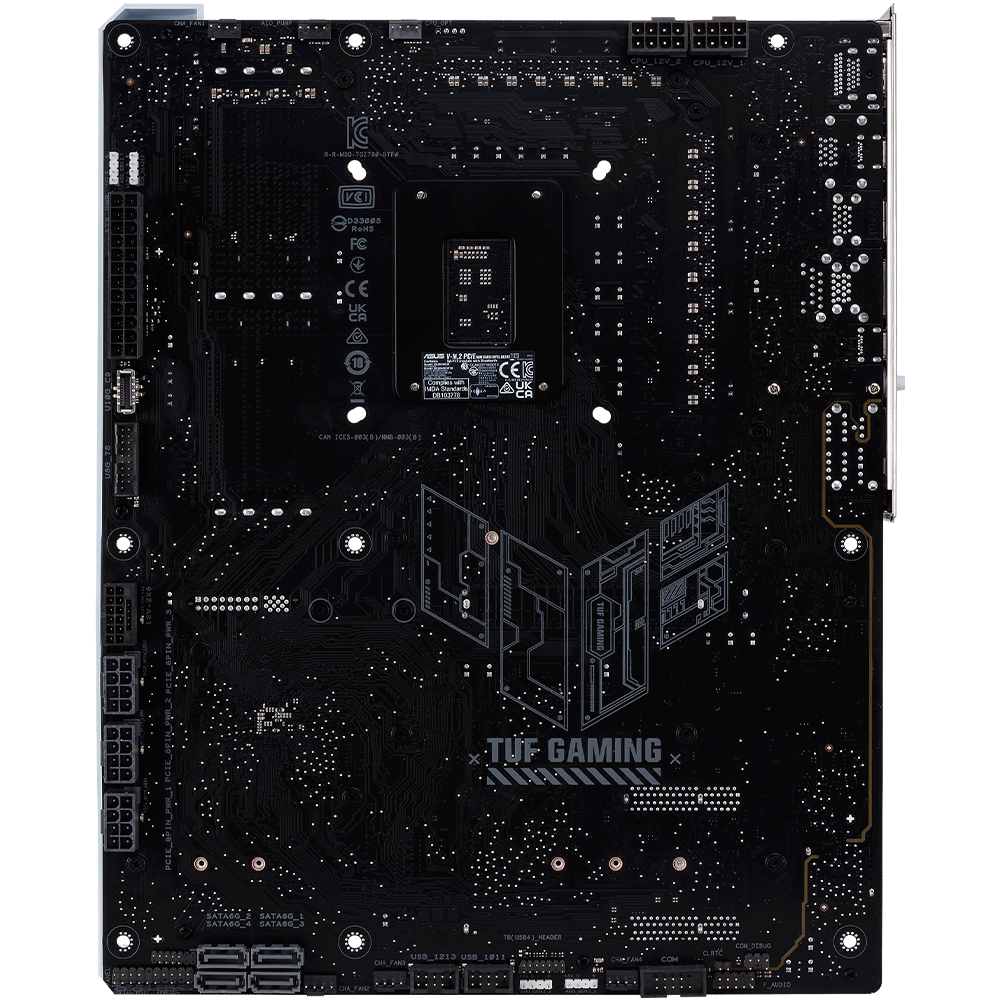

- Hidden-connector design for clean cable management

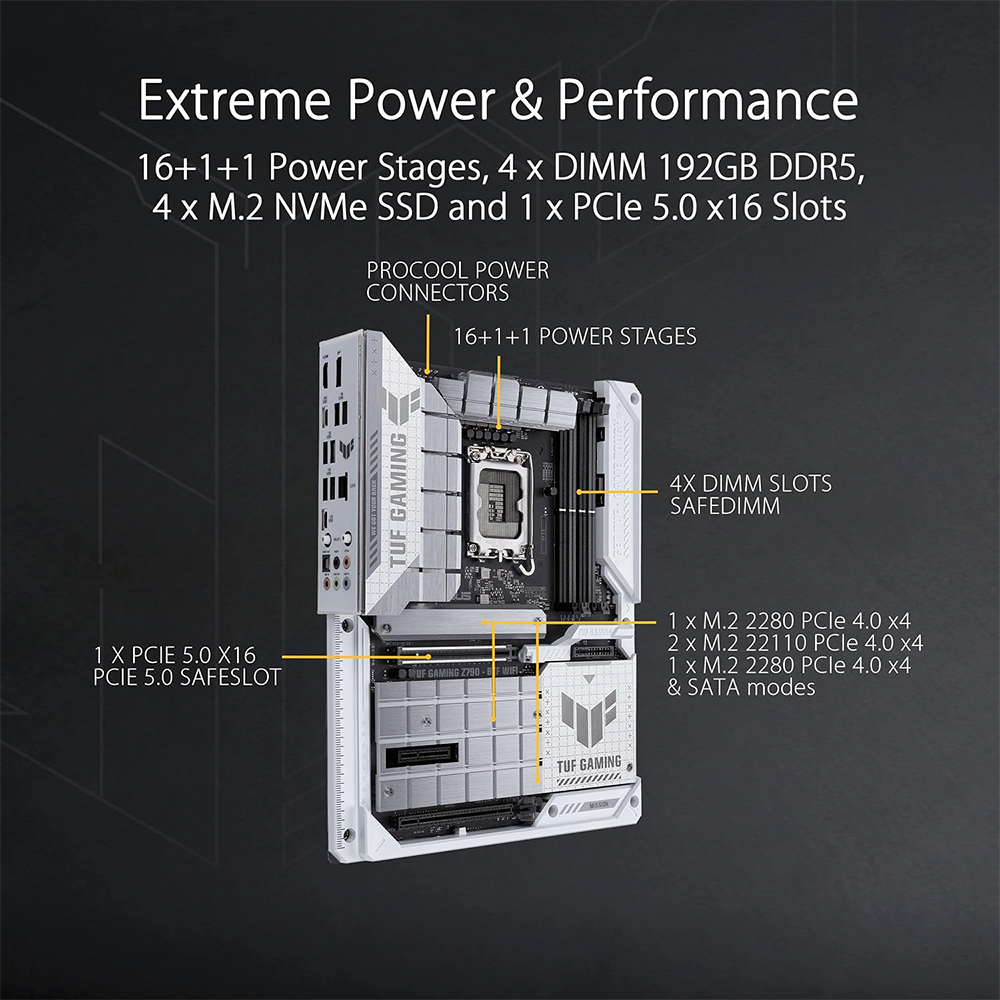

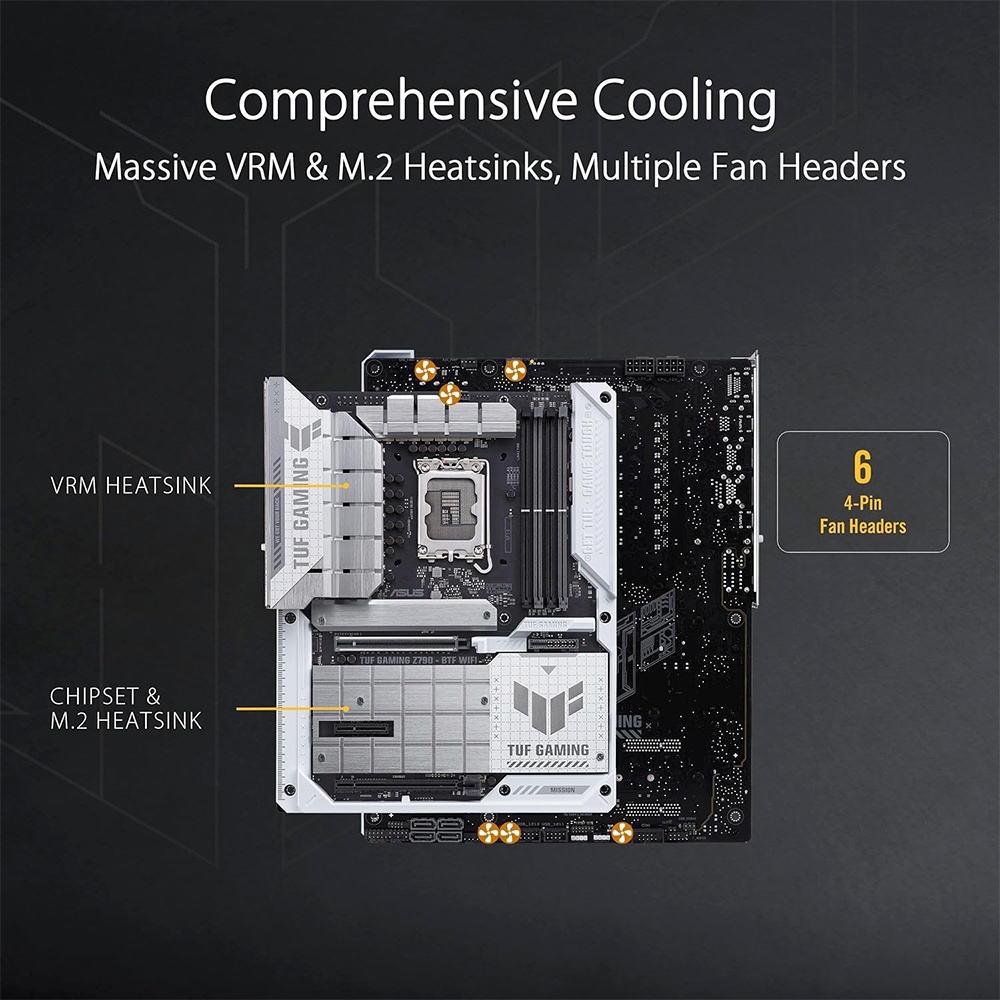

- 16(60A)+1(60A)+1 power stages with enlarged VRM heatsinks
Product Details :
CPU :
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory :
- 4 x DIMM slots, max. 192GB, DDR5 7200(OC)
- Dual channel memory architecture
- Supports Intel Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
Expansion Slots :
Intel Core Processors (14th & 13th & 12th Gen) :
- 1 x PCIe 5.0 x16 slot
Intel Z790 Chipset :
- 1 x PCIe 4.0 x4 slot
Storage :
Intel Core Processors (14th & 13th & 12th Gen):
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel Z790 Chipset :
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
Ethernet :
- 1 x Intel 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth :
- Intel Wi-Fi 7
- Supports 2.4/5/6GHz frequency band
- Bluetooth v5.4

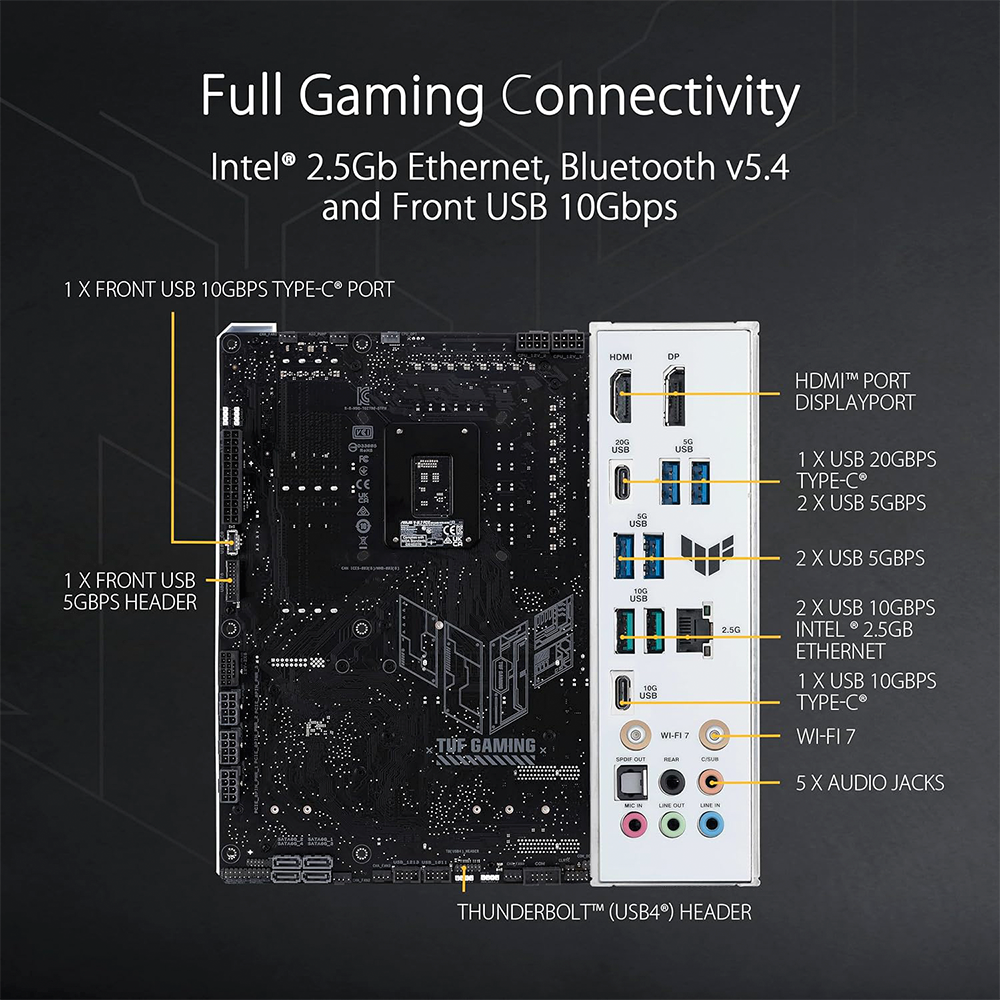

USB :
Rear USB (Total 8 ports) :
- 1 x USB 20Gbps port (USB Type-C)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
- 4 x USB 5Gbps ports (Type-A)
Front USB (Total 7 ports) :
- 1 x USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports

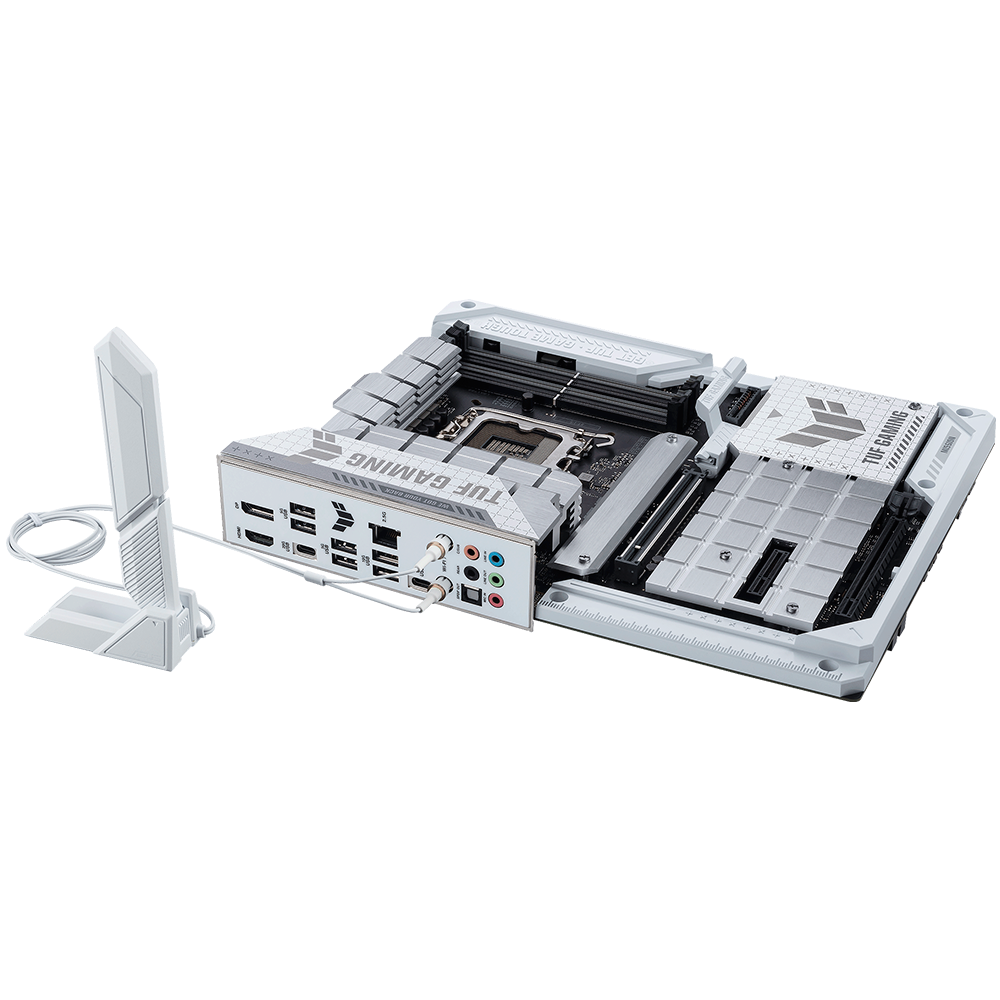

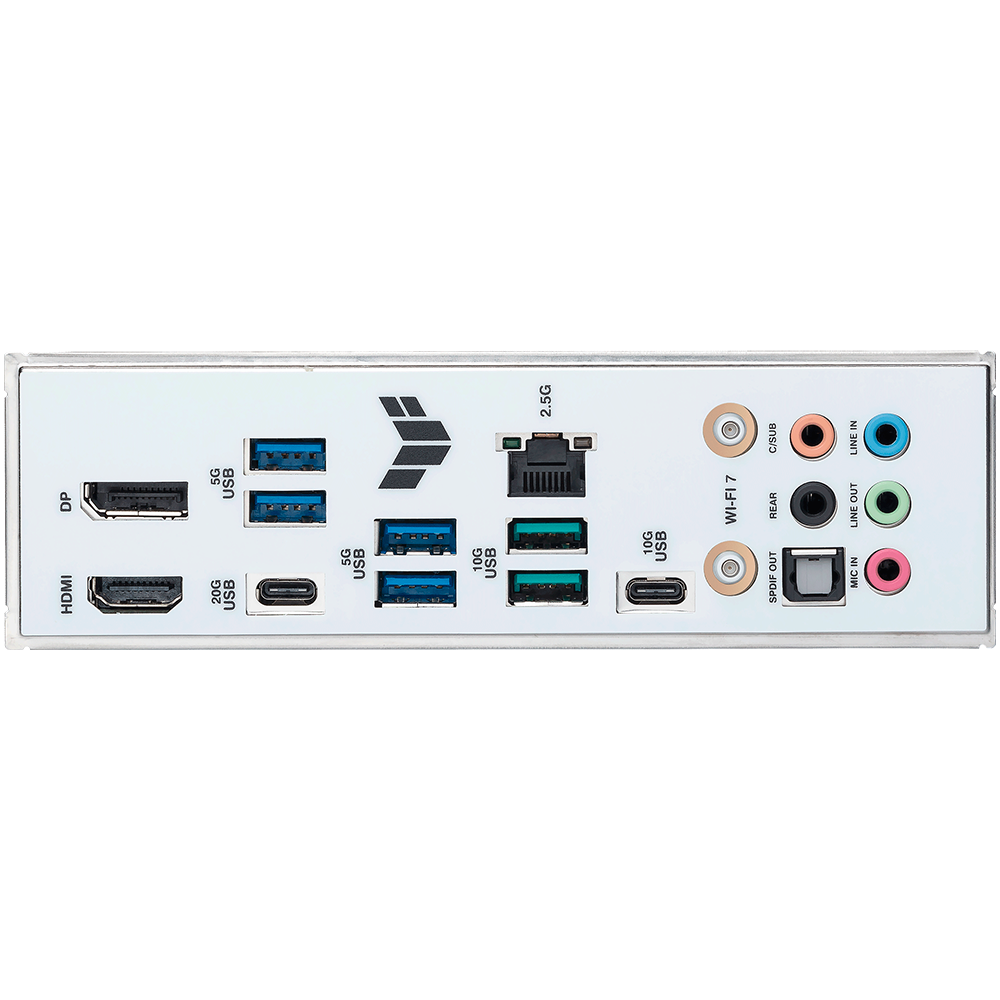

Back Panel I/O Ports
- 1 x USB 20Gbps port (USB Type-C)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
- 4 x USB 5Gbps ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Intel 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
Form Factor :
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1GU0-M0EAY0
