Product Details :

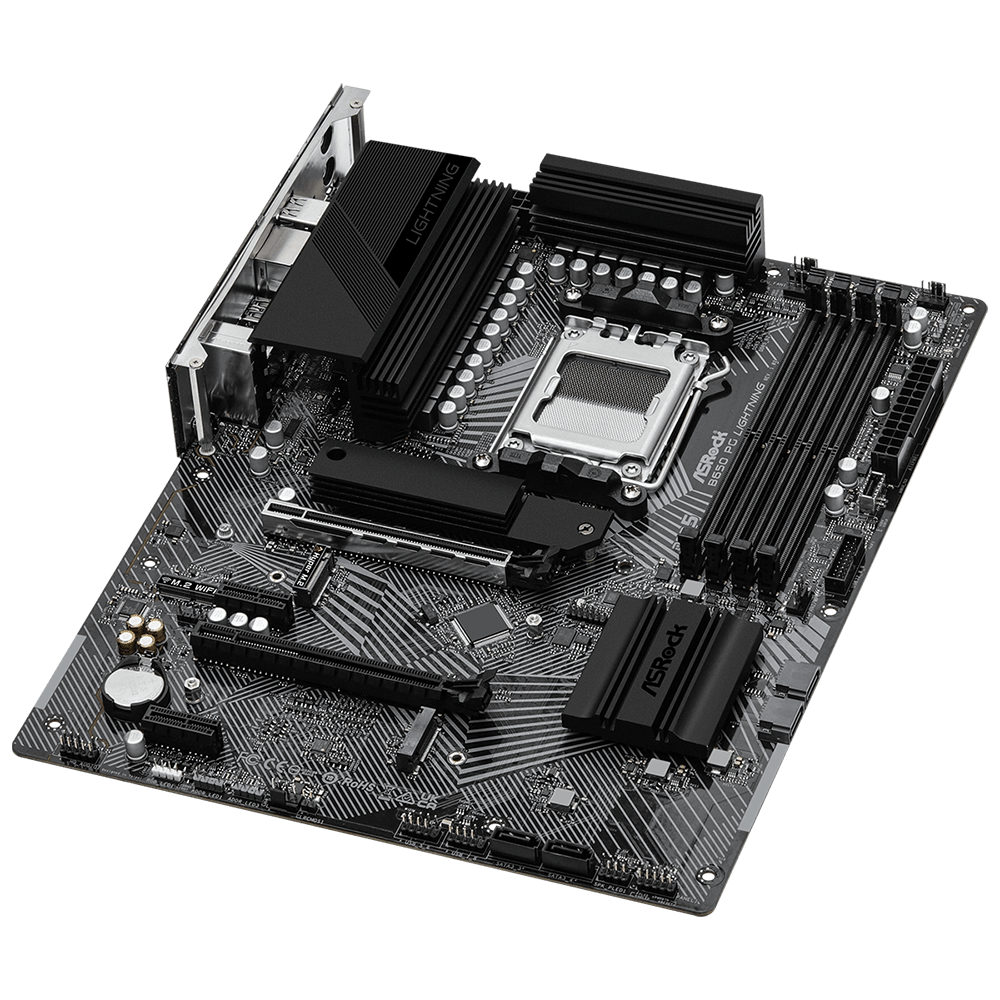

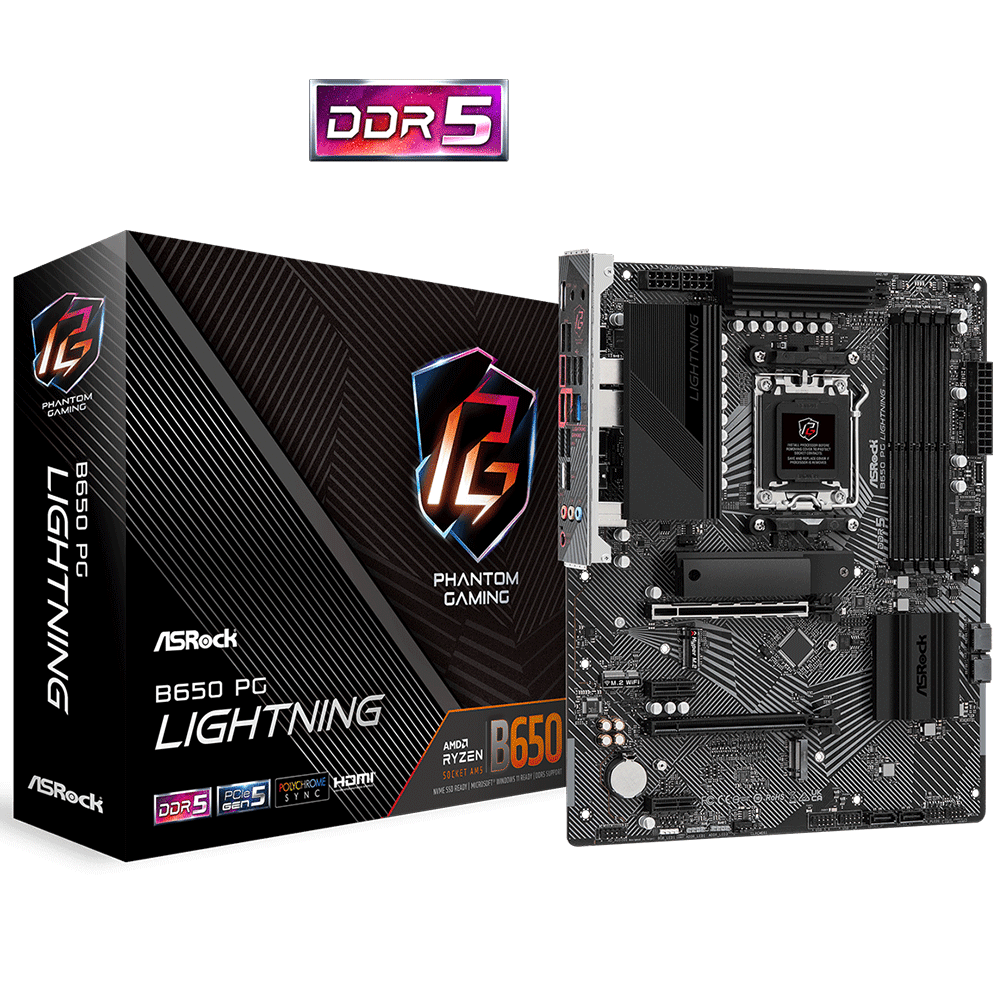

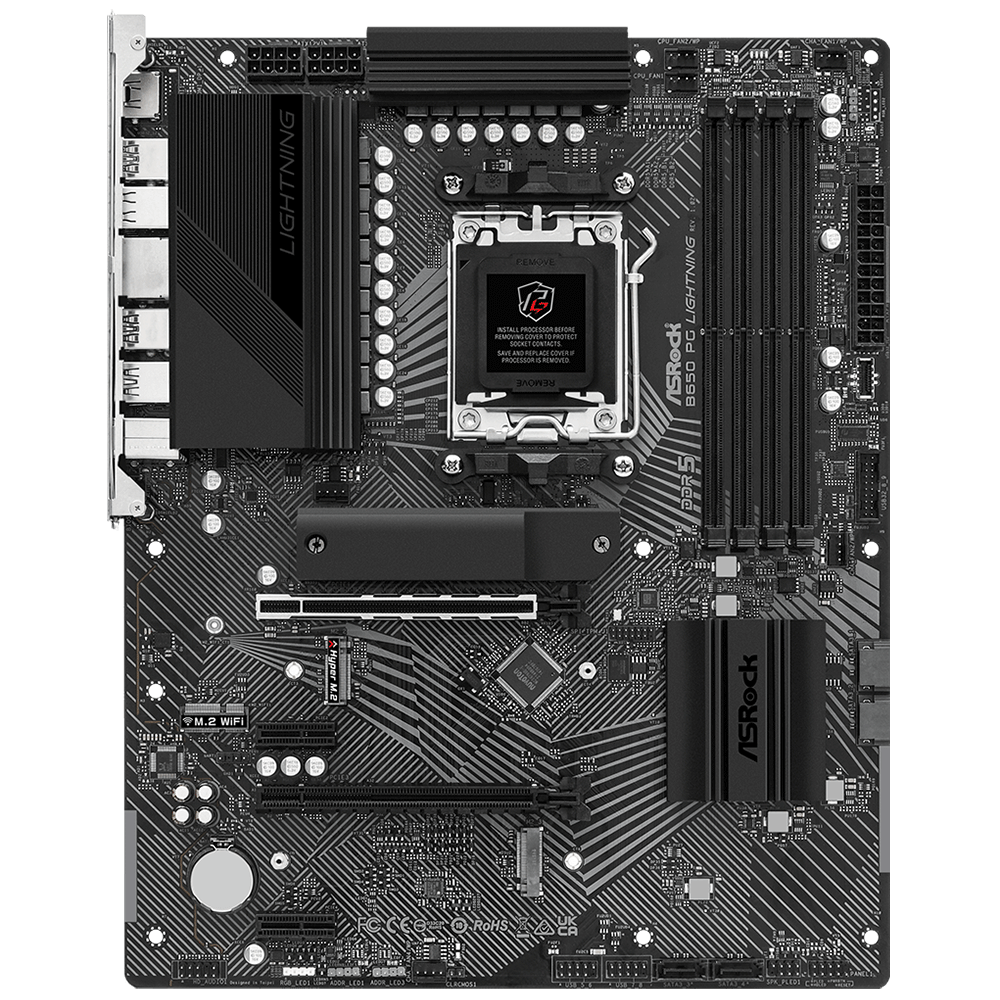

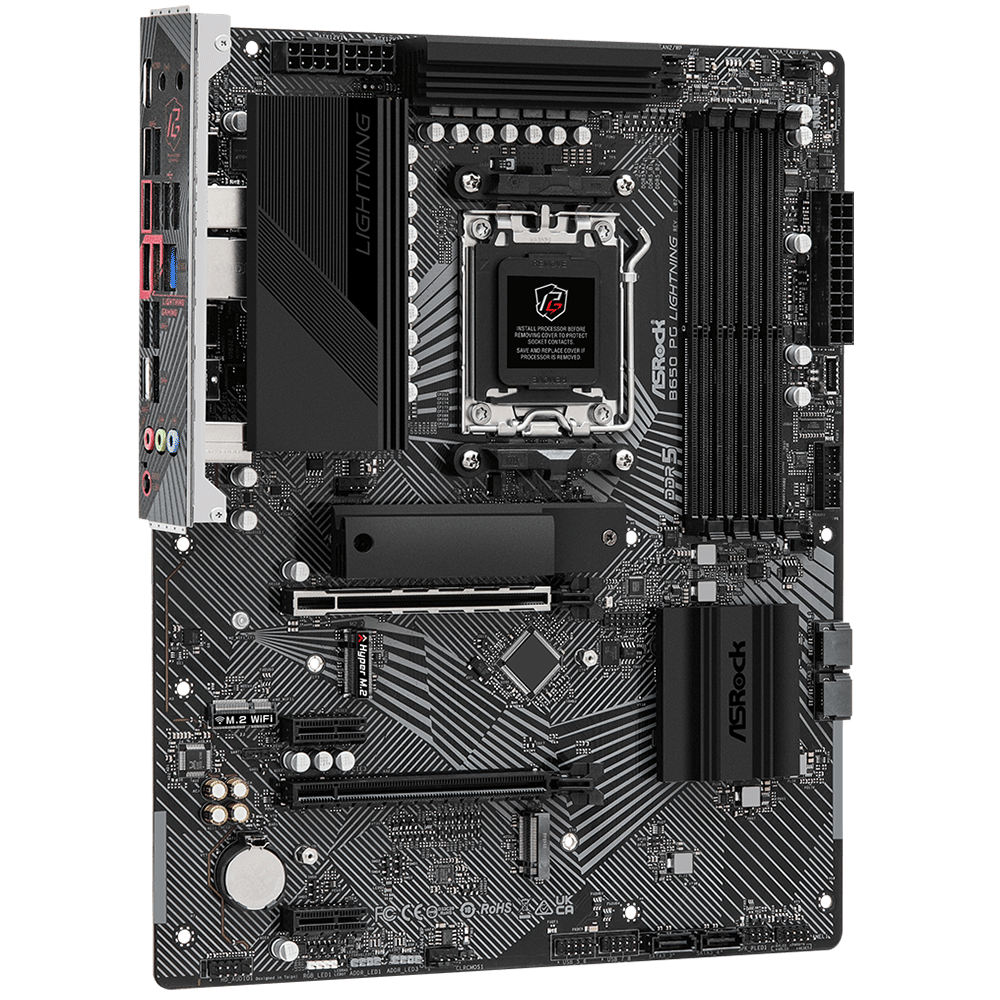

- Model : B650 PG Lightning
- CPU Socket : AM5
- CPU Type : Supports AMD Ryzen 7000 Series Desktop Processors
- Motherboard Form Factor : ATX (30.5 × 24.4 cm)
- Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Support XMP
Expansion slots:
- 2x PCIe 4.0 x16 Slot
- 2x PCIe 4.0 x1 Slot
Storage :
- 4x SATA 3
- 1x Blazing M.2 (Gen5x 4)
- 1x Hyper M.2 (PCIe Gen4 x4)
- 1x M.2 Socket (Gen4 x2)
Audio :
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN :
- 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

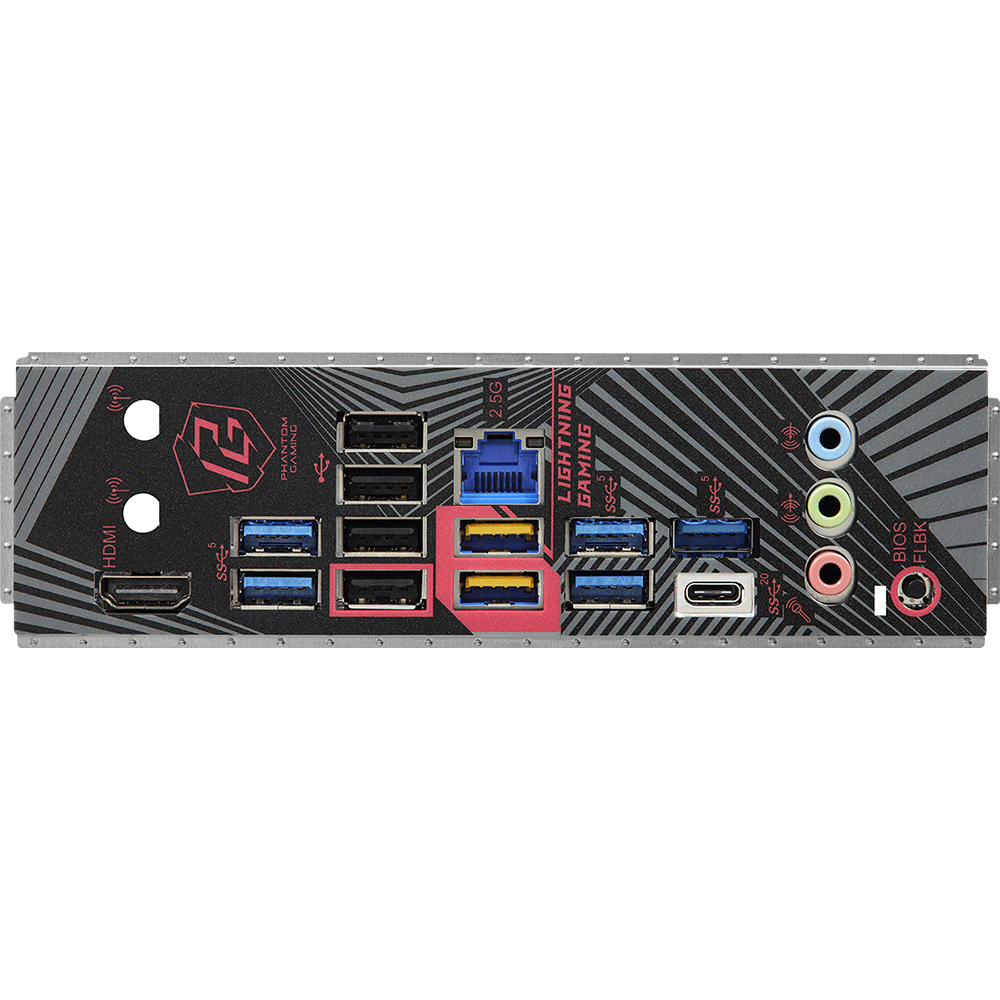

Rear Panel I/O :
- 2x Antenna Mounting point
- 1x HDMI port
- 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 7x USB 3.2 Gen1 ports
- 4x USB 2.0 Ports
- 1x RJ-45 LAN ports
- 1x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Internal Connectors :
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 headers (support 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Header
Accessories :
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Part Number:
