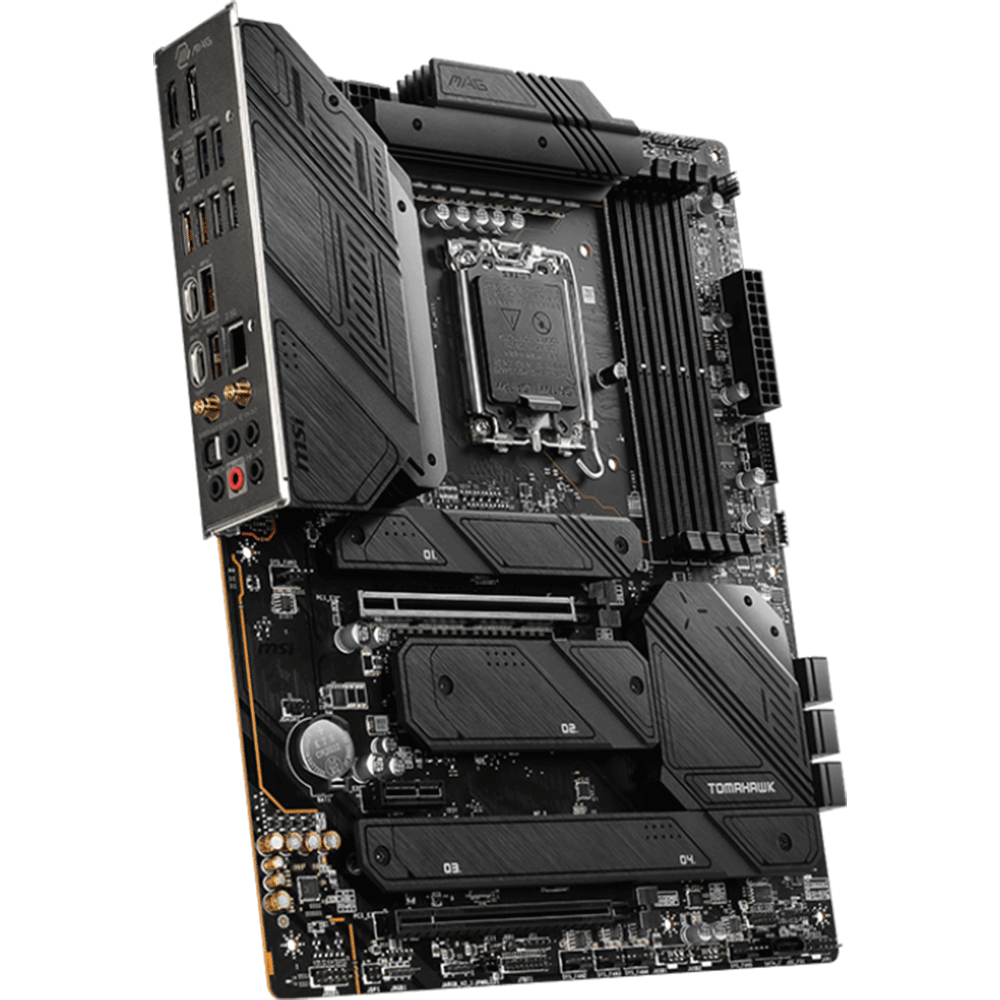

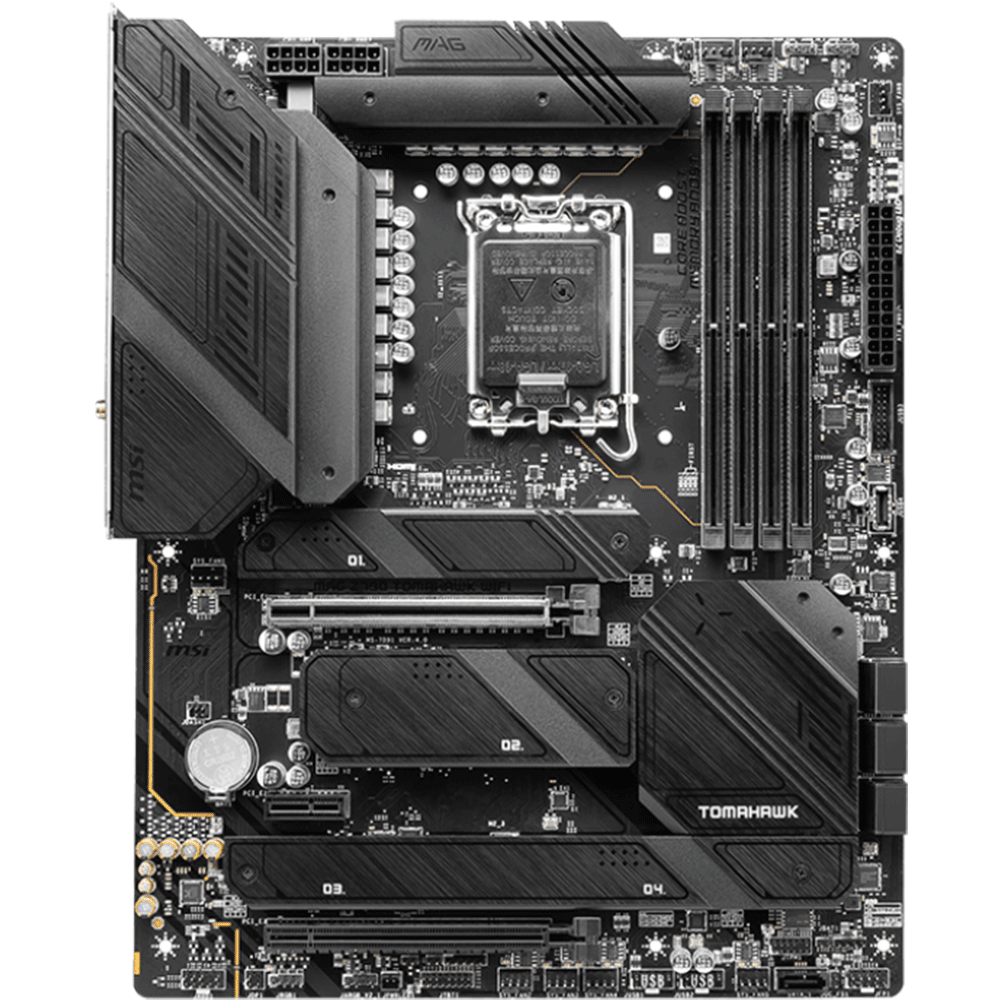

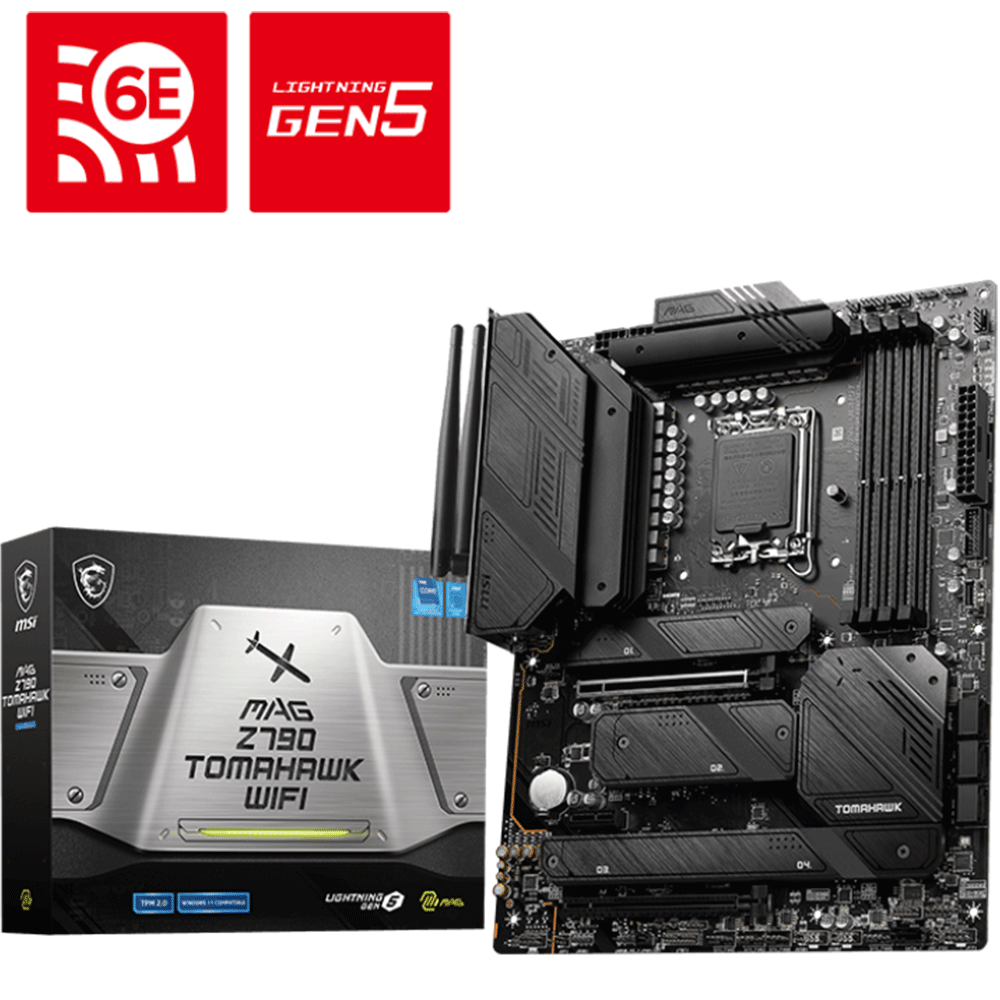

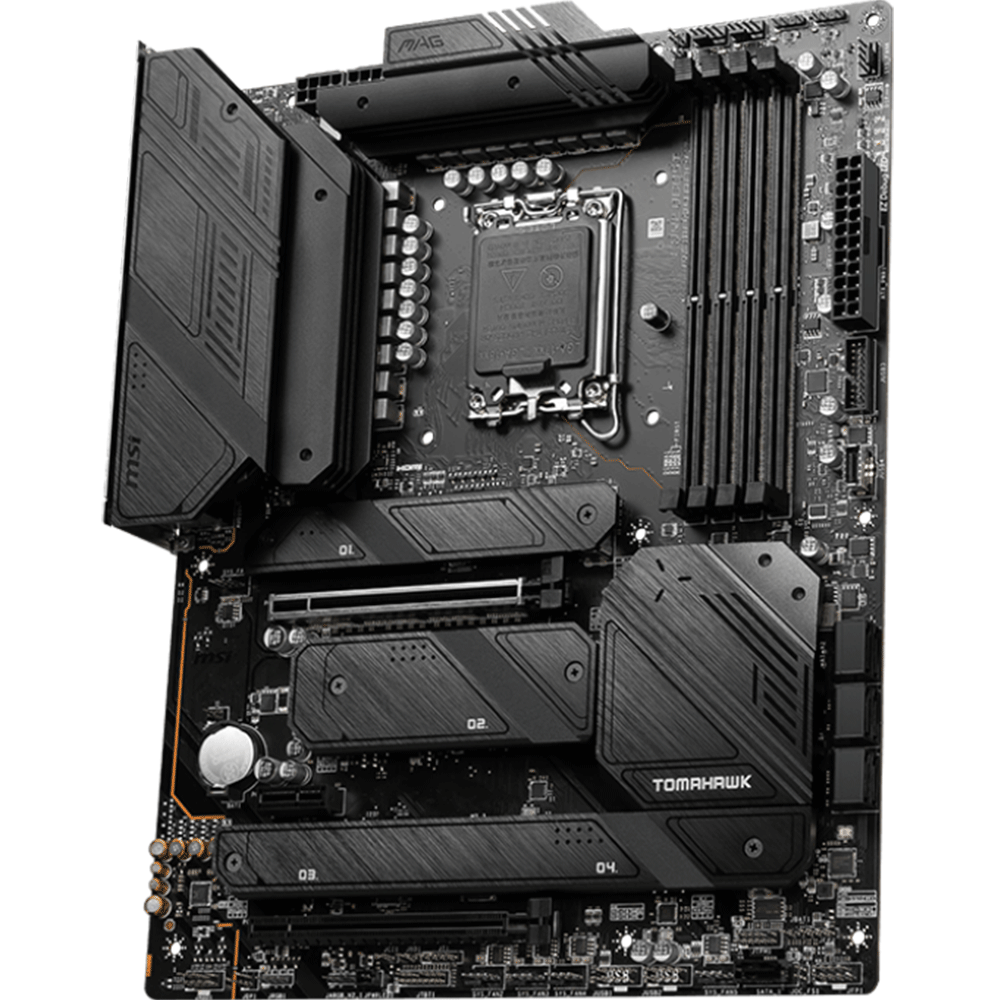

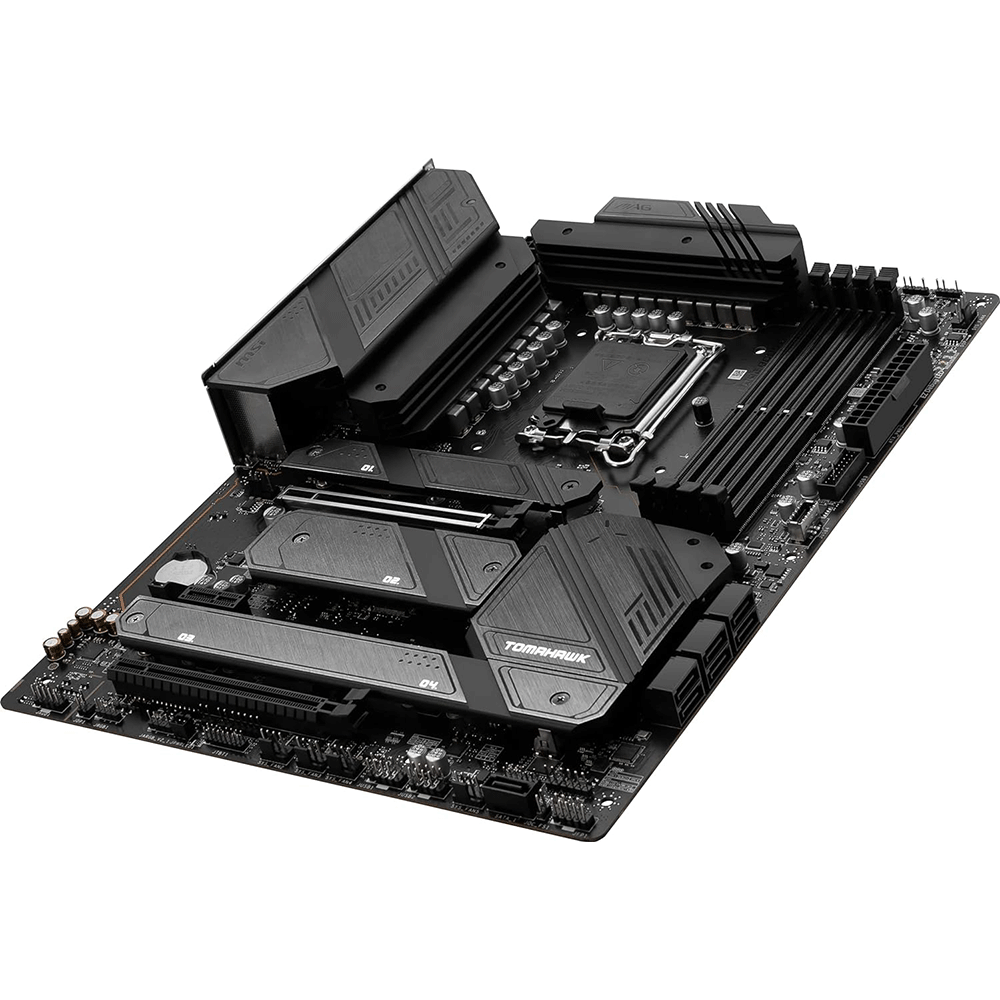

MSI MAG Z790 TOMAHAWK WIFI, LGA1700 Socket For intel CPUs Motherboard

Product Details :

CPU :

• Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors (LGA1700)

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports Intel XMP3.0 OC
• Supports Dual-Controller Dual-Channel mode

expansion Slot :

• 1x PCI-E 5.0 x16 slot
• 1x PCI-E 3.0 x1 slot
• 1x PCI-E 4.0 x16 slot

Storage :

• 4 x M.2 slots supporting PCIe Gen4 x4
• 7 x SATA 6G

USB :

• 4 × USB 2.0 (Front)
• 4 × USB 3.2 Gen1 Type A (Rear)
• 2 × USB 3.2 Gen1 Type A (Front)
• 4 × USB 3.2 Gen2 Type A (Rear)
• 1 × USB 3.2 Gen2 Type C (Rear)
• 1 × USB 3.2 Gen2 Type C (Front)
• 1 × USB 3.2 Gen2x2 Type C (Rear)

LAN :

• Intel 2.5Gbps LAN

Wireless/Bluetooth :

• Intel Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio

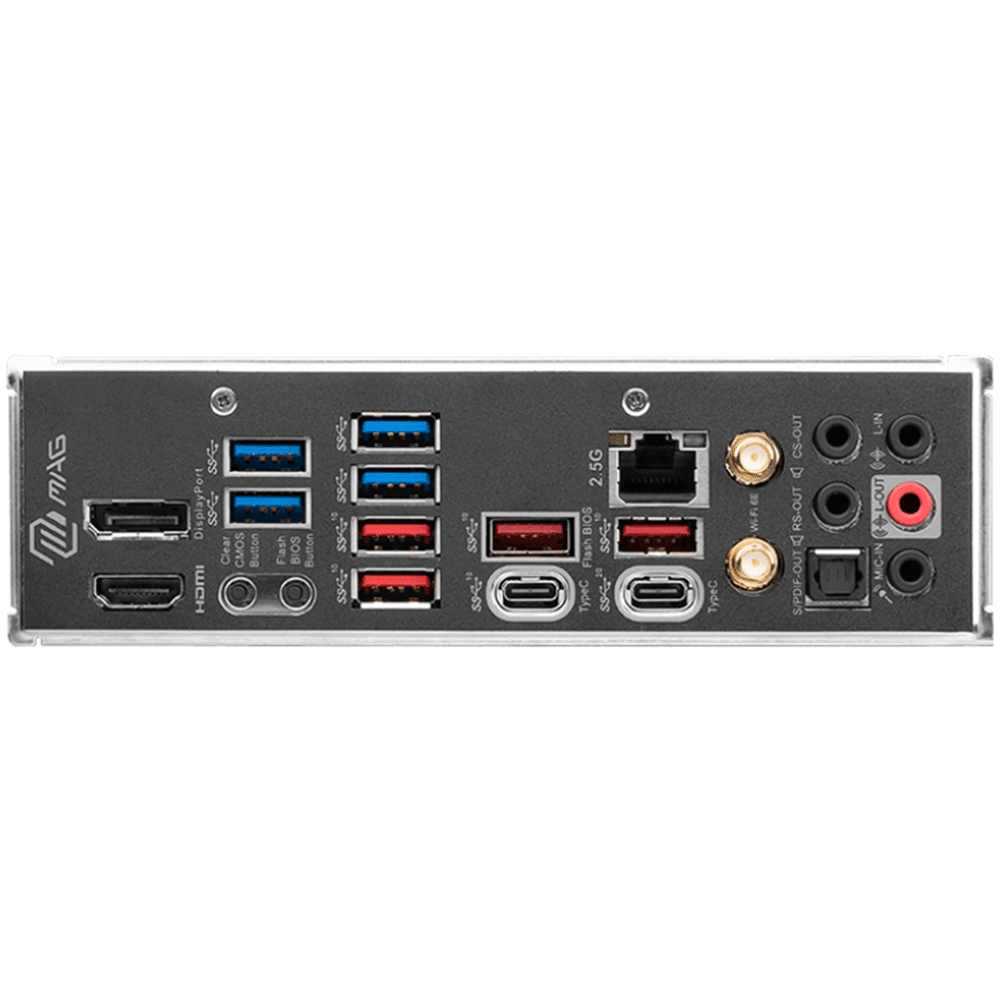

Back I/O Panel Ports :

1. DisplayPort 1.4
2. USB 3.2 Gen 1 5Gbps Type-A
3. USB 3.2 Gen 2 10Gbps Type-A
4. 2.5G LAN Port,
5. HD Audio Connectors
6. HDMI™ 2.1 Port
7. Clear CMOS Button
8. Flash BIOS Button
9. USB 3.2 Gen 2 10Gbps Type-C
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. Wi-Fi / Bluetooth Antenna
12. Optical S/PDIF OUT

Motherboard Size :

• ATX 243.84×304.8 mm

Product Number:

• 911-7D91-030

Box Content :
