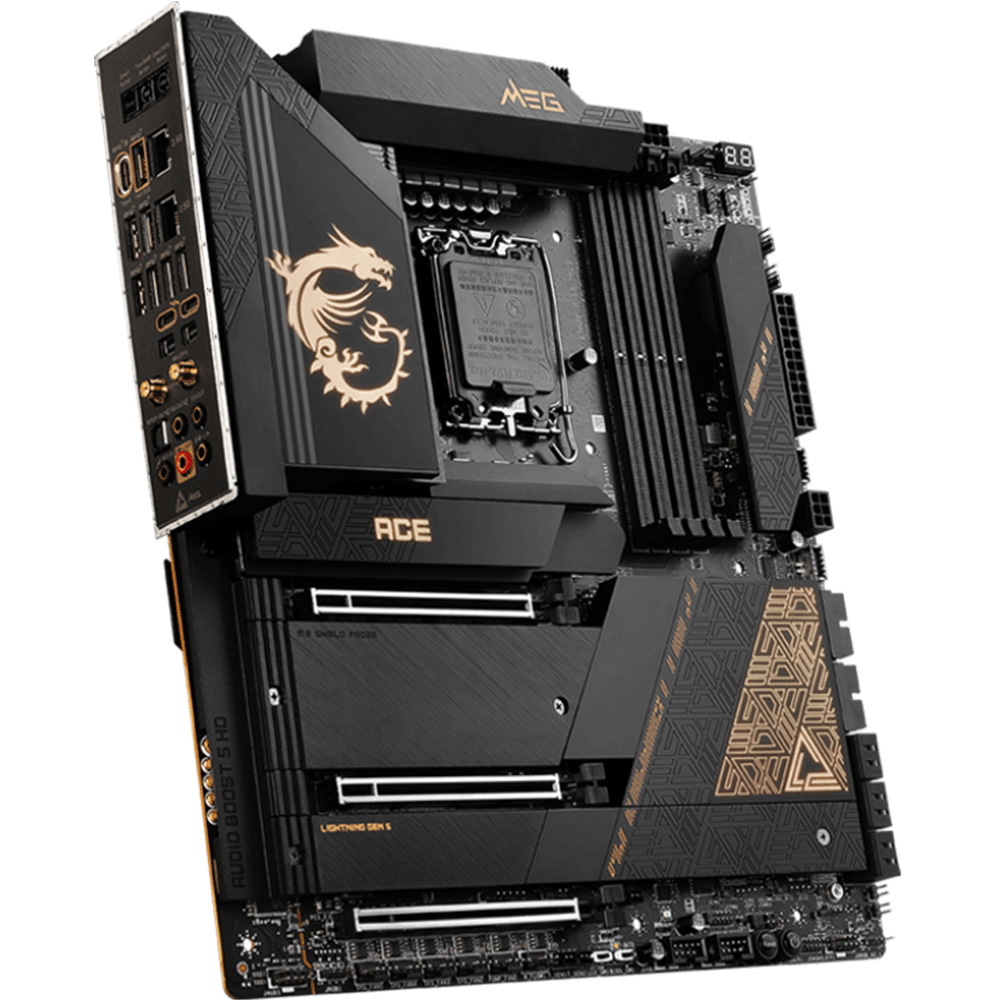

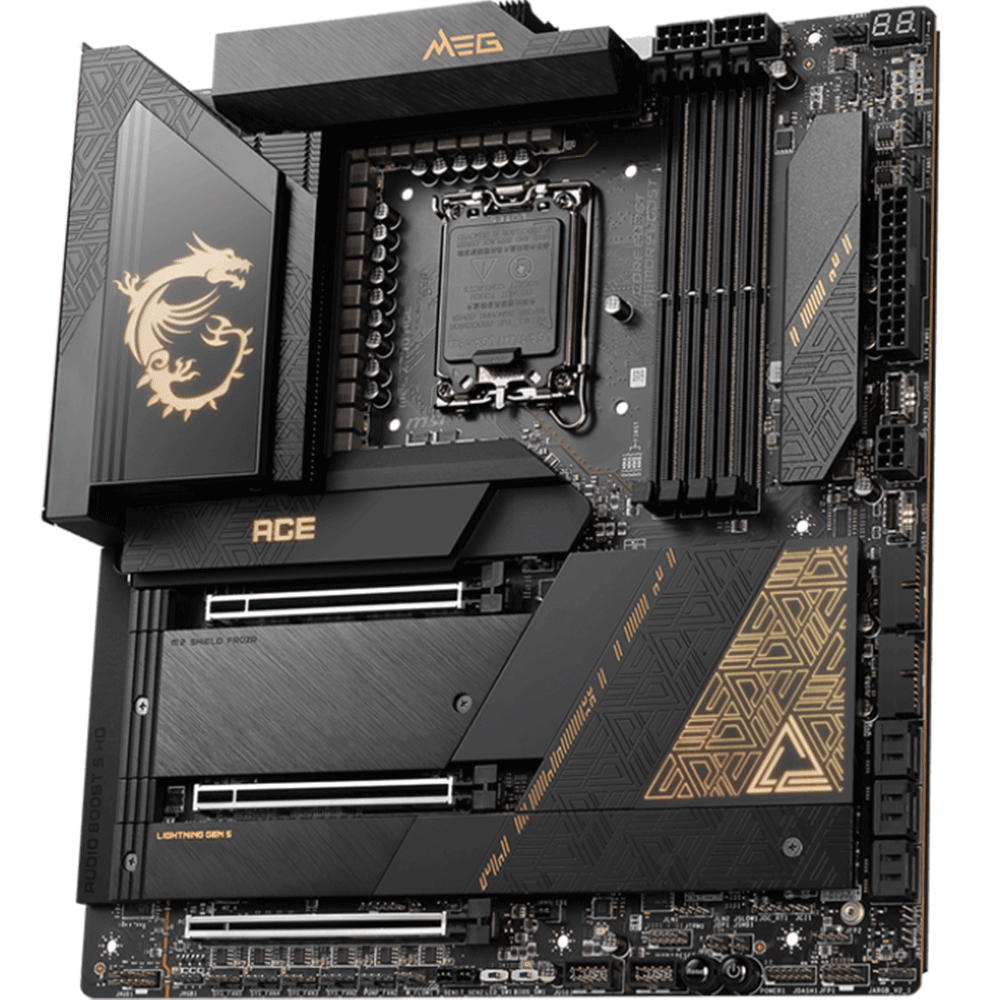

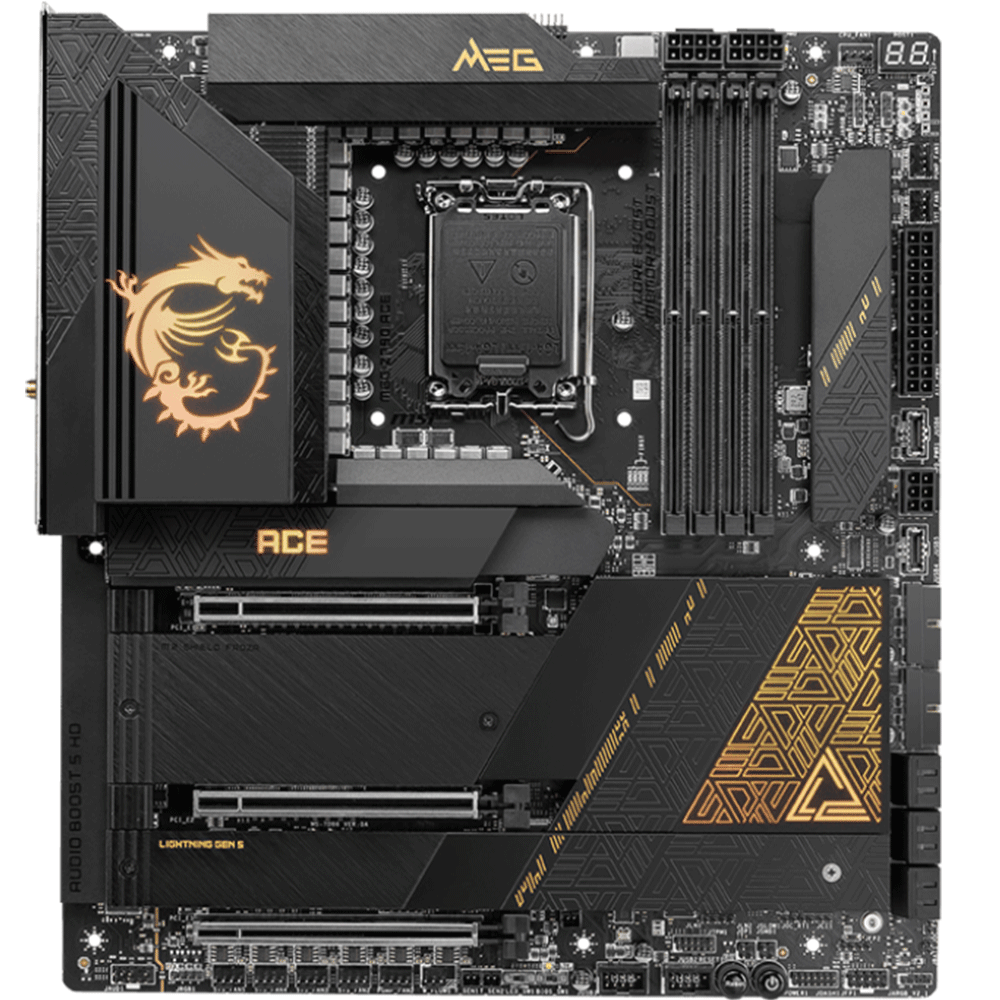

MSI MEG Z790 ACE, LGA1700 Socket For intel CPUs, DDR5 Motherboard

Product Features :

• Lightning Gen 5 : The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
• 24+1+2 Phases Power Design : The ultimate power solution with DRPS and 105A Smart Power Stage unleashes the maximum CPU performance.

Product Details :

CPU :

• Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors (LGA1700)

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports Intel XMP3.0 OC
• Supports Dual-Controller Dual-Channel mode

expansion Slot :

• 2x PCI-E 5.0 x16 slots
• 1x PCI-E 4.0 x16 slot

Storage :

• 1 x M..2 slot supports PCIe Gen5 x4
• 4 x M.2 slots supporting PCIe Gen4 x4
• 6 x SATA 6G

USB :

• 4 × USB 2.0 (Front)
• 4 × USB 3.2 Gen1 Type A (Front)
• 7 × USB 3.2 Gen2 Type A (Rear)
• 1 × USB 3.2 Gen2 Type C (Rear)
• 2 × USB 3.2 Gen2x2 Type C (Front)

LAN :

• 2 × Intel 2.5Gbps LAN

Wireless/Bluetooth :

• Intel Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output

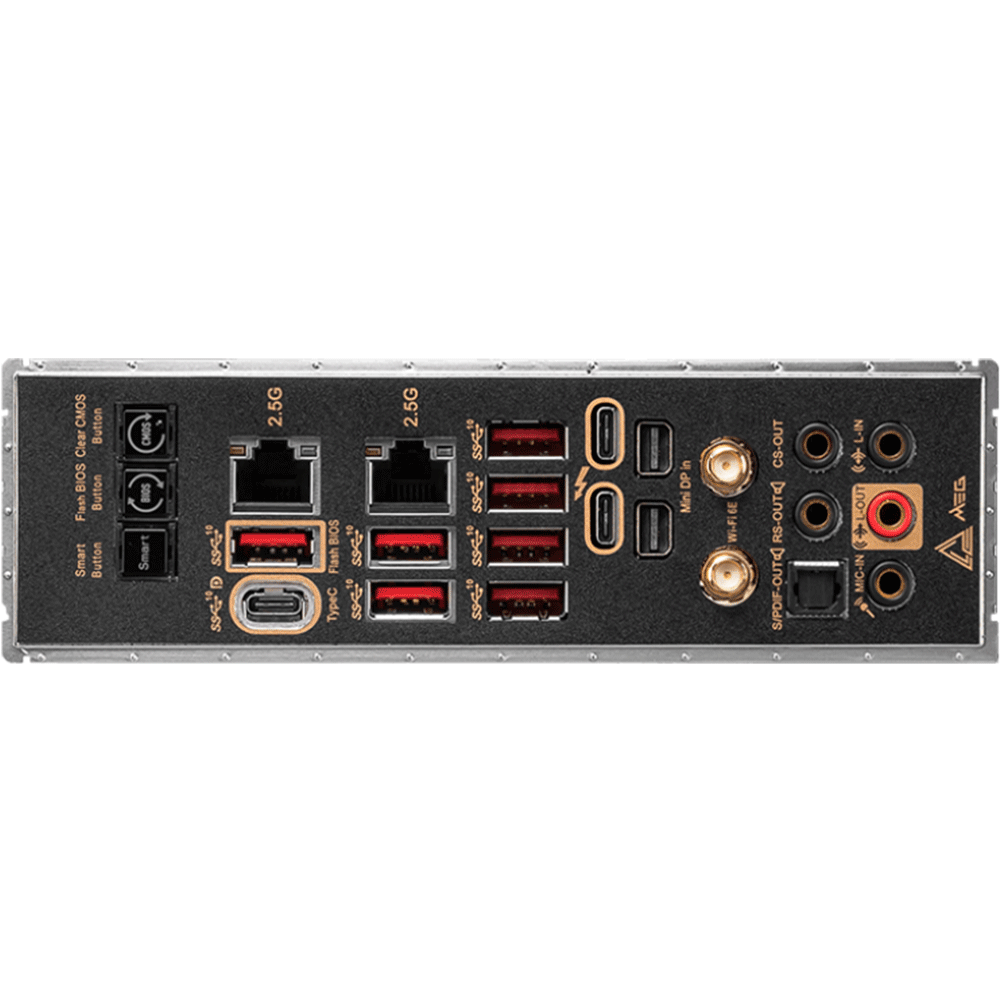

Back I/O Panel Ports :

1. Clear CMOS Button
2. Flash BIOS Button
3. 2.5G LAN
4. 2.5G LAN
5. Thunderbolt 4 40Gbps (Type-C)
6. Wi-Fi / Bluetooth
7. Audio Connectors
8. Smart Button
9. USB 3.2 Gen 2 10Gbps (Type-C DisplayPort)
10. USB 3.2 Gen 2 10Gbps (Type-A)
11. Mini DisplayPort Input (for Thunderbolt passthrough)
12. Optical S/PDIF-Out

Motherboard Size :

• E-ATX 277×304.8 mm

Product Number:

• 911-7D86-015

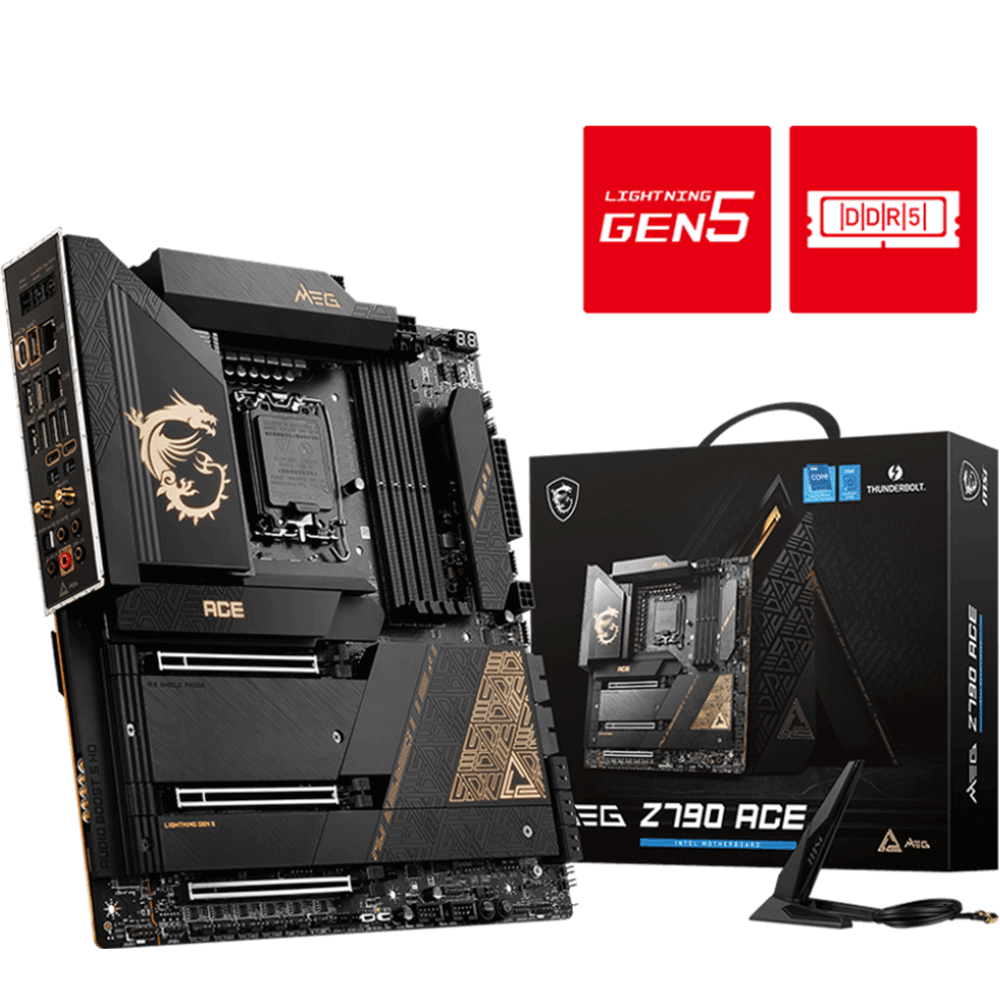

Box Content :
