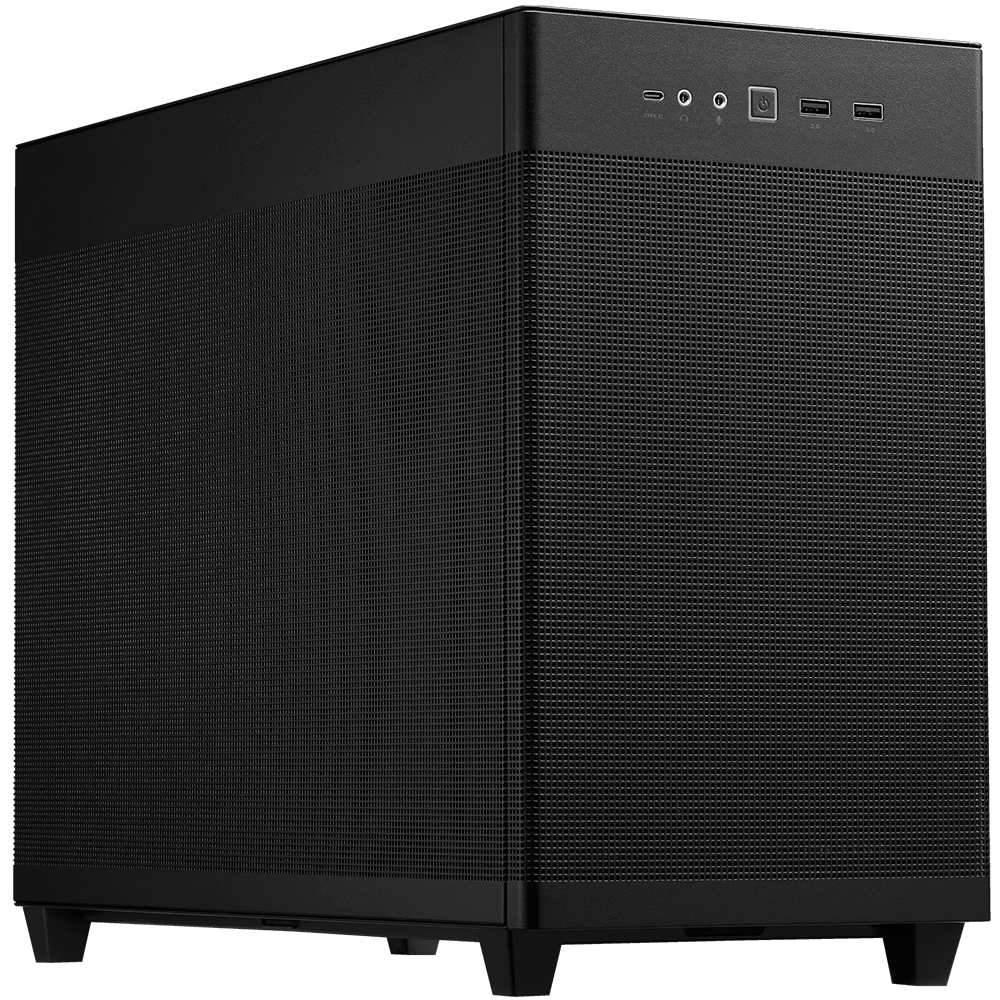

- The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
Product Features :
- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

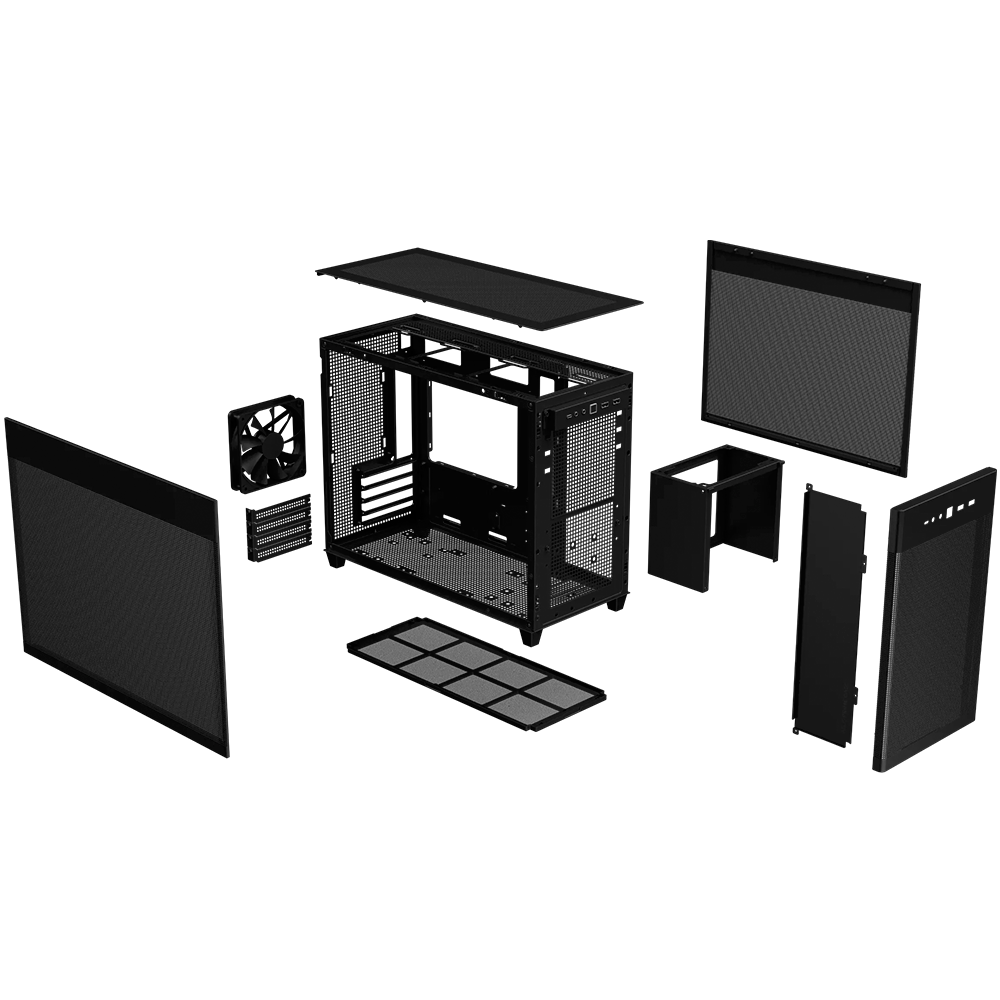

- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

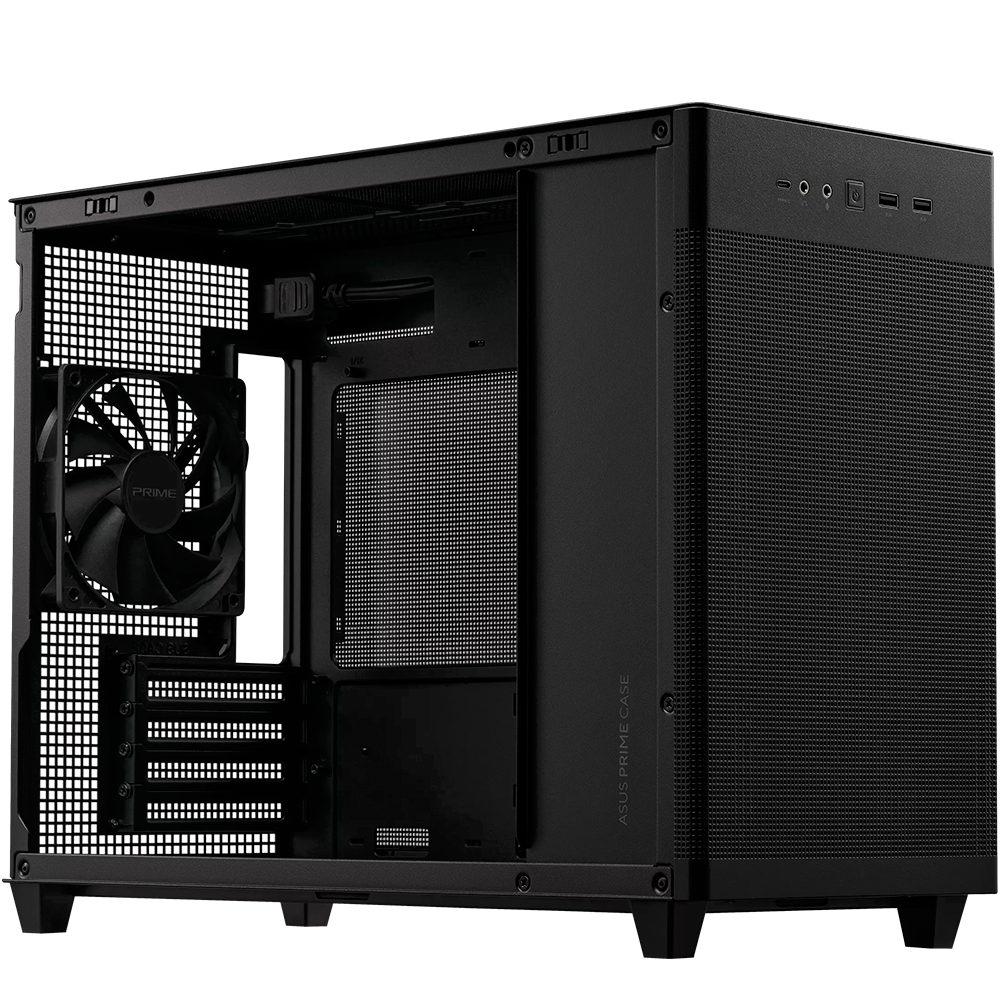

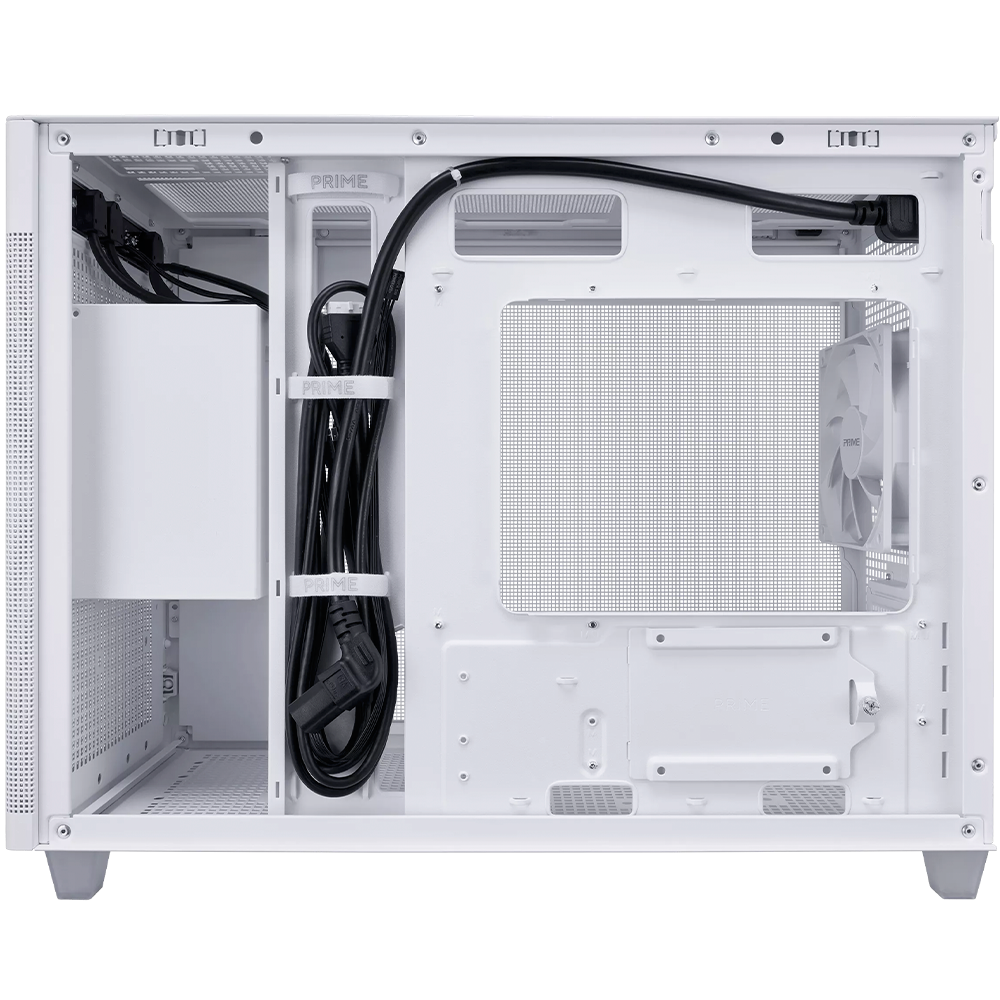

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Product Details :
- Model : ASUS Prime AP201 MicroATX Case
- Case Size : Small Tower
- Motherboard Support : Micro-ATX, Mini-ITX
Drive Bays :
- 1 x 2.5" Bay
- 3 x 2.5"/3.5" Combo Bay
- Expansion Slots : 4

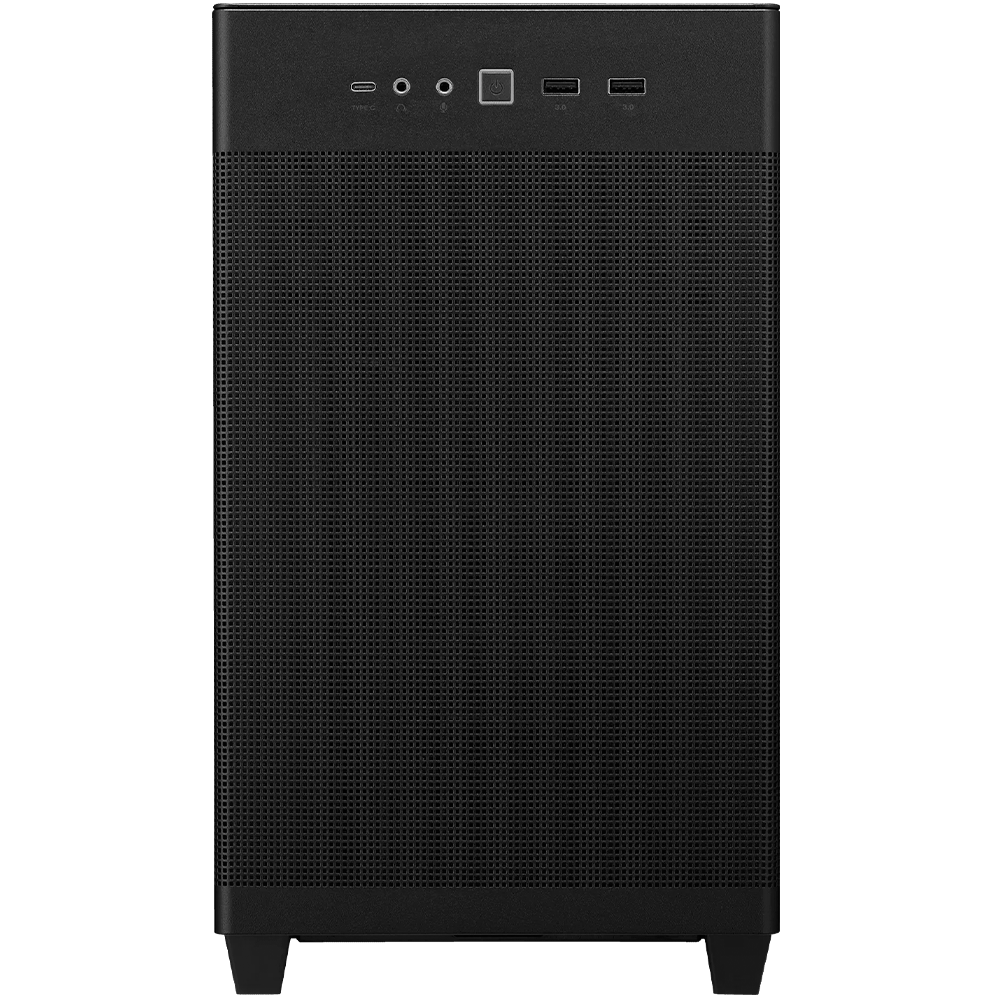

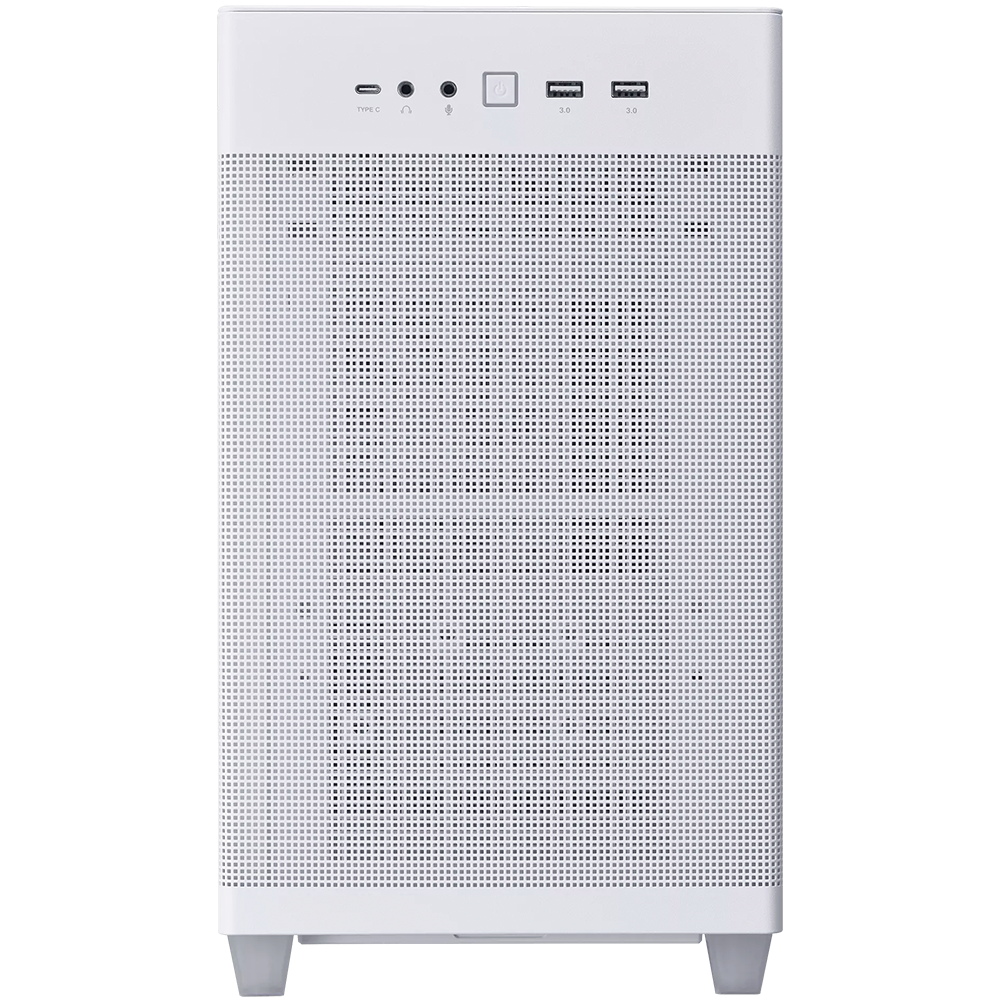

Front I/O Port :
- 1 x Headphone
- 1 x Microphone
- 2 x USB 3.2 Gen1
- 1 x USB 3.2 Gen2 Type C
Radiator Support (Top) :
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
Radiator Support (Rear) :
- 120 mm
Cooling Support (Top) :
- 3 x 120 mm
- 2 x 140 mm
Cooling Support (Rear) :
- 1 x 120 mm
Pre-installed Fans (Front) :
- None
Pre-installed Fans (Rear) :
- 1 x 120 mm
Maximum CPU Cooler Height :
- 170 mm
Maximum GPU Length :
- 338 mm
Maximum PSU Length :
- 140-180 mm
Dimensions :
- 205 x 350 x 460 mm
Weight :
- 5.8 Kg
Part Number:

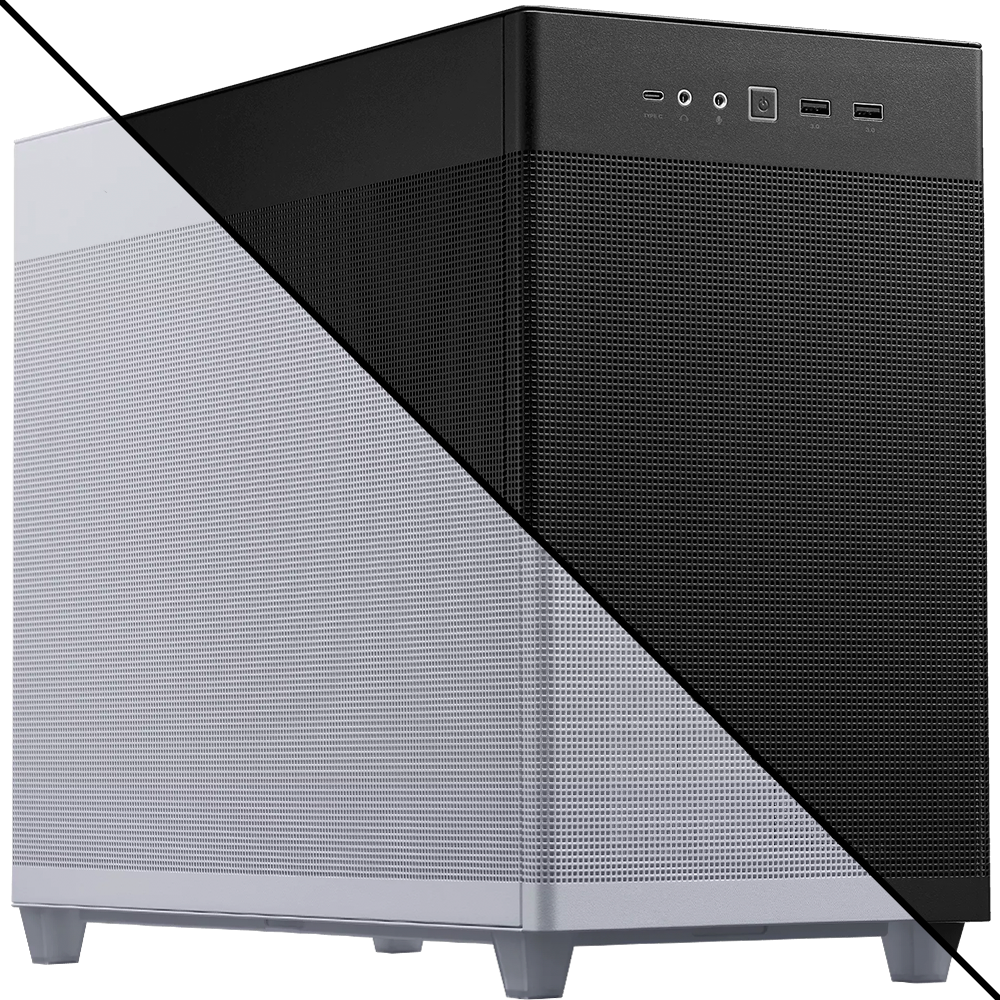

- Black: 90DC00G0-B39000

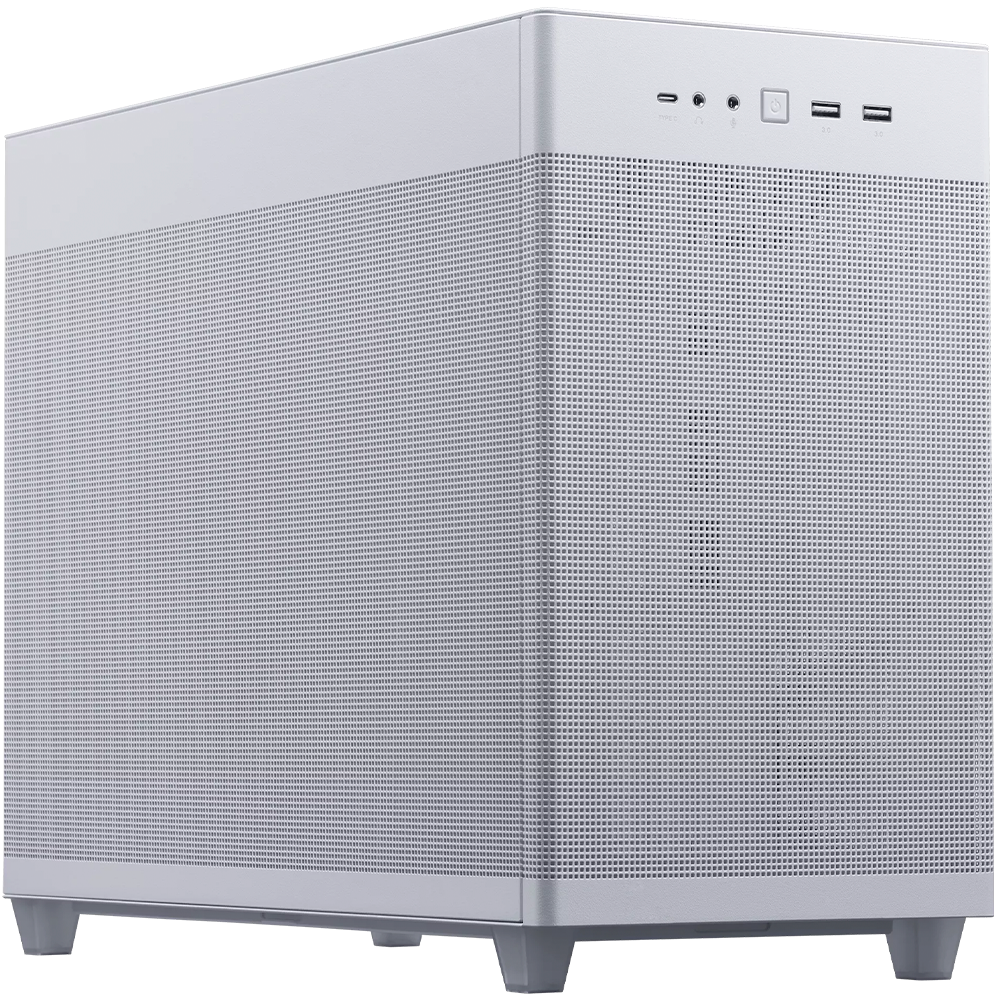

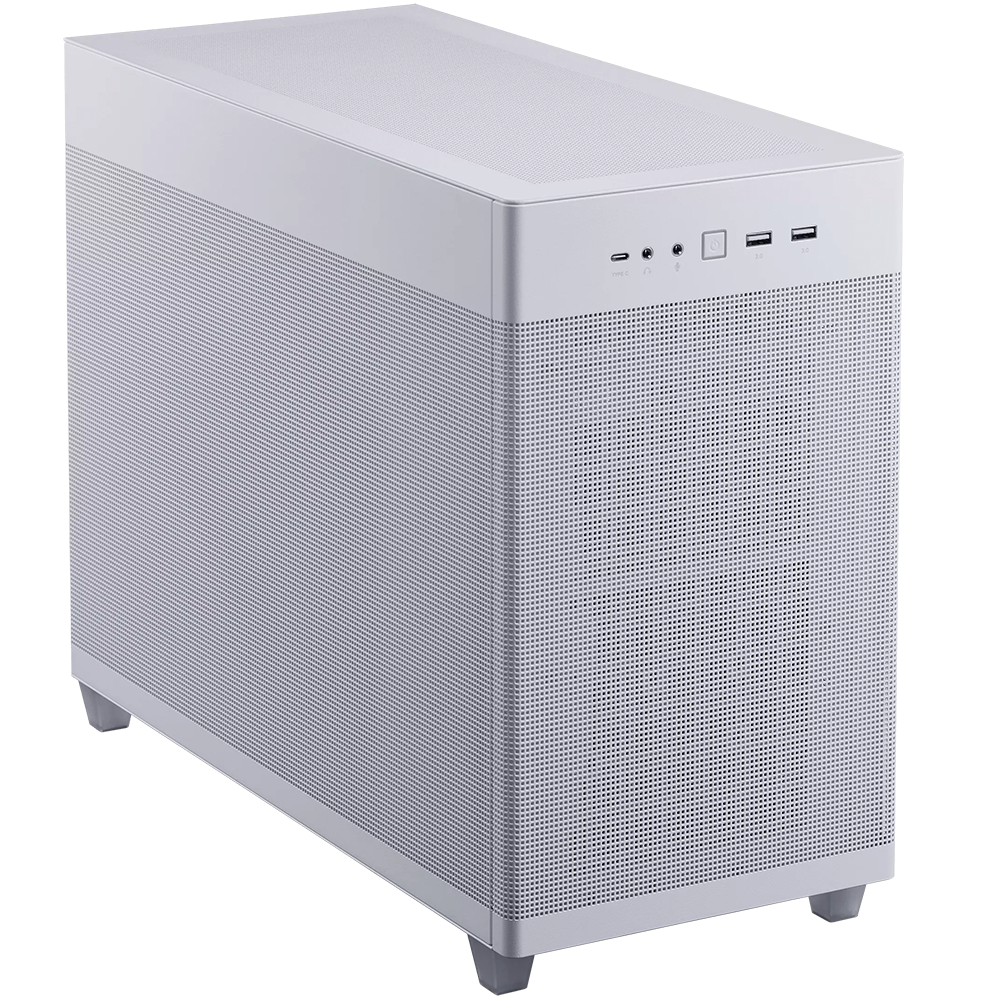

- White: 90DC00G3-B39000
