Product Details :

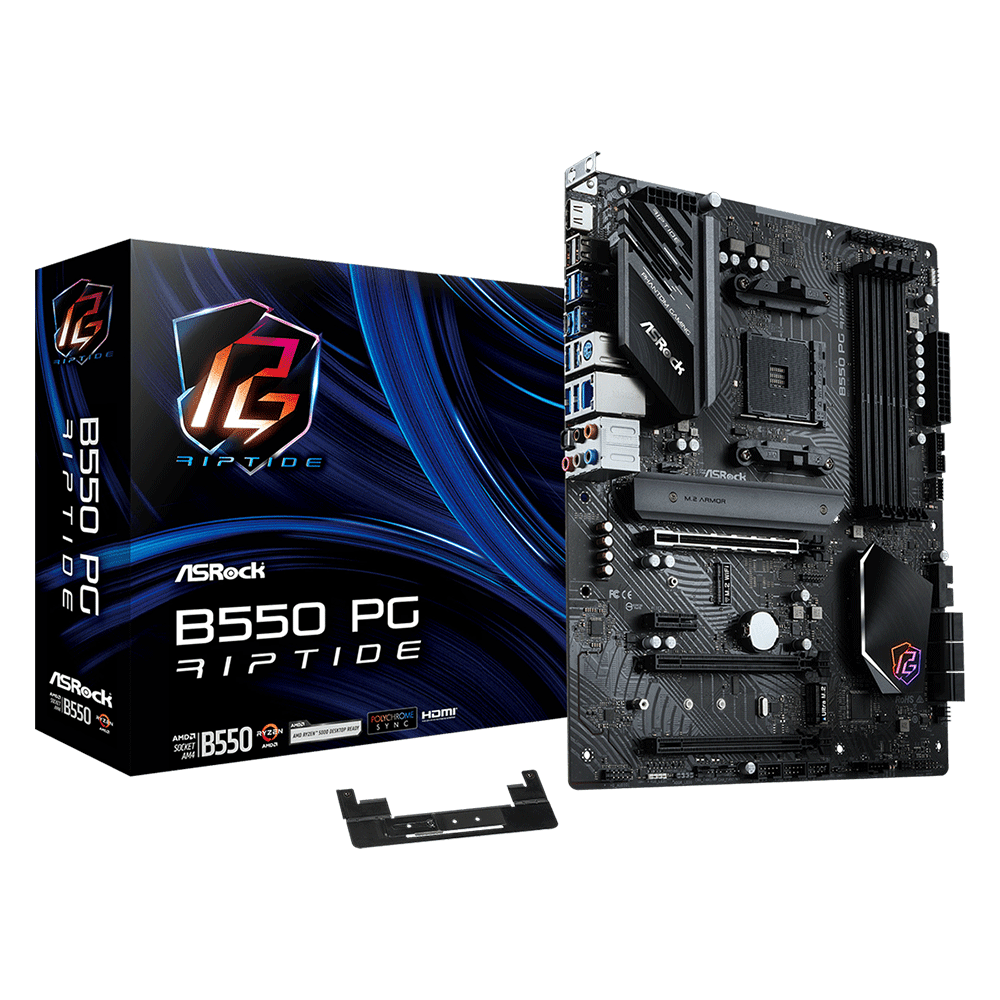

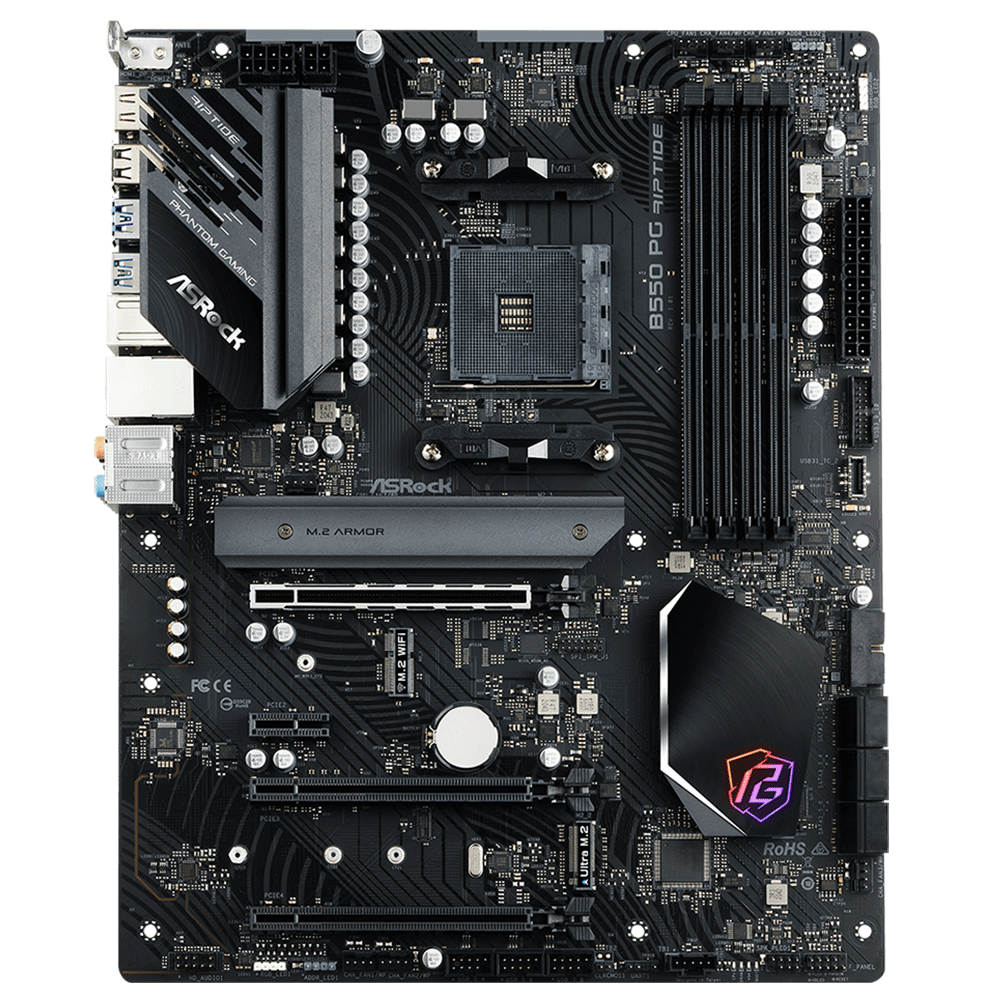

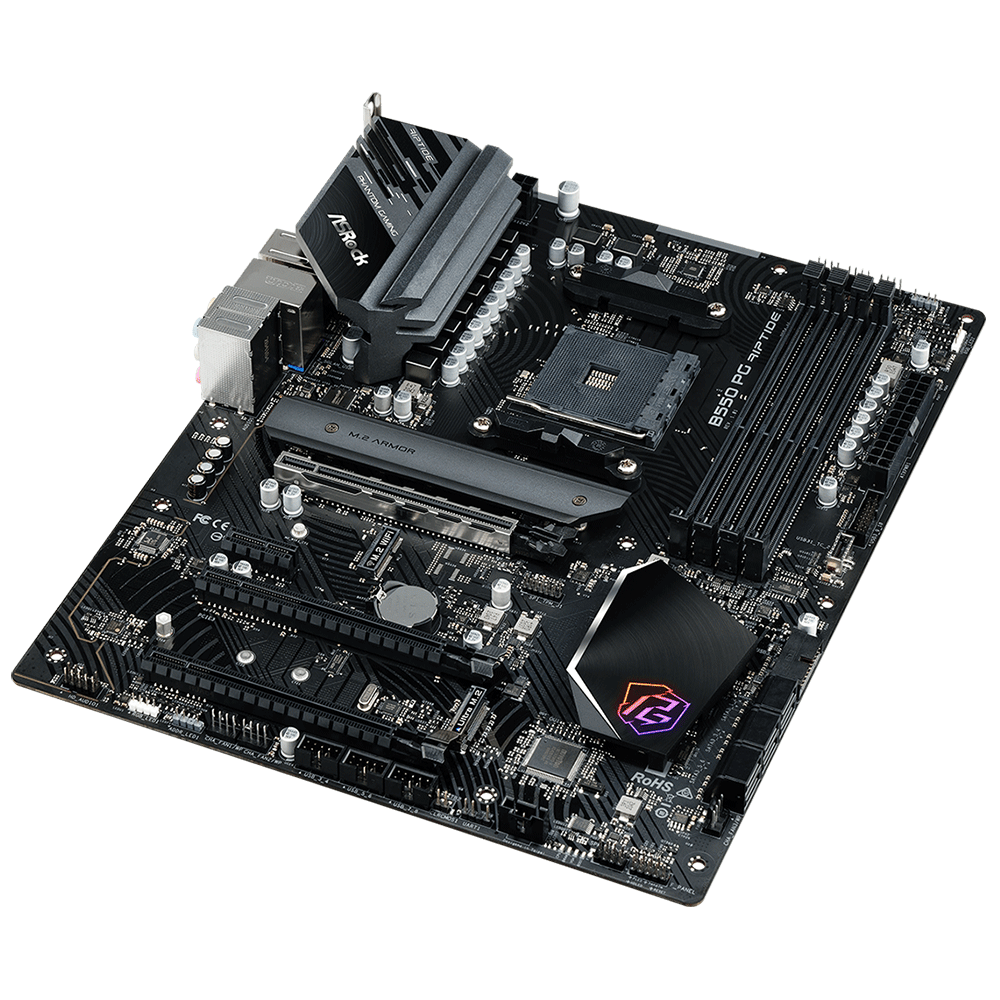

- Model : B550 PG Riptide
- CPU Socket : AM4
- CPU Type : AMD 3000, 4000, 5000 CPUs Series
- Motherboard Form Factor : ATX
- Quantity of RAM Slots : 4 slots including dual Channel Technology
- Memory Type : DDR4
- Maximum memory Capacity : 128 GB
- Expansion slots: 3x PCIe x16 Slots 4.0, 1x PCIe 3.0 x1
Storage :
- 6x SATA 3
- 1x Hyper M.2 (PCIe Gen4 x4)
- 1x Ultra M.2 (PCIe Gen3 x4)
Audio :
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN :
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
Rear Panel I/O :
- 2 x antenna Bracket
- 1 x PS/2 mouse/keyboard port
- 1 x HDMI port
- 1 x SPDIF optical out port
- 1 x USB 3.2 Gen2 Type-A (10Gb/s)
- 1 x USB 3.2 Gen2 Type-C (10Gb/s)
- 6 x USB 3.2 Gen1.0 ports
- 2 x RJ-45 LAN ports with LED (ACT / LINK LED and SPEED LED)
- HD audio jacks: rear speaker / center / bass / line in / front speaker / microphone (golden audio jacks)
I/O Internal Connectors :
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Accessories :
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoffs for M.2 Sockets

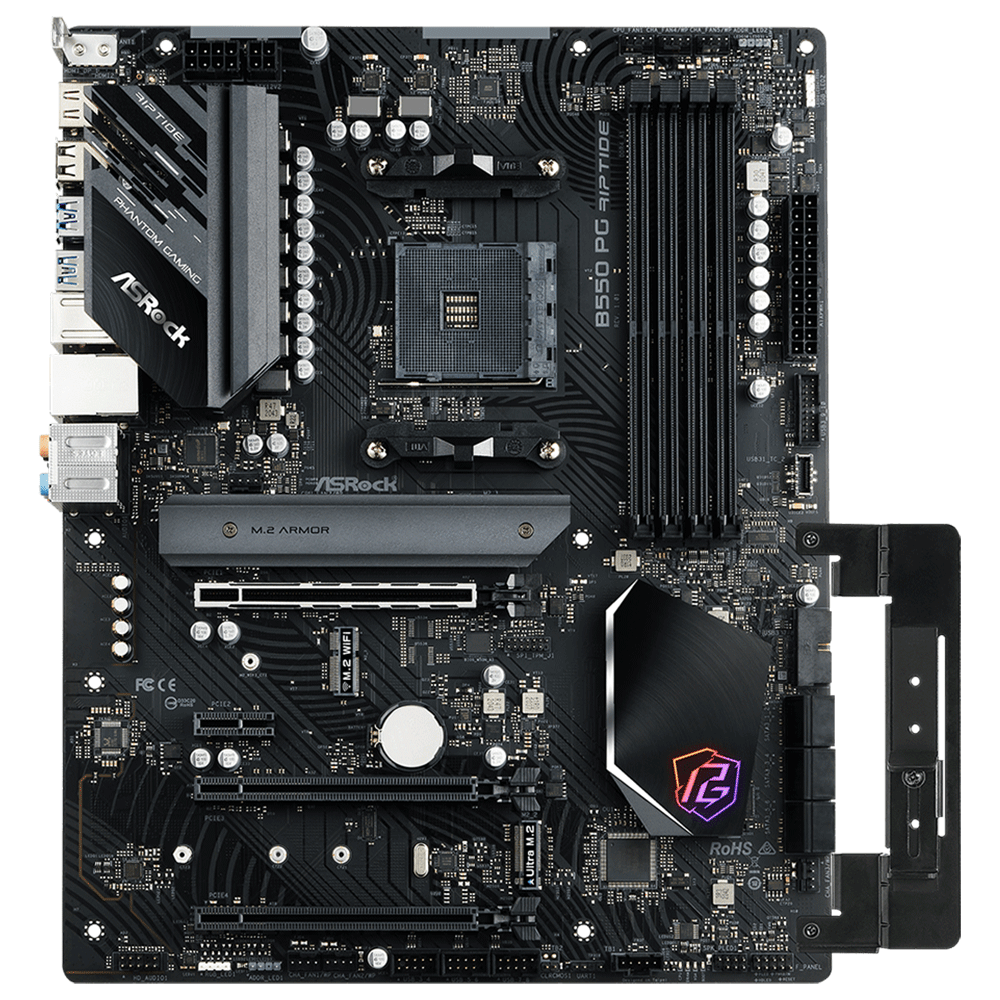

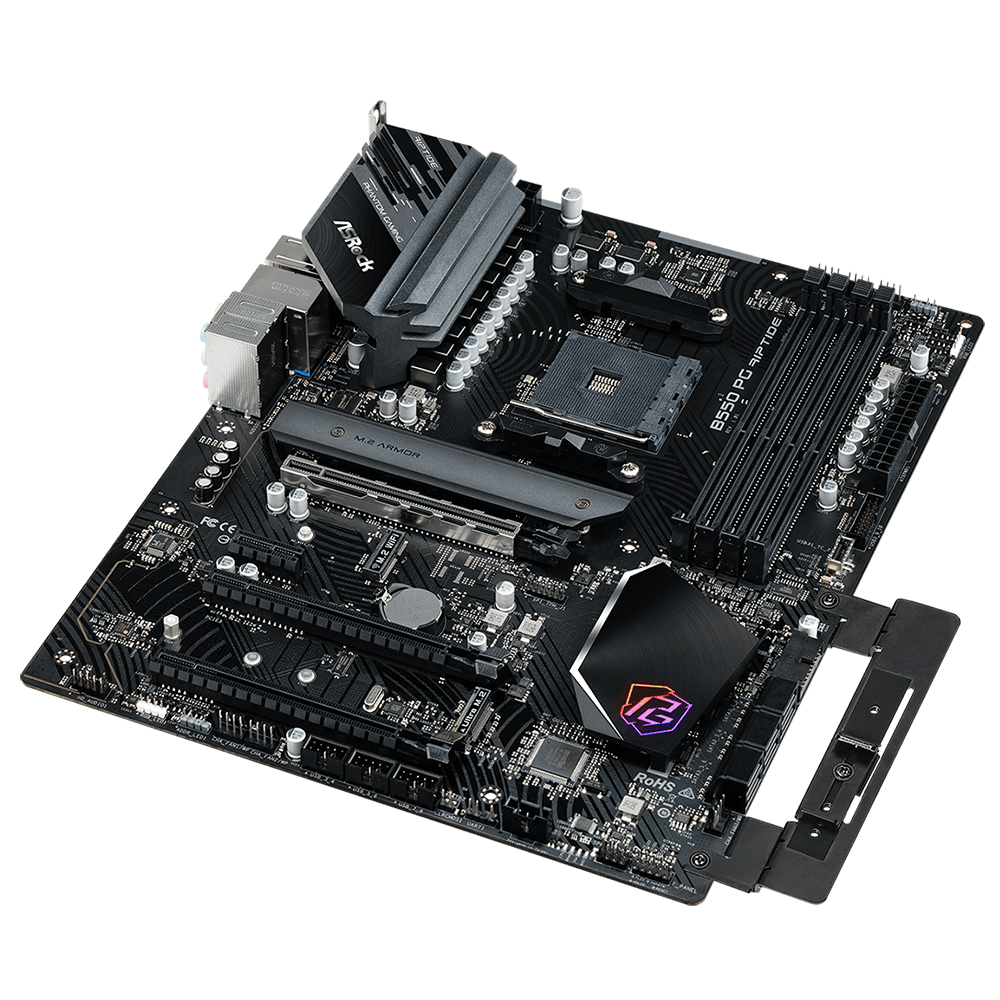

- 1x Graphics Card Holder
Part Number:
- 90-MXBGH0-A0UAYZ
