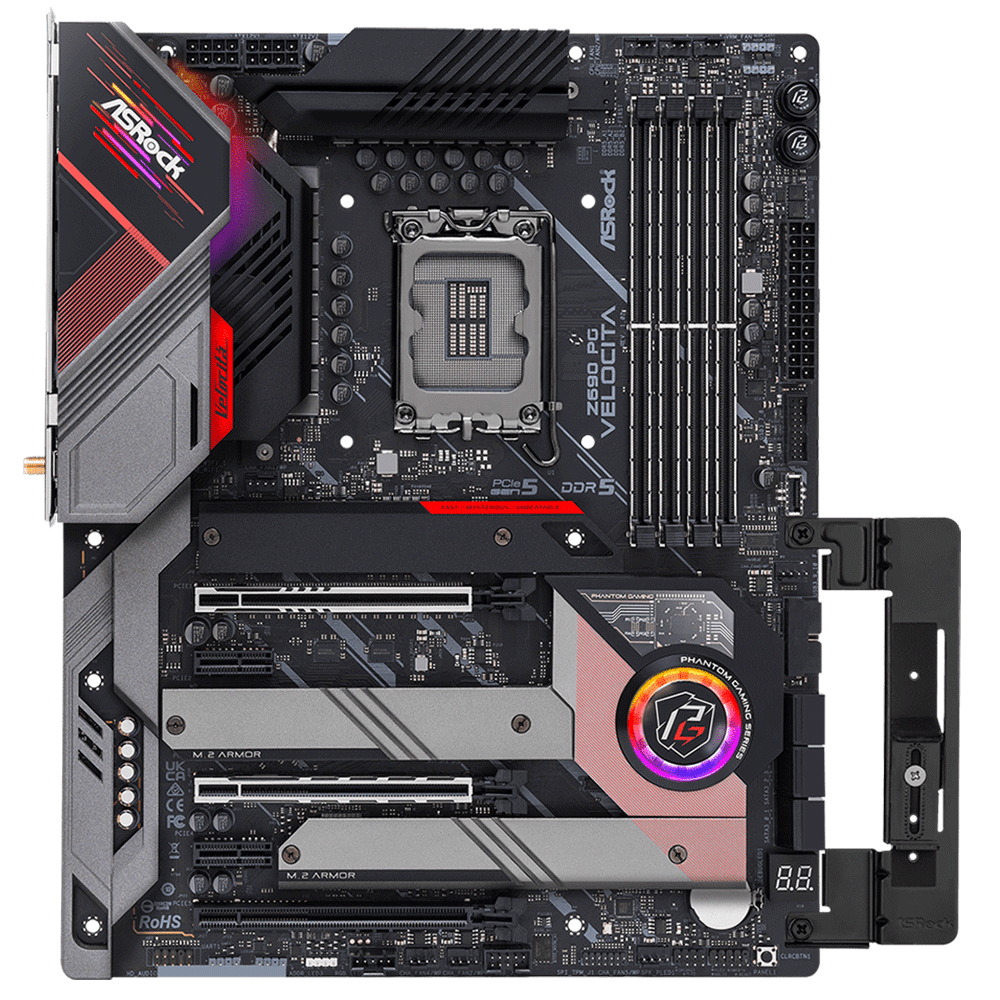

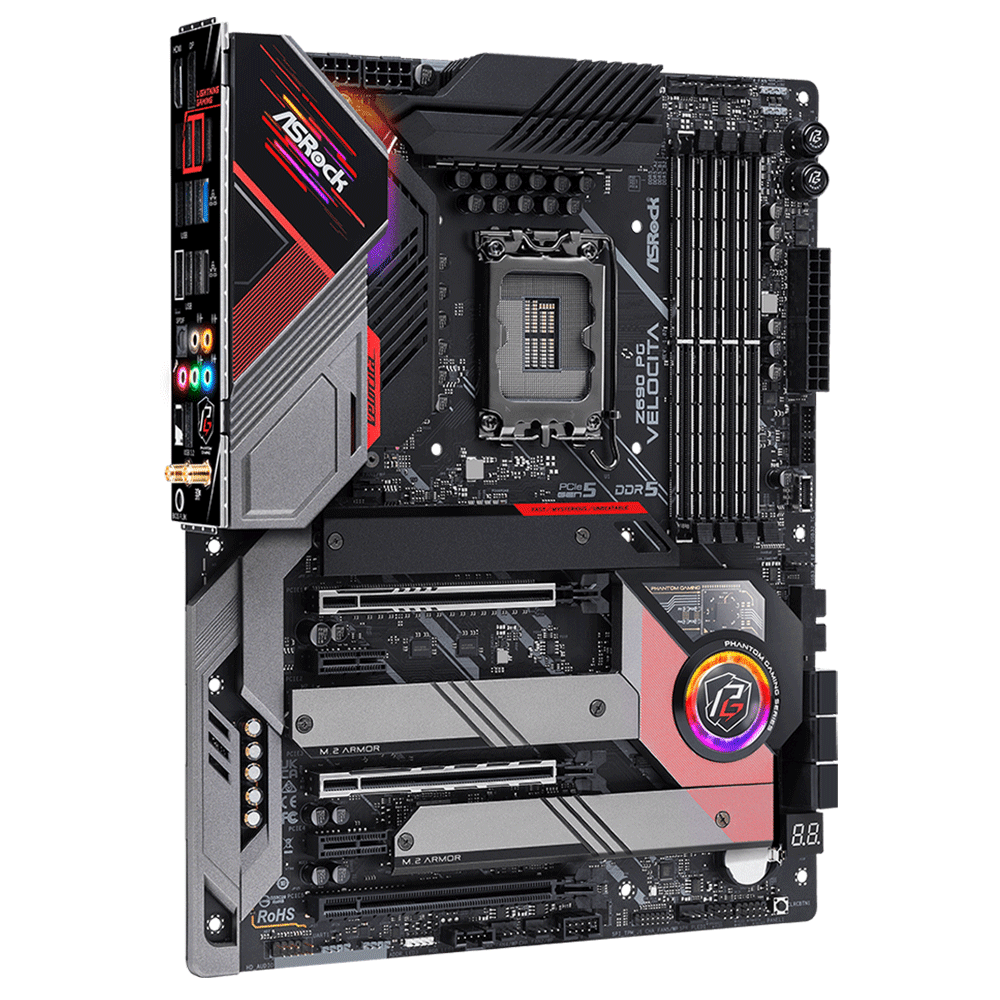

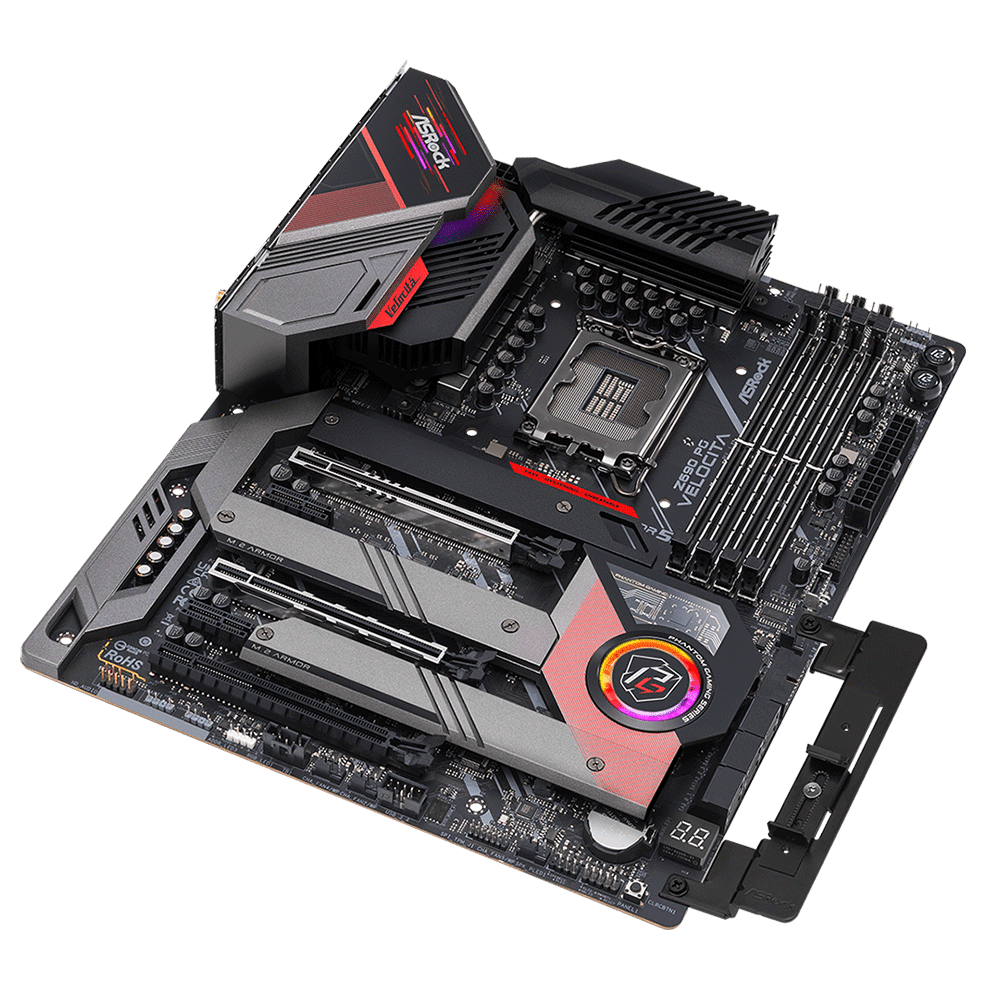

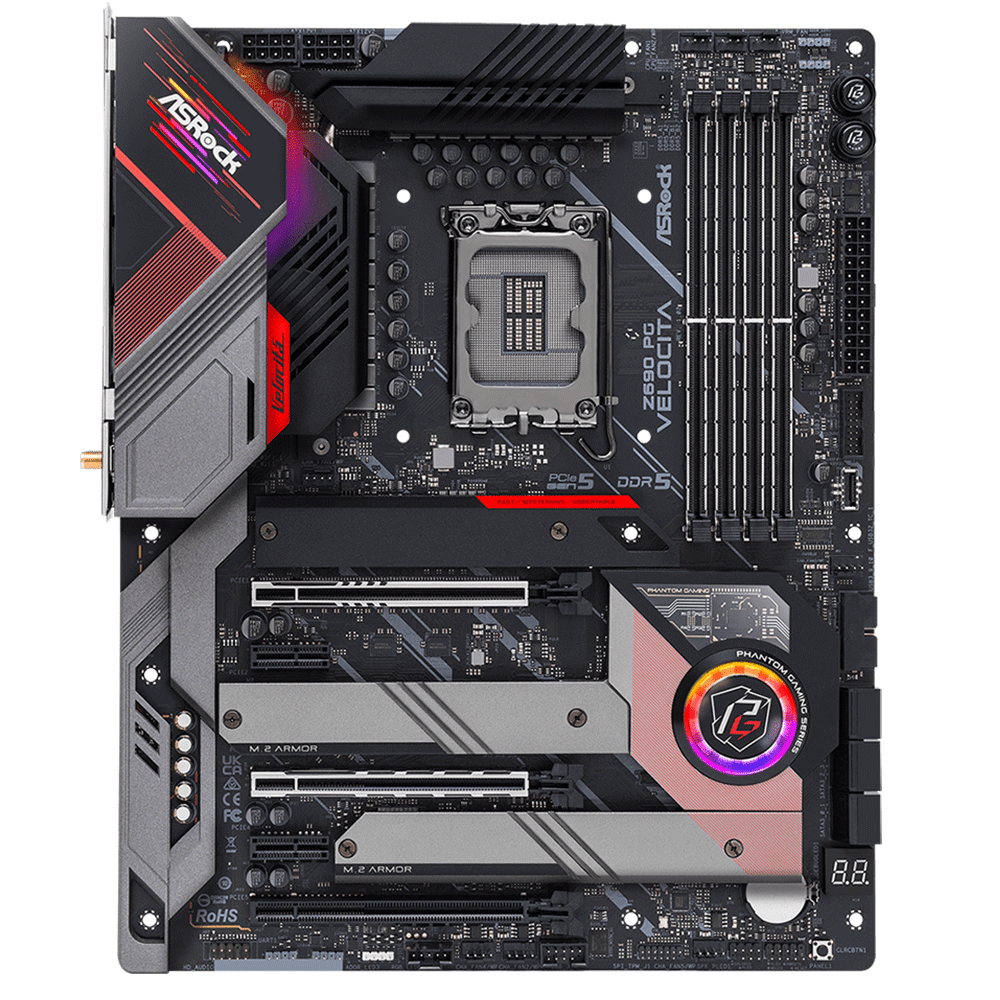

Product Details :- Model : Z690 PG Velosita
- CPU Socket : LGA1700
- CPU Type : 12th And 13th Generation intel CPU
- Motherboard Form Factor : ATX
- Quantity of RAM Slots : 4 slots including dual Channel Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Supports Intel XMP 3.0
Expansion slots:
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 3.0 x16 slots
- 1 x PCIe 3.0 x1.0 slot
Storage :
- 6x SATA 3
- 2x Hyper M.2 (PCIe Gen4 x4)
- 1x Ultra M.2 (PCIe Gen3 x4)
- 1x Blazing M.2 port (PCIe Gen5 x4)
Audio :
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
LAN :
- 1x 2.5Gb LAN 10/100/1000/2500Mb/s (Killer E3100G)

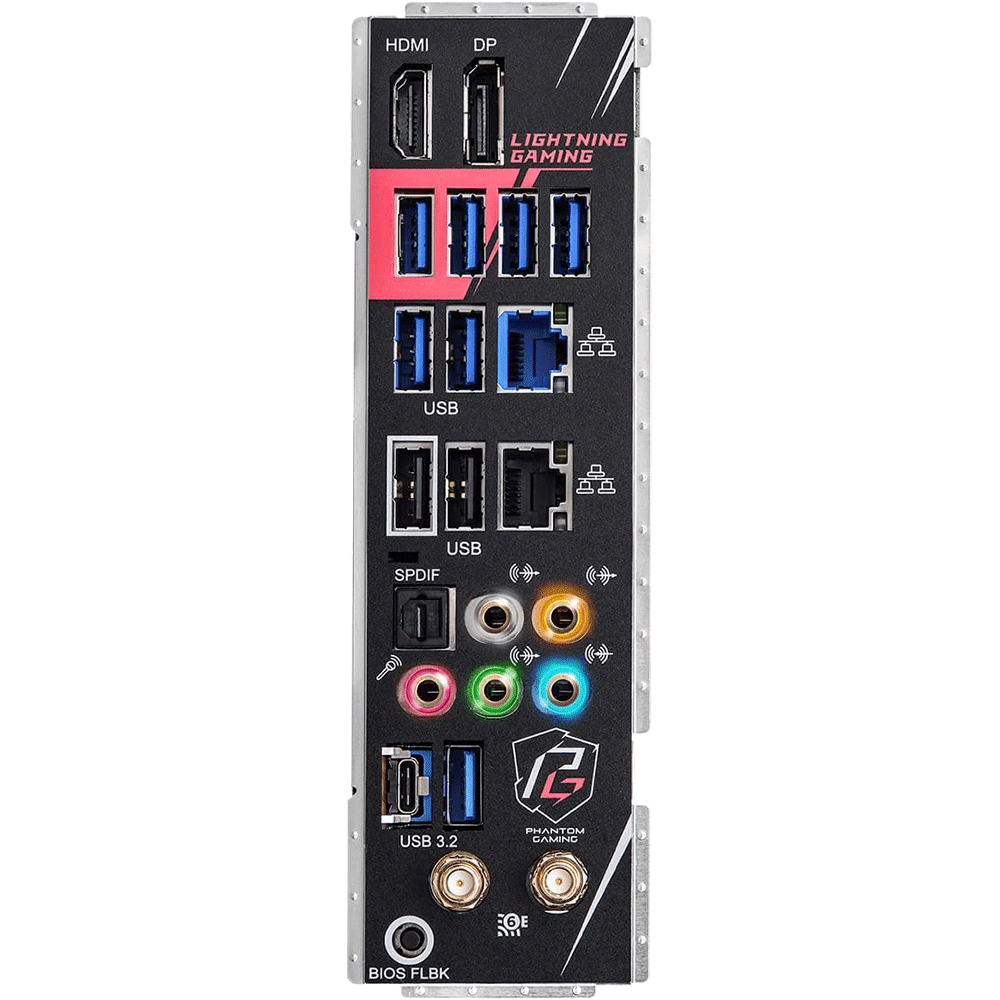

Rear Panel I/O :
- 2 x antenna ports
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x SPDIF optical port
- 1 x USB 3.2 Gen2 Type-A (10Gb/s)
- 1 x USB 3.2 Gen2 Type-C (10Gb/s)
- 6x USB 3.2 Gen1.0 ports
- 2x USB 2.0 Ports
- 2 x RJ-45 LAN ports with LED (ACT / LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- High fidelity audio jacks: rear speaker / center / bass / line in / front speaker / microphone (golden audio jacks)
I/O Internal Connectors :
- 1 x USB 2.0 headers (support 2 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

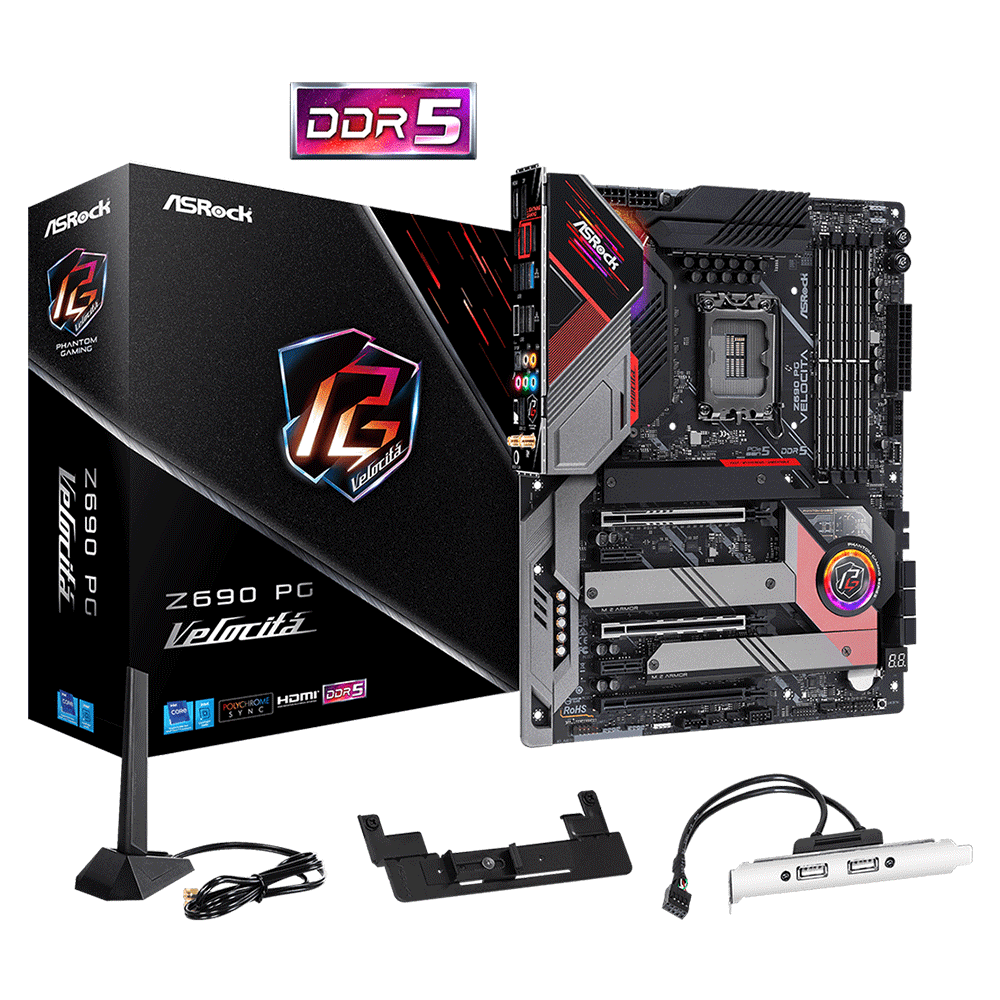

Accessories :
- 4 x SATA Data Cables
- 1 x USB Dongle Wireless Bracket
- 1x ASRock WiFi 2.4/5/6GHz Antenna
- 3x Screws for M.2 Sockets
- 3x Standoffs for M.2 Sockets
- 1x Graphics Card Holder
- Product dimensions: 30.5 x 24.4 cm
Part Number:
- 90-MXBH50-A0UAYZ
