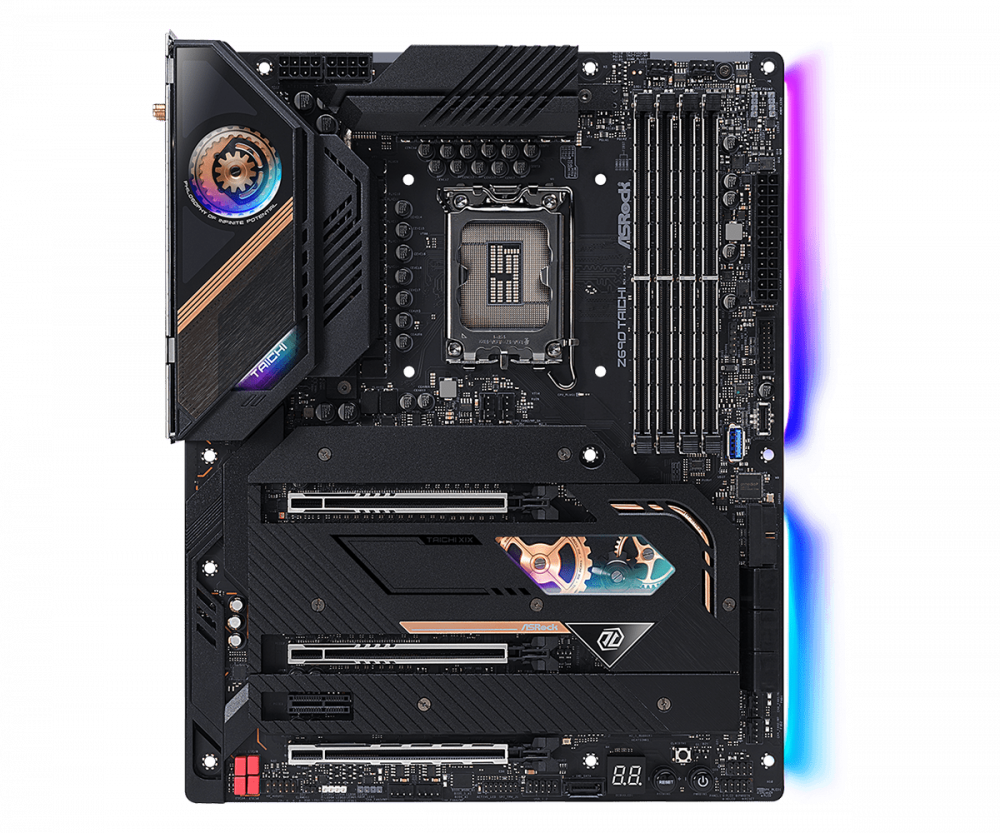

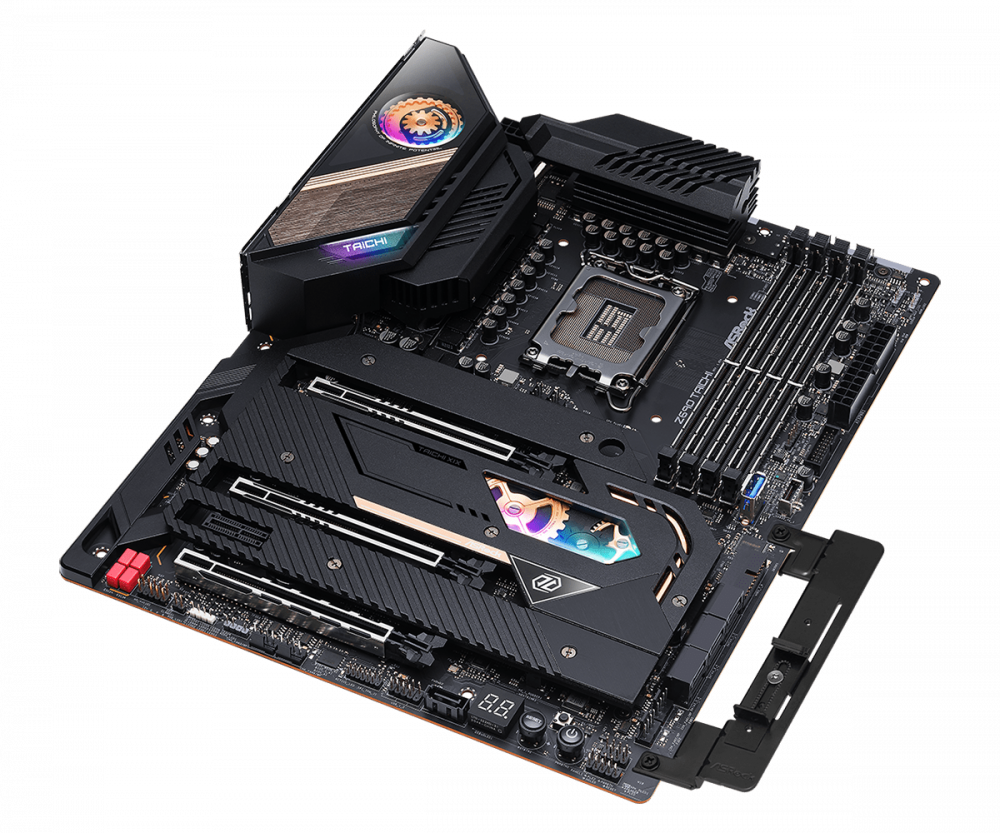

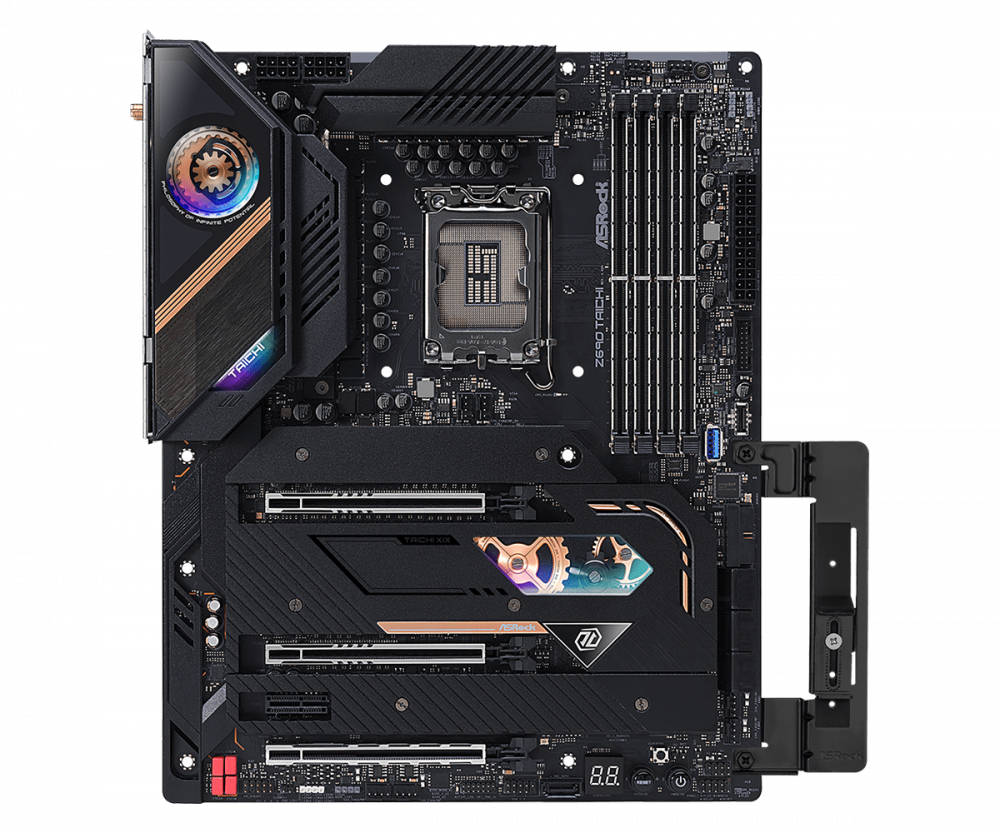

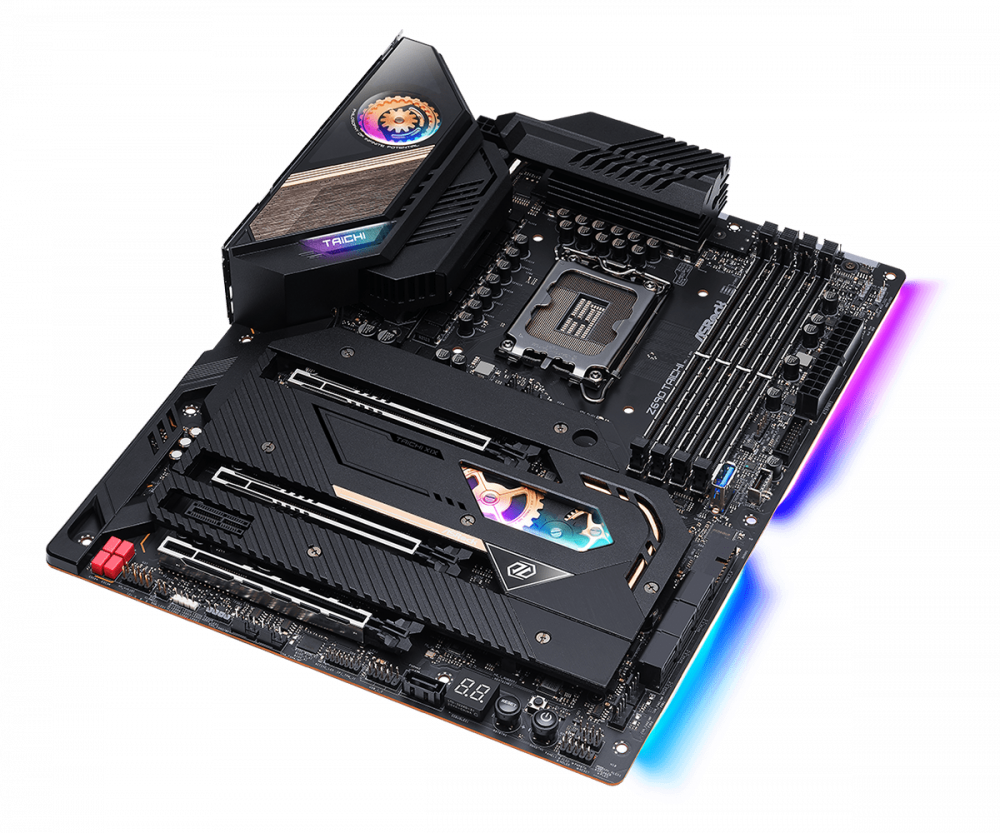

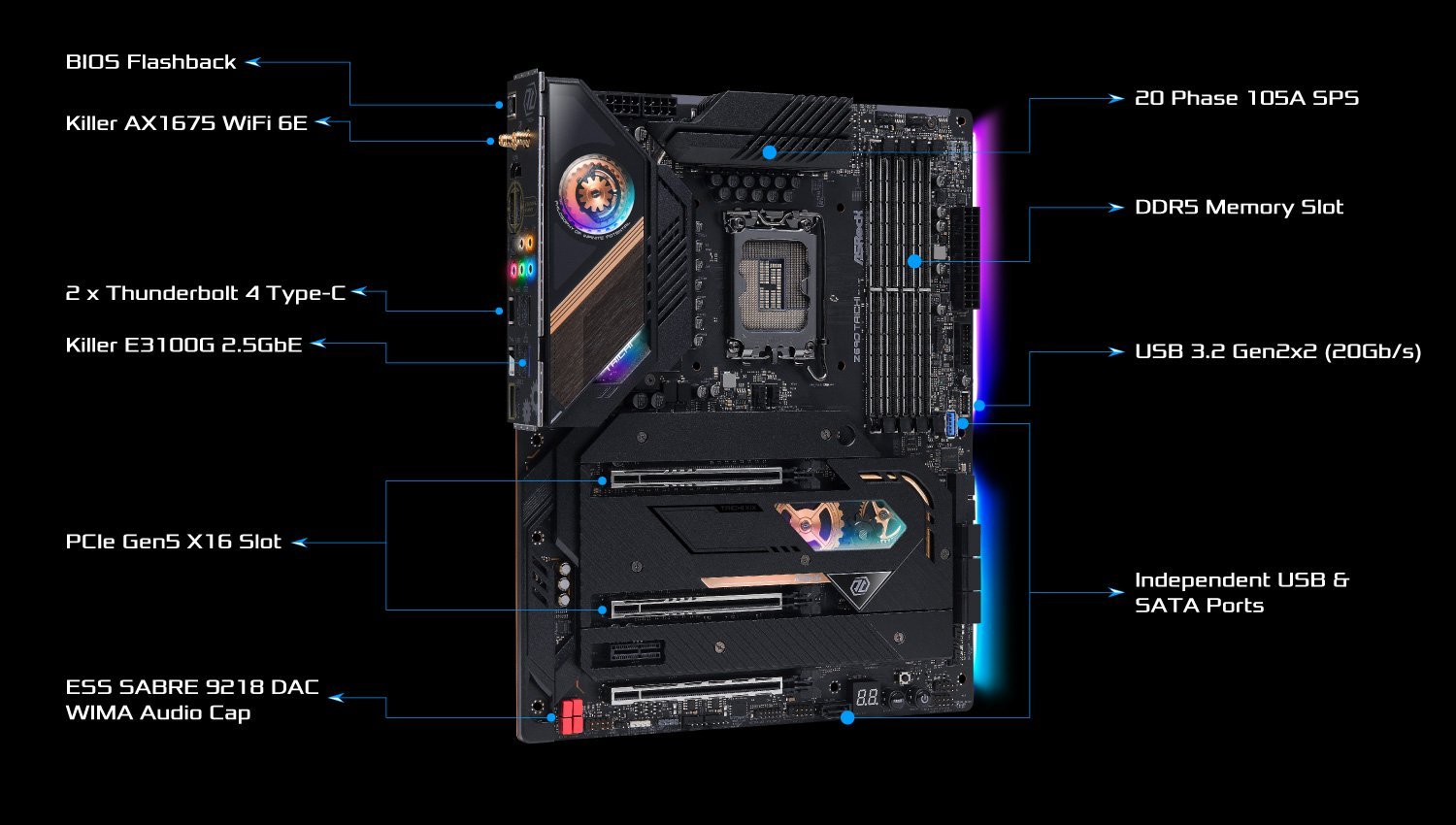

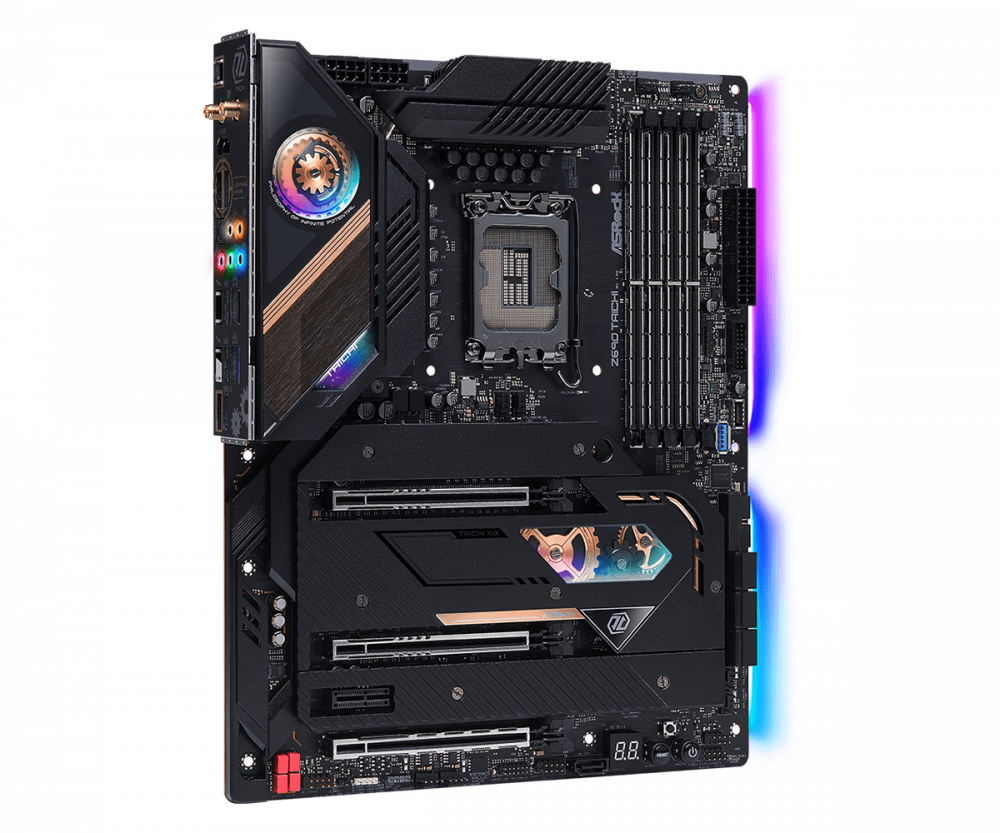

ASRock Z690 Taichi DDR5 Socket LGA1700 For intel CPUs Motherboard

Product Details :

• Model : Z690 Taichi DDR5
• CPU Socket : LGA1700
• CPU Type : Supports 13th Gen & 12th Gen Intel Core Processors
• Motherboard Form Factor : ATX (30.5 × 24.4 cm)
• Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
• Memory Type : DDR5
• Maximum memory Capacity : 192 GB
• Support XMP 3.0

Expansion slots:

• 2x PCIe 5. x16 Slots
• 1x PCIe 4.0 x16 Slot
• 1x PCIe 3.0 x1 Slot

Storage :

• 6x SATA 3
• 2x Hyper M.2 (PCIe Gen4 x4)
• 1x M.2 Socket (Gen3x2)

Audio :

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Premium Blu-ray Audio support

LAN :

• 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• 1x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN

• Wi-Fi 6E Module
• Supports Bluetooth

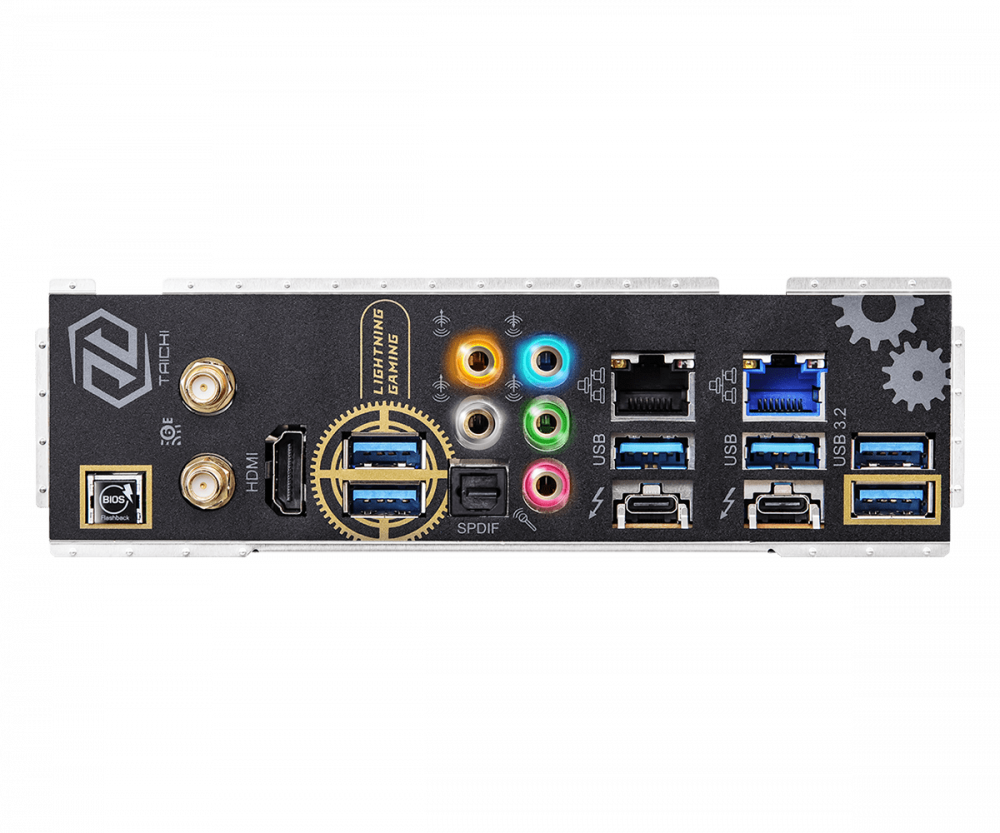

Rear Panel I/O :

• 2 x Antenna Ports (on I/O Panel Shield)
• 1 x HDMI port
• 1 x Optical SPDIF Out Port
• 2 x USB 3.2 Gen2 Type-A (10Gb/s)
• 2 x USB 4.0 Thunderbolt 4 Type-C (40GB/s)
• 4 x USB 3.2 Gen1 ports
• 2 x RJ-45 LAN ports
• 1 x BIOS Flashback Button
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

I/O Enternal Connector :

• 2 x USB 2.0 headers (support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

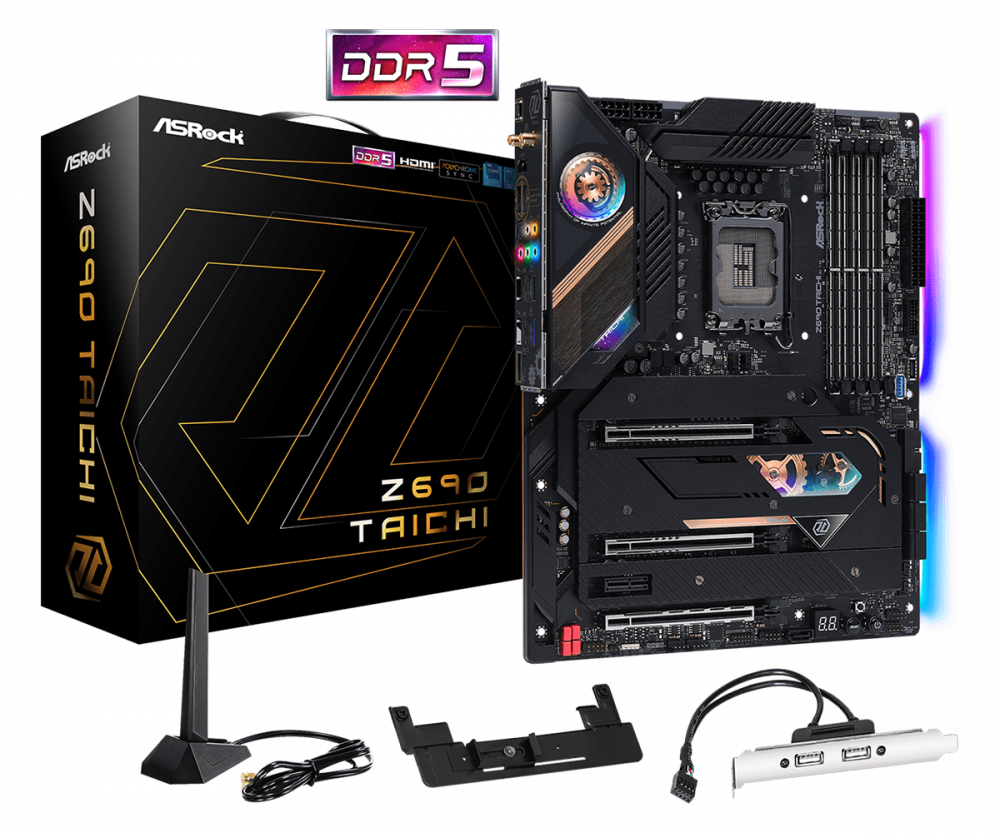

Accessories :

• 4 x SATA Data Cables
• 1 x Graphics Card Holder
• 1 x Wireless Dongle USB Bracket
• 1 x 3010 Cooling Fan with Bracket and Screw Package
• 1 x 4010 Cooling Fan Bracket and Screw Package
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 3 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

Part Number:

• 90-MXBGV0-A0UAYZ
