Product Details :

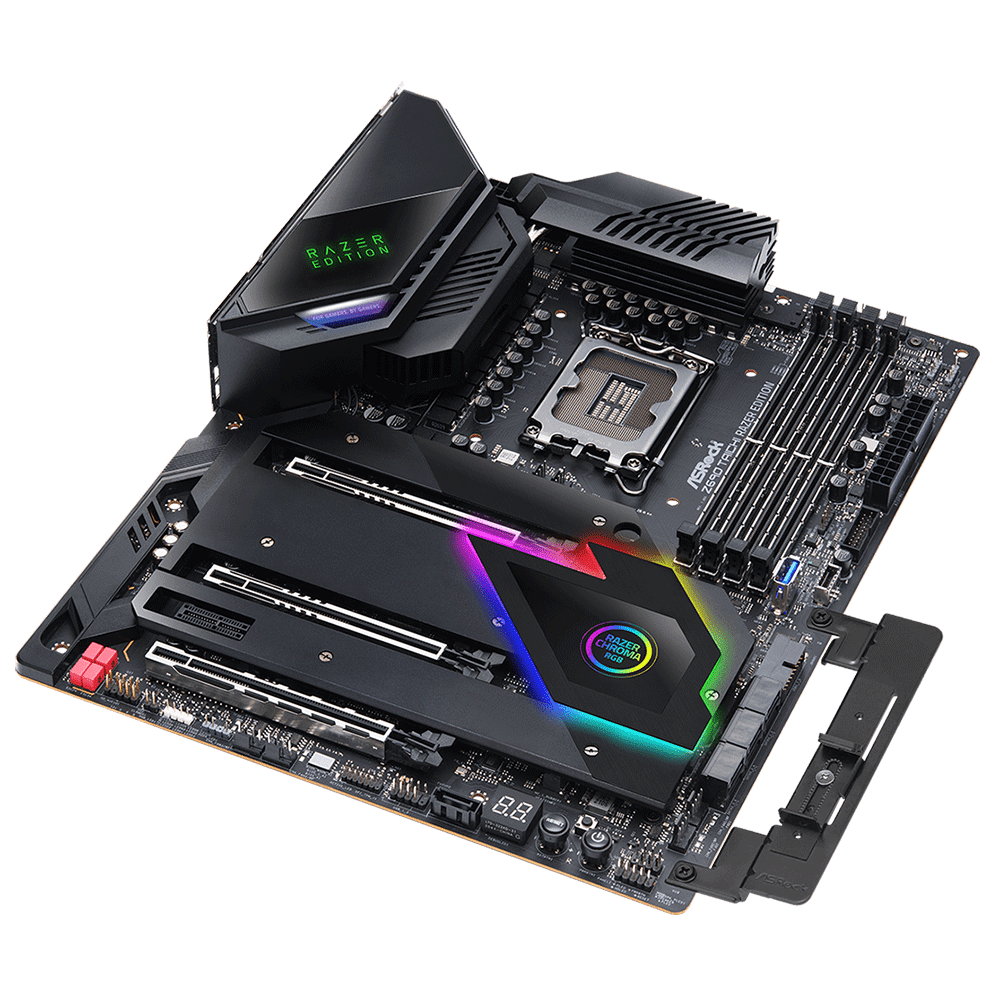

- Model : Z690 Taichi Razer Edition
- CPU Socket : LGA1700
- CPU Type : Supports 14th and 13th Gen & 12th Gen Intel Core Processors
- Motherboard Form Factor : ATX (30.5 × 24.4 cm)
- Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Support XMP 3.0
Expansion slots:
- 2x PCIe 5. x16 Slots
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 3.0 x1 Slot
Storage :
- 6x SATA 3
- 2x Hyper M.2 (PCIe Gen4 x4)
- 1x M.2 Socket (Gen3x2)
Audio :
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
LAN :
- 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Wireless LAN
- Wi-Fi 6E Module
- Supports Bluetooth 5.3

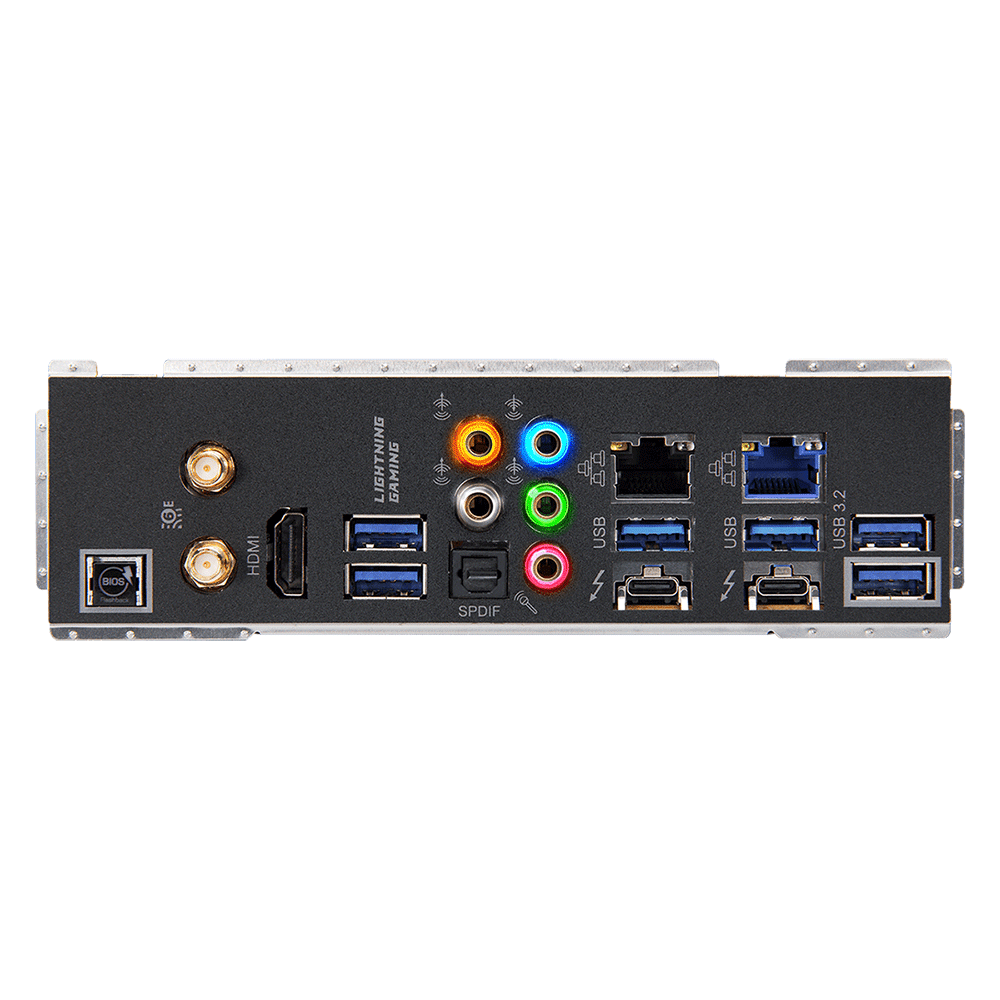

Rear Panel I/O :
- 2 x Antenna Ports (on I/O Panel Shield)
- 1 x HDMI port
- 1 x Optical SPDIF Out Port
- 2 x USB 3.2 Gen2 Type-A (10Gb/s)
- 2 x USB 4.0 Thunderbolt 4 Type-C (40GB/s)
- 4 x USB 3.2 Gen1 ports
- 2 x RJ-45 LAN ports
- 1 x BIOS Flashback Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
I/O Enternal Connector :
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Accessories :
- 4 x SATA Data Cables
- 1 x Graphics Card Holder
- 1 x Wireless Dongle USB Bracket
- 1 x 3010 Cooling Fan with Bracket and Screw Package
- 1 x 4010 Cooling Fan Bracket and Screw Package
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Part Number:
- 90-MXBIA0-A0UAYZ
