CPU
- Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR4
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot
- 3 x PCIe 3.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 4 x M.2 PCIe 4.0 x4
Ethernet :
- 1 x 2.5Gb Ethernet
- Dragon RTL8125BG
USB
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (USB Type-C)
- 1 x USB 3.2 Gen 2 ports (Type-A)
- 5 x USB 3.2 Gen 1 ports (Type-A)
- 1 × USB 2.0 port
- Front USB : Total 7 ports
- 1 x USB 3.2 Gen 1 connector (support USB Type-C)
- 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header support additional 2 USB 2.0 ports
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

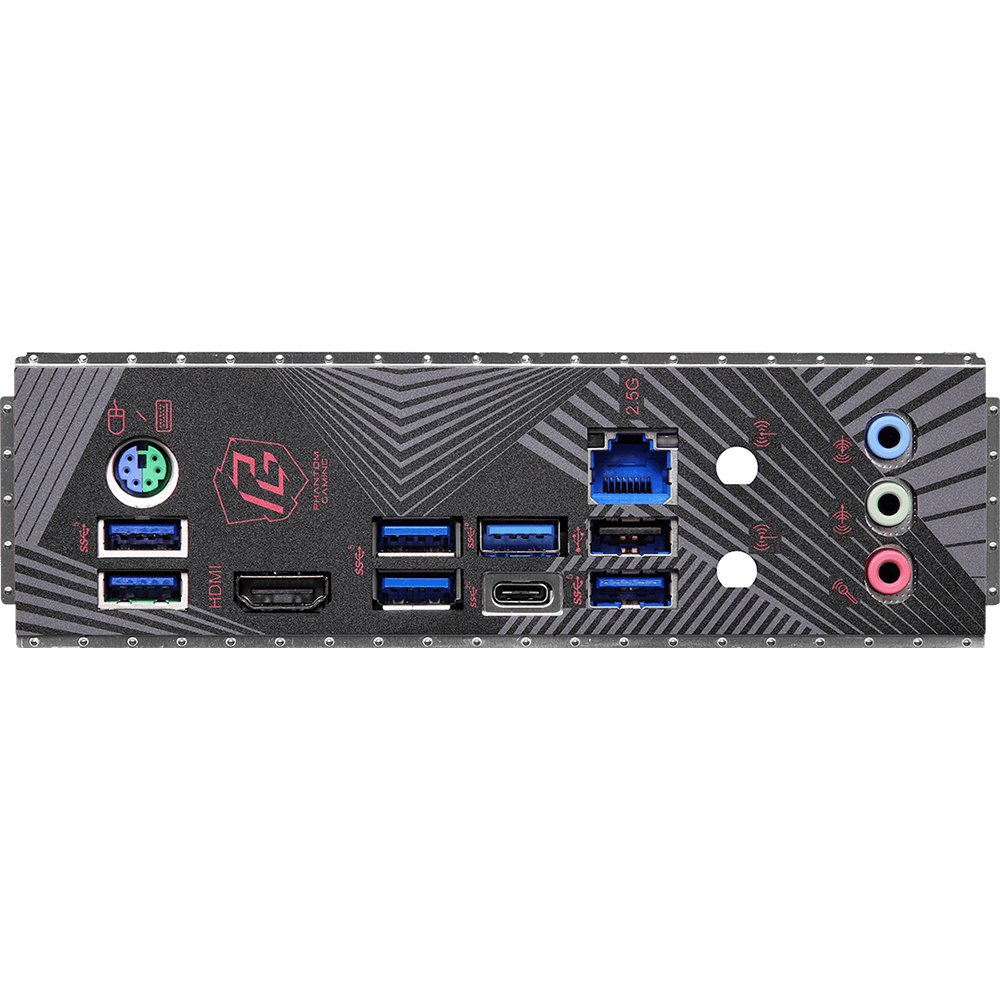

Back Panel I/O Ports
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 5 x USB 3.2 Gen1 Ports
- 1 x USB 2.0 Port
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Form Factor :
- ATX ( 30.5 cm x 24.4 cm )
Part Number:
- 90-MXBJM0-A0UAYZ
