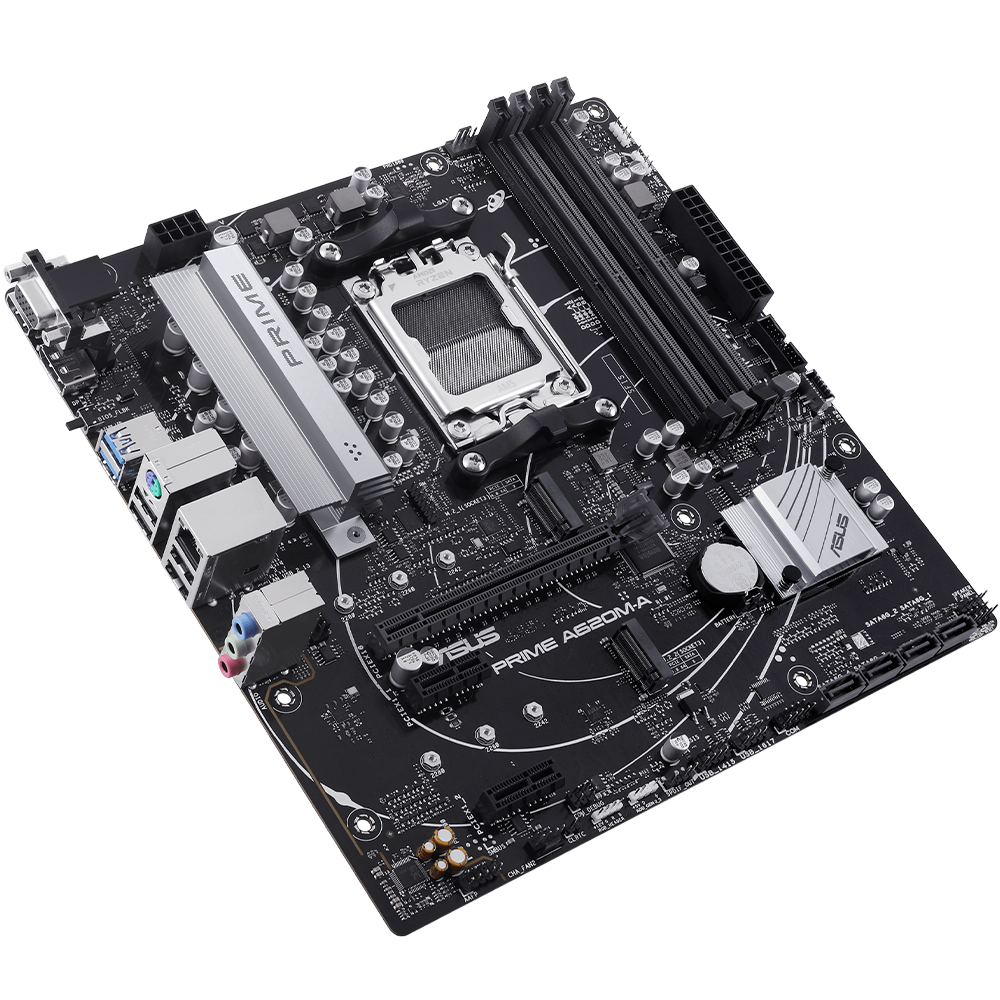

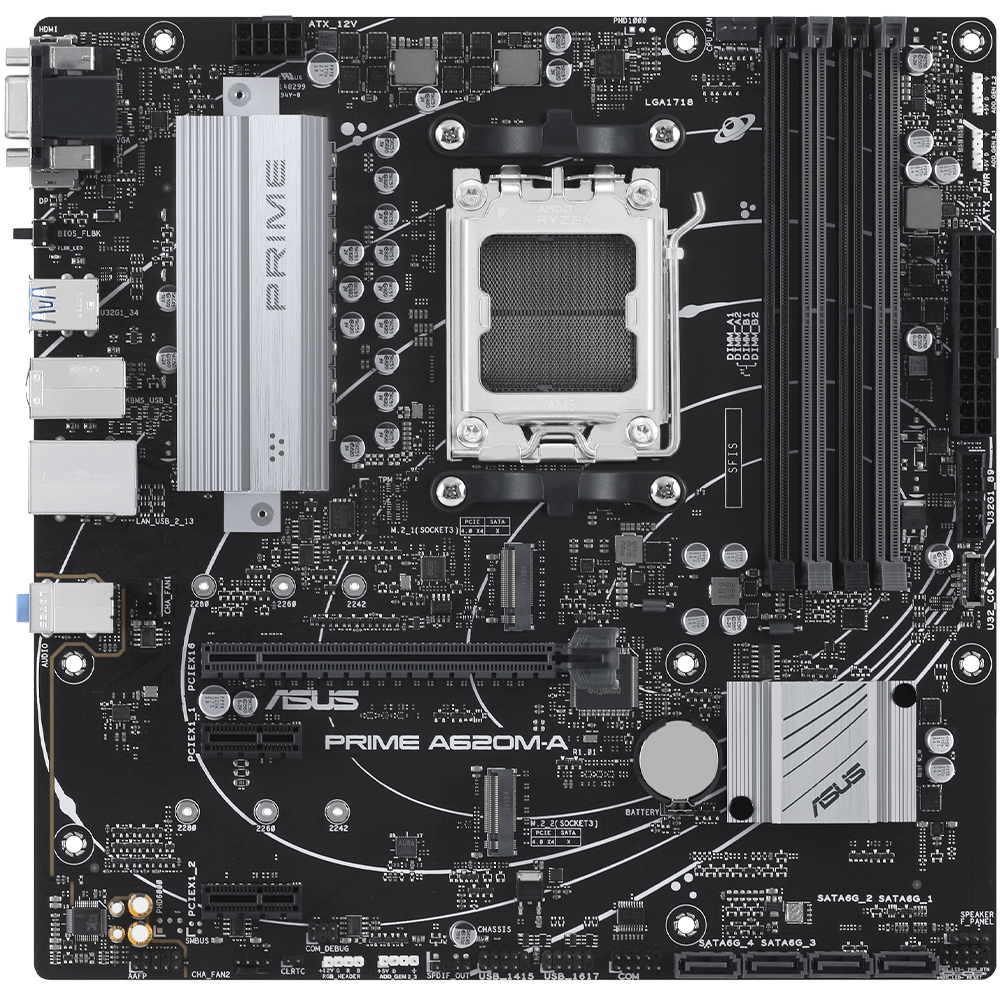

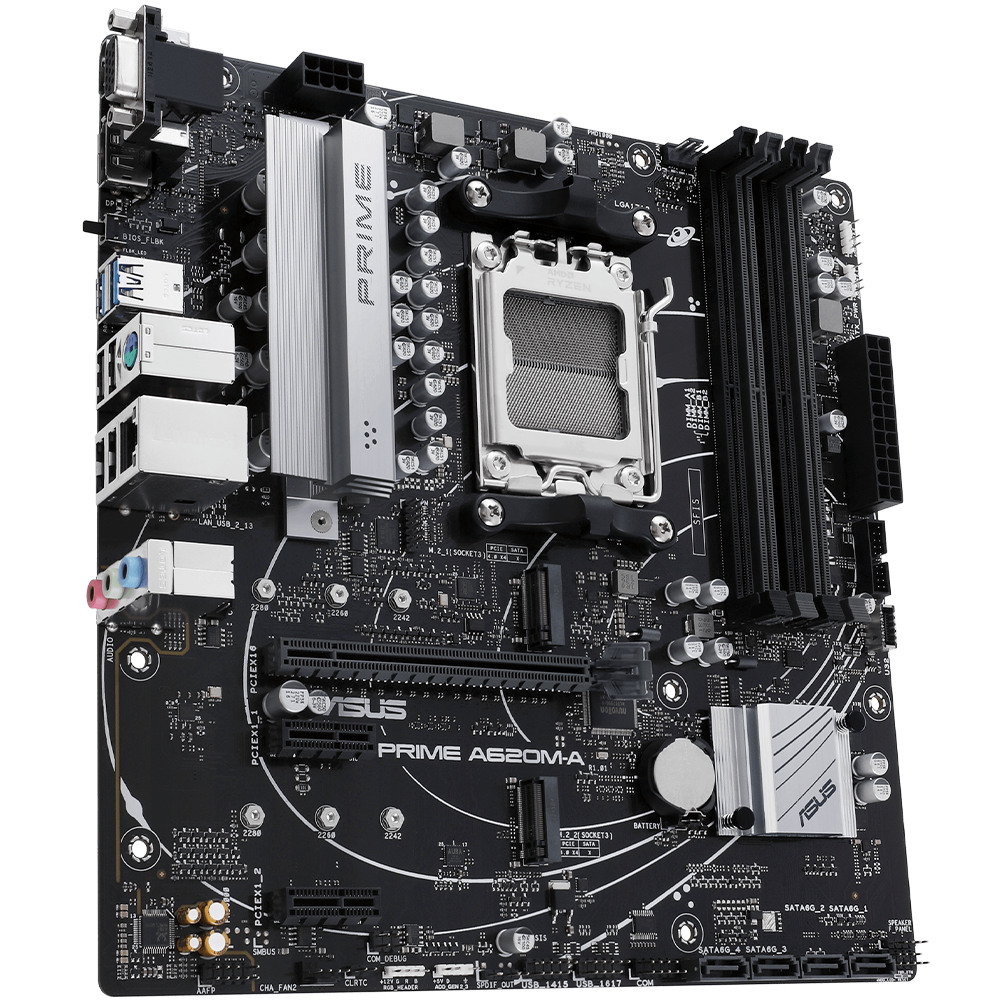

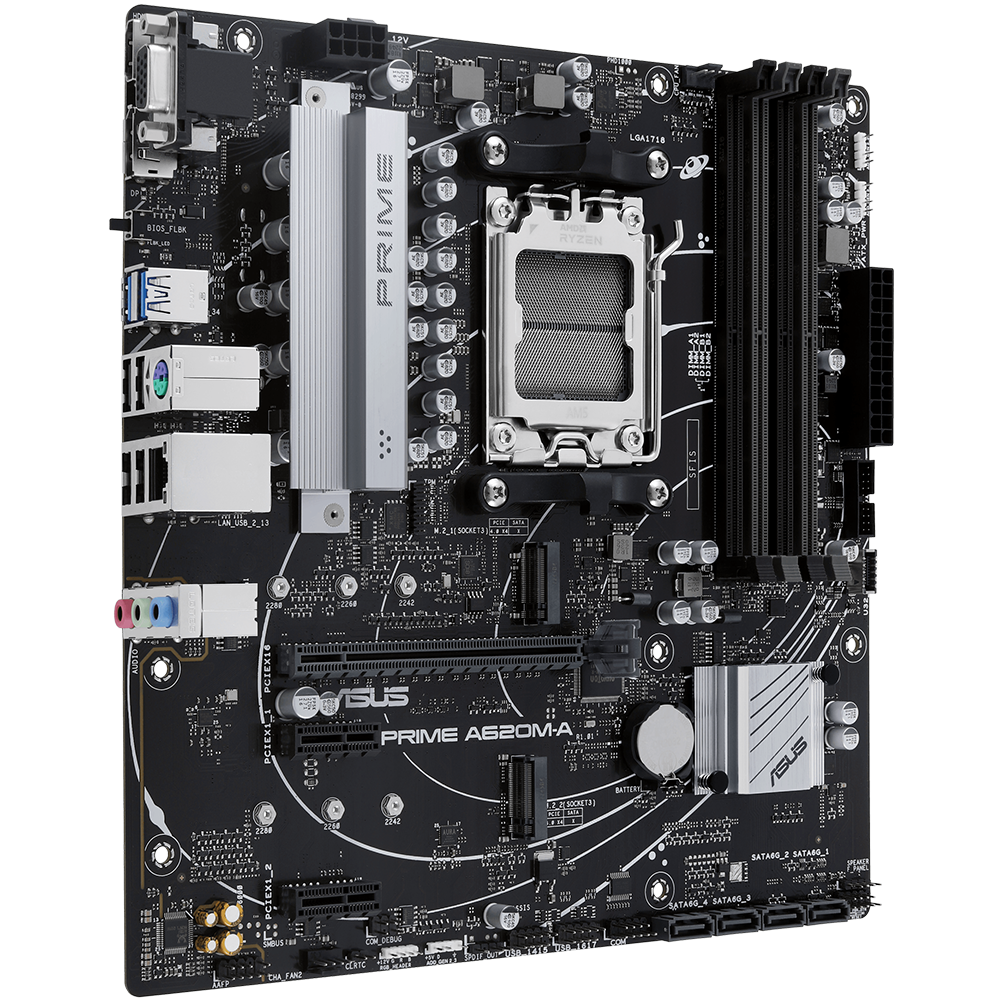

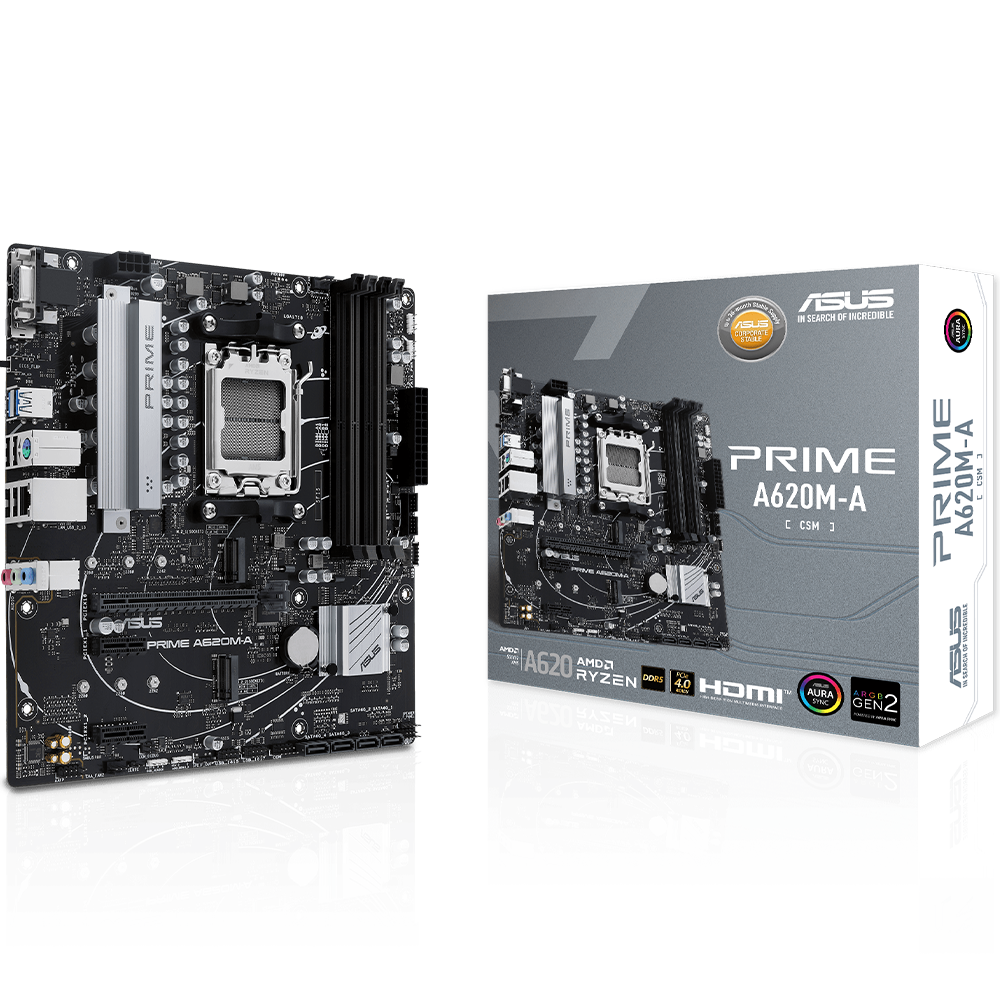

ASUS PRIME A620M-A-CSM Motherboard AM5 Socket For AMD Ryzen CPUs

• ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Memory

• DDR5
• 4 x DIMM, Max. 128GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Storage :

• 4 x SATA 6Gb/s
• 2 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

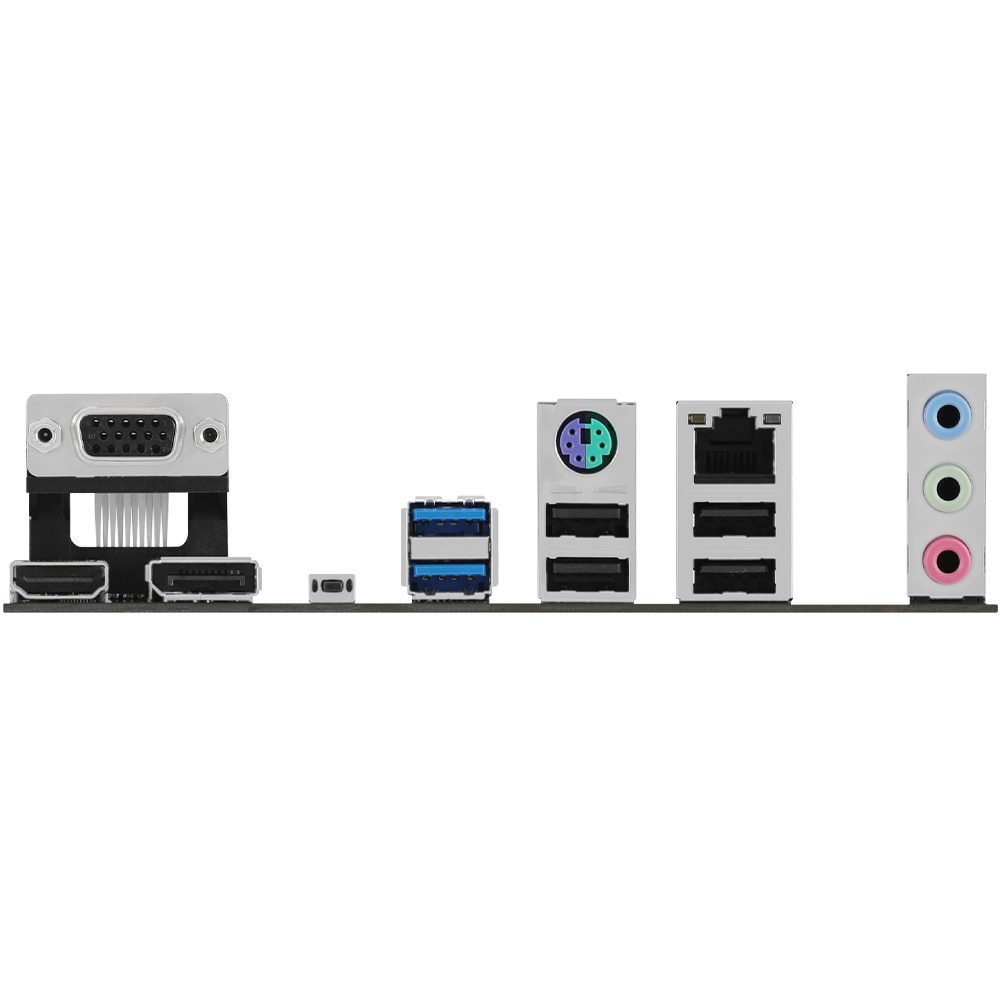

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x VGA port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• 1 x User guide

Form Factor :

• micro-ATX ( 24.4 cm x 24.4 cm )

Part Number:

• 90MB1F10-M0EAYC
