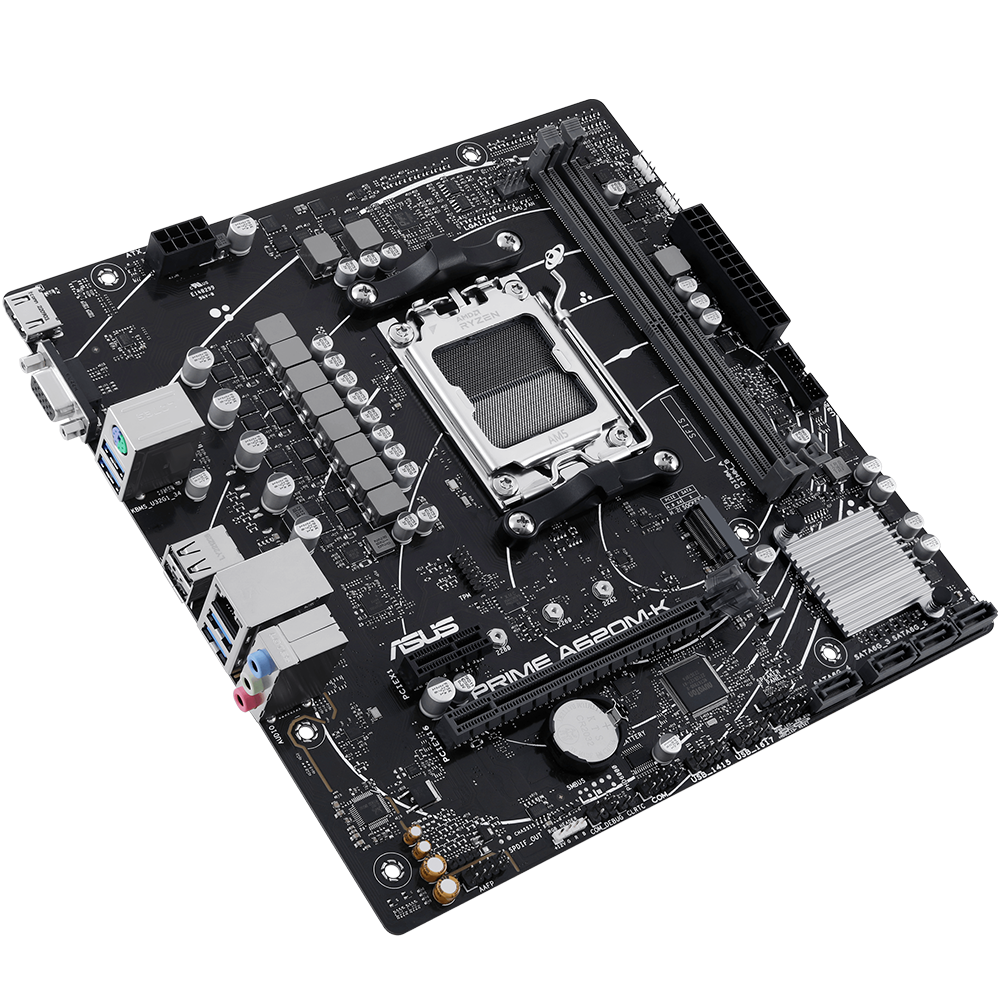

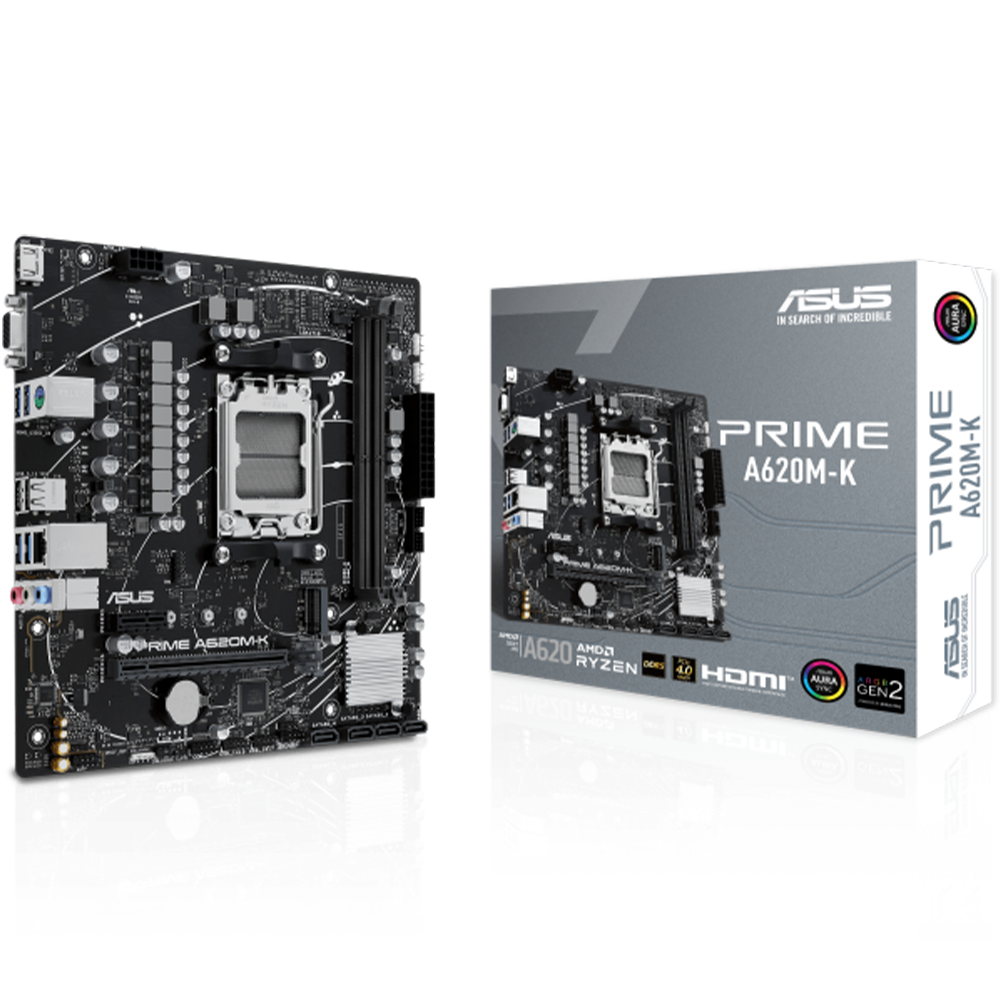

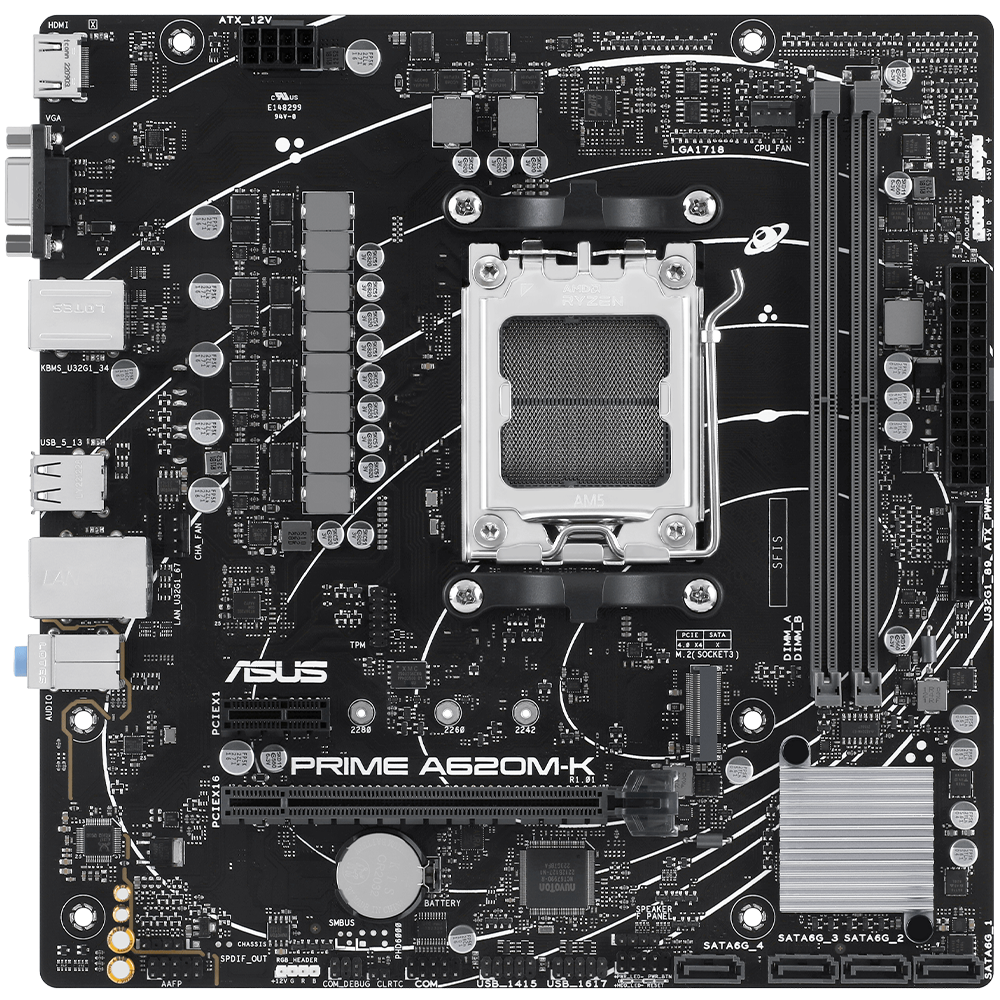

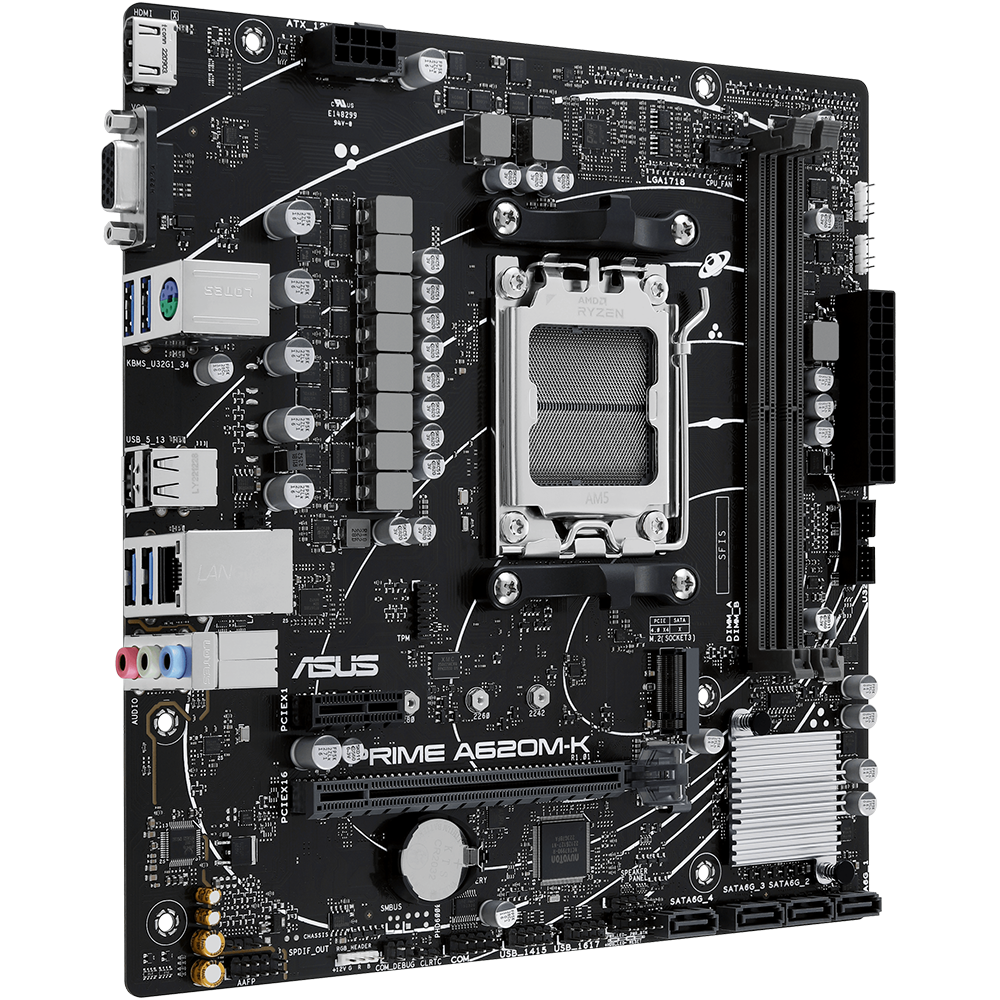

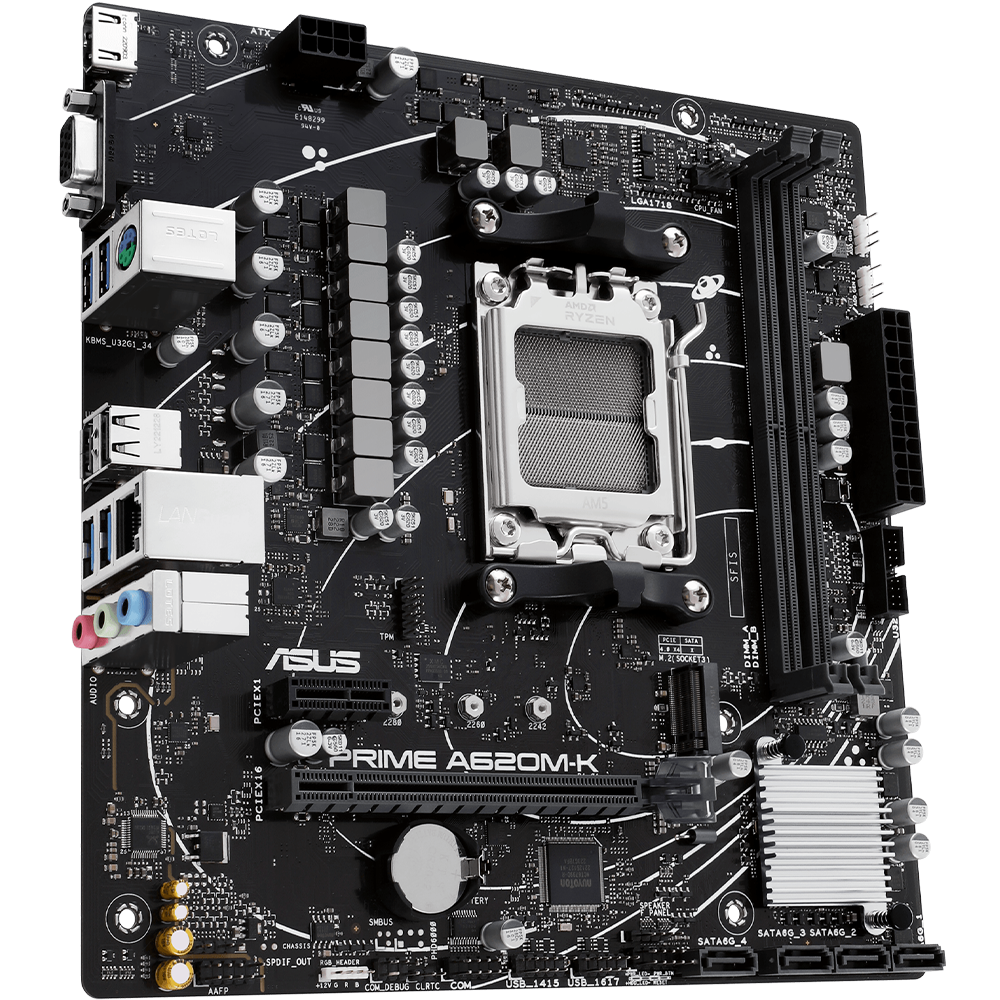

- AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync
CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory
- DDR5
- 2 x DIMM, Max. 96GB, DDR5 7200+(OC)
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 3.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 4.0 x4
Ethernet :
- 1 x Realtek 1Gb Ethernet
USB
- Rear USB (Total 6 ports)
- 4 x USB 3.2 Gen 1 (5G) ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

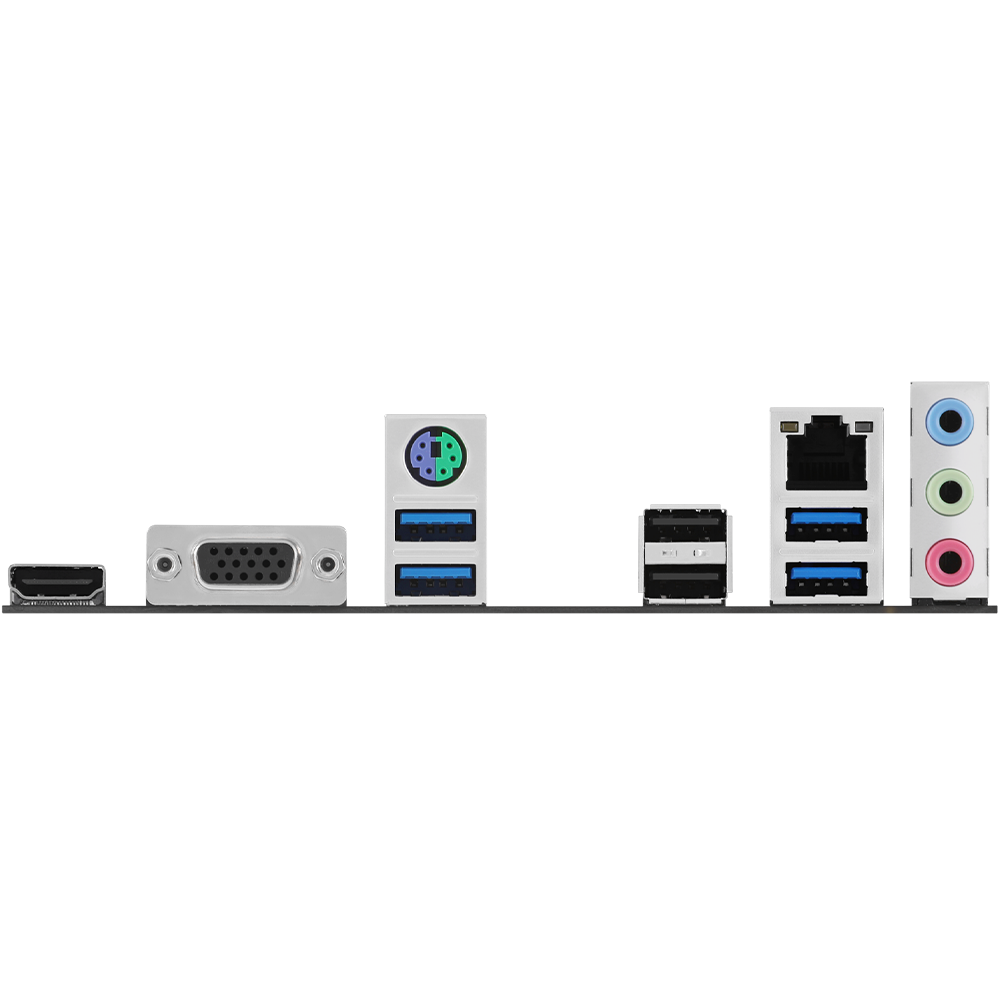

Back Panel I/O Ports
- 4 x USB 3.2 Gen 1 (5G) ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x HDMI™ port
- 1 x VGA port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port

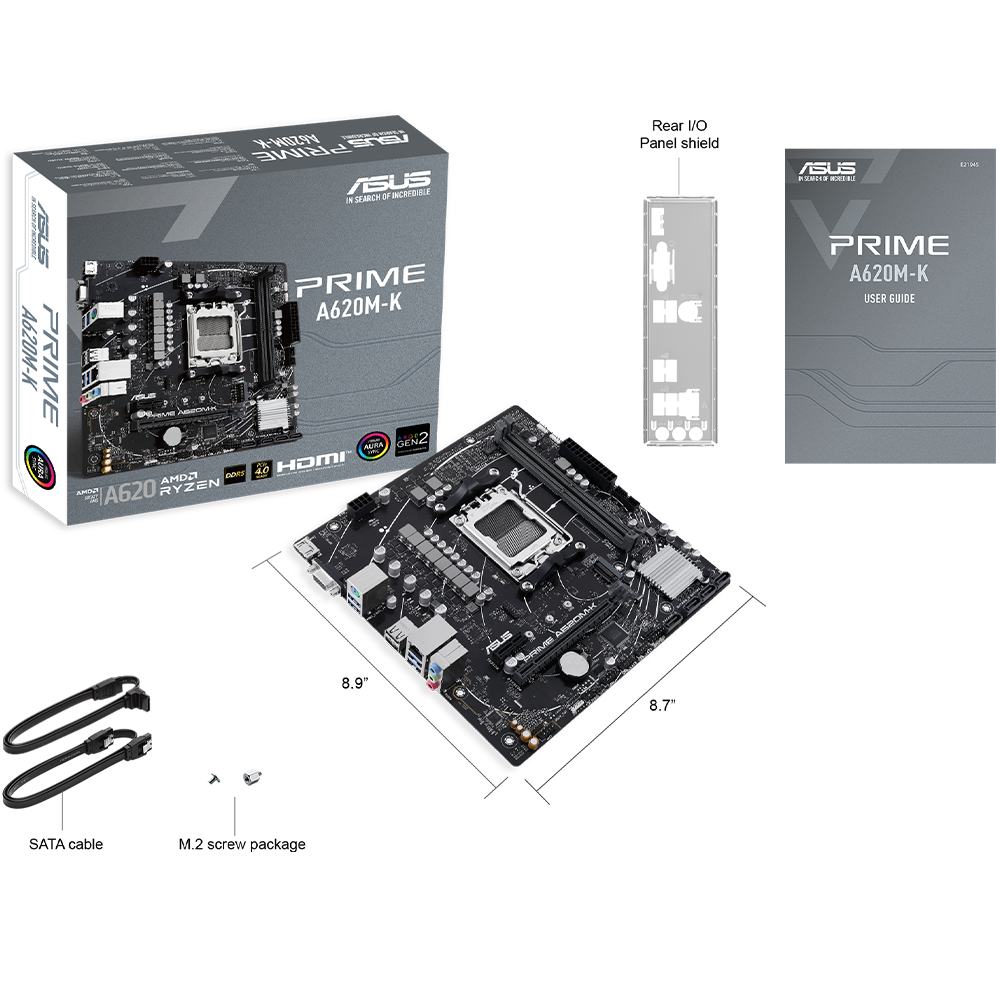

Accessories
- 2 x SATA 6Gb/s cables

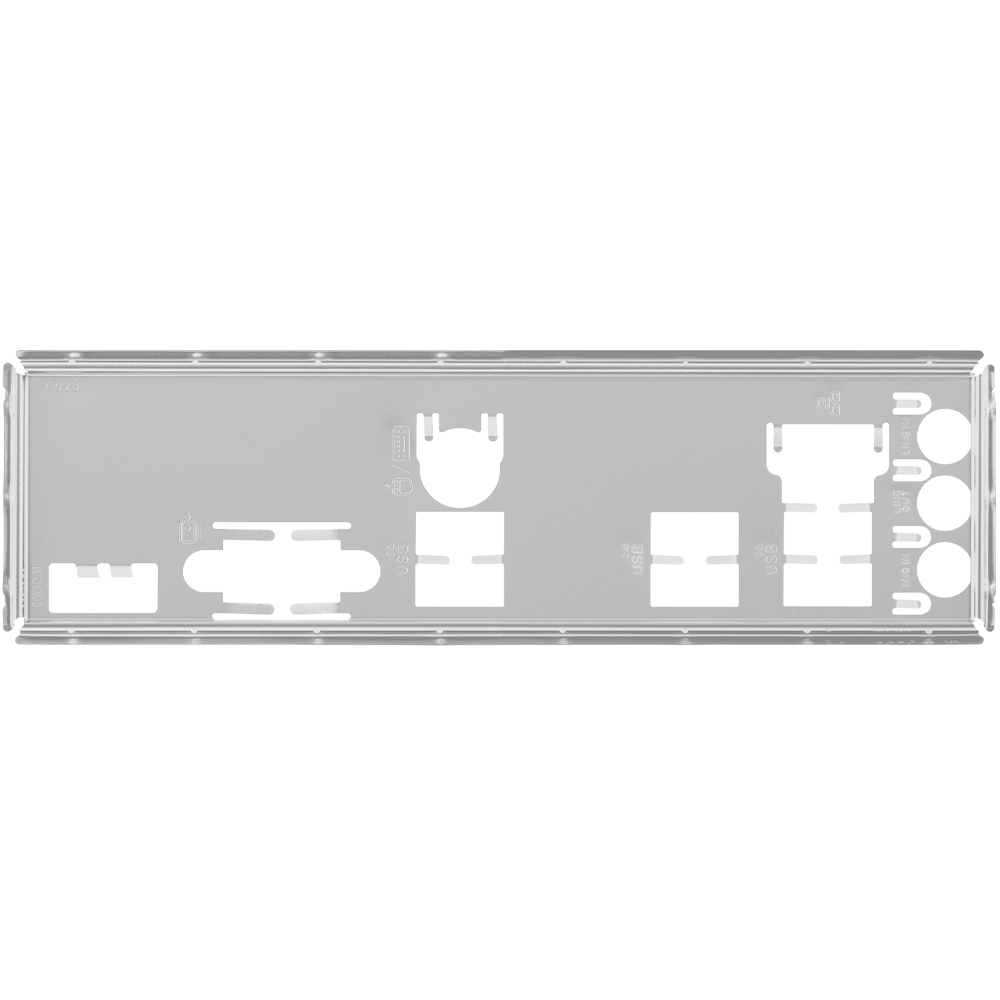

- 1 x I/O Shield
- 1 x Screw package for M.2 SSD
- 1 x User guide
Form Factor :
- micro-ATX Form Factor
- 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Part Number:
- 90MB1F40-M0EAY0
