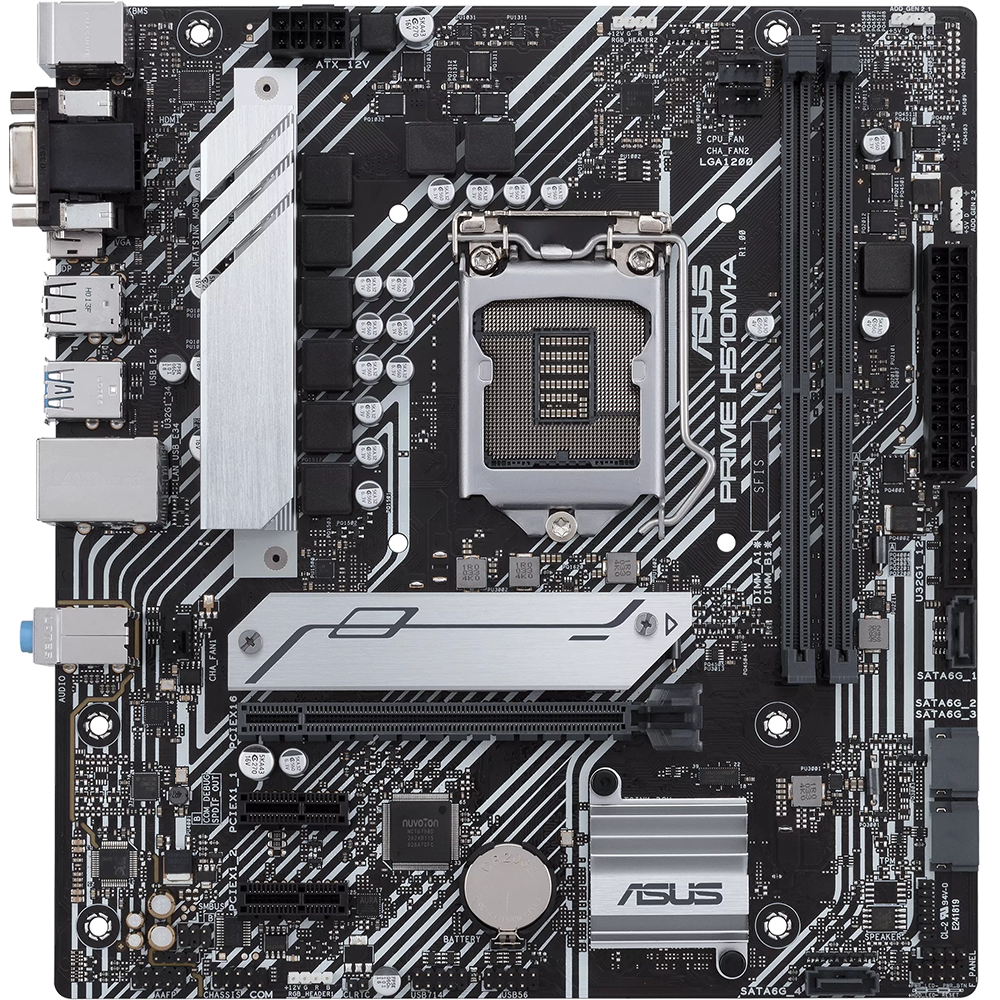

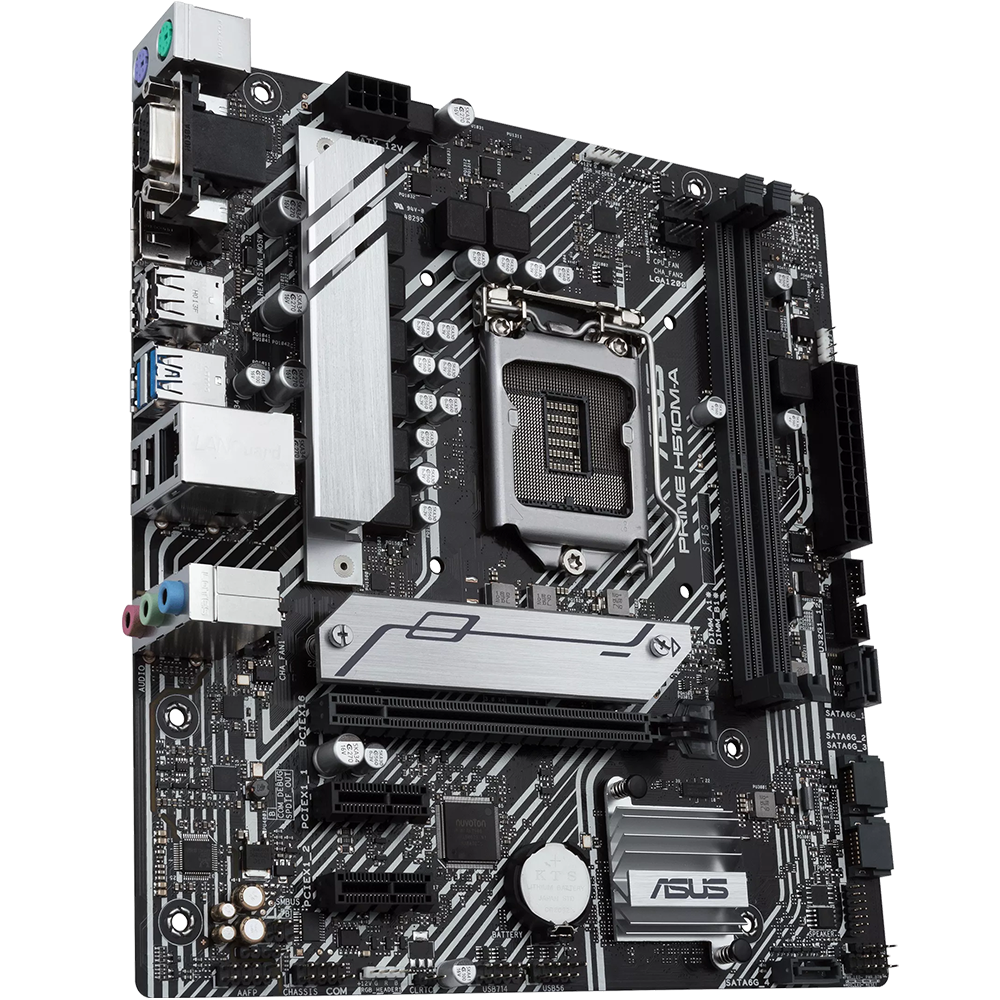

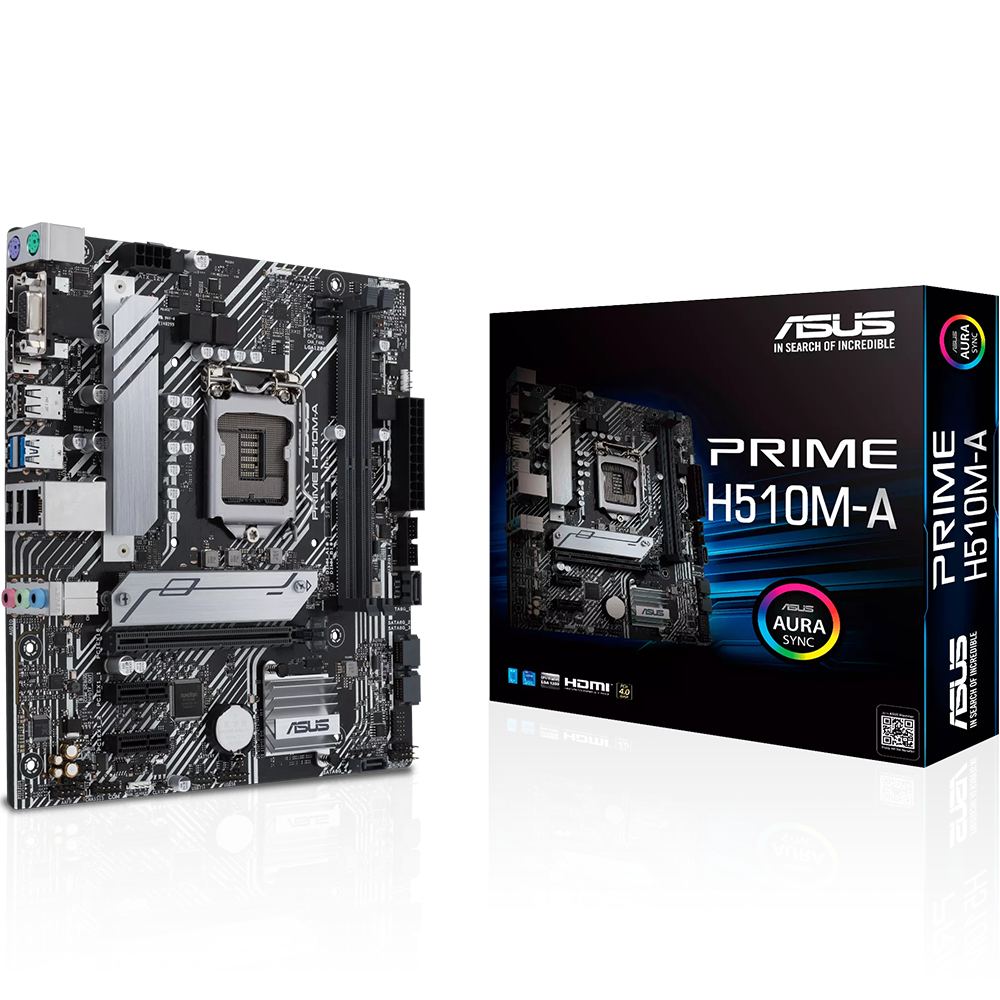

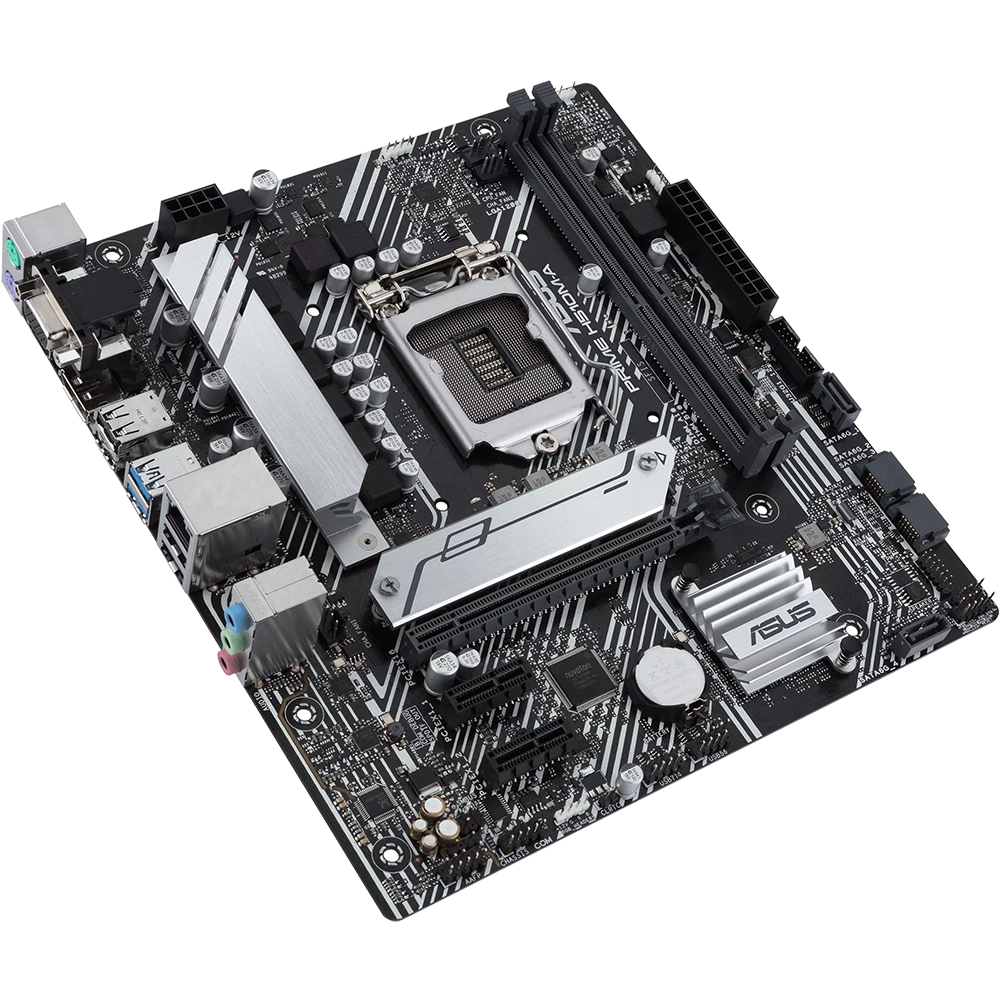

- Intel H510 LGA 1200 micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
CPU
- Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR4
- 2 x DIMM, Max. 64GB, DDR4
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
- 1 x PCIe 4.0/3.0 x16 slot
- 2 x PCIe 3.0 x1 slot
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 3.0 x4 slot
Ethernet :
- 1 x Intel 1Gb Ethernet
USB
- Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 1 ports (Type-A)
- 4 x USB 2.0 (Type-A)
- Front USB: Total 7 ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header supports additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

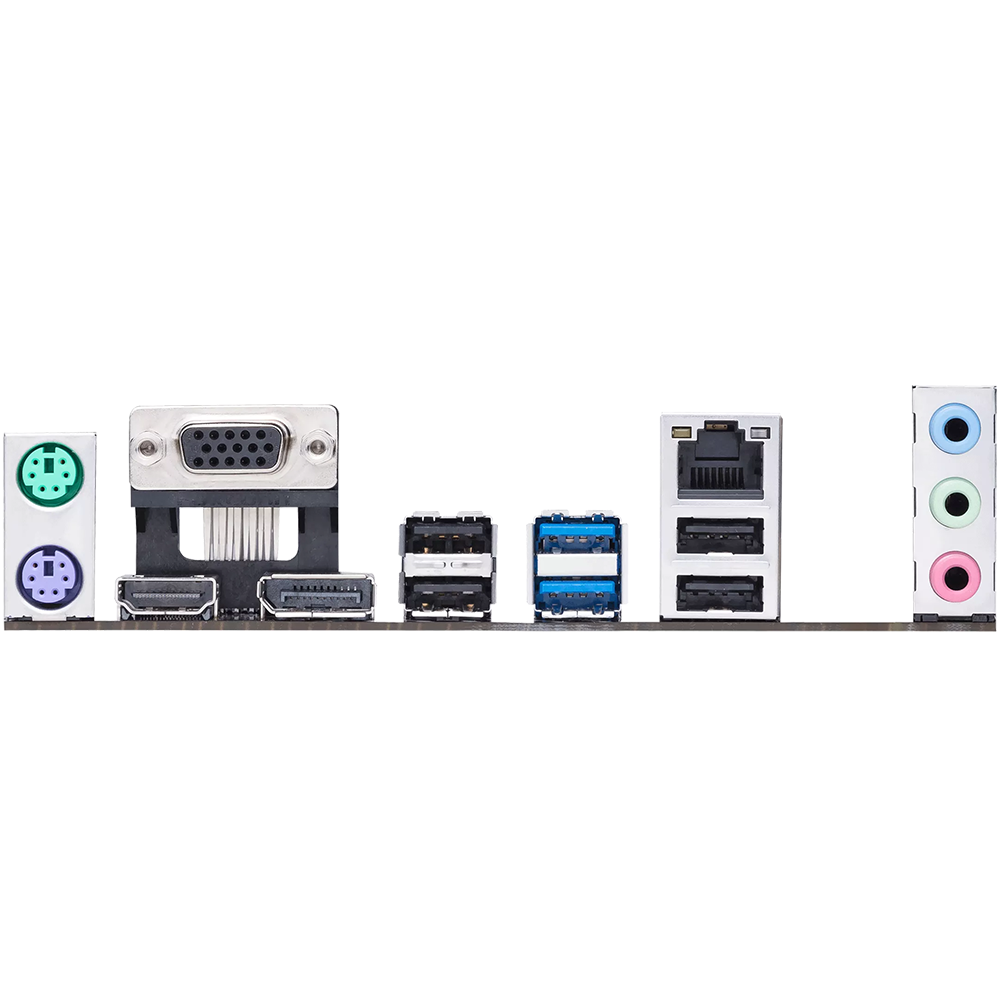

Back Panel I/O Ports
- 2 x USB 3.2 Gen 1 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI port
- 1 x Intel I219-V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port

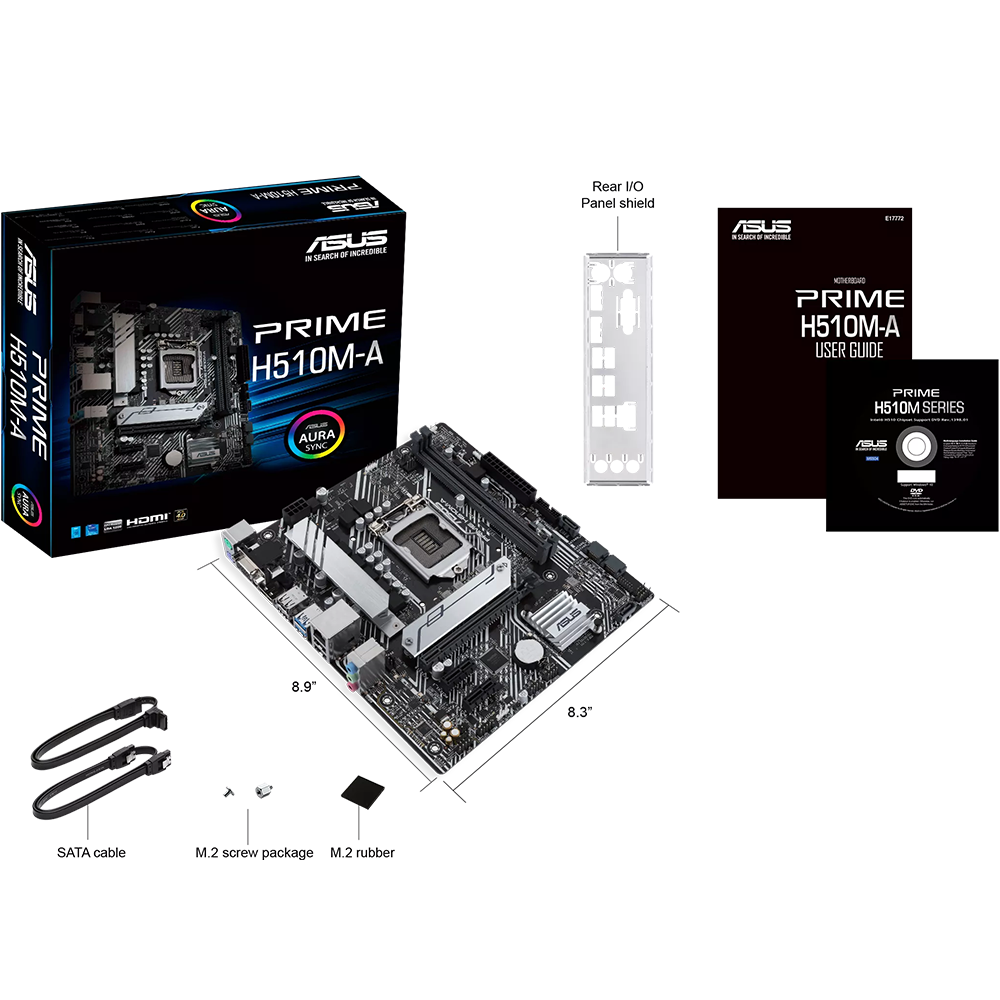

Accessories
- 2 x SATA 6Gb/s cables
- I/O Shield
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x Support DVD
- 1 x User guide
Form Factor :
- micro-ATX ( 22.6 cm x 21.1 cm )
Part Number:
- 90MB17C0-M0EAY0
