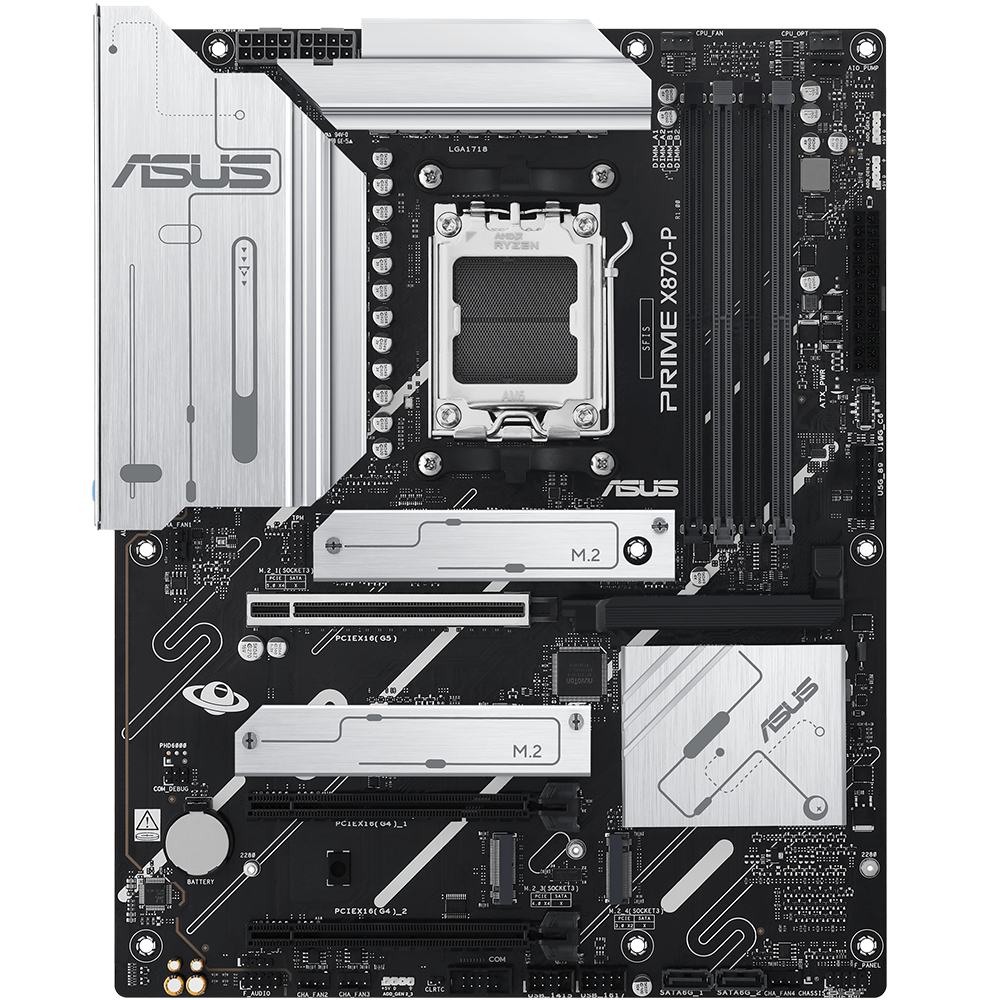

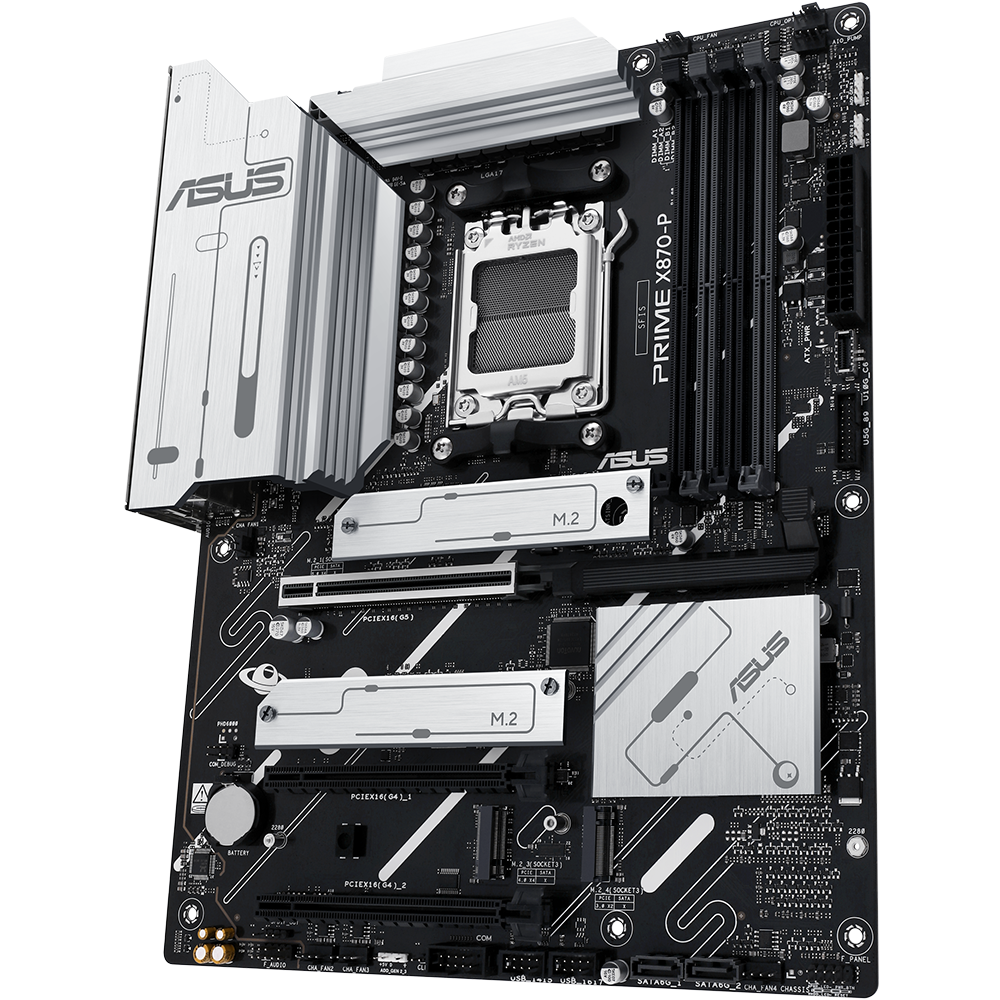

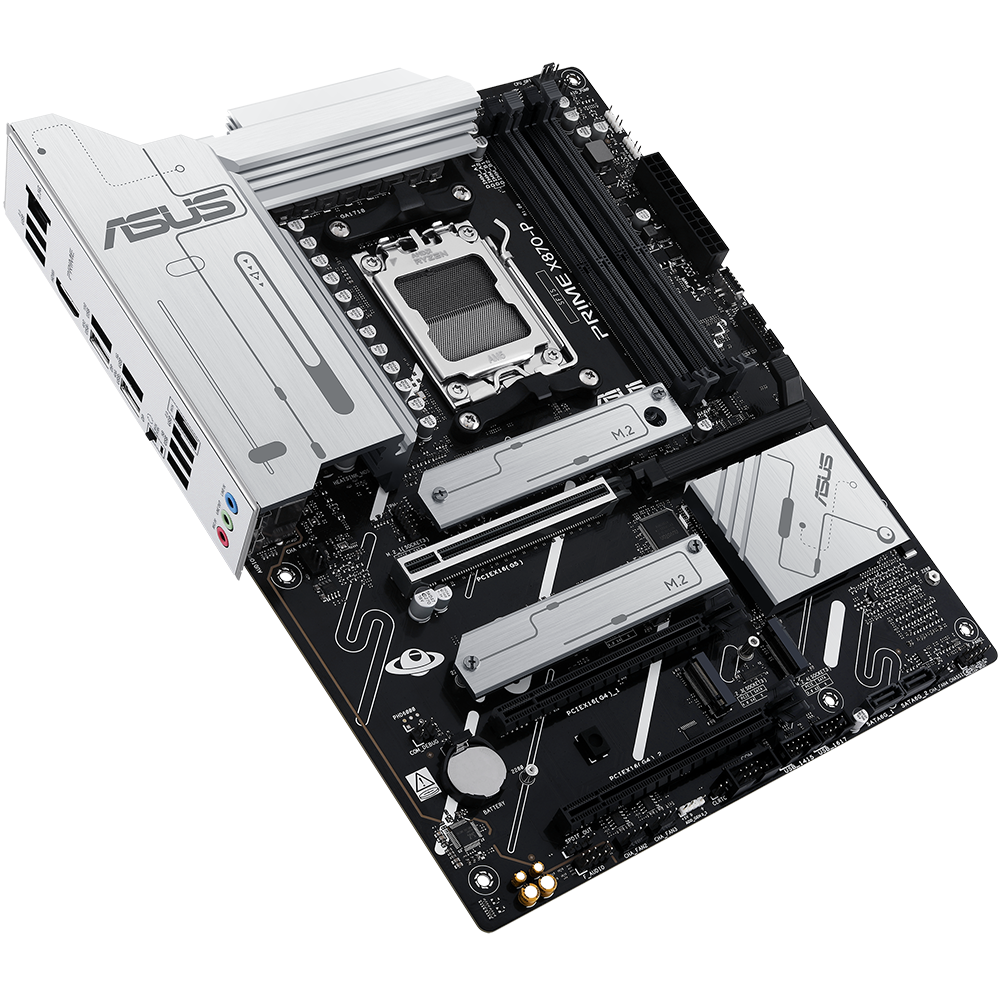

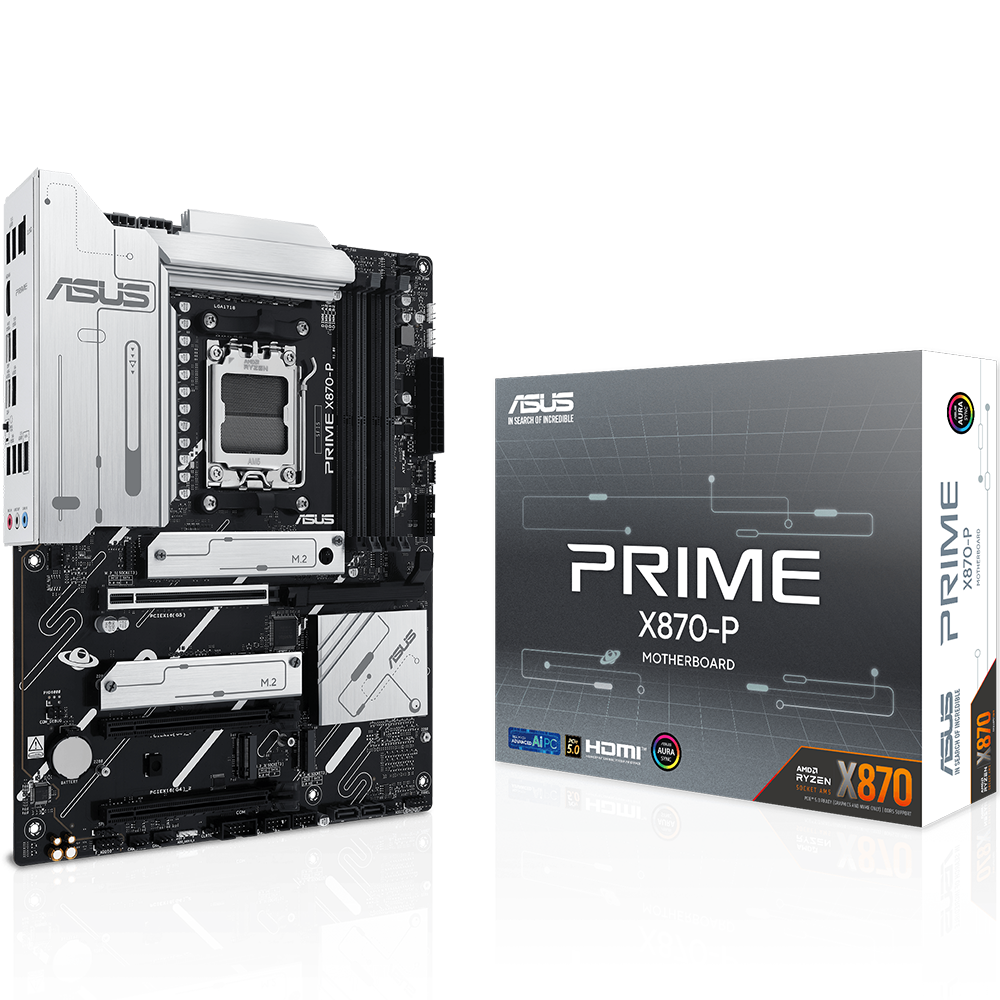

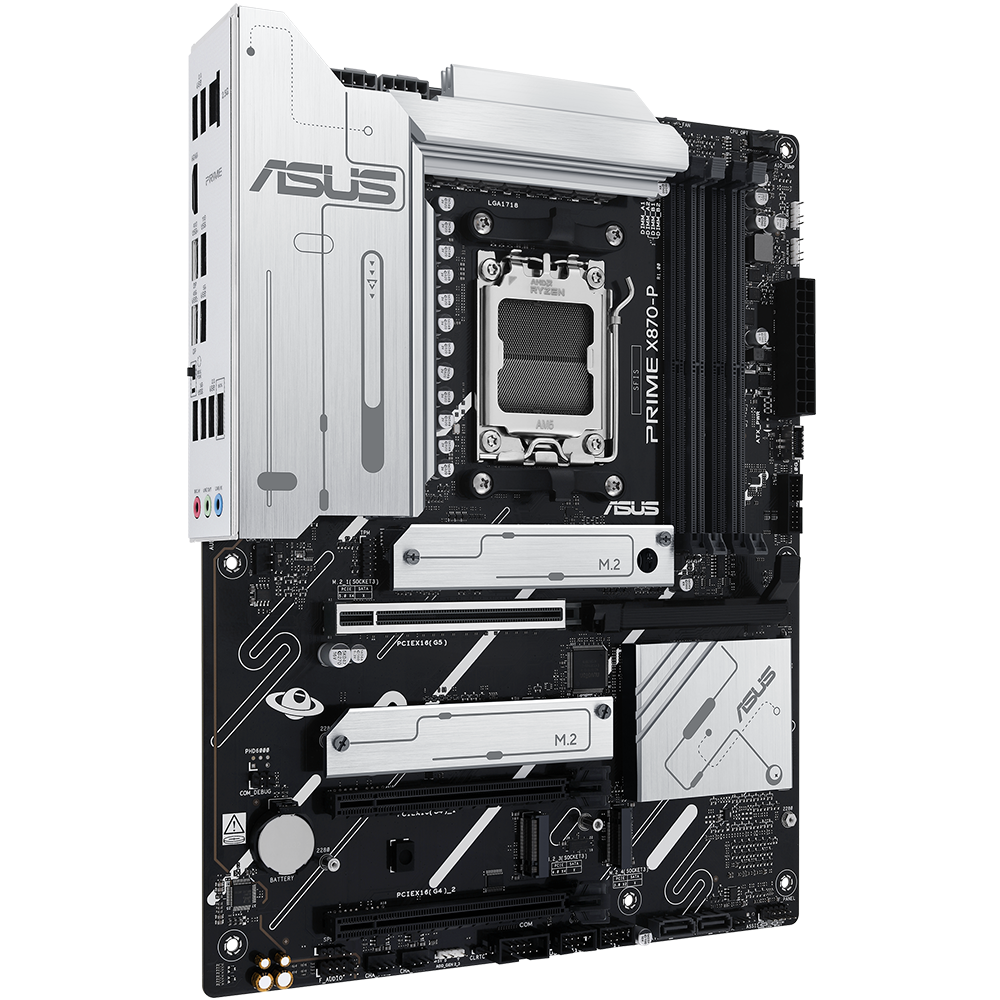

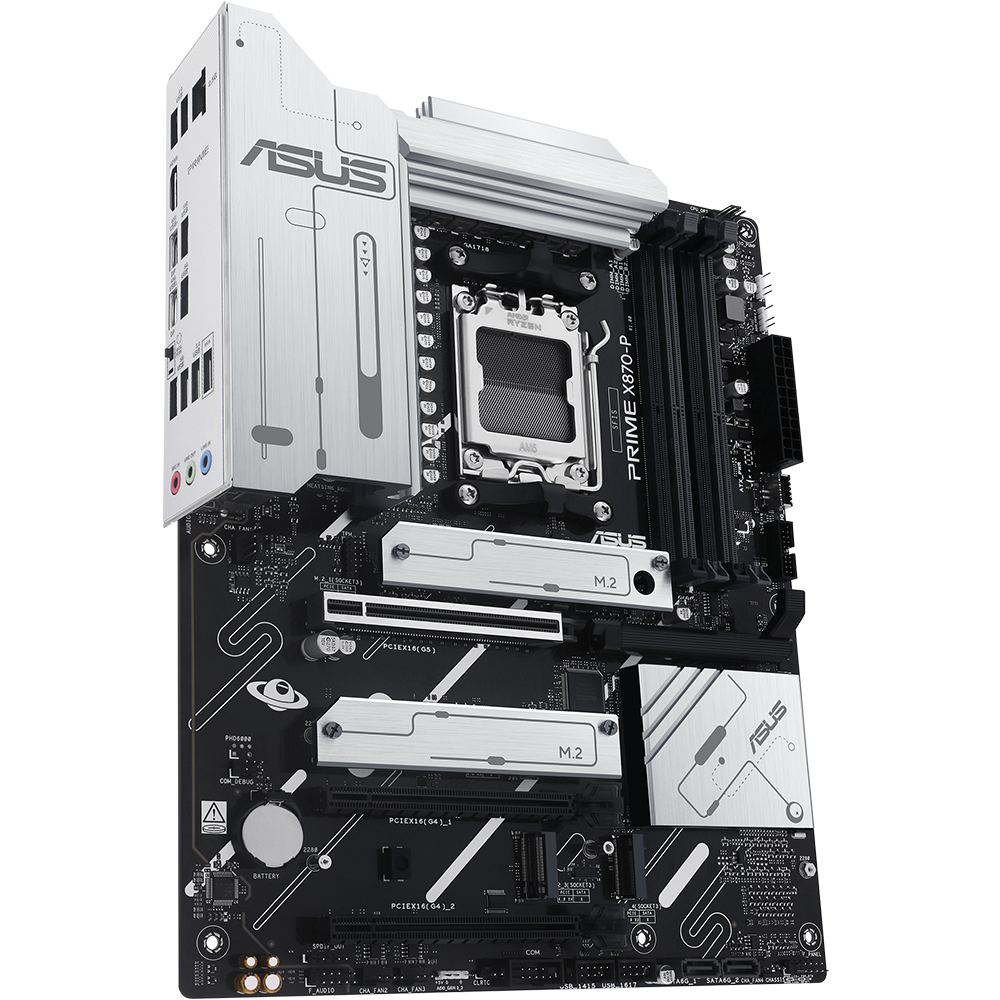

ASUS PRIME X870-P Motherboard AM5 Socket For AMD Ryzen CPUs

• ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Expansion Slots:

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors:

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset:

• 2 x PCIe 4.0 x16 slot (supports x1 mode)

Storage:

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports:

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD X870 Chipset:

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
• 2 x SATA 6Gb/s ports

Ethernet:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

USB:

Rear USB (Total 10 ports):

• 2 x USB4 (40Gbps) ports (USB Type-C)
• 3 x USB 10Gbps ports (Type-A)
• 4 x USB 5Gbps ports (Type-A)
• 1 x USB 2.0 port (Type-A)

Front USB (Total 7 ports):

• 1 x USB 20Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

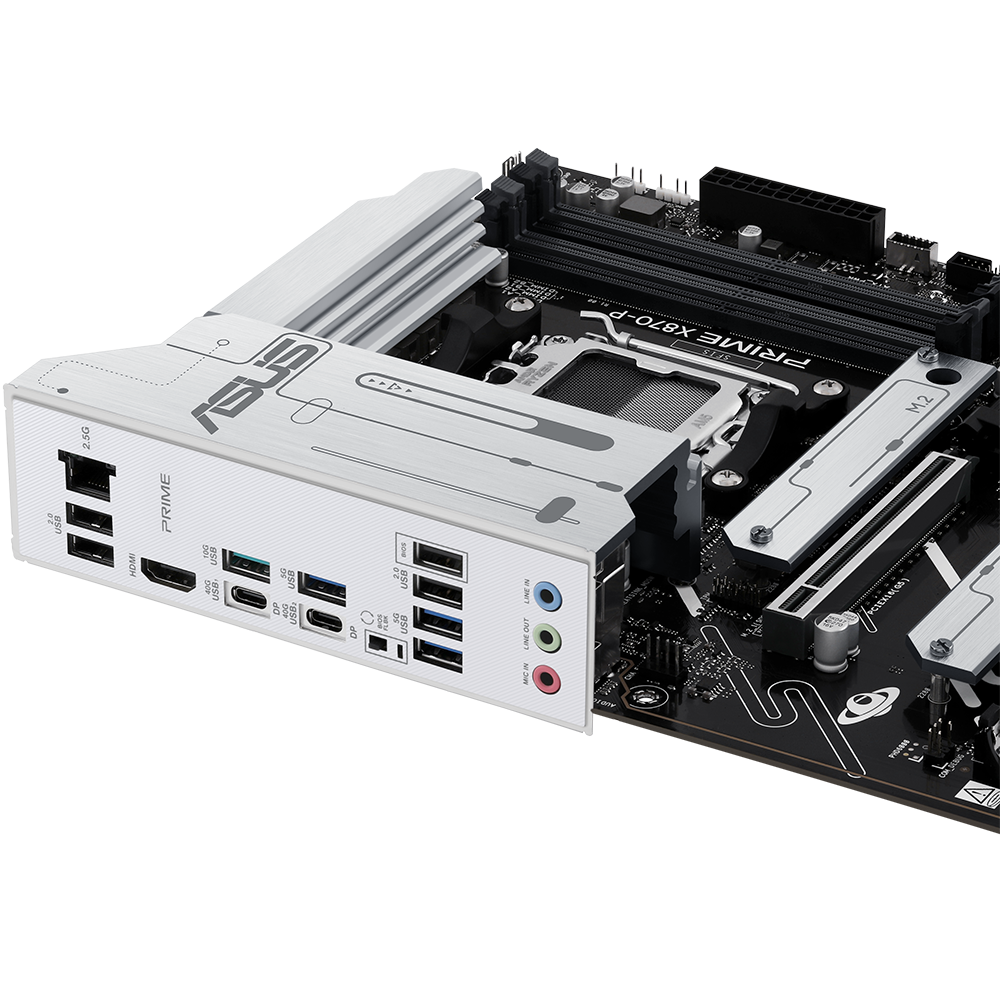

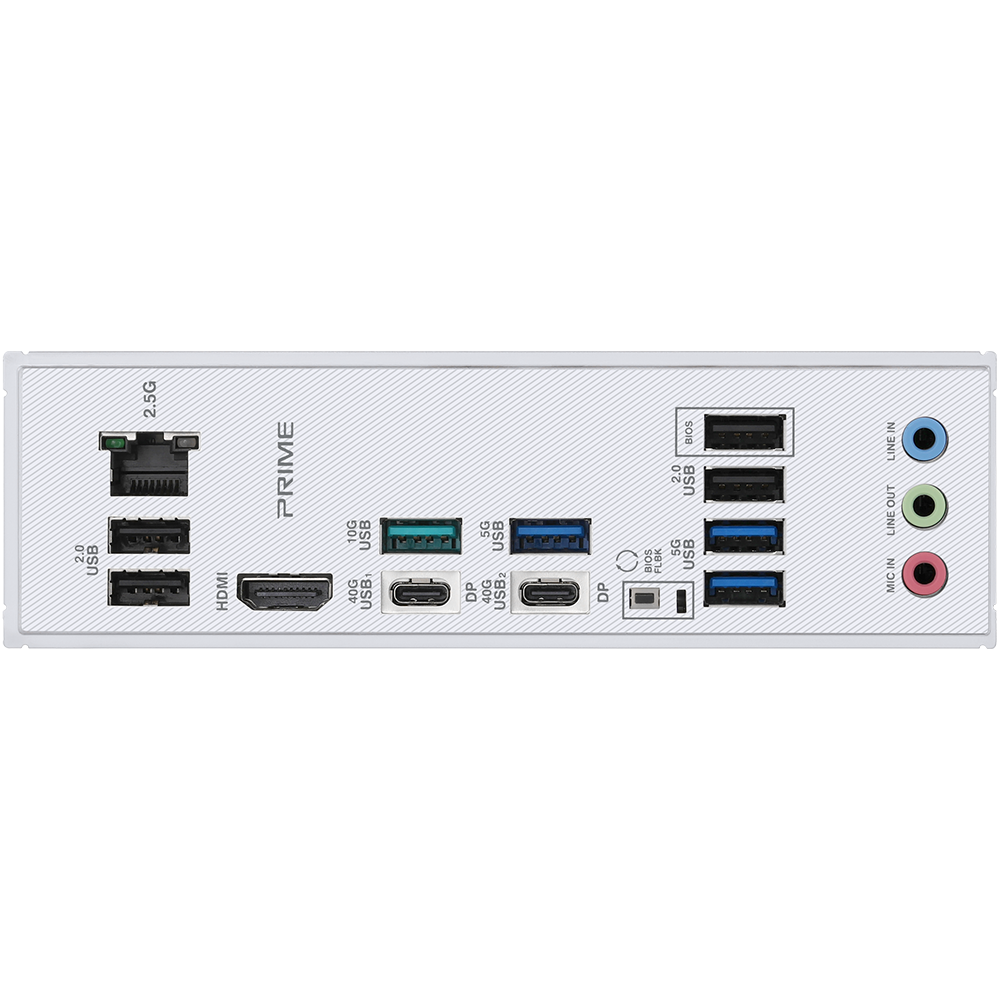

Back Panel I/O Ports:

• 2 x USB4 (40Gbps) ports (USB Type-C)
• 3 x USB 10Gbps ports (Type-A)
• 4 x USB 5Gbps ports (Type-A)
• 1 x USB 2.0 port (Type-A)
• 1 x HDMI port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button

Form Factor:

• ATX Form Factor

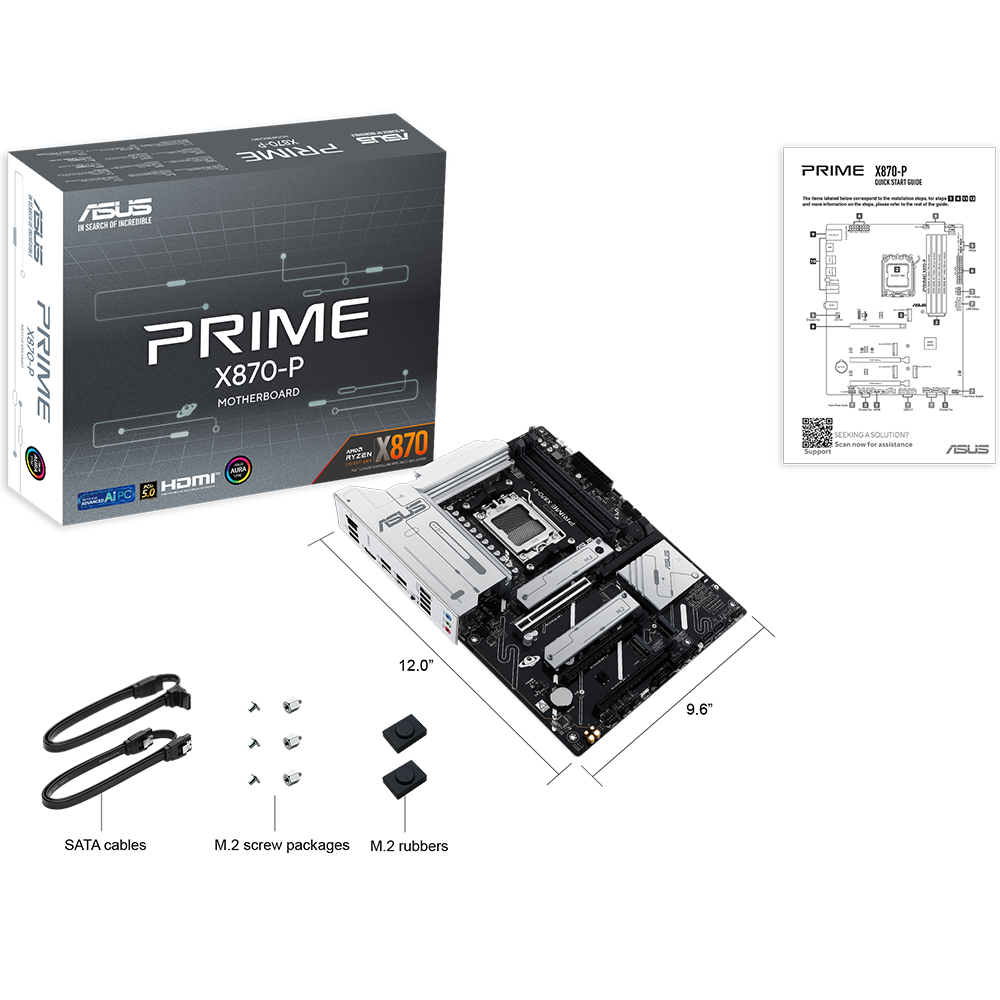

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1IT0-M0EAY0
