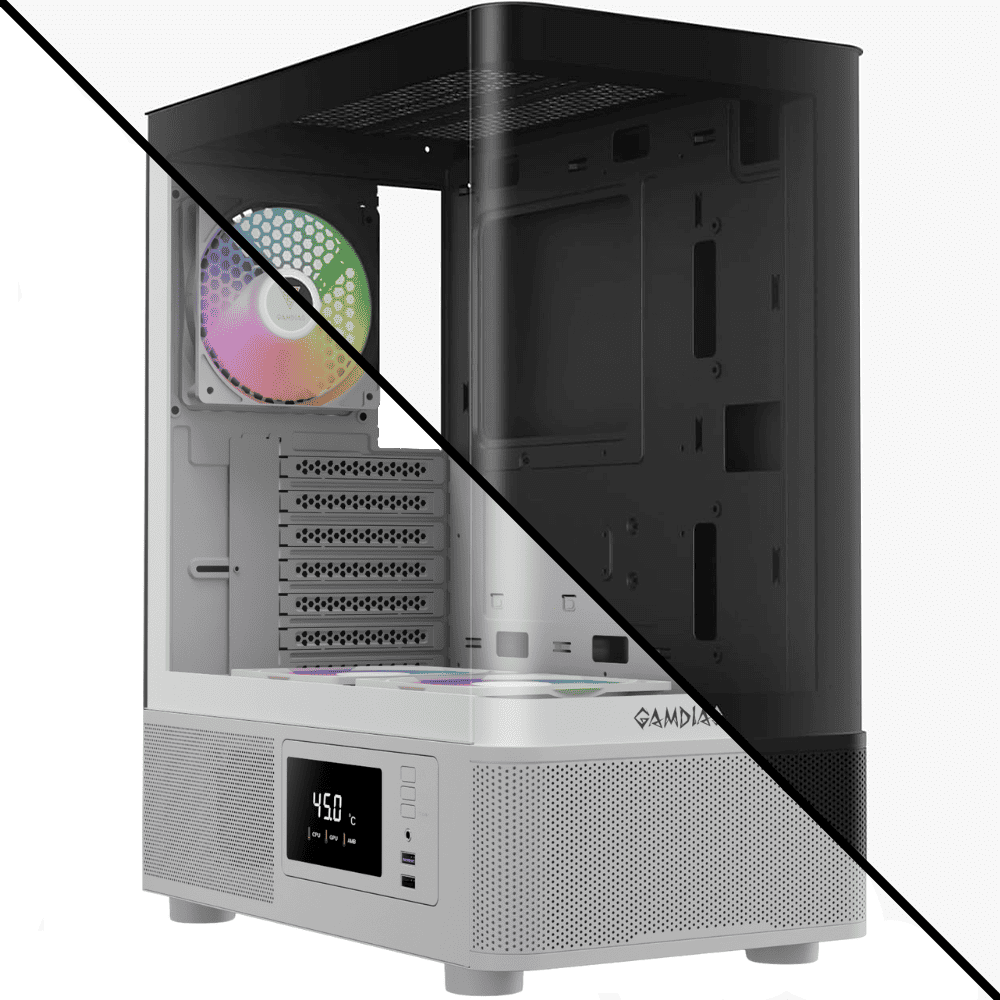

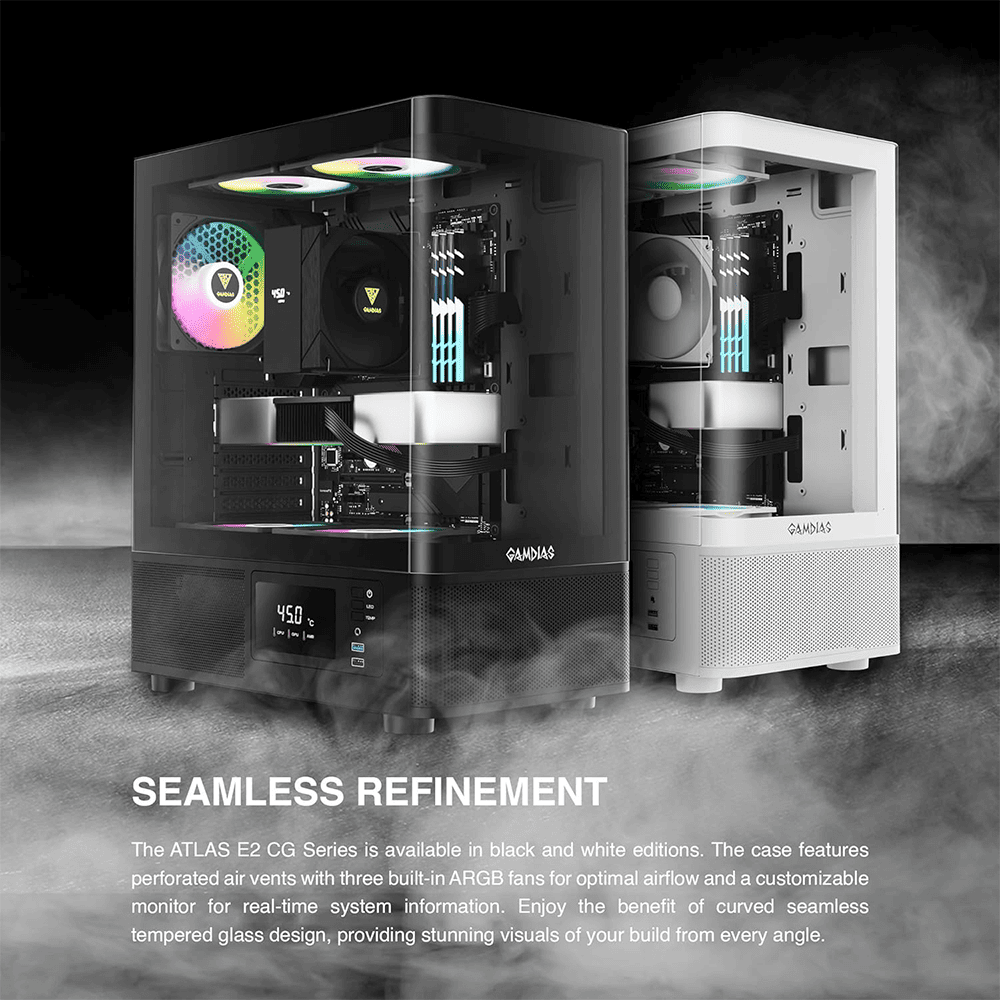

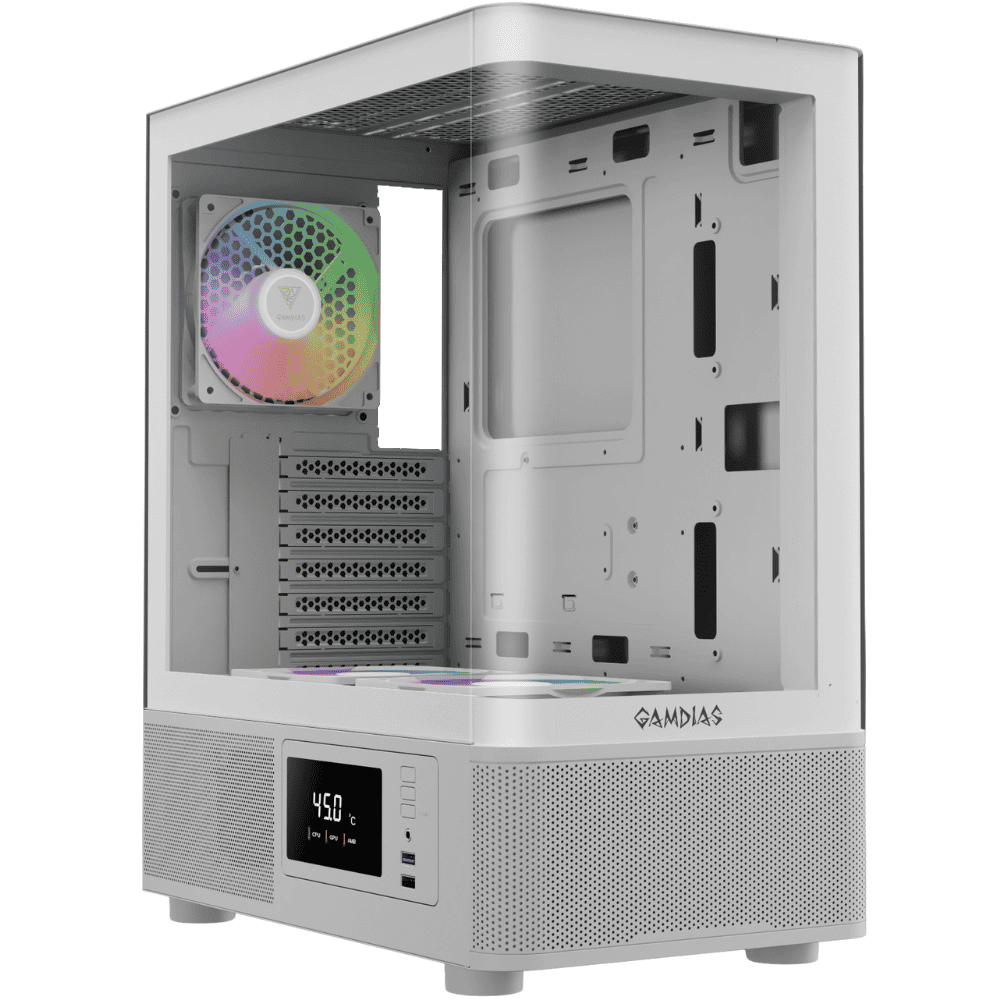

SEAMLESS REFINEMENT:
- The ATLAS E2 CG Series is available in black and white editions. The case features perforated air vents with three built-in ARGB fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of curved seamless tempered glass design, providing stunning visuals of your build from every angle.

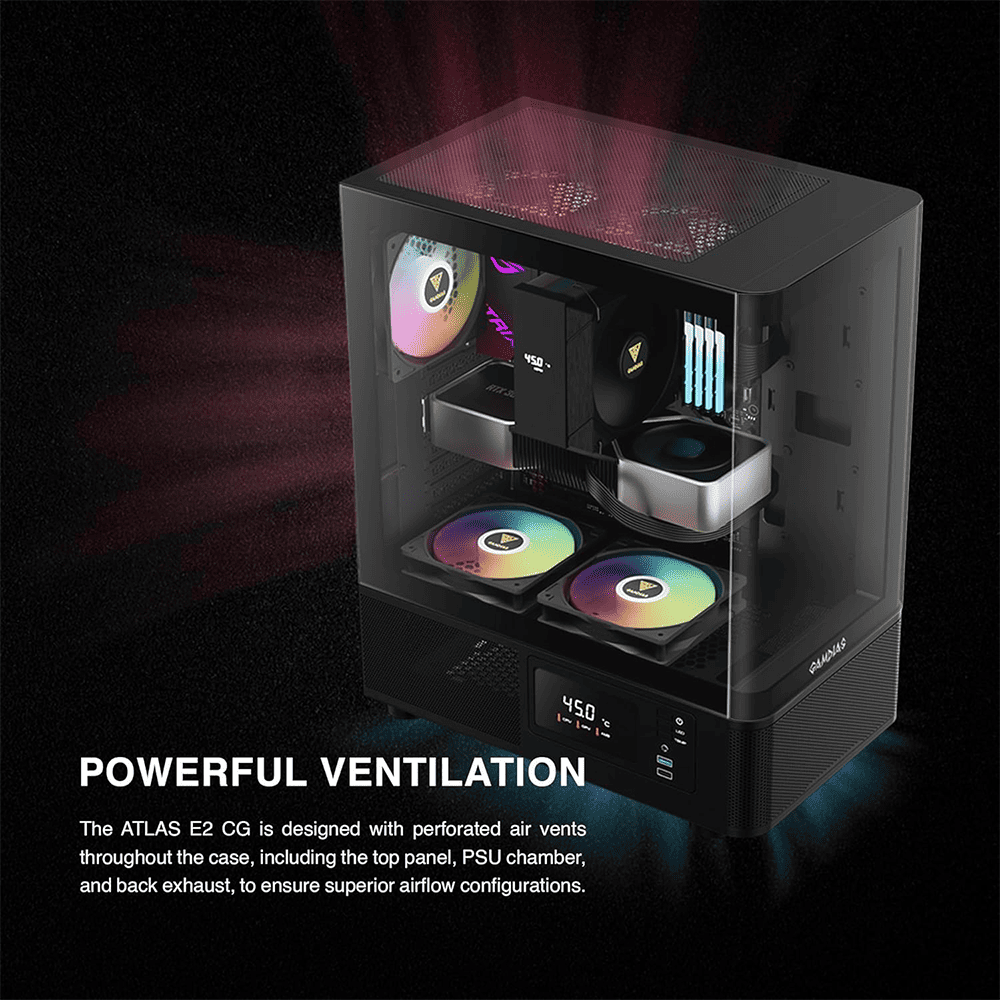

POWERFUL VENTILATION:
- The ATLAS E2 CG WH is designed with perforated air vents throughout the case, including the top panel, PSU chamber, and back exhaust, to ensure superior airflow configurations.

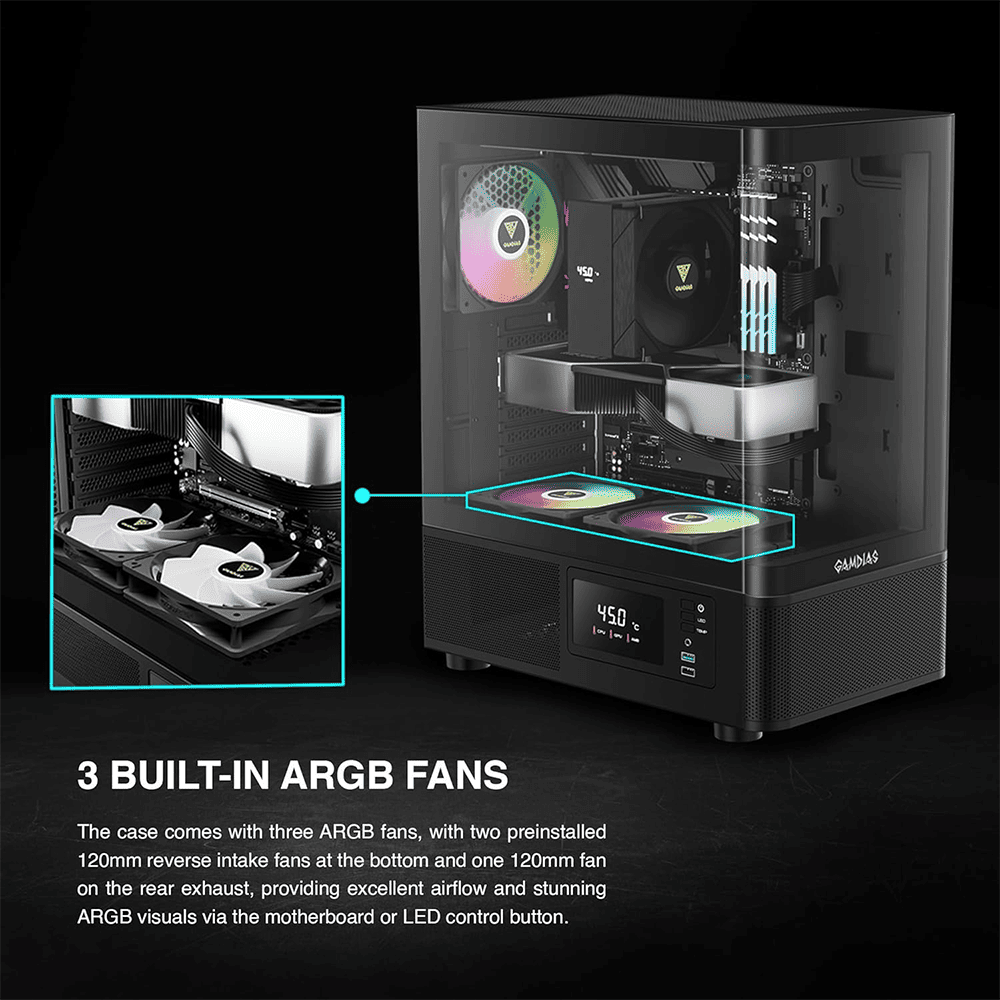

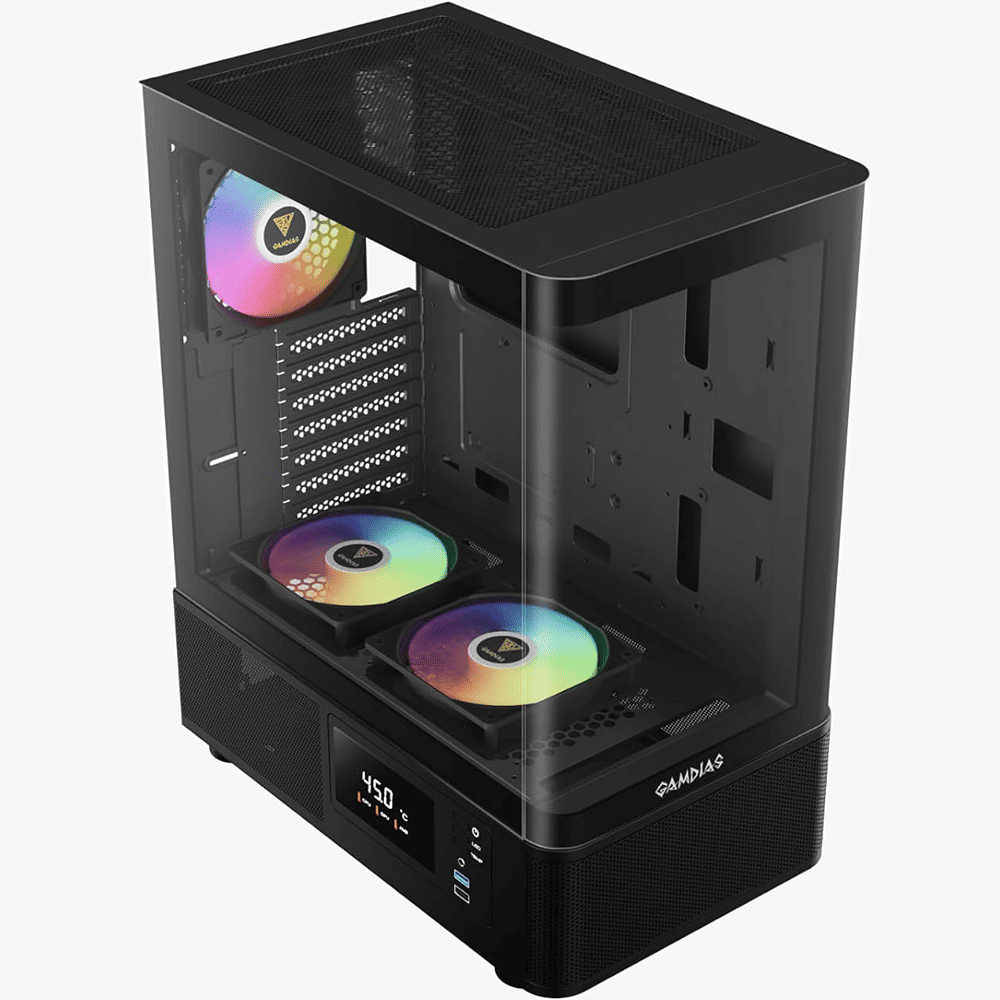

3 BUILT-IN ARGB FANS:
- The case comes with three ARGB fans, with two preinstalled 120mm reverse intake fans at the bottom and one 120mm fan on the rear exhaust, providing excellent airflow and stunning ARGB visuals via the motherboard or LED control button.

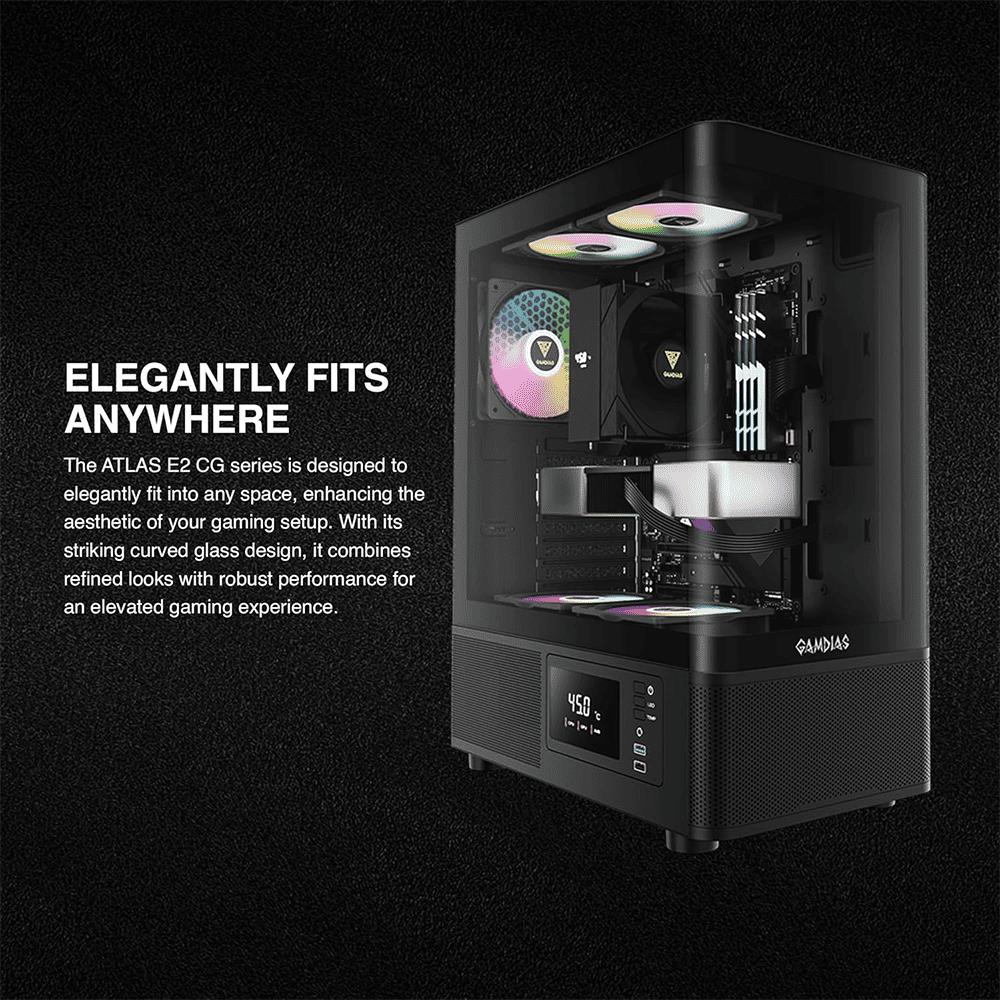

ELEGANTLY FITS ANYWHERE:
- The ATLAS E2 CG series is designed to elegantly fit into any space, enhancing the aesthetic of your gaming setup. With its striking curved glass design, it combines refined looks with robust performance for an elevated gaming experience.

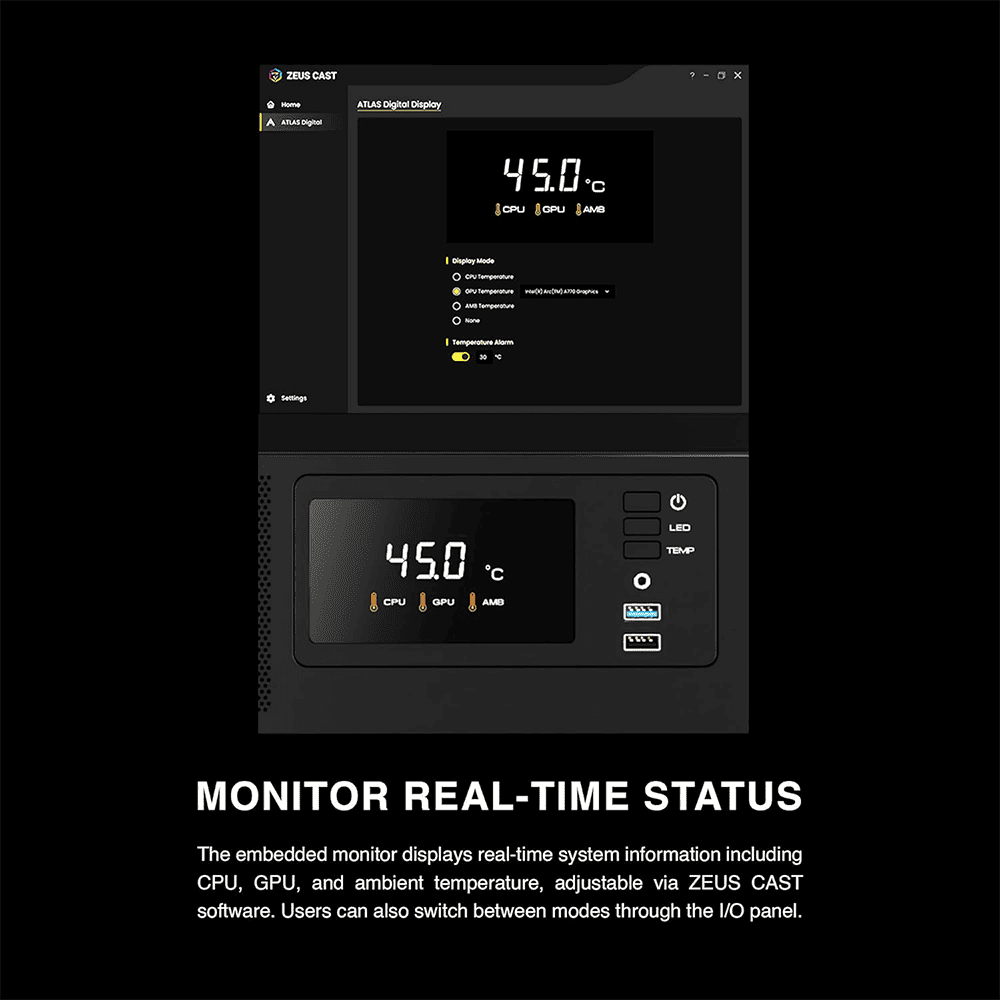

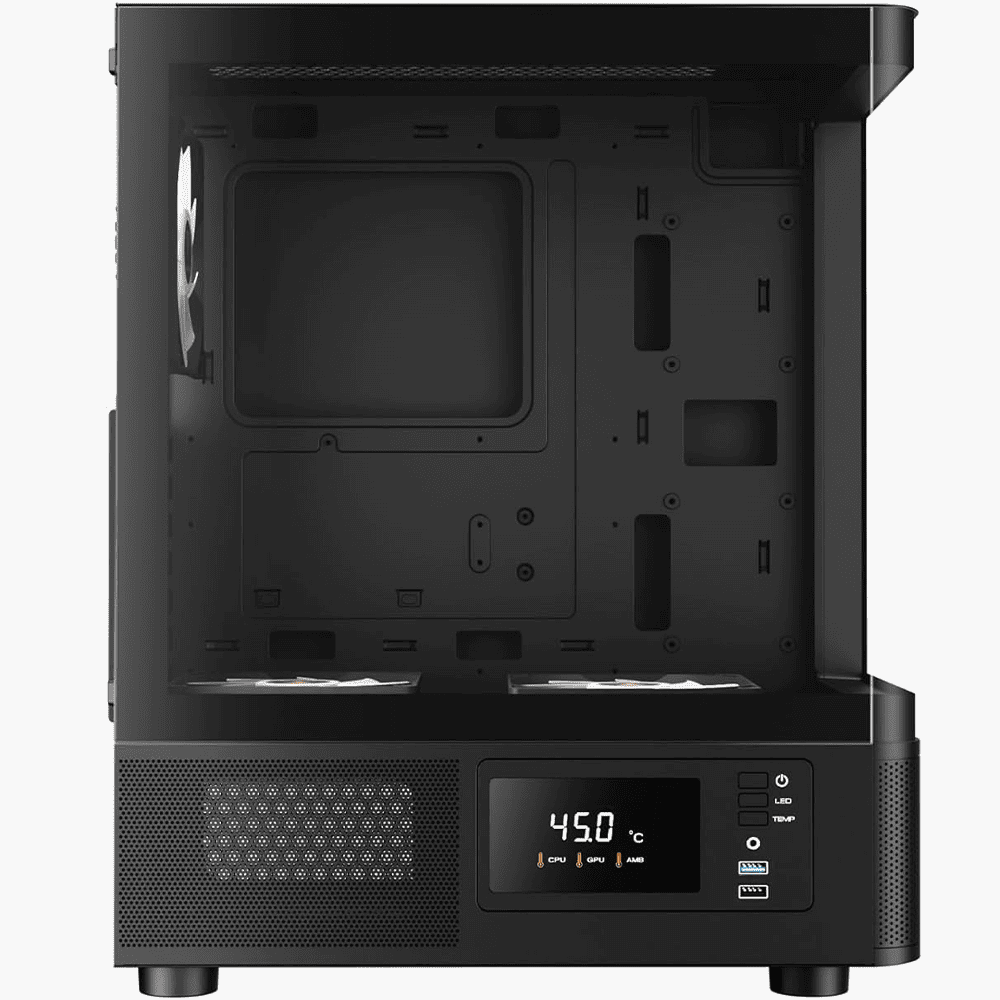

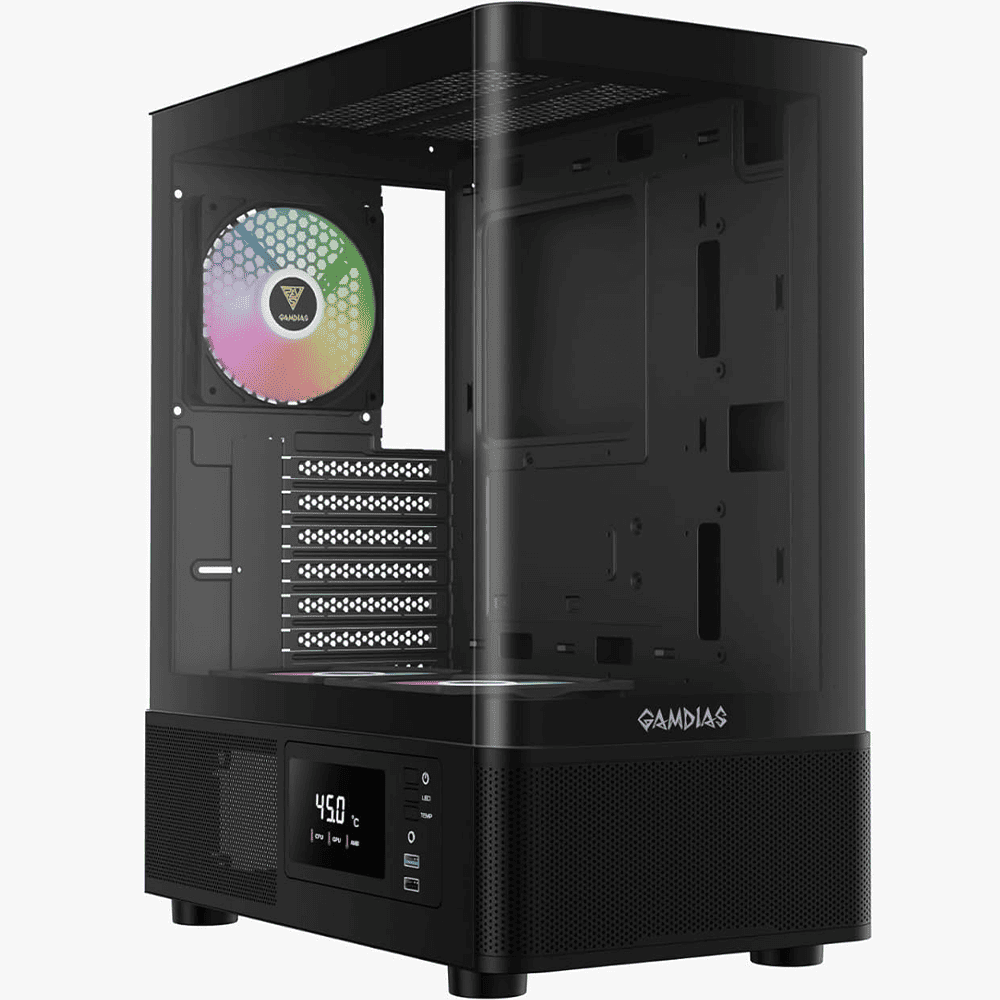

MONITOR REAL-TIME STATUS:
- The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature, adjustable via ZEUS CAST software. Users can also switch between modes through the I/O panel.

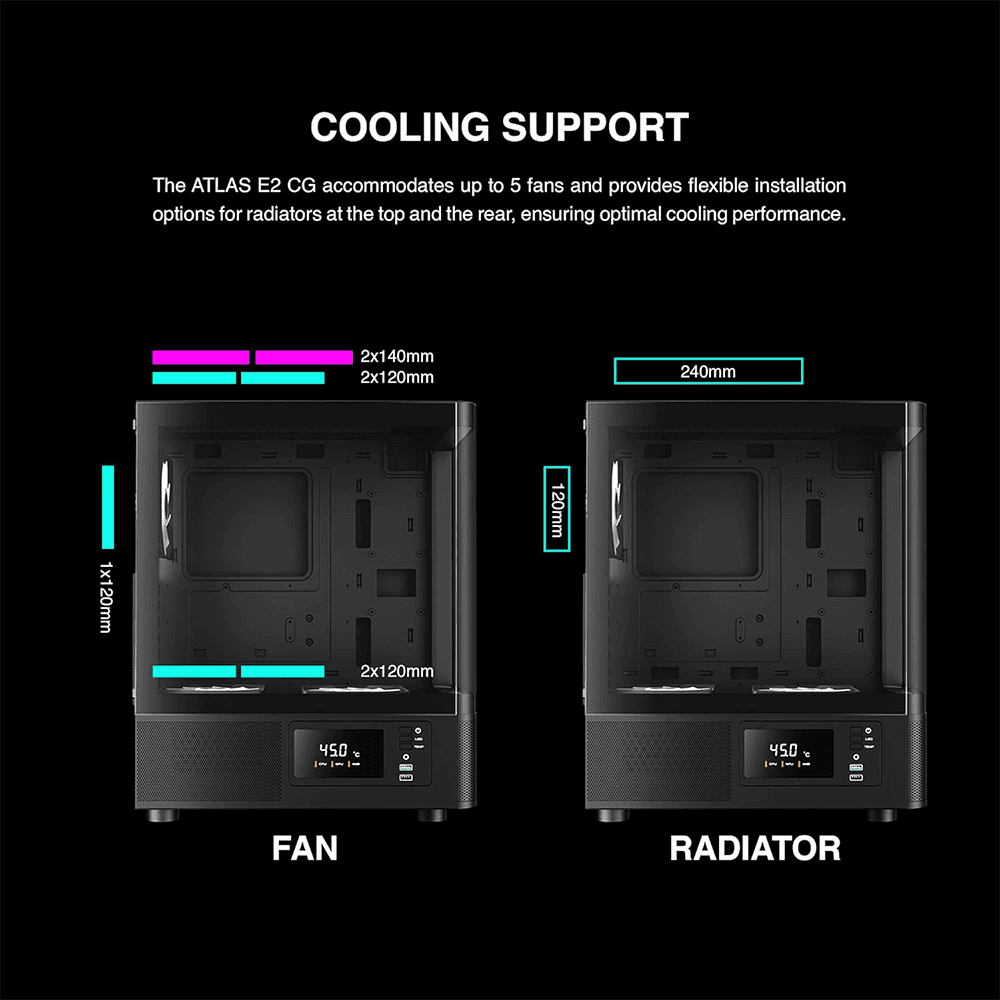

COOLING SUPPORT:
- The ATLAS E2 CG WH accommodates up to 5 fans and provides flexible installation options for radiators at the top and the rear, ensuring optimal cooling performance.

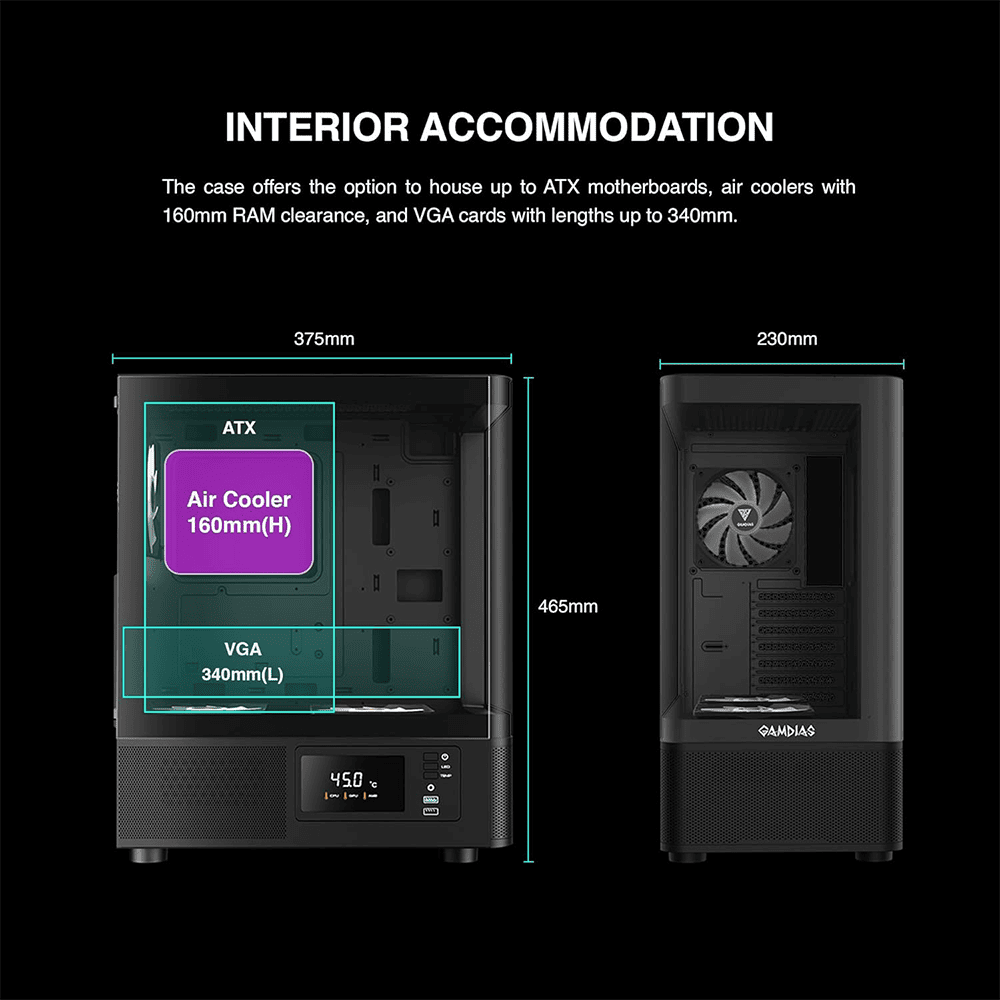

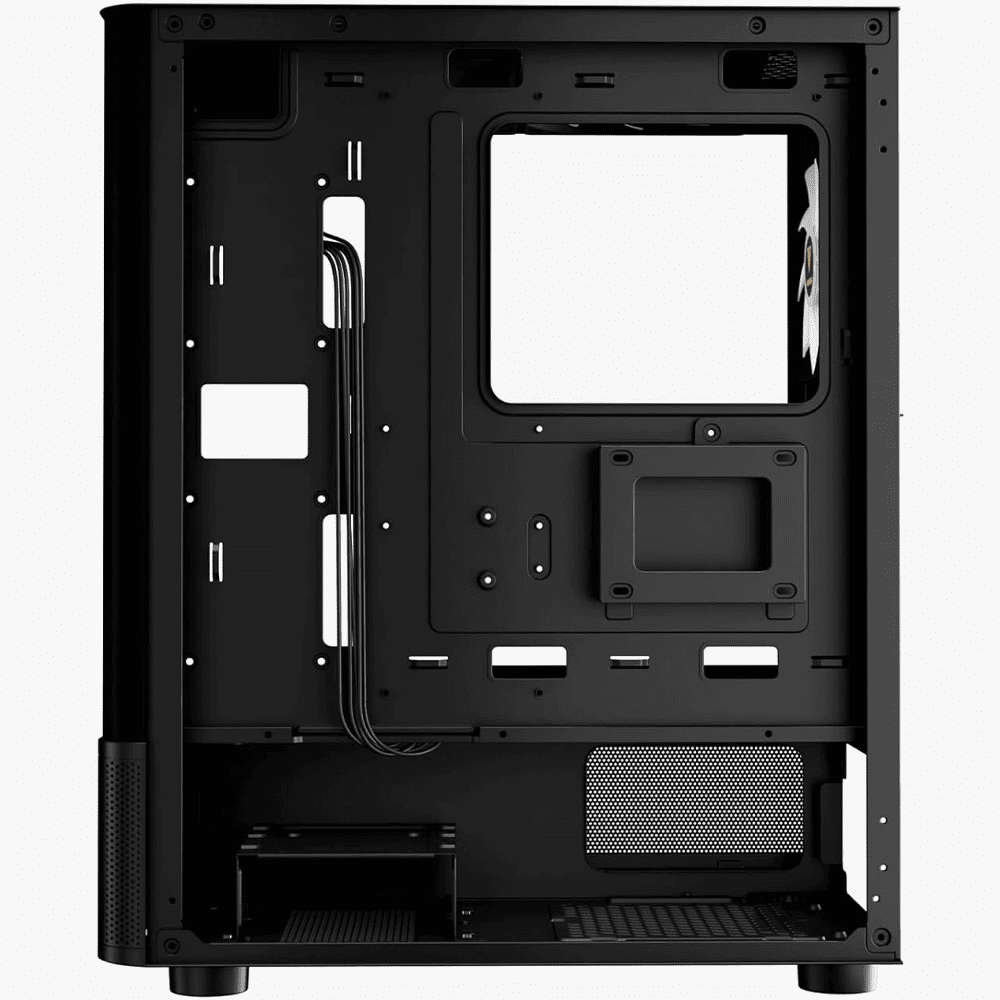

INTERIOR ACCOMMODATION:
- The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 340mm.

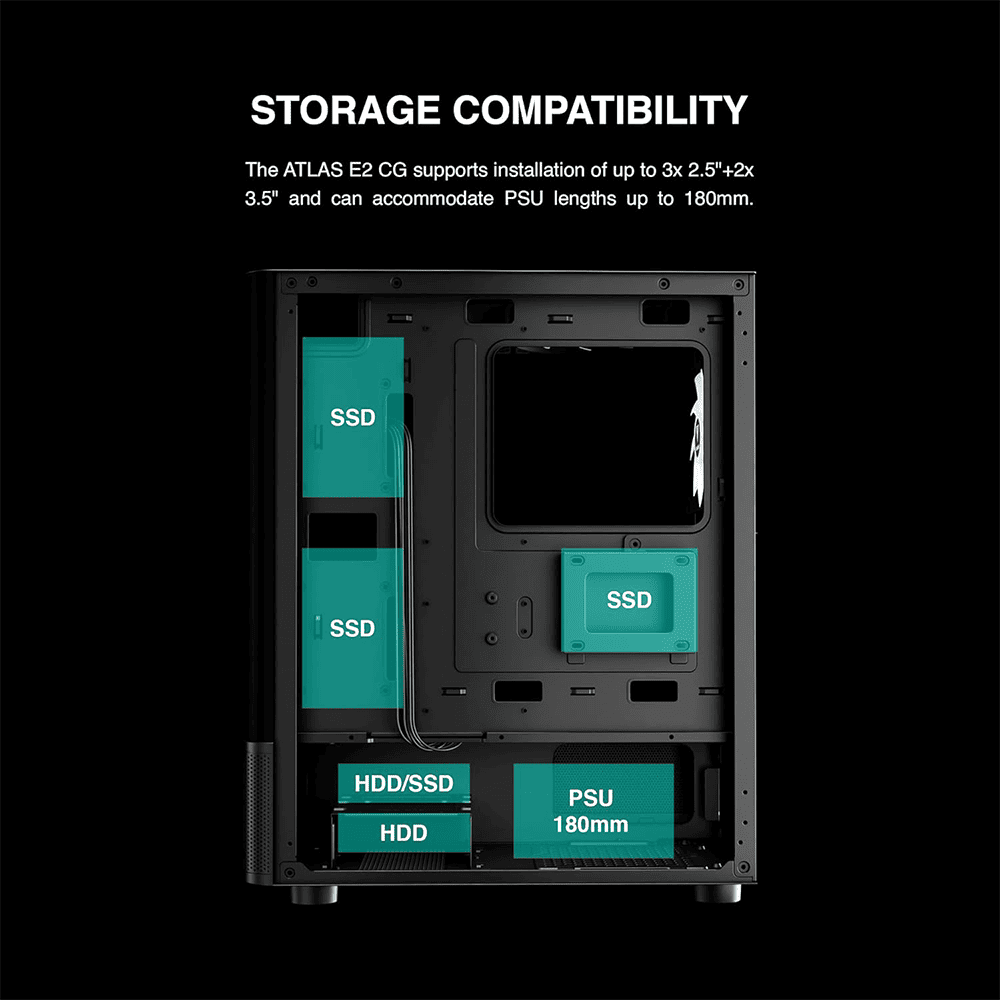

STORAGE COMPATIBILITY:
- The ATLAS E2 CG WH supports installation of up to 3x 2.5"+2x 3.5" and can accommodate PSU lengths up to 180mm.

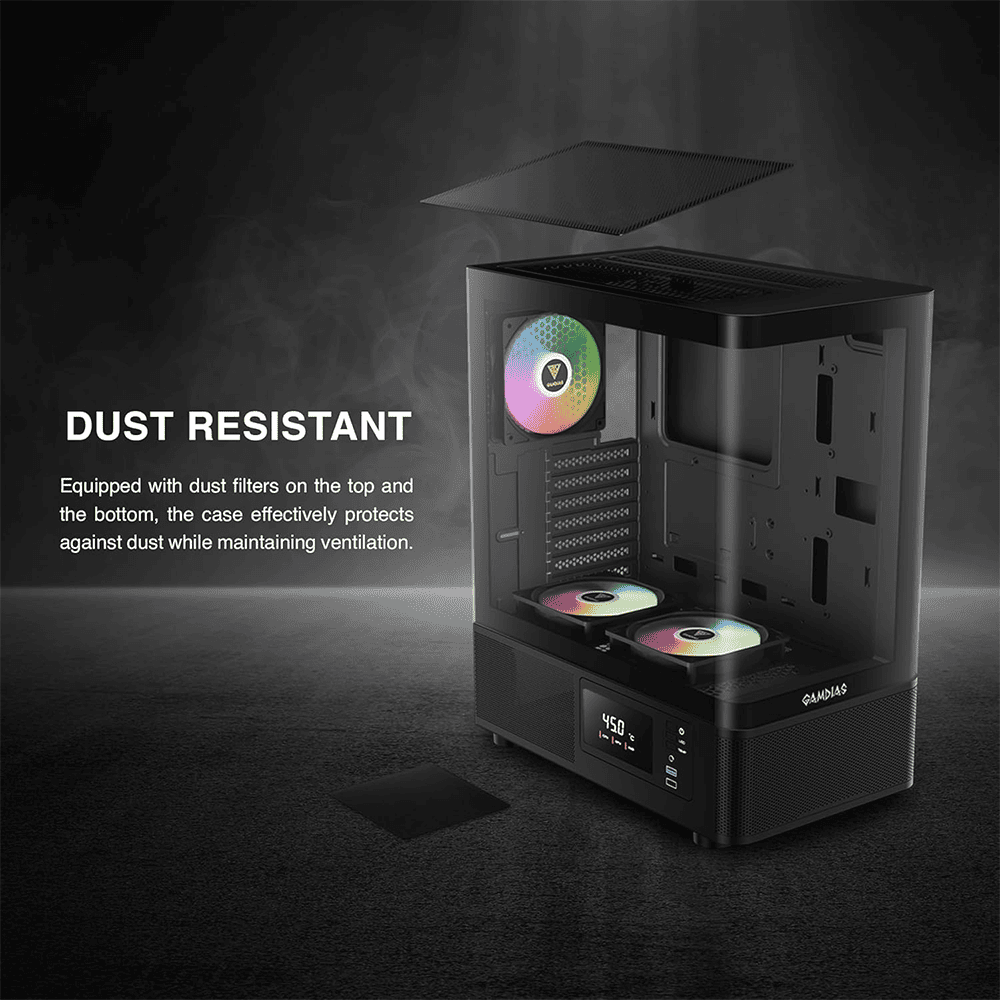

DUST RESISTANT:
- Equipped with dust filters on the top and the bottom, the case effectively protects against dust while maintaining ventilation.

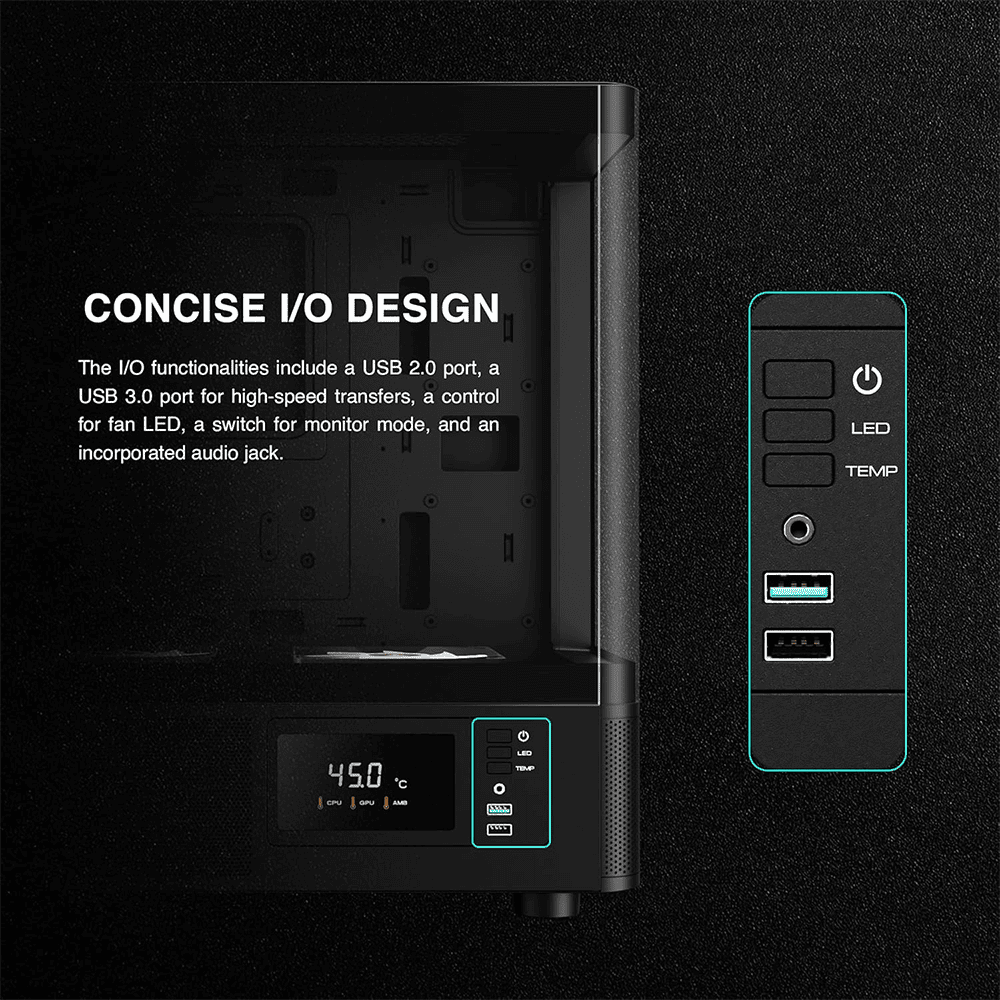

CONCISE I/O DESIGN:
- The I/O functionalities include a USB 2.0 port, a USB 3.0 port for high-speed transfers, a control for fan LED, a switch for monitor mode, and an incorporated audio jack.
Product Details:
Model:
- ATLAS E2 CG WH
Case Type:
- MID Tower
MB Support:
- ATX
- Micro-ATX
- Mini-ITX
Expansion Slots:
- 7
Radiator Support:
- Top: 240mm
- Rear: 120mm
Fan Support:
- Top: 2 x 120mm or 2 x 140 mm
- Rear: 1 x 120mm
Pre-installed Fans:
- PSU Shroud: 2 x 120mm ARGB Fans
- Rear: 1 x 120mm ARGB Fan
Drive Bays:
- 2 x 3.5" or 1 x 2.5" + 1 x 3.5"(HDD Cage)
- 3 x 2.5"
I/O Port:
- 1 × USB 3.0
- 1 × USB 2.0
- 1 × HD Audio
- 1 × LED Switch
- 1 × Monitor Mode Switch
Clearance:
- CPU cooler height limitation: 160mm
- VGA length limitation: 340mm
- PSU length limitation: 180mm
Dimension (L x W x H):
- 375 x 230 x 465 mm
Part Number:
- Black: 16331-929E3-30000-G
- White: 16331-92A23-30000-G
