Product Features :
- The MasterFrame 700 is a highly customizable open-air frame that can convert between a showcase PC chassis or a highly flexible test bench.

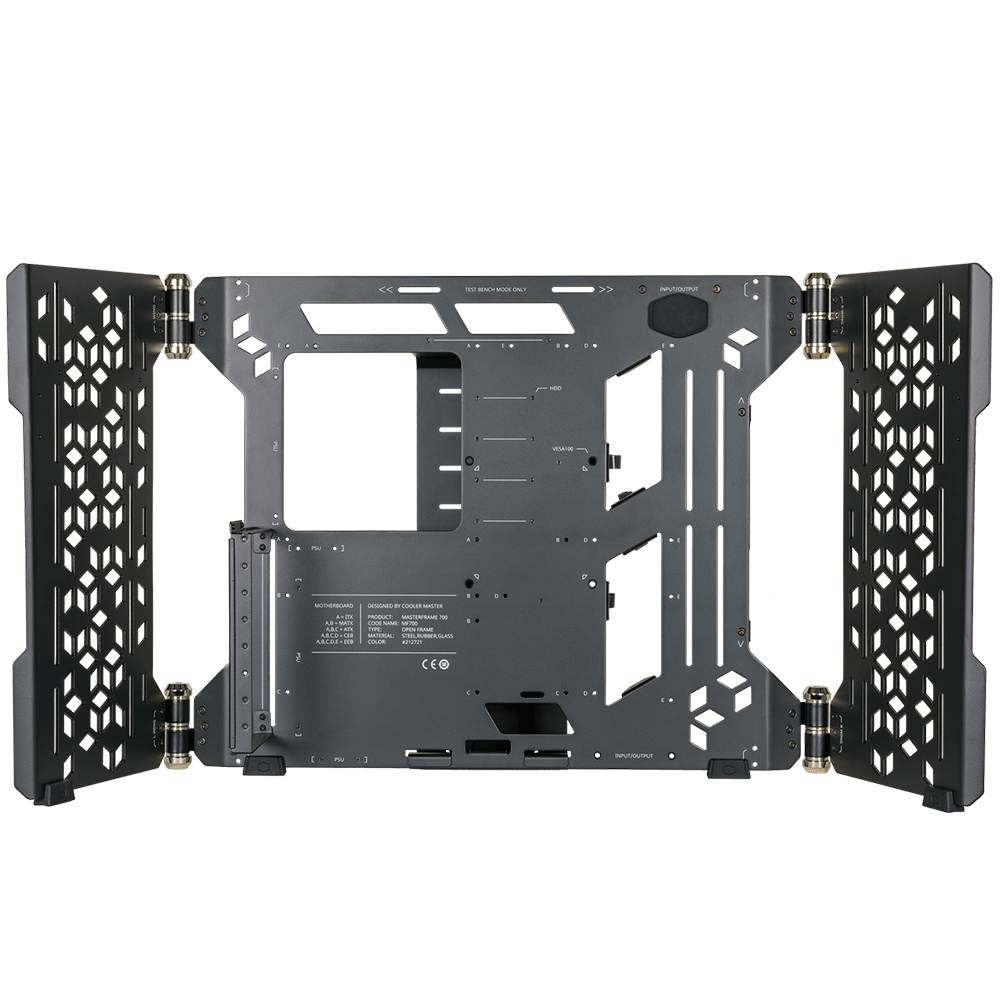

- MasterFrame 700 features a 3-part design consisting of two side wings and a fully featured motherboard tray.

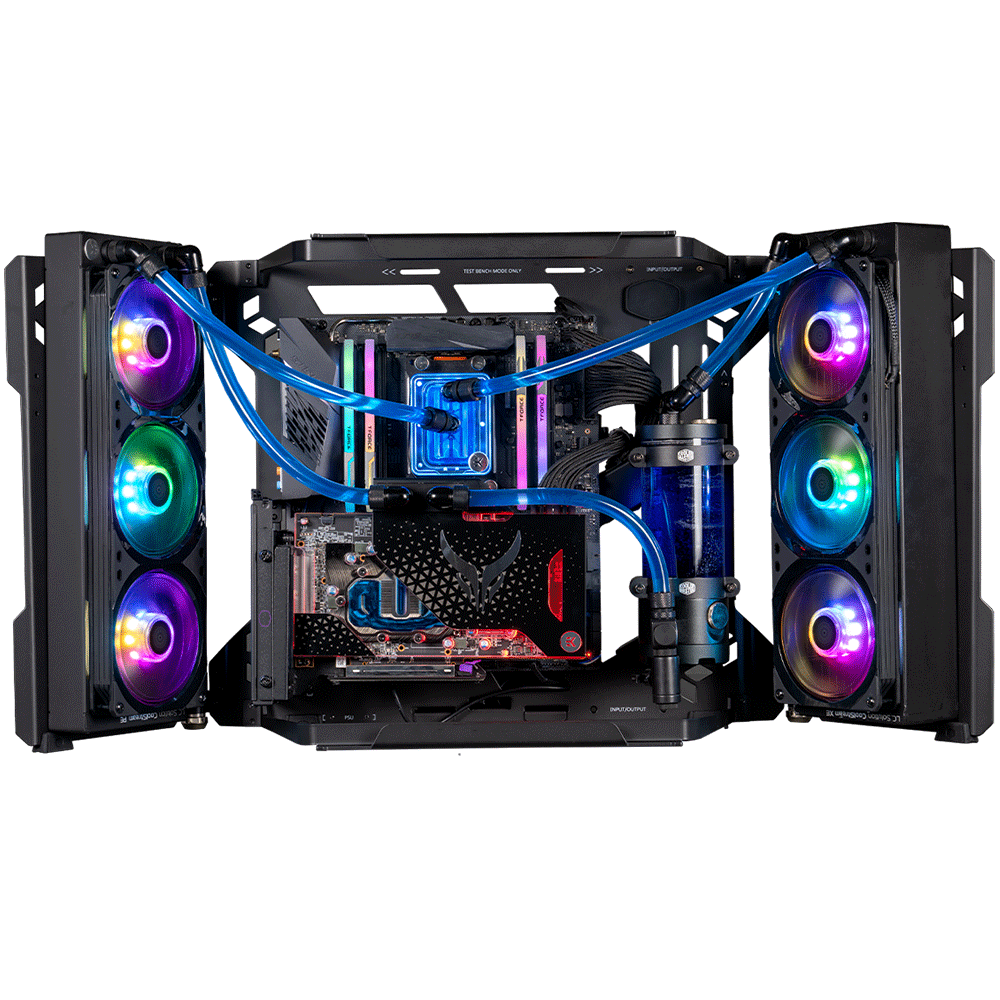

- Four specially-designed friction hinges hold the side wings to the motherboard tray, allowing both full range of motion during assembly and stability when built, perfect for custom water-cooling loops.

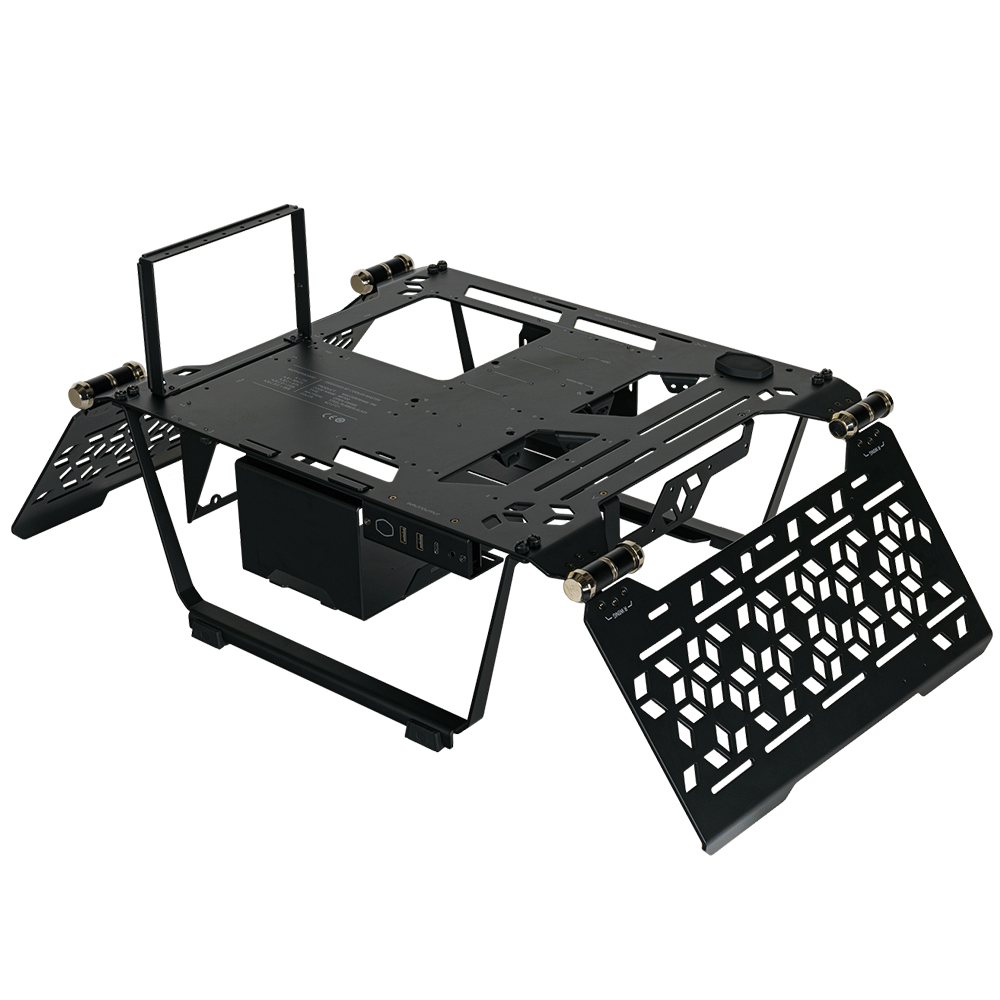

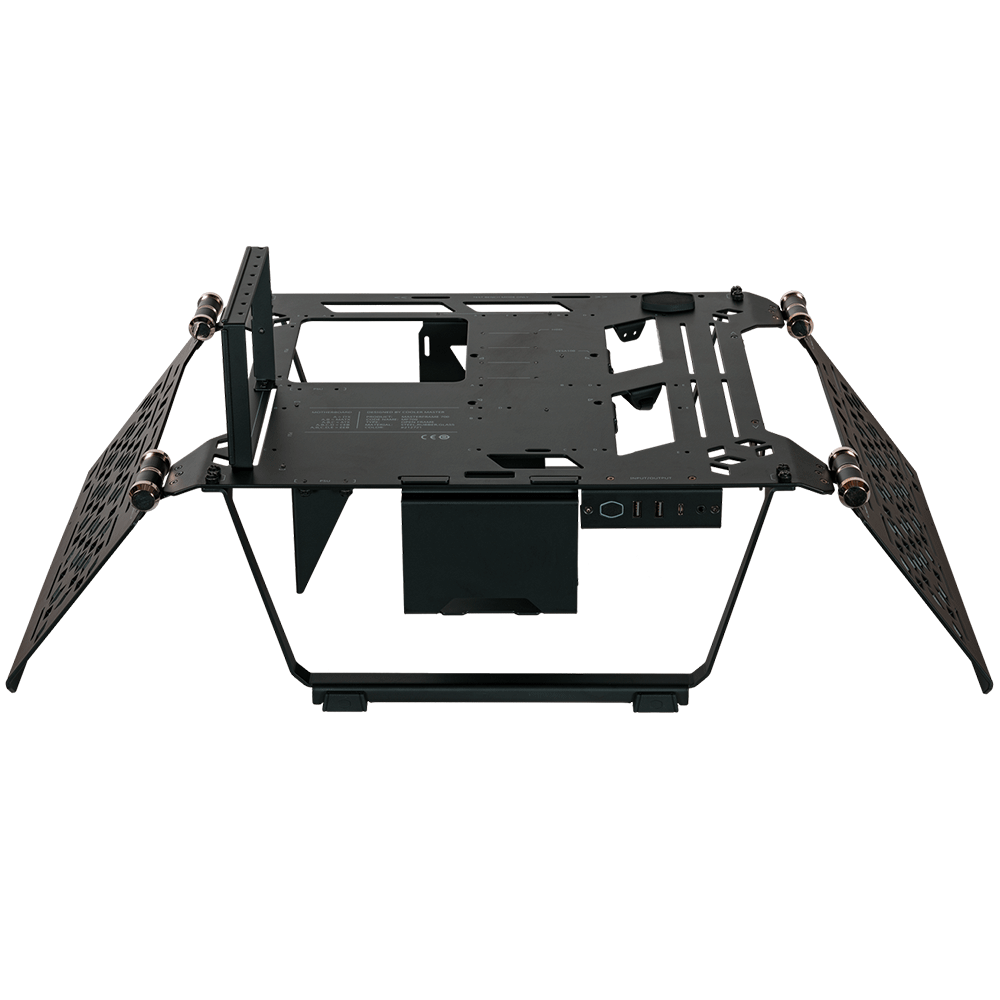

- TEST BENCH MODE : The side wings can fold down towards the CPU socket and GPU areas to allow to localize the airflow to the components, especially useful when overclocking. The wings also serve as spots to hold triple-fan radiators and other accessories, and thanks to their full range of mobility, swapping components while keeping the cooling solution in place is now easier than ever.
- OPEN-AIR FRAME MODE : The MasterFrame 700 stands vertically to best display the components behind its panoramic tempered glass screen. The chassis offers an unmatched level of hardware compatibility, allowing for easy-fitting of oversized components.
- For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.
- Double support for ATX power supplies is available on the back, for systems that need double power supply and to cover every need during extreme overclocking sessions.
Product details:
- Model Number : MCF-MF700-KGNN-S00
- Case Form Factor : Full Tower
- Dimensions (L x W x H): 702 x 306 x 410 mm
- Weight: 12.15 Kg
- Motherboard Support: Mini-ITX | MicroATX | ATX | E-ATX | XL-ATX
- Expansion slots: 8
- Hard disk (HDD) support: Up To 4
- Card Support (SSD) : 7
- I/O Panel : 2x USB 3.1 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
- Pre-installed fans : N/A
- Fan Support - Right Side: 3x 120mm, 3x 140mm
- Fan Support - Left side : 3x 120mm, 3x 140mm
- Radiator Support - Top : Up to 360mm/420mm
- Radiator Support - Front : Up to 360/420mm
- Radiator support Right side : Up to 280/360mm
- Radiator support Left side : UP to 280/360mm
- Maximum height of CPU cooler: 158mm
- Power Supply Support (PSU): 2x ATX 210mm
- Graphics card support: 450mm
