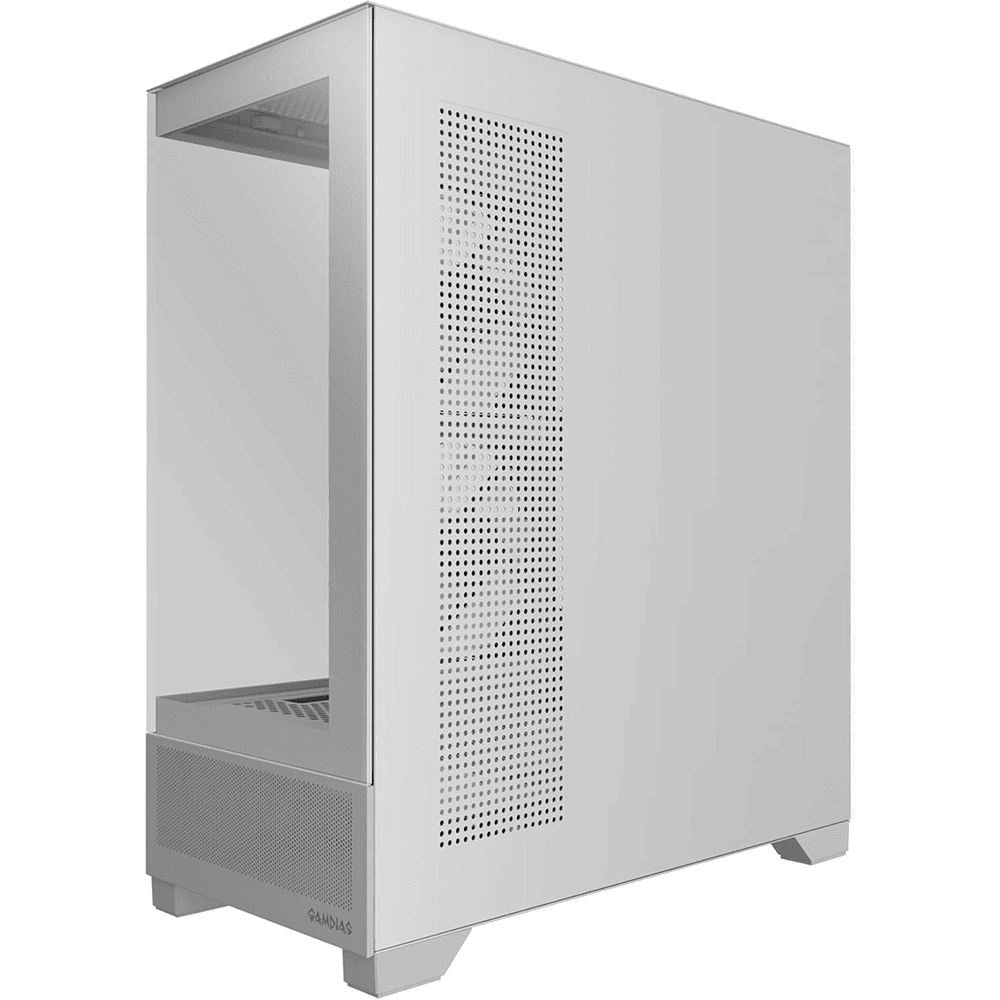

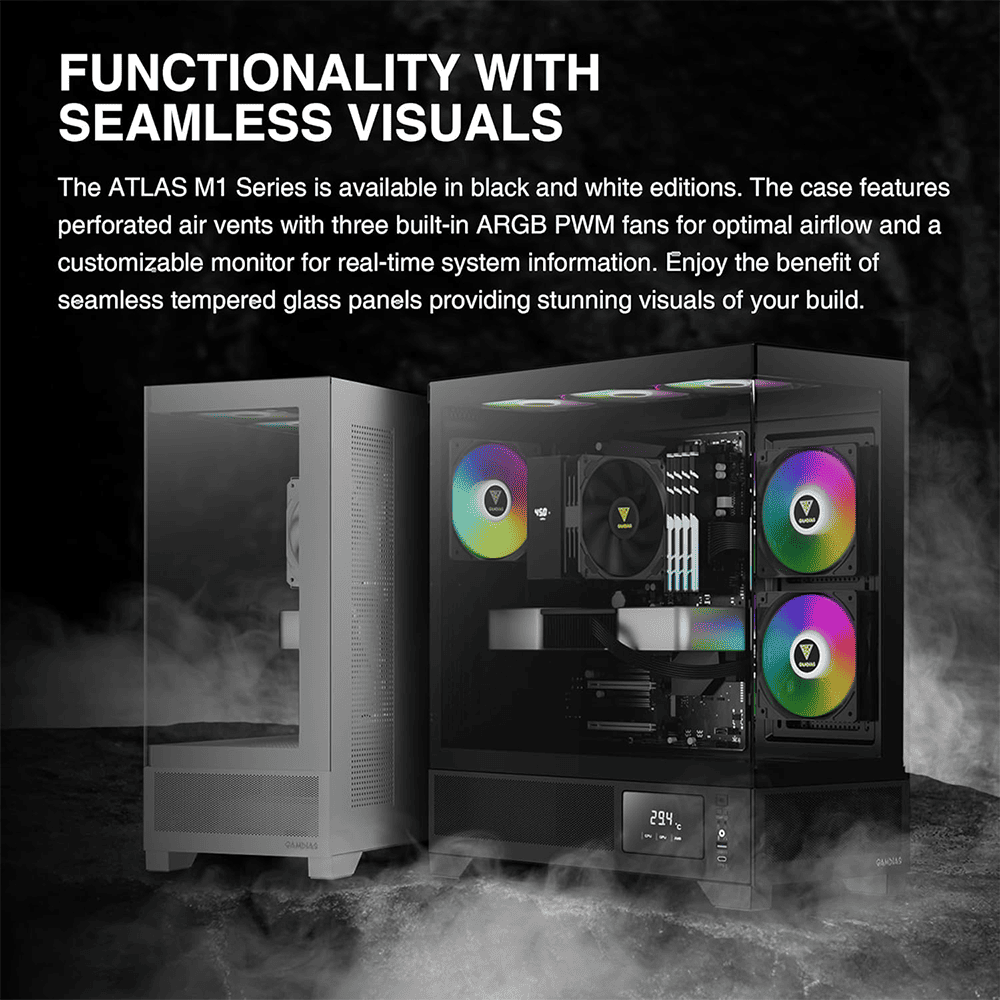

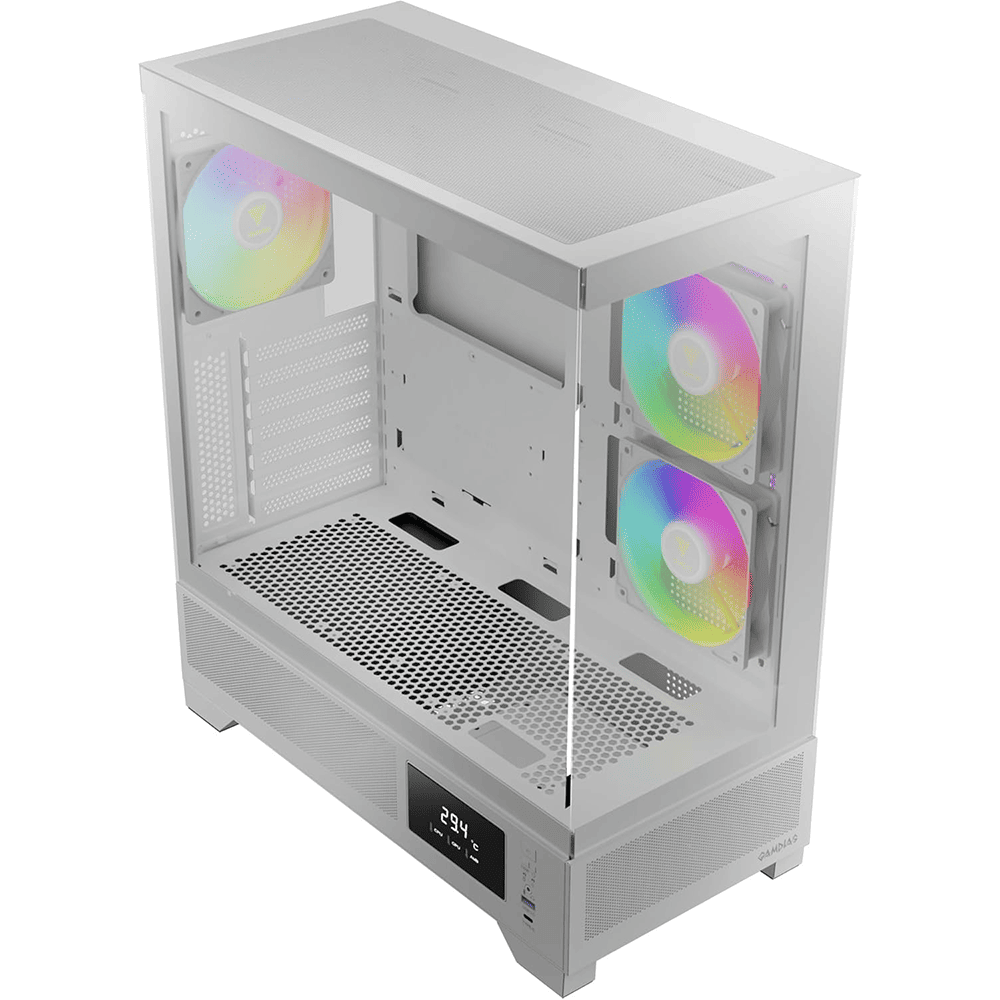

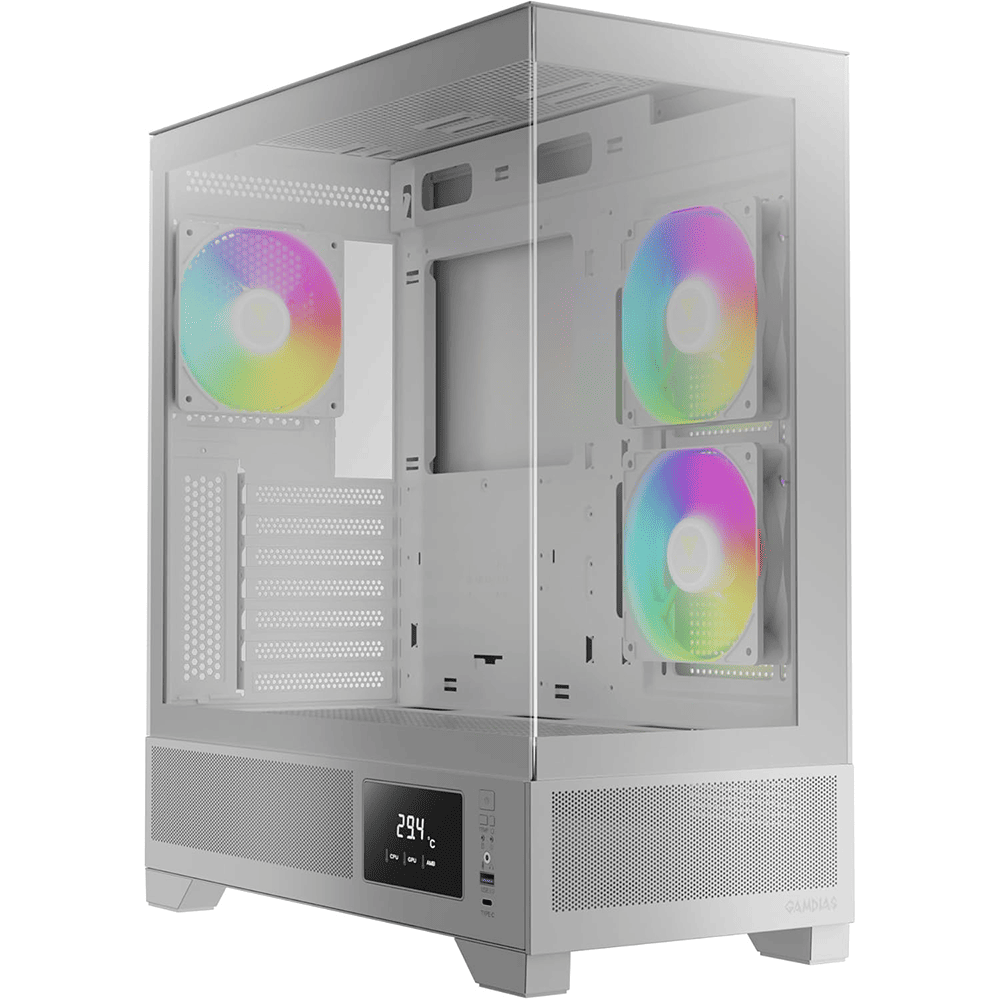

FUNCTIONALITY WITH SEAMLESS VISUALS:

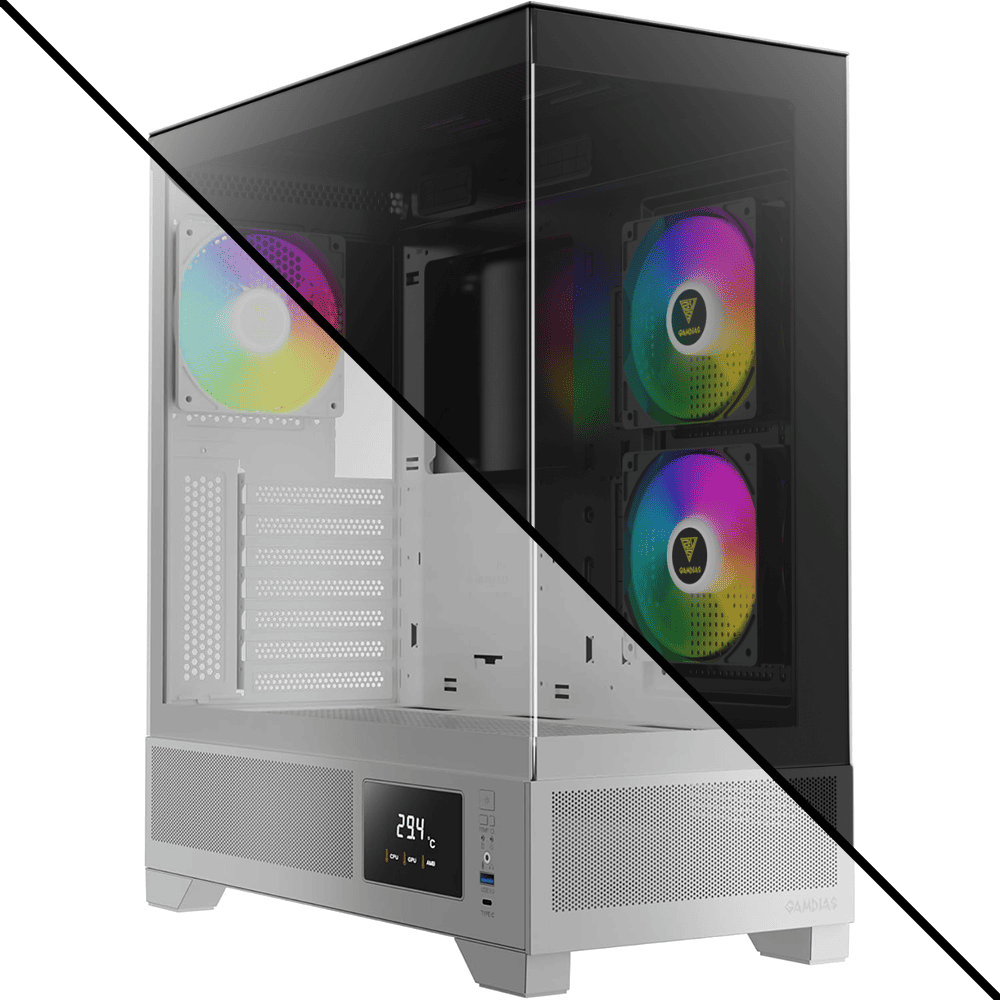

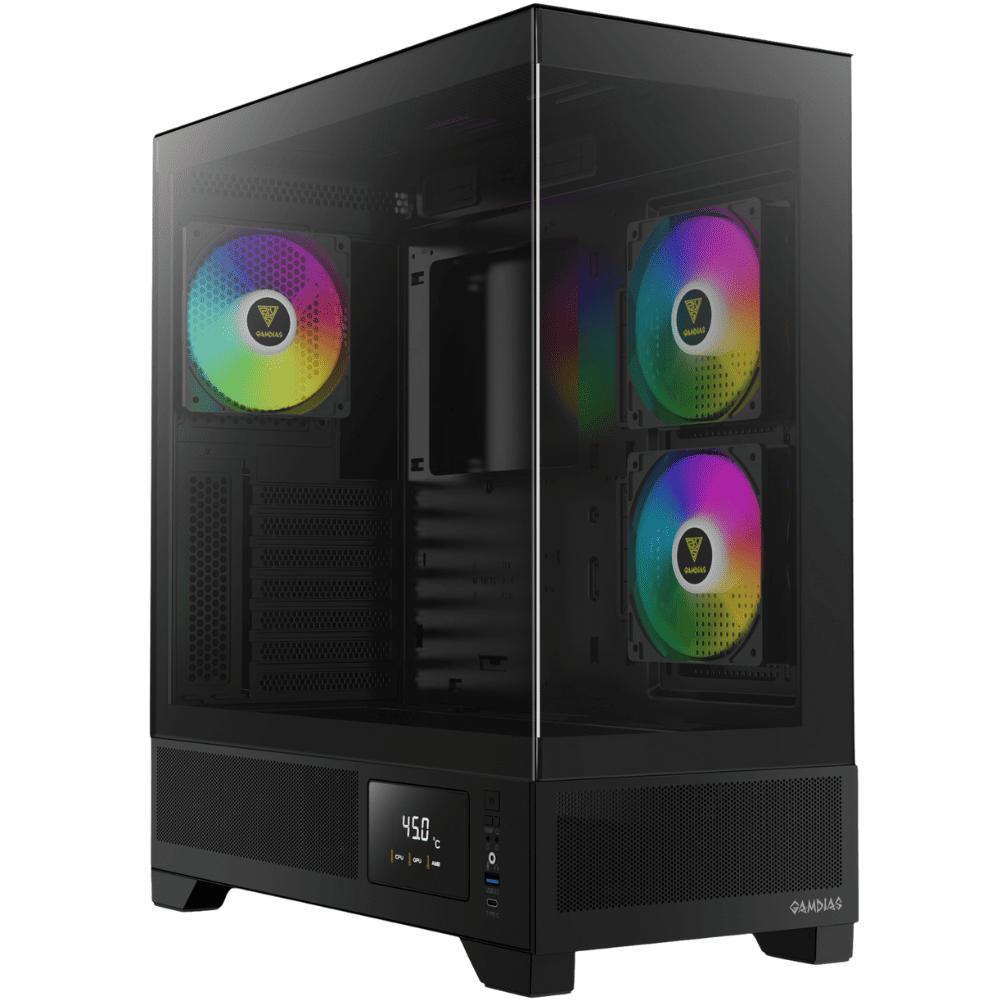

- The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.
POWERFUL VENTILATION:
- The ATLAS M1 is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.

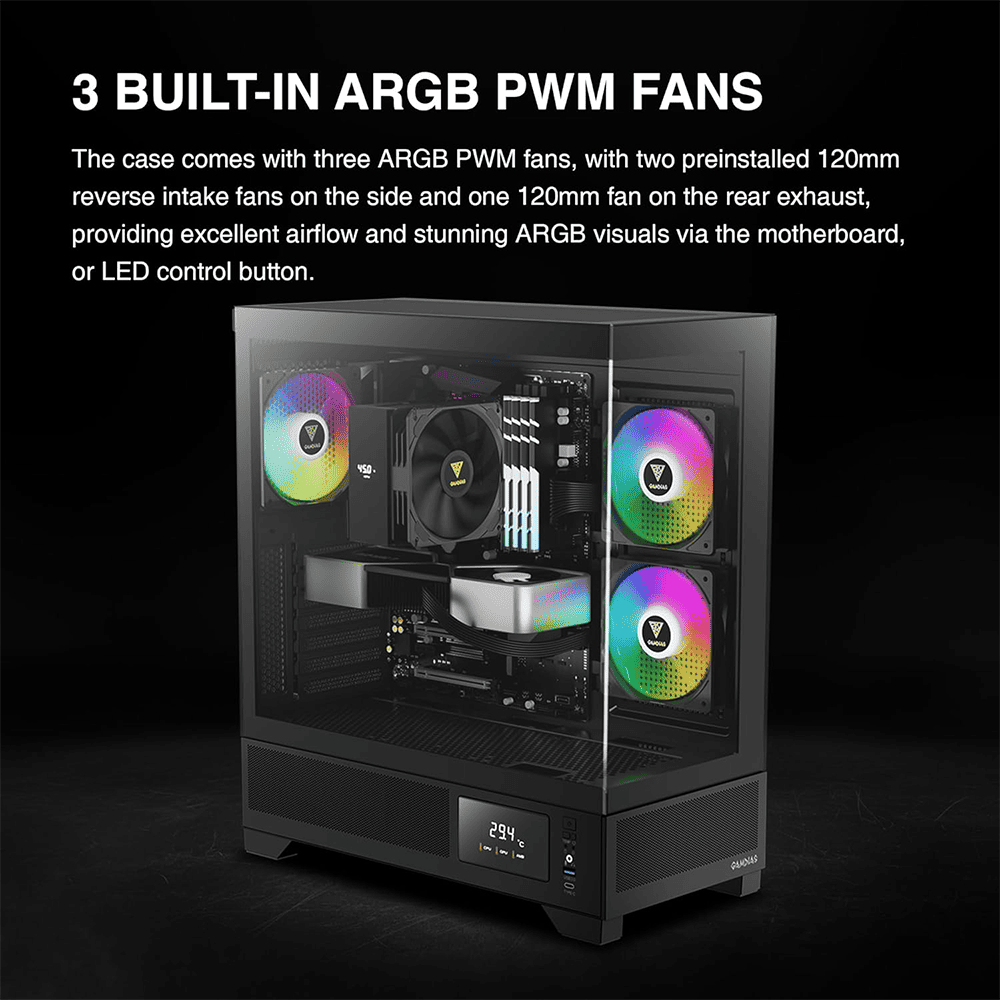

3 PRE-INSTALLED ARGB PWM FANS WITH BUILT-IN FAN HUB:
- Featuring three built-in PWM ARGB fans, the case can provide exceptional lighting and fine-tuned airflow. Additionally, it includes a 6-port PWM ARGB fan hub, allowing for easy management and synchronization, ensuring a cohesive lighting setup.

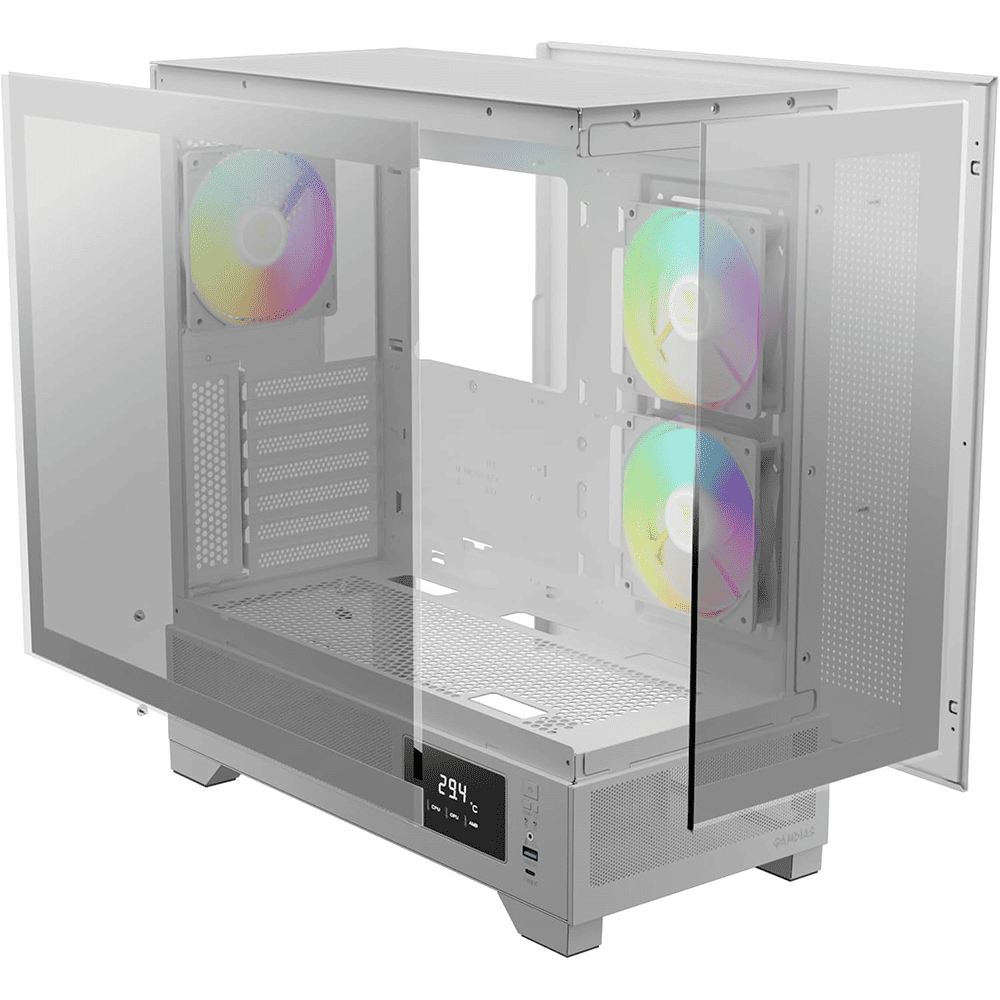

BREATHTAKING VISUALS:
- The ATLAS M1 provides a perfect view of all your components with its seamless glass panels equipped with a clasp mechanism for simple glass removal. The case excels in not only visuals but improves on the user's modding experience.

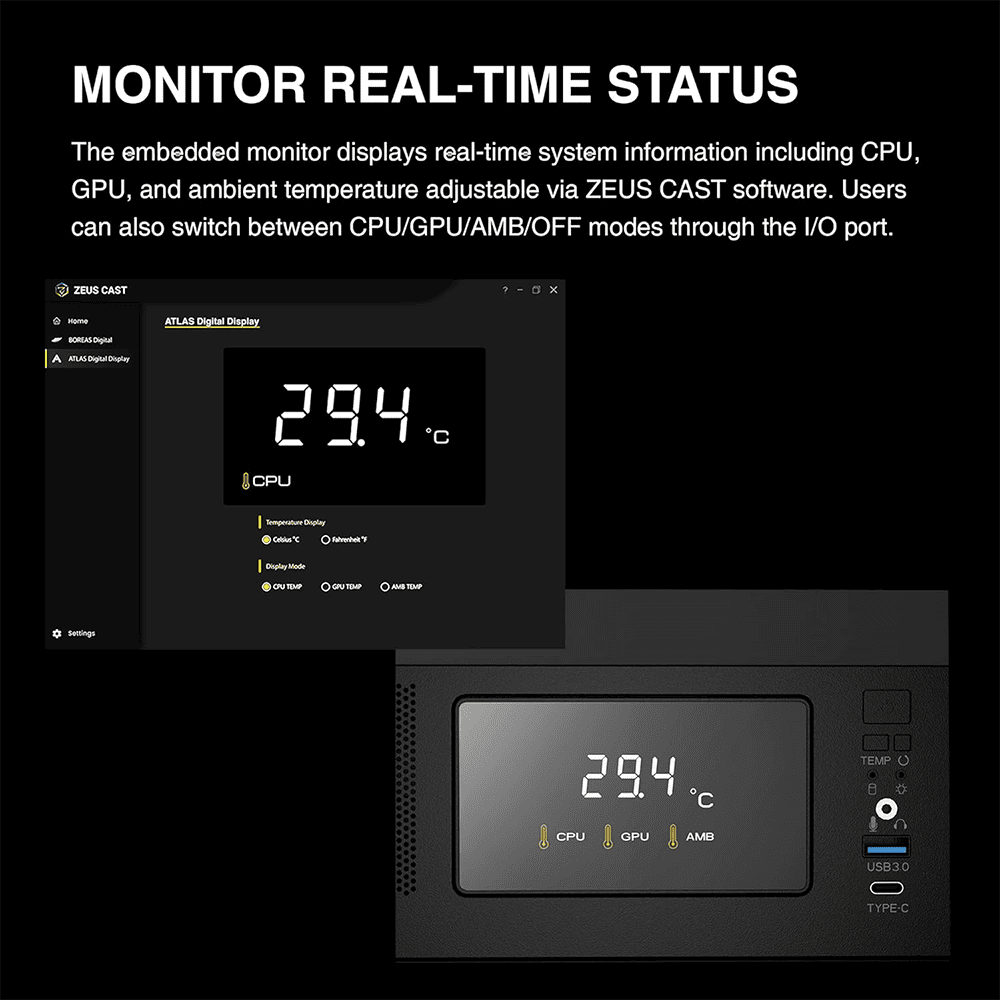

MONITOR REAL-TIME STATUS:

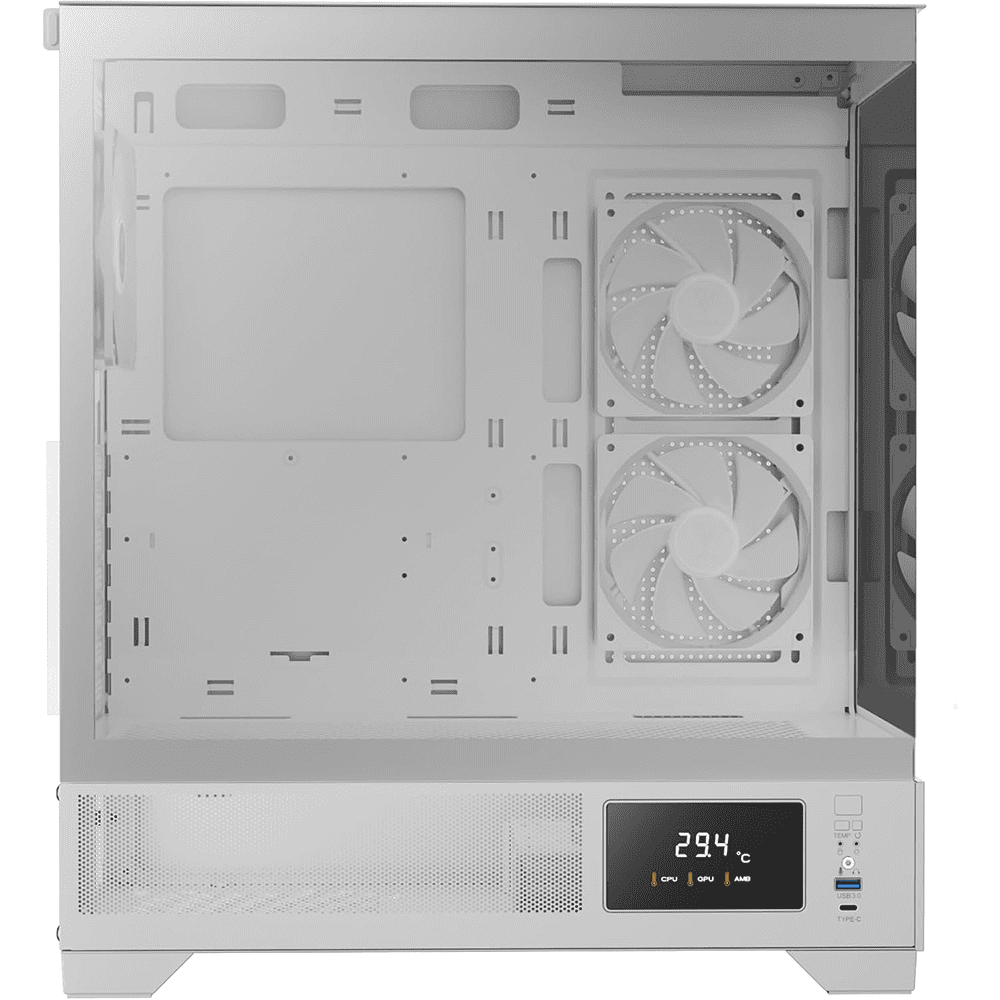

- The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.

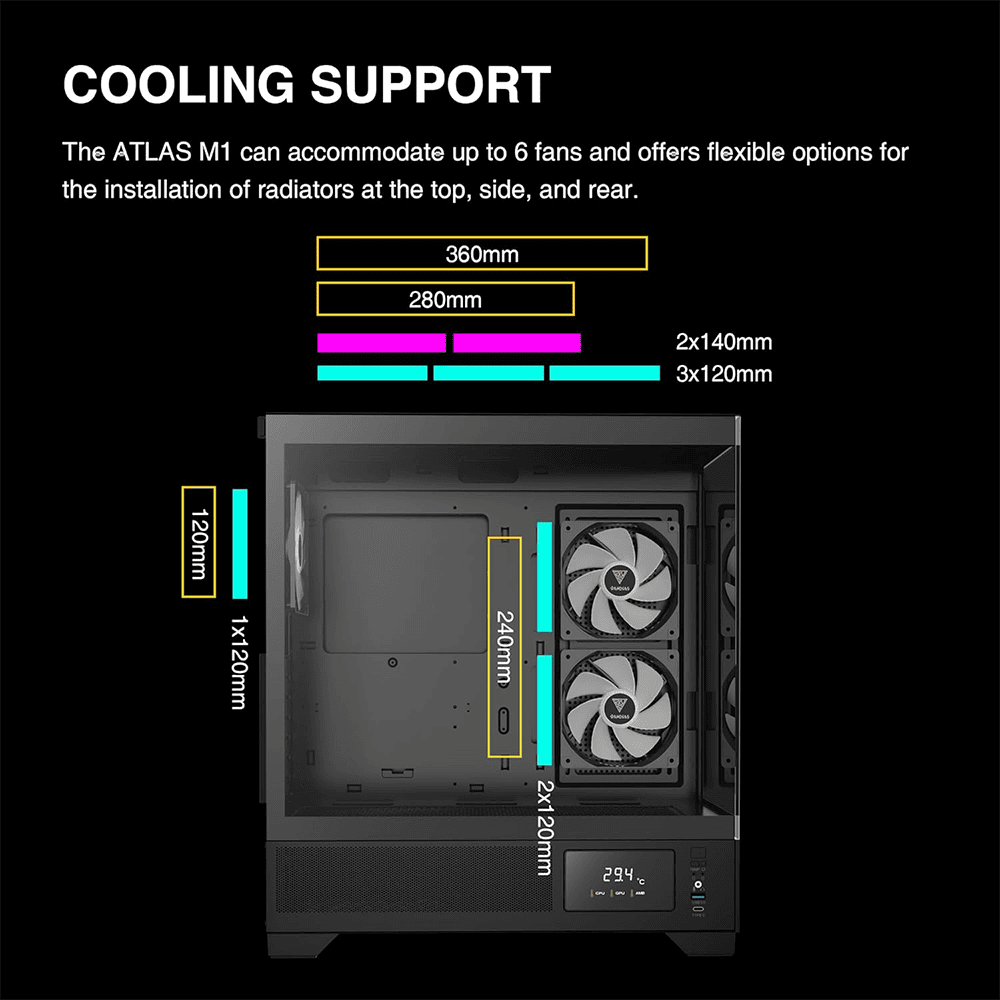

COOLING SUPPORT:
- The ATLAS M1 can accommodate up to 6 fans and offers flexible options for the installation of radiators at the top, side, and rear.

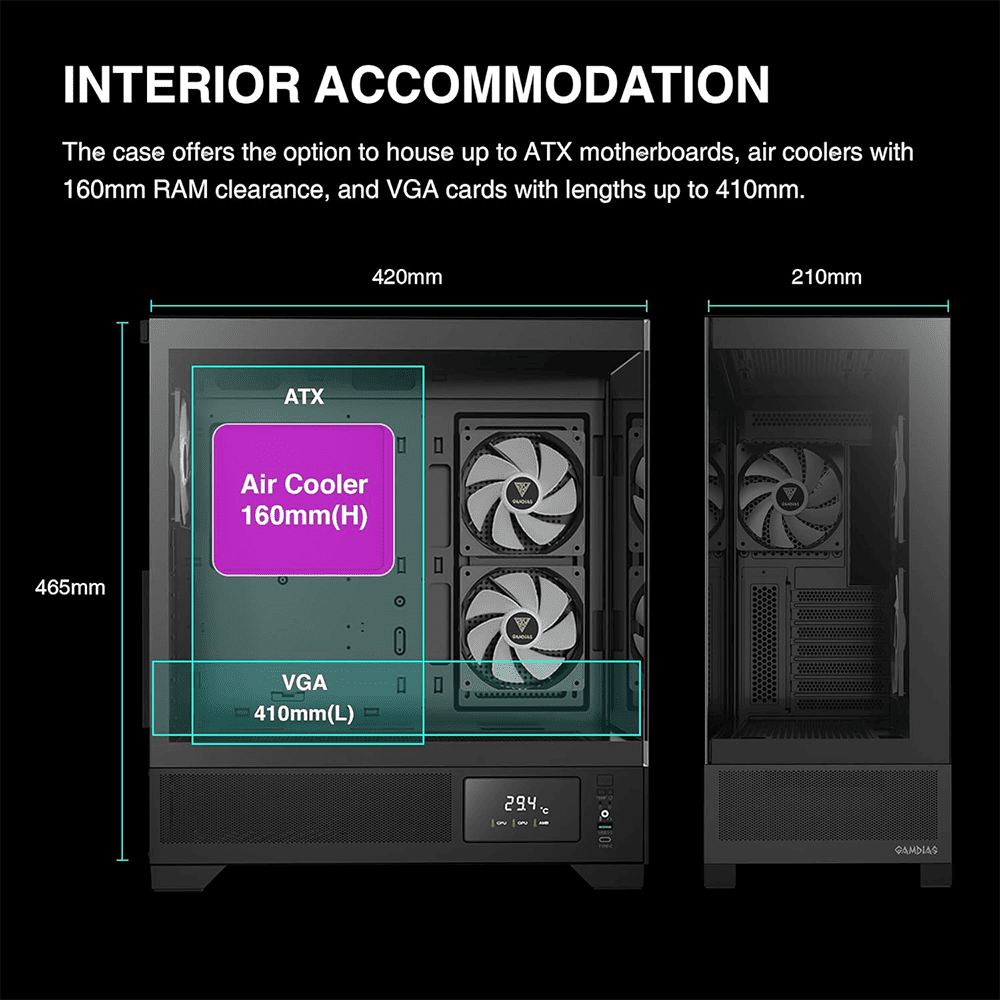

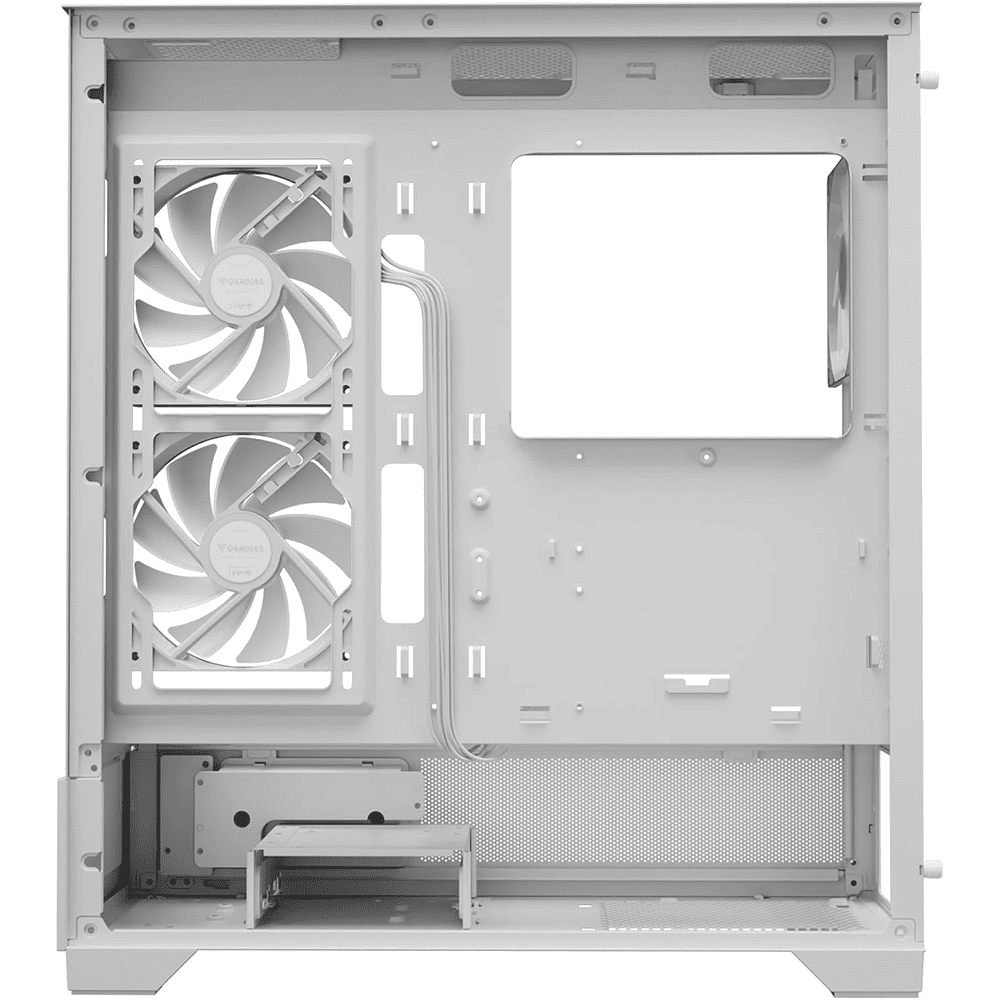

INTERIOR ACCOMMODATION:
- The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.
STORAGE COMPATIBILITY:
- The ATLAS M1 Series supports installation of up to 4x 2.5" or 3 x 2.5" + 1x 3.5" and can accommodate PSU lengths up to 180mm.
DUST RESISTANT:
- Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.

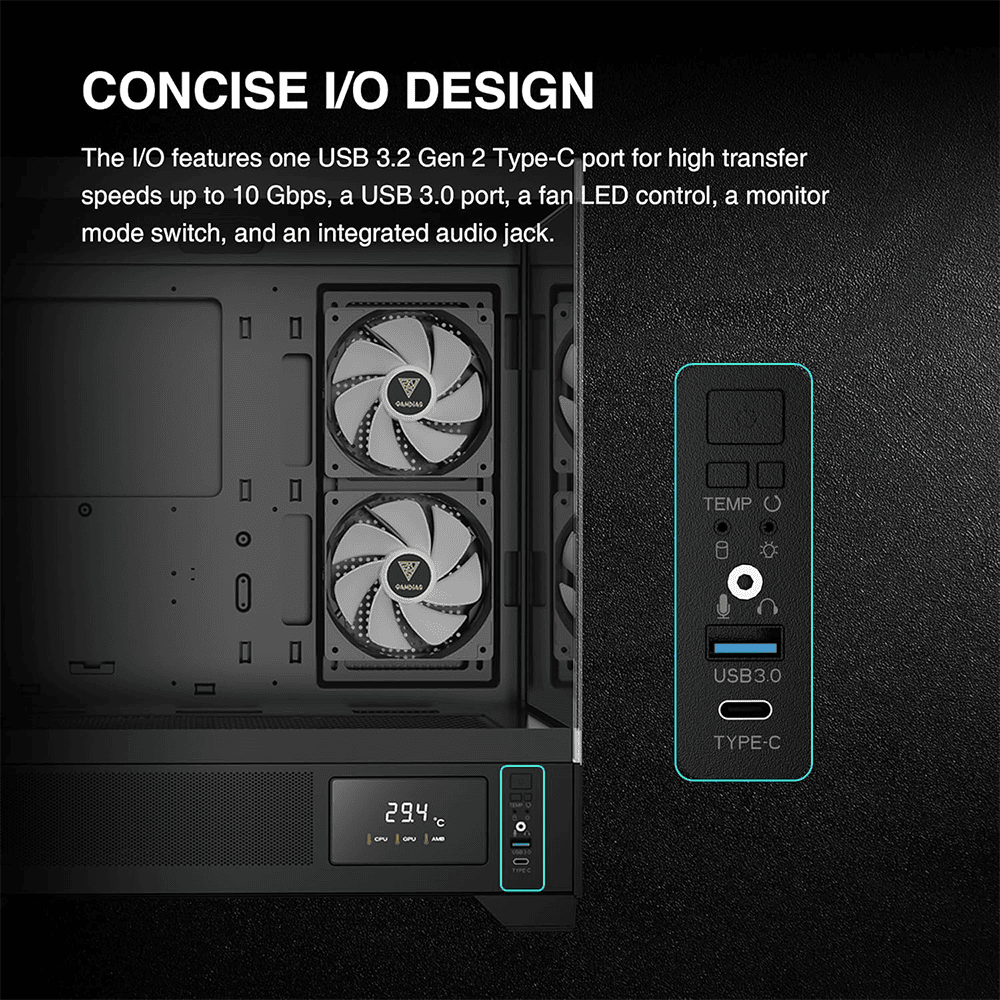

CONCISE I/O DESIGN:
- The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
Product Details:
Model:
- ATLAS M1
Case Type:
- MID Tower
MB Support:
- ATX
- Micro-ATX
- Mini-ITX
Expansion Slots:
- 7 + 2
Radiator Support:
- Top: 360mm or 280mm
- Side: 240mm
- Rear: 120mm
Fan Support:
- Top: 3 x 120mm or 2 x 140 mm
- Side: 2 x 120mm
- Rear: 1 x 120mm
Pre-installed Fans:
- Side: 2 x 120mm ARGB Fans
- Rear: 1 x 120mm ARGB Fan
Drive Bays:
- 2 x 3.5" or 1 x 2.5" + 1 x 3.5"(HDD Cage)
- 2 x 2.5"
I/O Port:
- 1 × USB 3.0
- 1 × Type C
- 1 × HD Audio
- 1 × LED Control
- 1 × Monitor Mode Switch
Clearance:
- CPU cooler height limitation: 160mm
- VGA length limitation: 410mm
- PSU length limitation: 180mm
Dimension (L x W x H):
- 420 x 210 x 465 mm
Part Number:
- Black: 16333-248A3-40000-G
- White: 16333-248B3-40000-G
