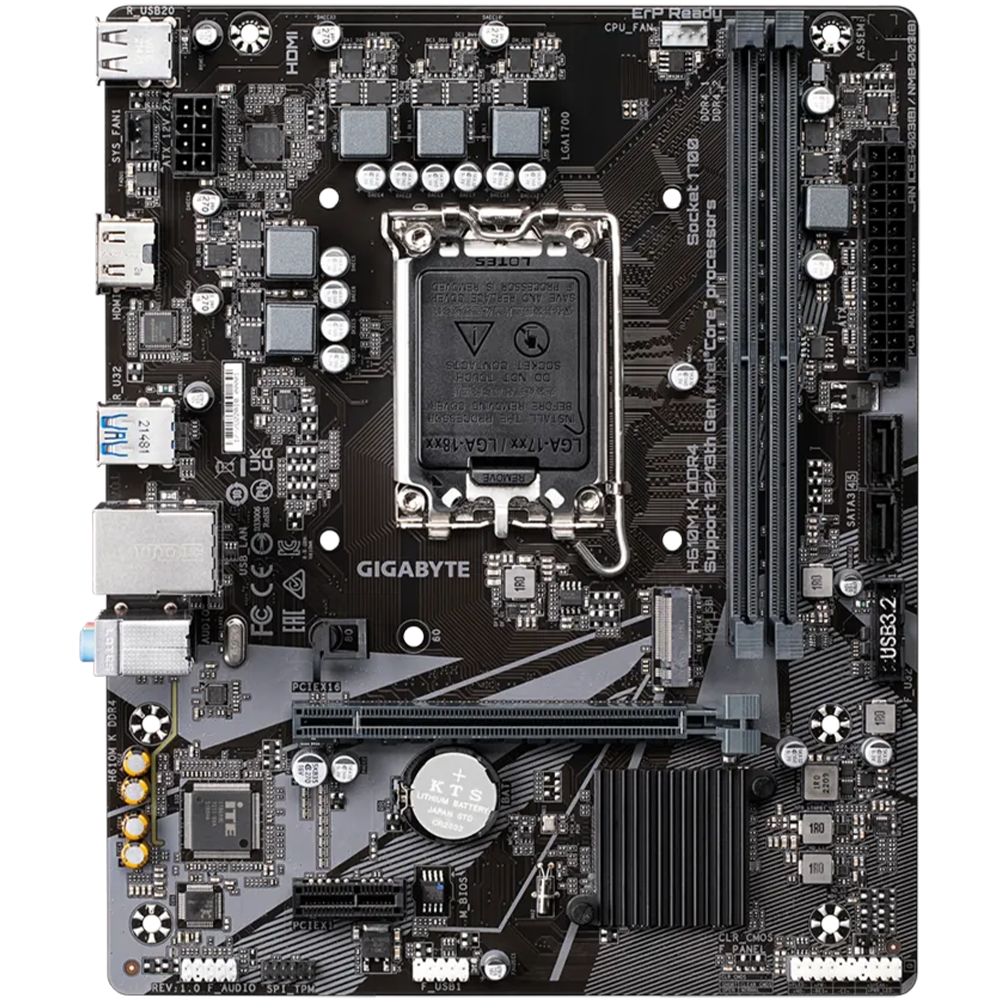

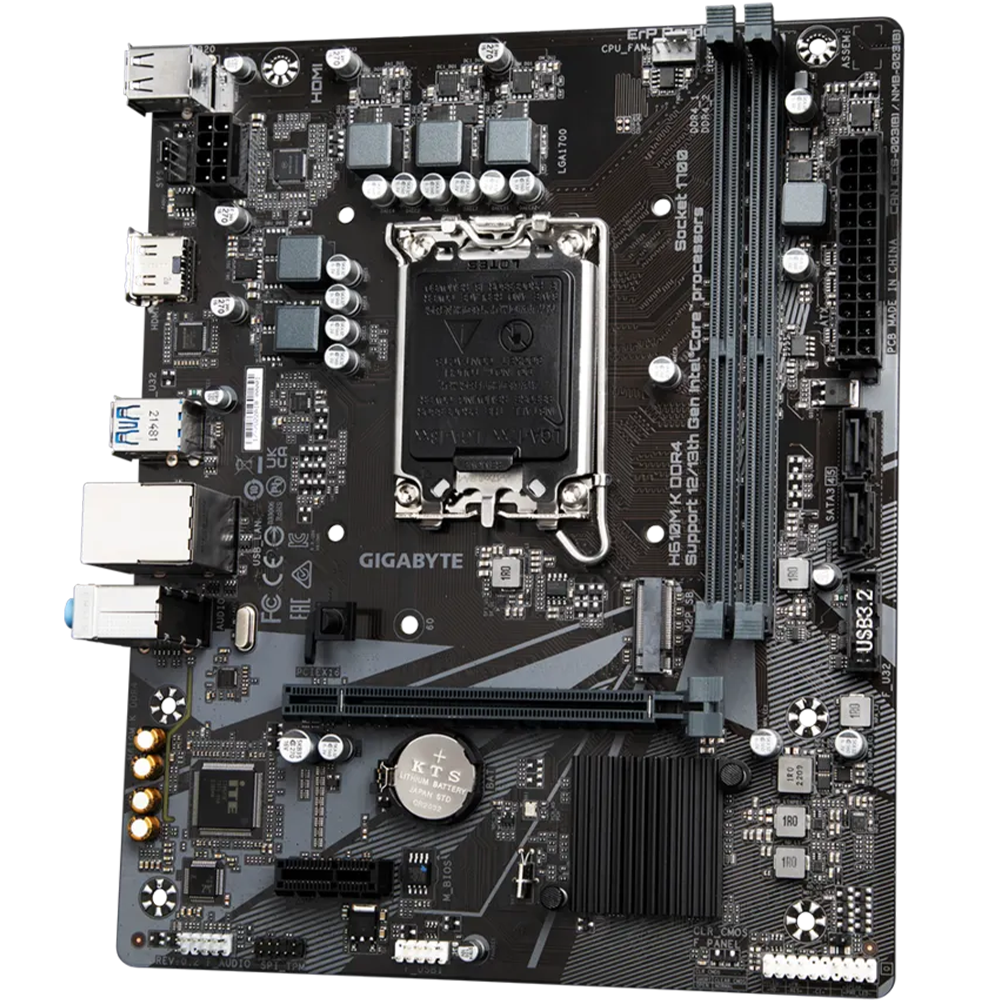

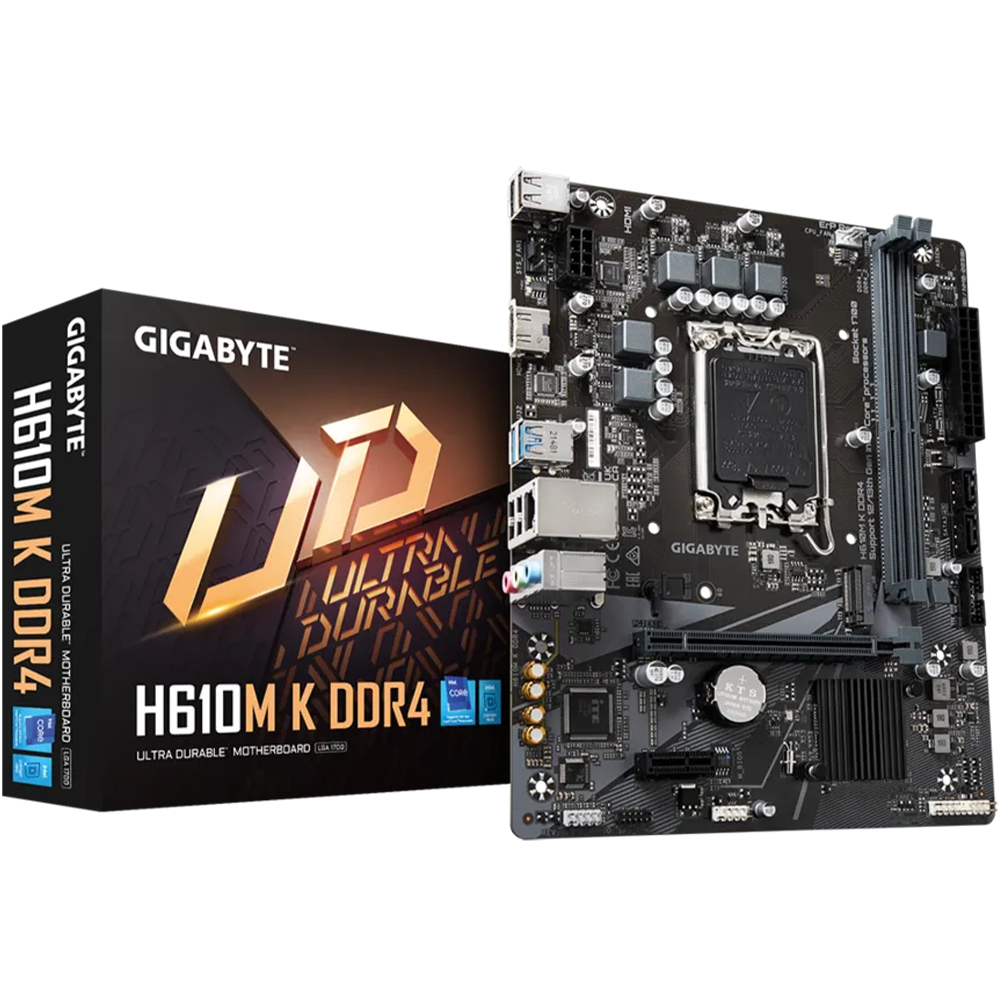

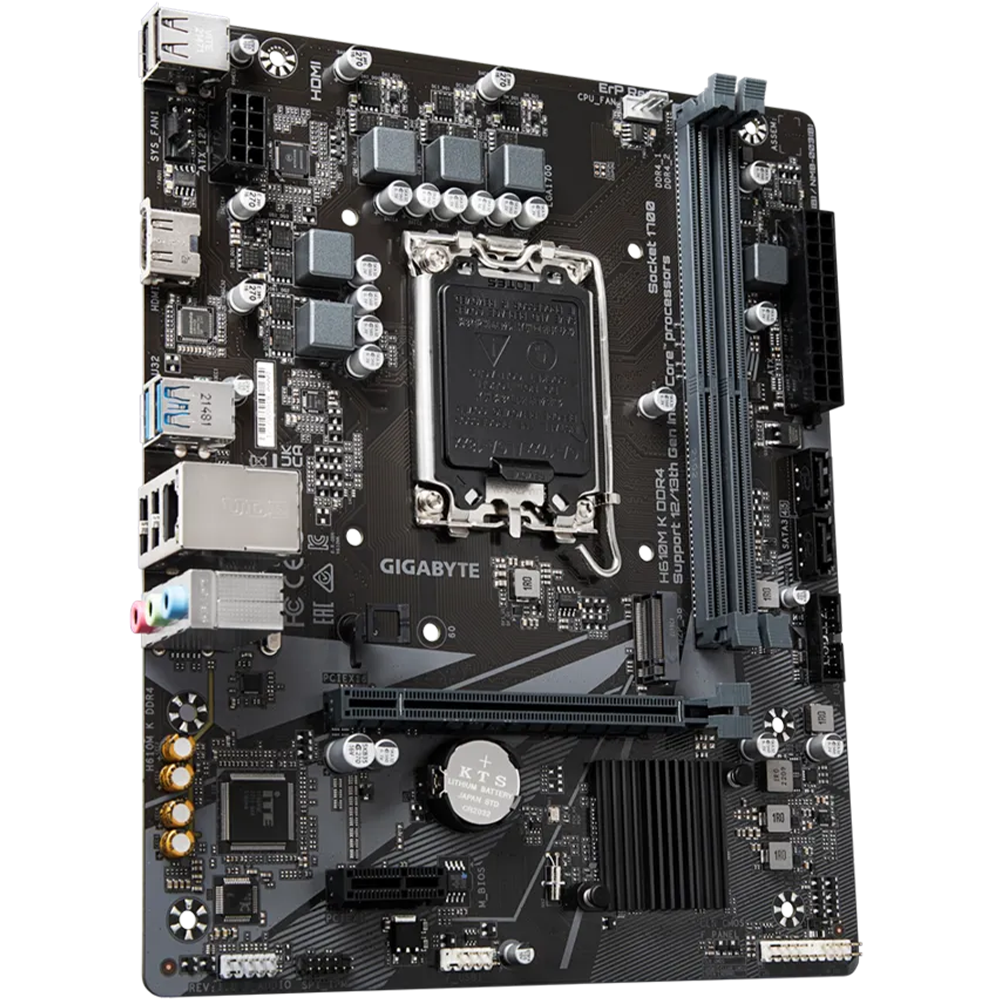

GigaByte H610M K DDR4 LGA1700 Socket For Intel CPUs Motherboard

• Supports Intel Core 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
• GbE LAN with Bandwidth Management​
• NVMe PCIe 3.0 x4 M.2​
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
• GIGABYTE APP Center, Simple and Easy Use​
• Anti-Sulfur Resistors Design​

Product Details:

CPU:

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• L3 cache varies with CPU

Chipset:

• Intel H610 Express Chipset

Memory:

• Support for DDR4 up to 3200MT/s
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for Extreme Memory Profile (XMP) memory modules

Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN:

• Realtek GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots:

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

• 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface:

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 2 x SATA 6Gb/s connectors

USB:

Chipset:

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

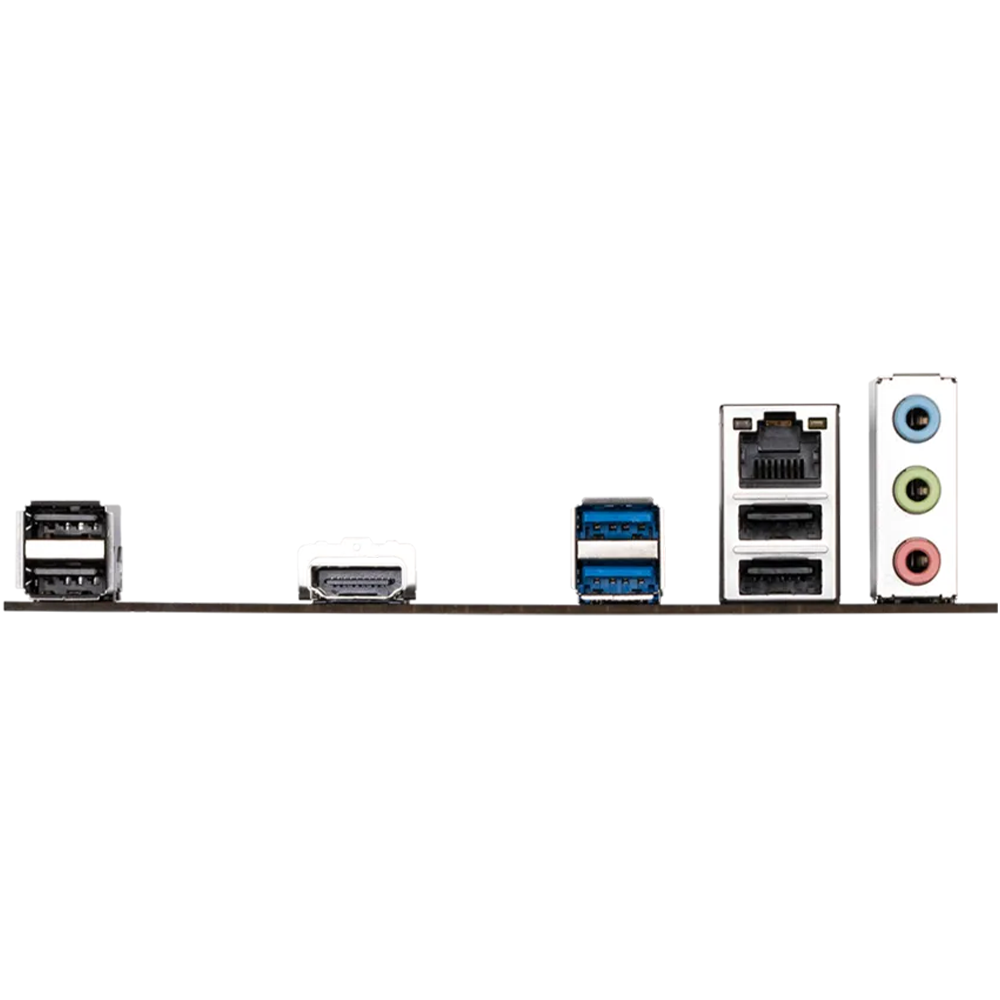

Back Panel Connectors:

• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Form Factor:

• Micro-ATX Form Factor; 22.6cm x 18.5cm

Part Number:

• H610M K DDR4
