Product Details :

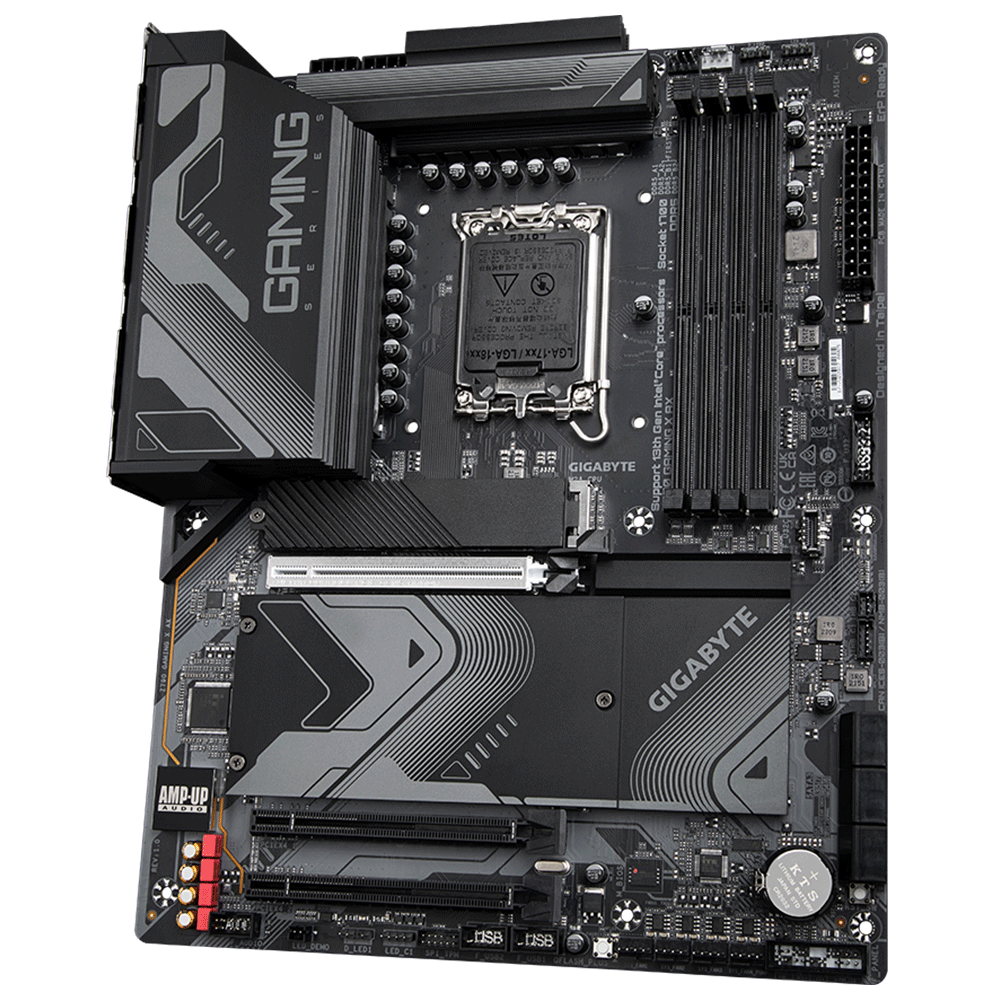

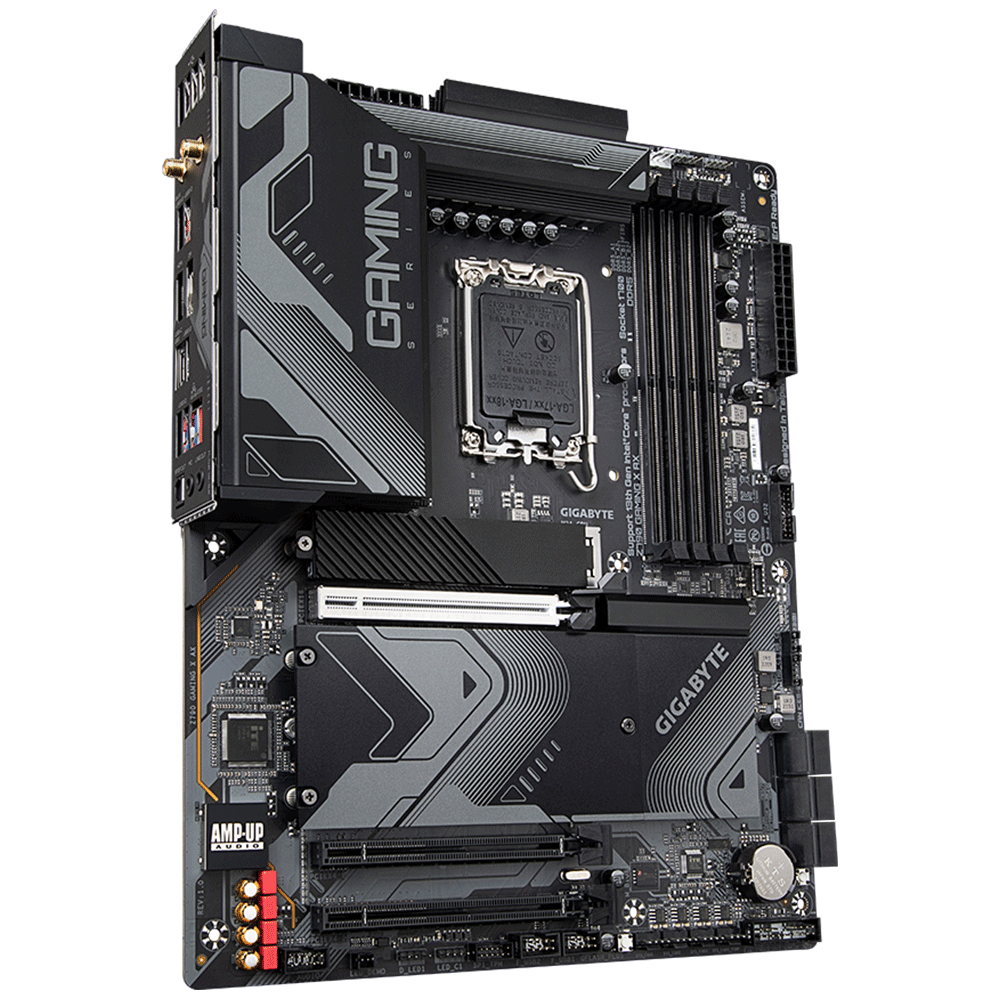

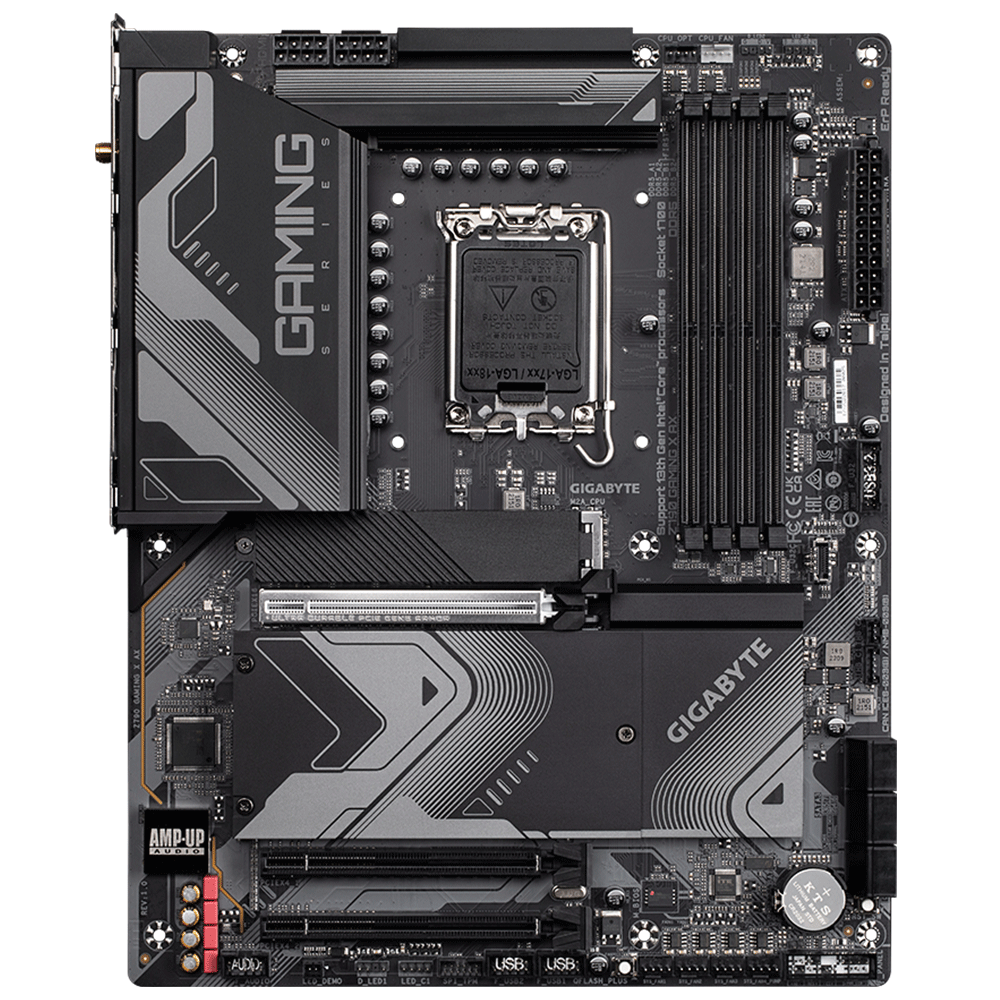

- Model : Z760 Gaming X AX
- CPU Socket : LGA1700
- CPU Type : Supports 13th Gen & 12th Gen Intel Core Processors
- Motherboard Form Factor : ATX (30.5 × 24.4 cm)
Memory :
- Quantity of RAM Slots : 4 slots Dual Channel DDR5 Memory Technology
- Memory Type : DDR5
- Maximum memory Capacity : 192 GB
- Support XMP
Audio :
- 2/4/5.1/7.1 CH HD Audio (Realtek Audio Codec)
LAN :
- 1x Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module :
Expansion slots:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
- 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage :
- 4x SATA III
- 2x M.2 Connector (PCIe Gen4 x4)
USB :
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen2x2 support
- 1 x USB Type-C port with USB 3.2 Gen2 support, available through the internal USB header
- 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

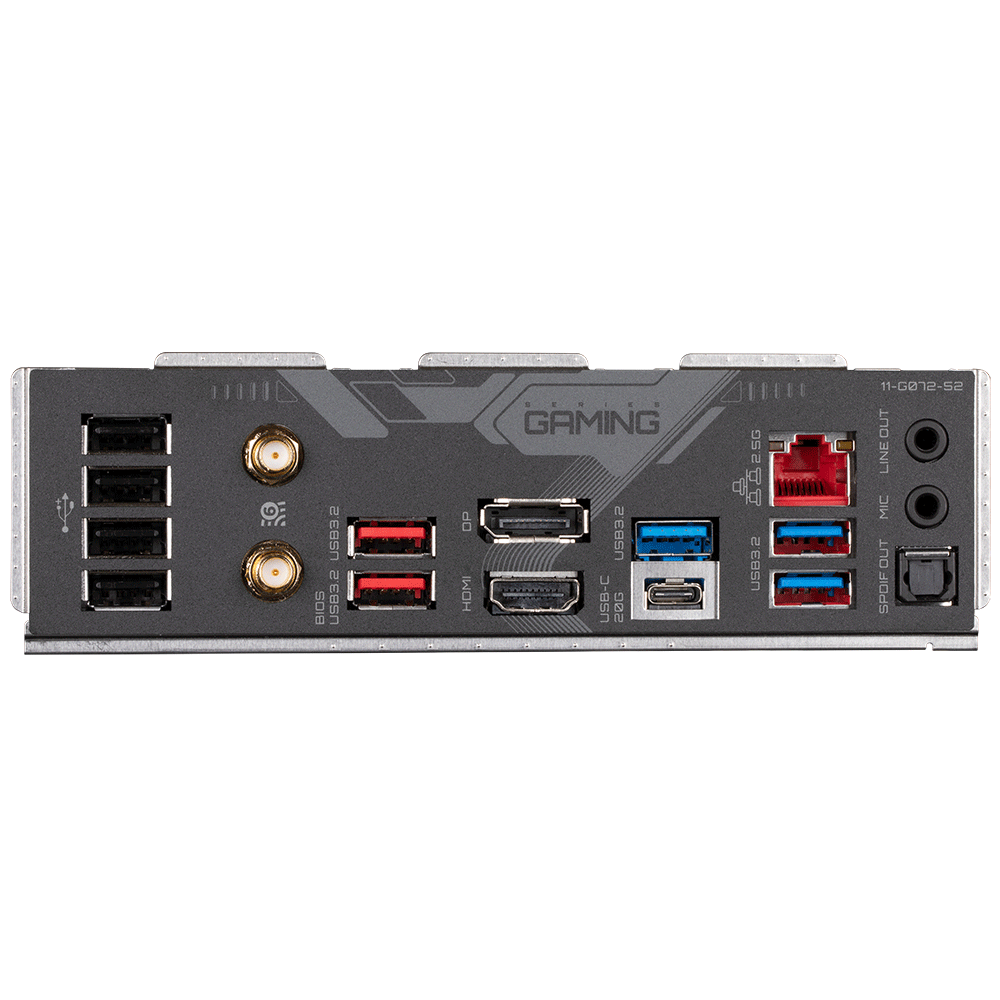

Rear Panel I/O :
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 1 x DisplayPort
- 1 x HDMI 2.0 port
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
