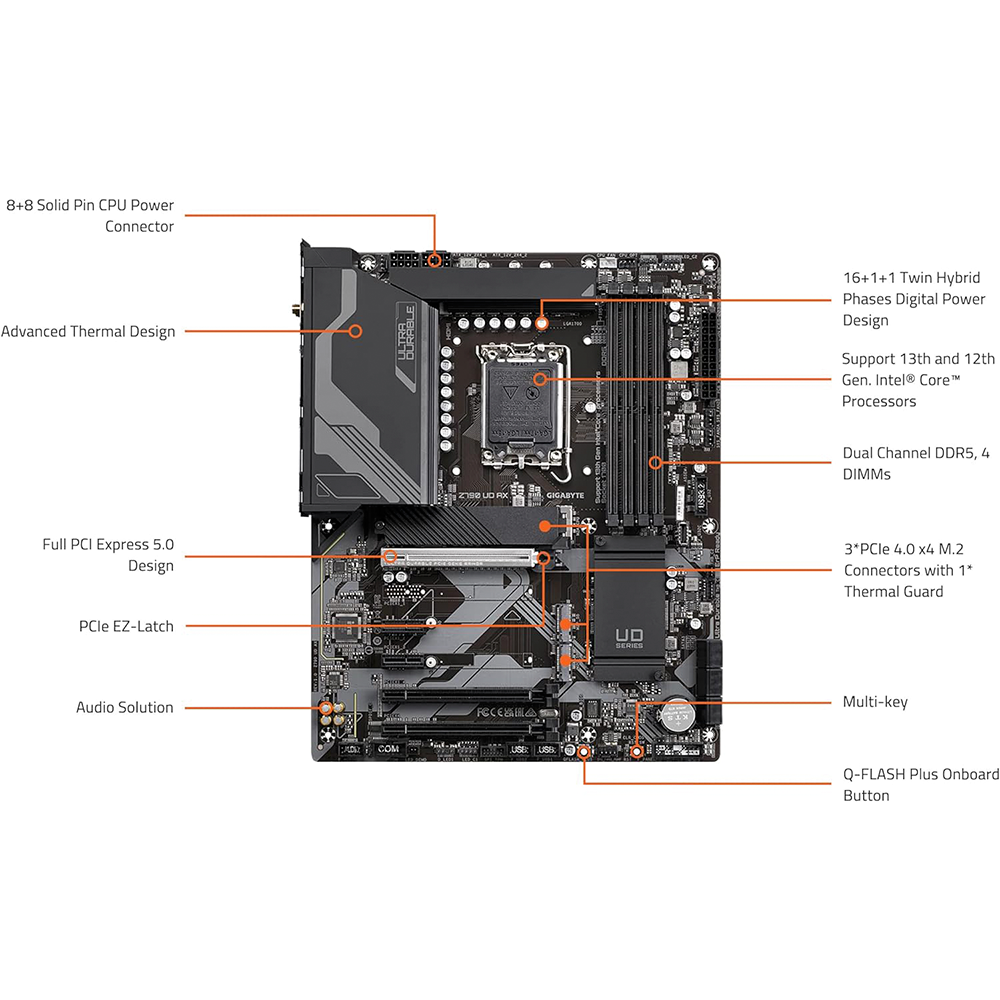

- With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Product Details :
CPU :
- LGA1700 socket : Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset :
- Intel Z790 Express Chipset
Memory :
- Support for DDR5
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for Extreme Memory Profile (XMP) memory modules
Audio :
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN :
- Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module :
- Intel Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
Expansion Slots :
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage Interface :
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
- 6 x SATA 6Gb/s connectors

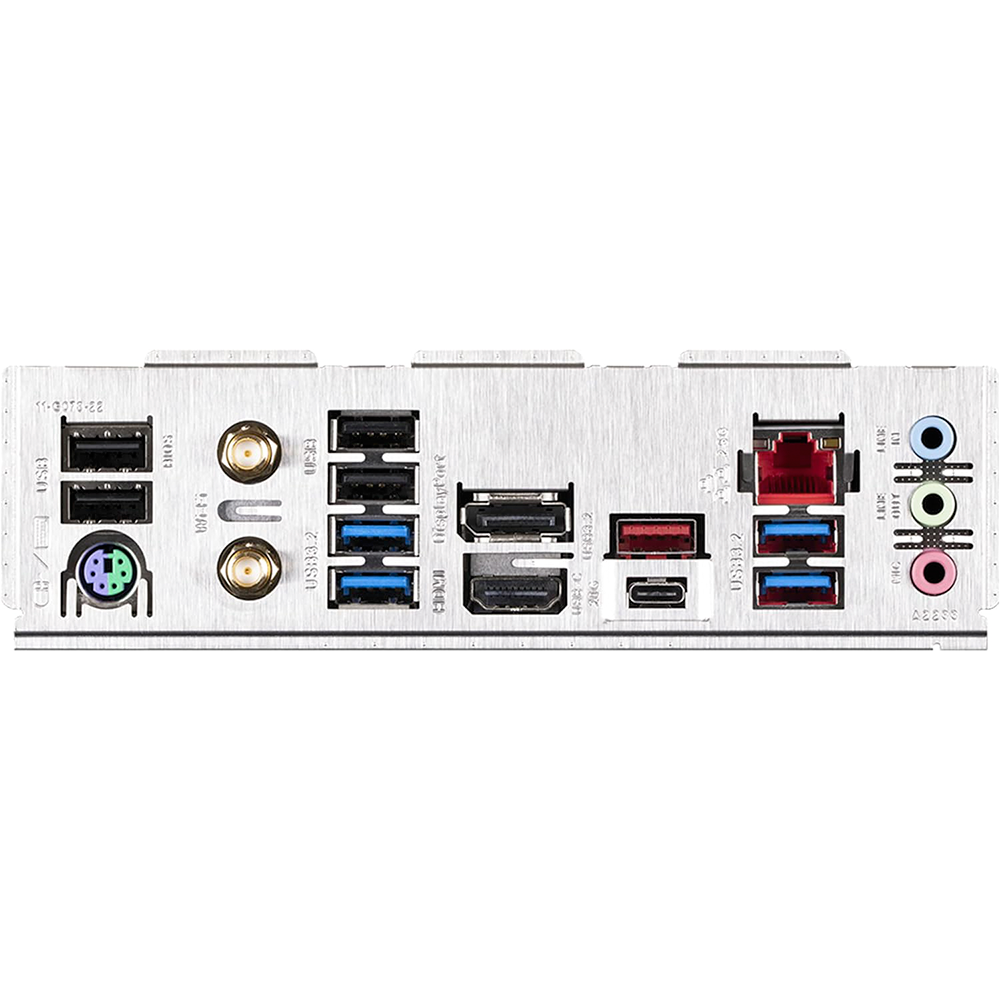

Back Panel Connectors :
- 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI 2.0 port
- 1 x DisplayPort
- 1 x RJ-45 port
- 3 x audio jacks
Form Factor :
- ATX Form Factor; 30.5cm x 24.4cm
