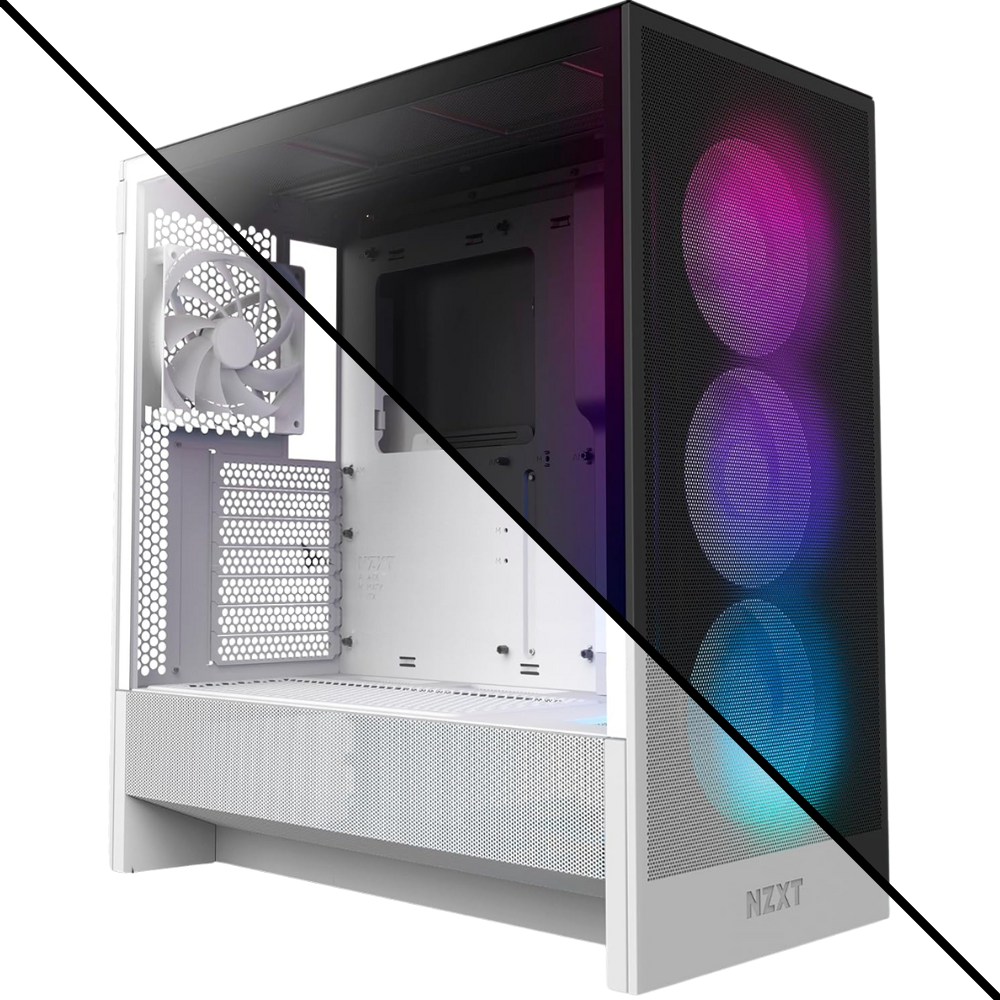

- The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
Product Features:
More Air to the GPU:
- Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators:
- Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow:
- Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans:

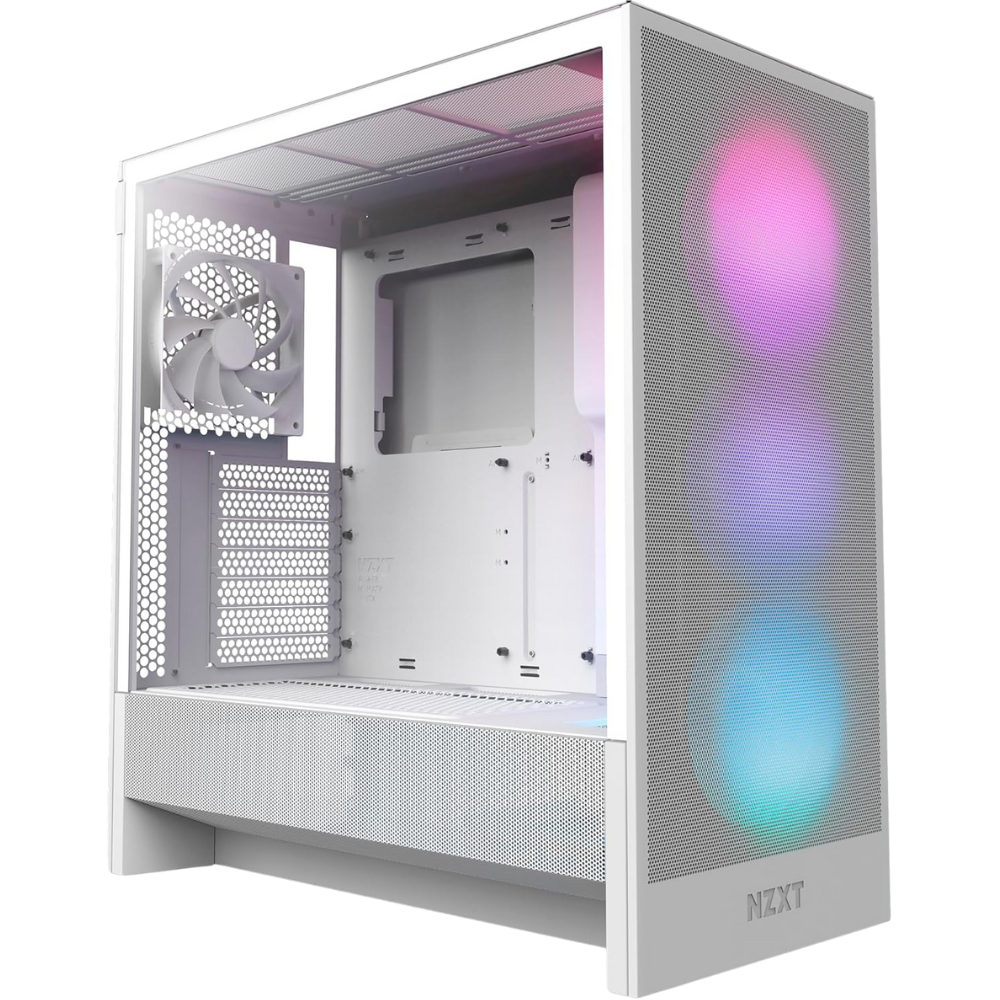

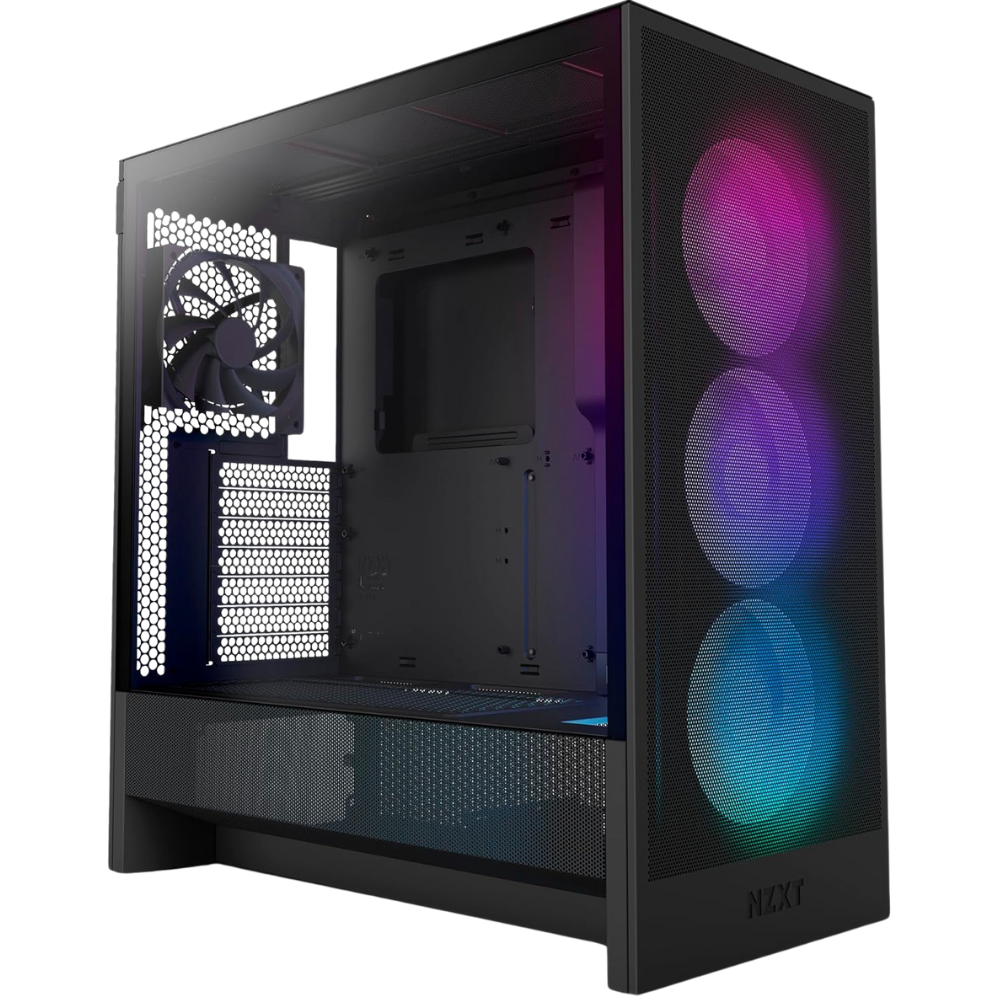

- Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

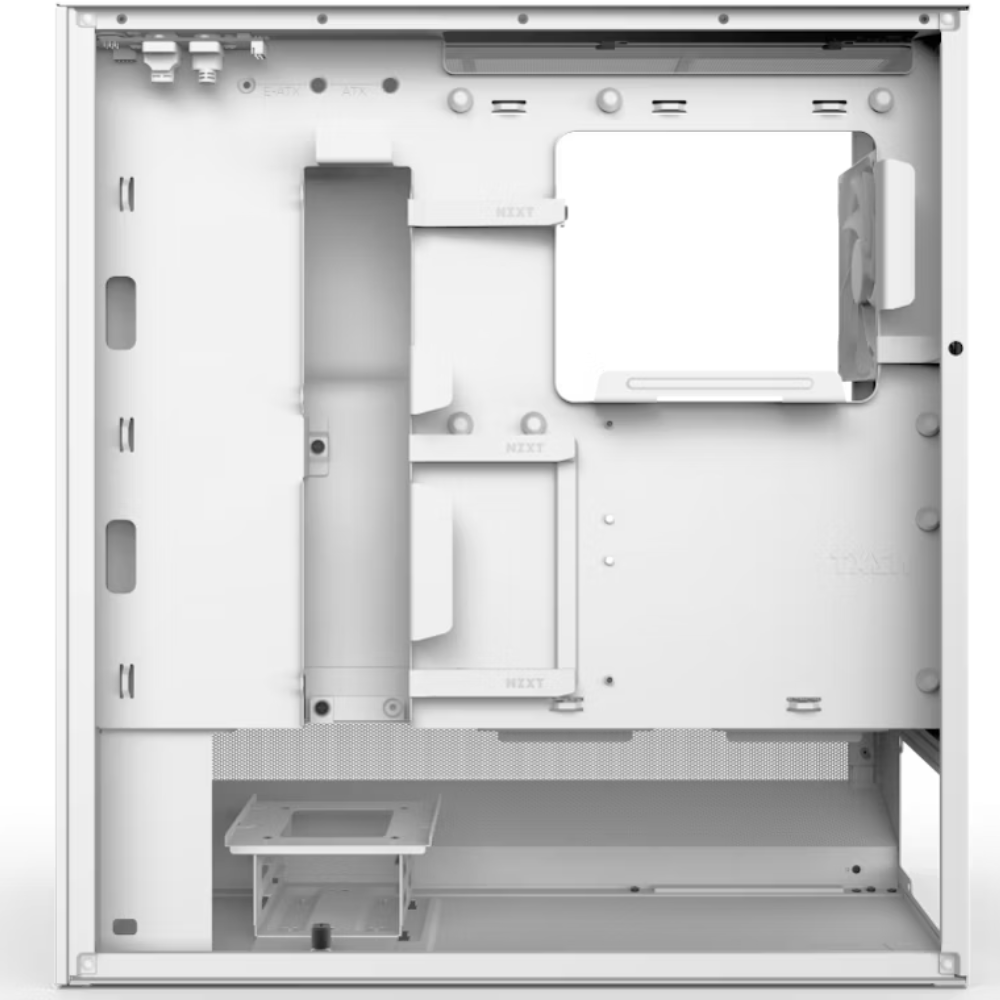

Easy Cable Management:
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.

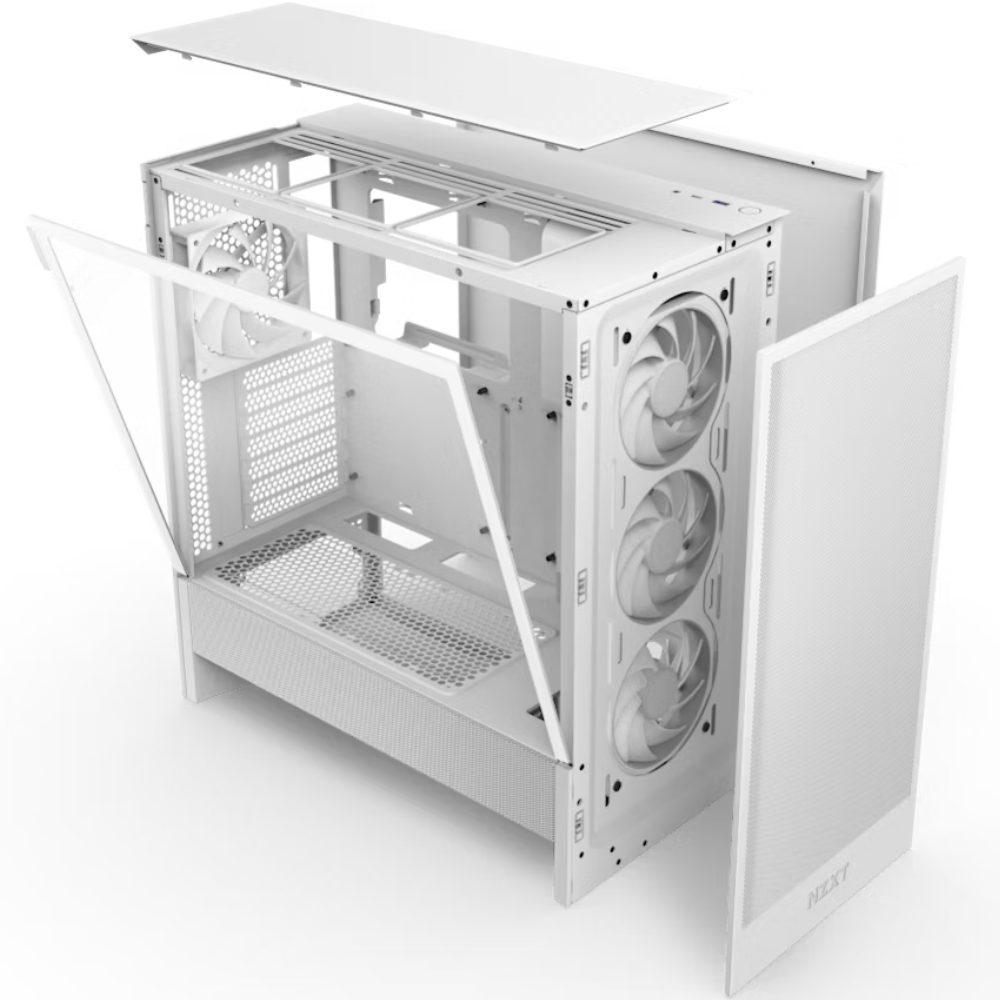

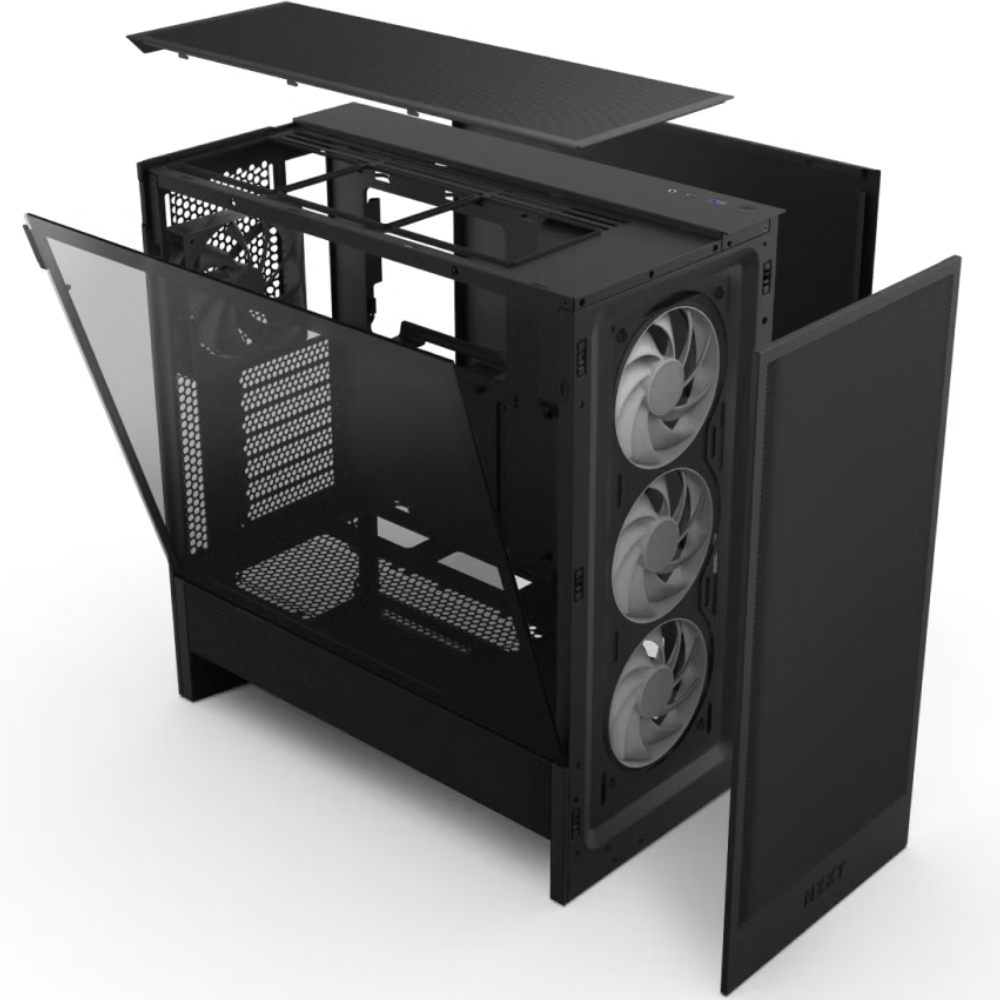

Tool-less Access:
- Easily open up the front, side, and top panels without any tools.
Strong and Sleek:
- Crafted from thick steel and tempered glass for long-lasting quality.
Product Details:
- Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
- Enclosure Type: Mid-Tower
Dimensions:
- Height (with feet): 465 mm
- Width: 225 mm
- Depth: 430 mm
- Weight: 7.63 kg
Compatibility & Clearance:
- CPU Cooler Height: Up to 170 mm
- GPU Length: Up to 410 mm
- PSU Length: Up to 200 mm
- Cable Management: Up to 28.7 mm
- Top Radiator: Up to 240 mm (280 mm with low-profile memory)
- Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55 mm
Front Ports:
- USB 3.2 Type-A: 1
- USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
- Headset Audio Jack: 1
Expansion Slots:
Drive Bays:
Fan Support:
- Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
- Top: 2 x 120 mm / 2 x 140 mm
- Bottom: 2 x 120 mm
- Rear: 1 x 120 mm (1 x F120Q Case Version included)
Radiator Support:
- Front: Up to 360 mm
- Top: Up to 240 mm (280mm with low-profile memory only)
Fan Specs:
- Model: F360 RGB Core (Case Version)
- Speed: 1,700 ± 200 RPM
- Airflow: 50.1 CFM
- Static: 1.27 mm-H₂O
- Noise: 23.3 dBA
Fan Specs:
- Model: F120Q (Case Version)
- Speed: 1,350 ± 150 RPM
- Airflow: 60.2 CFM
- Static: 1.05 mm-H₂O
- Noise: 24.1 dBA
Model Number:
- Black: CC-H52FB-R1
- White: CC-H52FW-R1
