GPU-Focused Air Guide Ramp:
- Keeps graphics cards cool under heavy loads.
Precision Aerodynamic Design:
- Optimized airflow delivers efficient GPU cooling.

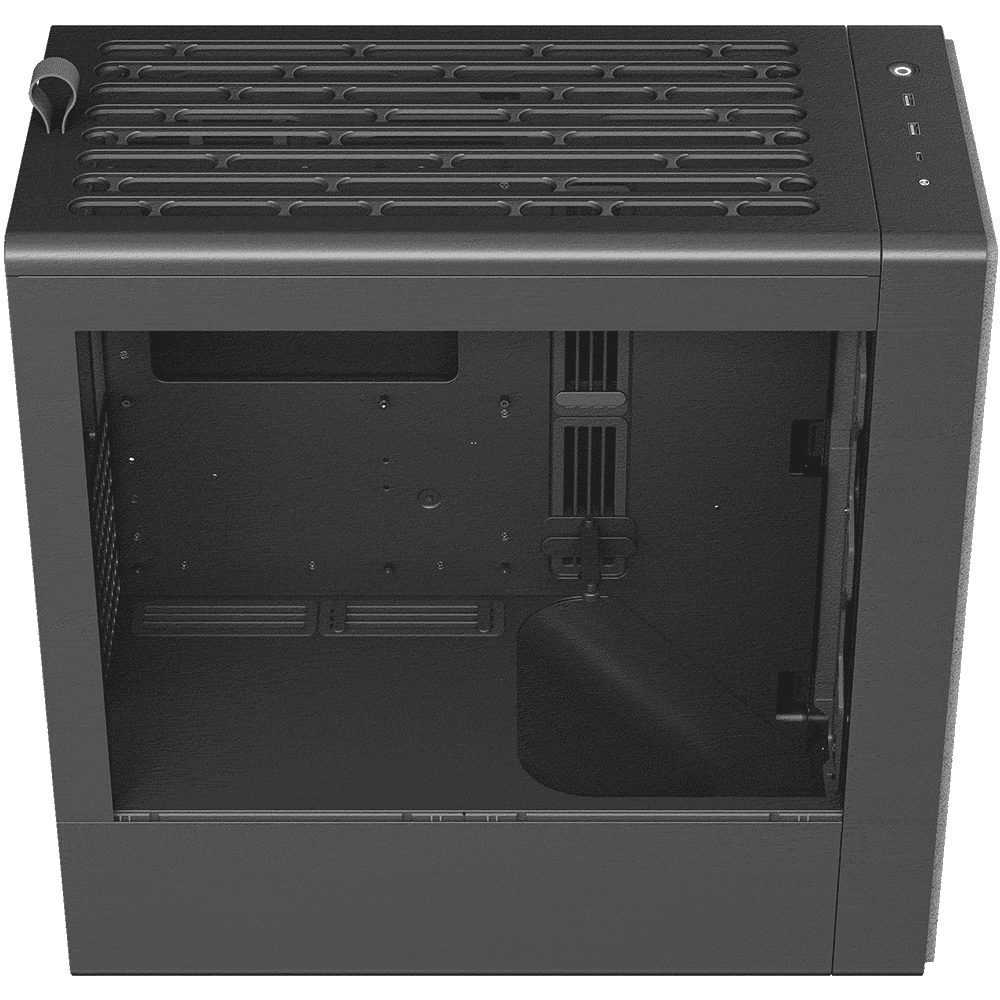

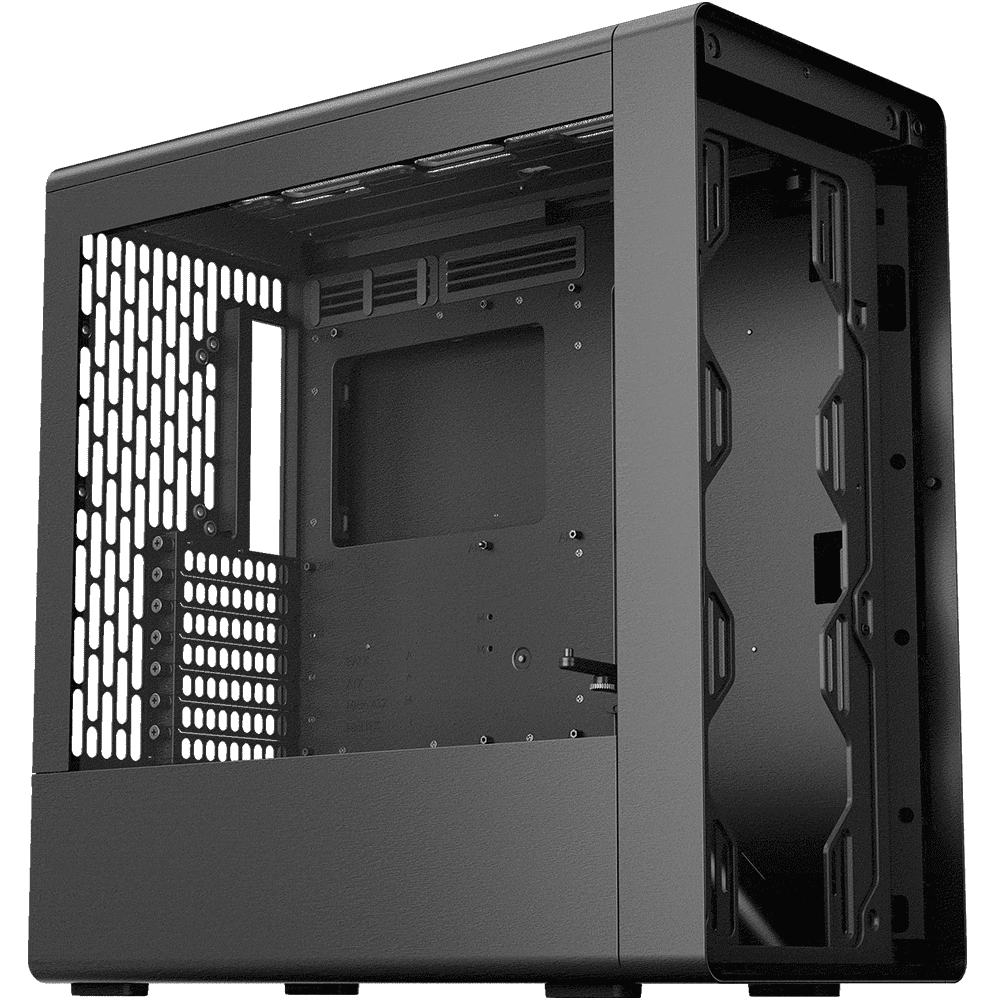

Semi-Open Frame Access:
- Easier upgrades and improved cooling efficiency.
Highly Adjustable GPU Support:
- Neatly hidden bracket stabilizes heavy GPUs.

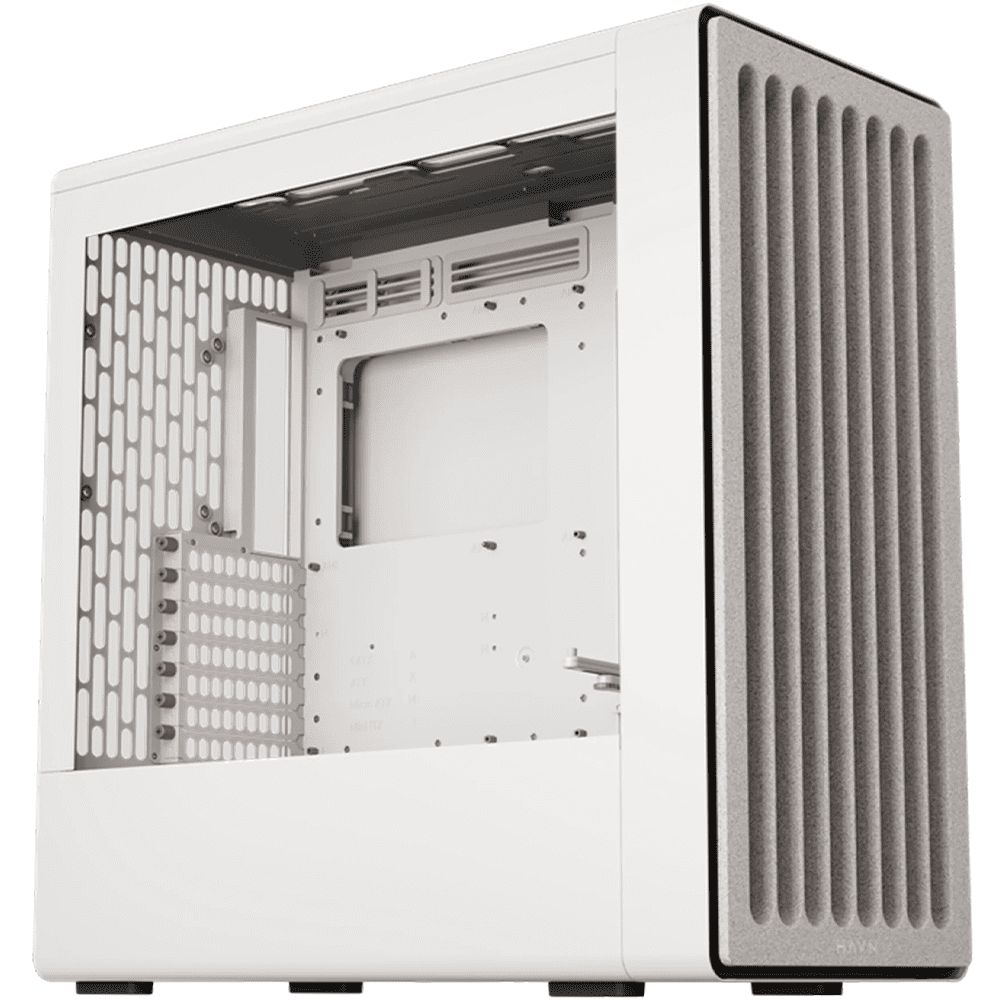

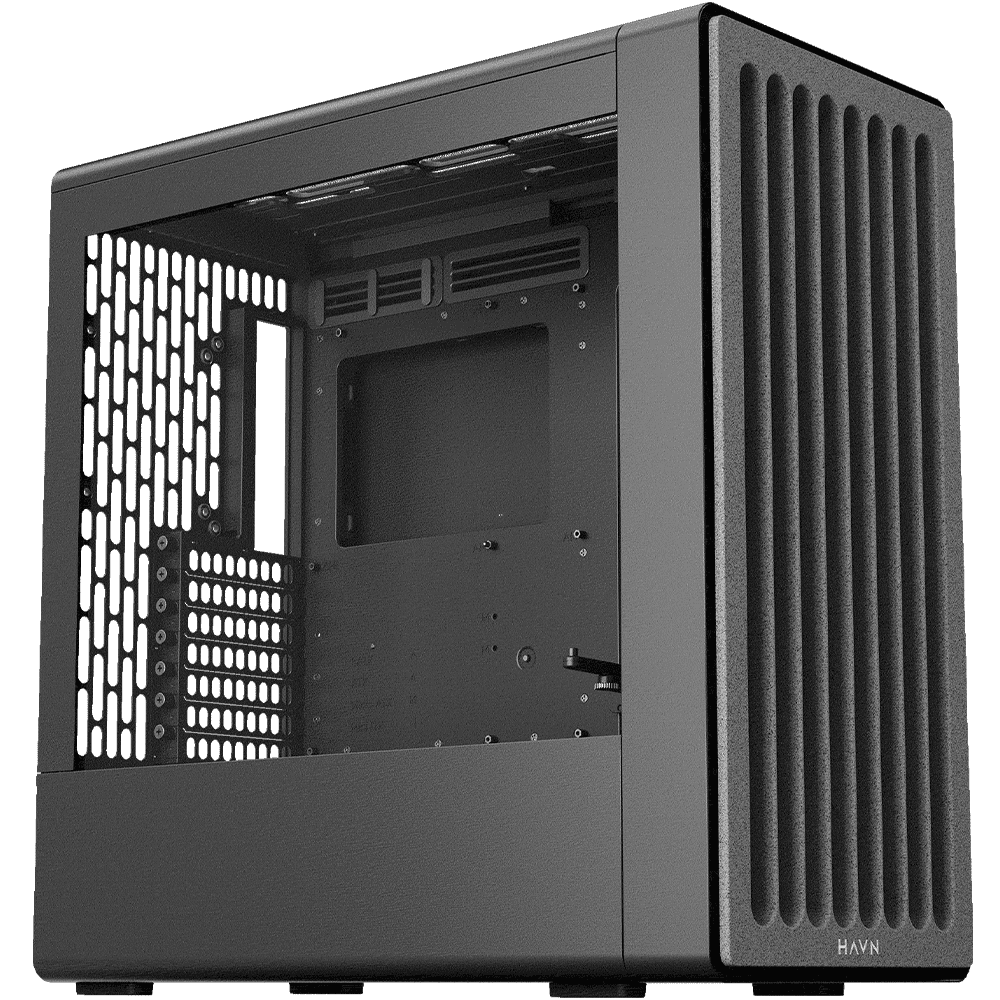

Stone-Textured Front Panel:
- Minimalistic stone-textured finish for premium aesthetic.

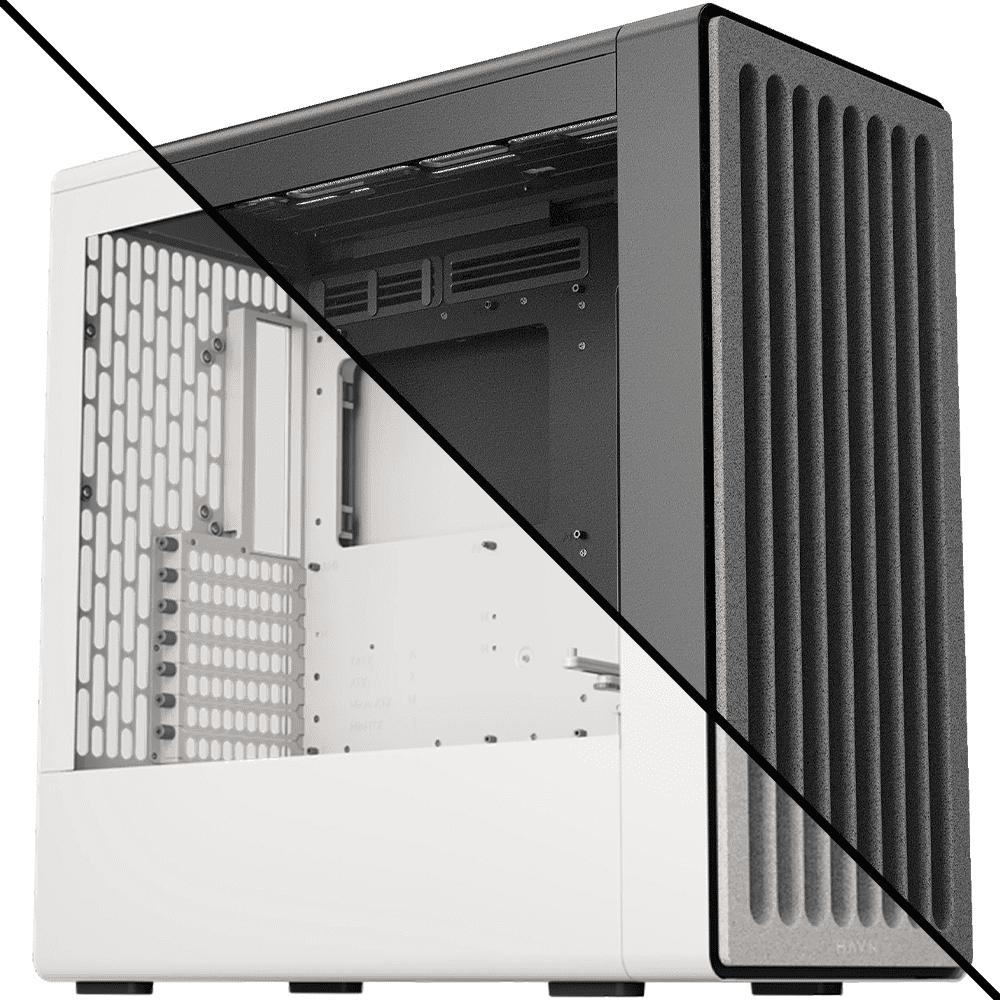

Choose Your Style:

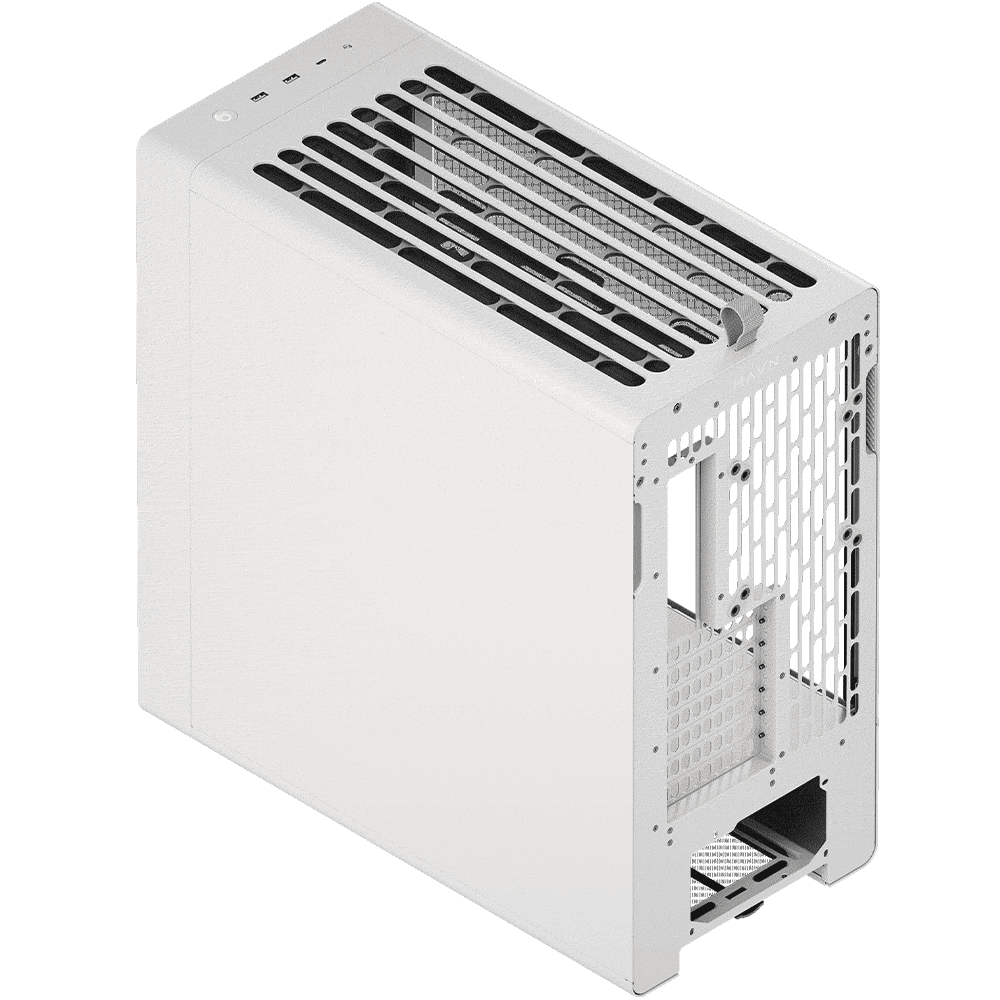

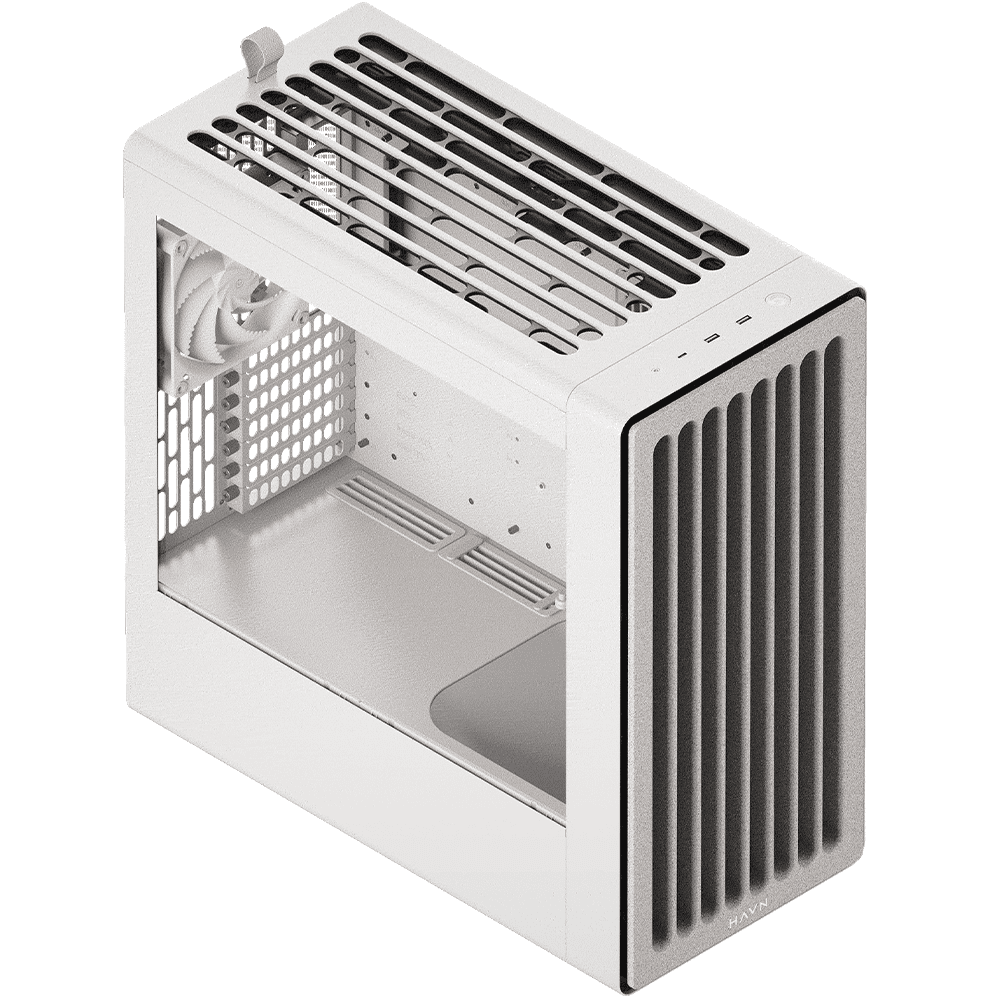

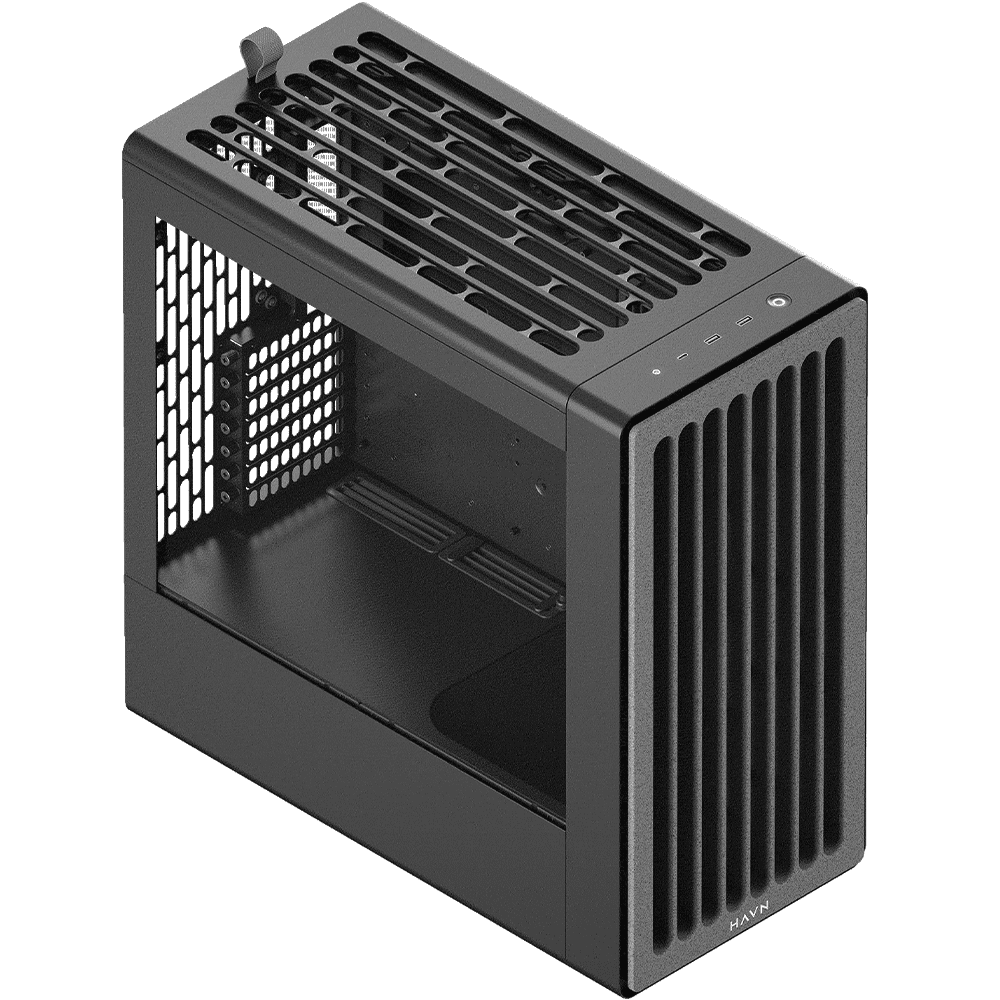

- Available as BF 360 and BF 360 Flow, both in clean white or sleek black to match your build. Choose your look without sacrificing performance.
Product Details:
Form Factor:
PC Case Dimensions (L x W x H):
Net Weight:

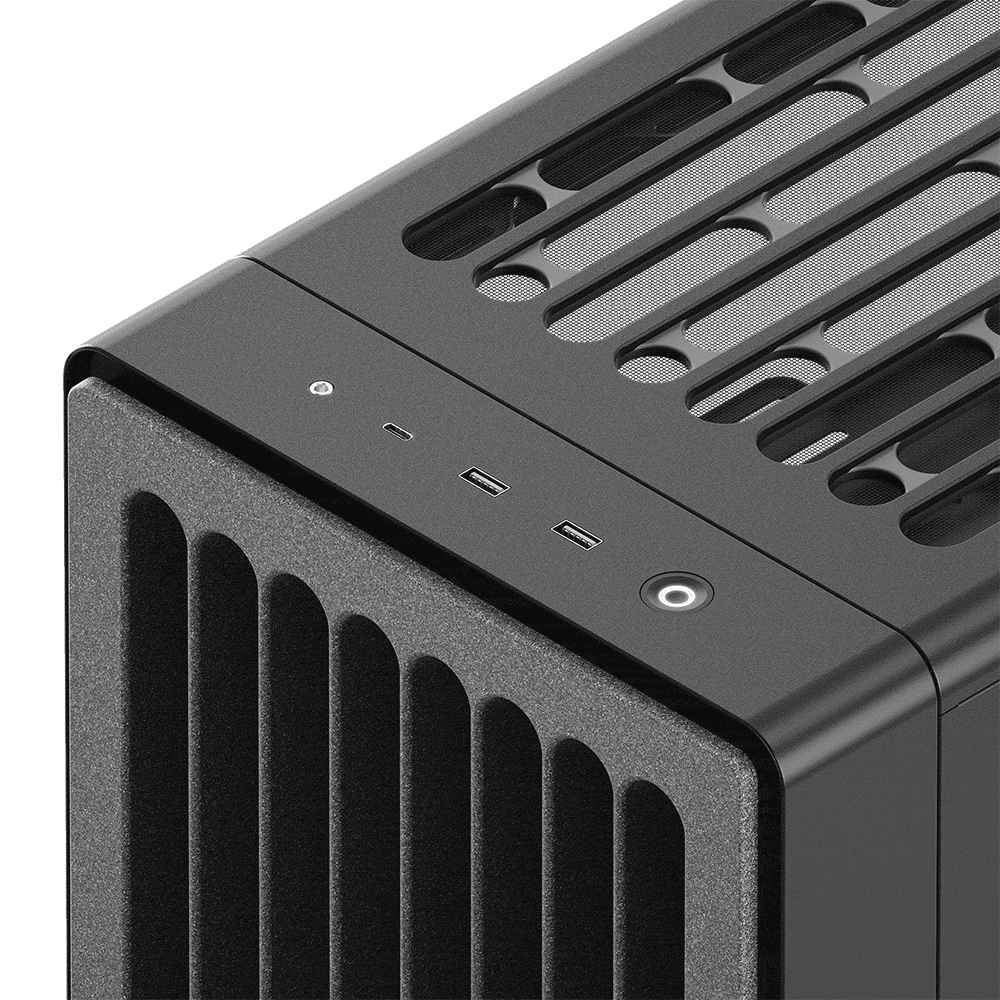

Front I/O:
- 1 × USB 3.2 Gen 2 Type-C
- 2 × USB 3.2 Gen 1 Type-A
- 1 × Audio Jack
- 1 × Power & Reset Button
Motherboard Support:
- E-ATX (To install an E-ATX motherboard, the built-in GPU support bracket must be removed.)
- ATX
- Micro-ATX
- ITX
Expansion Slots:
Fan Support:
- Maximum Amount: 7
- Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
- Front: 2 x 180 mm / 3 x 140 mm / 3 x 120 mm
- Left: N/A
- Right: N/A
- Bottom: N/A
- Rear: 1 x 140 mm / 1 x 120 mm
Fan PWM Repeater:
- Fan Ports: 1 x PWM repeaters, 6 ports total
- Location: 1 x Cable Management Tray
- Fan Connectors: 6 ports per repeater x 4-pin PWM
- (Connect your primary fan to the white port to control PWM signal.
- All other ports mirror the white port's signal.)
CPU Tower Cooler Clearance:
Liquid Cooling Support:
- Top: 240 / 280 / 360 mm
- Front: 240 / 280 / 360 / 420 mm
- Left: N/A
- Right: N/A
- Bottom: N/A
Graphics Card Clearance:
- Length: Up to 410 mm
- Width: Up to 195 mm.
GPU Support:
RAM Clearance:
- If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm
Power Supply Support:
- ATX
- Length: Up to 200mm (Clearance - 260mm)

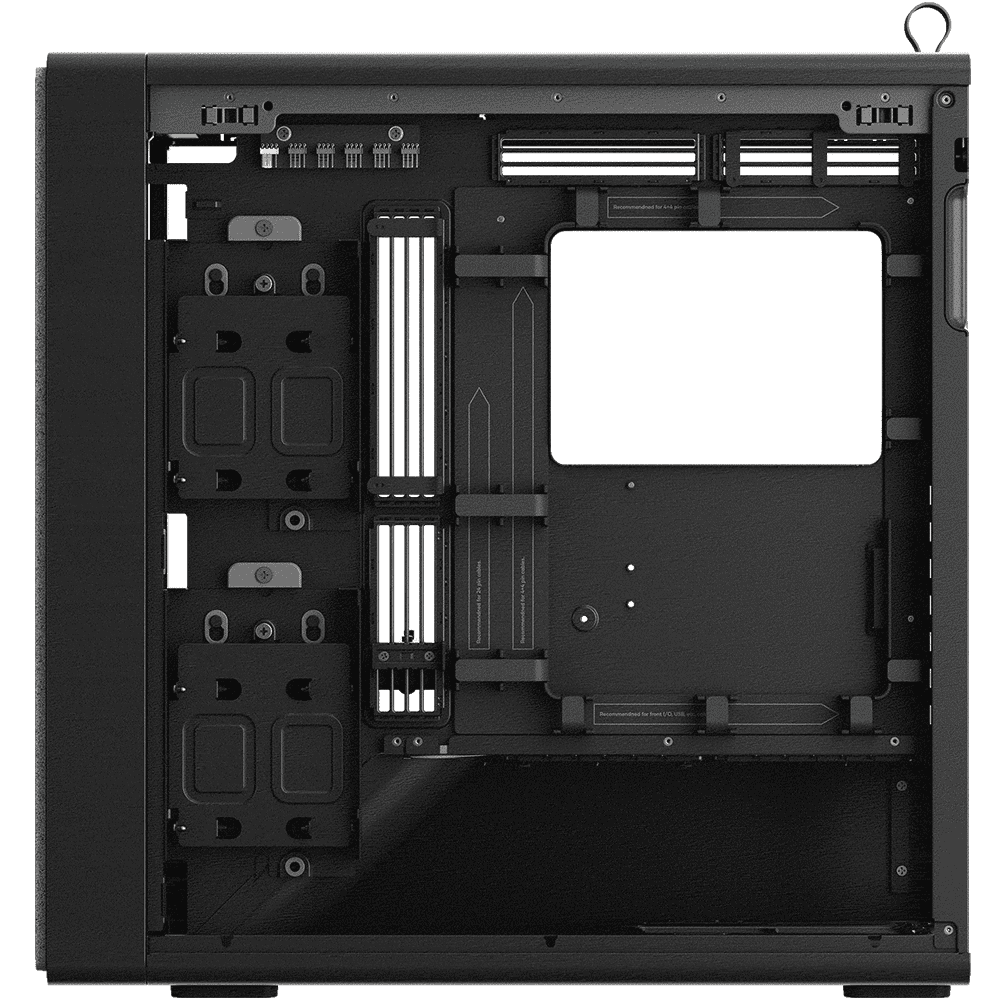

Storage:
- Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5''
- Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
- Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5")
