Lian Li LANCOOL 217 ATX Mid Tower PC Case With 5x Fans

• The LANCOOL 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.

Product Features:

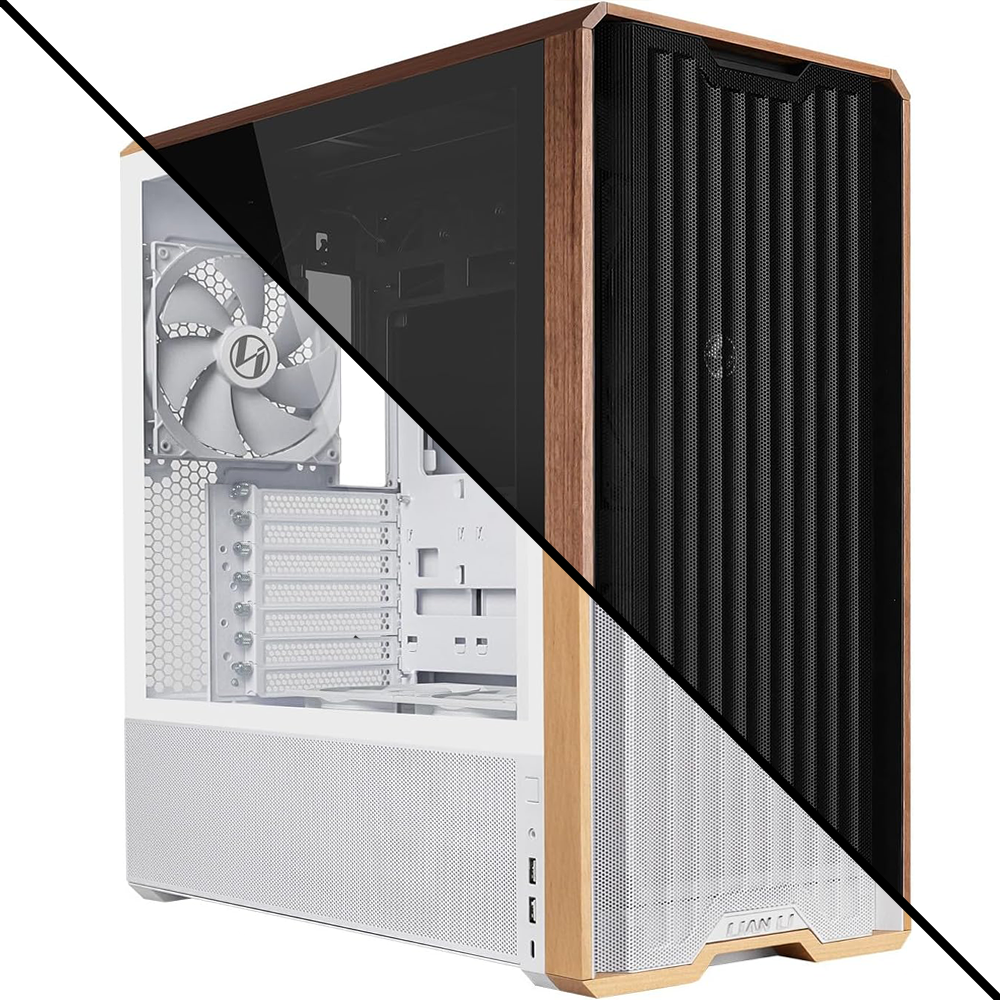

AVAILABLE IN TWO COLORS:

• The LANCOOL 217 is available in both black and white, offering a perfect match for any build style.

WHERE WOOD MEETS AIRFLOW:

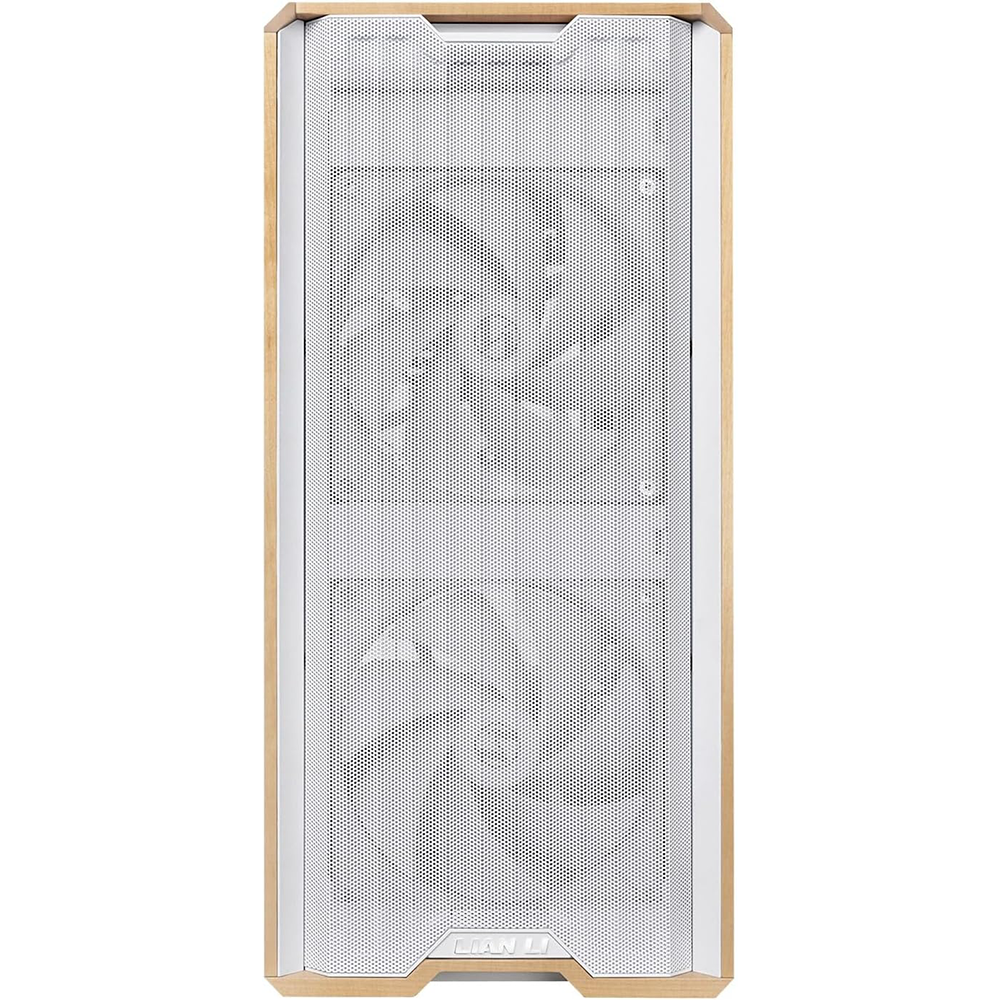

• The LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.

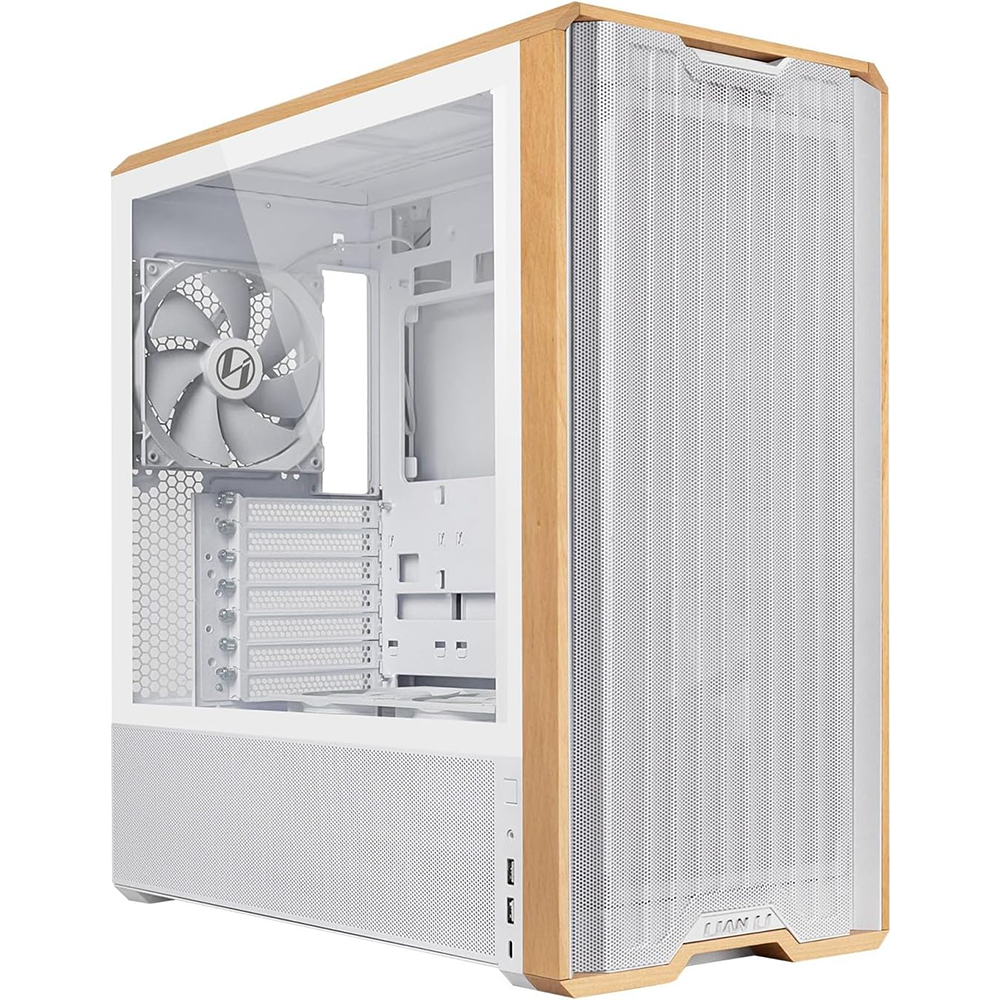

• The black version is accented with rich walnut wood, delivering a bold and contemporary feel. The white version incorporates light birch wood, offering a sleek, minimalist aesthetic ideal for modern tech setups.

READY-TO-GO COOLING WITH 5 PRE-INSTALLED FANS:

• The LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.

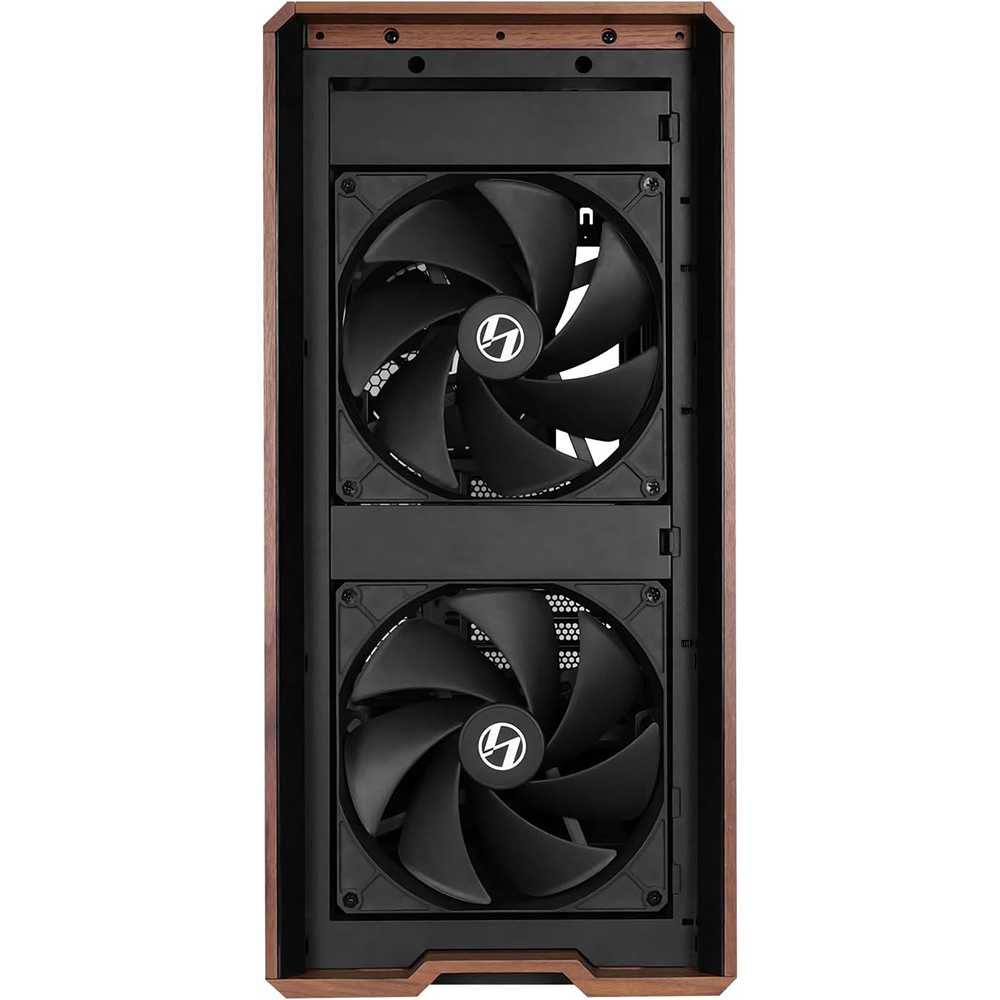

• The front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU. Size: 170 × 170 × 30 mm
• The front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU. Size: 170 × 170 × 30 mm
• Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature. Size: 120 × 120 × 25 mm

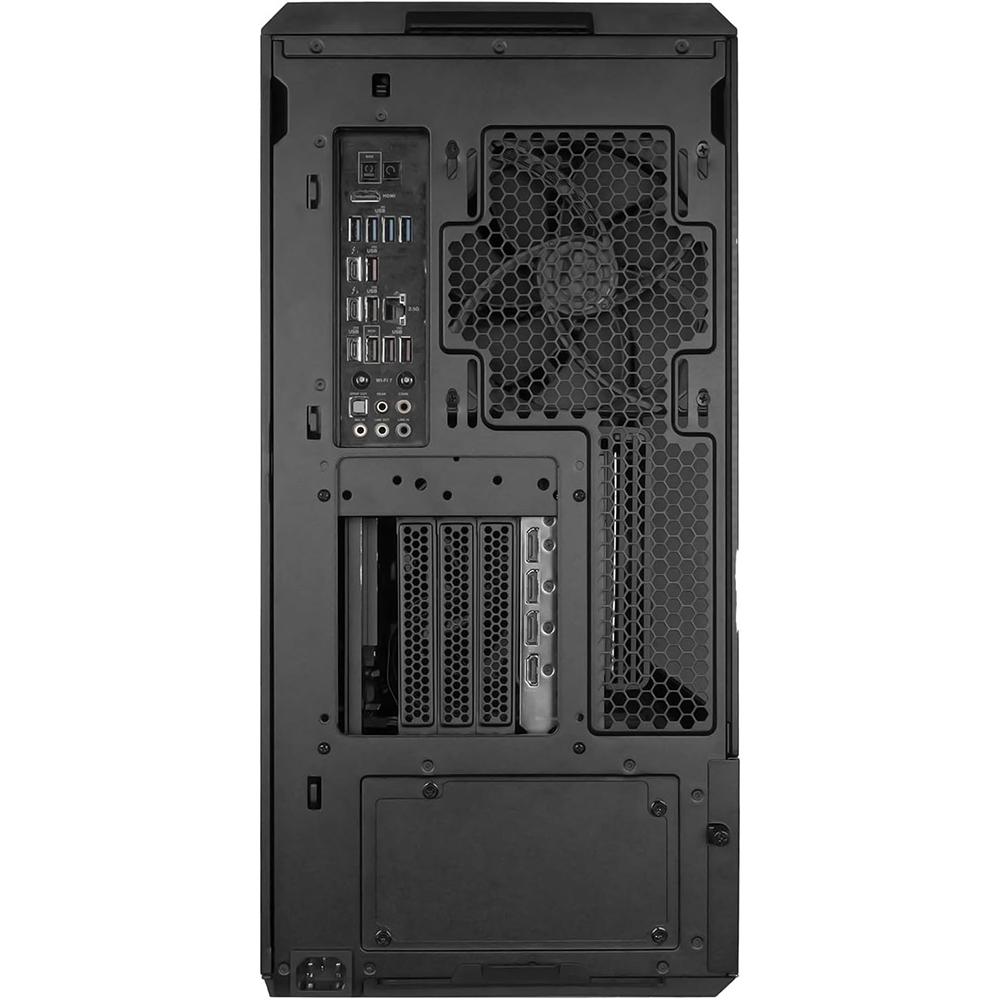

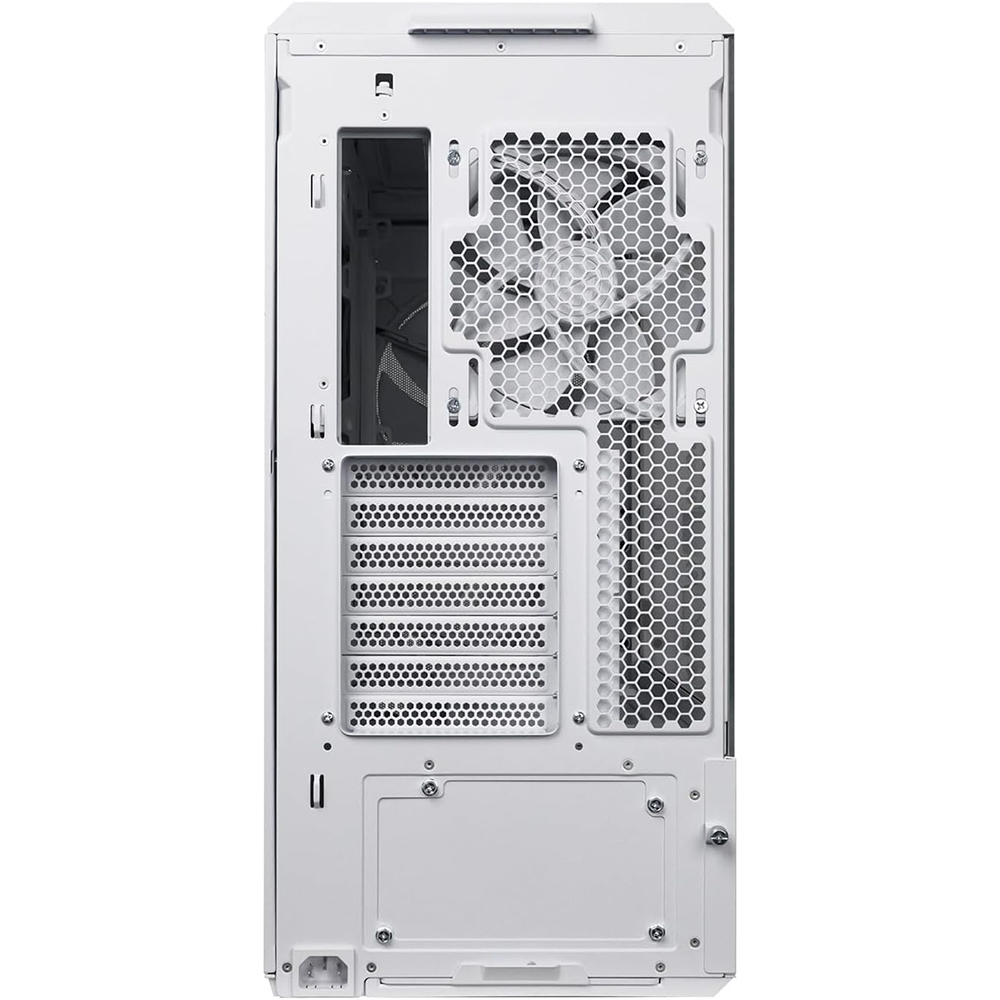

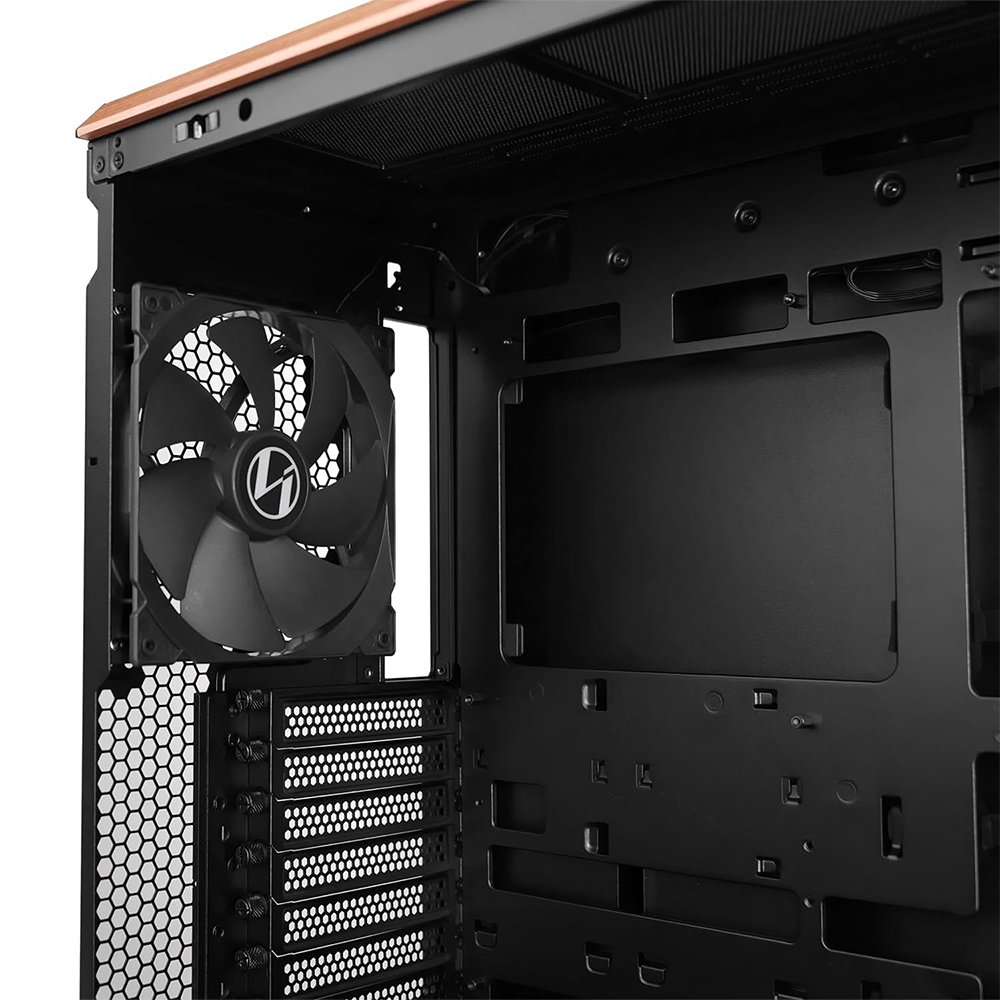

• At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system. Size: 140 × 140 × 25 mm

FLEXIBLE INSTALLATION, TOOL-LESS DESIGN:

• The LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily shift between CPU-focused and GPU-focused cooling modes.

FLEXIBLE AND EASY INSTALLATION:

• The LANCOOL 217 comes with screws and washers for installing 120mm fans. Users can take out the screws on the two bottom fans to swap them for different ones. The PSU shroud cover can also be removed, making room for up to three 120mm fans.

DUAL PSU MOUNTING, FLEXIBLE BUILDS:

• The LANCOOL 217 supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.

MOTHERBOARD COMPATIBILITY:

• Supports motherboard sizes:
• EEB (width <330mm) / E-ATX (width <280mm)
• ATX/ Micro-ATX/ Mini-ITX.
• Back-connect motherboard support: ATX, Micro-ATX.

DRIVE SUPPORT:

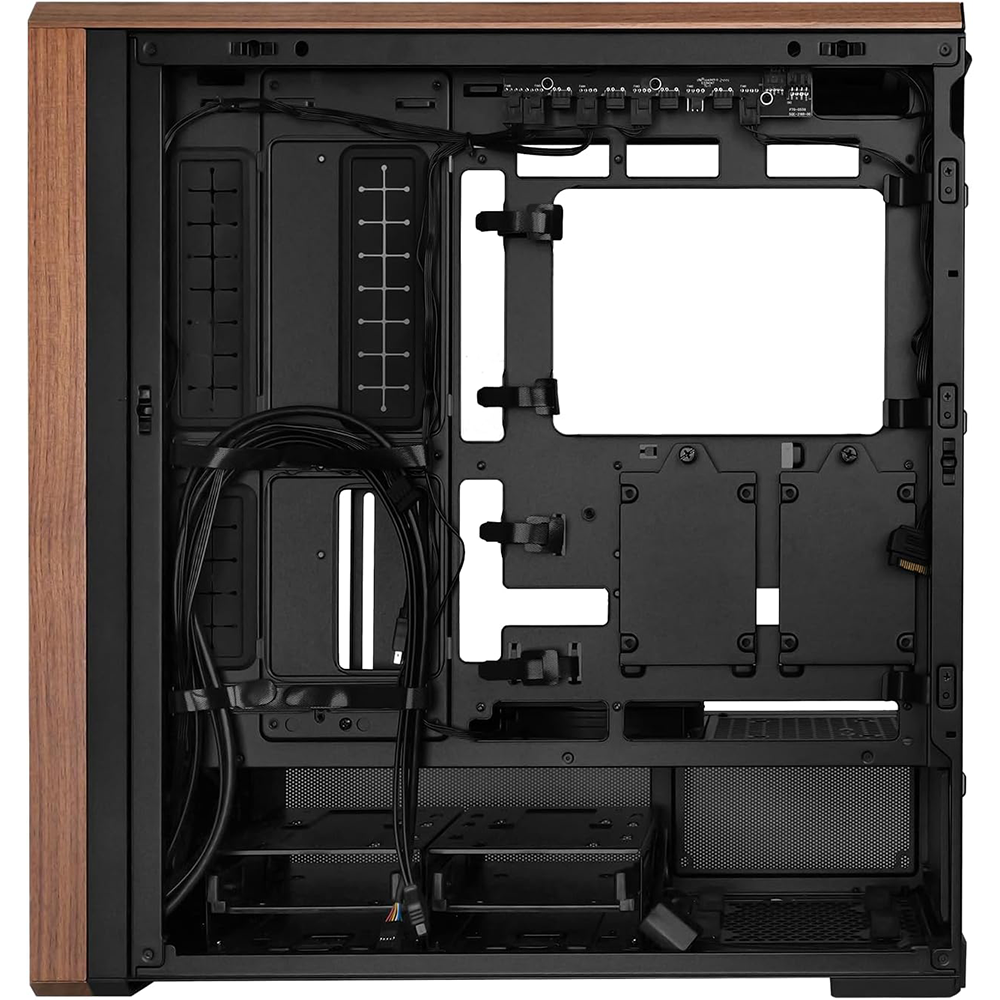

• Behind motherboard tray: 2 x 2.5″ SSDs or 1 x 2.5″ SSD
• (when using a rear-mounted Micro-ATX motherboard)
•  HDD cage: 2 x 3.5″ HDD + 2 x 2.5″ SSD+(2 x 3.5″ HDD or 2 x 2.5″ SSD)
•  PSU shroud cover: 1 x 2.5″ SSD

LARGE GPU, EXCEPTIONAL COMPATIBILITY:

• The LANCOOL 217 supports GPU up to 380mm in length and features an adjustable anti-sag bracket, ensuring a perfect and secure fit for GPU.
•


Product Details:

MODEL NAME:

• LAN217X
• LAN217W

COLOR:

• Black
• White

DIMENSION:

• (D)482mm x (W)238mm x (H)503mm

MOTHERBOARD SUPPORT:

• SSI-EEB(Width Max 330mm) / E-ATX（Width Max 280mm) / ATX / Micro-ATX/Mini-ITX

BACK CONNECT MOTHERBOARD SUPPORT:

• ATX / Micro-ATX

PSU SUPPORT LENGTH:

• Standard Mode: ATX（Under 220mm)
• Rotated Mode: ATX（Under 180mm)

FAN SUPPORT:

• Front: 2 × 170mm (Included) / 3 × 140mm / 3 × 120mm
• Top: 3 × 120mm / 2 × 140mm
• Above PSU Shroud: 3 × 120mm (2 Included)
• Under the PSU shroud: 2 × 120mm
• Rear: 1 × 140mm(Included) / 1 × 120mm

RADIATOR SUPPORT:

• Top: 360 / 280 / 240mm

GPU LENGTH CLEARANCE:

• 380mm (Max.)

CPU HEIGHT CLEARANCE:

• 180mm (Max.)

EXPANSION SLOT:

• 7

I/O PORTS:

• 2 x Power Button
• 2 x USB 3.0
• 1 x USB Type-C
• 1 x Audio

Hub ARGB / FAN Hub:

• 6 x PWM FAN port
• 4 x 5V ARGB port

Part Number:

• Black: G99.LAN217X.00
• White: G99.LAN217W.00
