- The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.
Product Features:

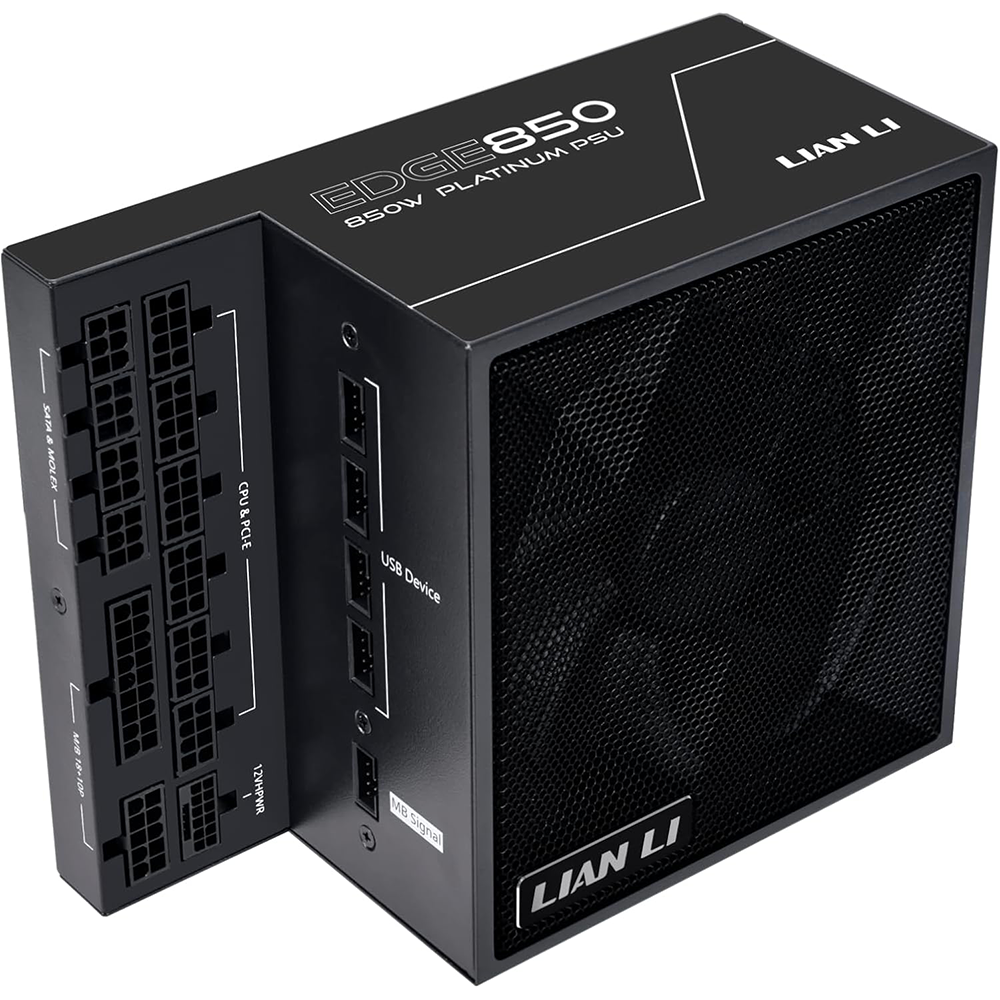

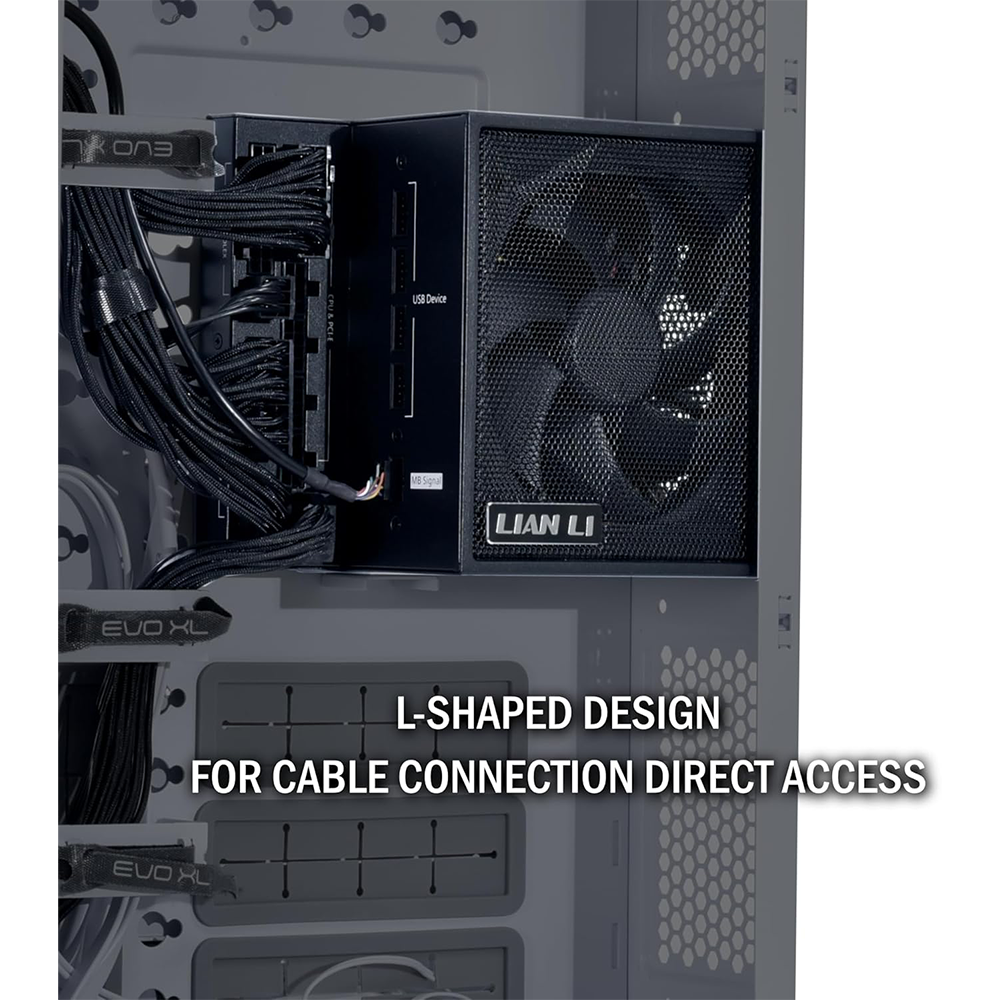

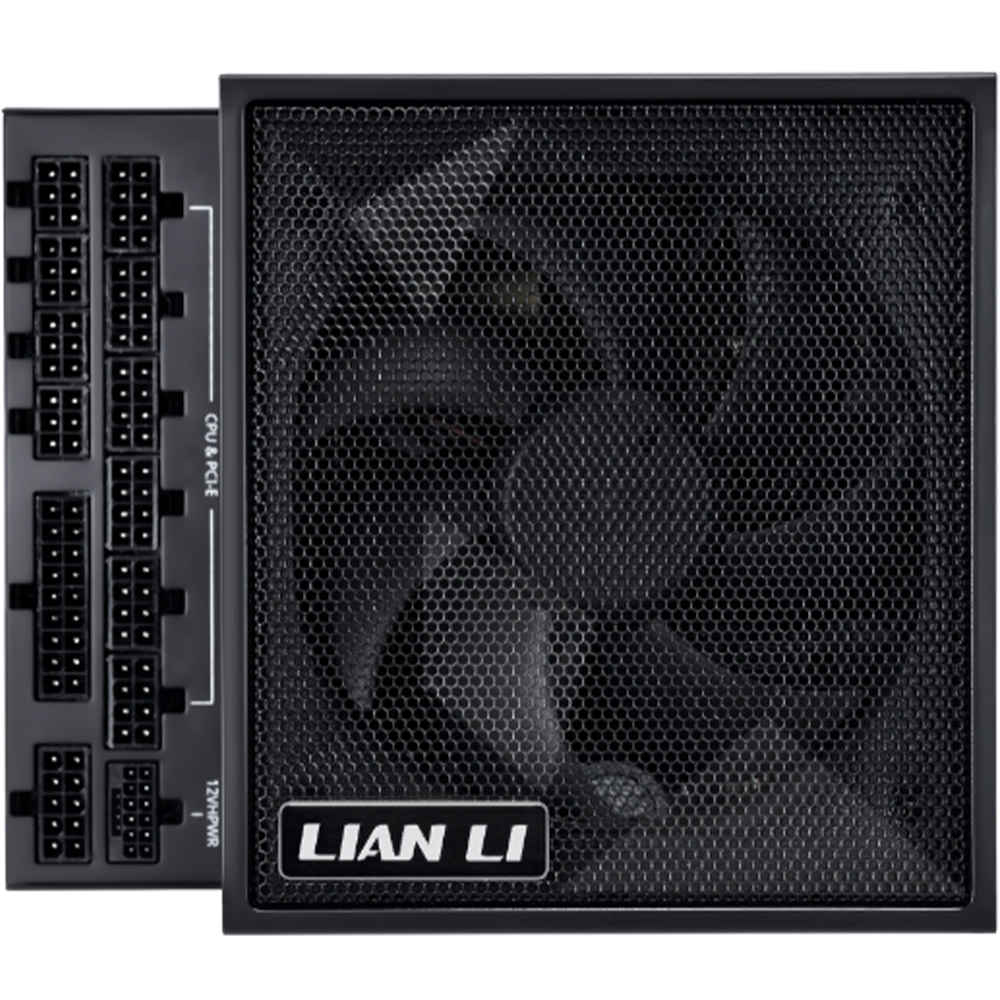

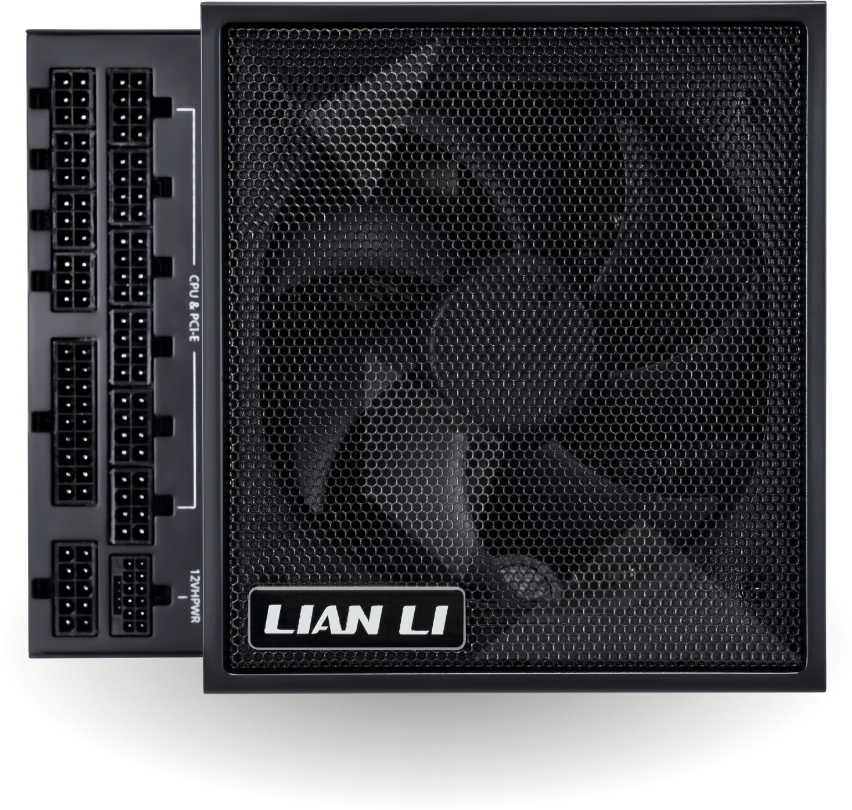

INNOVATIVE L-SHAPE DESIGN:
- Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber.
- This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.

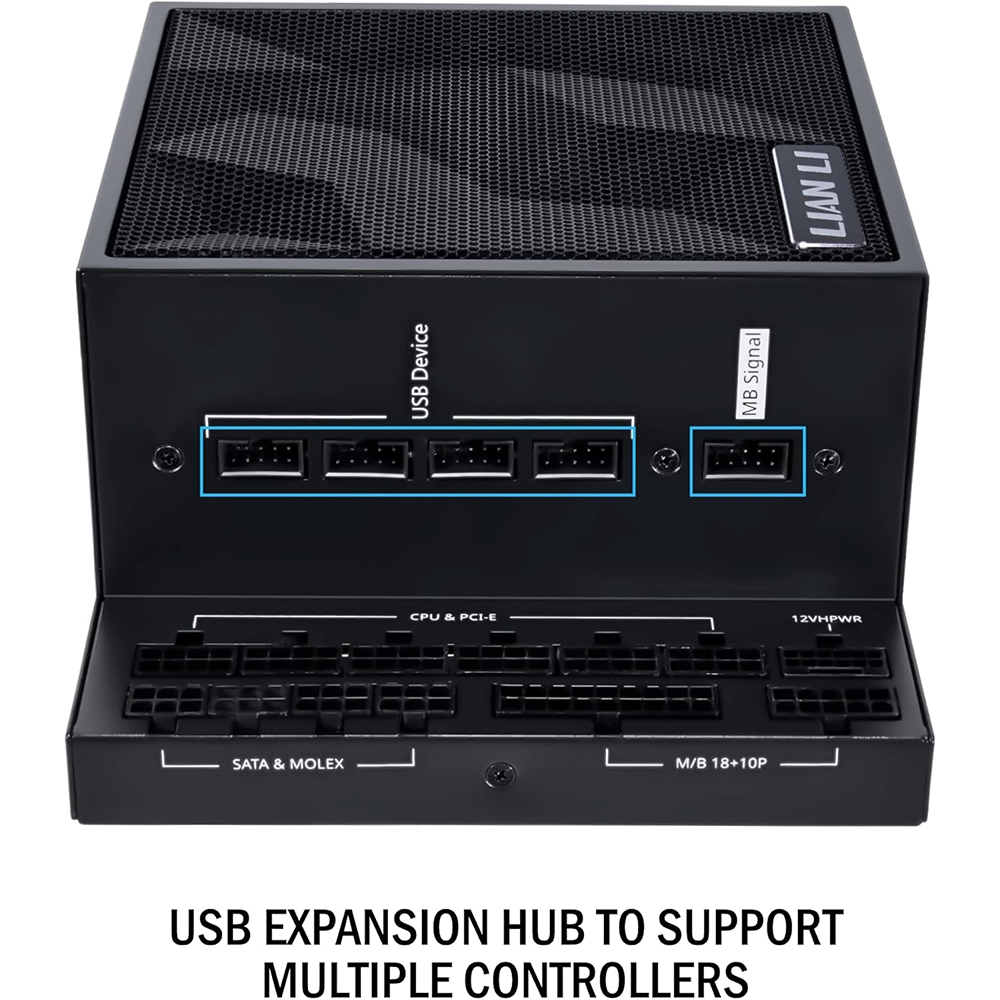

POWER AND USB HUB TWO-IN-ONE:

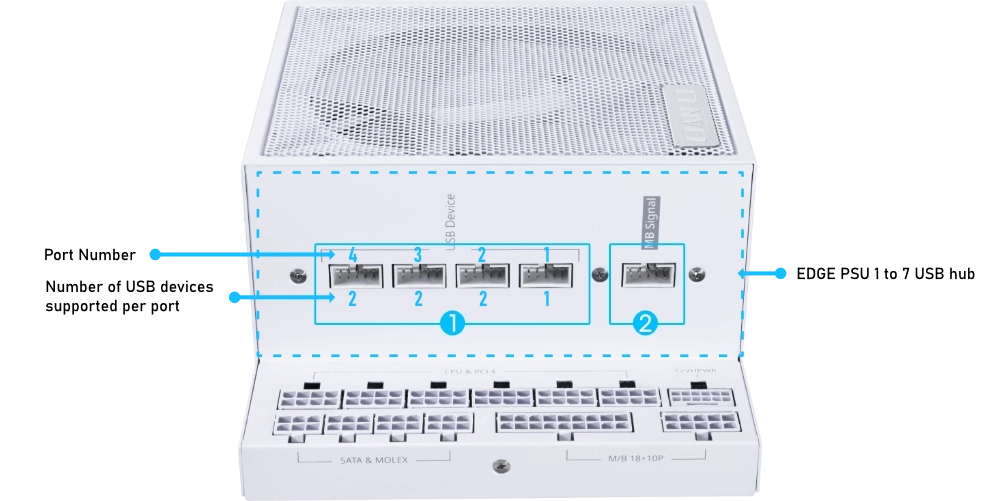

- The full Edge Series integrates 4 × 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.
- All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.
PLATINUM CERTIFIED:
- Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
ATX 3.0 AND 3.1 COMPLIANT:
- Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.

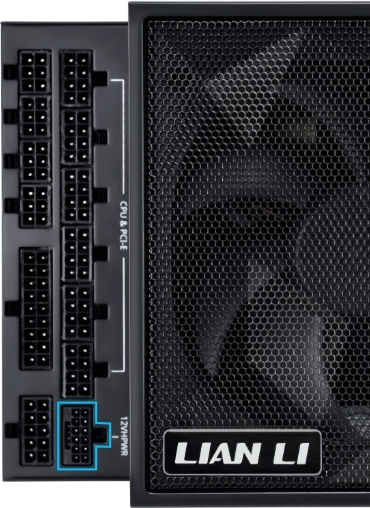

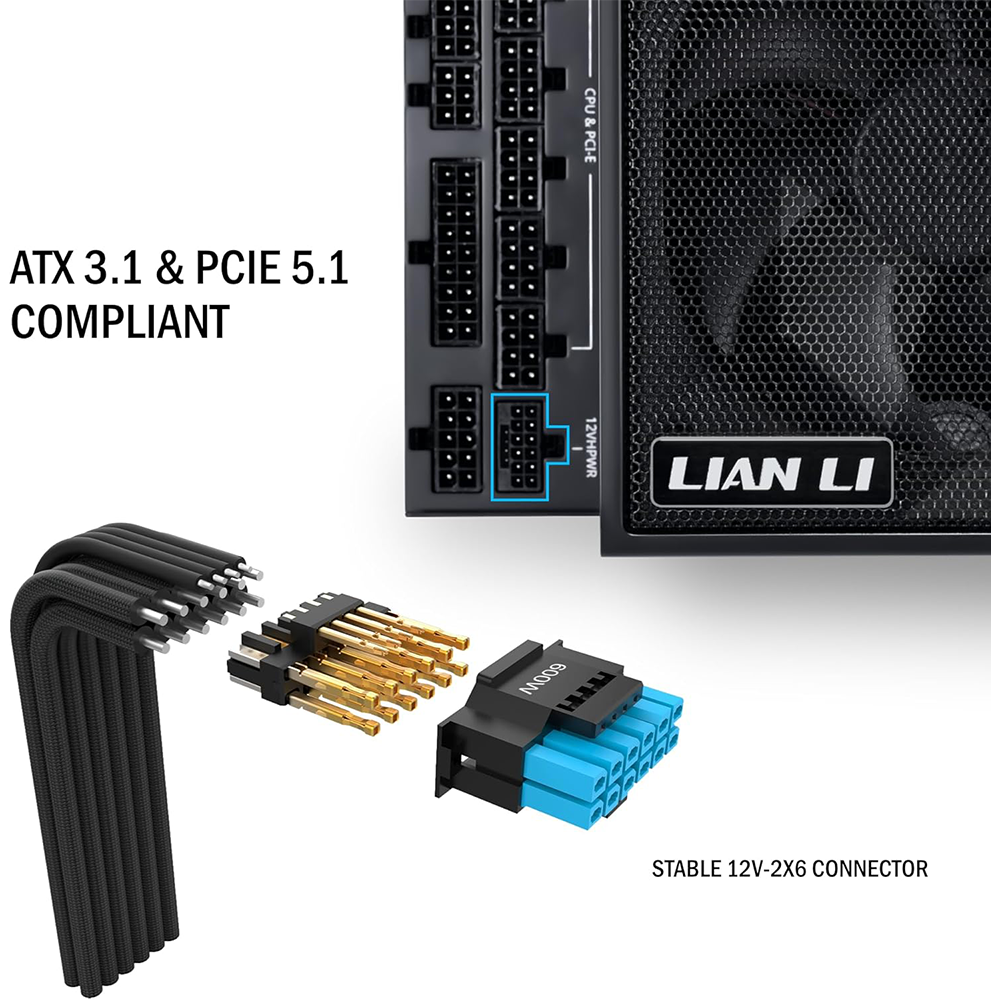

STABLE DUAL COLOR PCIE5.1 CONNECTOR:
- LIAN LI’s in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
COOL IN SILENCE:
- Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.

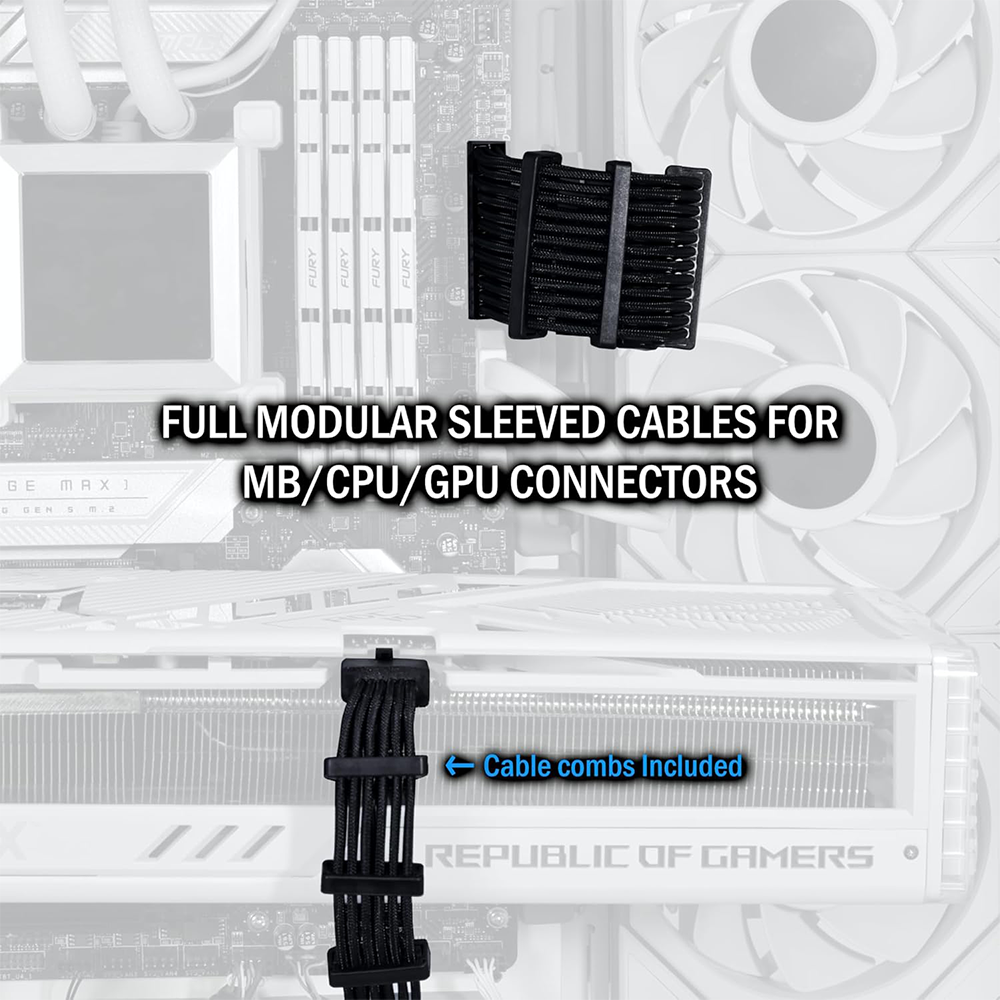

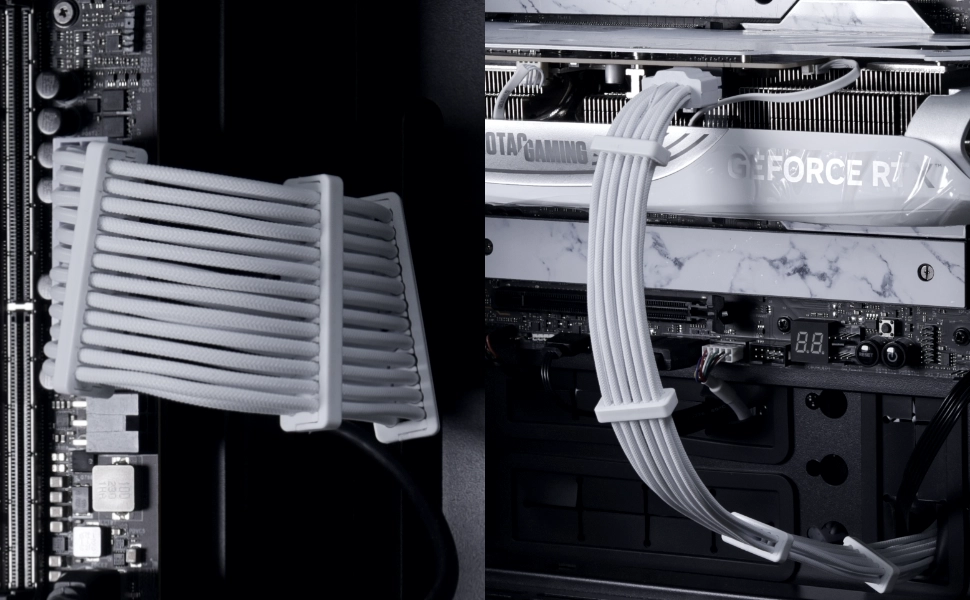

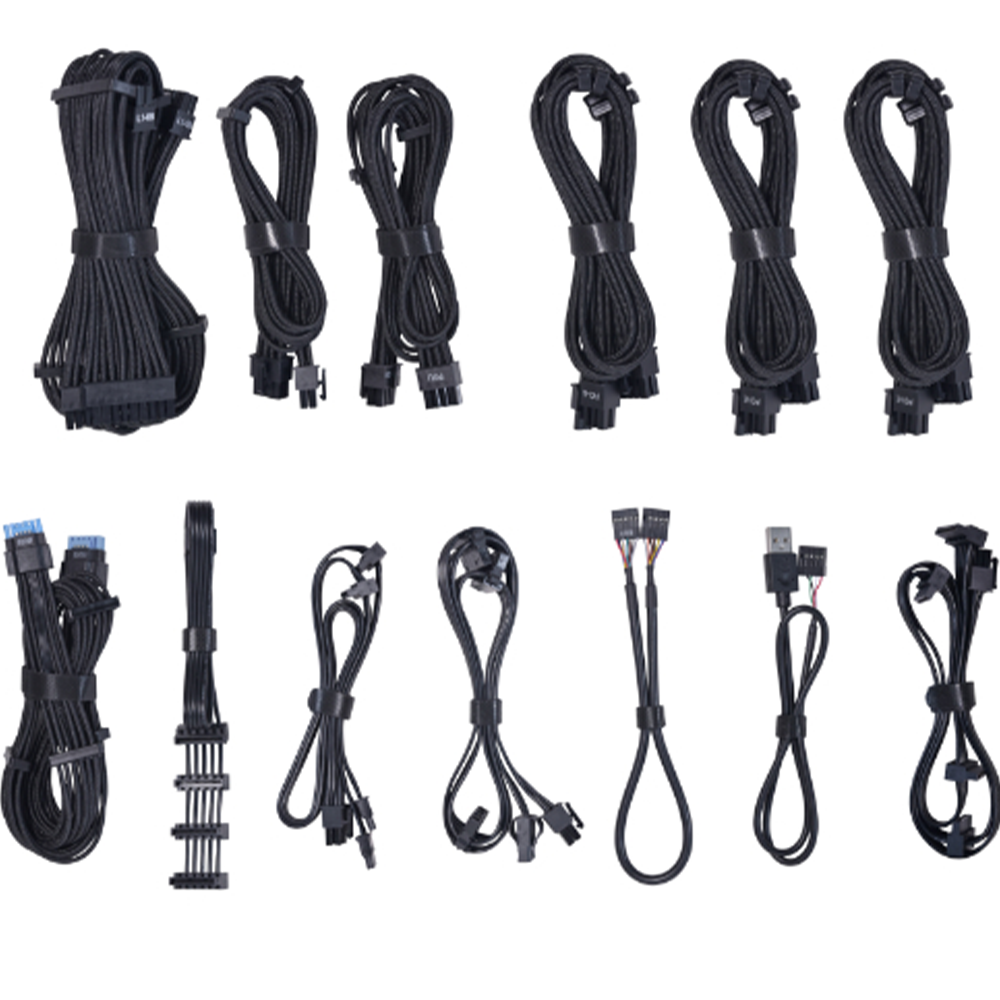

PREMIUM BRAIDED SLEEVED CABLES FOR A CLEAN BUILD:
- The power supply units come equipped with 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables featuring premium braided sleeves. These cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
Product Details:
- MODEL NAME: EDGE850
- MODEL NO.: G9P.EG0850.BE00.UK
- COLOR: Black

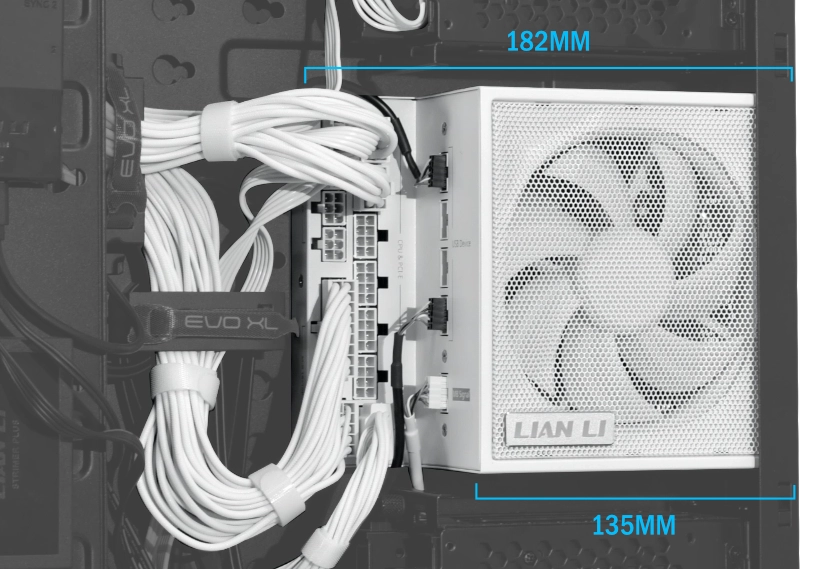

- DIMENSIONS: (D)182 mm X (W)86 mm X (H)150 mm
- POWER SUPPLY DESIGN: Fully modular
- MATERIAL: Steel
- FORM FACTOR: ATX 3.1
- CERTIFICATION: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

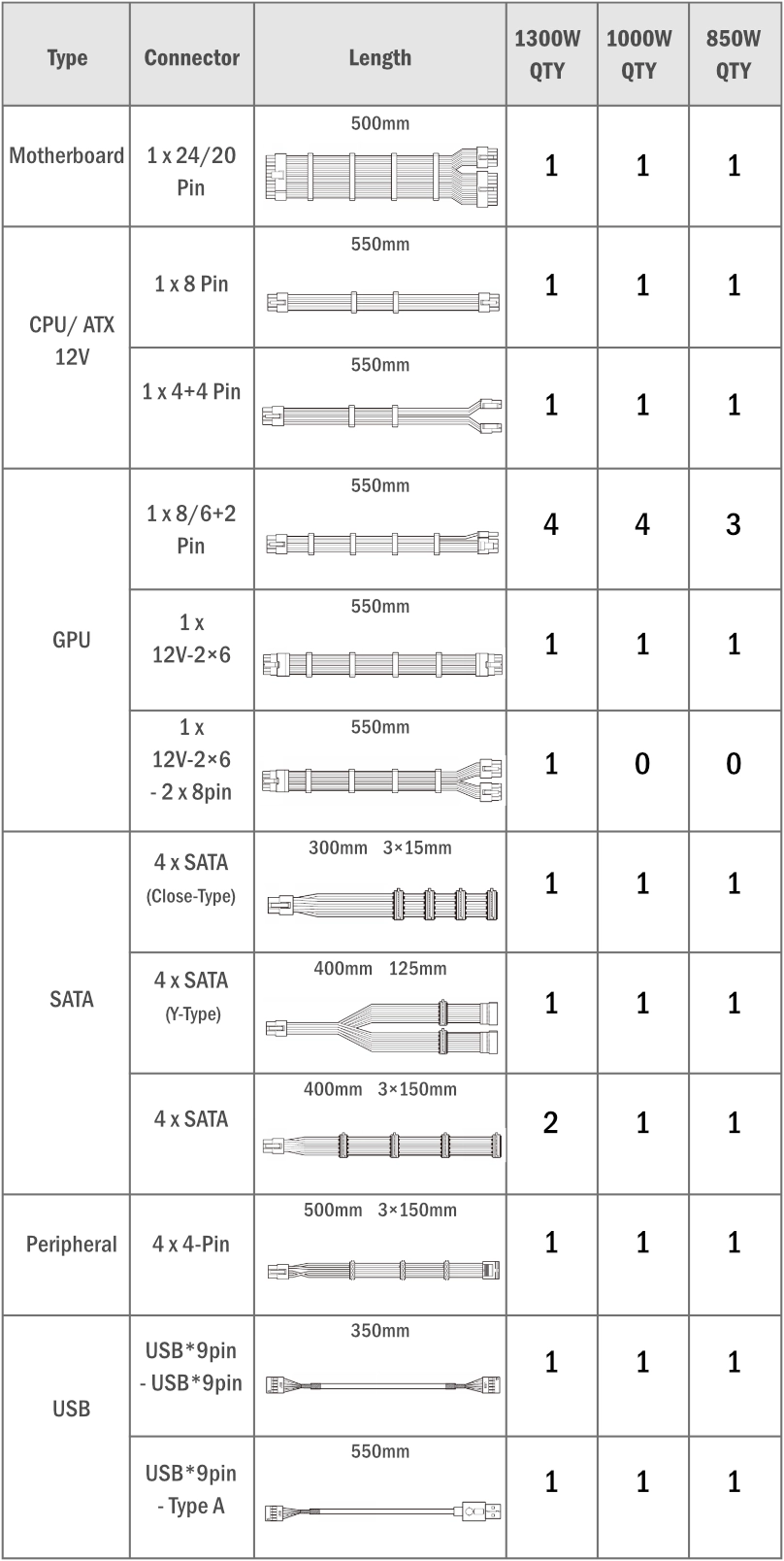

CONNECTORS:
- 1 x 24/20-Pin motherboard connector (500mm) 1x pcs
- 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) 2x pcs
- 1 x 8/6+2 Pin PCle connector (550m m) 3x pcs
- 1 x 12V-2×6 connector (550mm) ×1x pcs
- 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) 1x pcs
- 4 x SATA connector (400mm-150mm-150mm-150mm) 1x pcs
- 4 x SATA connector (300mm-15mm-15mm-15mm) 1x pcs
- 4 x Y Type SATA connector (400mm-125mm x 2) 1x pcs
- USB*9pin – USB*9pin connector (350mm) 1x pcs
- USB*9pin -Type A connector (550mm) 1x pcs
- FAN TYPE: 120mm FDB Fan
- FAN SPEED: 2000RPM
