Product Features:
Unleash Power, Elevate Style
- Experience a PC aesthetic revolution with HydroShift AIO’s side-mounted coolant pathway, integrating cooling tubes with the radiator for a sleek, flawless look.
- This version features more vibrant ARGB fans with impressive airflow performance, reaching a maximum speed of 2400 RPM.
SIDE-MOUNTED DESIGN
- The HydroShift AIO features an innovative side-mounted design for its cooling tubes, which are snugly attached to the side of the radiator. Combined with several thoughtful design elements, this ensures a clean and streamlined appearance for the entire cooling setup once installed.
Pre-Installed Mounting Brackets
- Fixed brackets on the radiator ensure the coolant tubes stay securely in place, with an additional bracket included for cases with limited top-mount space.
Server-Grade Ribbed Tubes
- These highly durable and flexible tubes allow tight bends without compromising internal diameter or flow rate.
Cable Clips
- Used to organize the cooling tubes and cables extending from the pump, ensuring a smooth and cohesive overall appearance.
Dual Direction L-Shaped Shrouds
- Customizable for either side of the radiator to maintain a consistent and stylish appearance.
Pump cover
- Used to conceal the pump bracket, maintaining a sleek and clean aesthetic throughout.
MINIATURE YET MIGHTY
- HydroShift AIO delivers near-identical performance to the GA II Performance while boasting a significantly reduced size. The new design also eliminates the water isolation chamber, reducing the size of the water chamber.

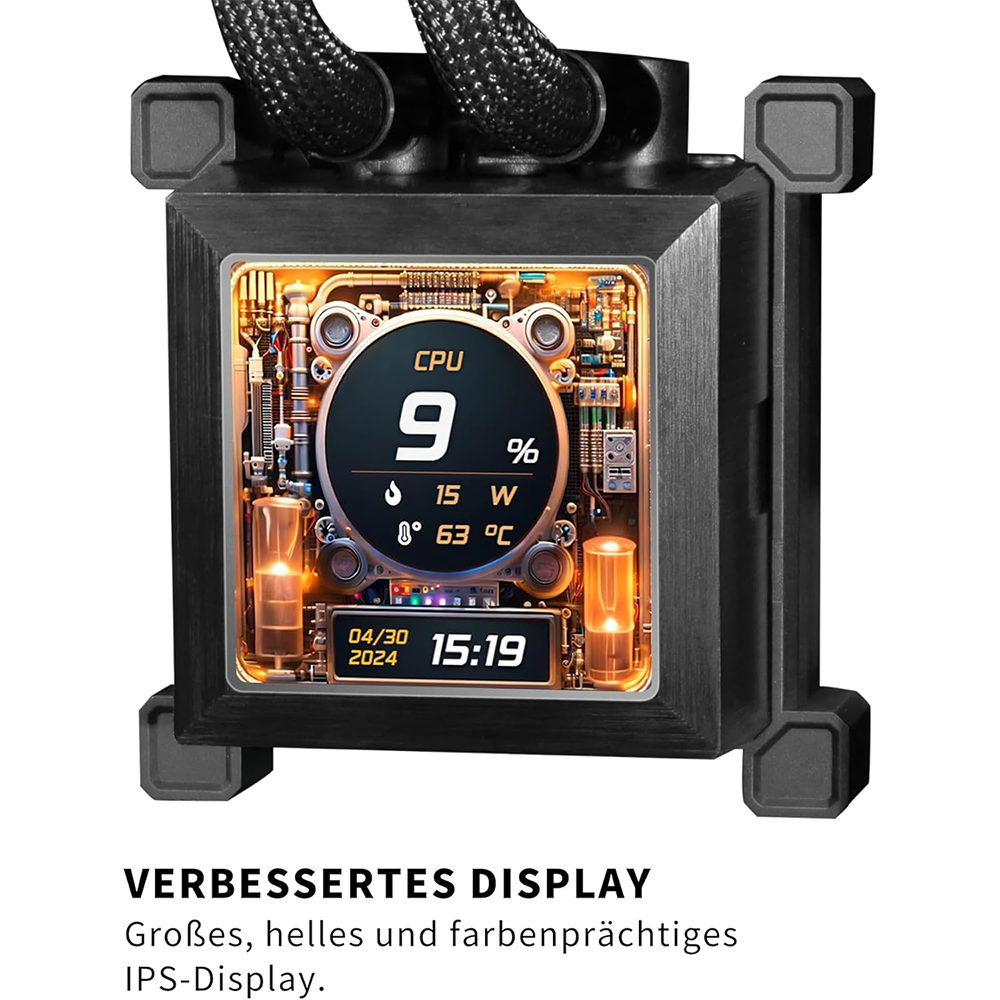

ENHANCED DISPLAY
- Featuring a 480×480 resolution, 500 nits brightness, and 24-bit full color, customizable via L-Connect 3.
Real-time monitoring
- The real-time monitoring feature displays load, temperature, frequency, and other CPU/GPU info, with an adjustable layout. The number of sensors has increased from 2 to 4 compared to the GA II LCD version.
Dynamic effects
- Once the monitoring information layout is set, dynamic effects can be added for enhancement. The intensity and speed of these effects can be freely adjusted, or they can be set to change in response to the monitored hardware information.
OPTIMIZED CABLE MANAGEMENT
- Compared to previous AIO products, the HydroShift AIO has optimized its cable management.
Product Details:

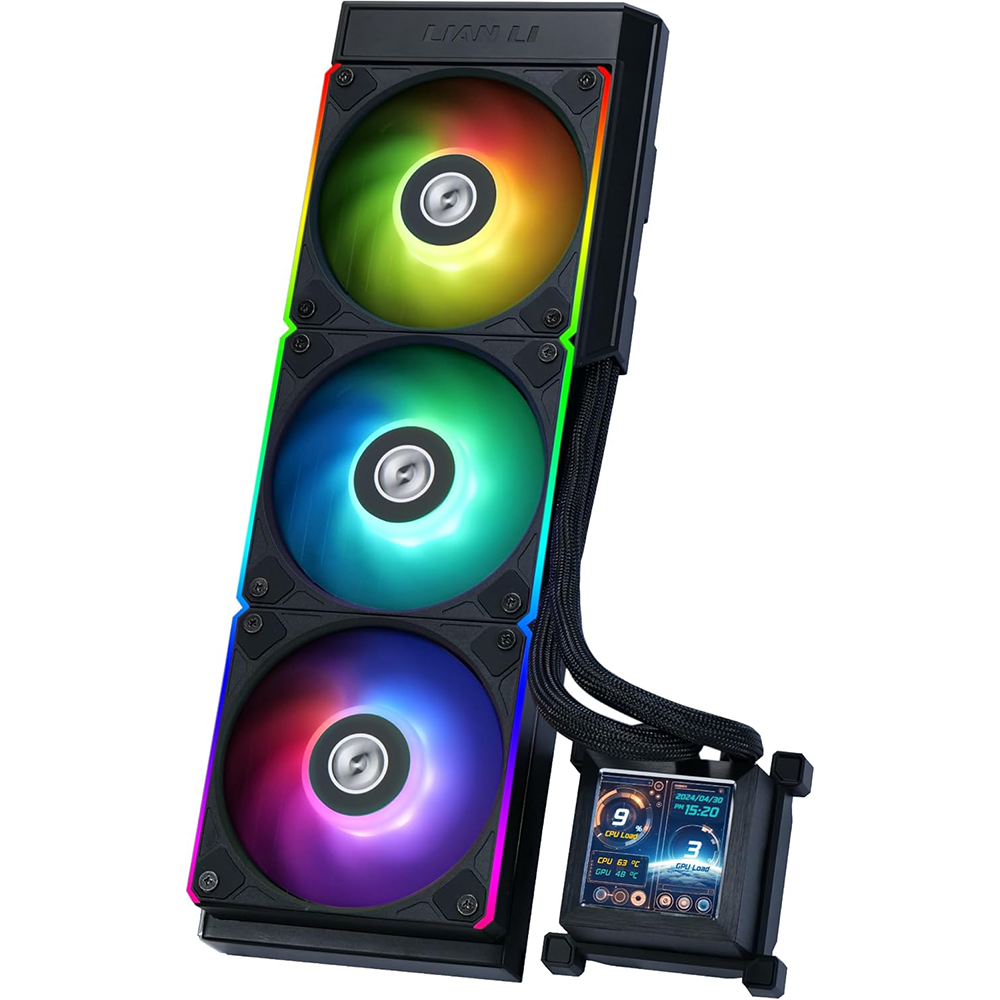

- MODEL NAME: HydroShift LCD 360R
MODEL NO.:
- Black: G89.GHSLCD36RB.00
- White: G89.GHSLCD36RW.00
- TYPE: 360
- PUMP SPEED: 3200RPM (Max.)
- WATER BLOCK DIMENSION: 73.2 x 73.2 x 58.6mm
- LCD DISPLAY TYPE: 2.88” IPS
WATER BLOCK TYPE:
- LCD DISPLAY RESOLUTION: 480 × 480
- SCREEN BRIGHTNESS: 500 nits
- RADIATOR DIMENSION: 403 x 124.5 x 31mm
- RADIATOR MATERIAL: Aluminum
- TUBE LENGTH: 475mm
- FAN DIMENSION: 124 x 120 x 28 mm
- FAN SPEED: 300~2400 RPM
- STATIC PRESSURE: 3.26mm H2O (Max.）
- AIRFLOW: 79.9 CFM（Max.)
- ACOUSTIC NOISE: 30 db(A)
COMPATIBLE CPU SOCKETS:
- Intel: LGA 1700
- AMD: AM5 / AM4
