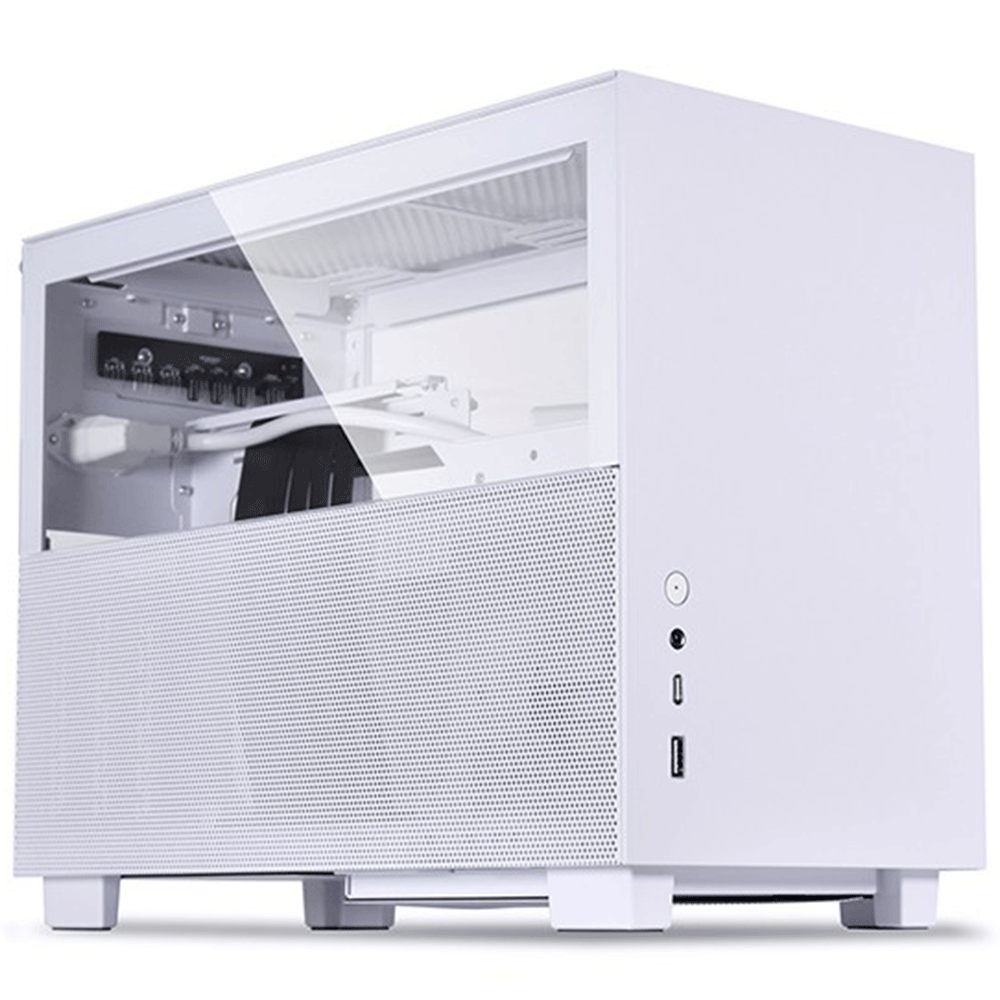

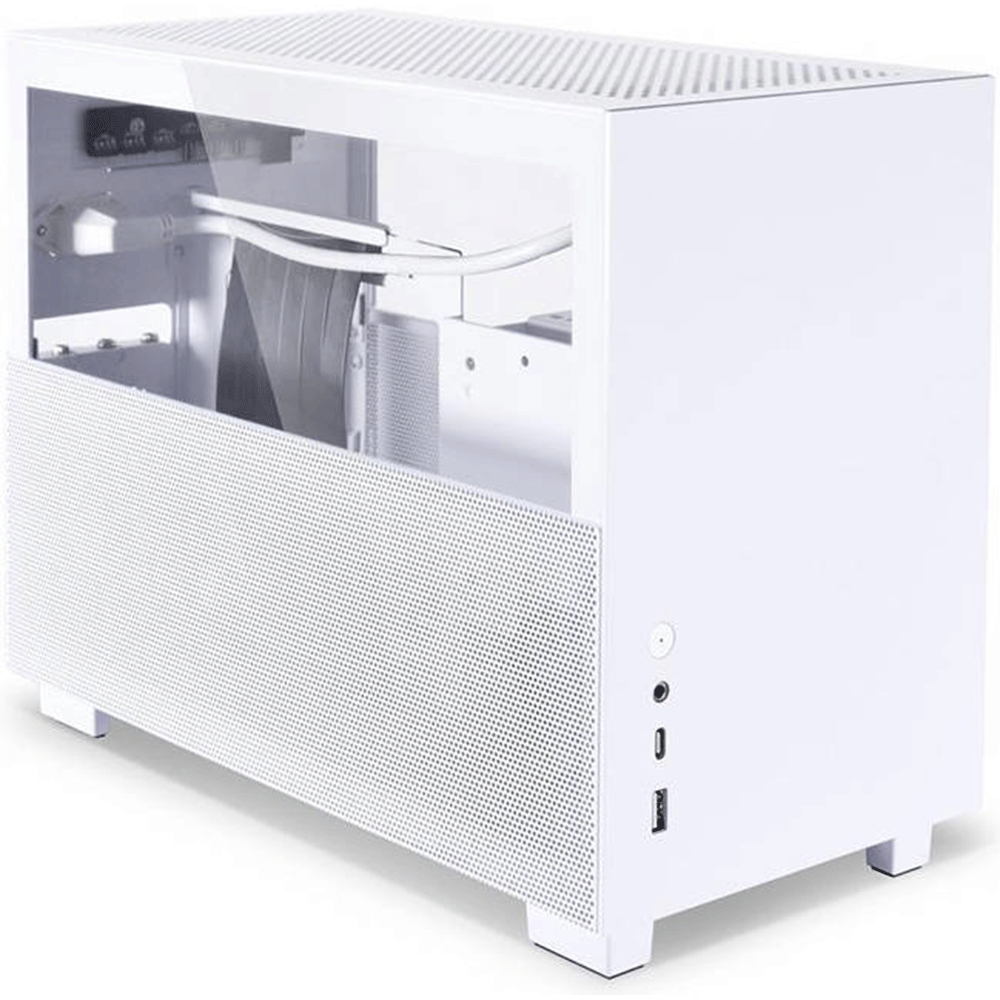

- Mini-ITX Aluminum Chassis
- Features swappable hinged glass and mesh panels
- Included PCIe 4.0 riser cable for vertically mounted GPU
- Supports SFX PSU and up to 160mm long ATX PSU
- Supports 4 storage drive mounting locations
- Cable management friendly with tie points and included LED/ fan hub
- The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.
- The Q58 can accommodate both the airflow and the look of your choice.
- Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.
- Exclusively design for the Q58, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.
- In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.
- In ATX PSU mode, the Q58 has room for a 120mm AIO.
- The Q58 implements a PCIe 3.0 or PCIe 4.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.
Product details :
- Case Motherboard Support : Mini-ITX
- Case Form Factor : Mini-ITX
- Color : White
- Number of Equipped Fans : N/A
- Lighting : N/A
- Case Dimensions : 342mm x 170mm x 250mm
- Radiator Compatibility (Top) : SFX PSU Mode : (240mm, 280mm) / ATX PSU Mode : (120mm, 140mm)
- Radiator Compatibility (Front) : N/A
- Radiator Compatibility (buttom) : 120mm
- Radiator Compatibility (Rear) : N/A
- Internal 3.5" Drive Bays : 1
- Internal 2.5" Drive Bays : 3 OR 4 without 3.5
- Maximum CPU Cooler Height : 67
- Case Front IO : 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO
- Maximum GPU Length : 320
- Weight : 4Kg
- Case Expansion Slots : 3 vertical
- Case Power Supply : SFX/ ATX (Max length 160mm)
Part Number:
- G99.Q58W4.00
