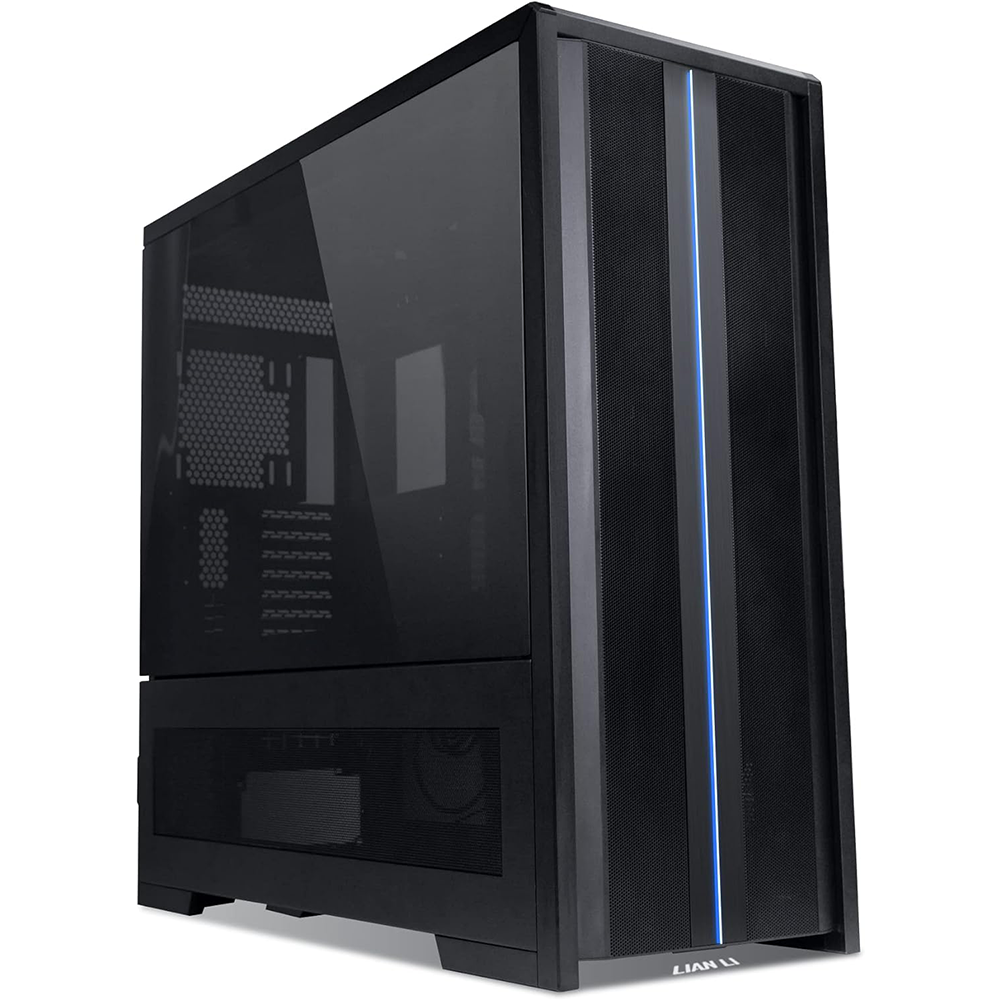

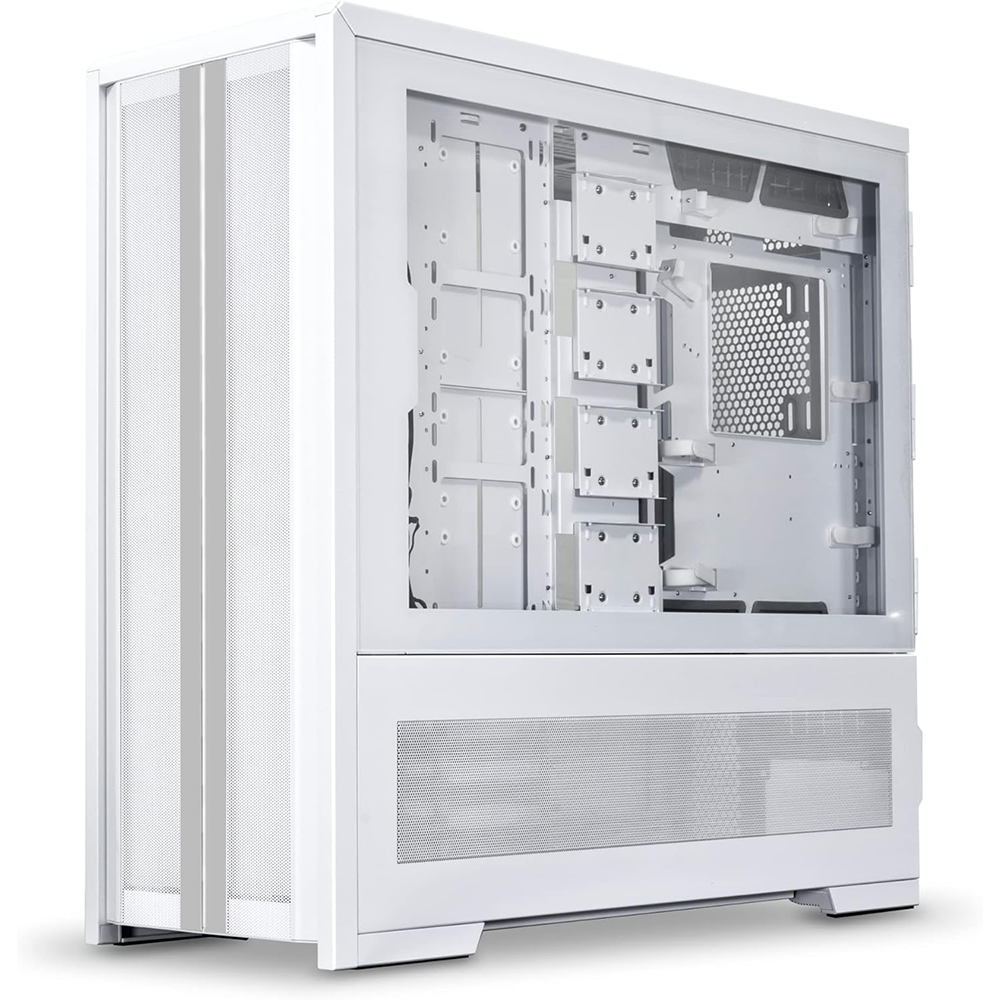

- V3000 PLUS, the legend’s continuation, is an eye-catching full tower chassis. Designed for enthusiasts, the V3000 PLUS offers a great building process and improved thermal control.
Product Features :
- Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
- Capability to support an EEB motherboard and an ITX motherboard
- Supports up to 3×480 + 1×360 radiators and a maximum of 16 fans
- Two reservoir plates accommodate large D5/ DDC pump
- Stores up to 16 storage drives at drive cages and trays
- Modular removable brackets offer flexibility for builds
- Cable management friendly with 7 Velcro straps

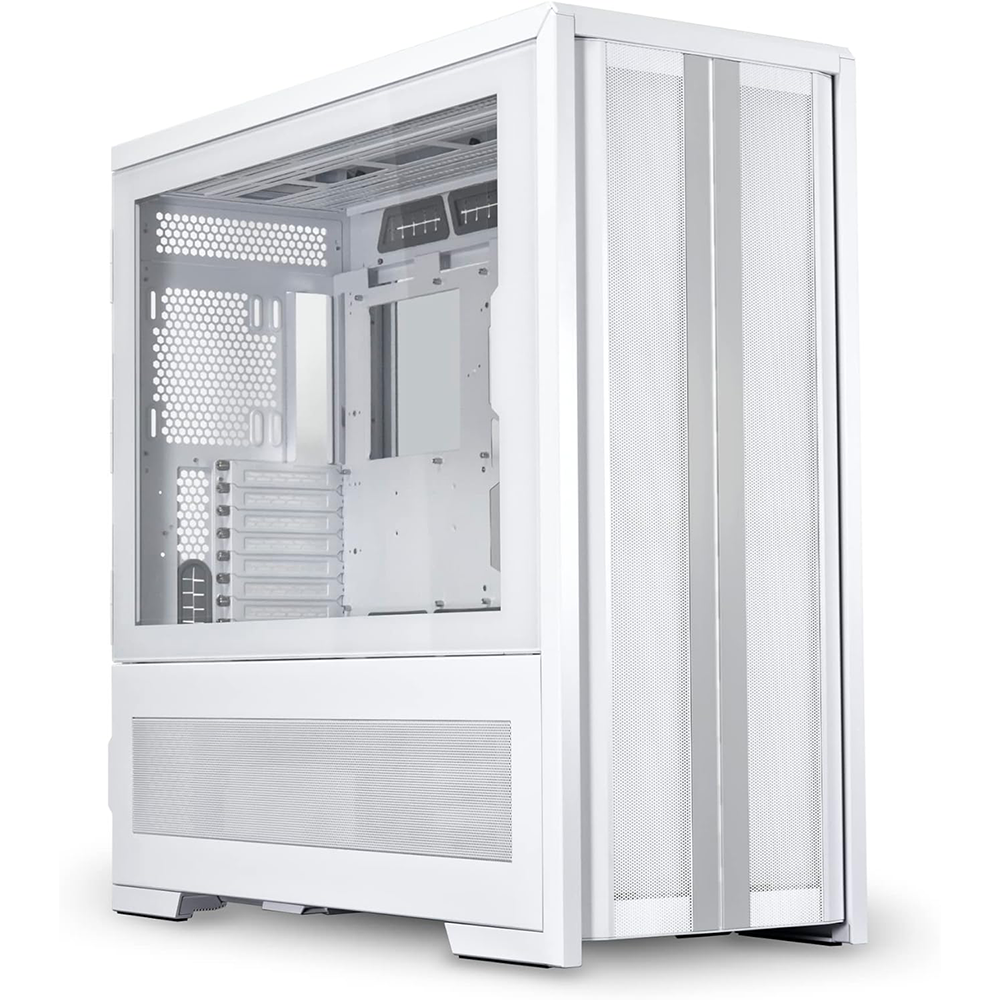

- Available in black and white (GGF Edition)
Product Details :
- MODEL : V3000PX / V3000PW
- DIMENSIONS : (D) 678.5mm x (W) 279mm x (H) 674mm
- COLOR : Black / White
- MOTHERBOARD SUPPORT :
Standard Mode :
- EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Rotated Mode :
- EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Dual System Mode :
- System 1 – EEB/E-TX/ATX/Micro-ATX/Mini-ITX
- System 2 – Mini-ITX
FAN SUPPORT :
Standard Mode :
- Front : 4 x 120mm or 3 x 140mm
- Top : 4 x 120mm or 3 x 140mm or 2 x 200mm
- Above PSU Chamber : 3 x 120mm or 3 x 140mm
- Bottom side : 4 x 120mm or 3 x 140mm
- Rear : 1 x 120mm or 1 x 140mm
Rotated Mode :
- Front : 4 x 120mm or 3 x 140mm
- Top : 4 x 120mm or 3 x 140mm or 2 x 200mm
- Bottom side : 4 x 120mm or 3 x 140mm
- Rear : 3 x 120mm or 2 x 140mm
- Above PSU Chamber : 1 x 120mm or 1 x 140mm
Dual System Mode :
- Front : 4 x 120mm or 3 x 140mm
- Top : 4 x 120mm or 3 x 140mm or 2 x 200mm
- Above PSU Chamber : 2 x 120mm or 2 x 140mm
- Bottom side : 4 x 120mm or 3 x 140mm (without System 2 GPU)
- Rear : 1 x 120mm or 1 x 140mm
RADIATOR SUPPORT :
Standard Mode :
- Front : 480mm or 420mm
- Top : 480mm or 420mm
- Above PSU Chamber : 360mm or 420mm
- Bottom side : 480mm or 420mm
- Rotated Mode :
- Front : 480mm or 420mm
- Top : 480mm or 420mm
- Bottom side : 480mm or 420mm
- Rear : 360mm or 280mm
Dual System Mode :
- Front : 480mm or 420mm
- Top : 480mm
- Above PSU Chamber : 240mm or 280mm
- Bottom side : 480mm or 420mm (without System 2 GPU)
PSU SUPPORT :
- System 1 – ATX (Max 220mm)
System 2 – SFX-L/SFX
GPU LENGTH :
Standard Mode :
- Max 589mm
Rotated Mode :
- Max 358mm
Dual System Mode :
- System 1 – Max 589mm
- System 2 – Max 320mm (Width max 125mm)
CPU COOLER HEIGHT :
- System 1 – Max 198mm
- System 2 – Max 80mm
DRIVE SUPPORT :
- Drive Cage : 8 × 2.5” SSD or 8 × 3.5” HDD
- Side : 4 × 2.5” SSD
- Behind MB tray : 4 × 2.5” SSD
EXPANSION SLOT :
- System 1 – 8
- System 2 – 3 (at PSU shroud, with optional riser cable)

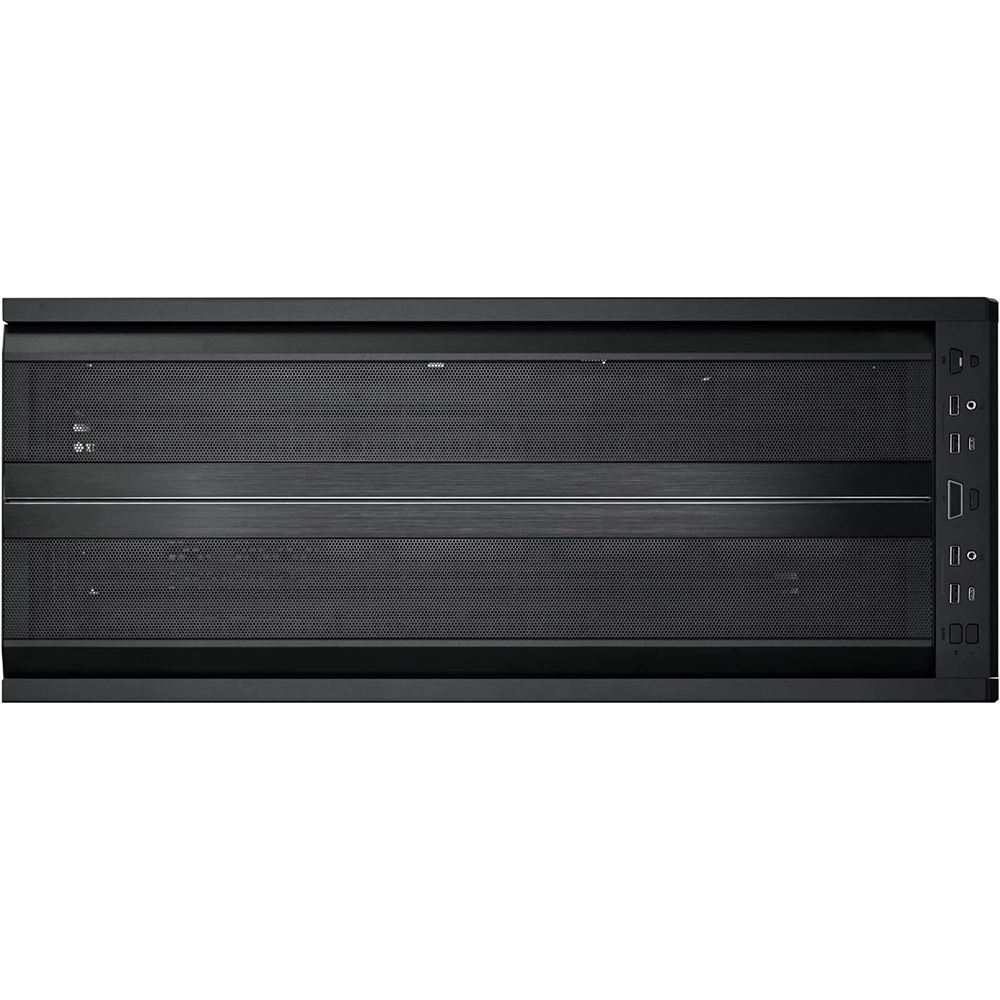

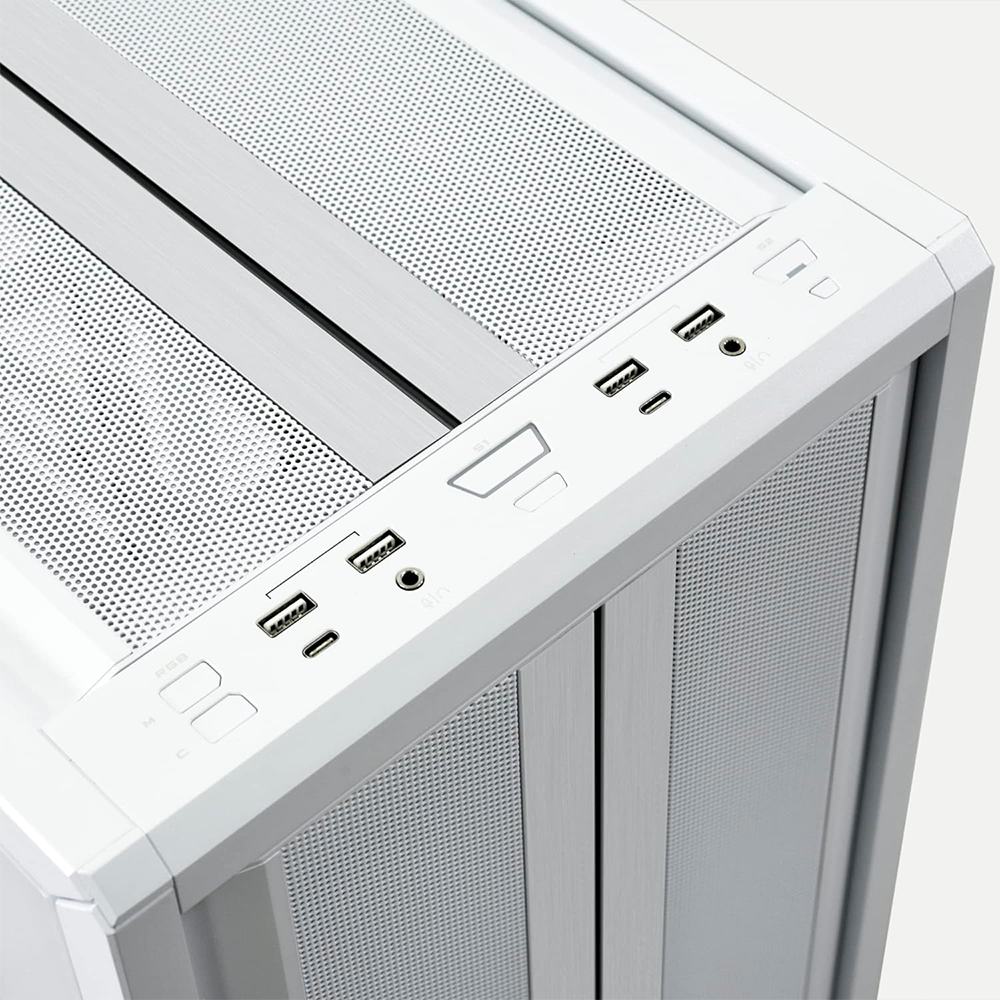

I/O PORTS :
System 1 :
- 1 x Power Button
- 1 x Reset Button
- 1 x Light Color Button (C)
- 1 x Light Mode Button (M)
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Audio
System 2 :
- 1 x Power Button
- 1 x Reset Button
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Audio
Part Number:
- Black: G99.V3000PX.00
- White: G99.V3000PW.00
